Model Details

SJ-35-EF

Printer Friendly
SJ-35-EF

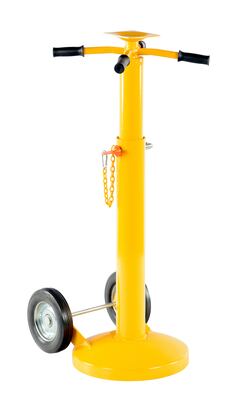

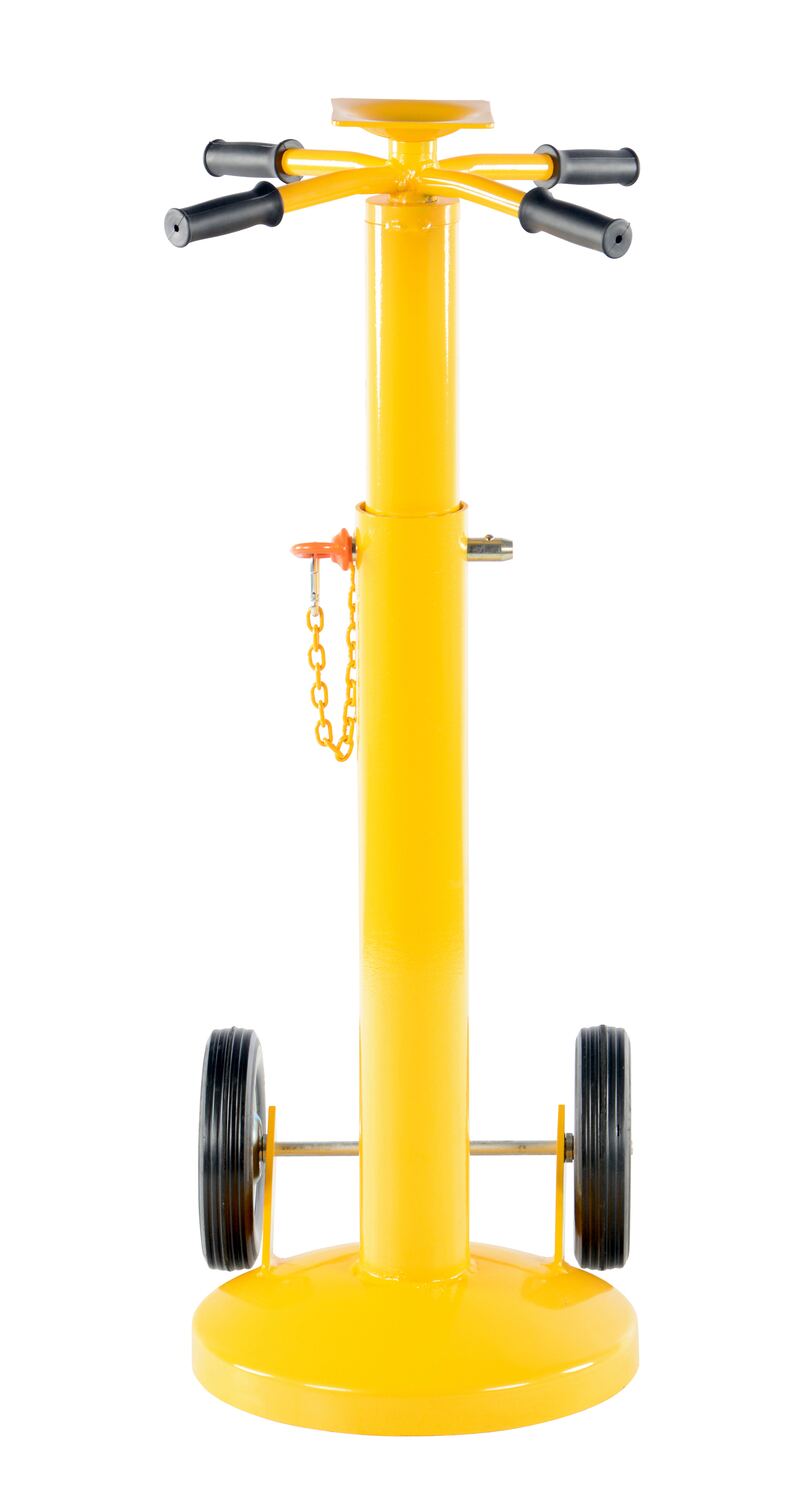

Steel Economy Stabilizing Jack with Hard Rubber Wheels 18-1/4 In. x 16-5/8 In. x 41 In. 5,000 Lb. Lifting Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. Also used to prevent landing gear from sinking into a soft surface. High strength steel construction. Flush-type Zerk fitting for lubricating ACME screw. Meets OSHA regulations when used with wheel chocks. Powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Total Ship Wt.(lbs.): 57 (only 1 package) Size: 16.625"W x 18.25"L x 41"H Color: Yellow QuickShip

Uniform Static Capacity (lb.): 50,000 Uniform Lifting Capacity (lb.): 5,000 Lowered Height (in.): 41
Raised Height (in.): 57-1/2 Wheel Size (in.): 8 Wheel Type: Hard Rubber
Base Type: Economical Handles (qty.): 4 Top Plate Width/Length (in.): 5 x 5
Swivel Head Maximum Extension Distance (in.): 7-5/16 Swivel Head Screw Diameter (in.): 1-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: SJ-35-EF
SJ-35-EF

Steel Economy Stabilizing Jack with Hard Rubber Wheels 18-1/4 In. x 16-5/8 In. x 41 In. 5,000 Lb. Lifting Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. Also used to prevent landing gear from sinking into a soft surface. High strength steel construction. Flush-type Zerk fitting for lubricating ACME screw. Meets OSHA regulations when used with wheel chocks. Powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Dimensions: 16.625"W x 18.25"L x 41"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215036092 GTIN: 00691215036092
Warranty: -- Shipping Weight: 57 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 50,000 Uniform Lifting Capacity (lb.): 5,000 Lowered Height (in.): 41
Raised Height (in.): 57-1/2 Wheel Size (in.): 8 Wheel Type: Hard Rubber
Base Type: Economical Handles (qty.): 4 Top Plate Width/Length (in.): 5 x 5
Swivel Head Maximum Extension Distance (in.): 7-5/16 Swivel Head Screw Diameter (in.): 1-1/2
