Model Details

SQ-72-TB-HWR

SQ-72-TB-HWR

Steel Safety Handrail with Hardware and Toe Board 74-1/2 In. x 4 In. x 42 In. Yellow

Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish, hardware included.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes (anchor bolts included) provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

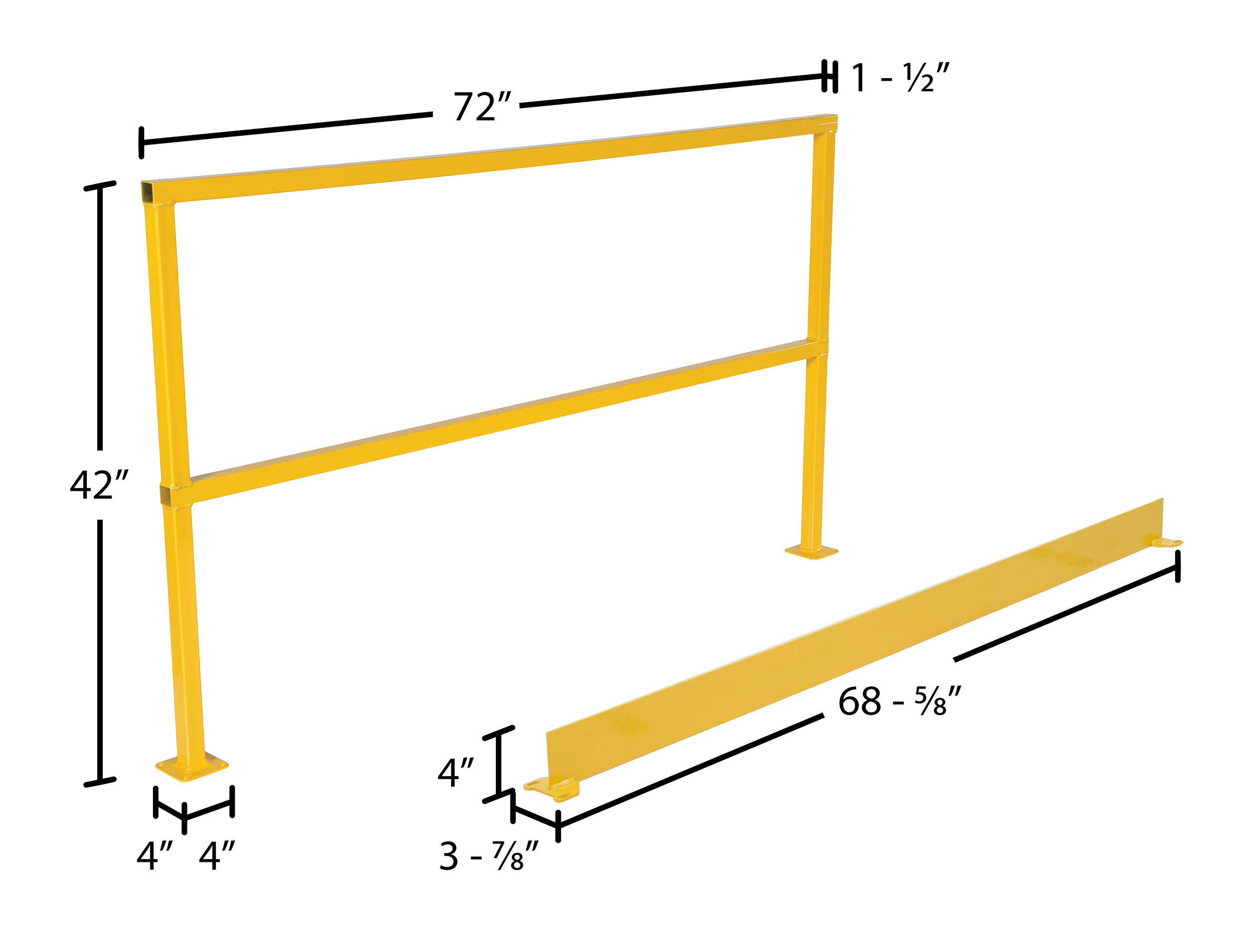

Total Ship Wt.(lbs.): 93 (only 1 package) Size: 4"W x 74.5"L x 42"H Color: Yellow

Square Tube O.D.(in.): 1-1/2 Mid-Rail Height (in.): 21-3/16 Usable Length (in.): 72
Section Style: Rigid with Toeboard Bolt Holes (qty.): 8 Toeboard Height (in.): 4
Anchor Bolt Quantity/Size: (8) 3x3/8 OSHA: 1910.23

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SQ-72-TB-HWR


SQ-72-TB-HWR

Steel Safety Handrail with Hardware and Toe Board 74-1/2 In. x 4 In. x 42 In. Yellow

Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish, hardware included.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes (anchor bolts included) provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability
Dimensions: 4"W x 74.5"L x 42"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215055840 GTIN: 00691215055840
Warranty: -- Shipping Weight: 93 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Square Tube O.D.(in.): 1-1/2 Mid-Rail Height (in.): 21-3/16 Usable Length (in.): 72
Section Style: Rigid with Toeboard Bolt Holes (qty.): 8 Toeboard Height (in.): 4
Anchor Bolt Quantity/Size: (8) 3x3/8 OSHA: 1910.23
