model: SQ


Square Safety Handrails
SERIES: SQ,WM,CSEC,TOE

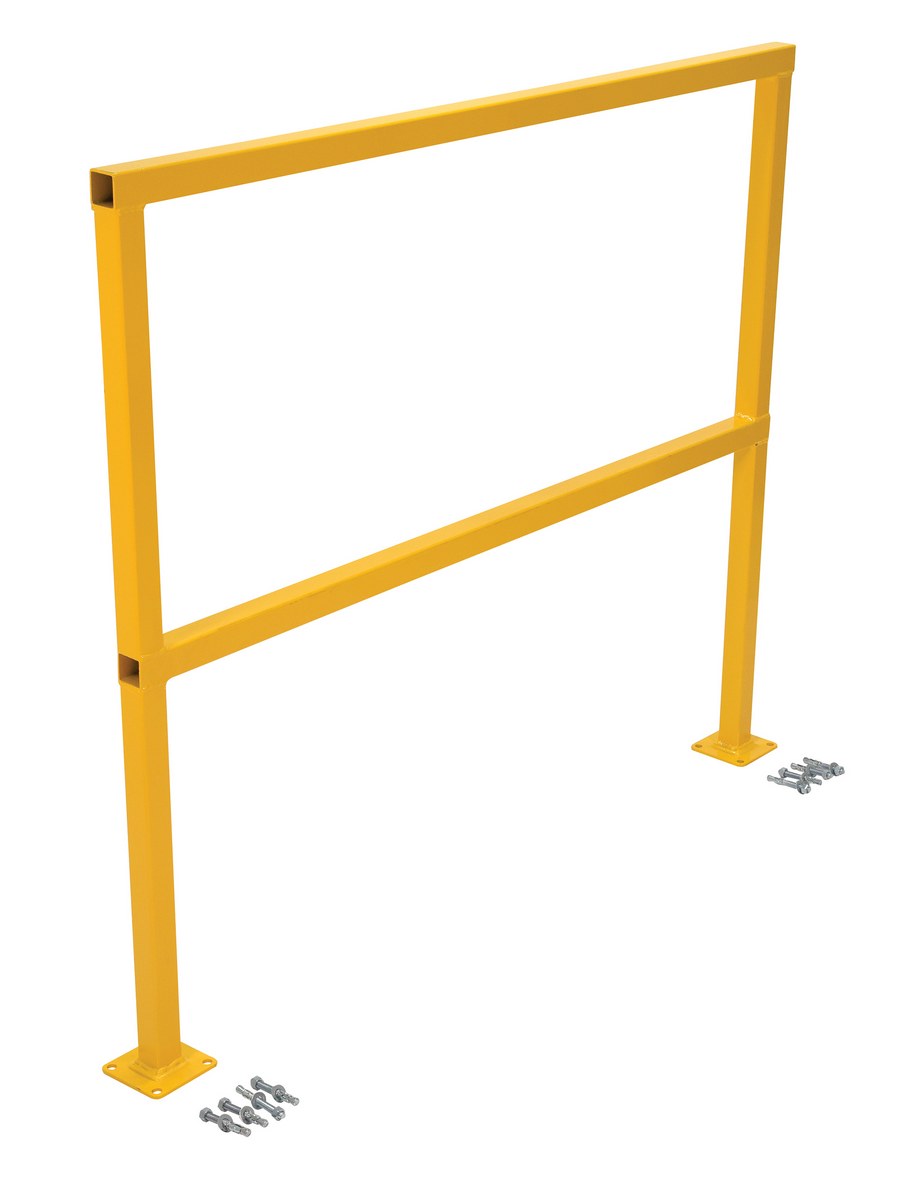

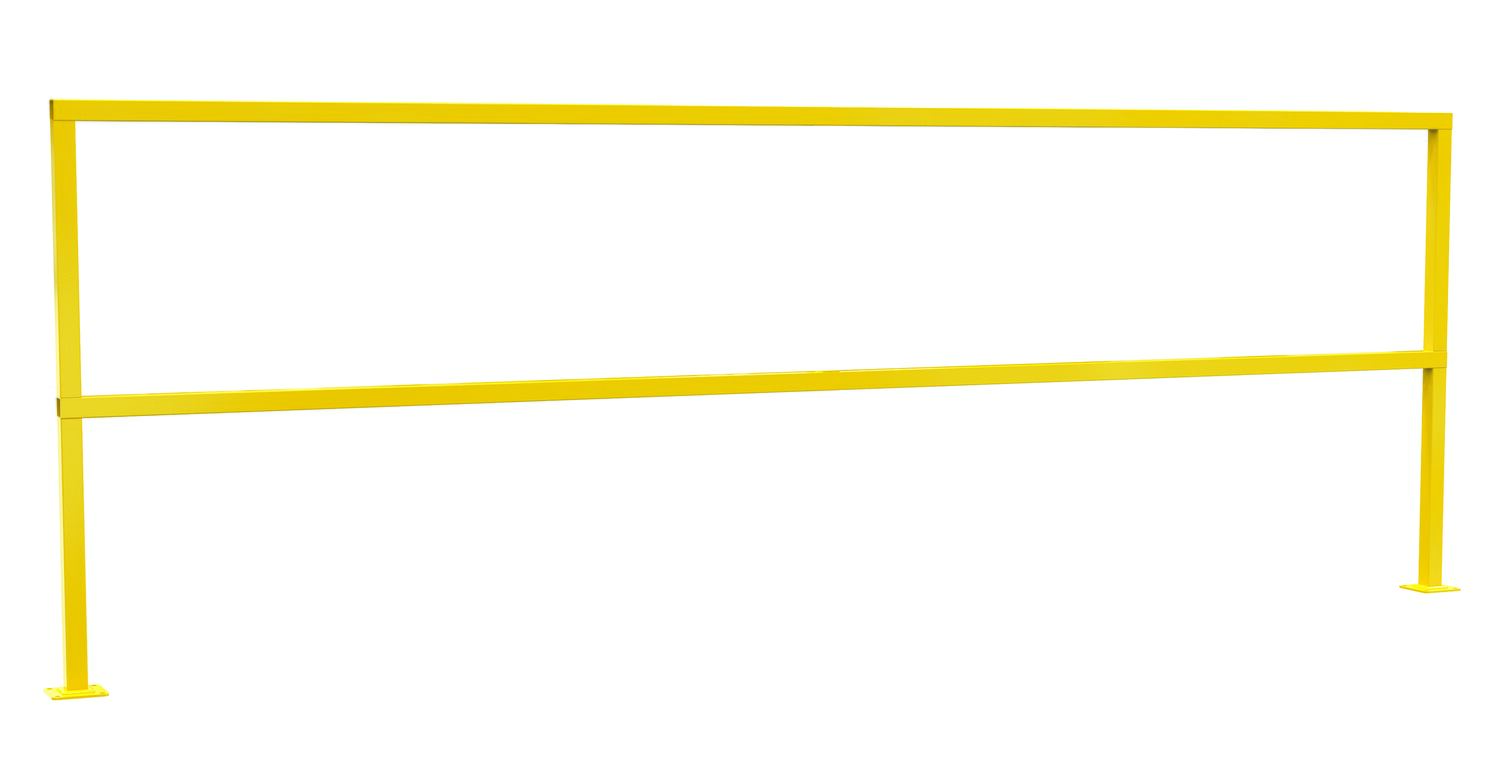

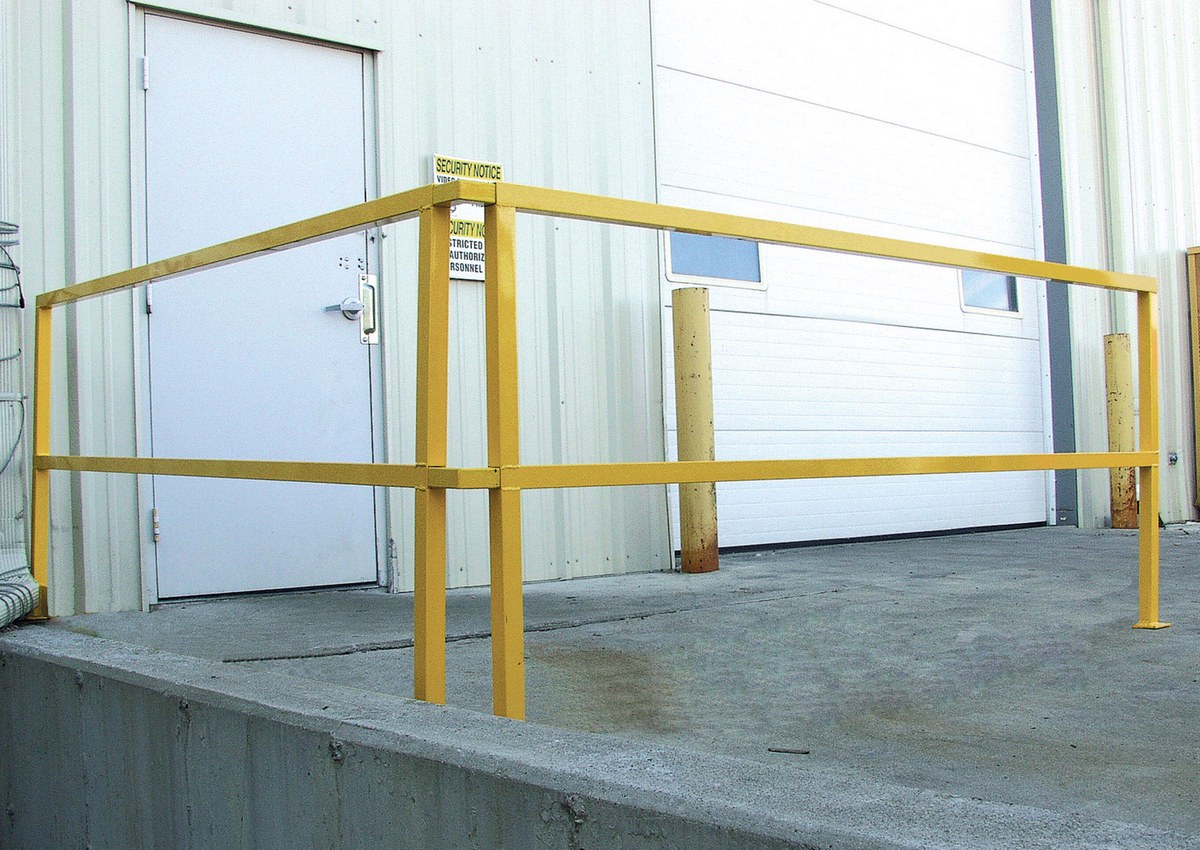

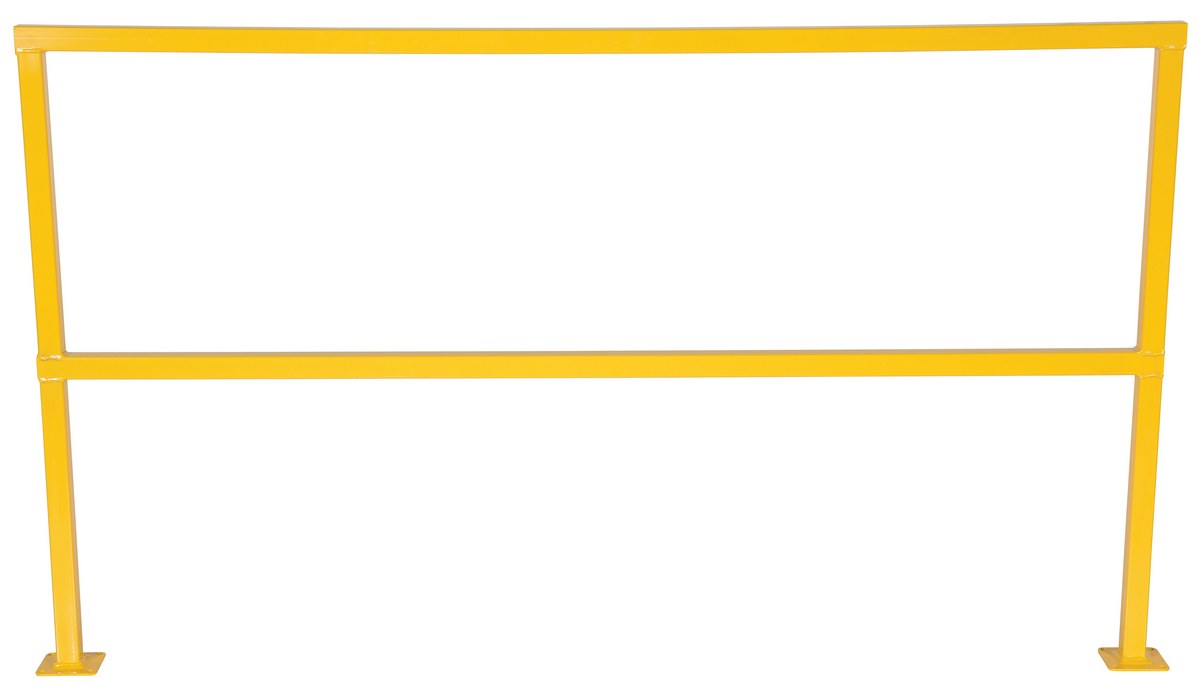

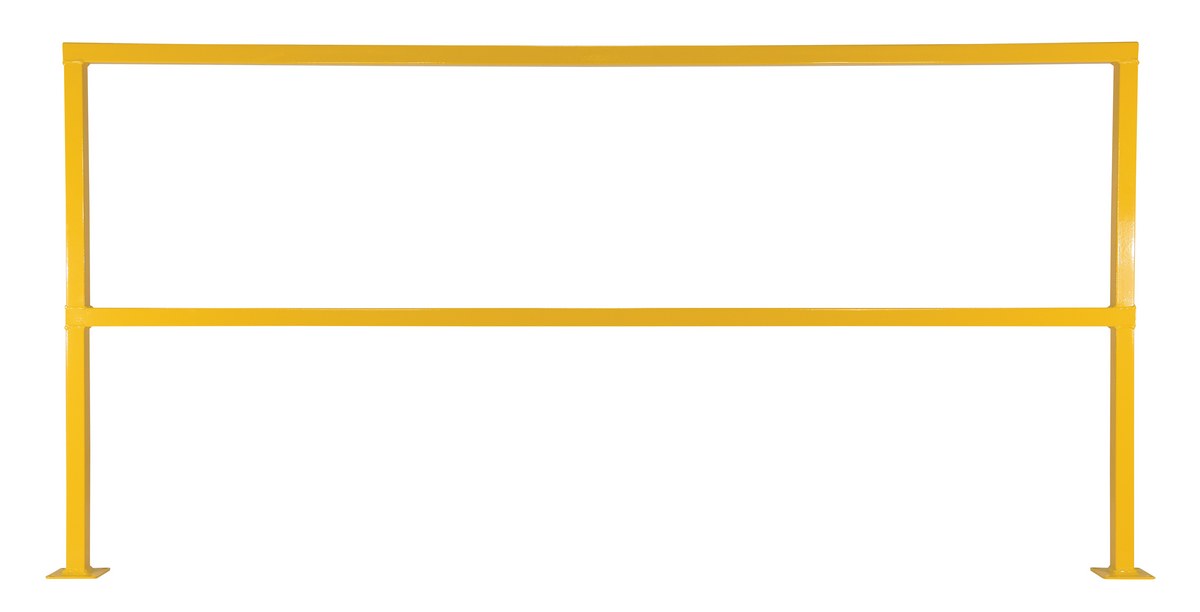

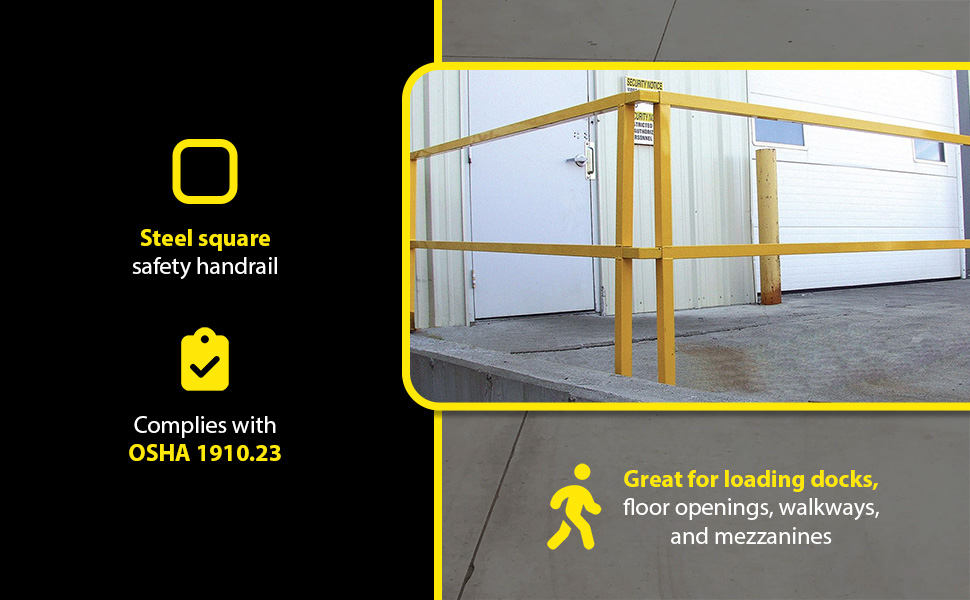

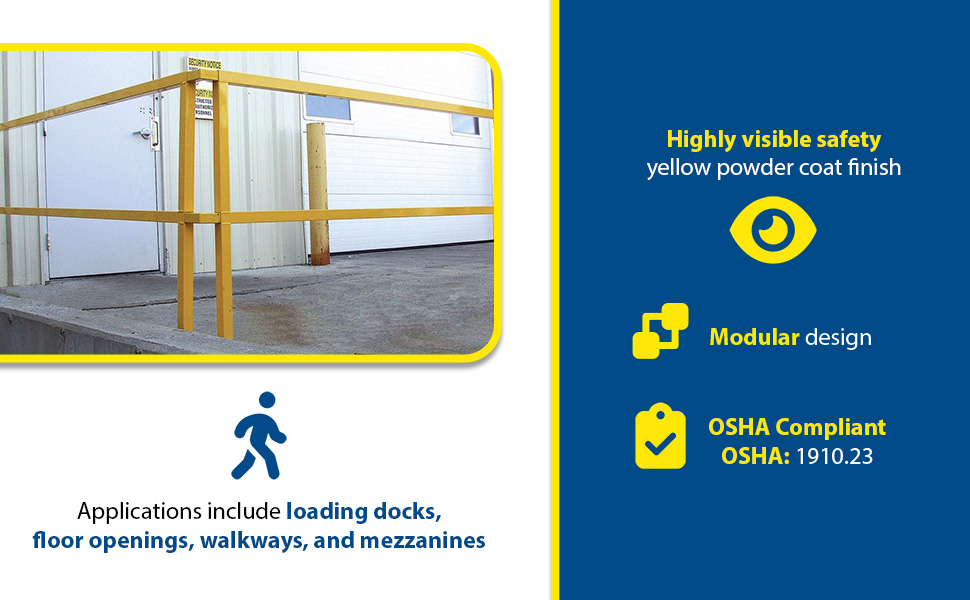

Steel Square Safety Handrails are an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish. Available with or without toeboards as application requires.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

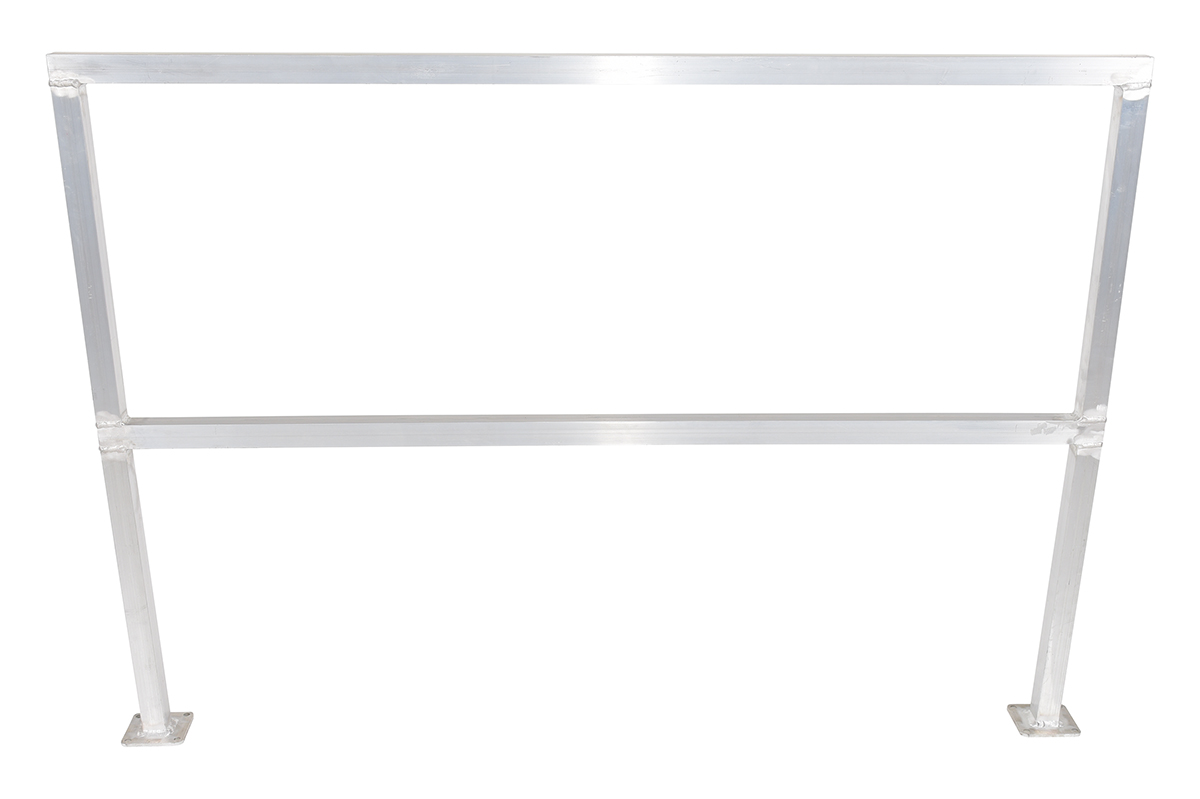

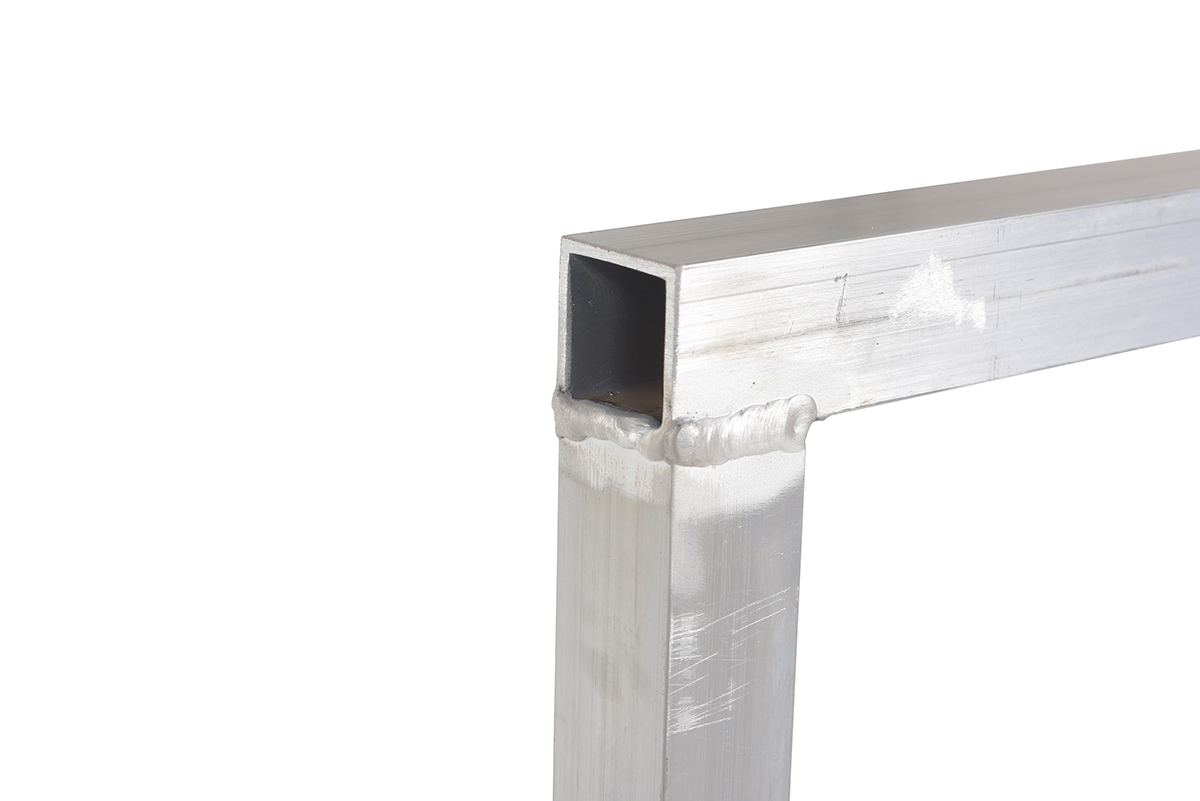

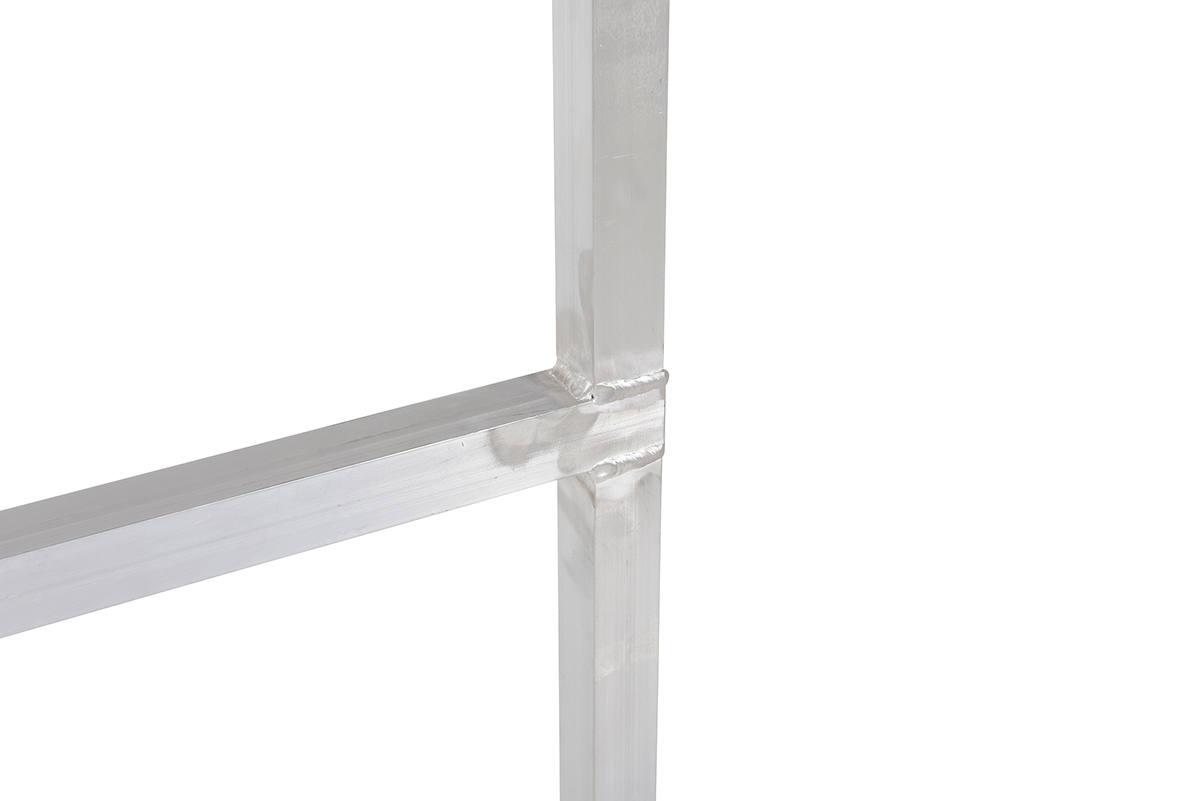

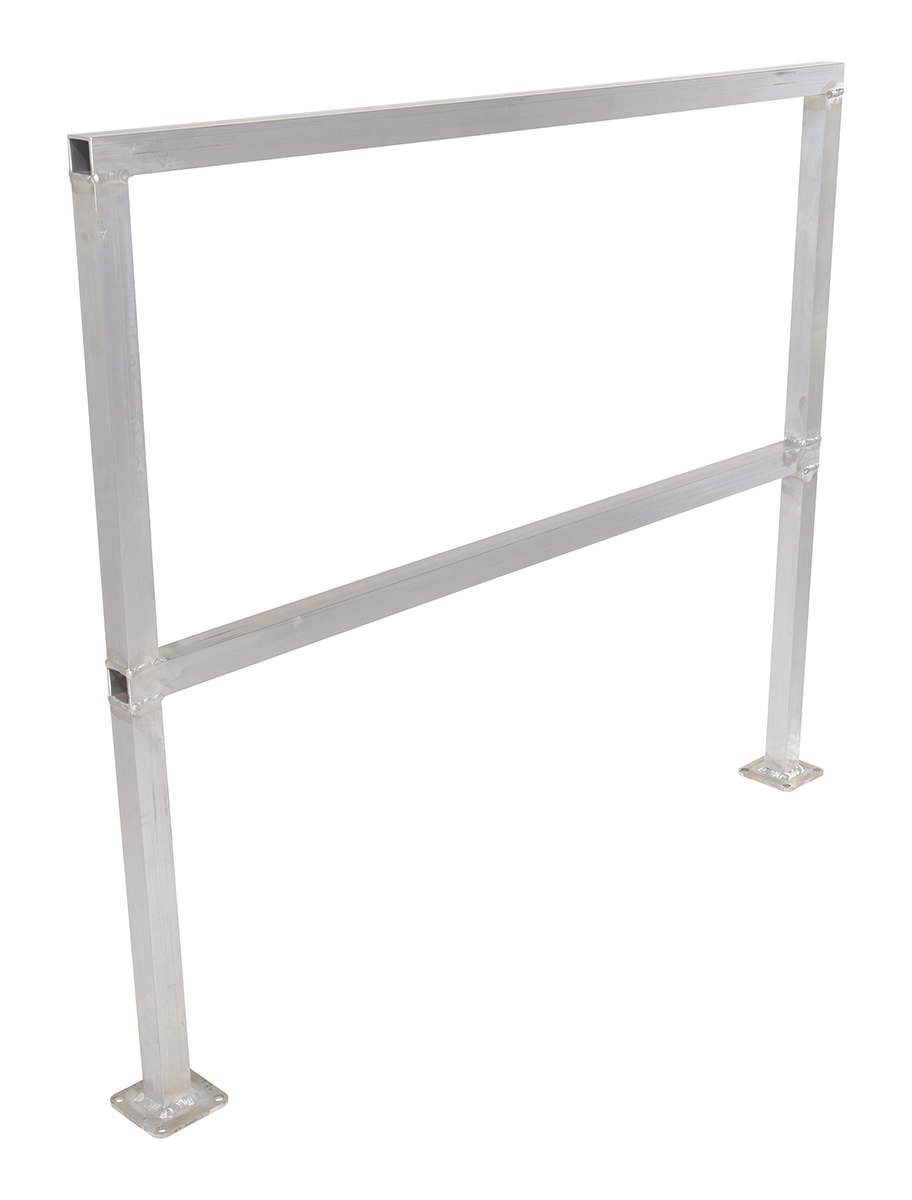

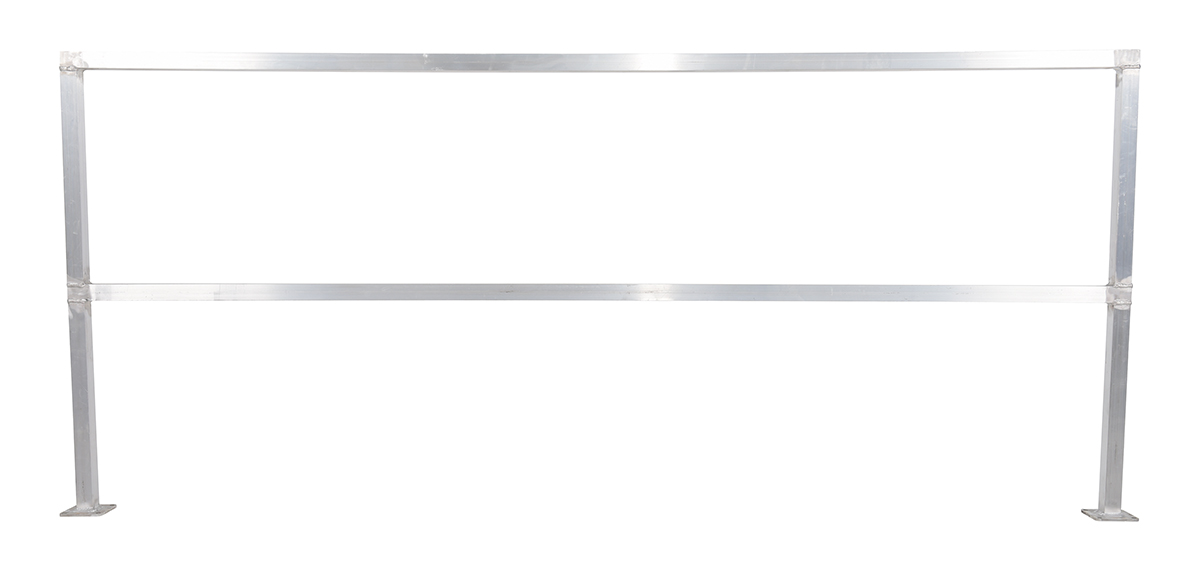

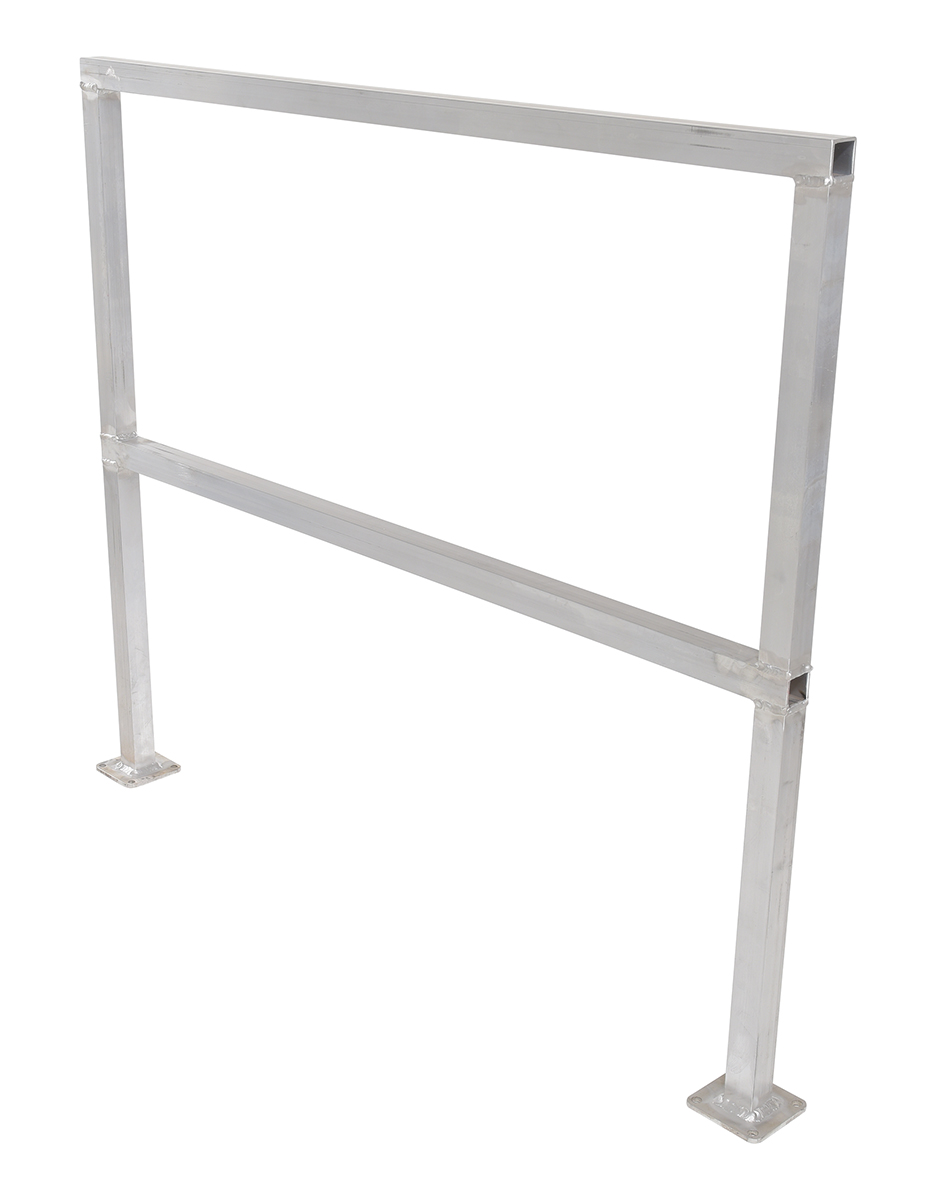

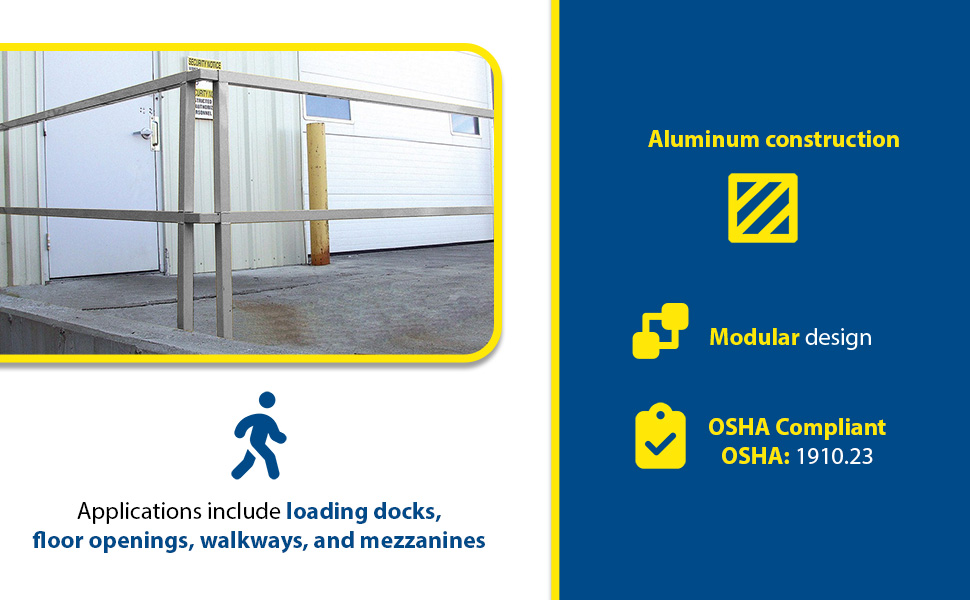

Aluminum Square Safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Robust design provides stabilization throughout those areas.

  • Modular design allows for maximum versatility
  • Square aluminum construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Smooth surface for maximum durability

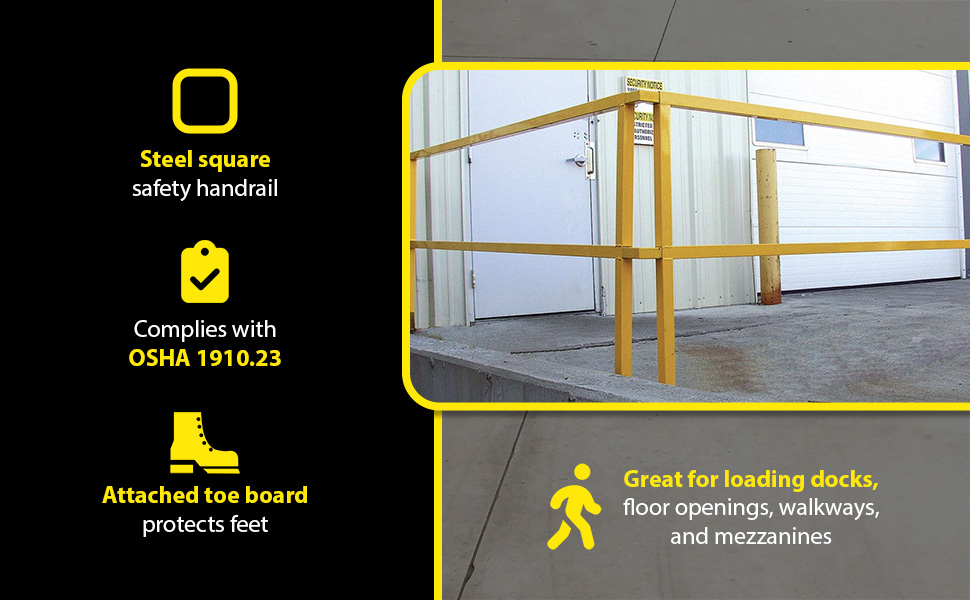

Steel Square Safety Handrails are an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish. Available with or without toeboards as application requires.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

Aluminum Square Safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Robust design provides stabilization throughout those areas.

  • Modular design allows for maximum versatility
  • Square aluminum construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Smooth surface for maximum durability



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)

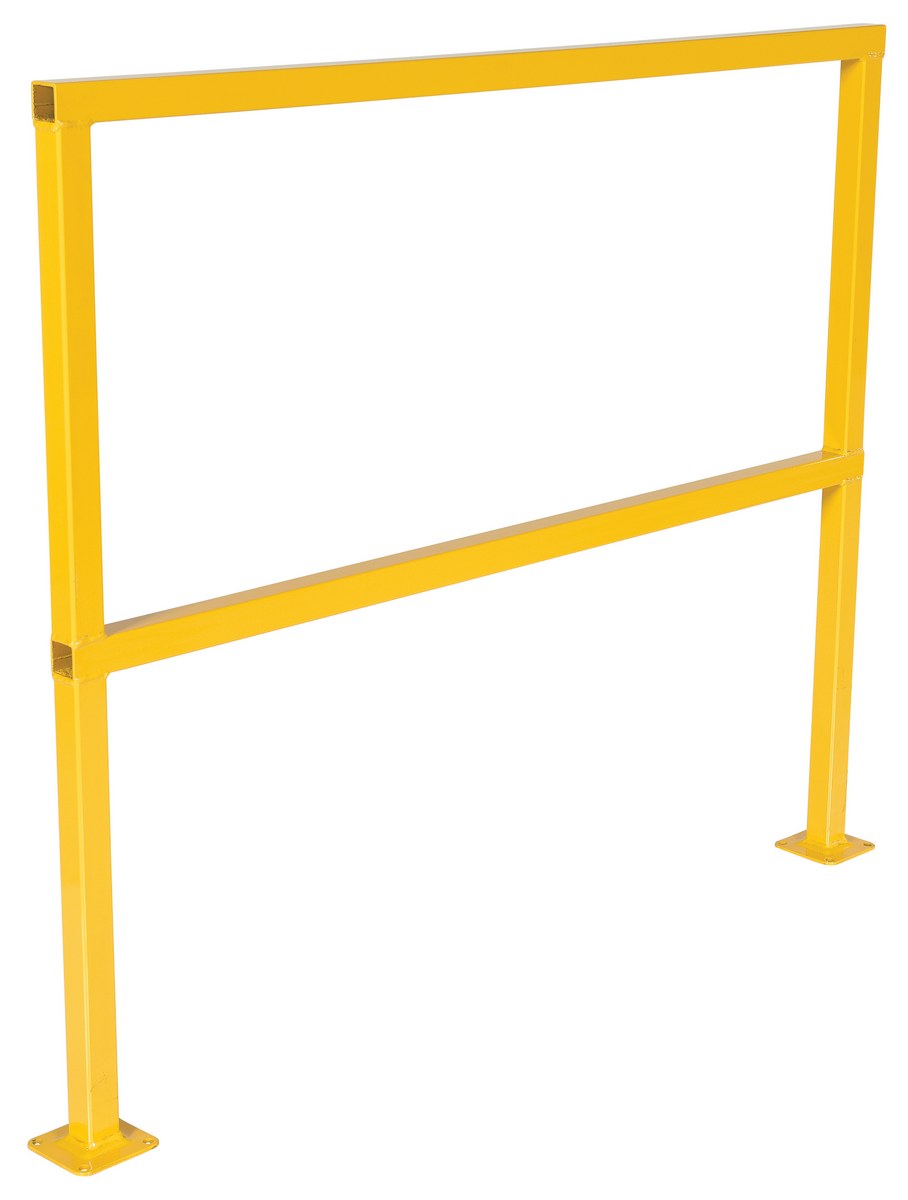

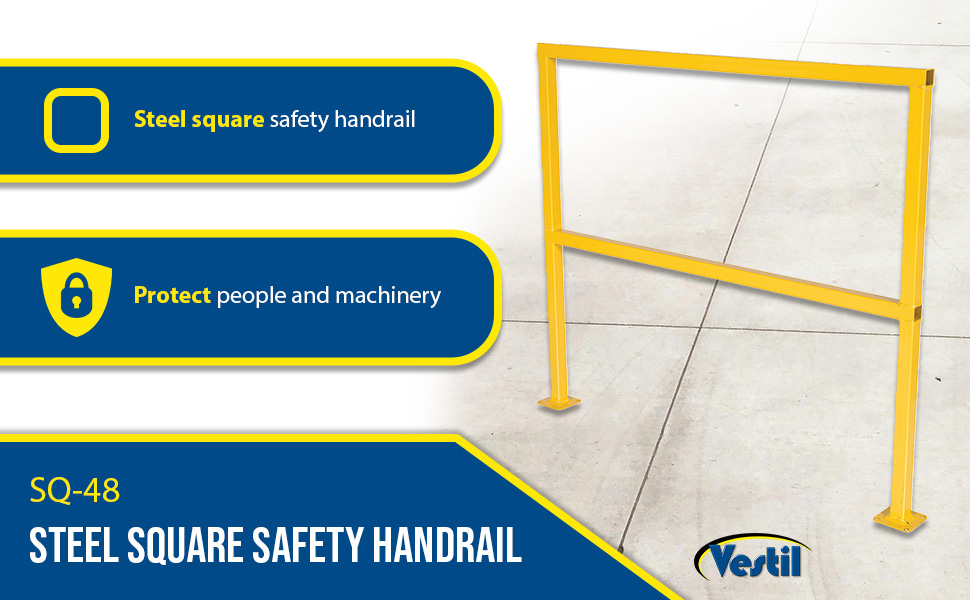

SQ-48 90 Days Limited WarrantySAFETY HANDRAIL NO TOEBOARD 48Square Tube O.D.(in.): 1-1/244
SQ-48-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE NO TOEBOARD 48Square Tube O.D.(in.): 1-1/245

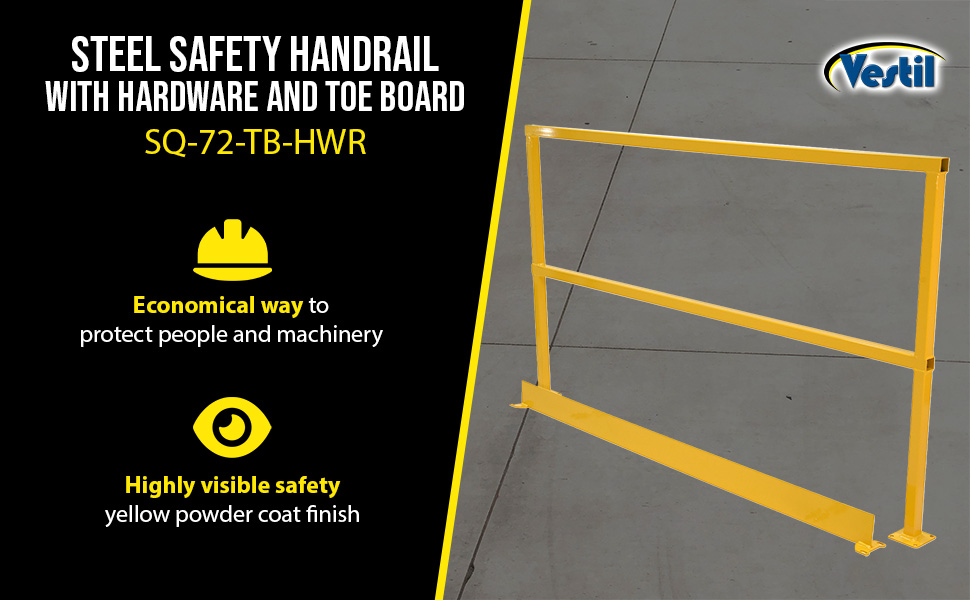

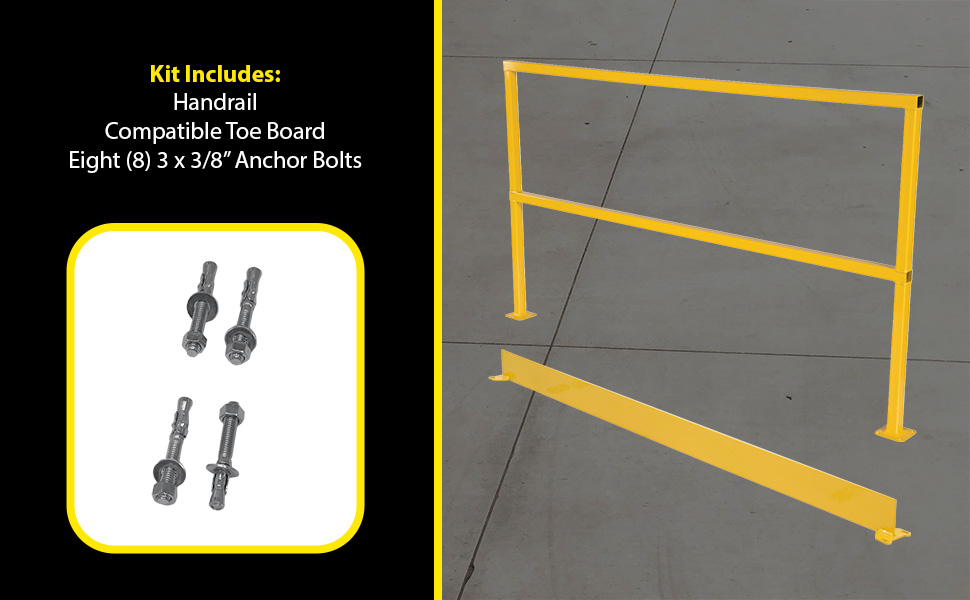

SQ-48-TB 90 Days Limited WarrantySAFETY HANDRAIL W/ TOEBOARD 48Square Tube O.D.(in.): 1-1/260

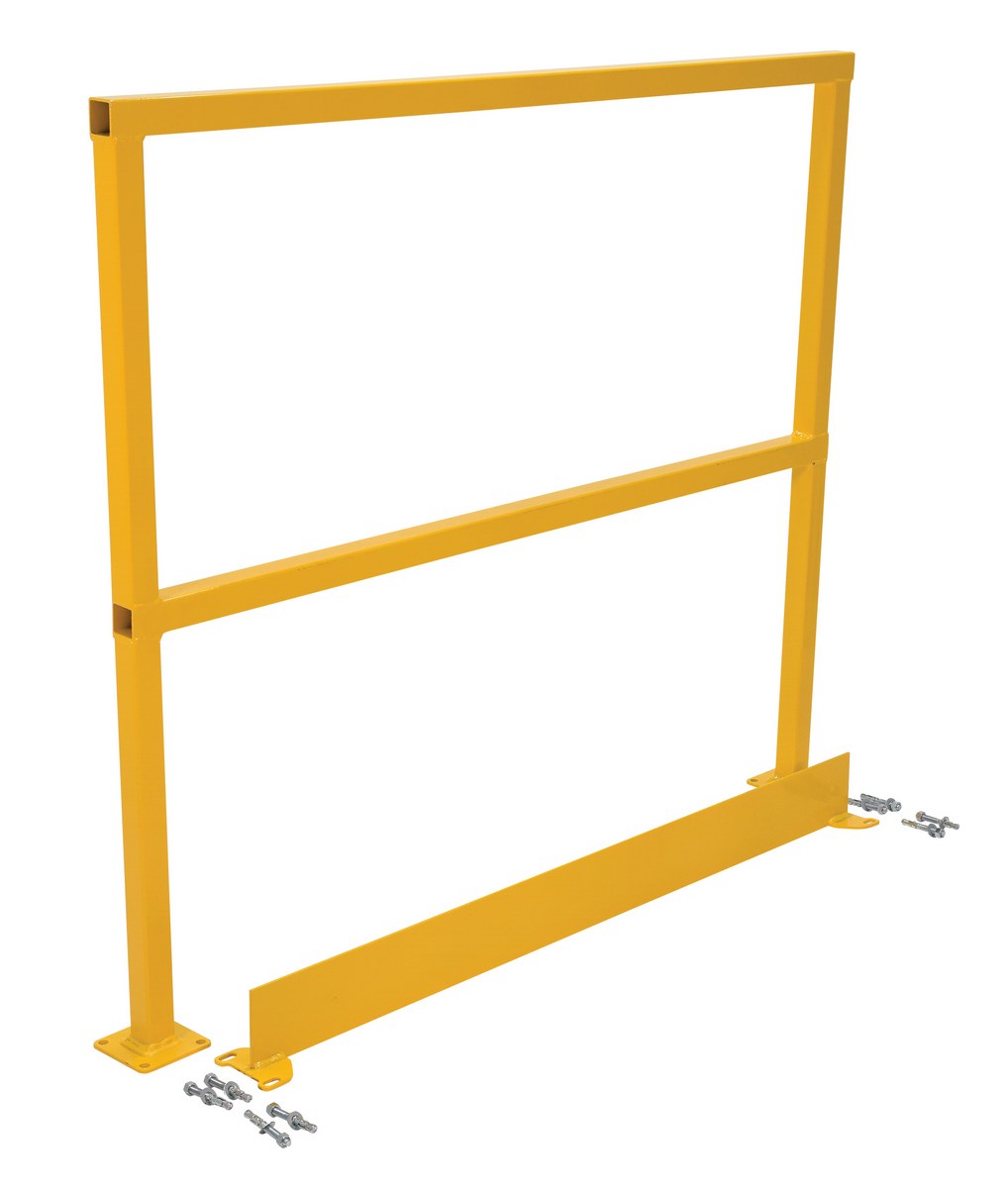

SQ-48-TB-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE & TOEBOARD 48Square Tube O.D.(in.): 1-1/261

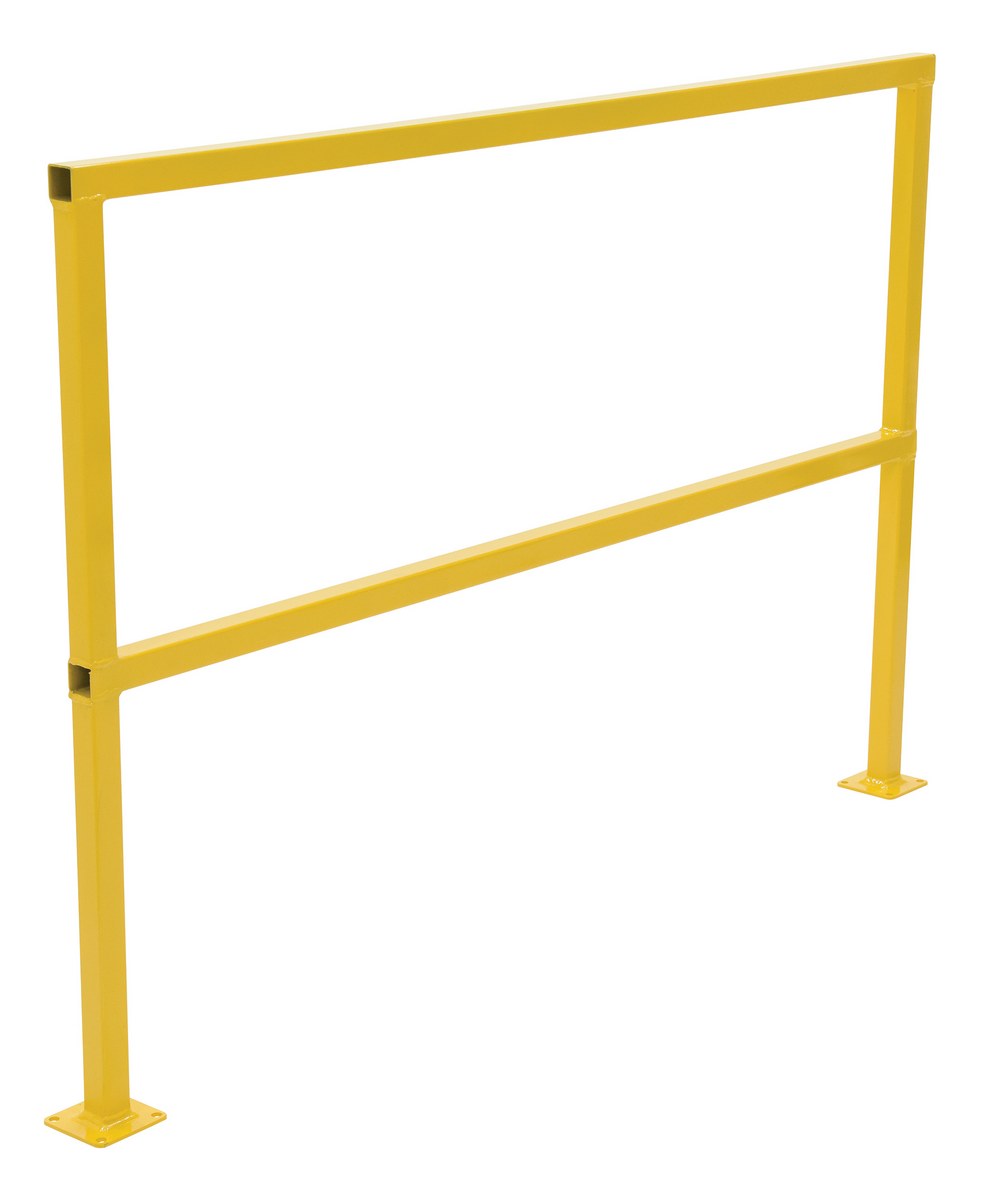

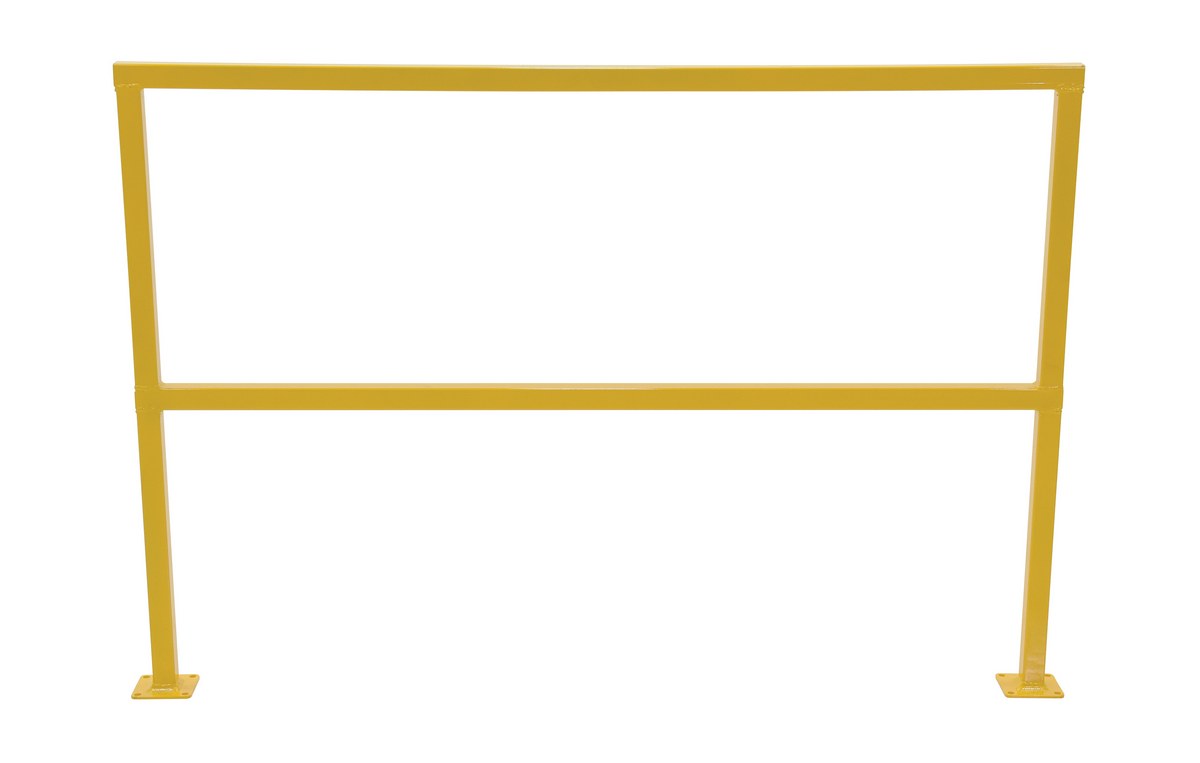

SQ-60 90 Days Limited WarrantySQUARE SAFETY HANDRAIL NO TOEBOARD 60Square Tube O.D.(in.): 1-1/248
SQ-60-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE NO TOEBOARD 60Square Tube O.D.(in.): 1-1/250
SQ-60-TB 90 Days Limited WarrantySQUARE SAFETY HANDRAIL W/ TOEBOARD 60Square Tube O.D.(in.): 1-1/267

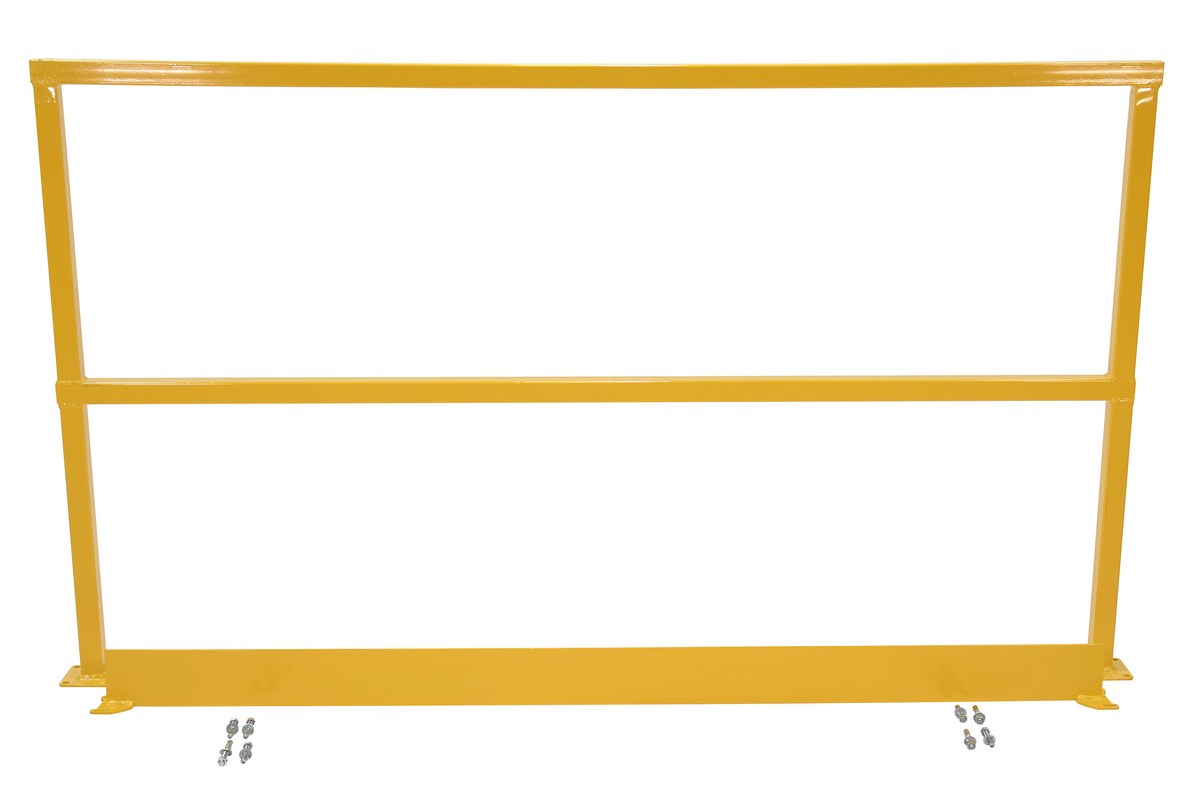

SQ-60-TB-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE & TOEBOARD 60Square Tube O.D.(in.): 1-1/269
SQ-72 90 Days Limited WarrantySQUARE SAFETY HANDRAIL NO TOEBOARD 72Square Tube O.D.(in.): 1-1/254
SQ-72-HWR 90 Days Limited WarrantySAFETY HANDRAIL-W/HARDWARE NO TOEBOARD 72Square Tube O.D.(in.): 1-1/258
SQ-72-TB 90 Days Limited WarrantySQUARE SAFETY HANDRAIL W/ TOEBOARD 72Square Tube O.D.(in.): 1-1/286
SQ-72-TB-HWR 90 Days Limited WarrantySAFETY HANDRAIL-W/HARDWARE & TOEBOARD 72Square Tube O.D.(in.): 1-1/293
SQ-84 90 Days Limited WarrantySQUARE SAFETY HANDRAIL NO TOEBOARD 84Square Tube O.D.(in.): 1-1/257

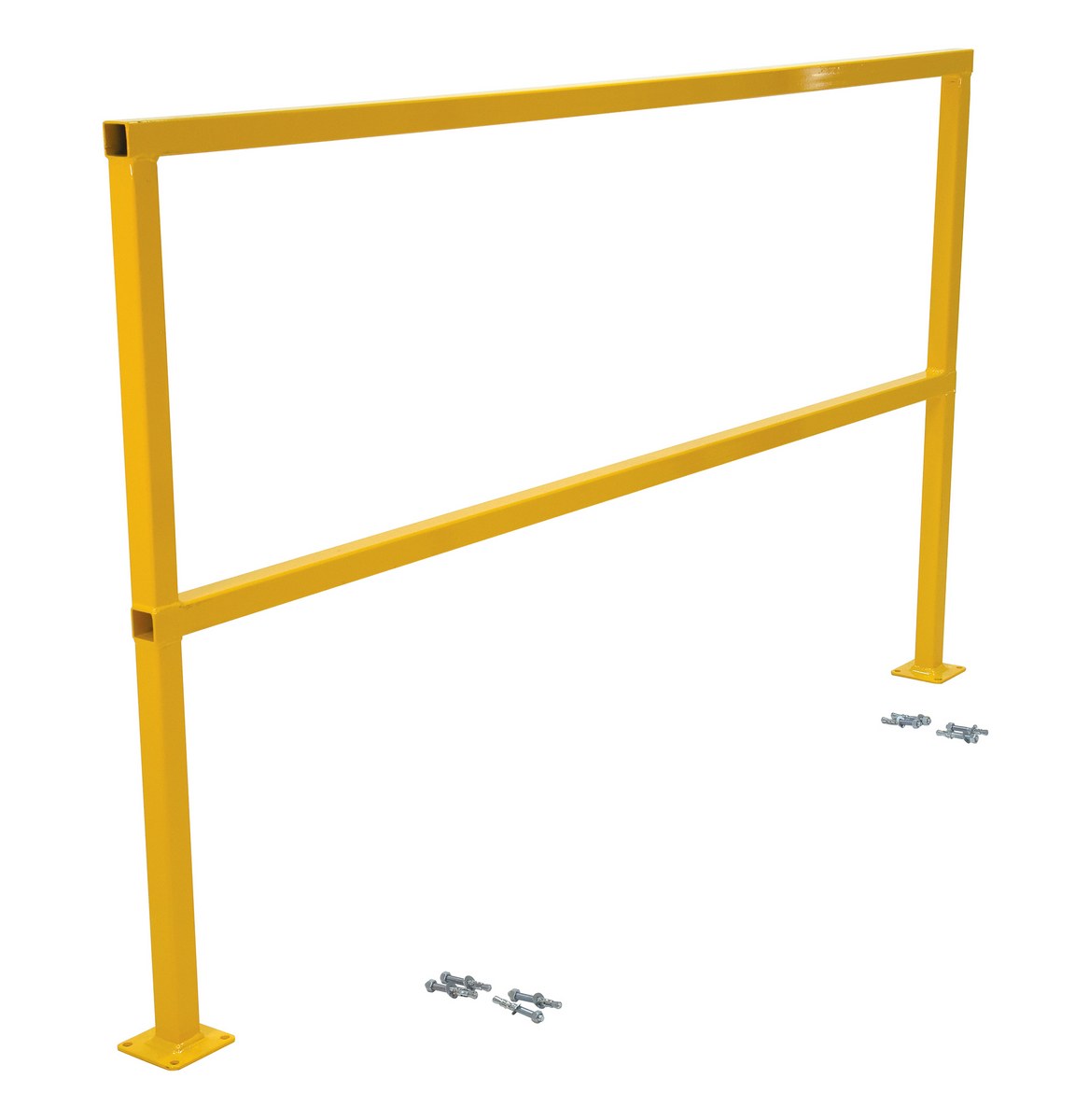

SQ-84-HWR 90 Days Limited WarrantySAFETY HANDRAIL-W/HARDWARE NO TOEBOARD 84Square Tube O.D.(in.): 1-1/259

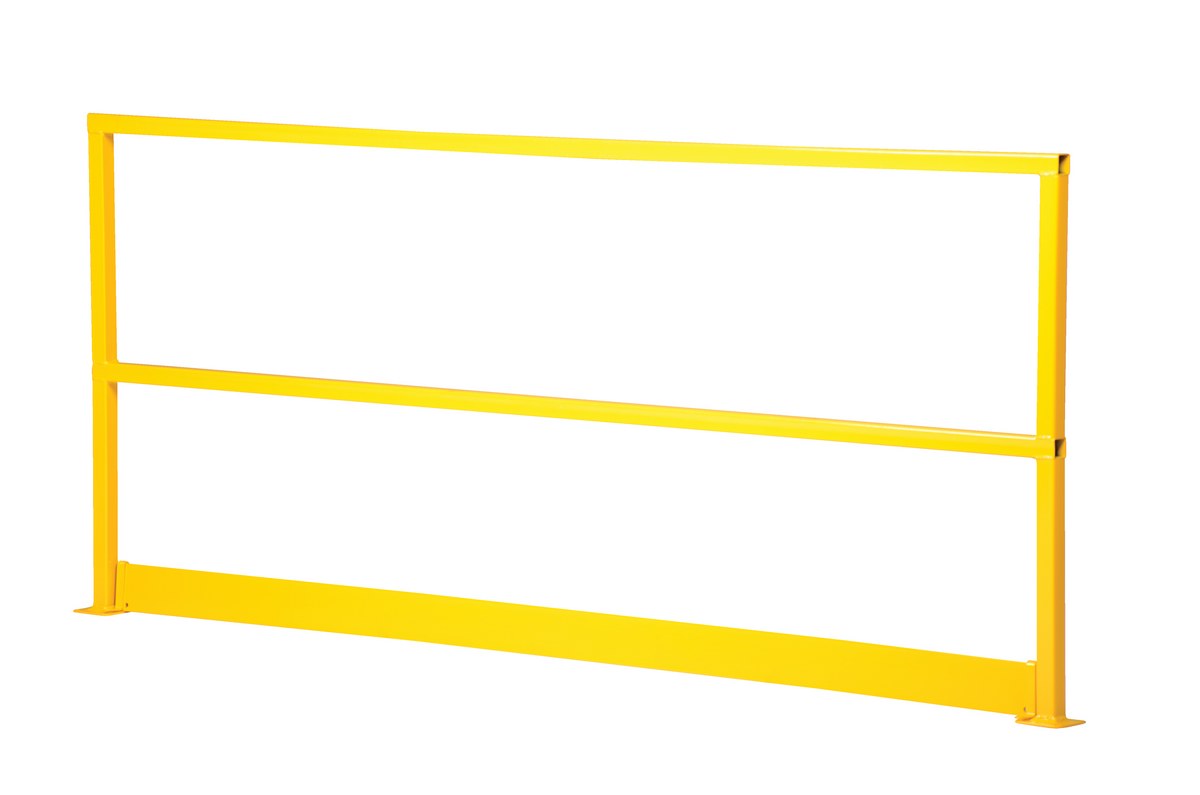

SQ-84-TB 90 Days Limited WarrantySQUARE SAFETY HANDRAIL W/ TOEBOARD 84Square Tube O.D.(in.): 1-1/292
SQ-84-TB-HWR 90 Days Limited WarrantySAFETY HANDRAIL-W/HARDWARE & TOEBOARD 84Square Tube O.D.(in.): 1-1/294
SQ-96 90 Days Limited WarrantySQUARE SAFETY HANDRAIL NO TOEBOARD 96Square Tube O.D.(in.): 1-1/260

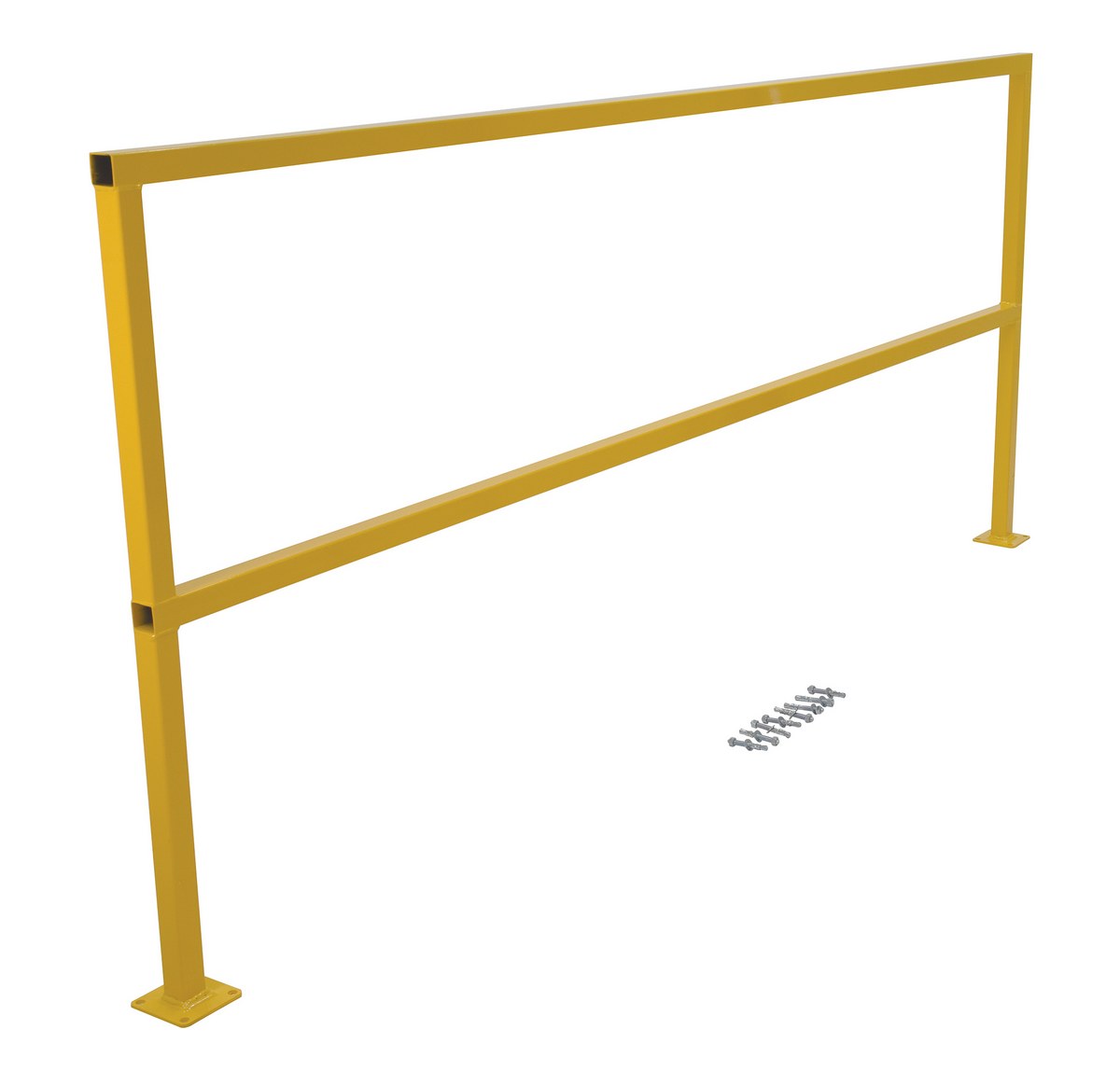

SQ-96-HWR 90 Days Limited WarrantySAFETY HANDRAIL-W/HARDWARE NO TOEBOARD 96Square Tube O.D.(in.): 1-1/259

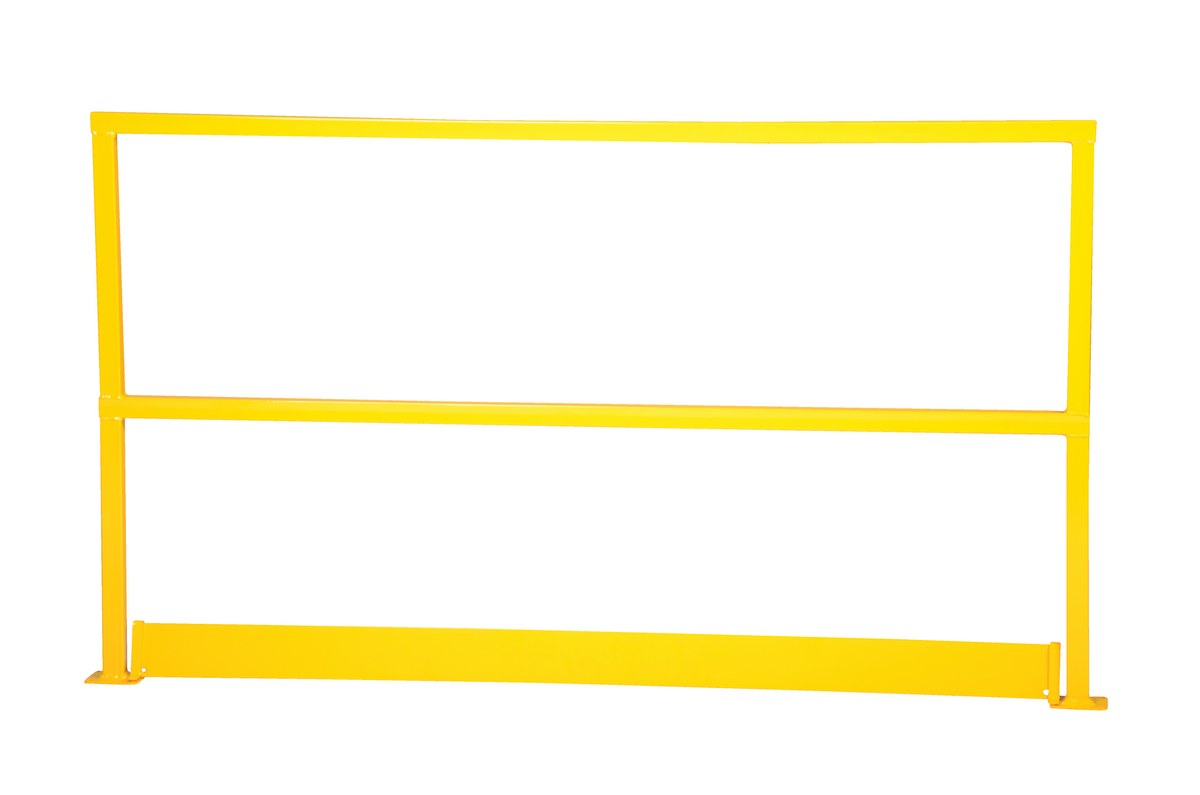

SQ-96-TB 90 Days Limited WarrantySQUARE SAFETY HANDRAIL W/ TOEBOARD 96Square Tube O.D.(in.): 1-1/298

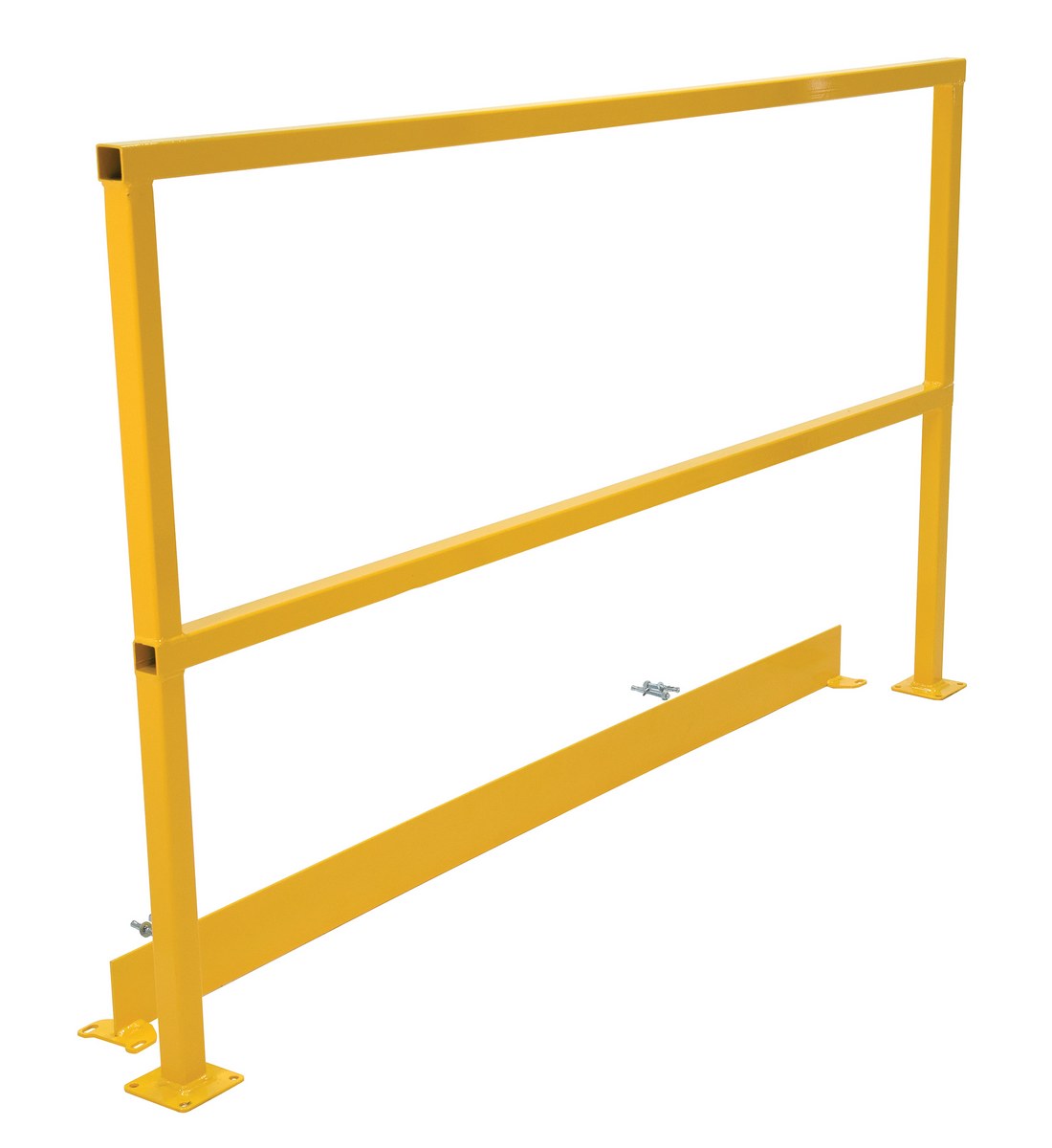

SQ-96-TB-HWR 90 Days Limited WarrantySAFETY HANDRAIL-W/HARDWARE & TOEBOARD 96Square Tube O.D.(in.): 1-1/2104

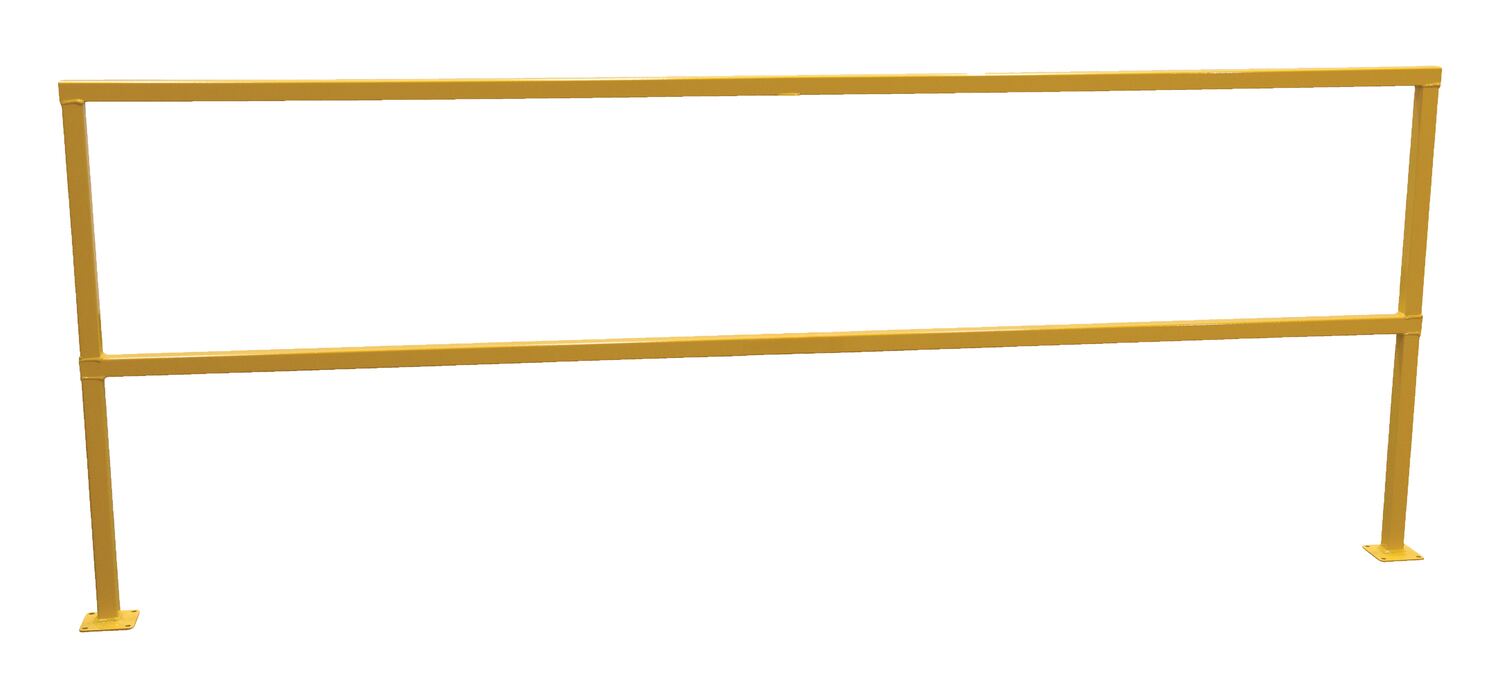

SQ-108 90 Days Limited WarrantySAFETY HANDRAIL NO TOEBOARD 108Square Tube O.D.(in.): 1-1/265
SQ-108-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE NO TOEBOARD 108 INSquare Tube O.D.(in.): 1-1/267
SQ-108-TB 90 Days Limited WarrantySAFETY HANDRAIL W/ TOEBOARD 108 INSquare Tube O.D.(in.): 1-1/2106
SQ-108-TB-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE & TOEBOARD 108Square Tube O.D.(in.): 1-1/2108
SQ-120 90 Days Limited WarrantySAFETY HANDRAIL NO TOEBOARD 120Square Tube O.D.(in.): 1-1/269
SQ-120-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE NO TOEBOARD 120Square Tube O.D.(in.): 1-1/271
SQ-120-TB 90 Days Limited WarrantySAFETY HANDRAIL W/ TOEBOARD 120Square Tube O.D.(in.): 1-1/2168
SQ-120-TB-HWR 90 Days Limited WarrantySAFETY HANDRAIL W/HARDWARE & TOEBOARD 120Square Tube O.D.(in.): 1-1/2170
SQ-A-48 90 Days Limited WarrantyALUMINUM SAFETY HANDRAIL NO TOEBOARD 48 INSquare Tube O.D.(in.): 1-1/215

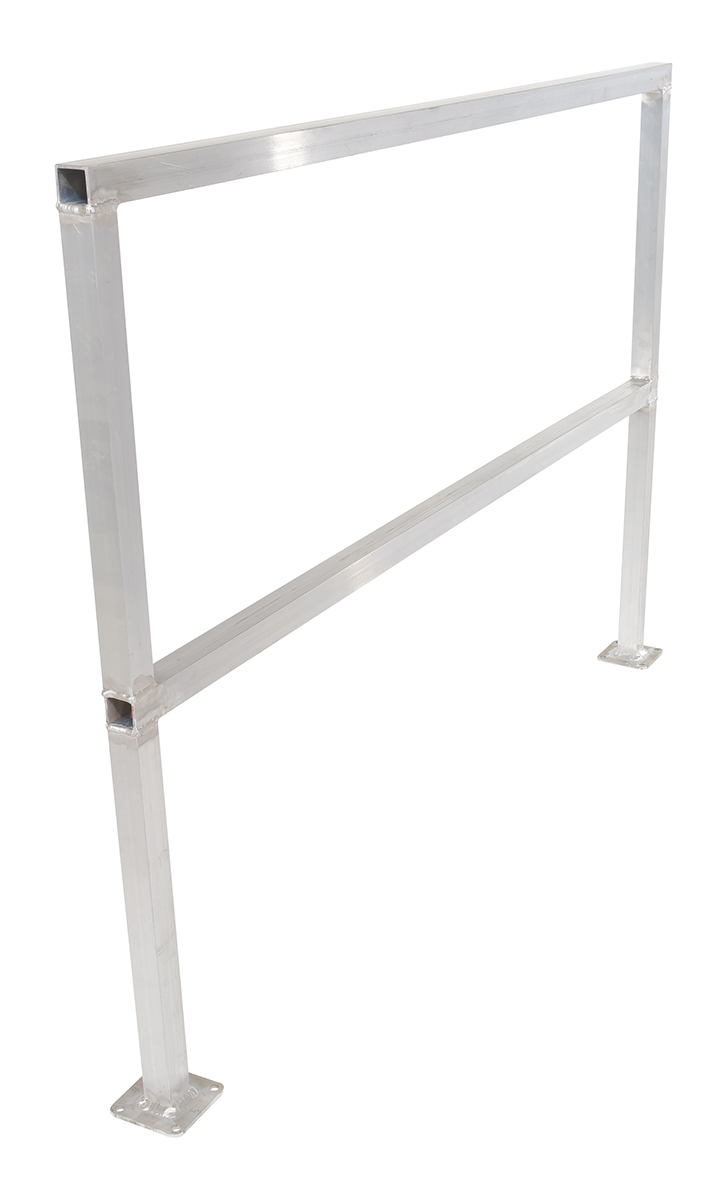

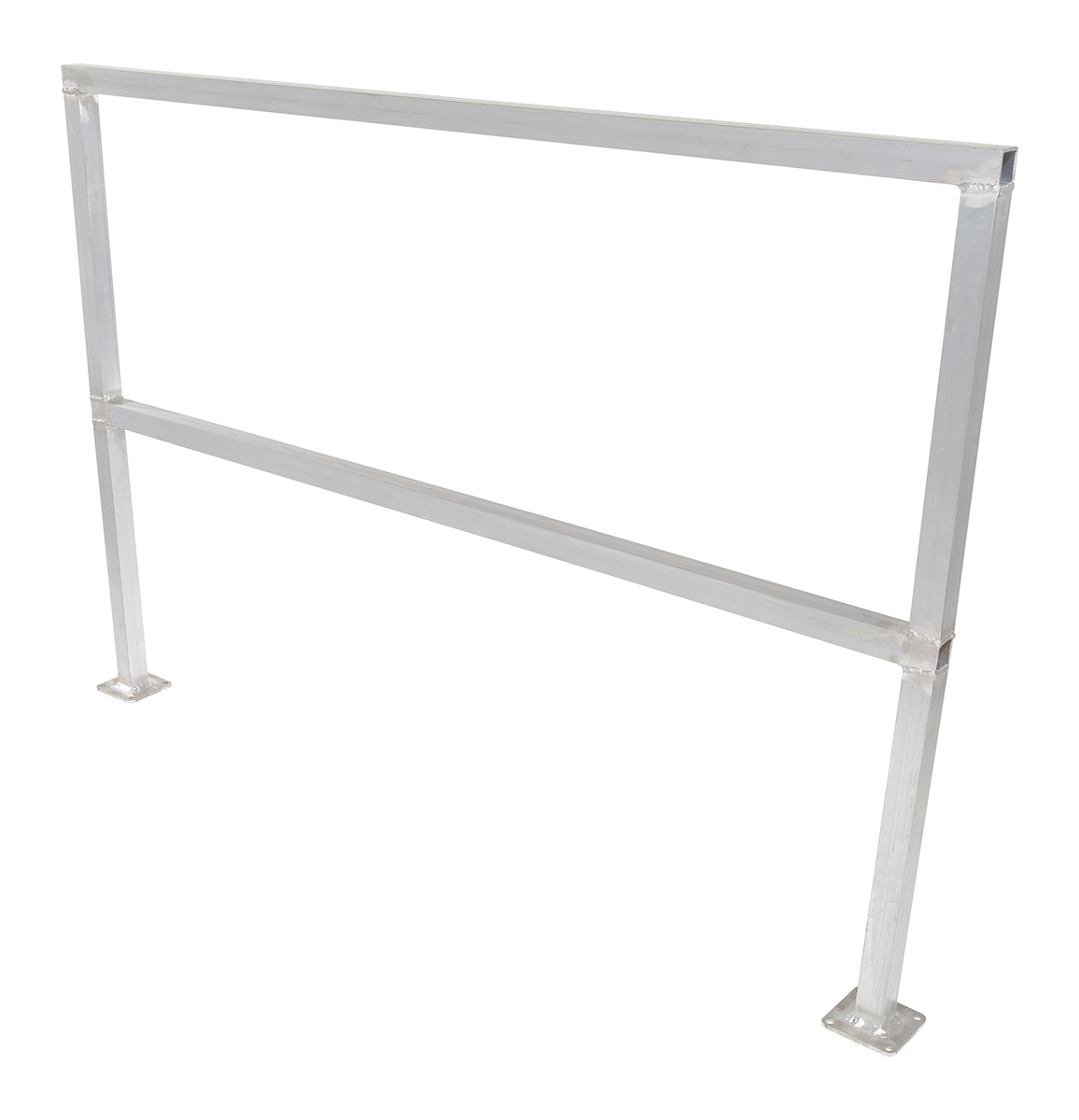

SQ-A-60 90 Days Limited WarrantyALUMINUM SAFETY HANDRAIL NO TOEBOARD 60 INSquare Tube O.D.(in.): 1-1/217

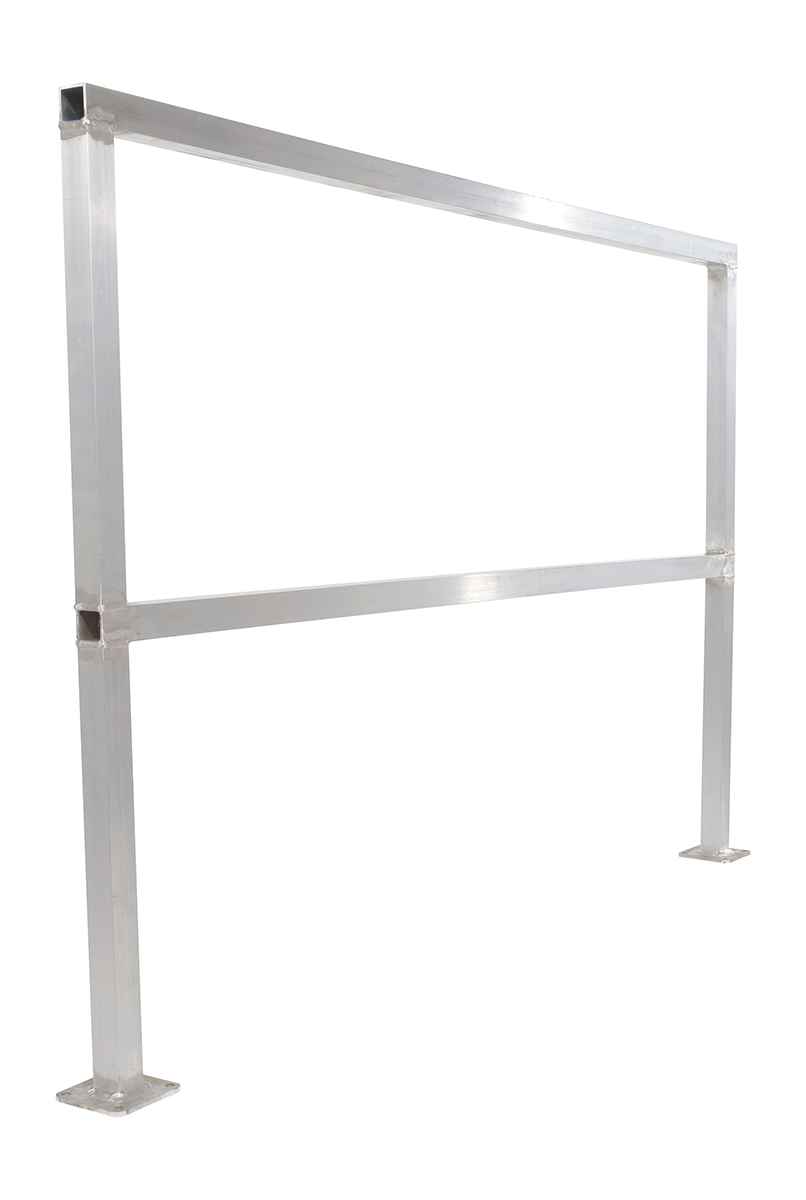

SQ-A-72 90 Days Limited WarrantyALUMINUM SAFETY HANDRAIL NO TOEBOARD 72 INSquare Tube O.D.(in.): 1-1/258
SQ-A-84 90 Days Limited WarrantyALUMINUM SAFETY HANDRAIL NO TOEBOARD 84 INSquare Tube O.D.(in.): 1-1/260

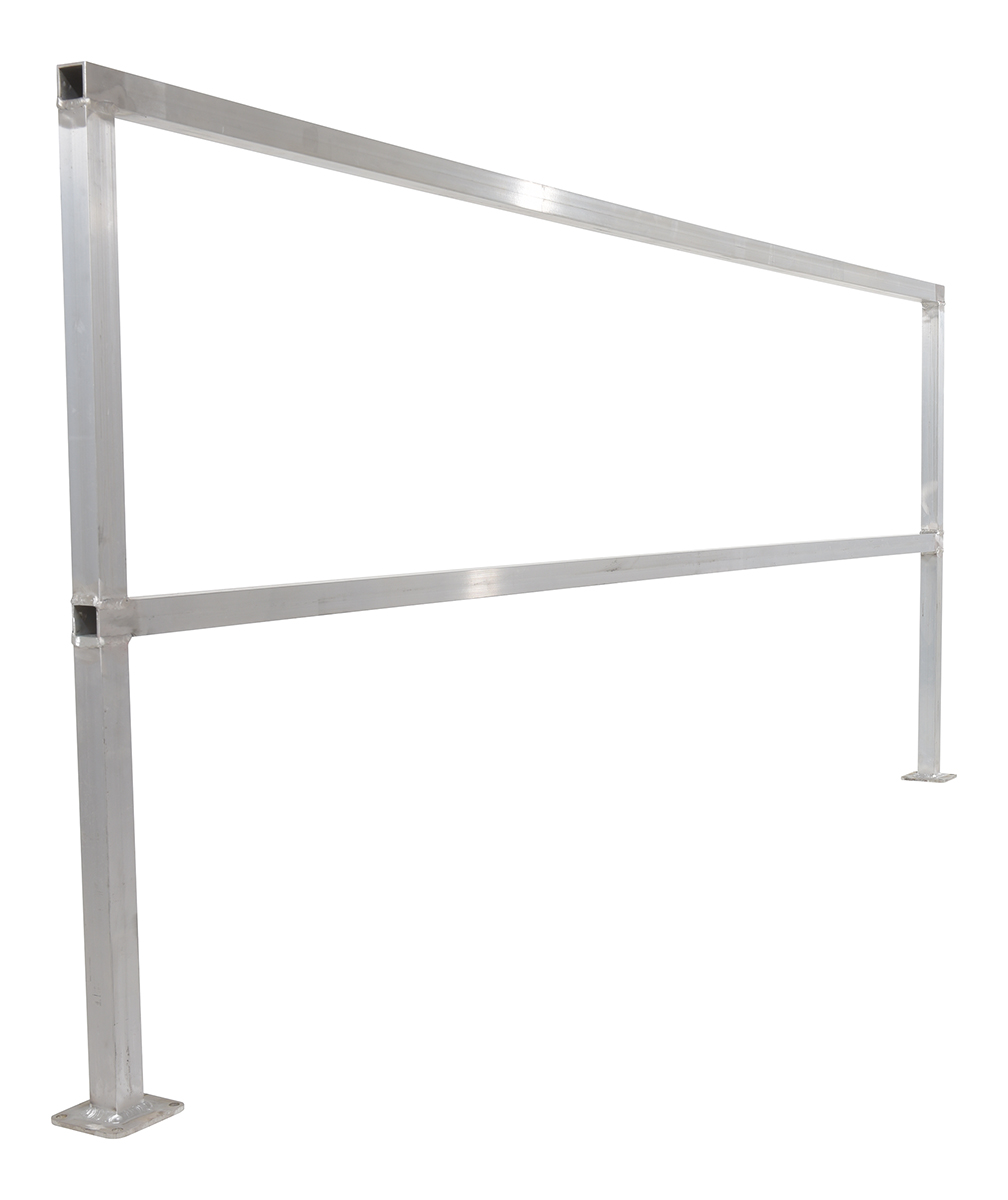

SQ-A-96 90 Days Limited WarrantyALUMINUM SAFETY HANDRAIL NO TOEBOARD 96 INSquare Tube O.D.(in.): 1-1/288
SQ-A-108 90 Days Limited WarrantyALUMINUM SAFETY HANDRAIL NO TOEBOARD 108 INSquare Tube O.D.(in.): 1-1/292

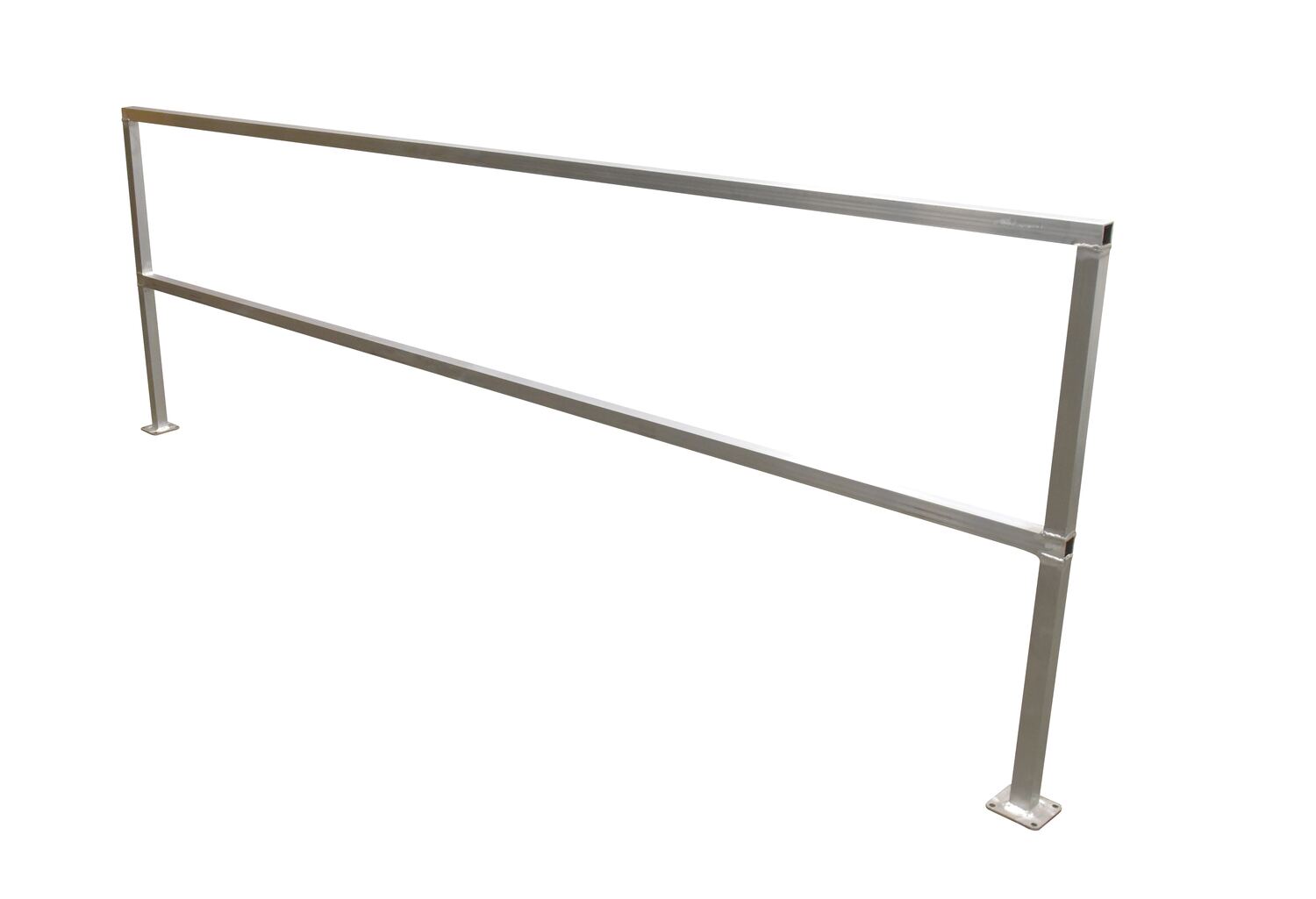

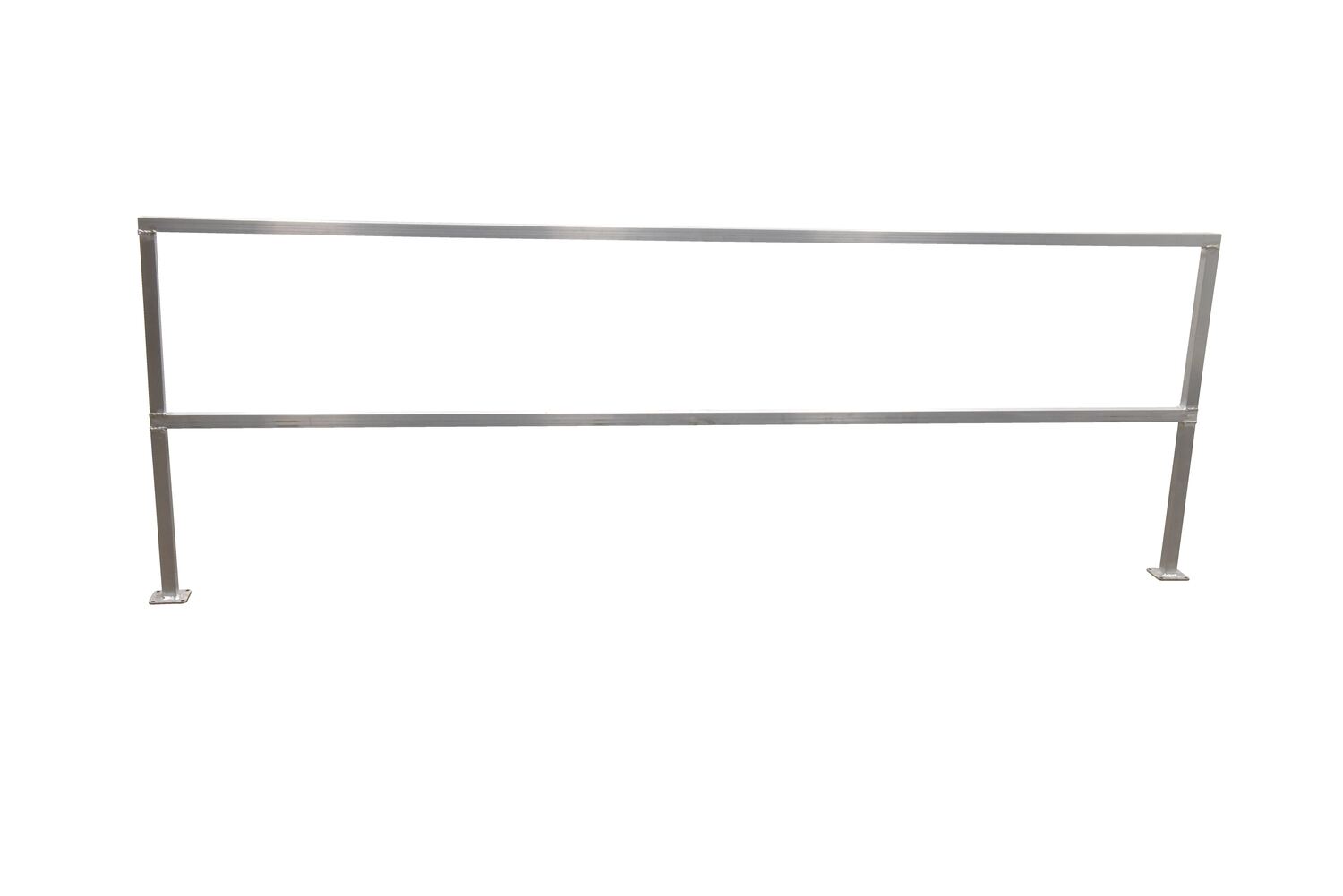

SQ-A-120 90 Days Limited WarrantyALUMINUM SAFETY HANDRAIL NO TOEBOARD 120 INSquare Tube O.D.(in.): 1-1/296

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Options

Model Image PDFs Description Wt (lbs.)

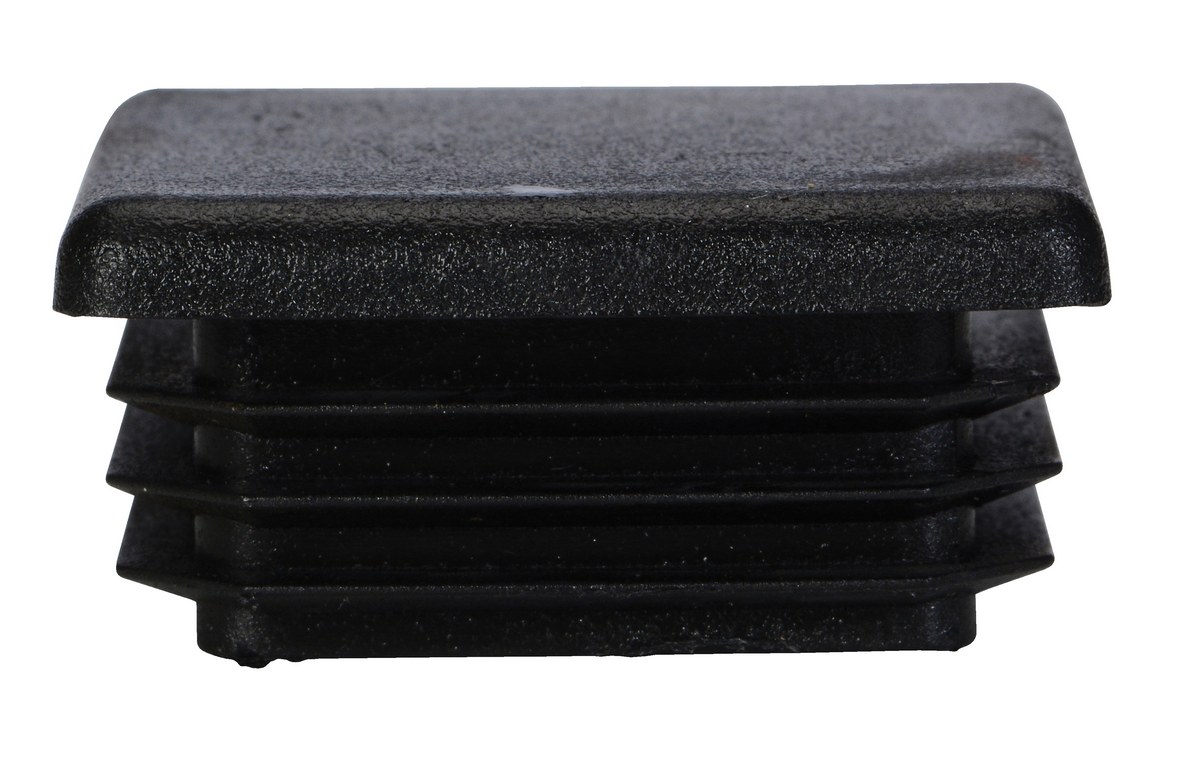

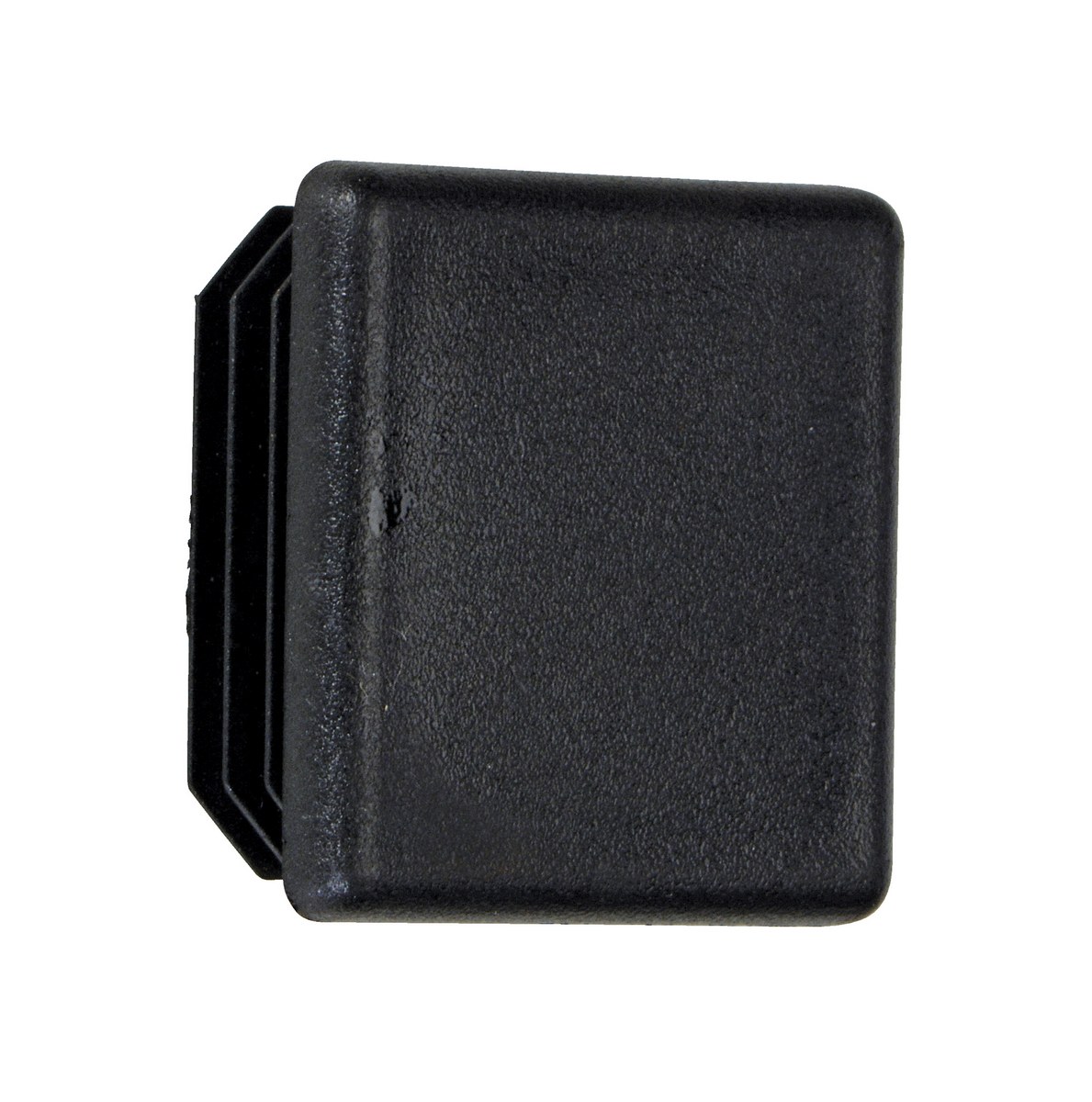

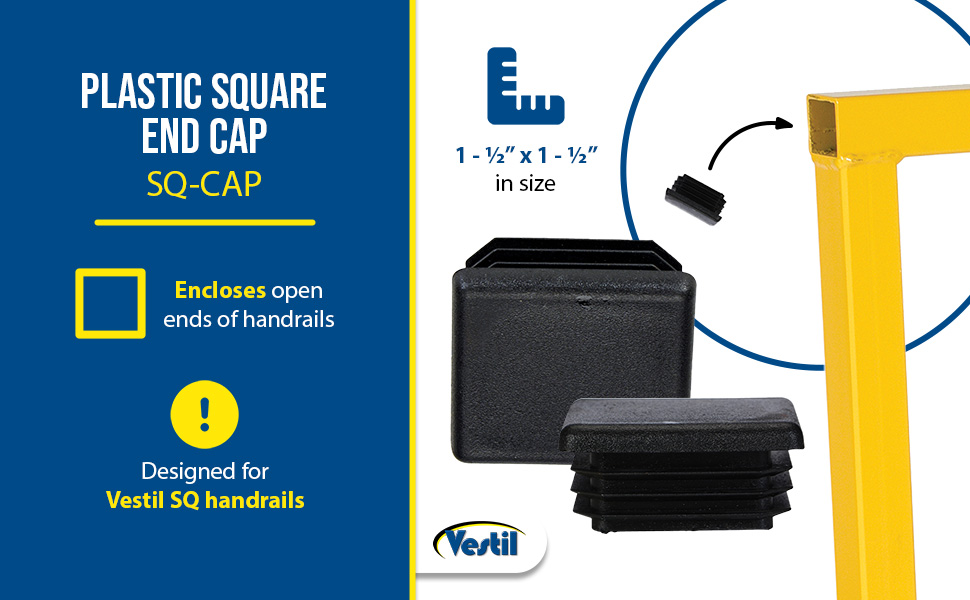

SQ-CAP Warranty PDF Black Plastic End Cap - 1-1/2"x1-1/2" 1

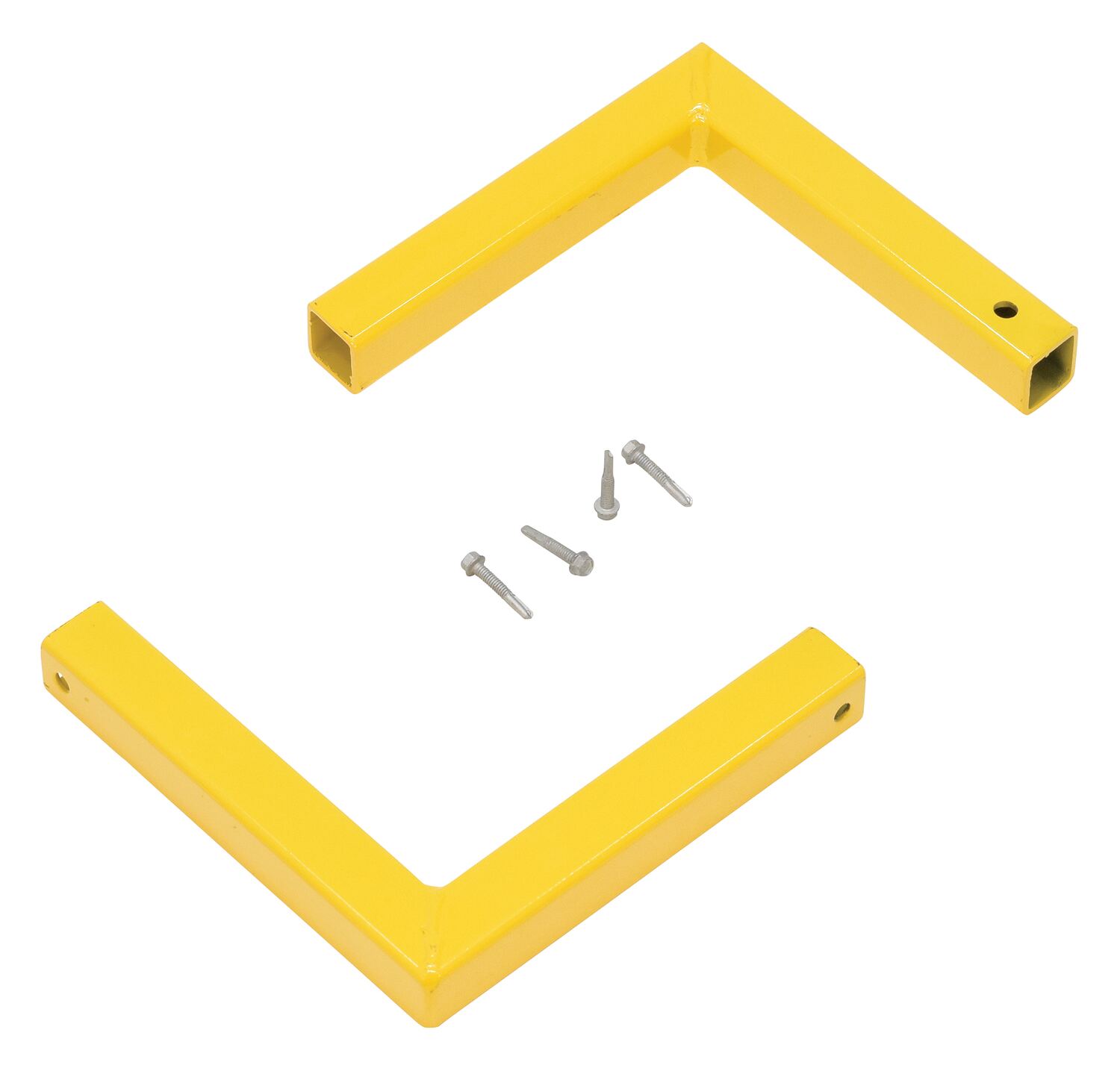

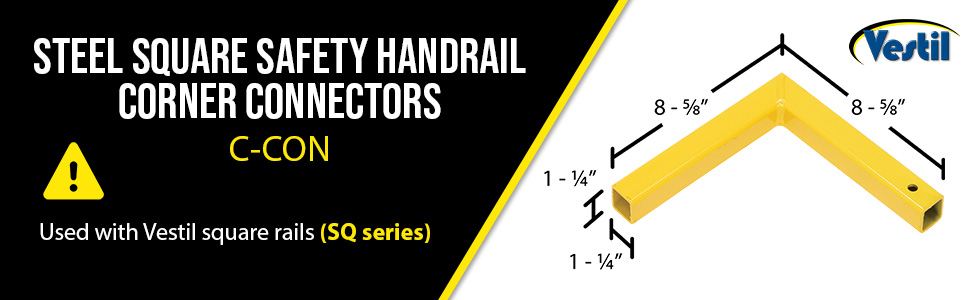

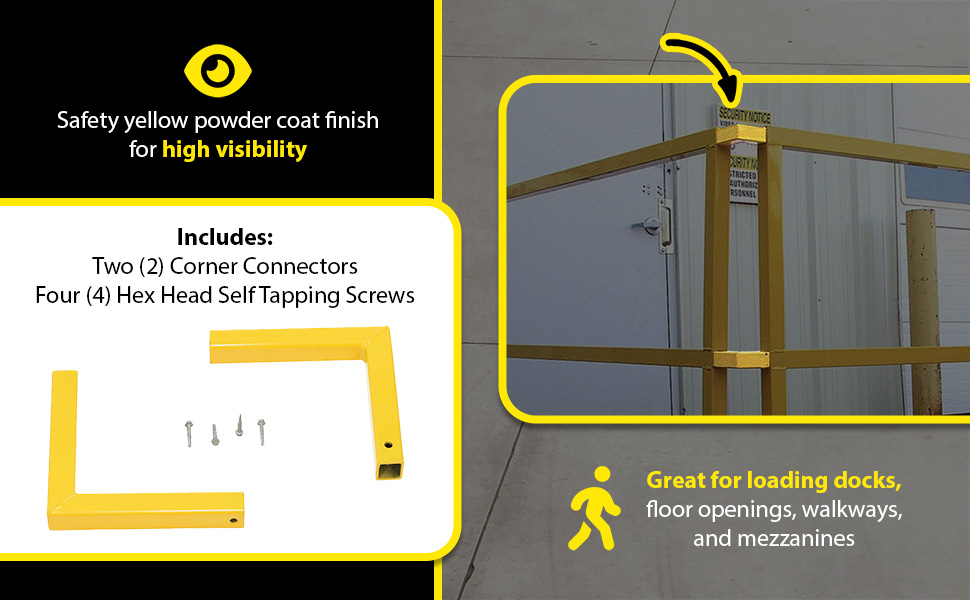

C-CON Warranty PDF Corner Connectors (sold as pair) 10

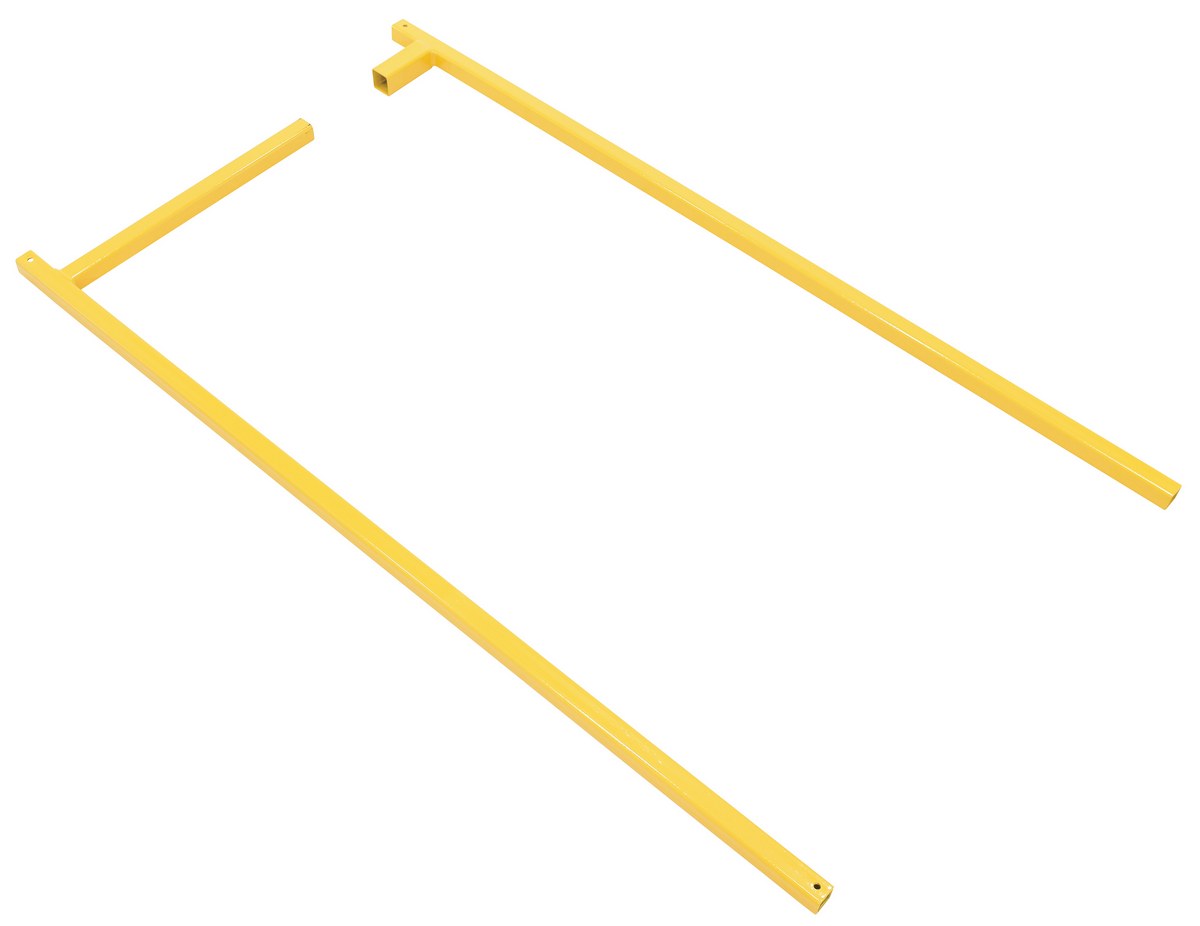

S-GATE-60 icon_approvaldrawings.jpgWarranty PDF 60" Sliding Gate 83

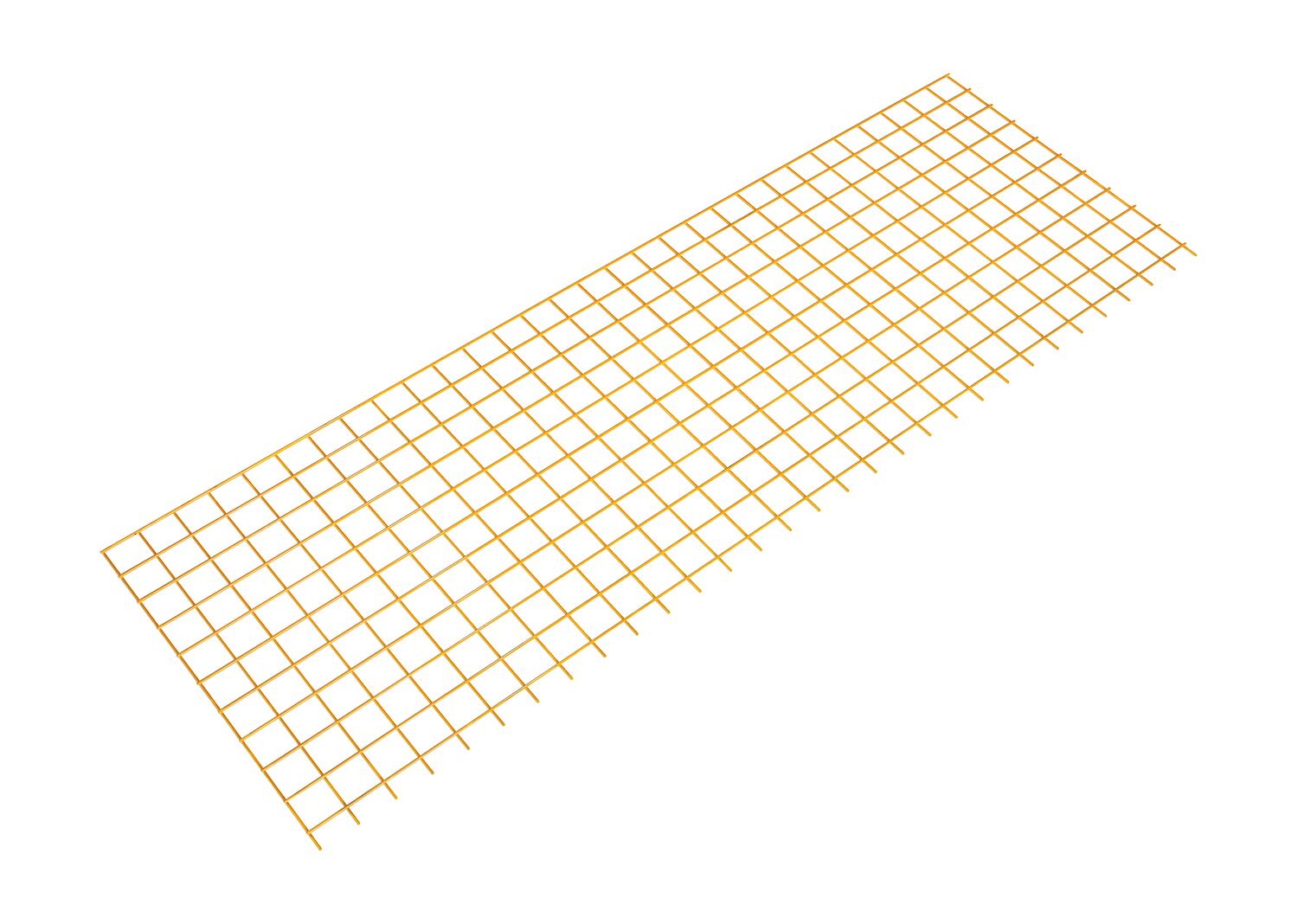

Optional Wire Mesh (bolted on)
WM-48 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 48" 7
WM-60 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 60" 9
WM-72 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 72" 11
WM-84 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 84" 12
WM-96 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 96" 14
WM-108 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 108" 41
WM-120 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 120" 58

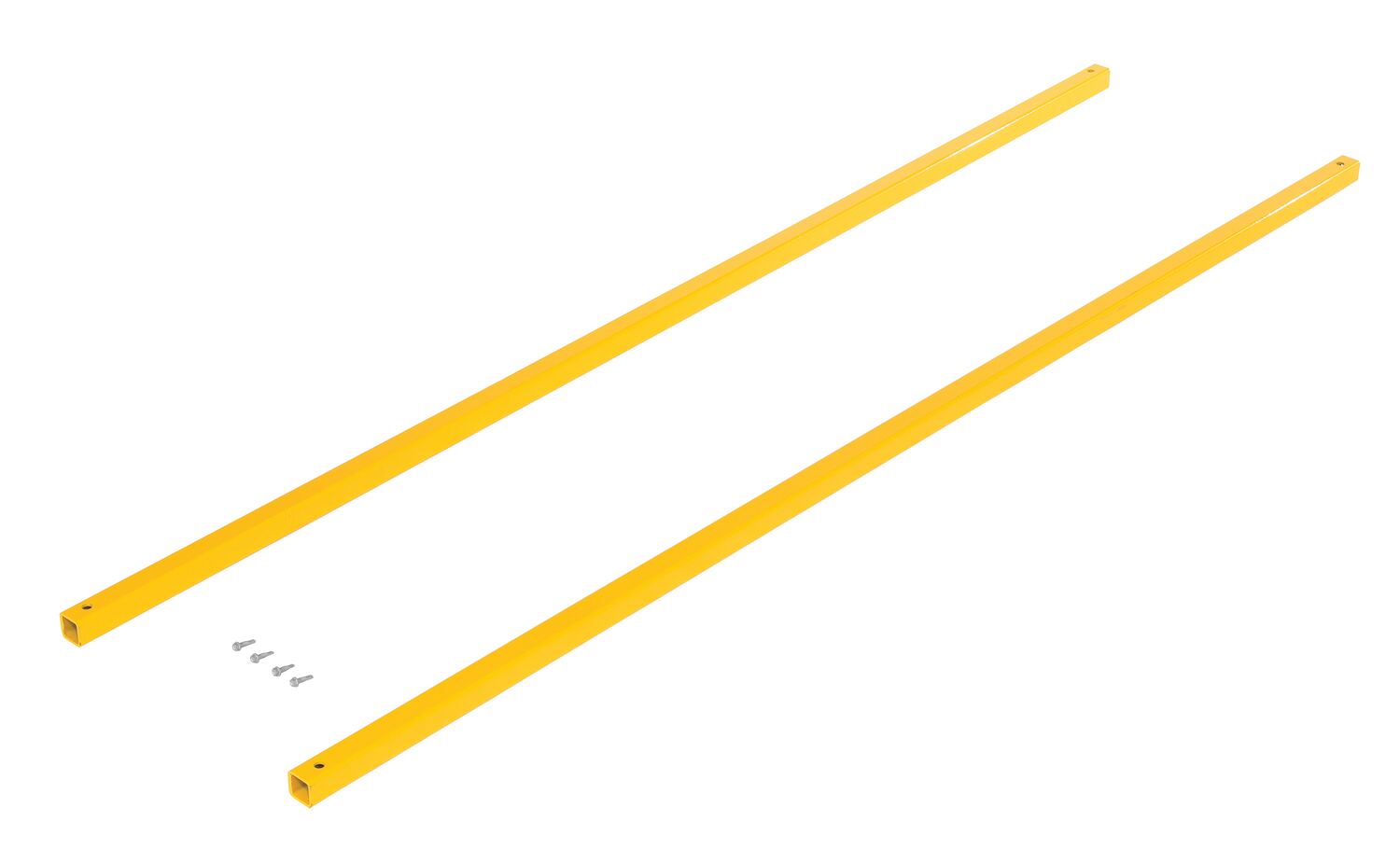

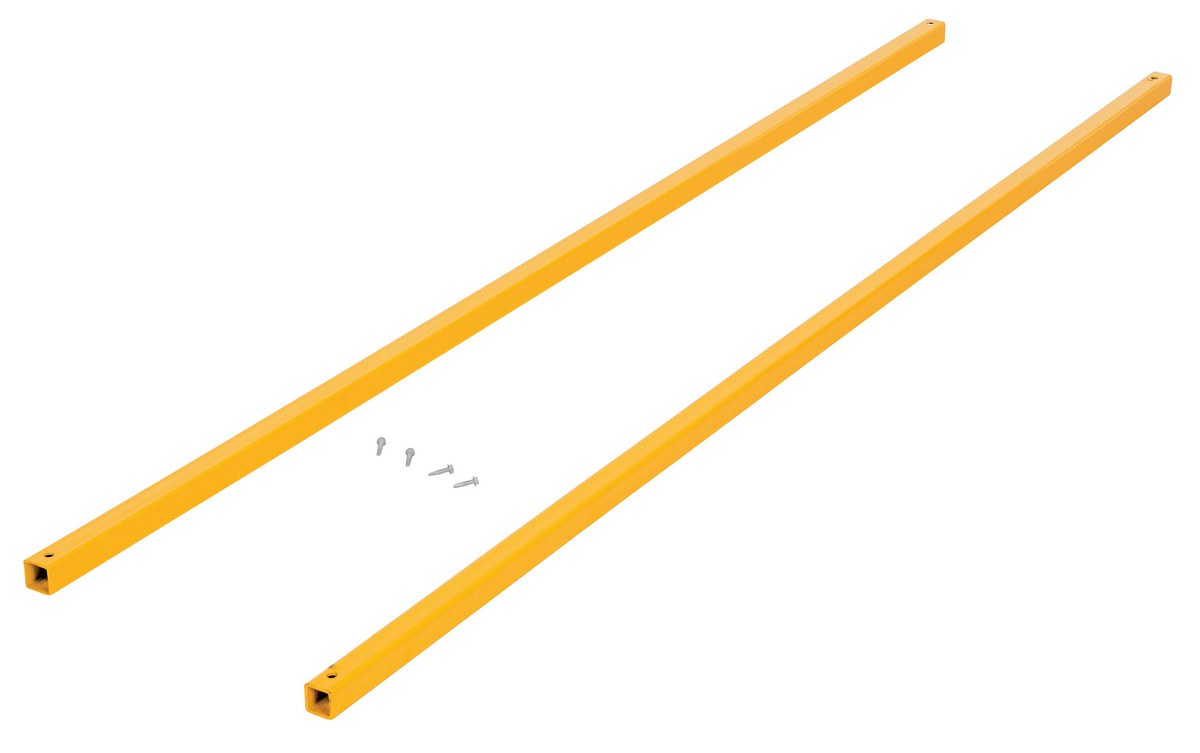

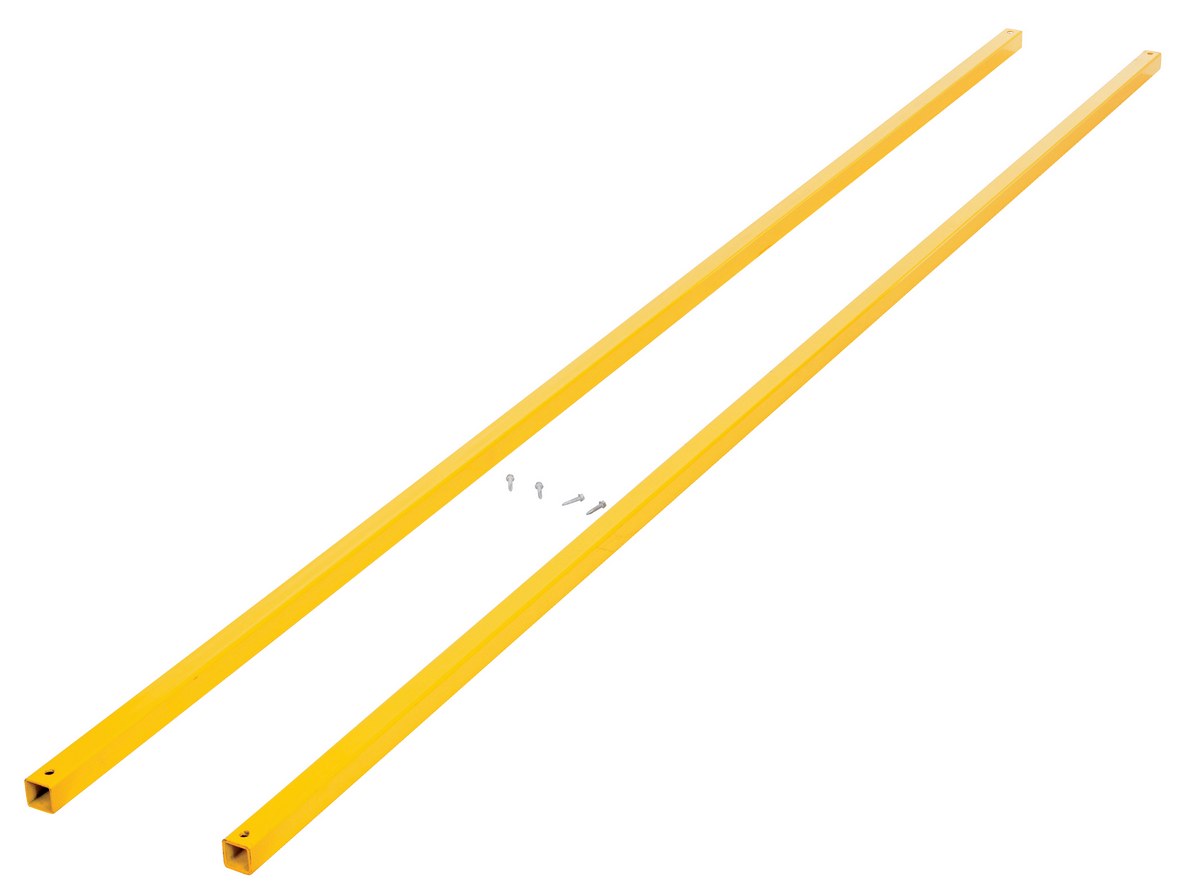

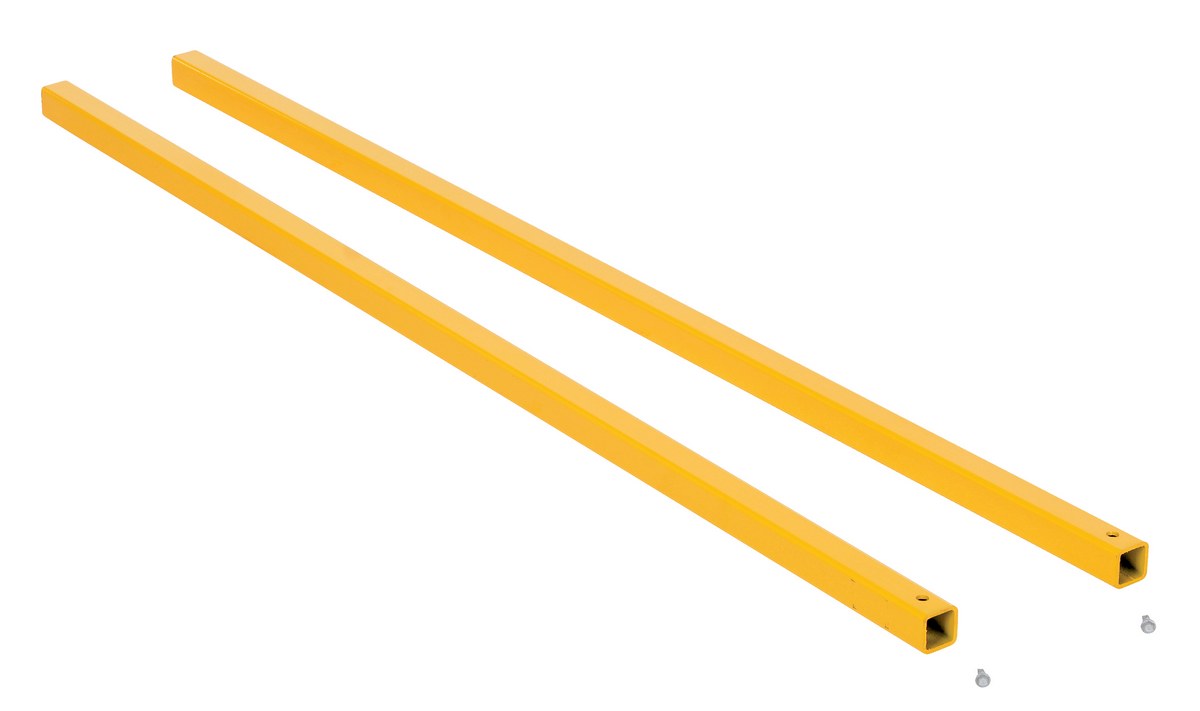

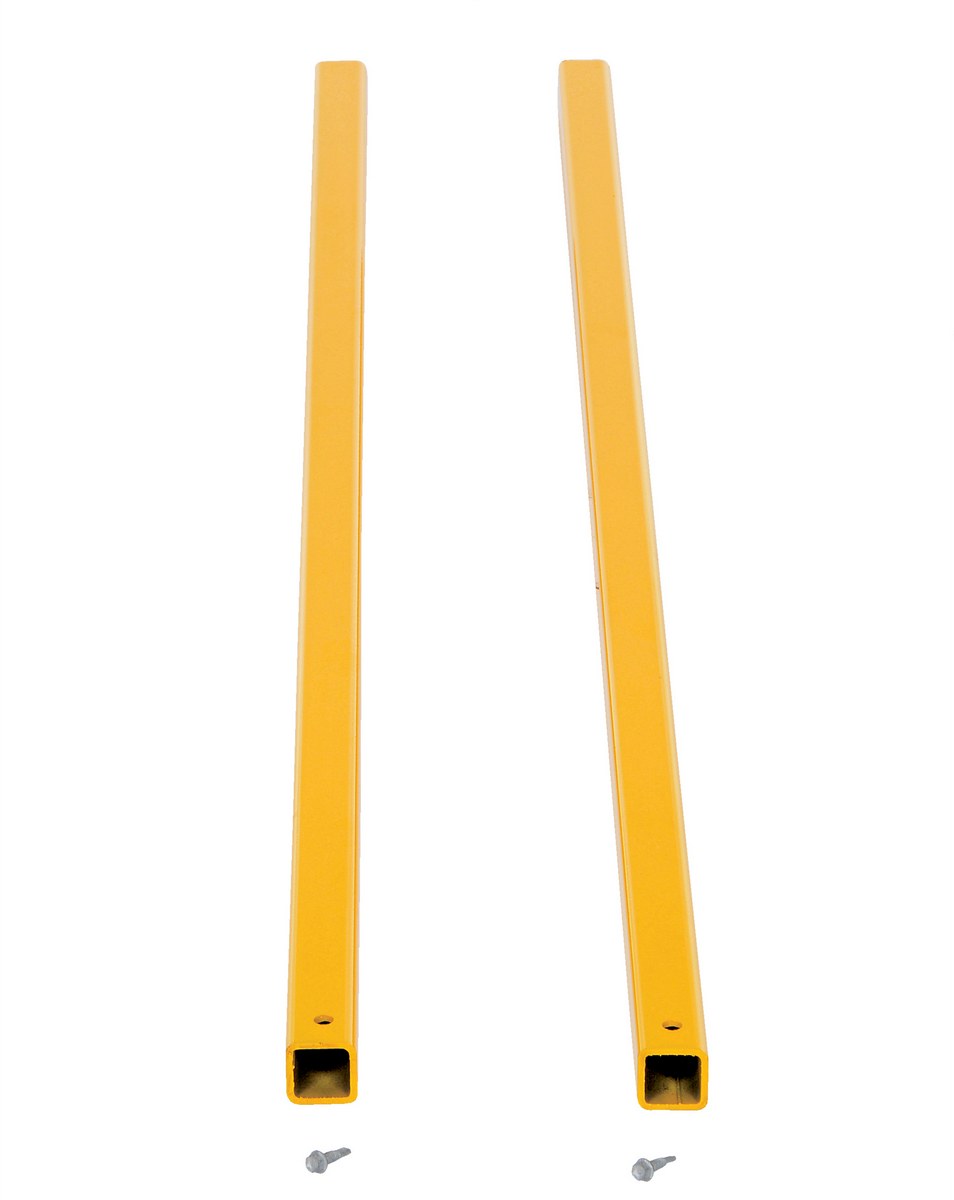

Optional Connection Tubing

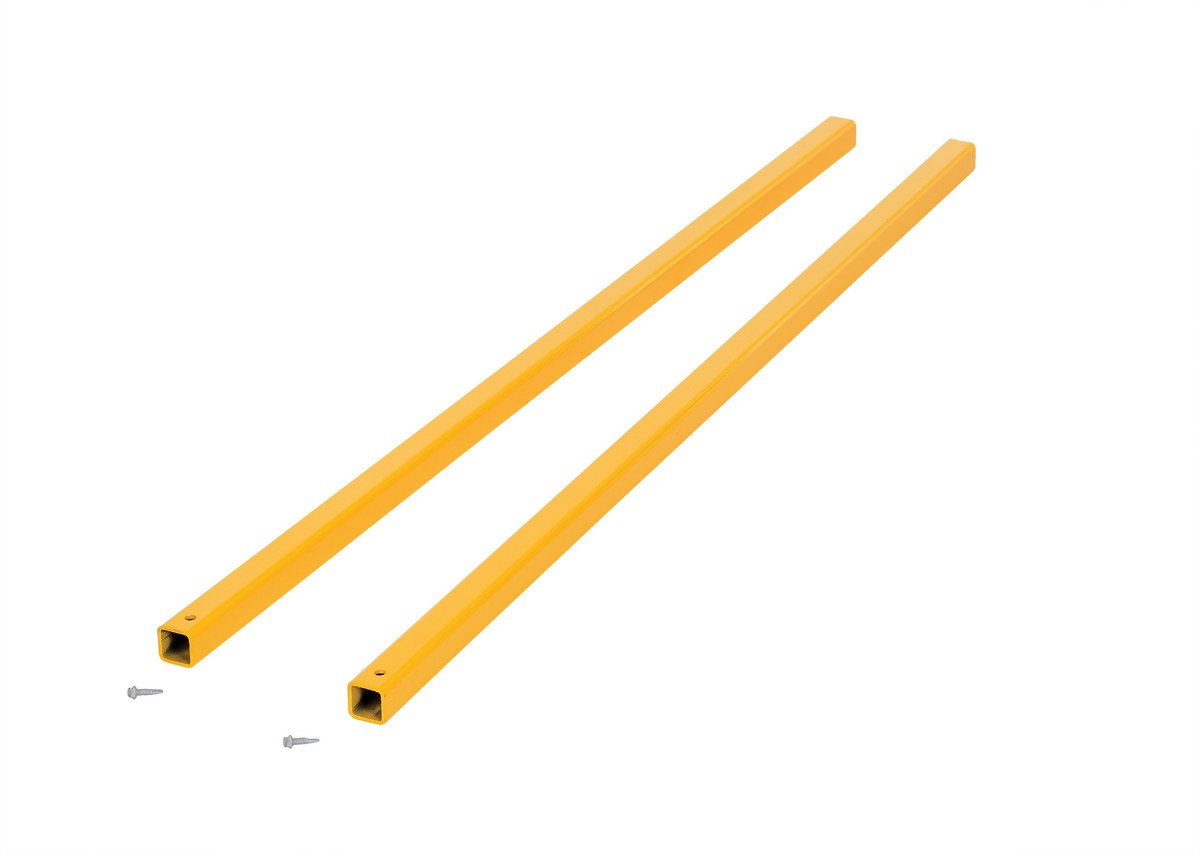

CSEC-48 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 47-7/8" 14/pr.
CSEC-60 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 59-7/8" 15/pr.
CSEC-72 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 71-7/8" 18/pr.
CSEC-84 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 83-7/8" 20/pr.
CSEC-96 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 95-7/8" 32/pr.
CSEC-108 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 107-7/8" 40/ea.
CSEC-120 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 119-7/8" 43/ea.

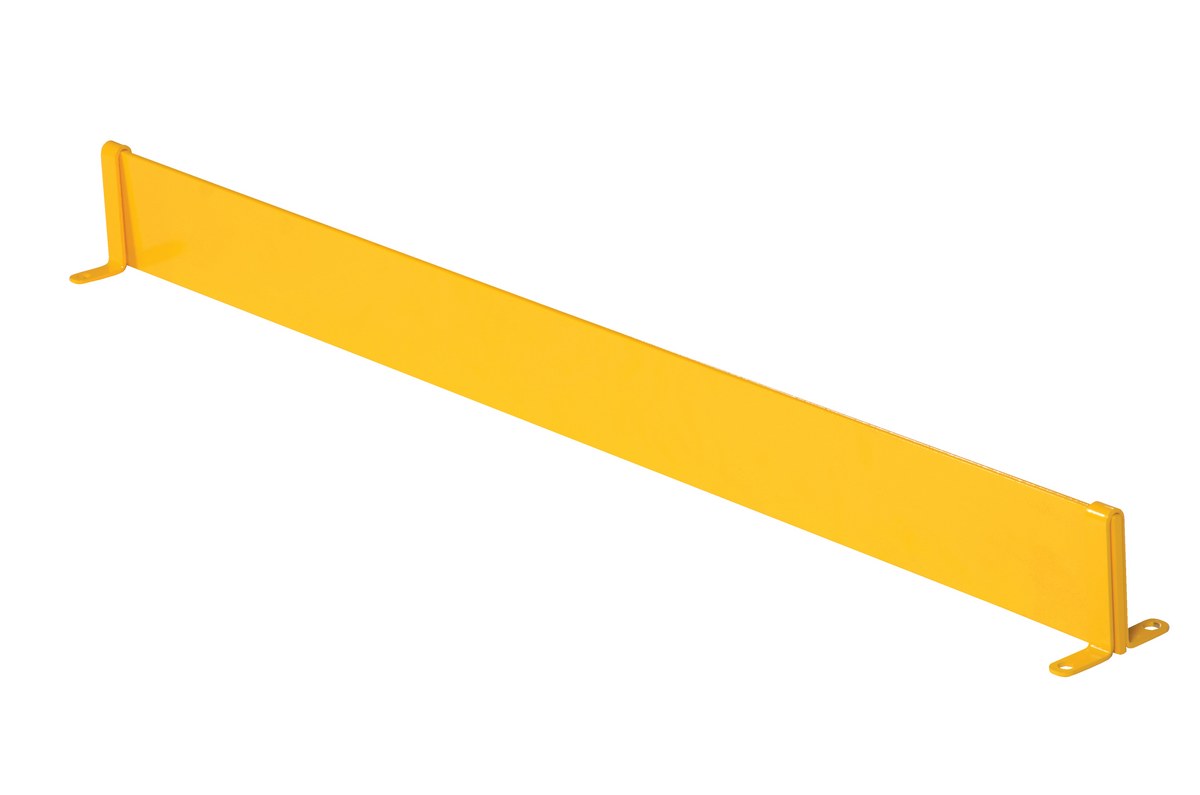

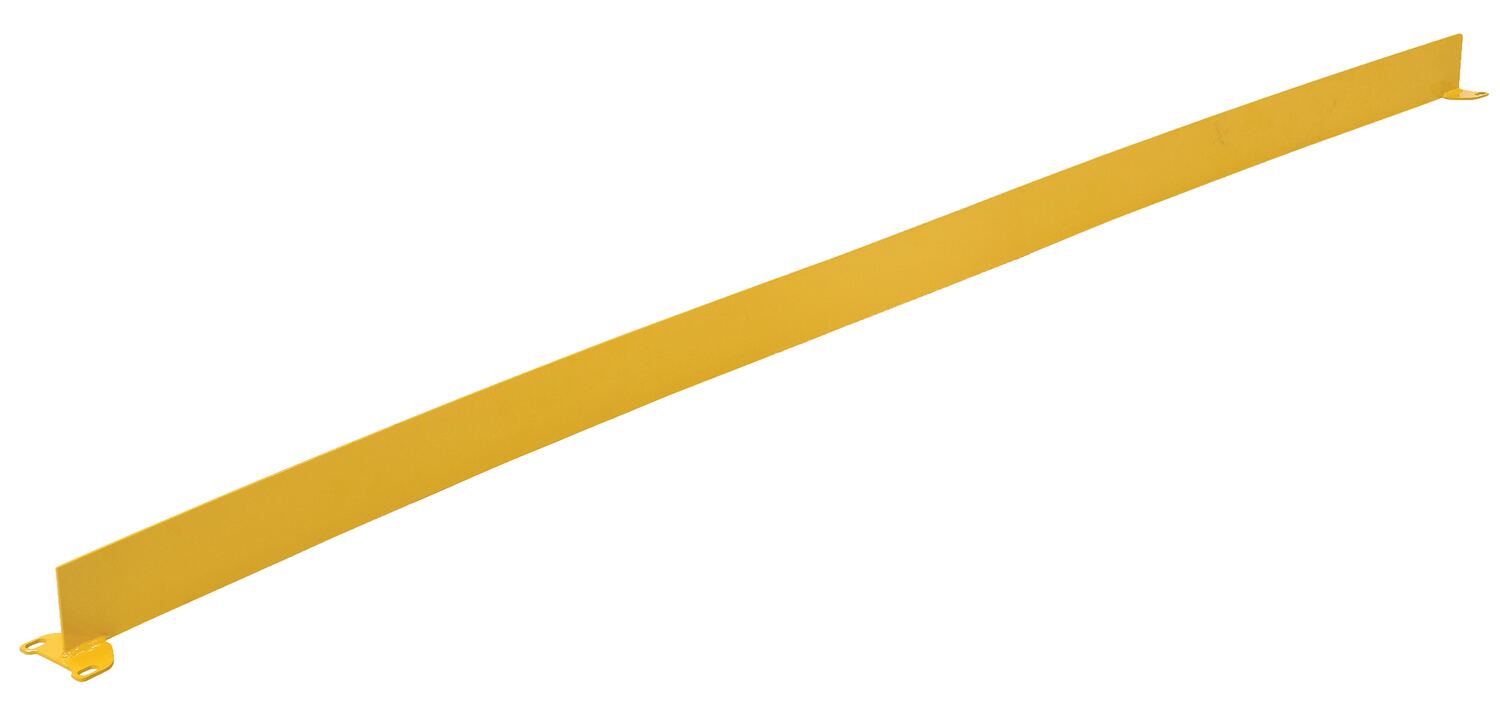

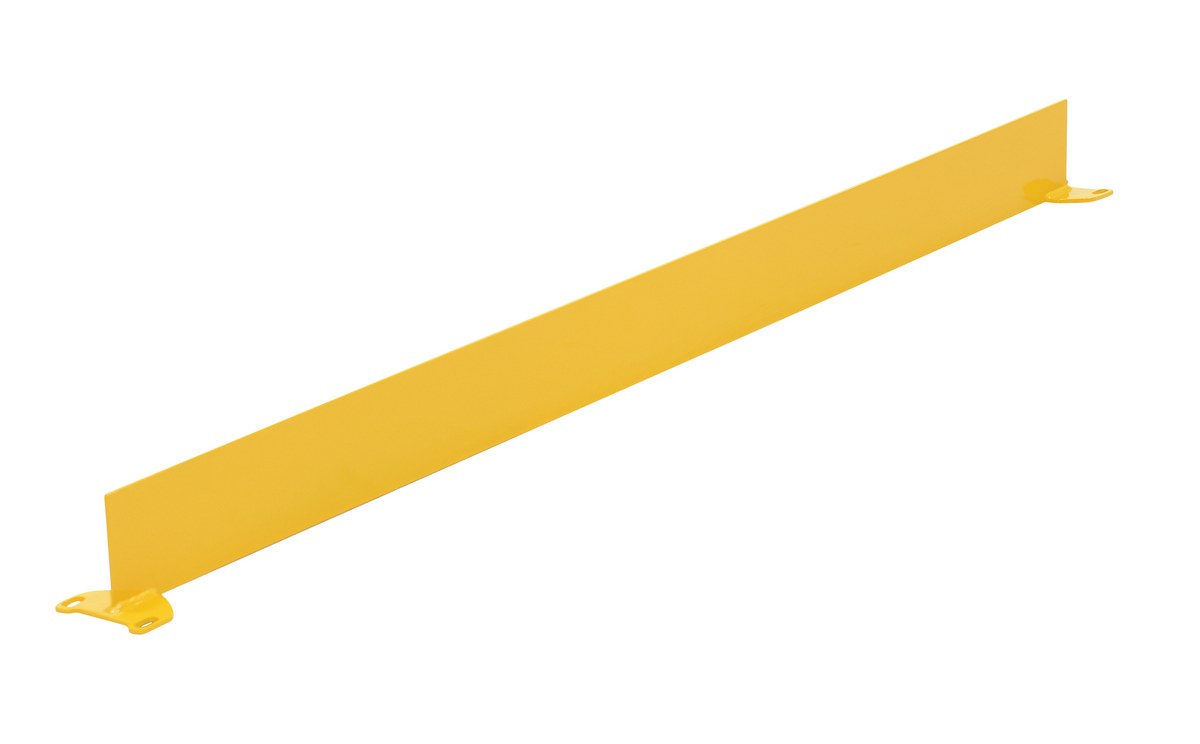

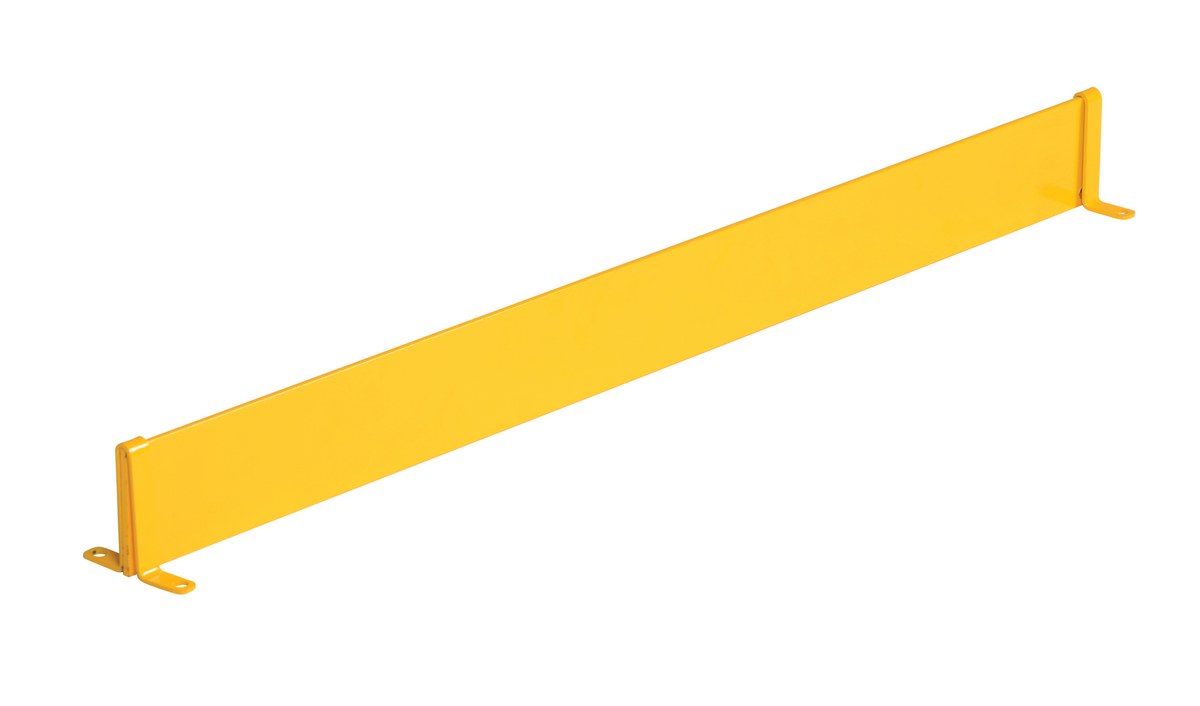

Optional 4" High Toeboard
TOE-B-48-N Warranty PDF -- 4" -- 43" 9
TOE-B-60-N Warranty PDF -- 4" -- 55" 12

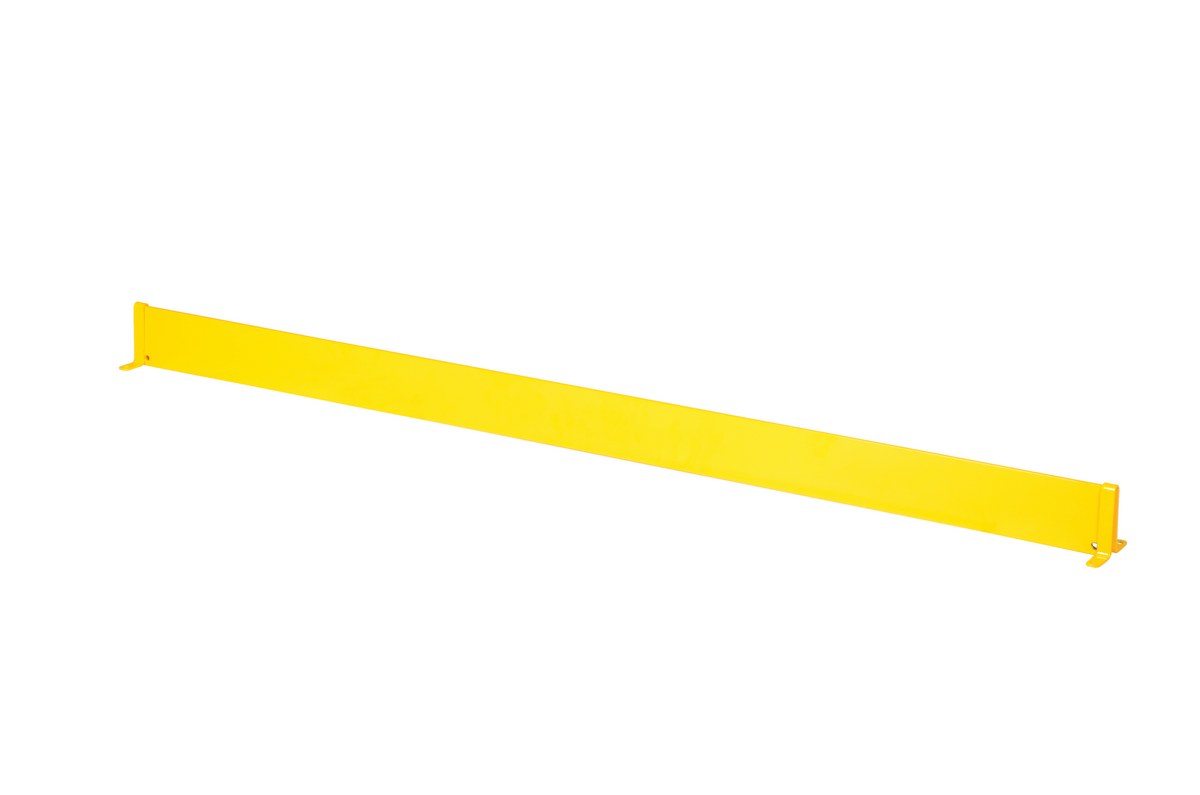

TOE-B-72-N Warranty PDF -- 4" -- 67" 16

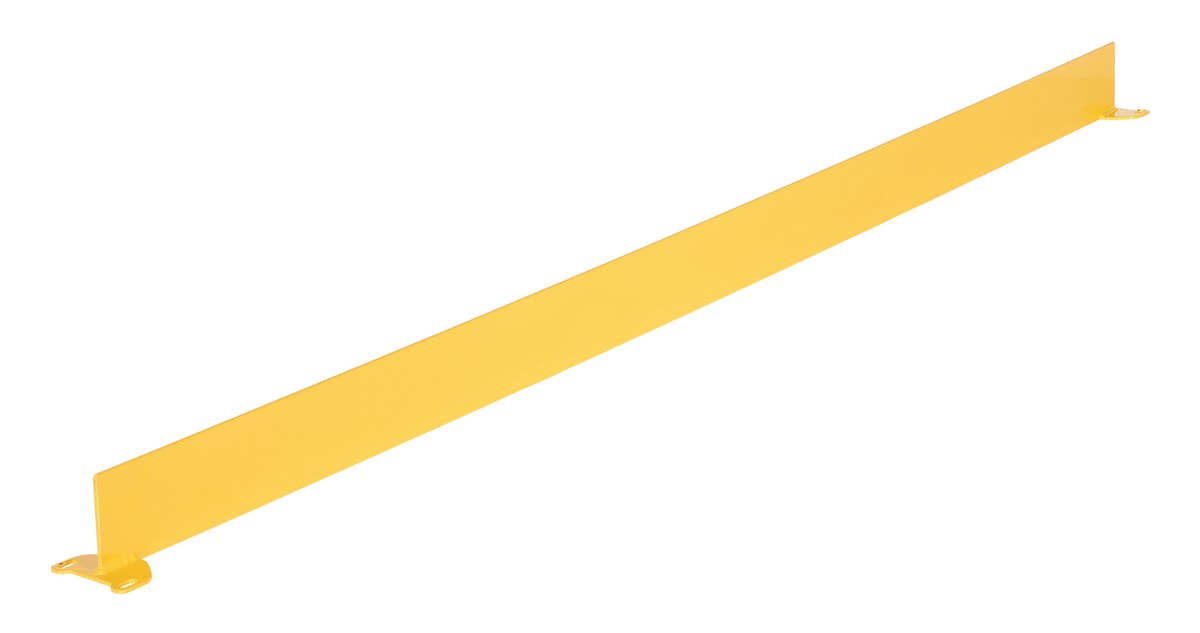

TOE-B-84-N Warranty PDF -- 4" -- 79" 19

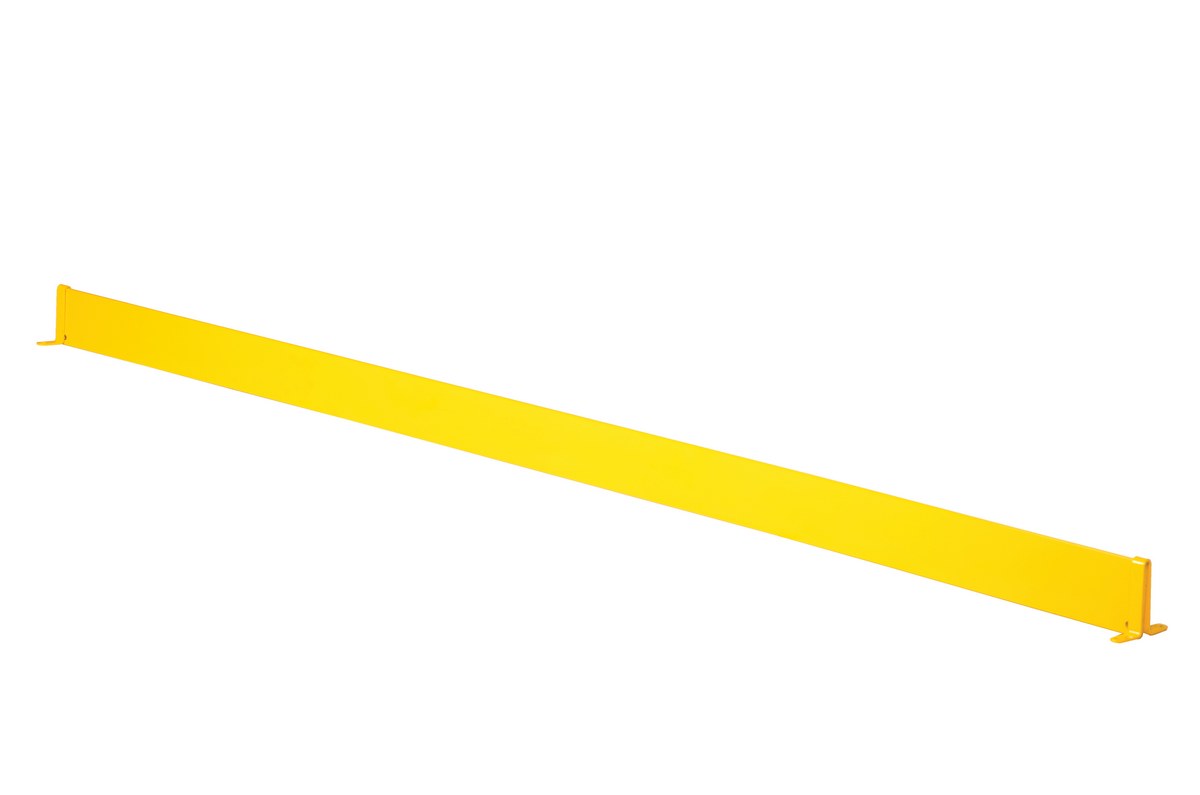

TOE-B-96-N Warranty PDF -- 4" -- 91" 22
TOE-B-108-N* Warranty PDF -- 4" -- 99.5" 30

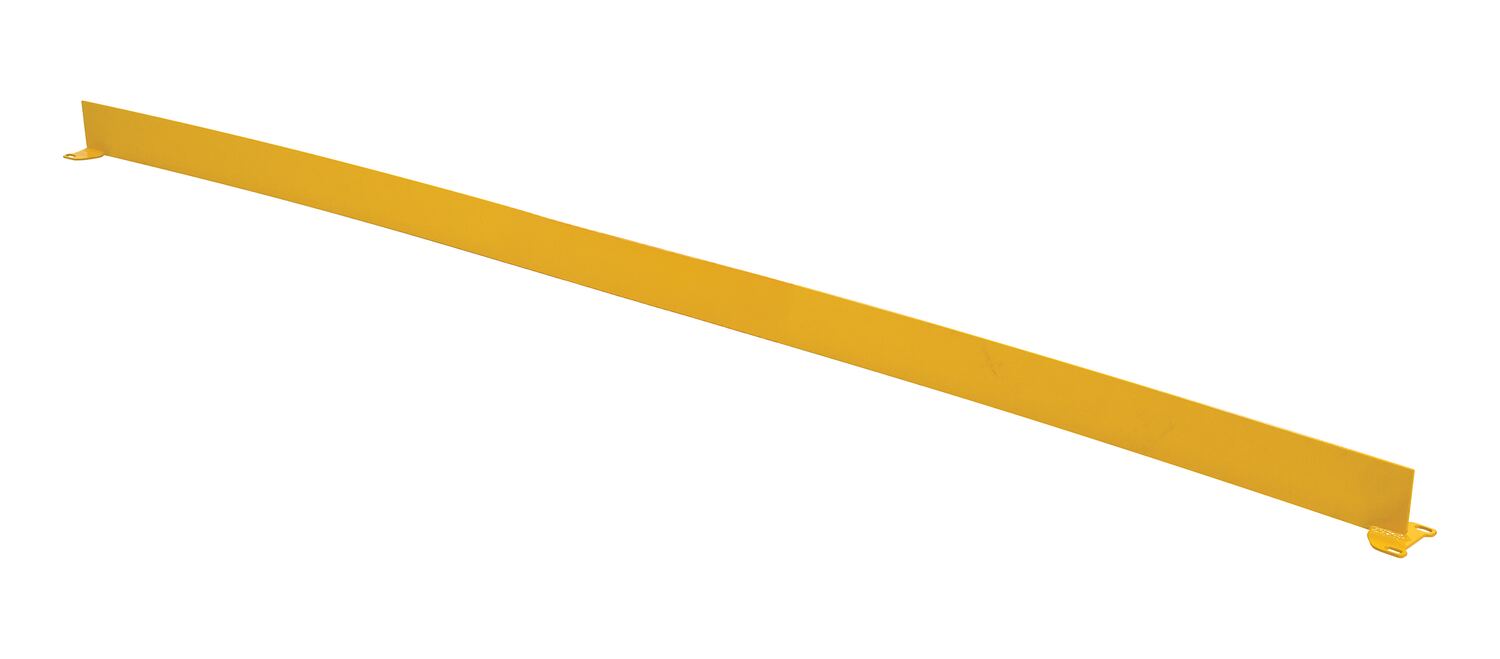

TOE-B-120-N** Warranty PDF -- 4" -- 111.5" 38
AS-383 - Concrete Anchor Bolts (1) 3/8"x3" 1
AS-383-4PK - Concrete Anchor Bolts (4) 3/8"x3" 4

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Q: I want to install the wire mesh on the square railing. What hardware is needed?

A: The hardware for the wire mesh to install on the square railing is included.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Square Safety Handrails




Steel Square Safety Handrails are an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish. Available with or without toeboards as application requires.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

Aluminum Square Safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Robust design provides stabilization throughout those areas.

  • Modular design allows for maximum versatility
  • Square aluminum construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Smooth surface for maximum durability

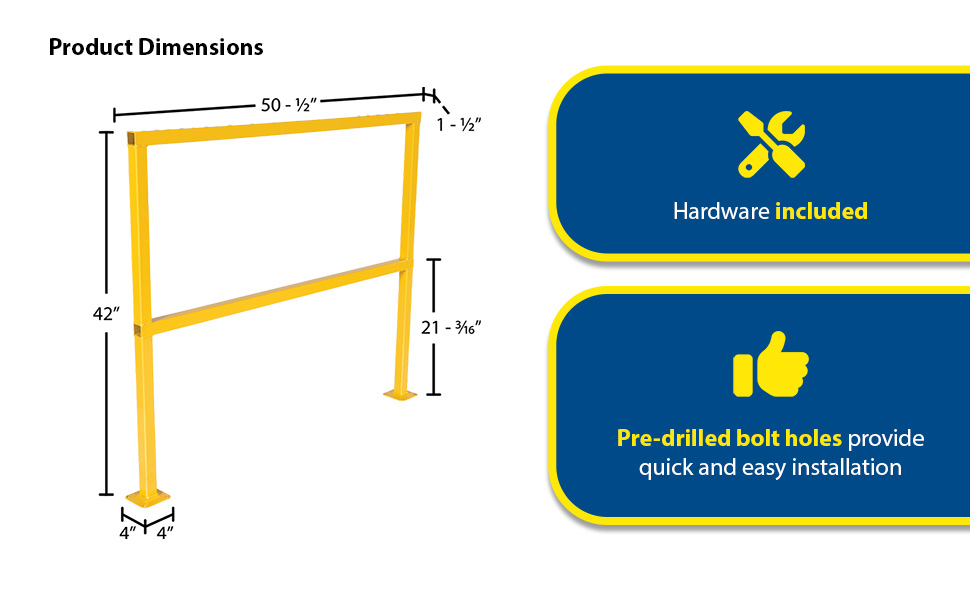

Steel Square Handrails

Model Image PDF Square
Tube (O.D)
Overall
Height
Midrail
Height
Useable Length Wt.
(lbs)

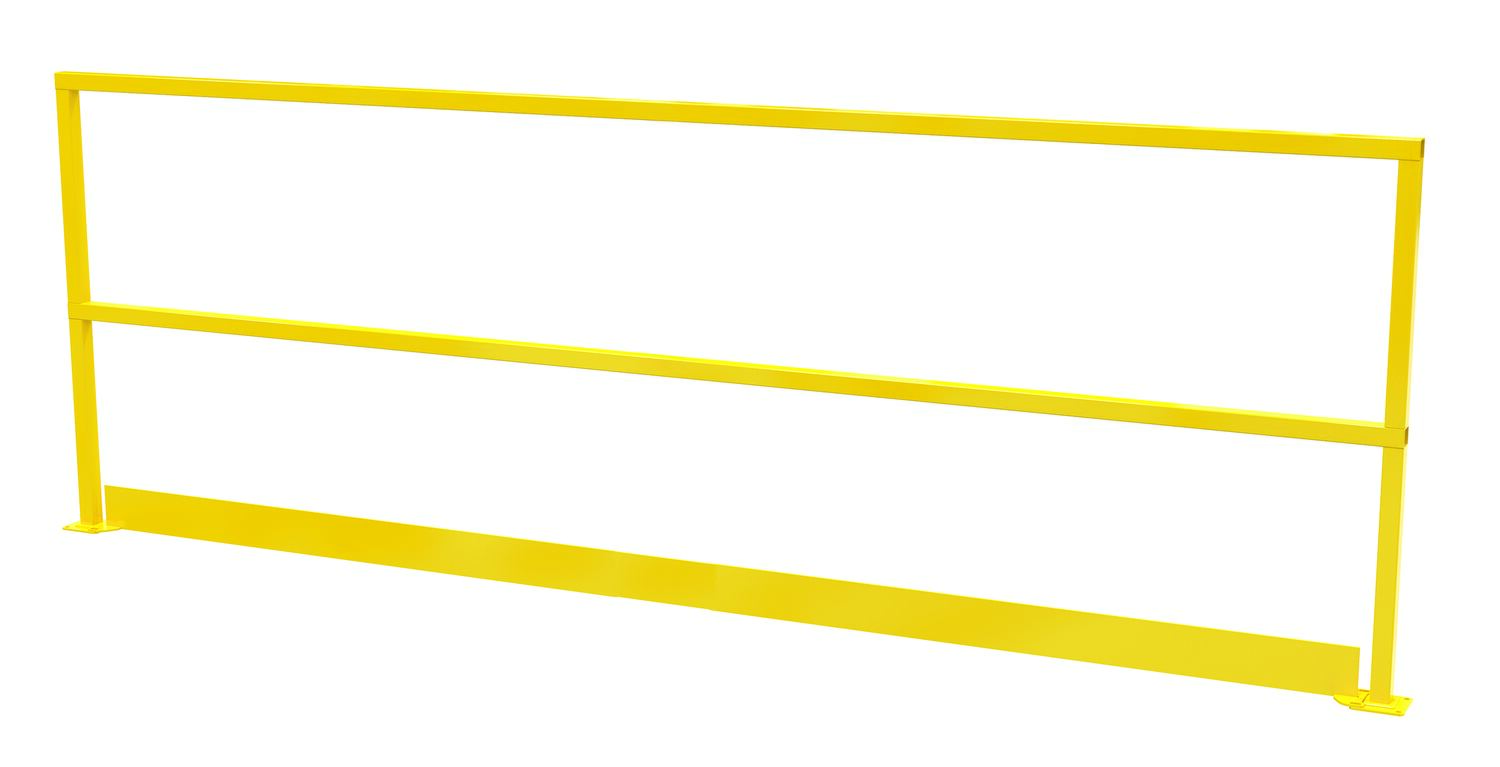

Rigid Section with Toeboard

SQ-48-TB icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 48" 60
SQ-60-TB icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 60" 67
SQ-72-TB icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 72" 86
SQ-84-TB icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 84" 92
SQ-96-TB icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 96" 98

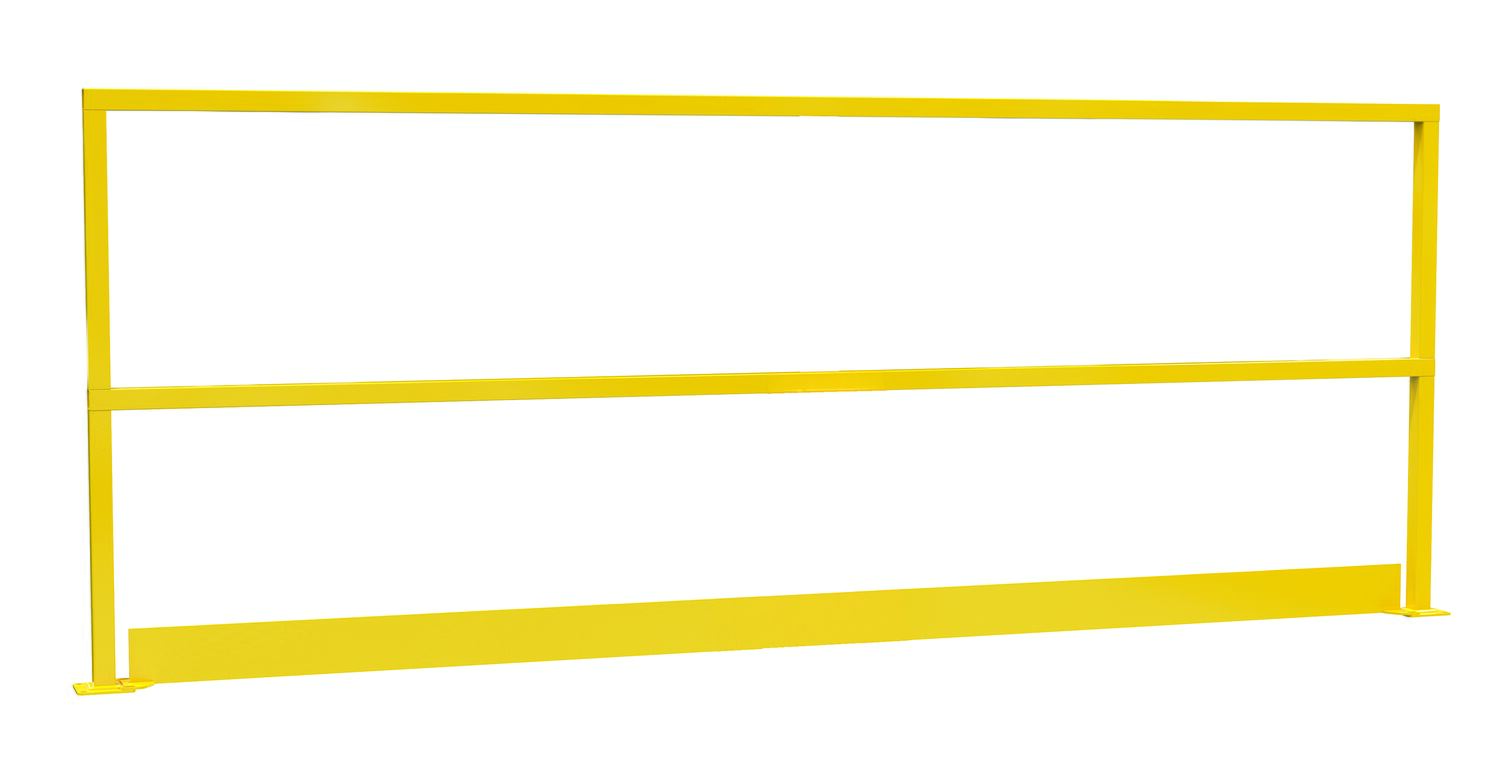

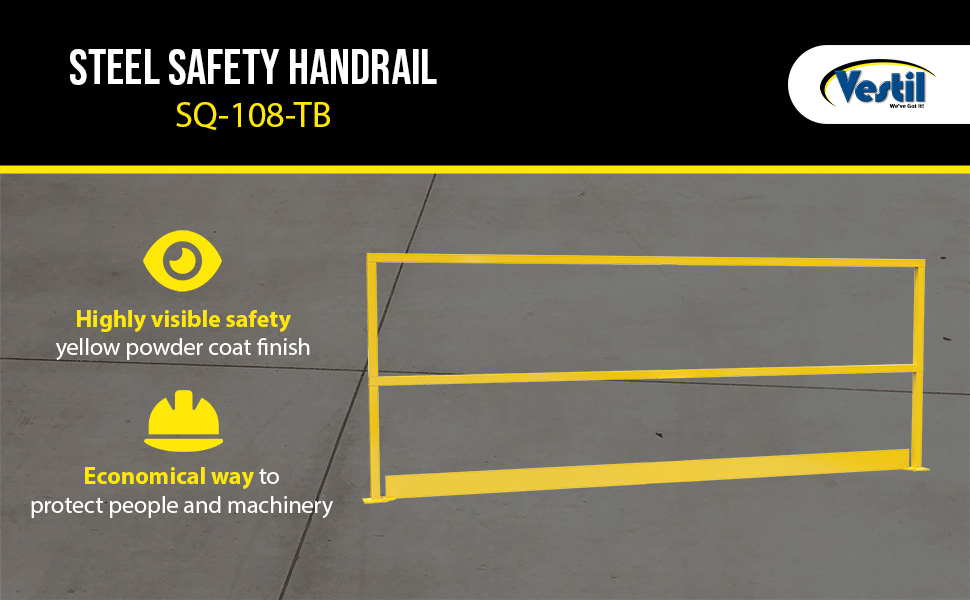

SQ-108-TB icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 108" 106
SQ-120-TB icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 120" 168

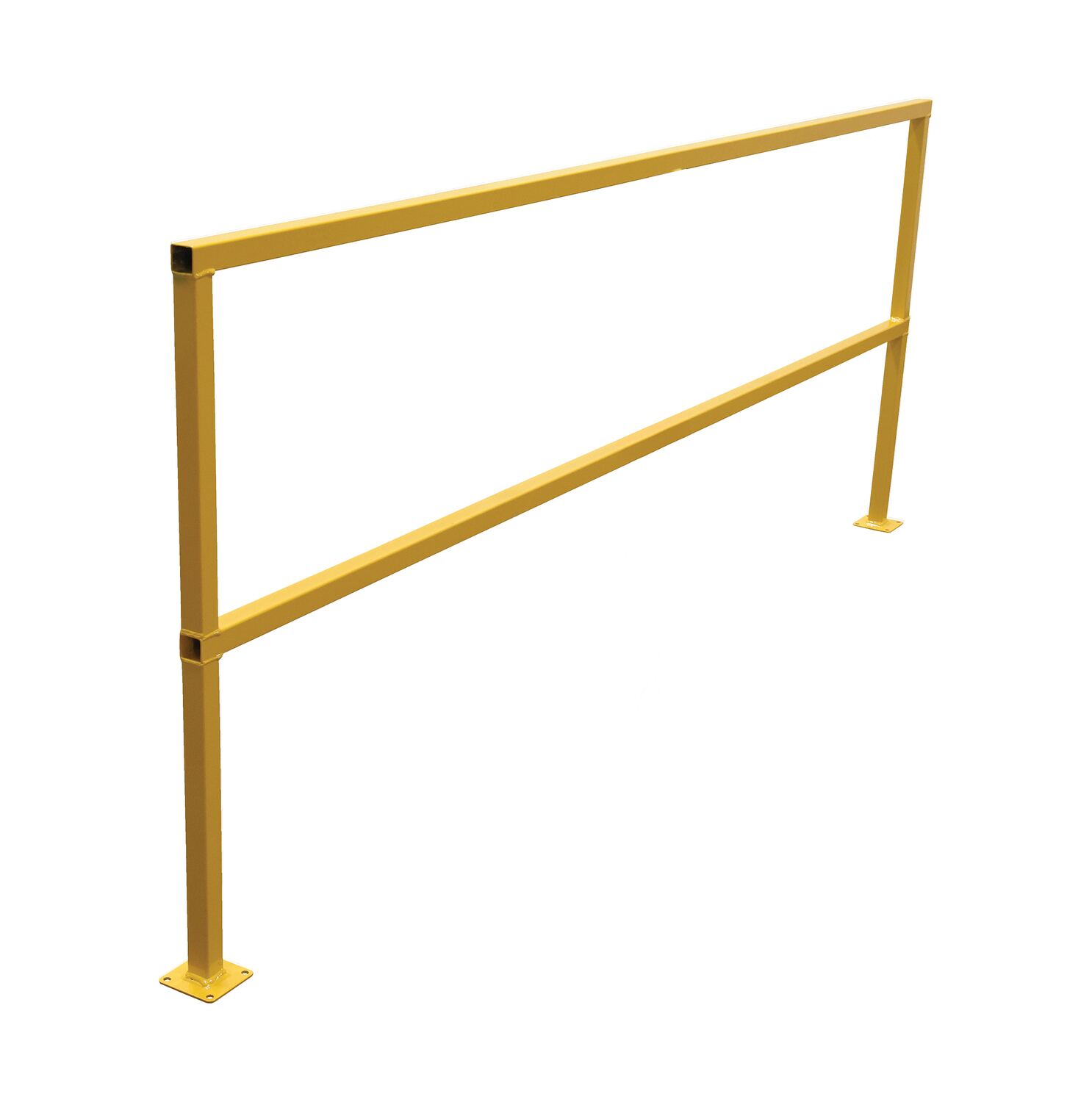

Rigid Steel Section without Toeboard
SQ-48 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 48" 44
SQ-60 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 60" 48

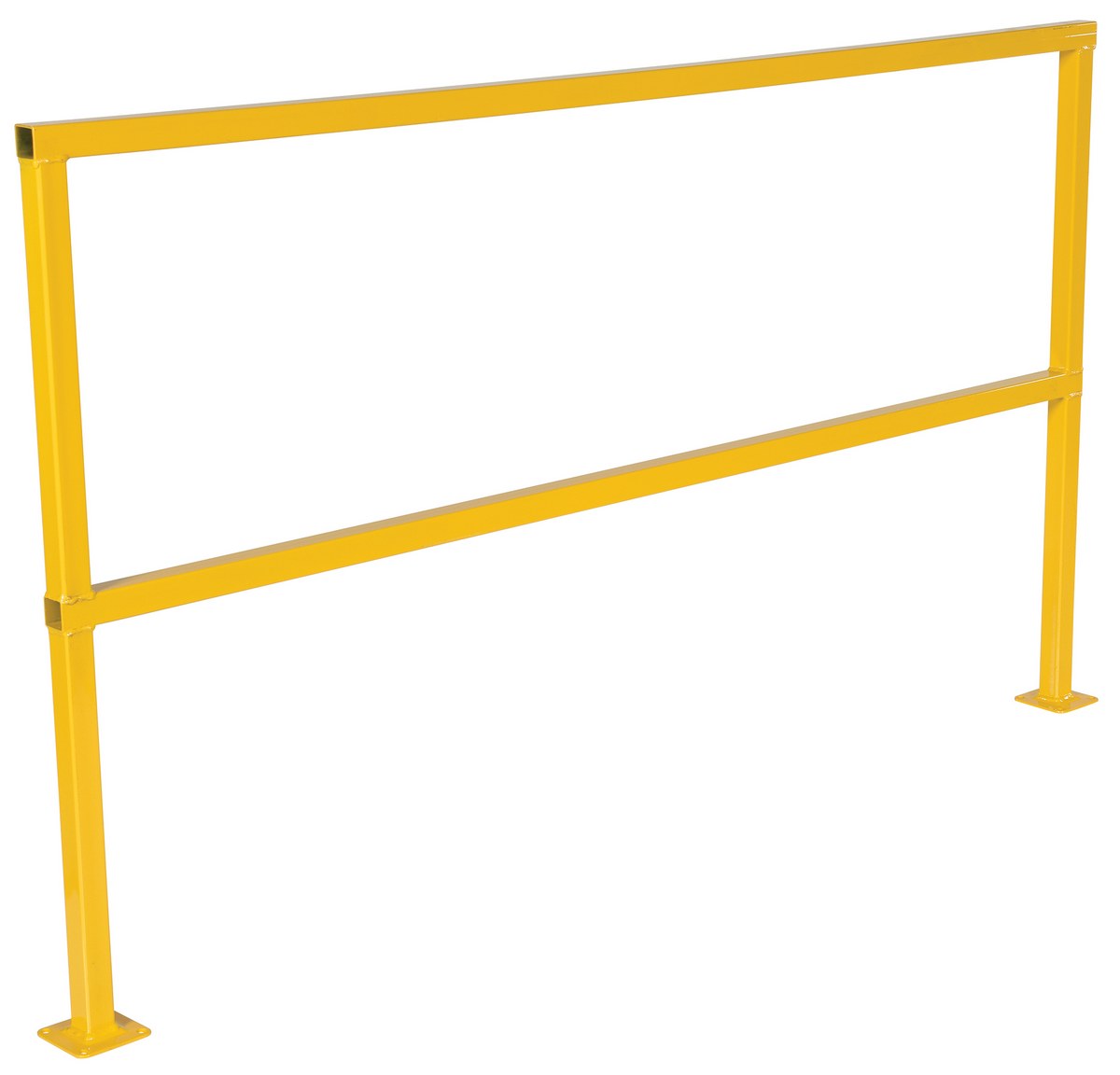

SQ-72 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 72" 54

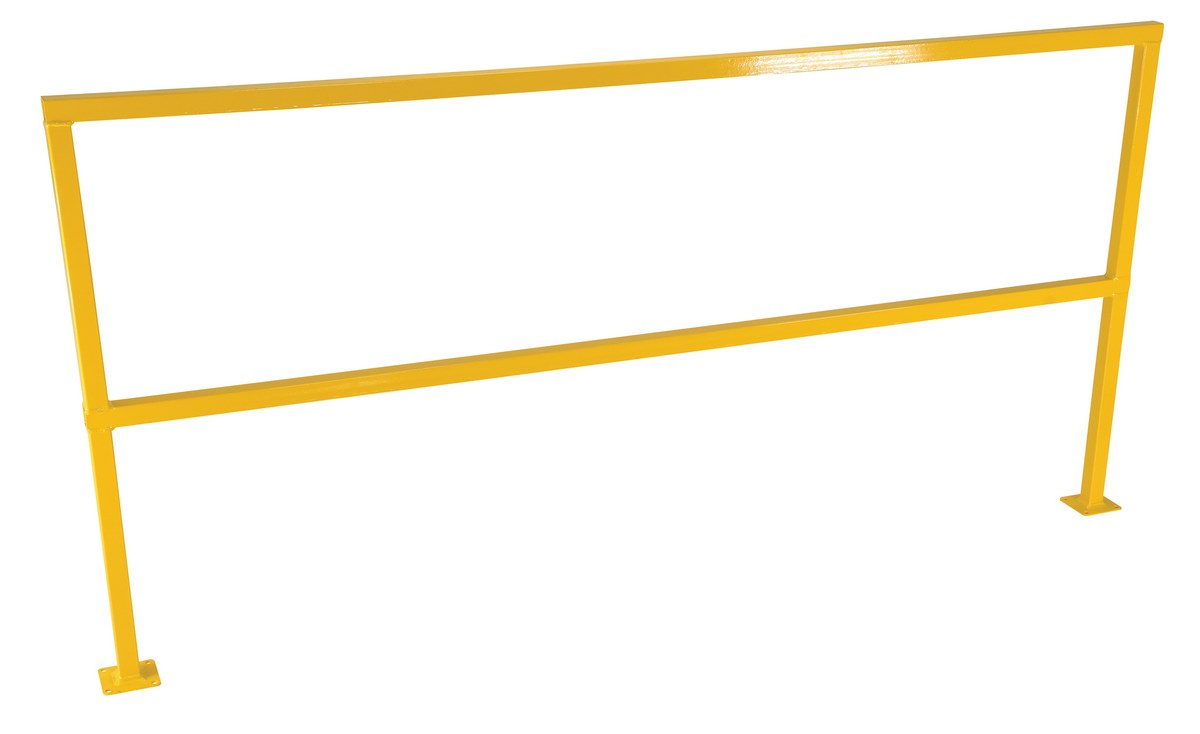

SQ-84 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 84" 57

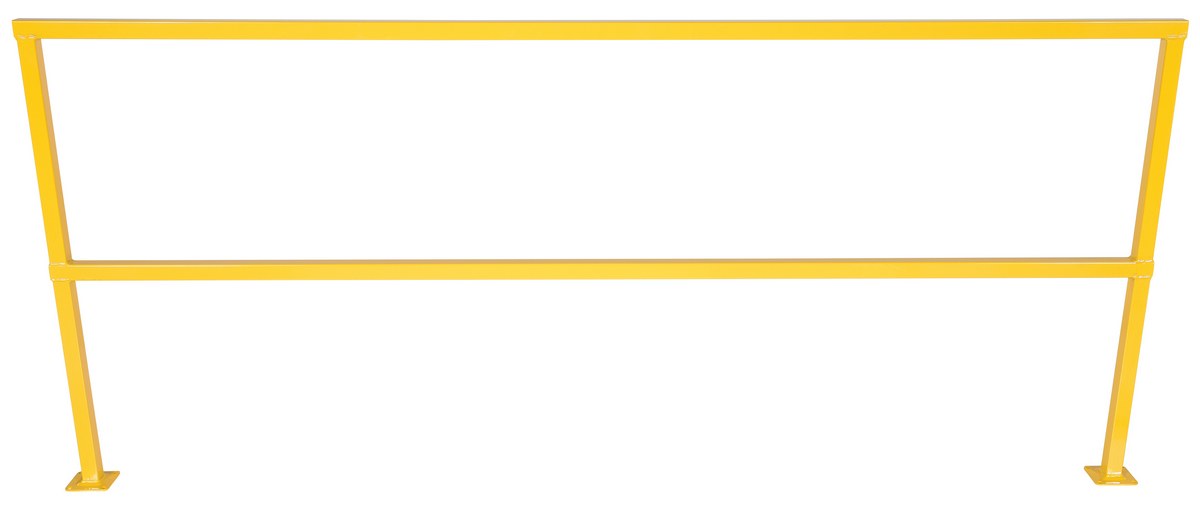

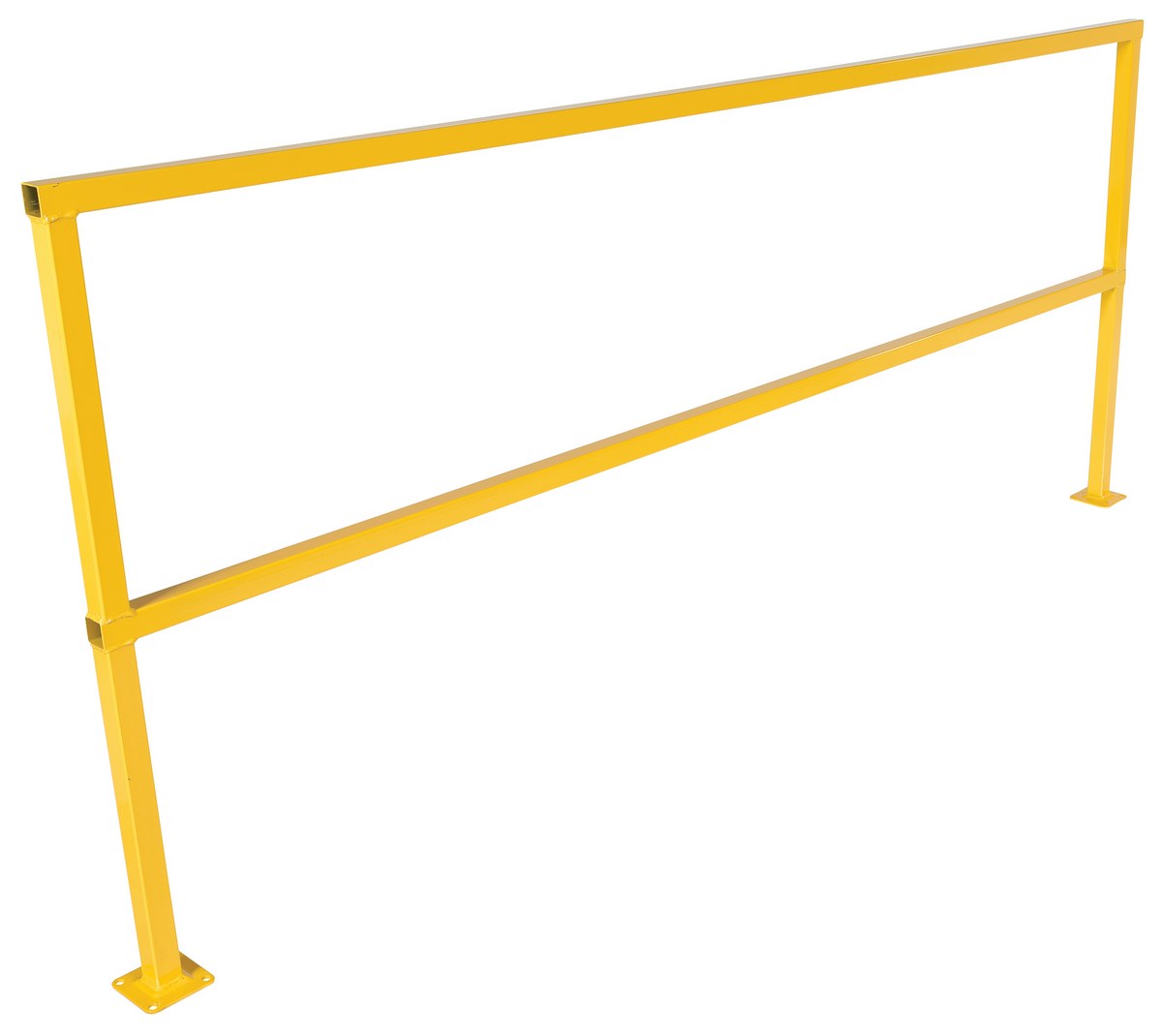

SQ-96 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 96" 60
SQ-108 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 108" 65
SQ-120 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-3/16" 120" 69

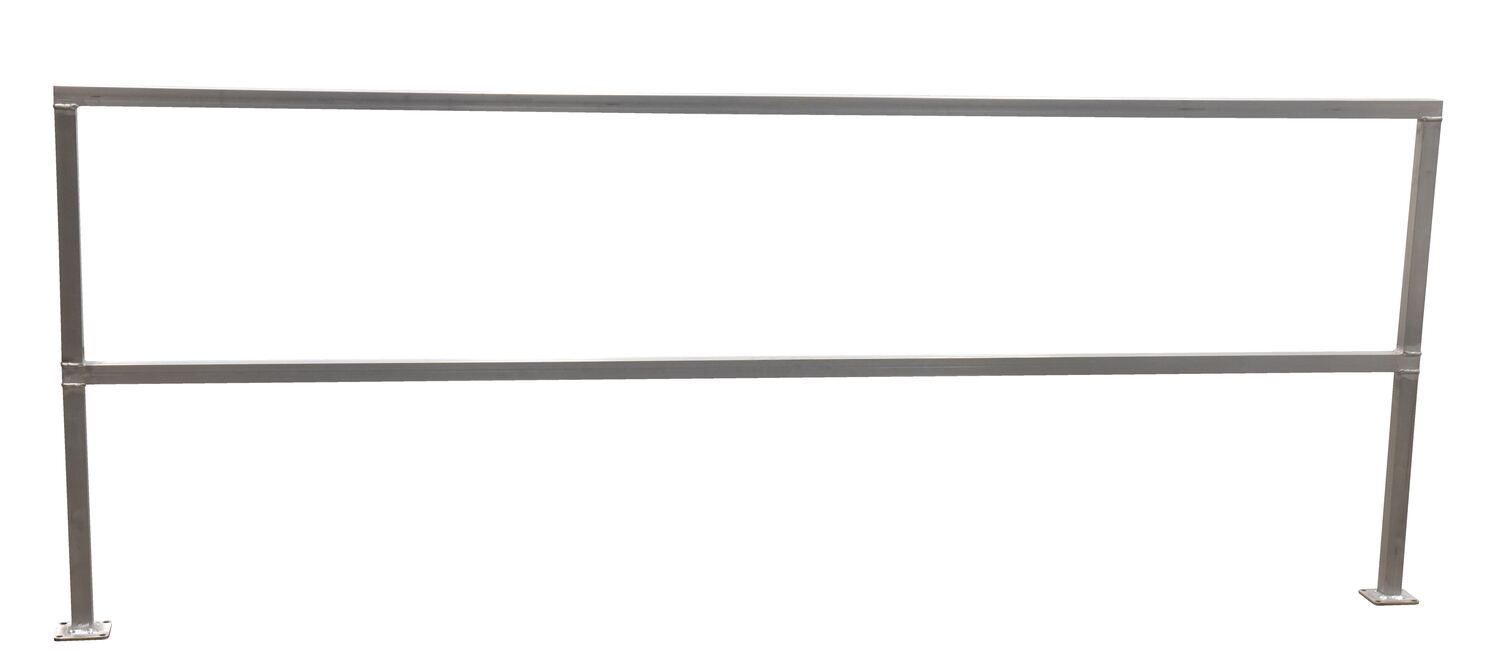

Rigid Aluminum Section without Toeboard

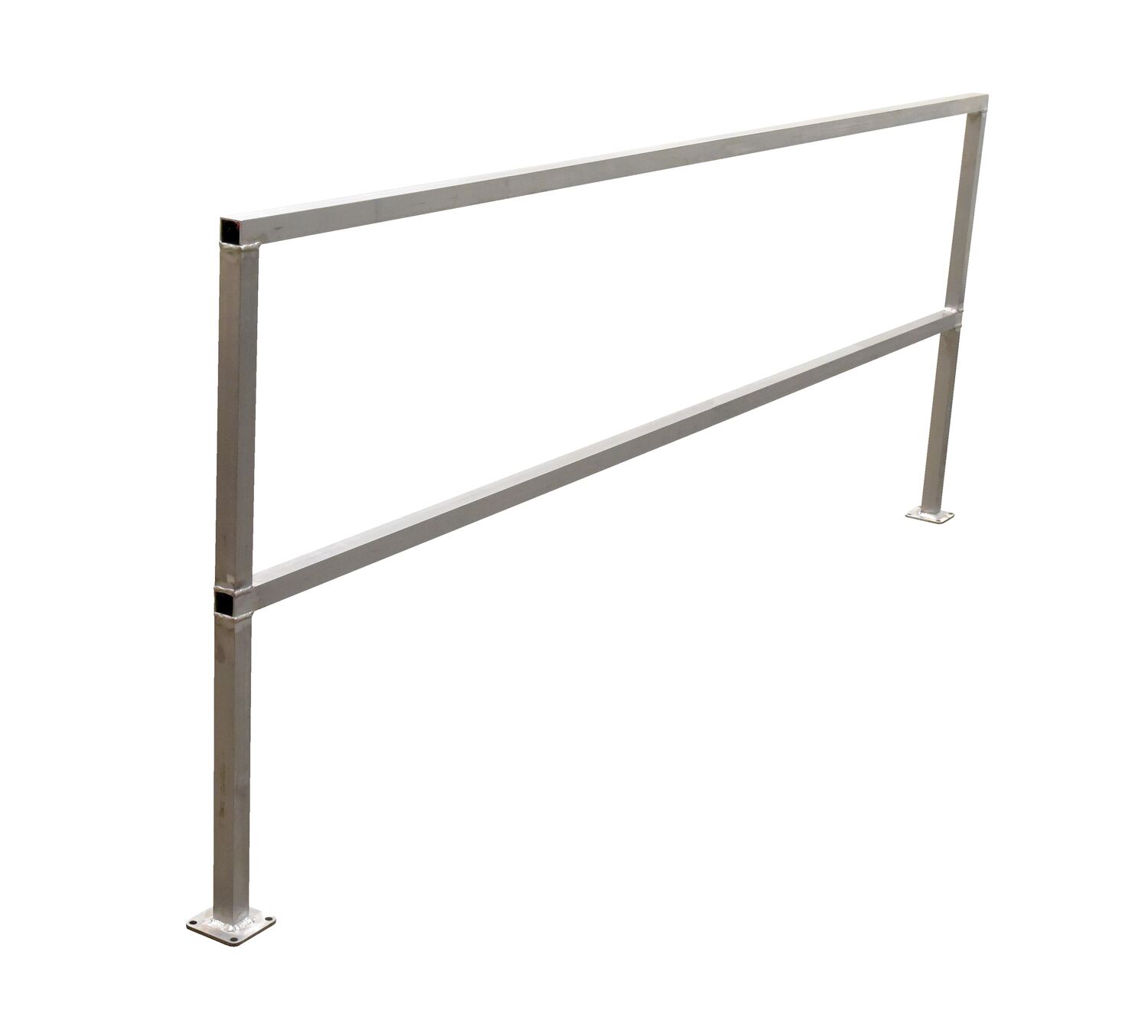

SQ-A-48 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-1/8" 48" 15
SQ-A-60 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-1/8" 60" 17
SQ-A-72 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-1/8" 72" 58

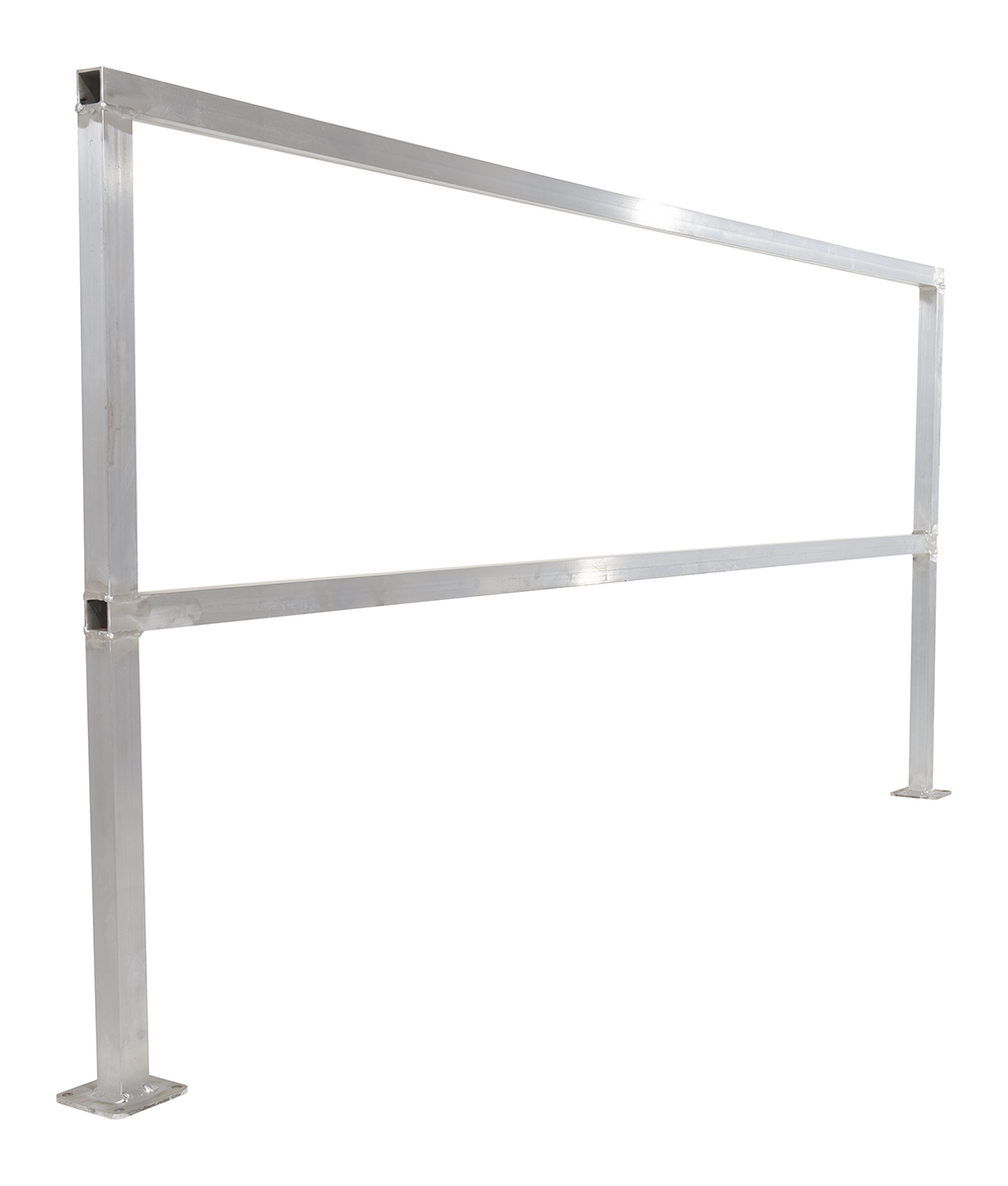

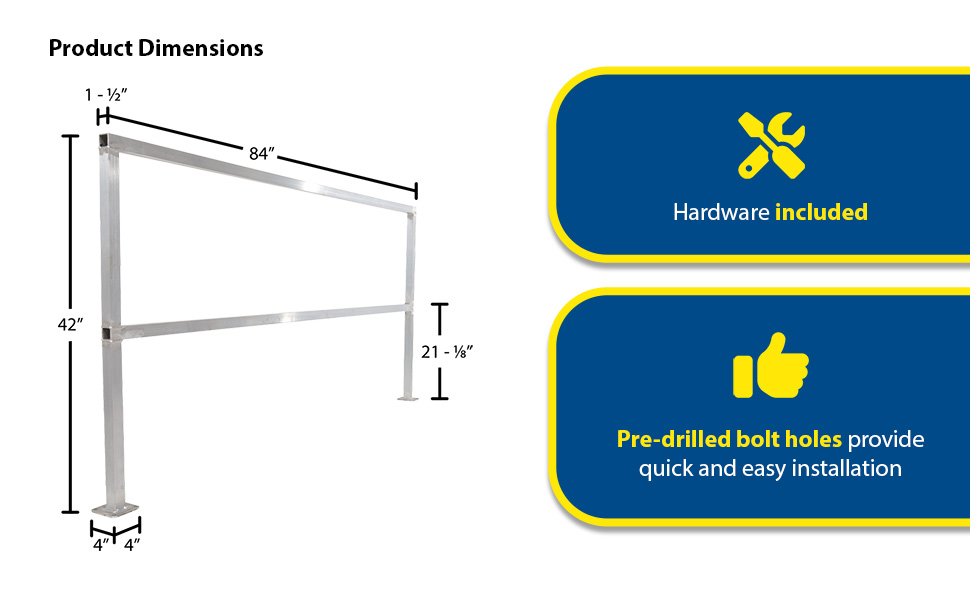

SQ-A-84 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-1/8" 84" 60
SQ-A-96 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-1/8" 96" 88
SQ-A-108 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-1/8" 108" 92

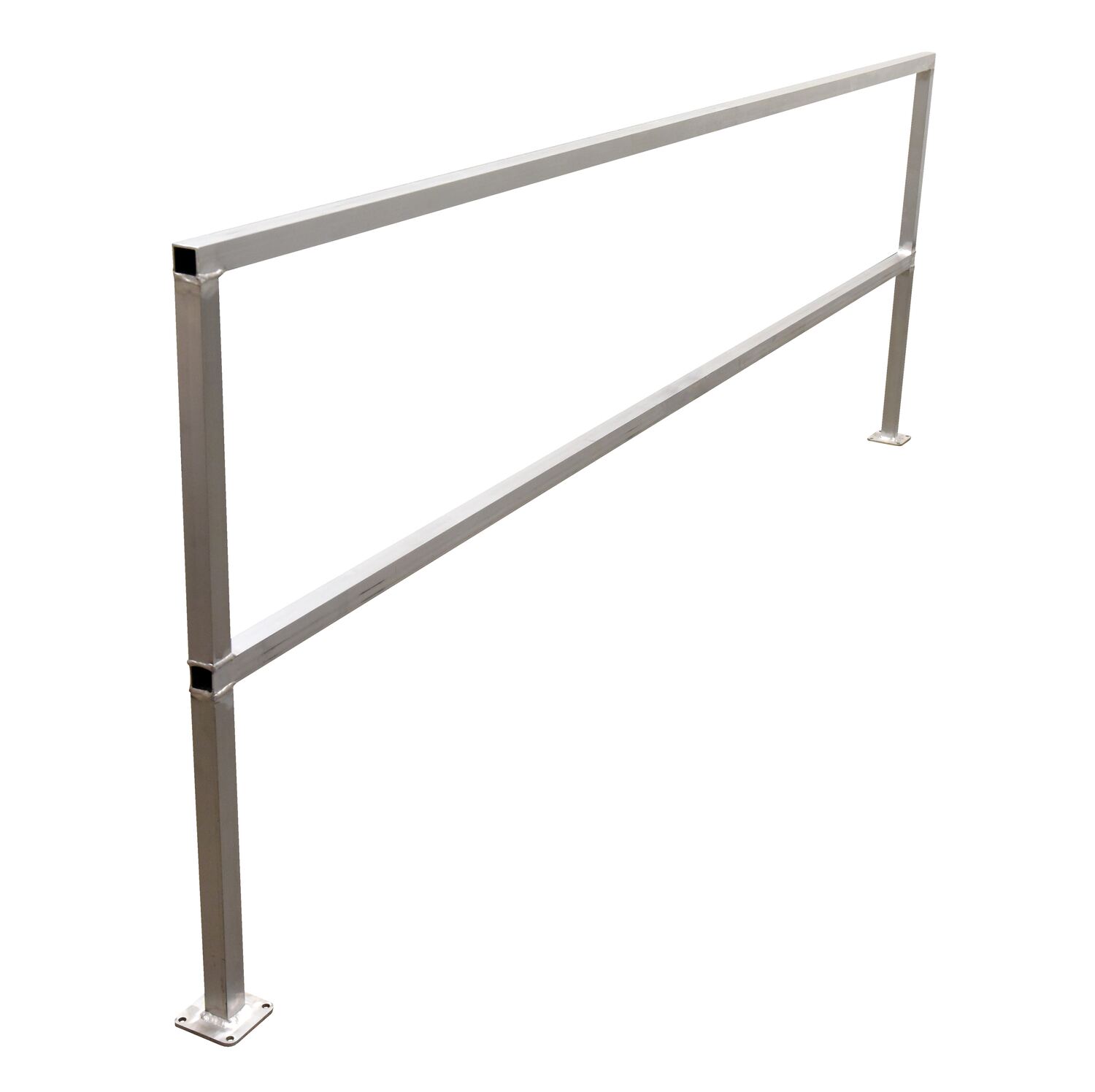

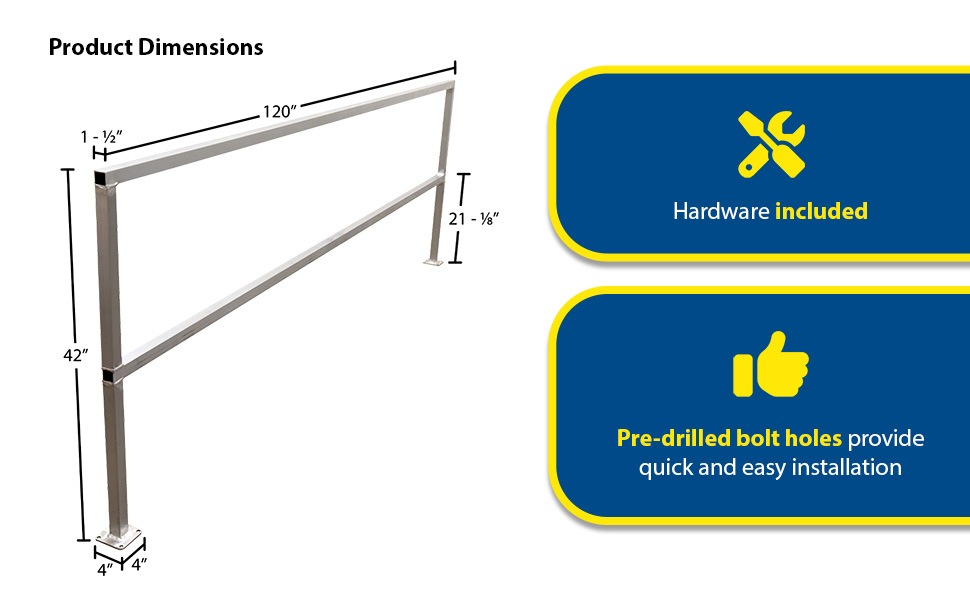

SQ-A-120 icon_approvaldrawings.jpgWarranty PDF 1-1/2" 42" 21-1/8" 120" 96
Optional Wire Mesh (bolted on)

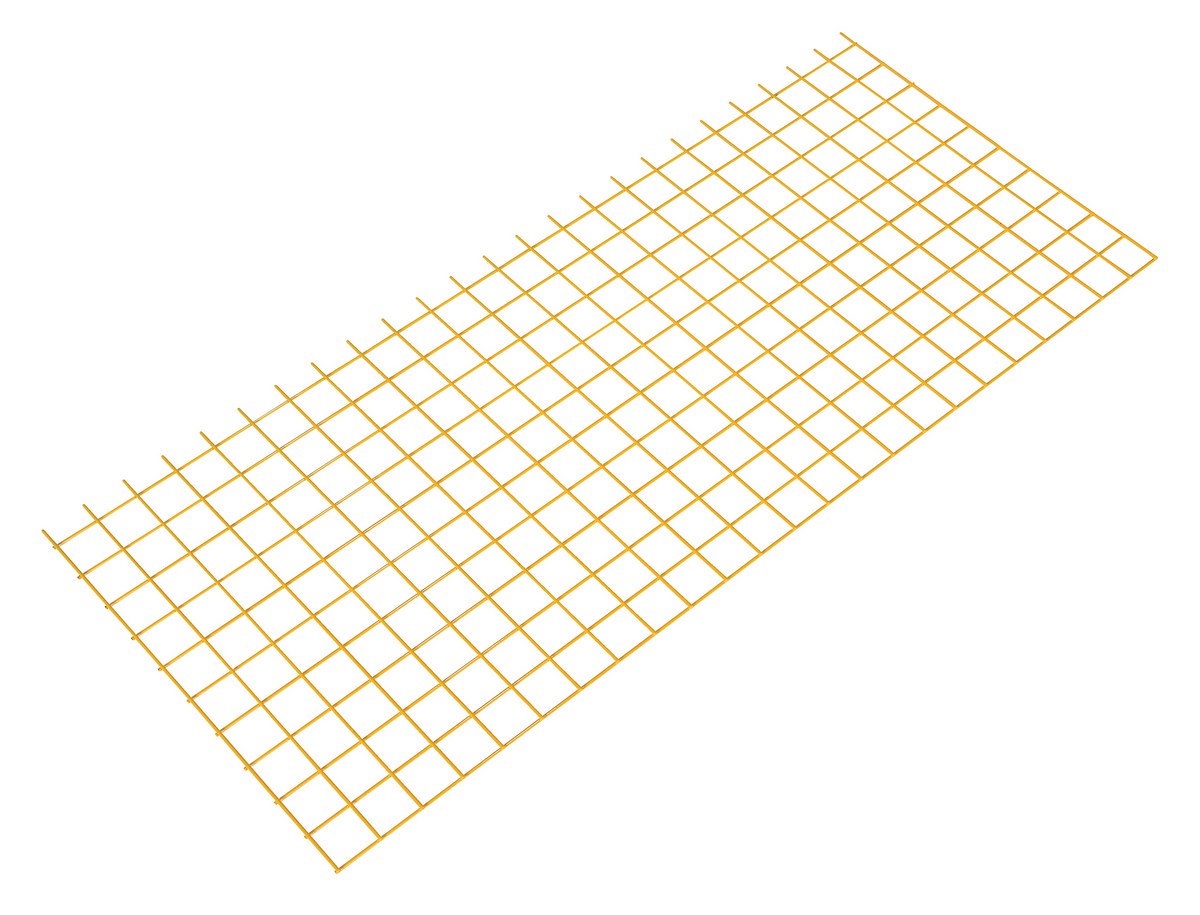

WM-48 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 48" 7
WM-60 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 60" 9
WM-72 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 72" 11
WM-84 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 84" 12
WM-96 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 96" 14
WM-108 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 108" 41
WM-120 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 120" 58
Optional Connection Tubing
CSEC-48 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 47-7/8" 14/pr.
CSEC-60 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 59-7/8" 15/pr.
CSEC-72 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 71-7/8" 18/pr.
CSEC-84 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 83-7/8" 20/pr.
CSEC-96 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 95-7/8" 32/pr.
CSEC-108 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 107-7/8" 40/ea.
CSEC-120 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 119-7/8" 43/ea.
Optional 4" High Toeboard
TOE-B-48-N Warranty PDF -- 4" -- 43" 9
TOE-B-60-N Warranty PDF -- 4" -- 55" 12
TOE-B-72-N Warranty PDF -- 4" -- 67" 16
TOE-B-84-N Warranty PDF -- 4" -- 79" 19
TOE-B-96-N Warranty PDF -- 4" -- 91" 22
TOE-B-108-N* Warranty PDF -- 4" -- 99.5" 30
TOE-B-120-N** Warranty PDF -- 4" -- 111.5" 38
*Receive (2) pieces 49-3/4" long each
**Receive (2) pieces 55-3/4" long each

Options


Options

Model Image PDFs Description Wt (lbs.)
SQ-CAP Warranty PDF Black Plastic End Cap - 1-1/2"x1-1/2" 1
C-CON Warranty PDF Corner Connectors (sold as pair) 10
S-GATE-60 icon_approvaldrawings.jpgWarranty PDF 60" Sliding Gate 83
Optional Wire Mesh (bolted on)
WM-48 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 48" 7
WM-60 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 60" 9
WM-72 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 72" 11
WM-84 icon_approvaldrawings.jpgWarranty PDF -- 22" -- 84" 12
WM-96 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 96" 14
WM-108 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 108" 41
WM-120 - icon_approvaldrawings.jpgWarranty PDF -- 22" -- 120" 58
Optional Connection Tubing
CSEC-48 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 47-7/8" 14/pr.
CSEC-60 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 59-7/8" 15/pr.
CSEC-72 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 71-7/8" 18/pr.
CSEC-84 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 83-7/8" 20/pr.
CSEC-96 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 95-7/8" 32/pr.
CSEC-108 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 107-7/8" 40/ea.
CSEC-120 icon_approvaldrawings.jpgWarranty PDF 1-1/4" -- -- 119-7/8" 43/ea.
Optional 4" High Toeboard
TOE-B-48-N Warranty PDF -- 4" -- 43" 9
TOE-B-60-N Warranty PDF -- 4" -- 55" 12
TOE-B-72-N Warranty PDF -- 4" -- 67" 16
TOE-B-84-N Warranty PDF -- 4" -- 79" 19
TOE-B-96-N Warranty PDF -- 4" -- 91" 22
TOE-B-108-N* Warranty PDF -- 4" -- 99.5" 30
TOE-B-120-N** Warranty PDF -- 4" -- 111.5" 38
AS-383 - Concrete Anchor Bolts (1) 3/8"x3" 1
AS-383-4PK - Concrete Anchor Bolts (4) 3/8"x3" 4

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com

VESTIL.COM
