Model Details

SSG-10-BK

- Temporarily Unavailable - Please Contact Sales

SSG-10-BK

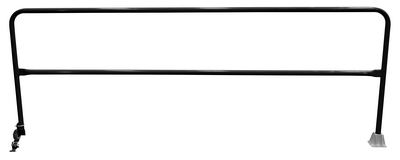

Steel Dock Safety Swing Gate 10 Ft. Length Black

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Black powder coat finish
  • Foot release lock keeps railing from moving when in use
Total Ship Wt.(lbs.): 84 (only 1 package) Size: 6.5"W x 120.0625"L x 46.25"H Color: Black Non-Returnable

Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Wheel Material: Poly-on-Poly Steel Pipe (Schedule): 10
Pipe O.D. (in.): 1-5/8 Midrail (in.): 25 Weight (lbs.): 84

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SSG-10-BK


SSG-10-BK

Steel Dock Safety Swing Gate 10 Ft. Length Black

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Black powder coat finish
  • Foot release lock keeps railing from moving when in use
Dimensions: 6.5"W x 120.0625"L x 46.25"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215362023 GTIN: 00691215362023
Warranty: -- Shipping Weight: 84 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Wheel Material: Poly-on-Poly Steel Pipe (Schedule): 10
Pipe O.D. (in.): 1-5/8 Midrail (in.): 25 Weight (lbs.): 84
