Model Details

TS-25-7272

TS-25-7272

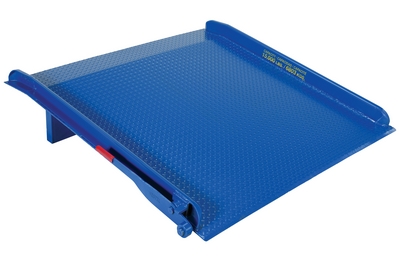

Steel Truck Dock Board 72 In. x 72 In. 25,000 Lb. Capacity Blue

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
Total Ship Wt.(lbs.): 859 (only 1 package) Size: 75.0625"W x 71.8125"L x 19.8125"H Color: Blue

Uniform Capacity (lb.): 25000 Height Difference at 11 degree/19 percent (in.): 12 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Edge (in.): 12
Deck Thickness (in.): 1/2 OSHA: 1910.30(a) ANSI: MH 30.2
Usable Width (in.): 67-3/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TS-25-7272


TS-25-7272

Steel Truck Dock Board 72 In. x 72 In. 25,000 Lb. Capacity Blue

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
Dimensions: 75.0625"W x 71.8125"L x 19.8125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215043670 GTIN: 00691215043670
Warranty: -- Shipping Weight: 859 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 25000 Height Difference at 11 degree/19 percent (in.): 12 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Edge (in.): 12
Deck Thickness (in.): 1/2 OSHA: 1910.30(a) ANSI: MH 30.2
Usable Width (in.): 67-3/4
