Model Details

VAN-J-DC

Printer Friendly
VAN-J-DC

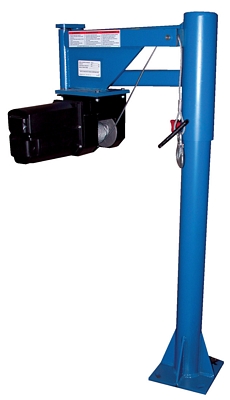

Steel DC Powered Lifter Jib 400 Lb. Capacity Blue

Lift items from ground to van floor height then rotate cargo into area. This is a battery powered winch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Double-arm design allows for better operation and use in tight spaces
  • Arm manually rotates 360 degrees for maximum versatility
  • Welded steel construction offers a rugged long lasting use
  • Pre-drilled mounting holes make installation quick and easy
Total Ship Wt.(lbs.): 145 (only 1 package) Size: 12.3125"W x 45.75"L x 46.0625"H Color: Blue QuickShip

Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 Overall Cable Length (ft.): 46
Mounting Plate Length/Width (in.): 8 x 8 Power: DC/12V Rotation Degree: 360
Ground Clearance (in.): 31-3/8 Hook Height (in.): 36-1/8 Winch Speed Full Load (feet per minute): 7
Mast Diameter (in.): 4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VAN-J-DC
VAN-J-DC

Steel DC Powered Lifter Jib 400 Lb. Capacity Blue

Lift items from ground to van floor height then rotate cargo into area. This is a battery powered winch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Double-arm design allows for better operation and use in tight spaces
  • Arm manually rotates 360 degrees for maximum versatility
  • Welded steel construction offers a rugged long lasting use
  • Pre-drilled mounting holes make installation quick and easy
Dimensions: 12.3125"W x 45.75"L x 46.0625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215044691 GTIN: 00691215044691
Warranty: -- Shipping Weight: 145 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 Overall Cable Length (ft.): 46
Mounting Plate Length/Width (in.): 8 x 8 Power: DC/12V Rotation Degree: 360
Ground Clearance (in.): 31-3/8 Hook Height (in.): 36-1/8 Winch Speed Full Load (feet per minute): 7
Mast Diameter (in.): 4
