Click Image to Enlarge

model: VAN-J


SERIES: VAN
Lifter Jibs

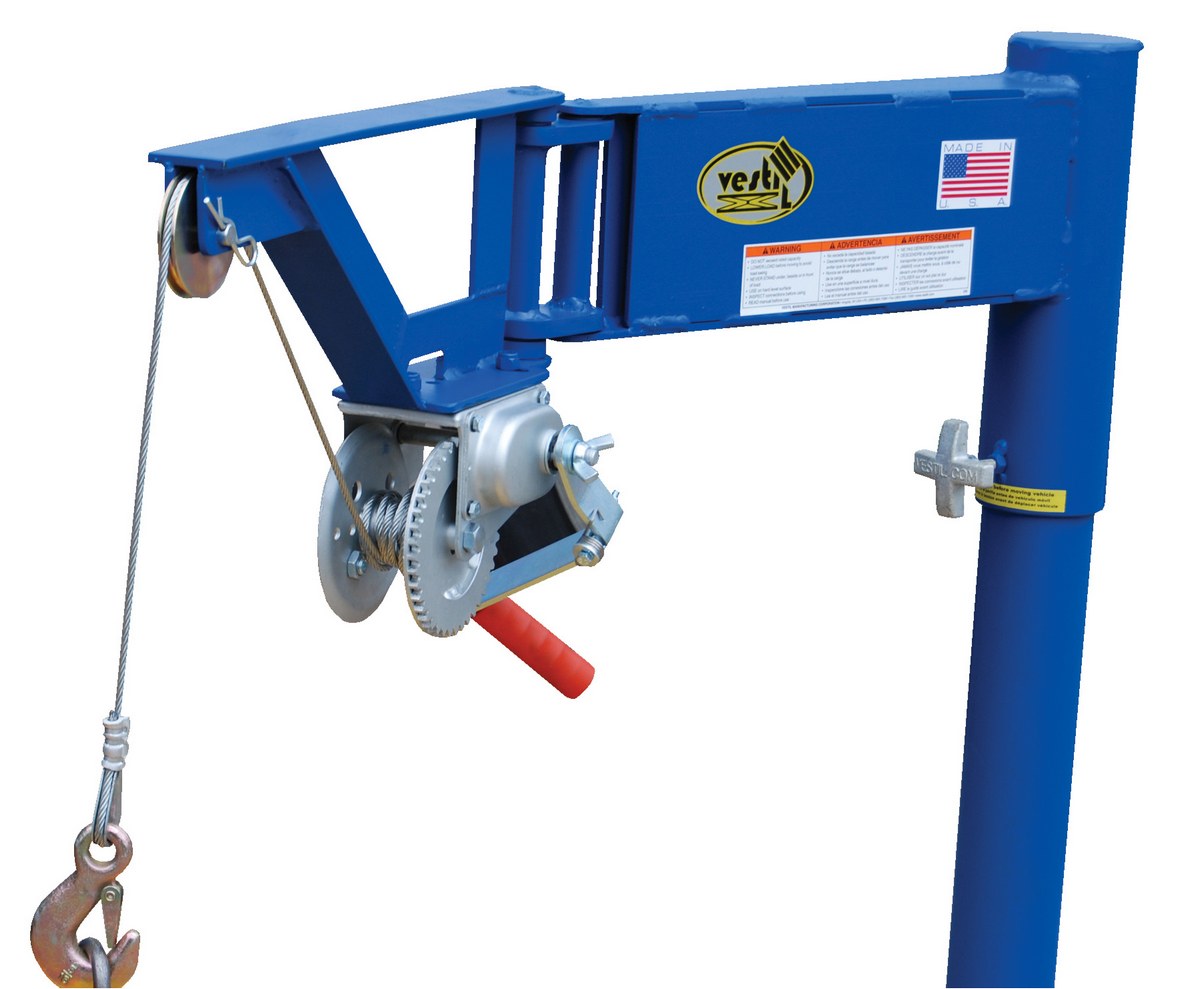

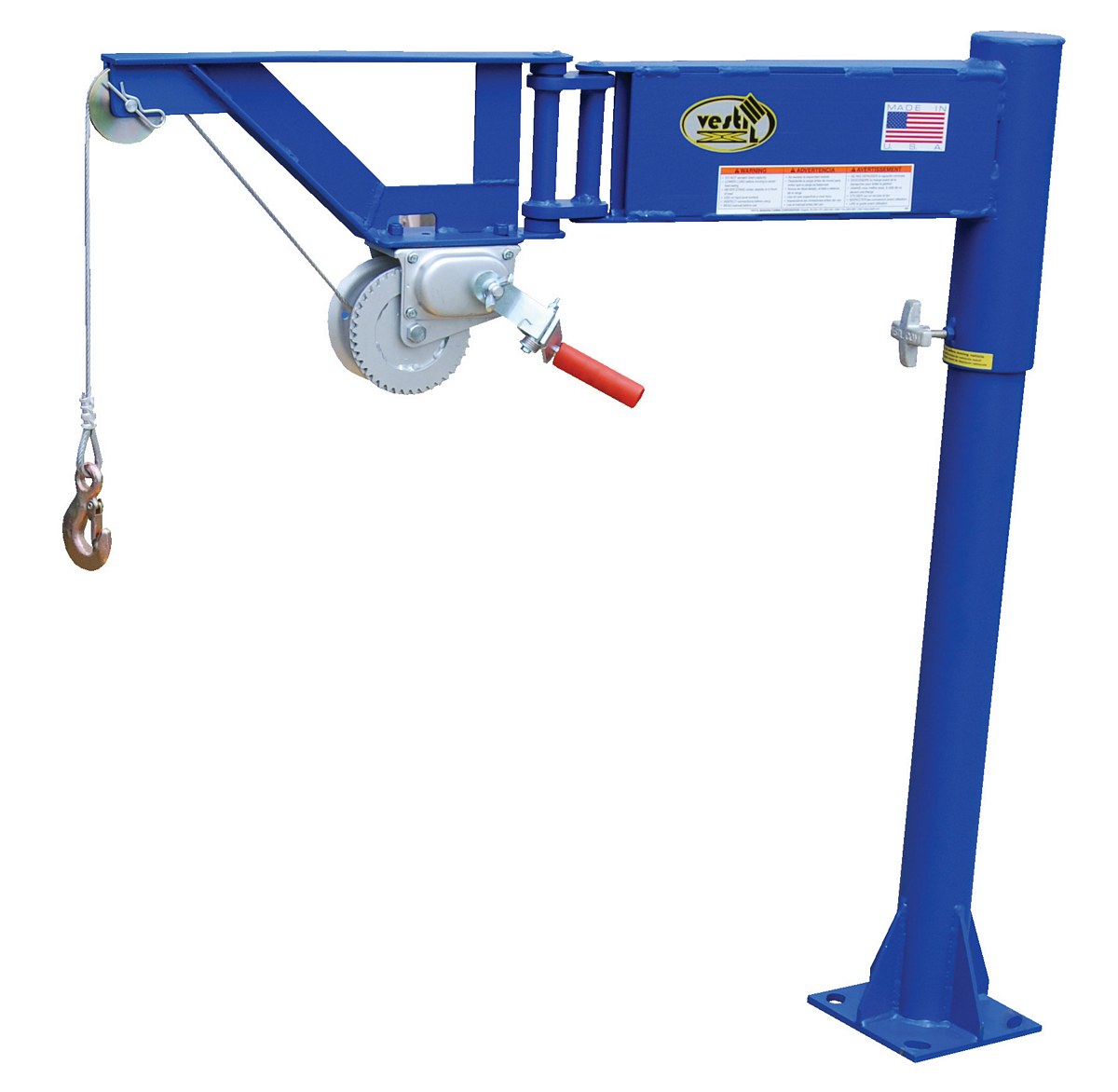

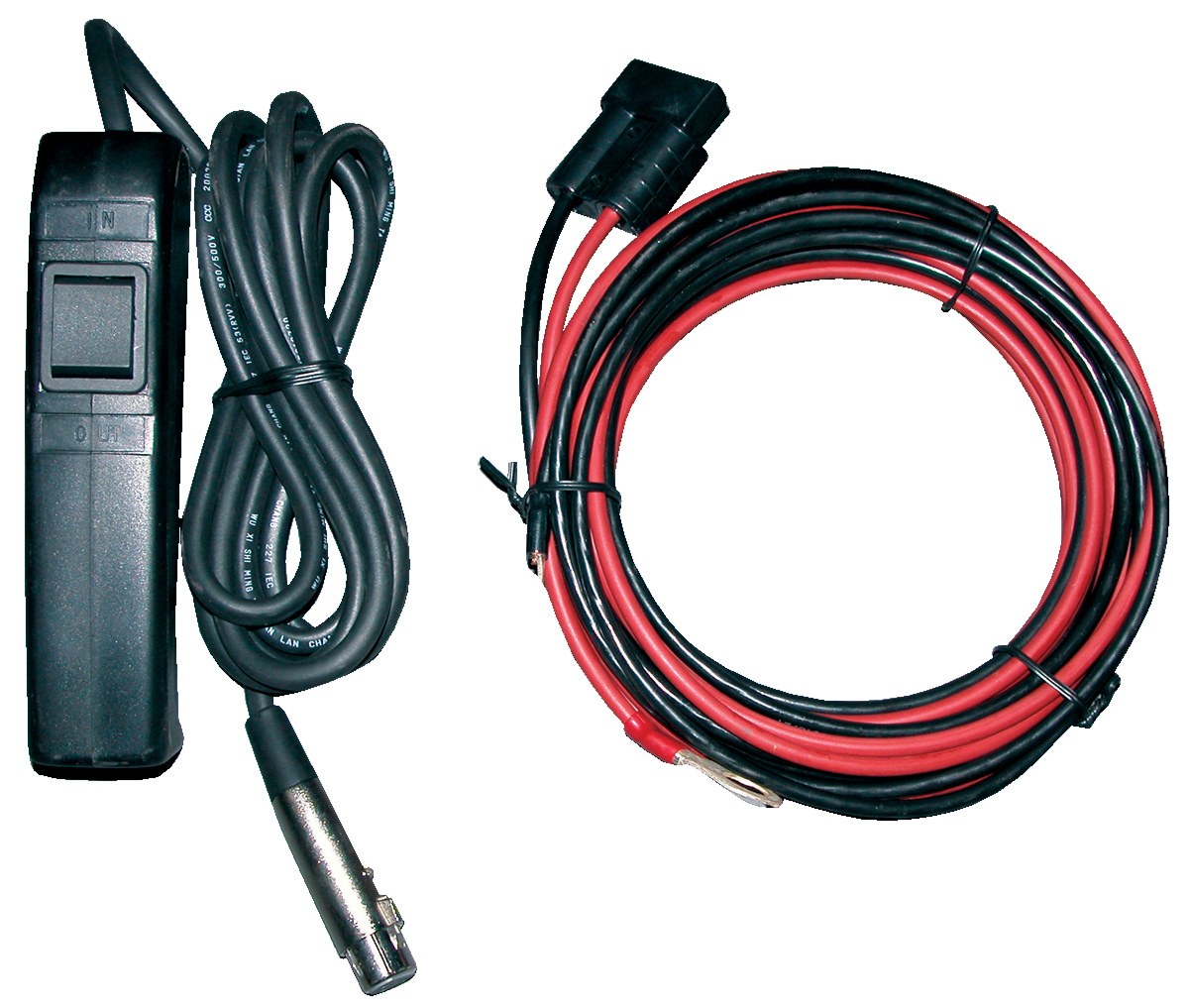

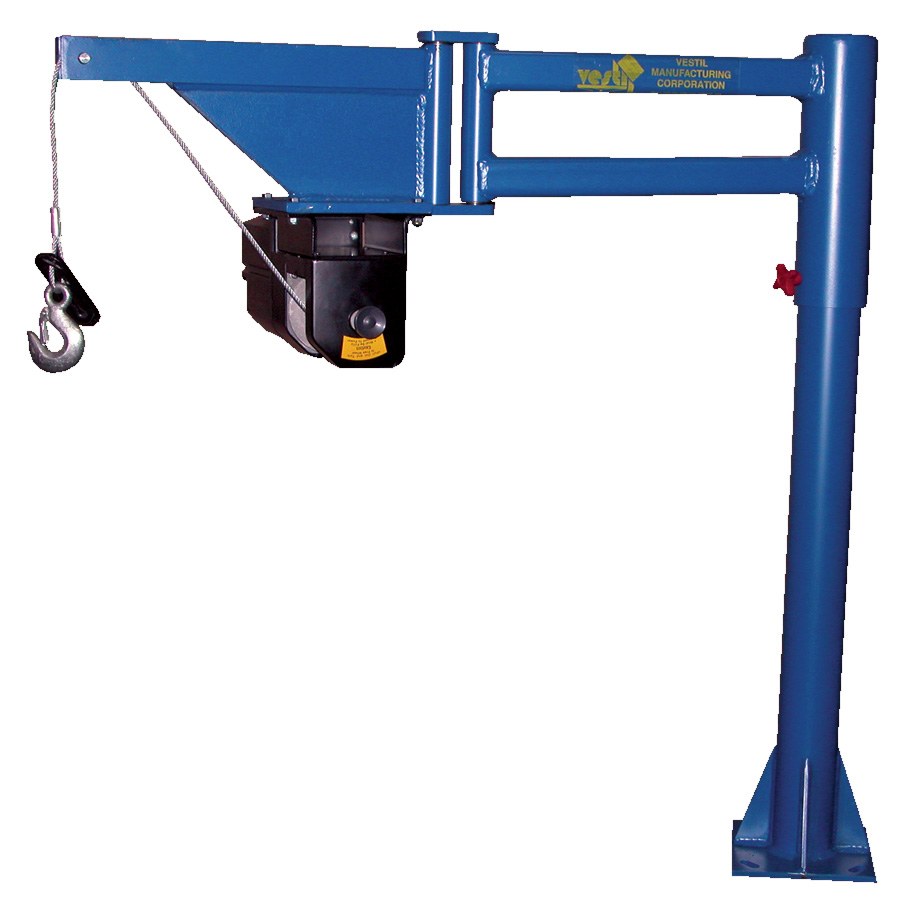

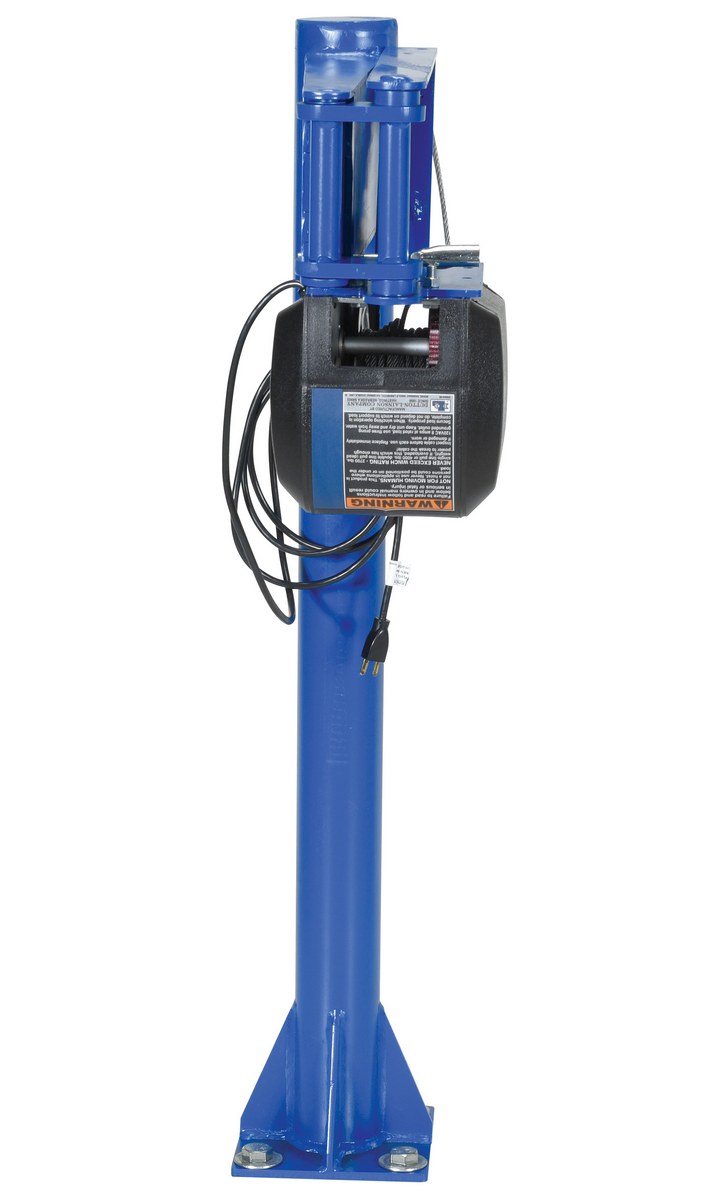

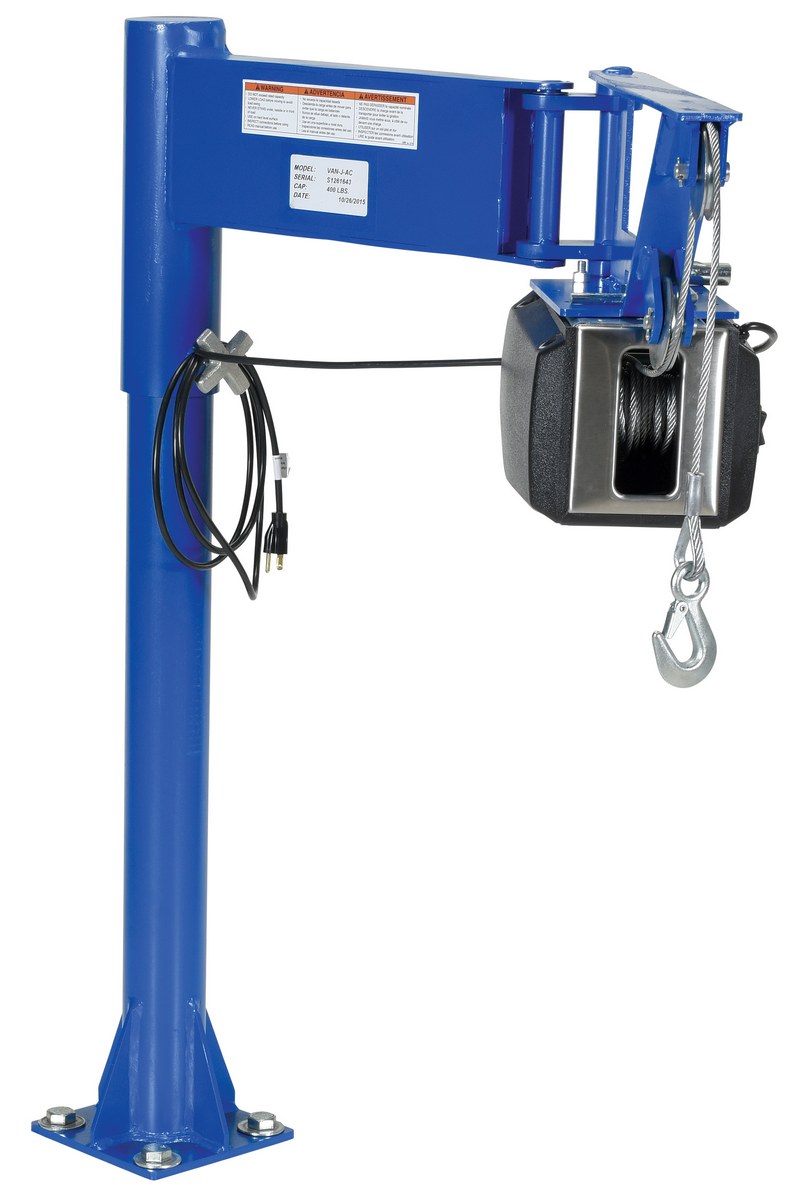

Lift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery powered, and AC electrically powered winches are available. AC powered winch has a lift speed of 10 ft. per minute and DC powered at 7 ft. per minute at full capacity load. AC powered winch includes toggle switch. DC powered winch includes a pendant control. Battery powered winch includes 36" long leads. Battery not included. Van floor to raised hook height is 36-1/8". Double-pivot arm for use in tight spaces. Overall height is 46-1/16". Swing reach is 0" to 39-3/4". Steel construction. Painted finish. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

Lift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery powered, and AC electrically powered winches are available. AC powered winch has a lift speed of 10 ft. per minute and DC powered at 7 ft. per minute at full capacity load. AC powered winch includes toggle switch. DC powered winch includes a pendant control. Battery powered winch includes 36" long leads. Battery not included. Van floor to raised hook height is 36-1/8". Double-pivot arm for use in tight spaces. Overall height is 46-1/16". Swing reach is 0" to 39-3/4". Steel construction. Painted finish. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

Other Engine Hoists & Floor Cranes

Hitch-Mounted Truck Jib Crane

Hitch-Mounted Truck Jib Crane

Power Lift Jib Cranes

Power Lift Jib Cranes

Lifter Jibs

Lifter Jibs

Shop Crane Engine Hoists

Shop Crane Engine Hoists

Air/Hand Pump Hydraulic Shop Crane

Air/Hand Pump Hydraulic Shop Crane

Share This Page

VAN-J-AC

model VAN-J-AC

VAN-J-DC

model VAN-J-DC

WINCH-AC-HHPB

model WINCH-AC-HHPB




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Lifter Jibs
Model Image PDF's Description Overall Cable
Length
Capacity
(lbs)
Wt.
(lbs)
VAN-J icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Manual 10' 400 137

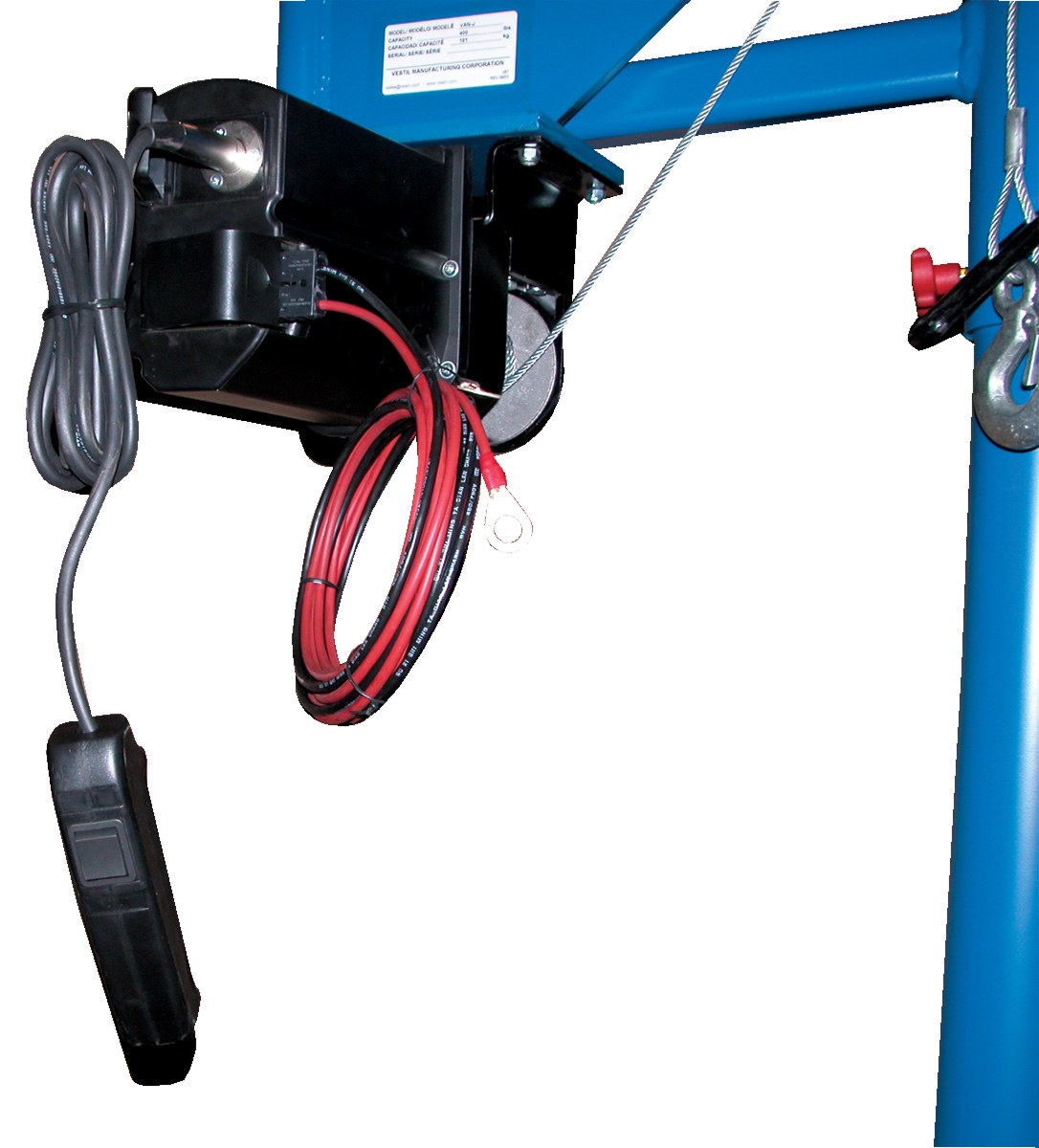

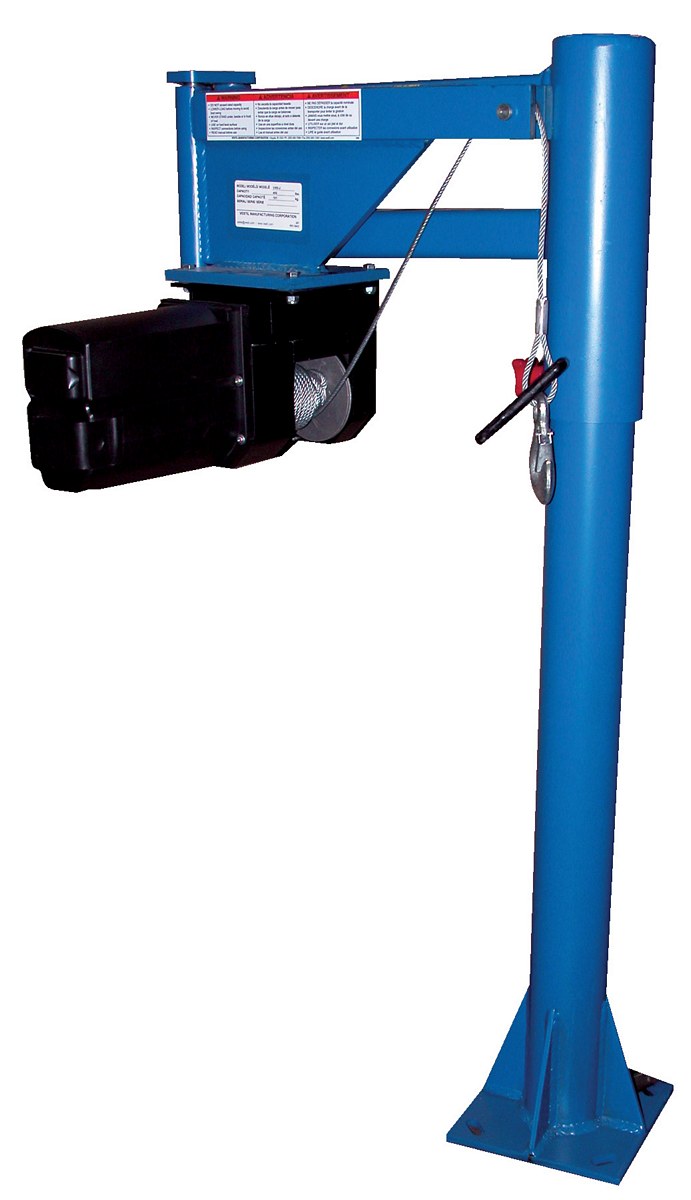

VAN-J-DC* icon_approvaldrawings.jpgWarranty PDFCompliance Certificate DC Powered 46' 400 145

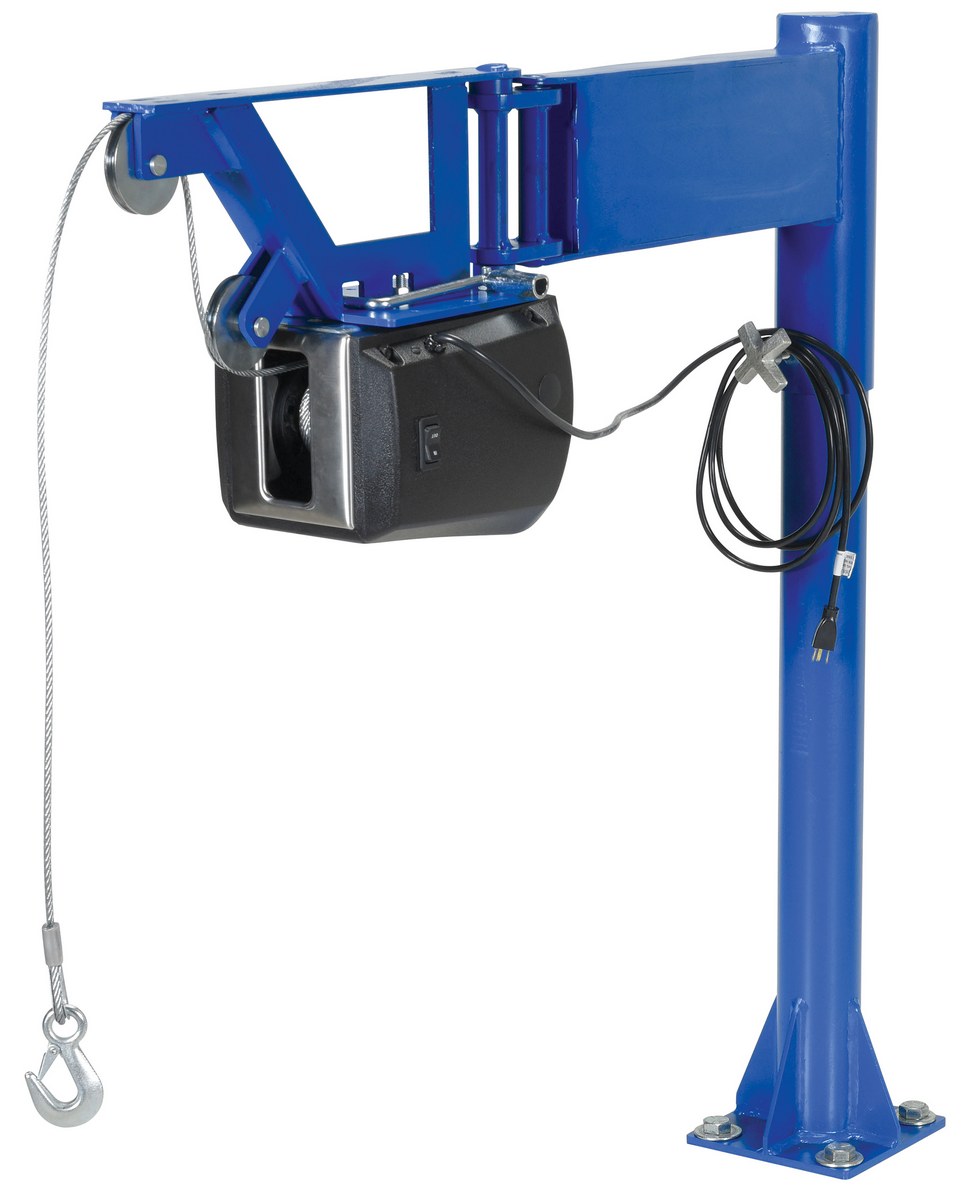

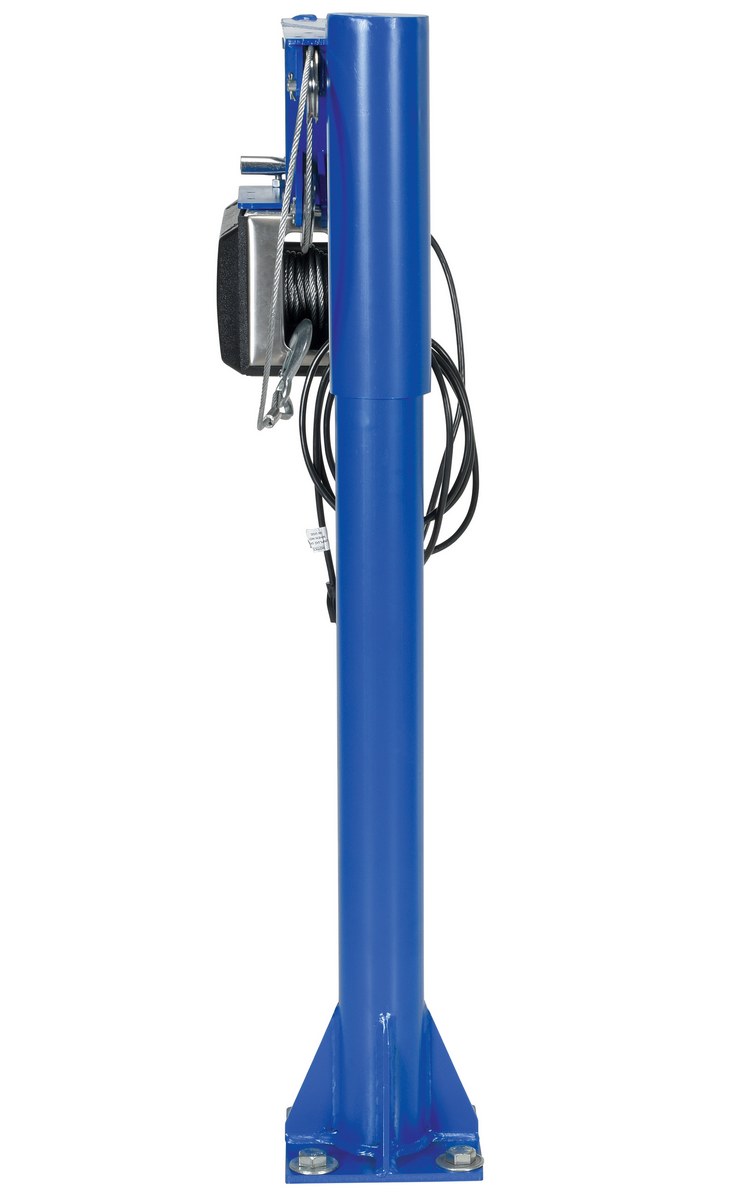

VAN-J-AC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate AC Powered 25' 400 275
WINCH-AC-HHPB

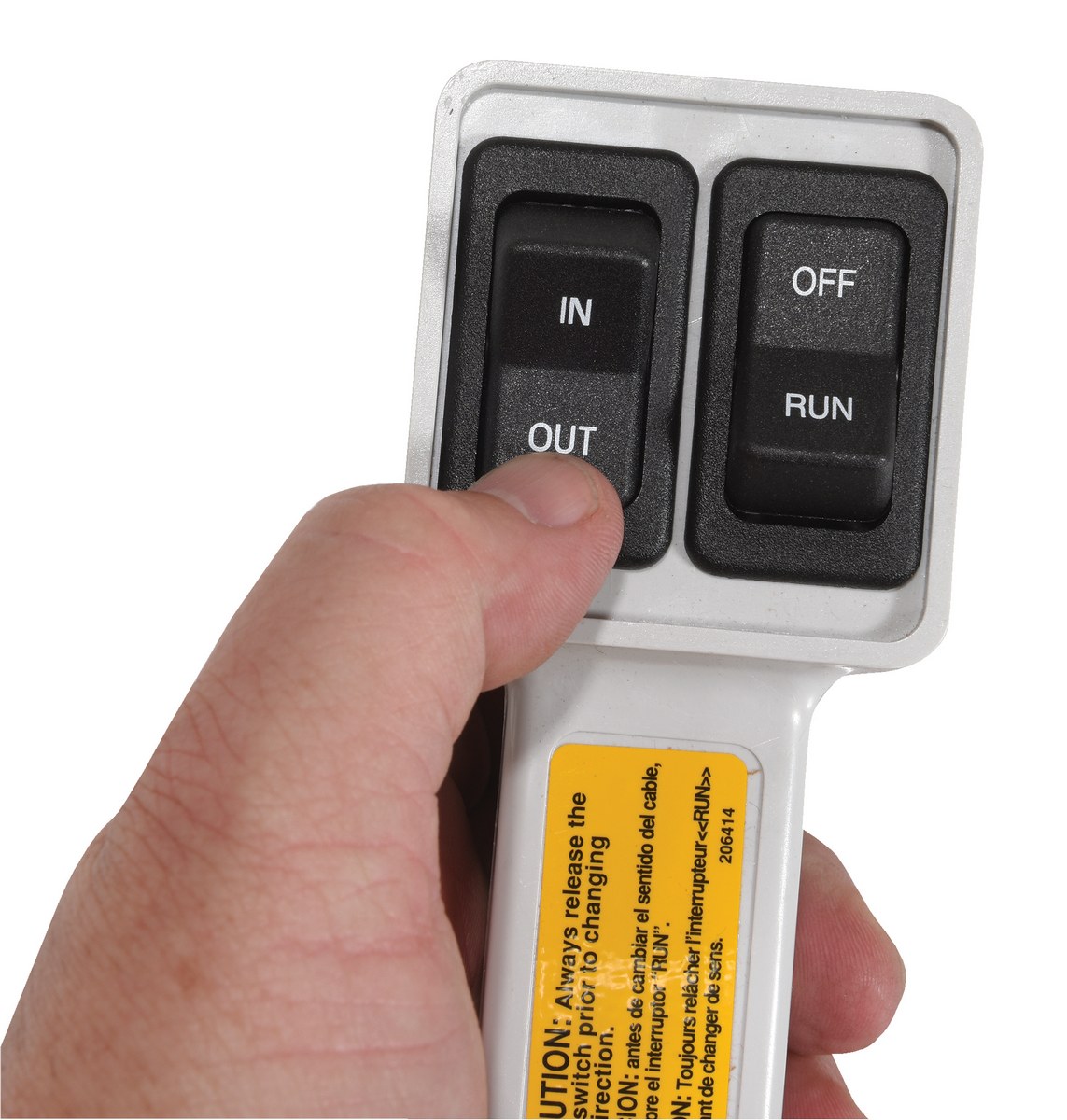

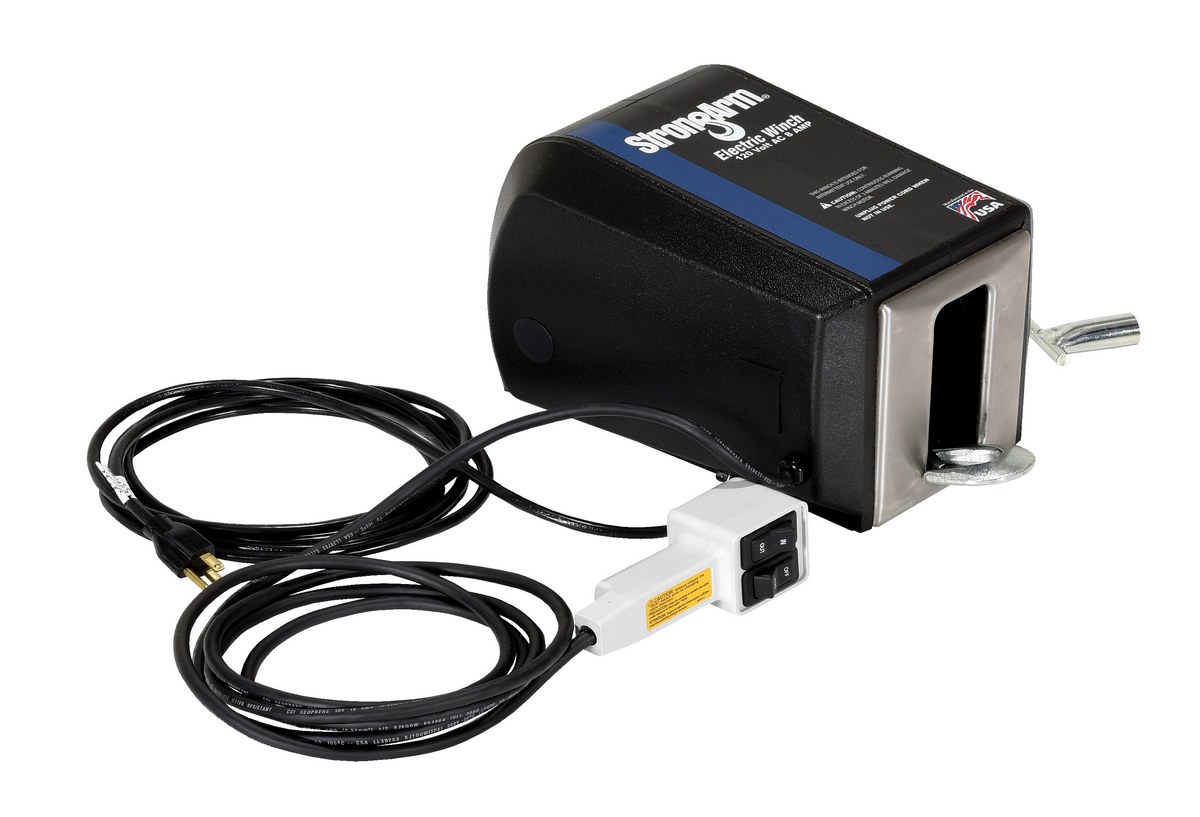

UPGRADE AC WINCH WITH HANDHELD PUSH BUTTON CONTROL (THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES)

5

*VAN-J-DC INCLUDES BATTERY-POWERED WINCH WITH 46 FEET OF CABLE

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

VAN-J

VAN-J

VAN-J-AC

VAN-J-AC

VAN-J-DC

VAN-J-DC

WINCH-AC-HHPB

WINCH-AC-HHPB






Lifter Jibs PDF's will open in a new window when clicked.

Survey Sheets


Approval Drawings

VAN-J
VAN-J-AC
VAN-J-DC

Testing Certificates

WINCH-AC-HHPB
VAN-J-DC
VAN-J-AC
VAN-J

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: Can the JIB be used outside?

A: The VAN-J and the VAN-J-DC are powder-coat carbon steel, however the winch is not waterproof and cannot be used outside.
