Model Details

WP-4848-84B

WP-4848-84B

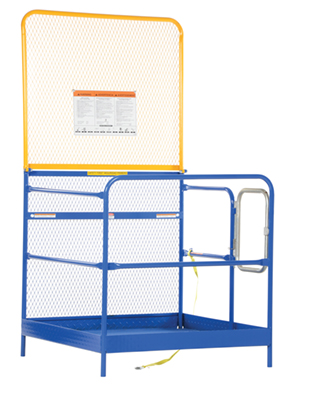

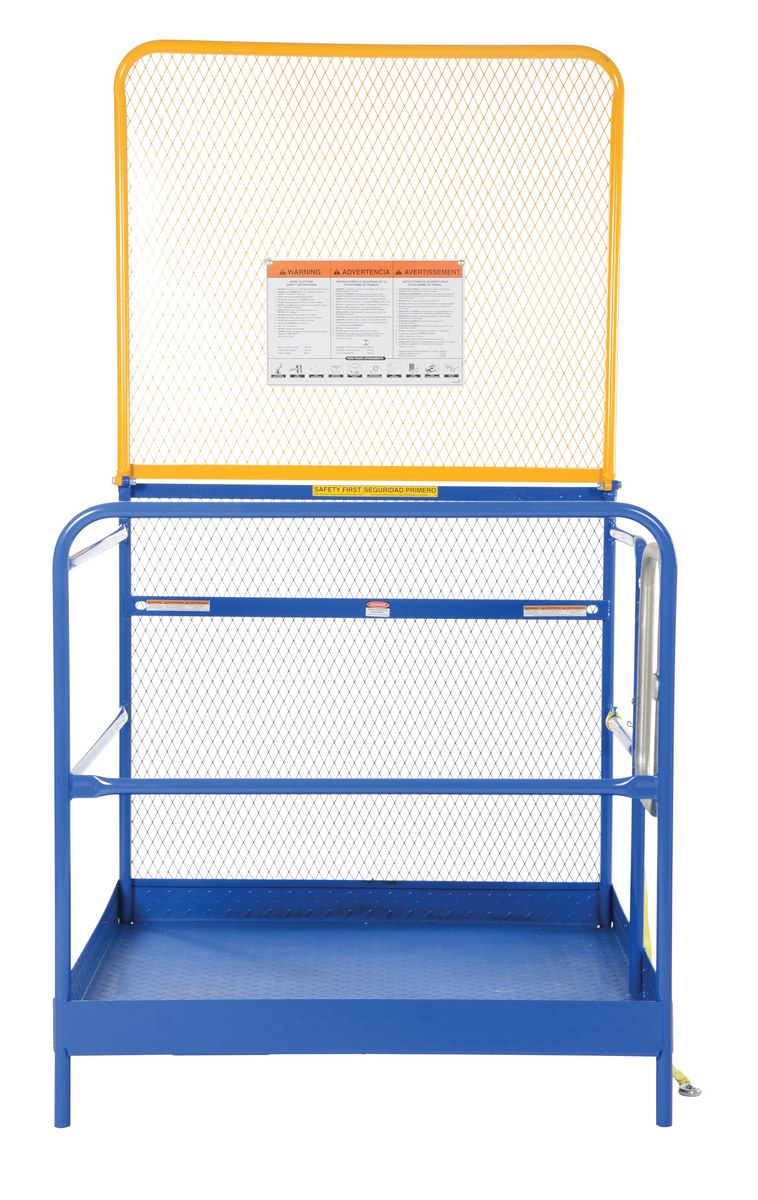

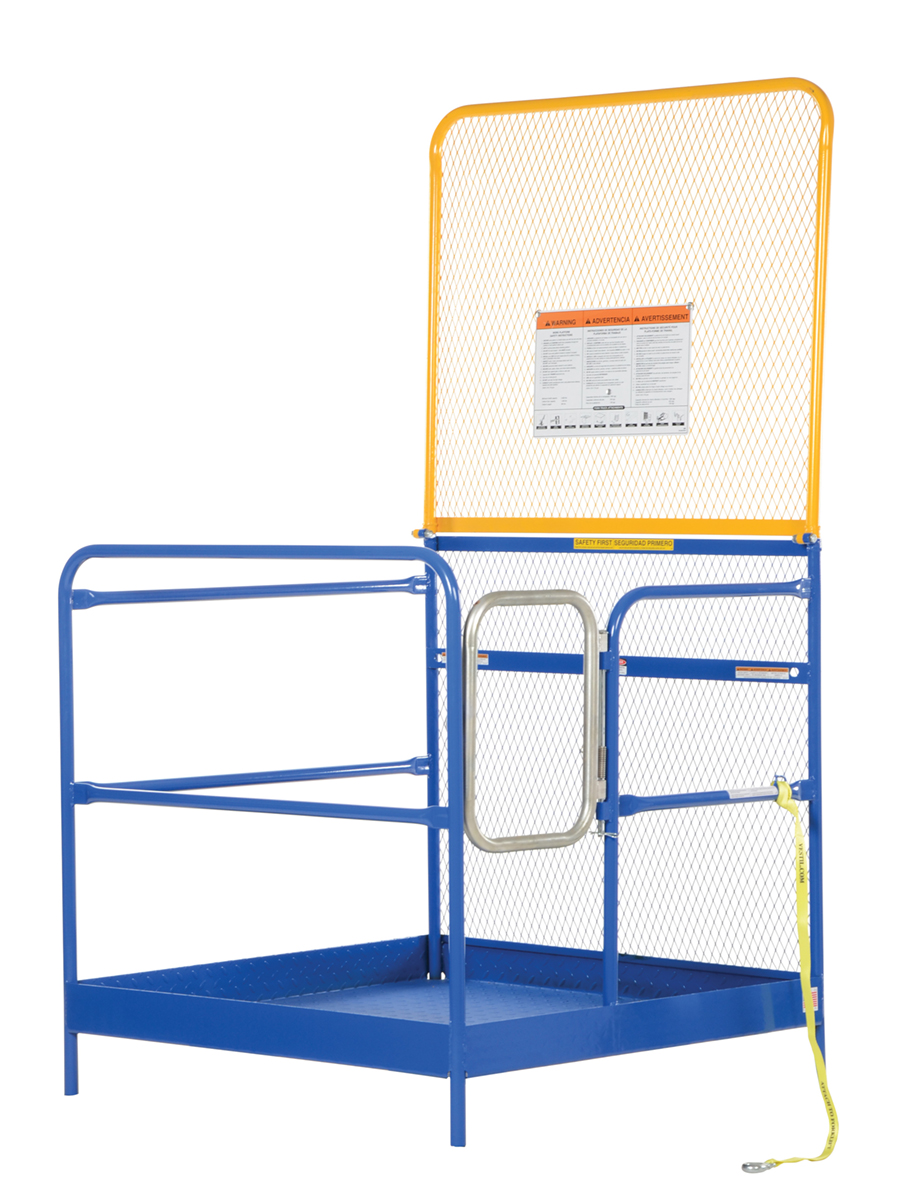

Steel Work Platform With 84 In. Expanded Back 48 In. x 48 In. 1,000 Lb. Capacity Blue

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides. Expanded metal backing on fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time. Meets California OSHA specifications.

  • Patented automatic locking gate with extra chain lock ensures maximum safety
  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip
  • Dual handrails on three sides ensures worker safety
Total Ship Wt.(lbs.): 205 (only 1 package) Size: 48.25"W x 51"L x 89.625"H Color: Blue (Frame), Yellow (Upper Back) QuickShip

Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 24 Front and Rear Fork Pocket Width (in.): 7-3/4
Rear Fork Pocket Height (in.): 3-7/8 Front Fork Pocket Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16
High Back Height (in.): 84 Overall Width (in.): 48-1/4 Usable Width (in.): 45-3/8
Overall Length (in.): 51 Usable Length (in.): 45-3/8 Anchor Point Capacity (lbs.): 350

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WP-4848-84B


WP-4848-84B

Steel Work Platform With 84 In. Expanded Back 48 In. x 48 In. 1,000 Lb. Capacity Blue

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides. Expanded metal backing on fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time. Meets California OSHA specifications.

  • Patented automatic locking gate with extra chain lock ensures maximum safety
  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip
  • Dual handrails on three sides ensures worker safety
Dimensions: 48.25"W x 51"L x 89.625"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Upper Back)
Material: Steel UPC: 691215047739 GTIN: 00691215047739
Warranty: -- Shipping Weight: 205 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 24 Front and Rear Fork Pocket Width (in.): 7-3/4
Rear Fork Pocket Height (in.): 3-7/8 Front Fork Pocket Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16
High Back Height (in.): 84 Overall Width (in.): 48-1/4 Usable Width (in.): 45-3/8
Overall Length (in.): 51 Usable Length (in.): 45-3/8 Anchor Point Capacity (lbs.): 350
