SERIES: WP


Work Platforms

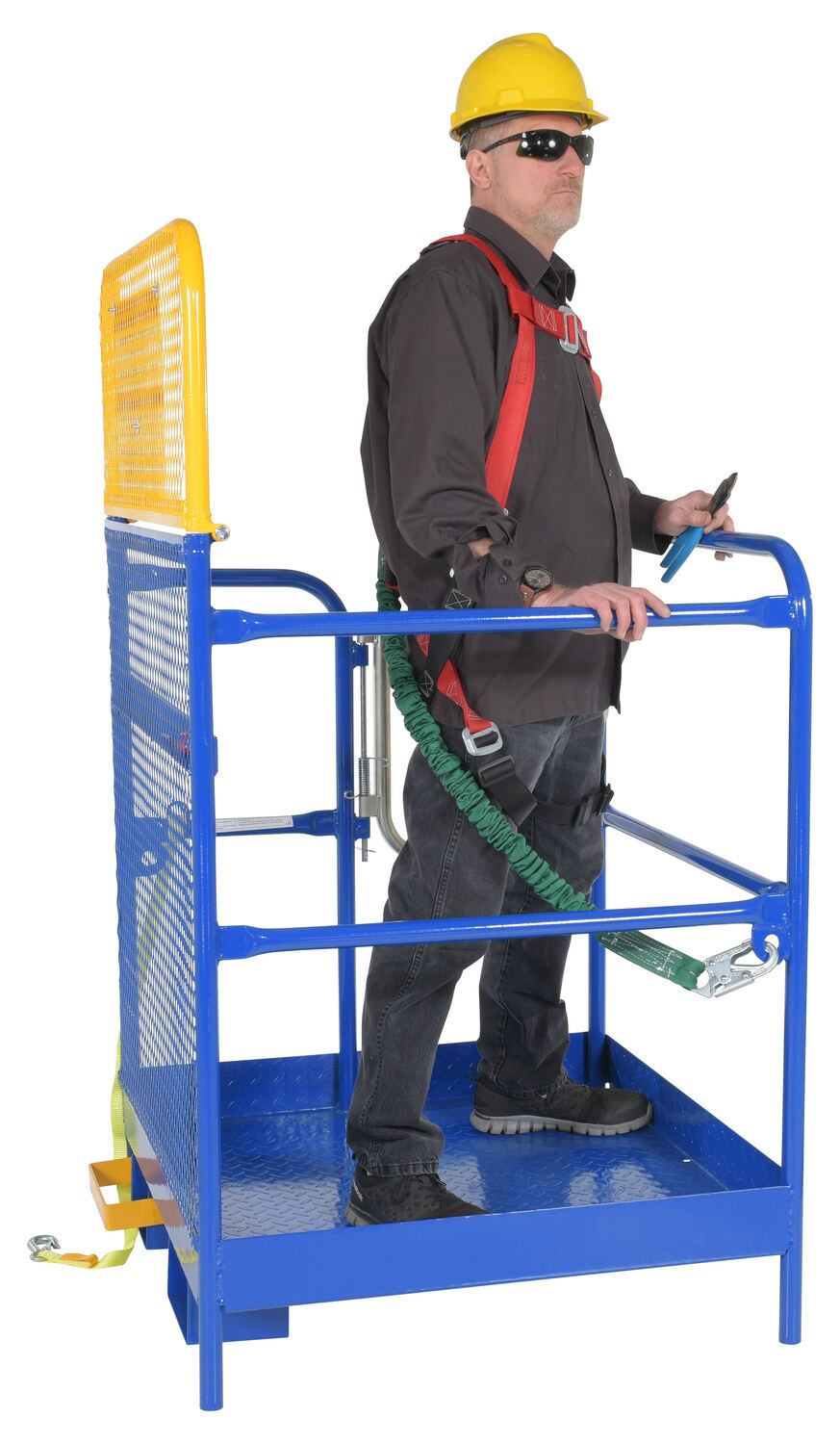

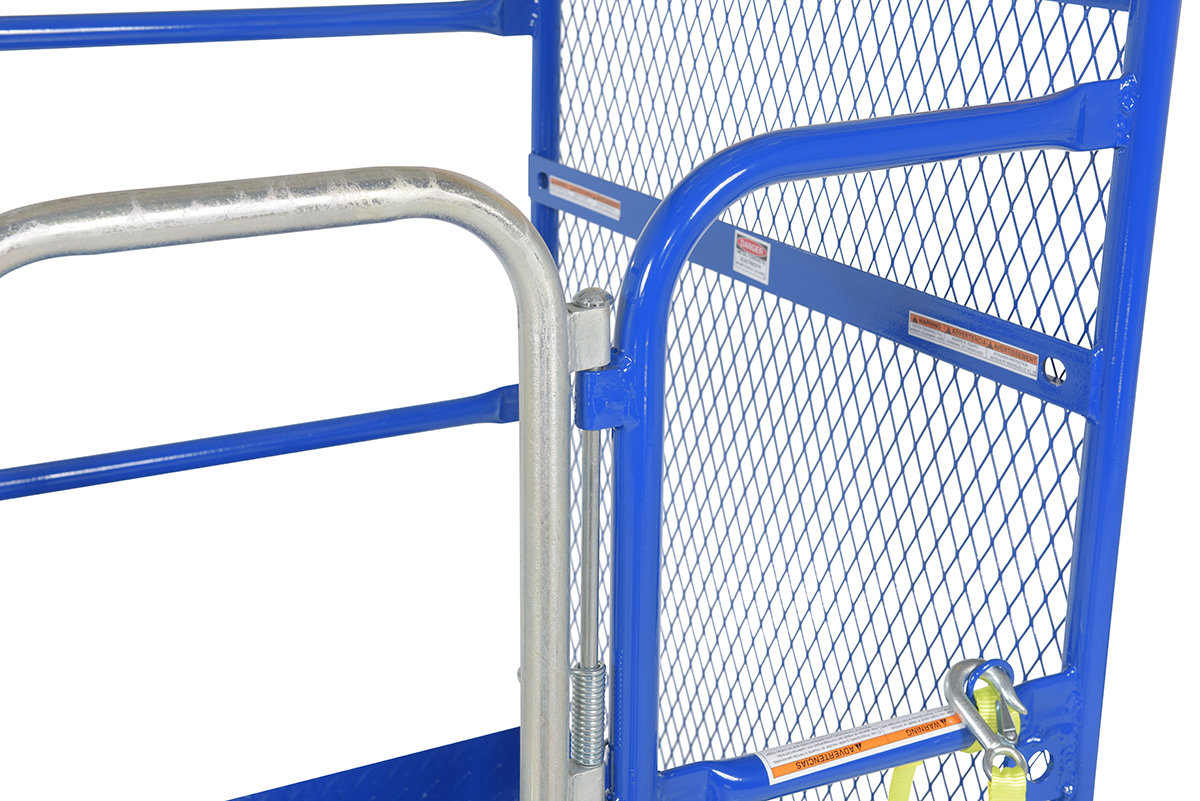

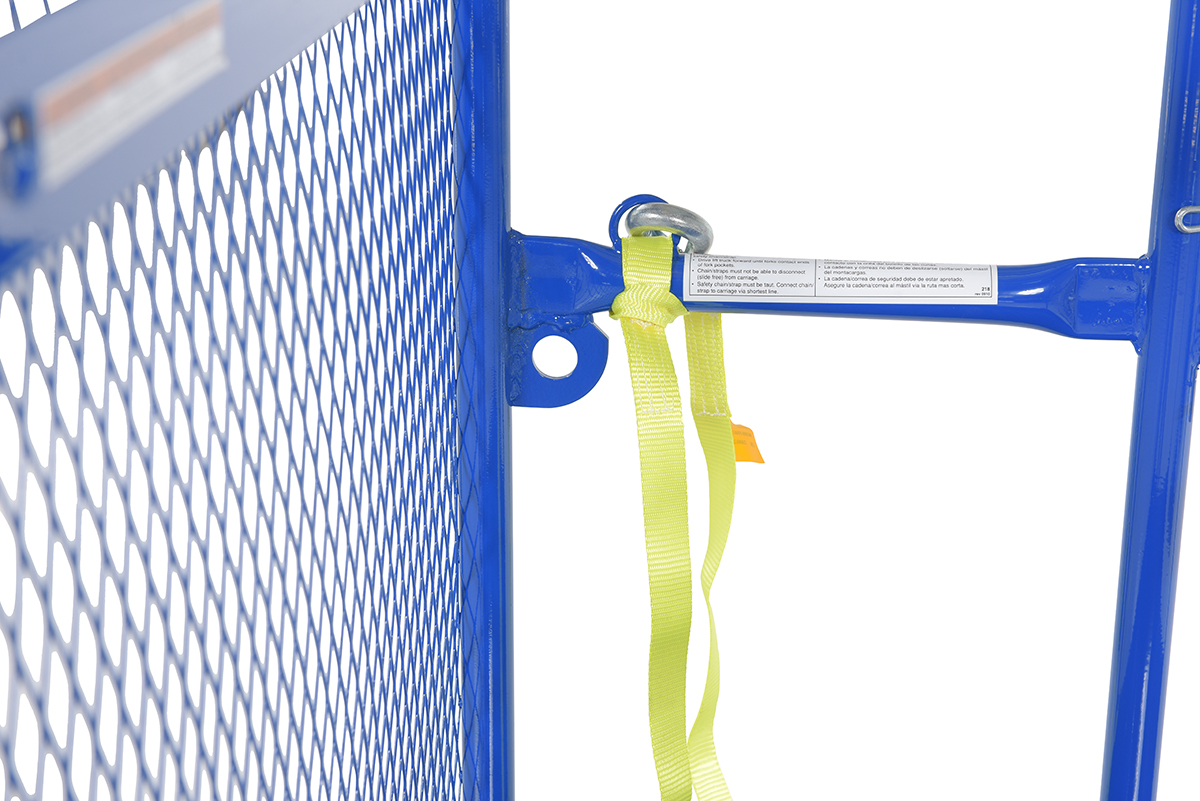

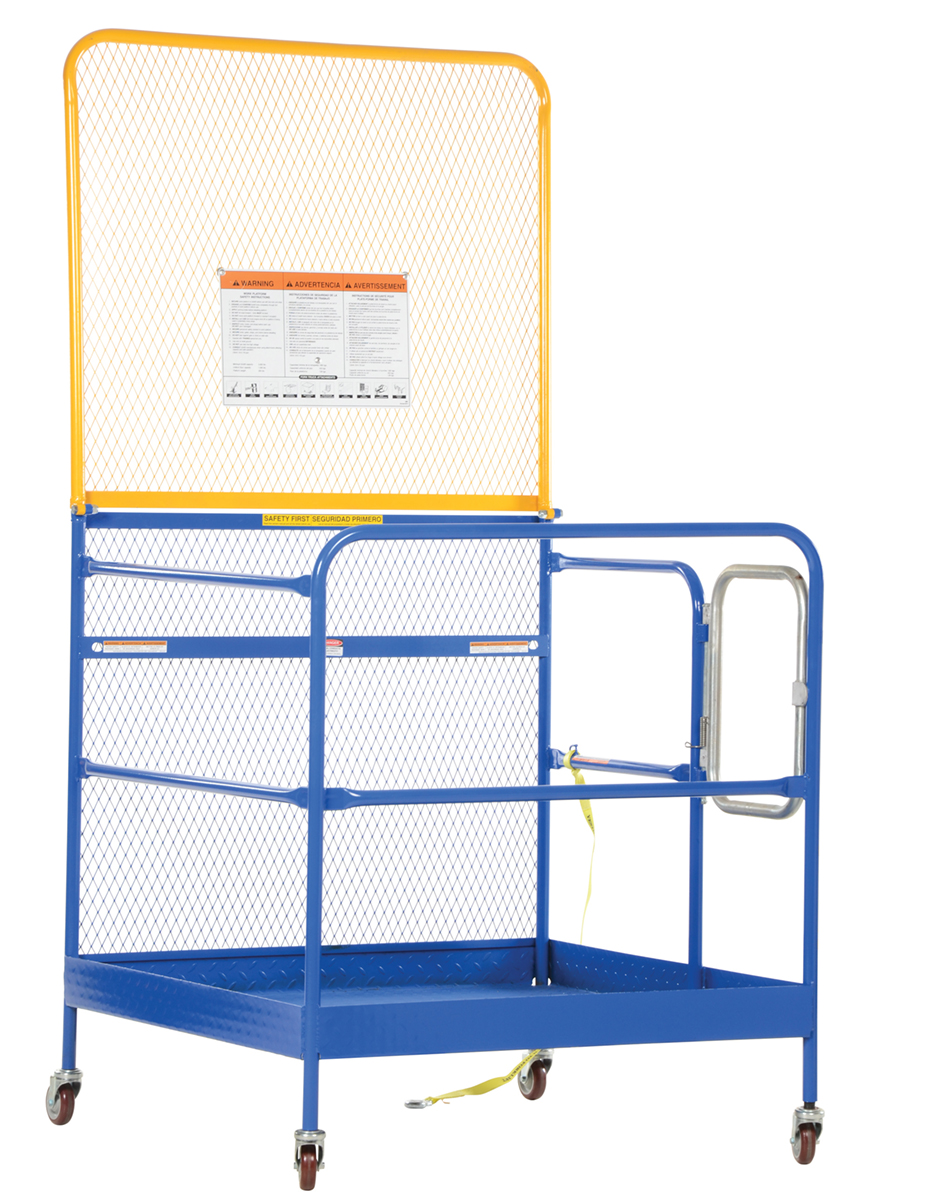

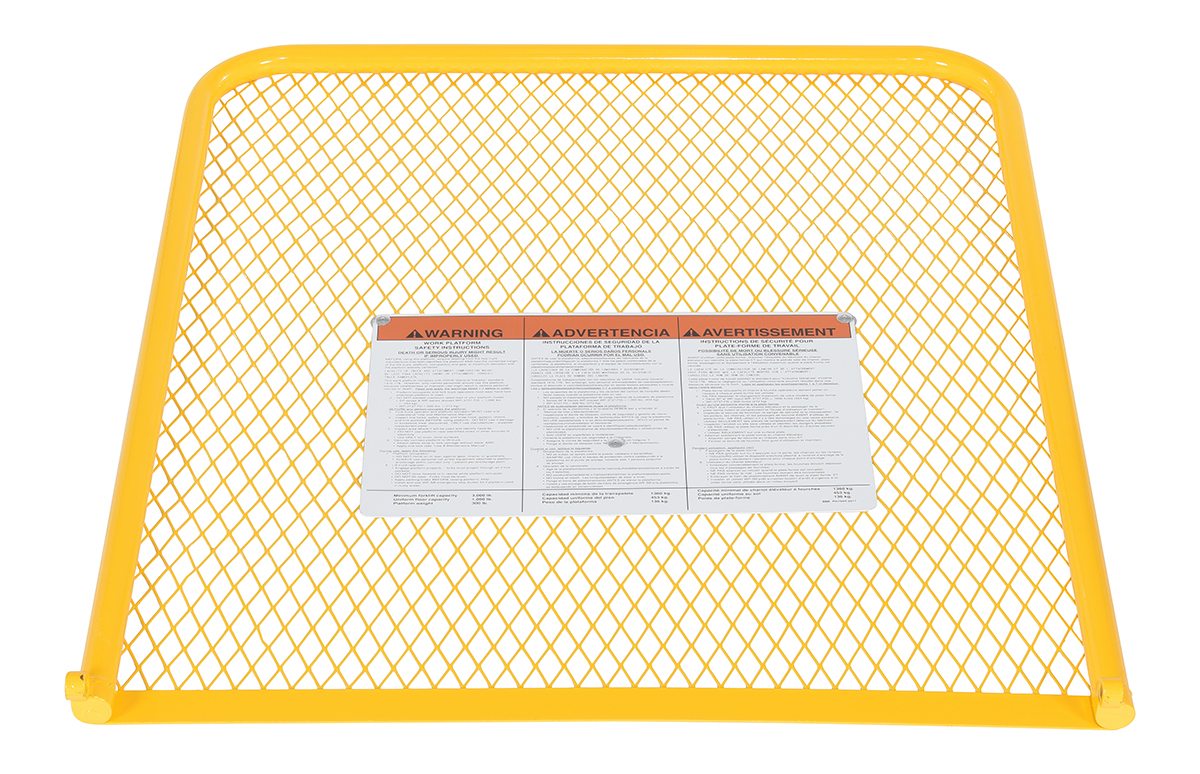

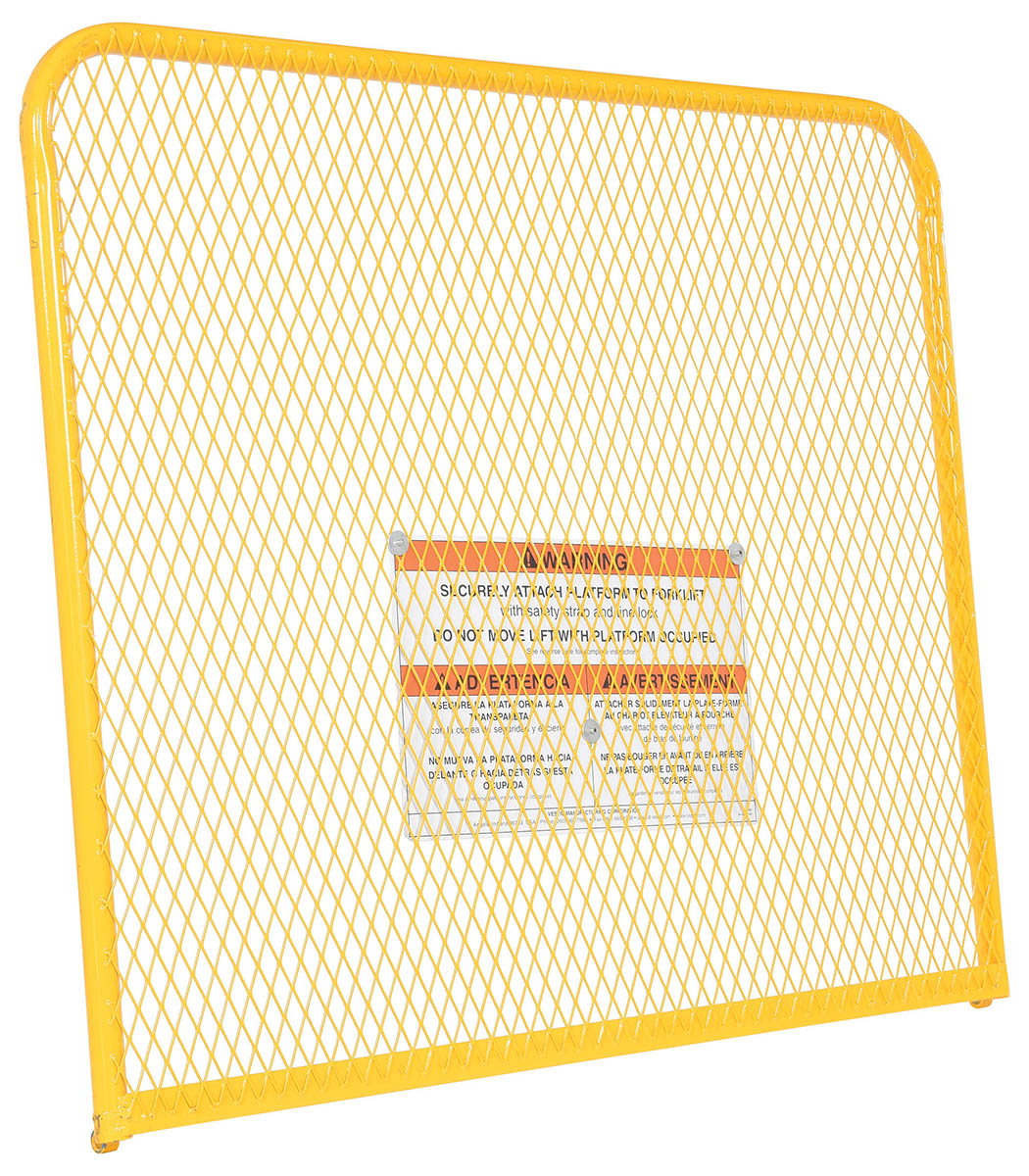

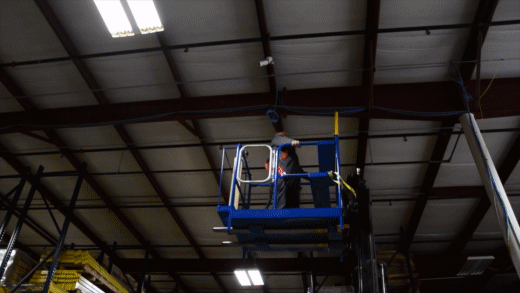

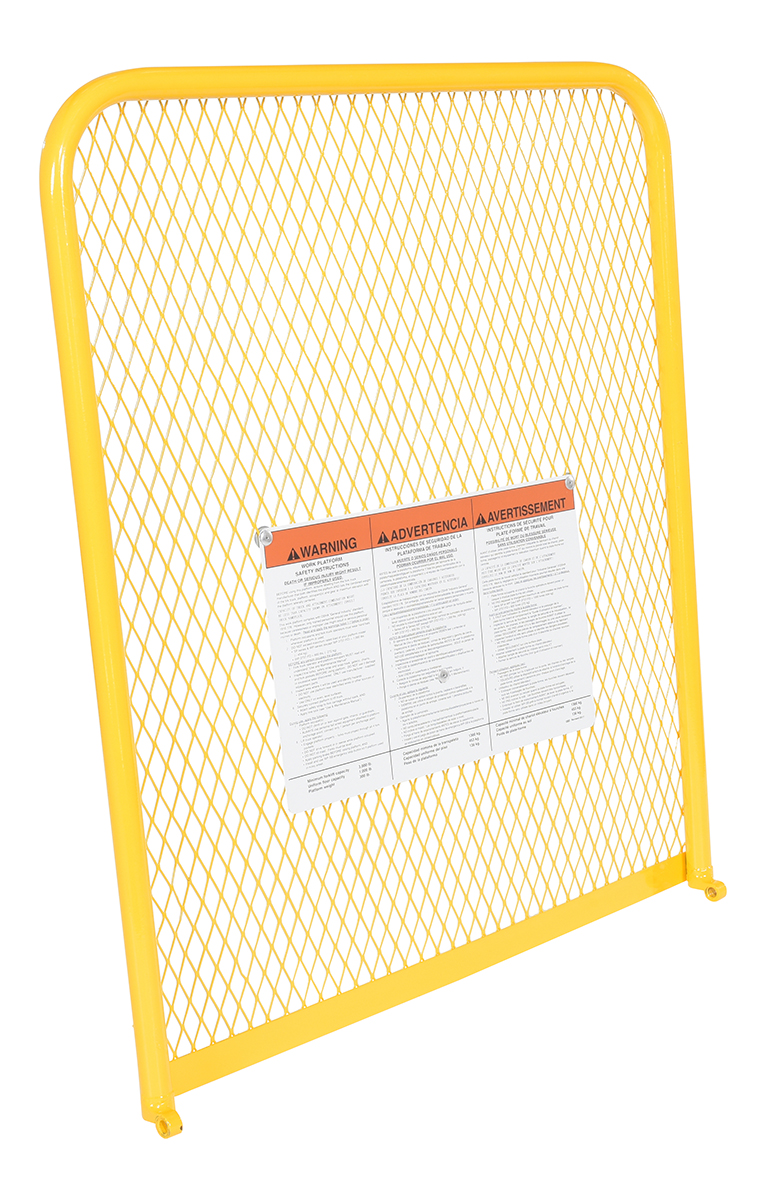

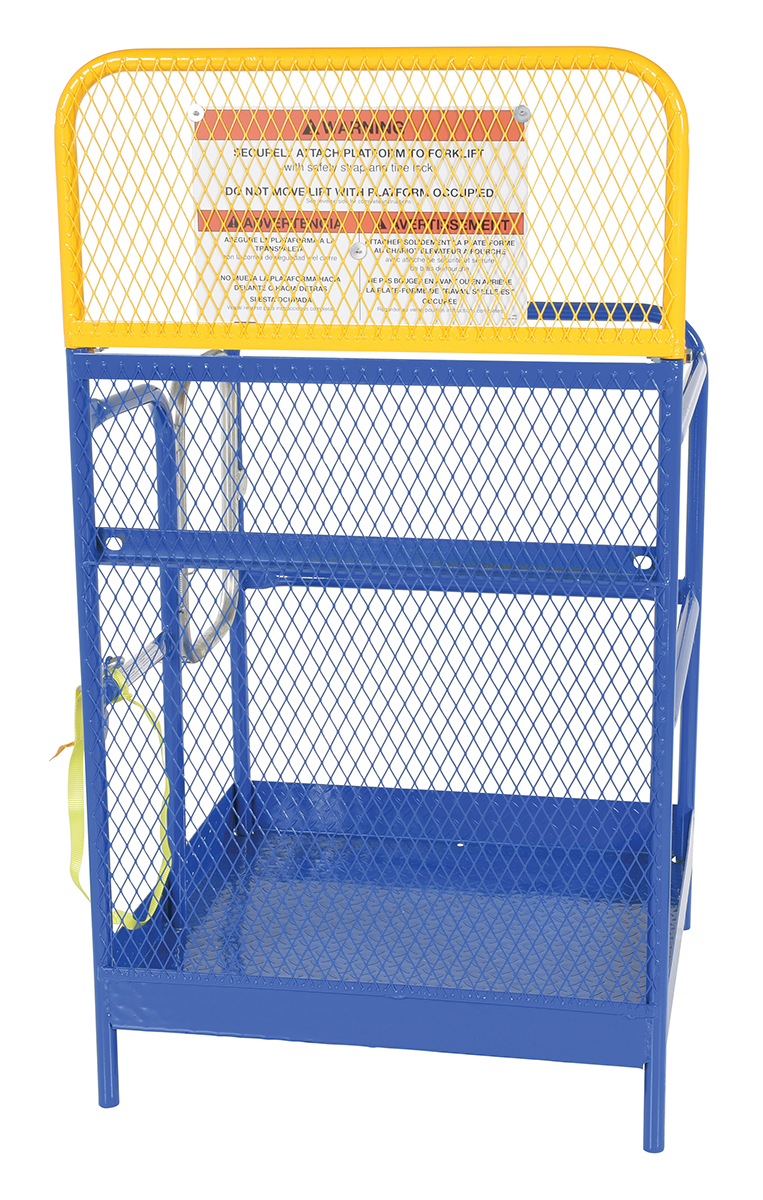

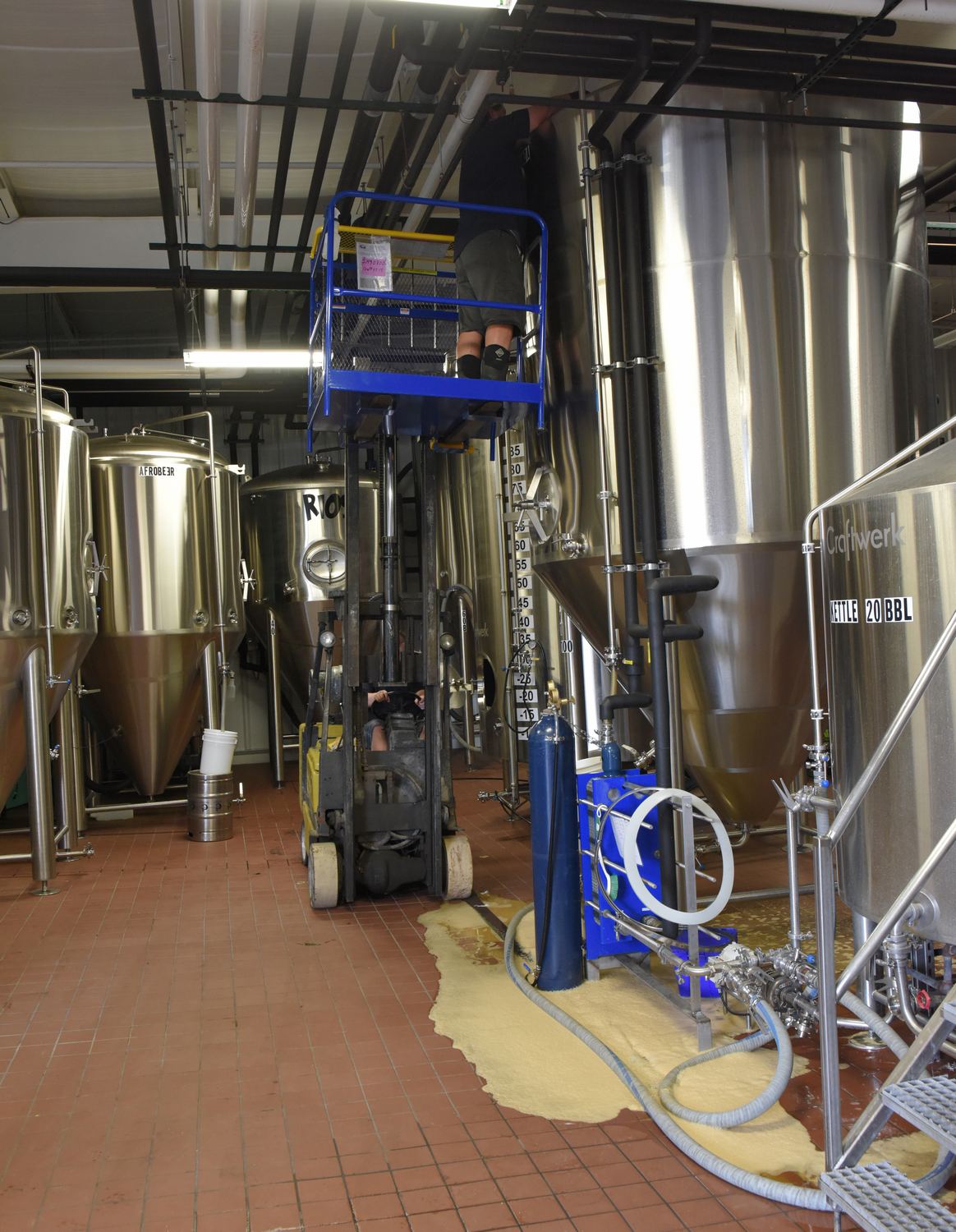

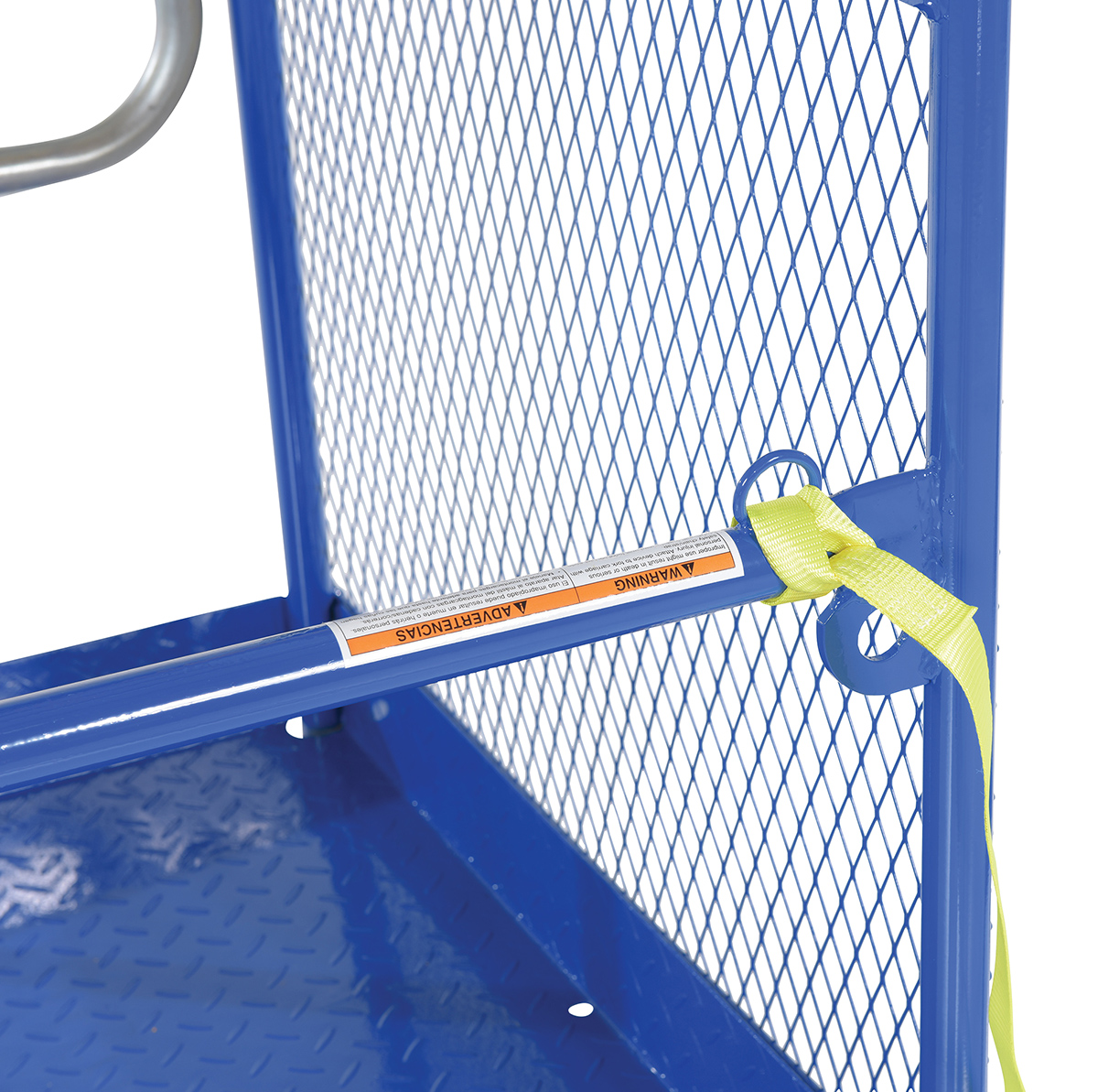

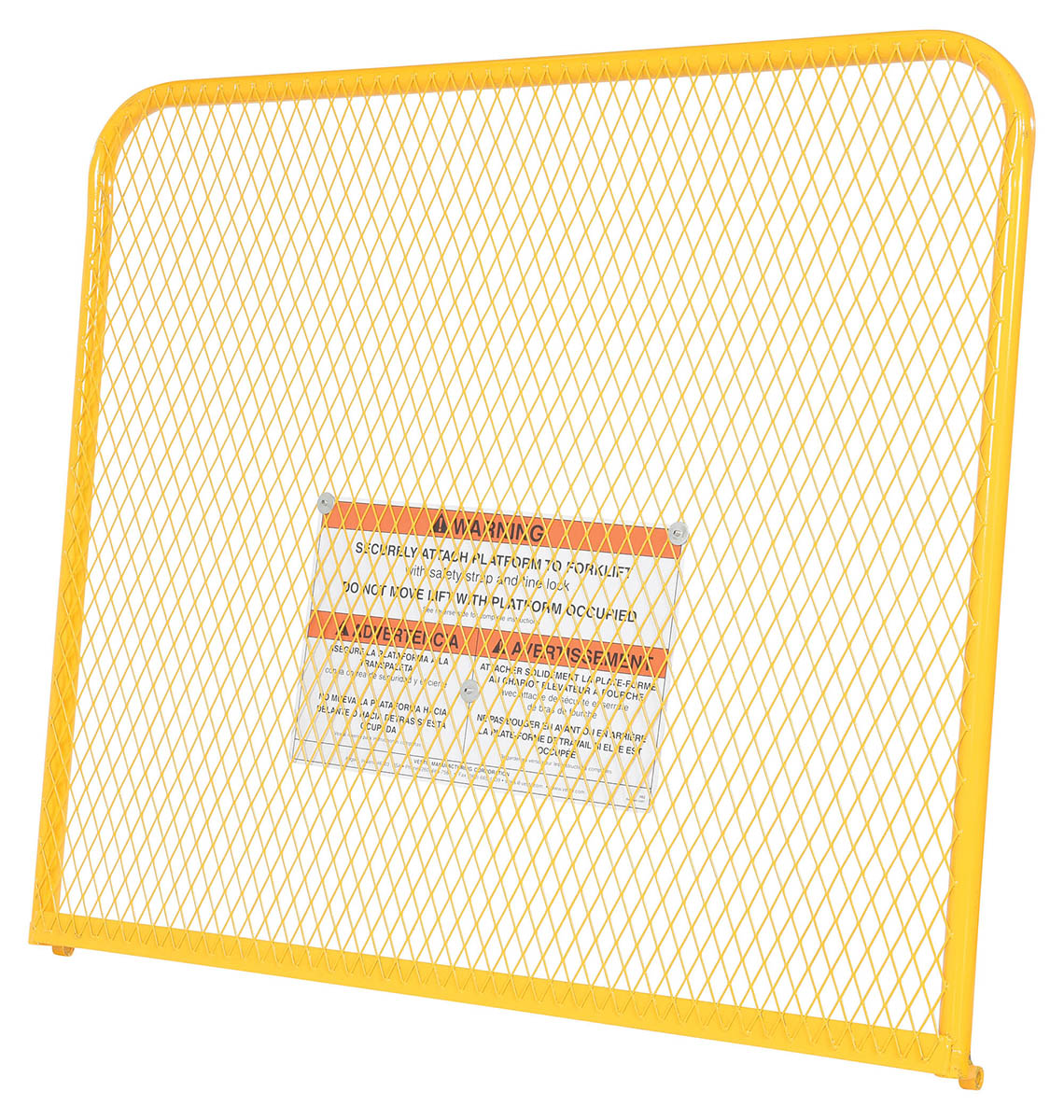

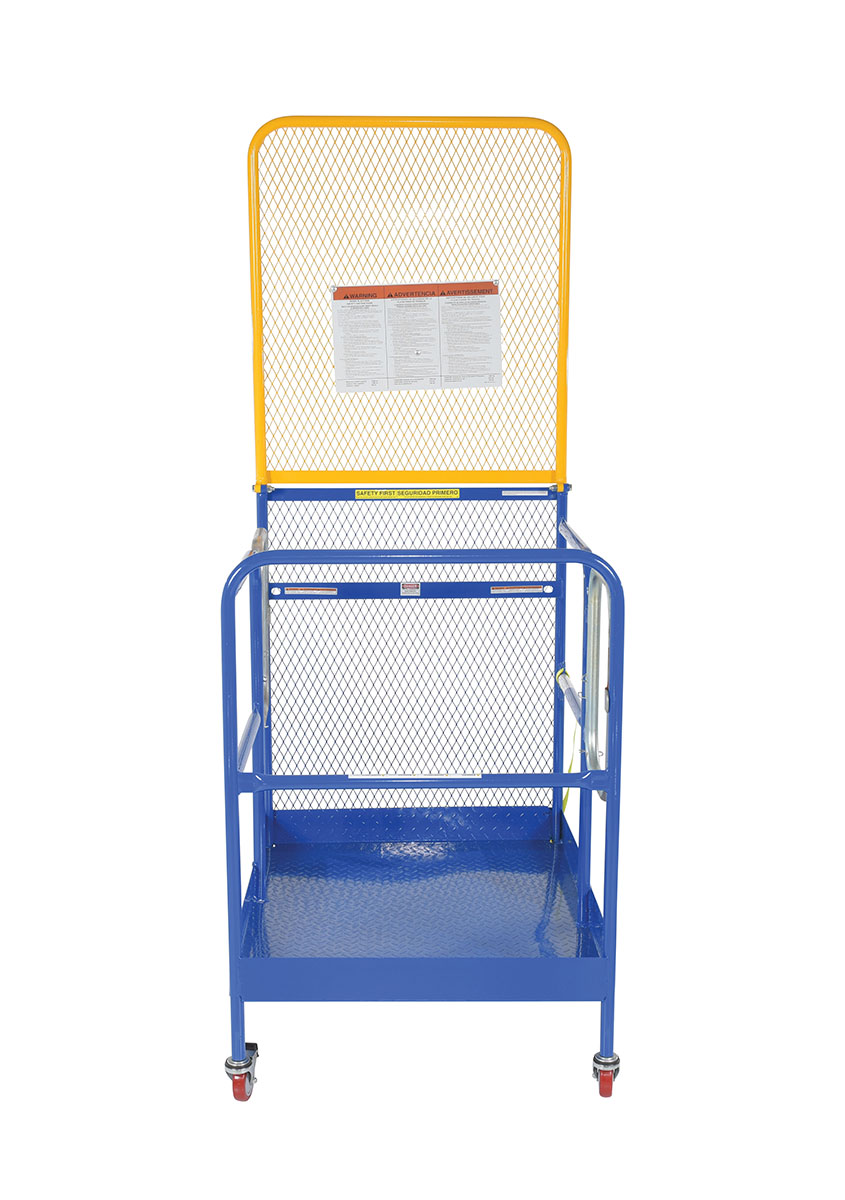

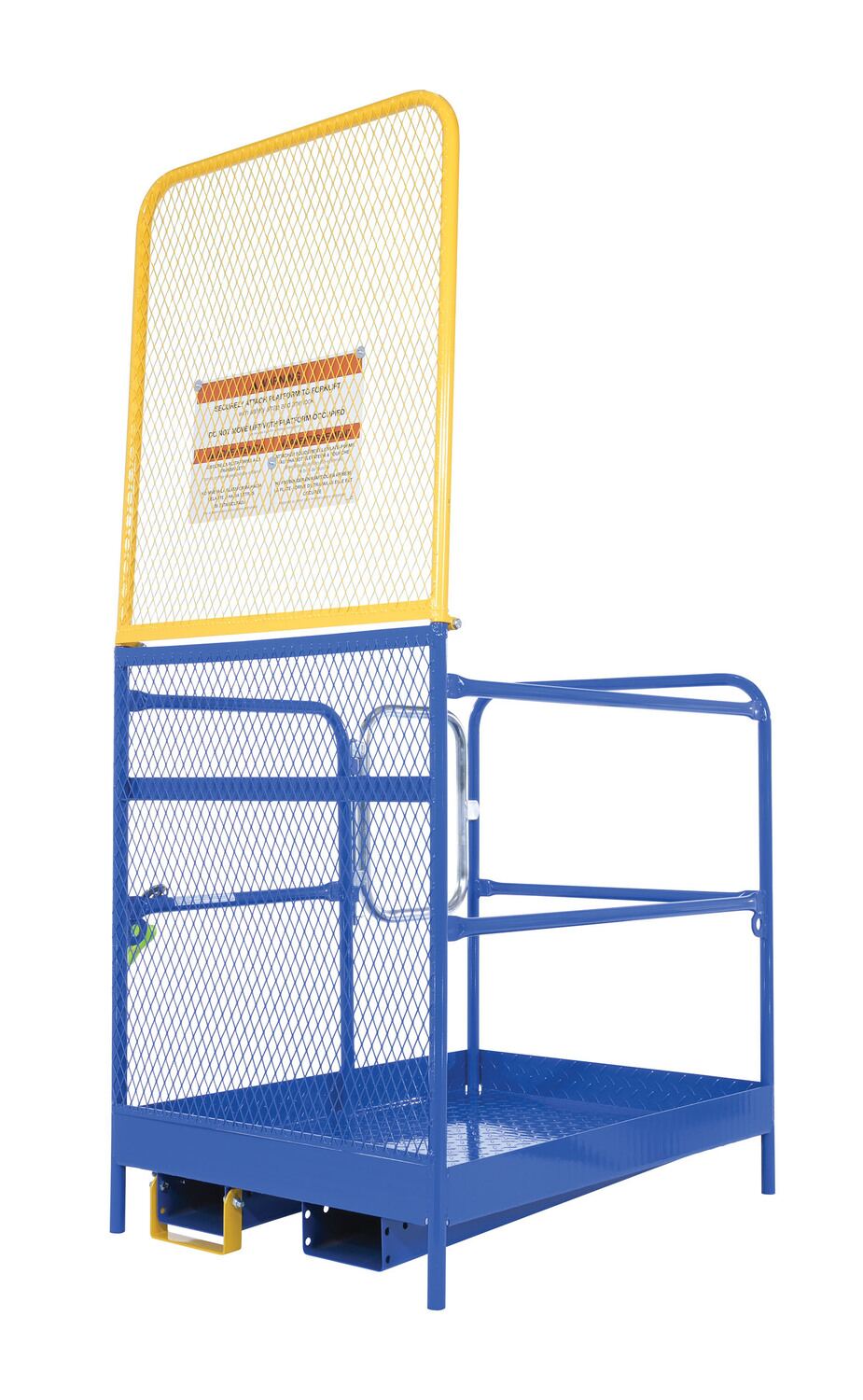

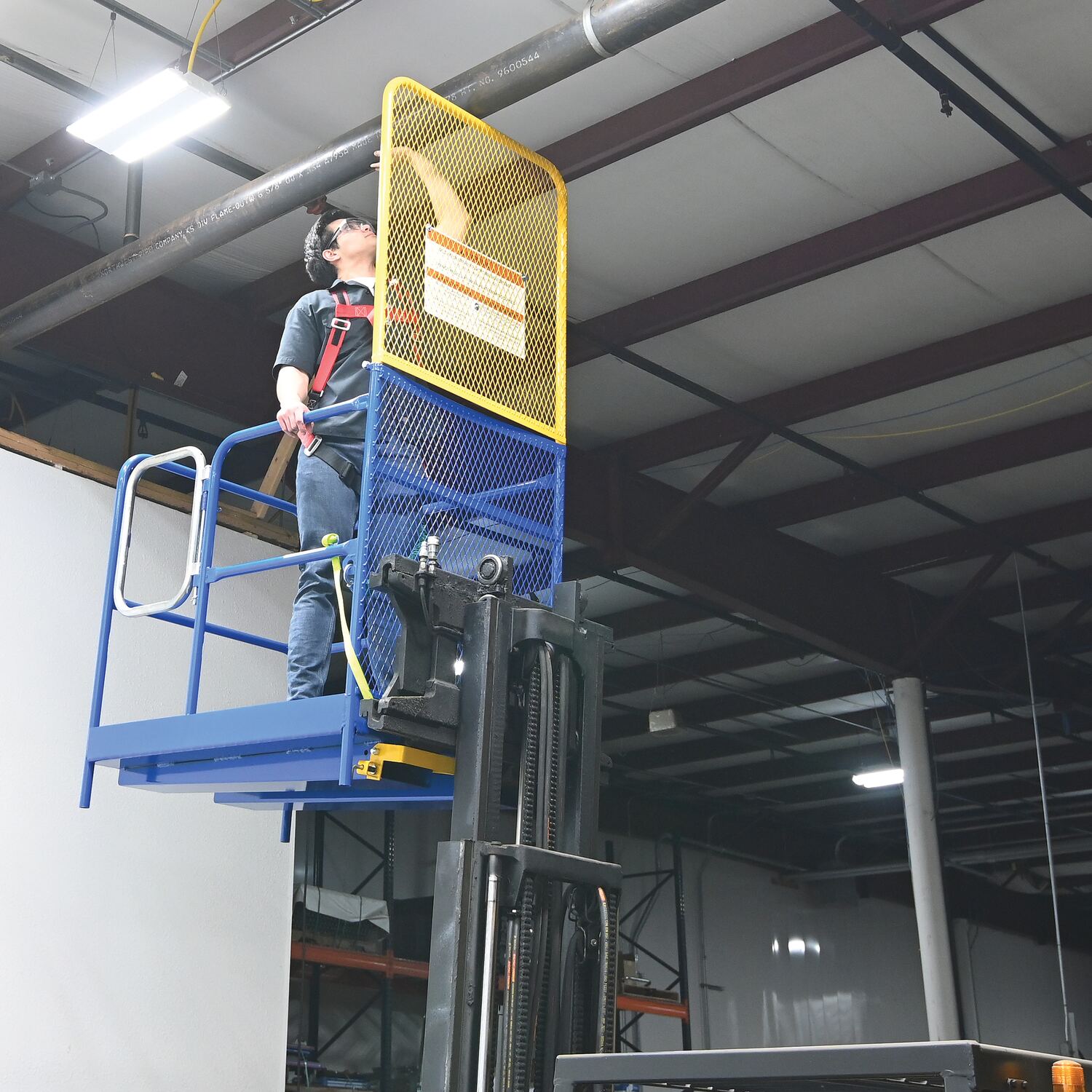

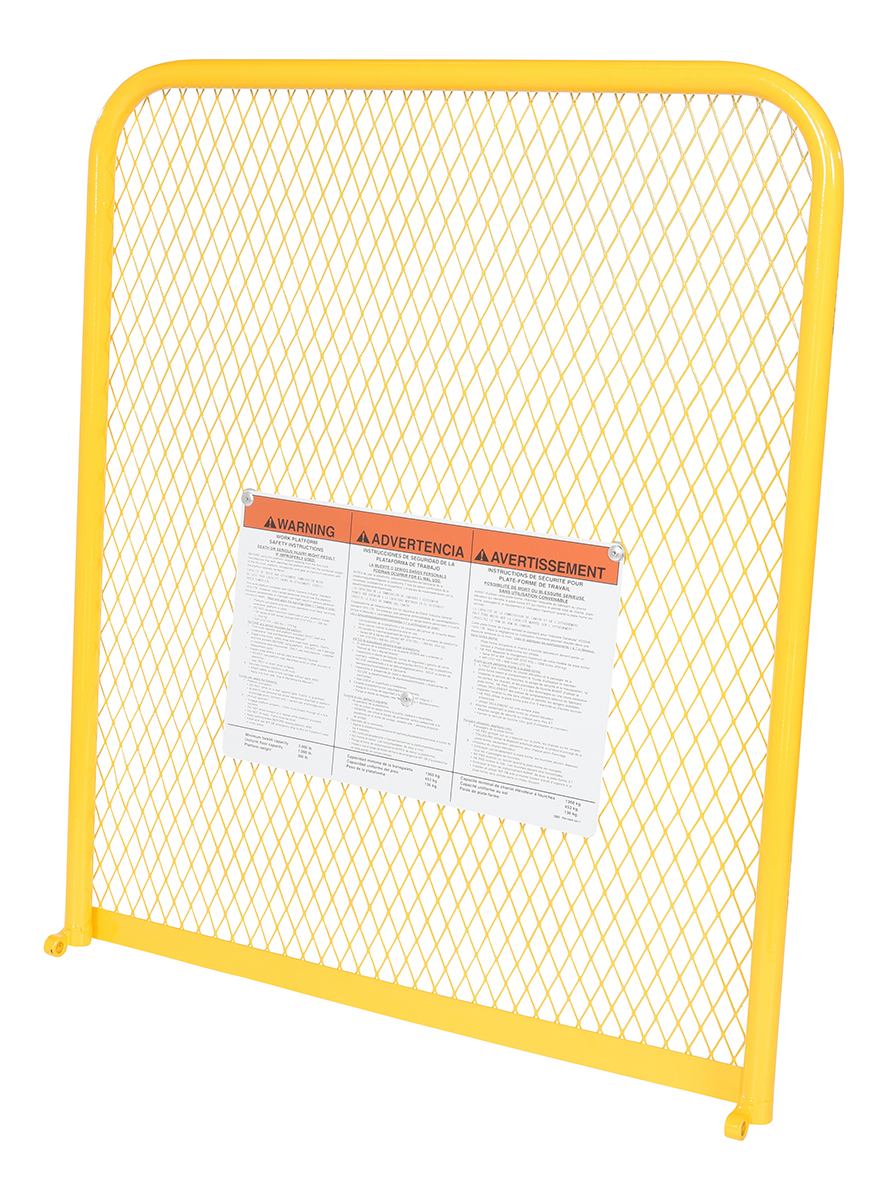

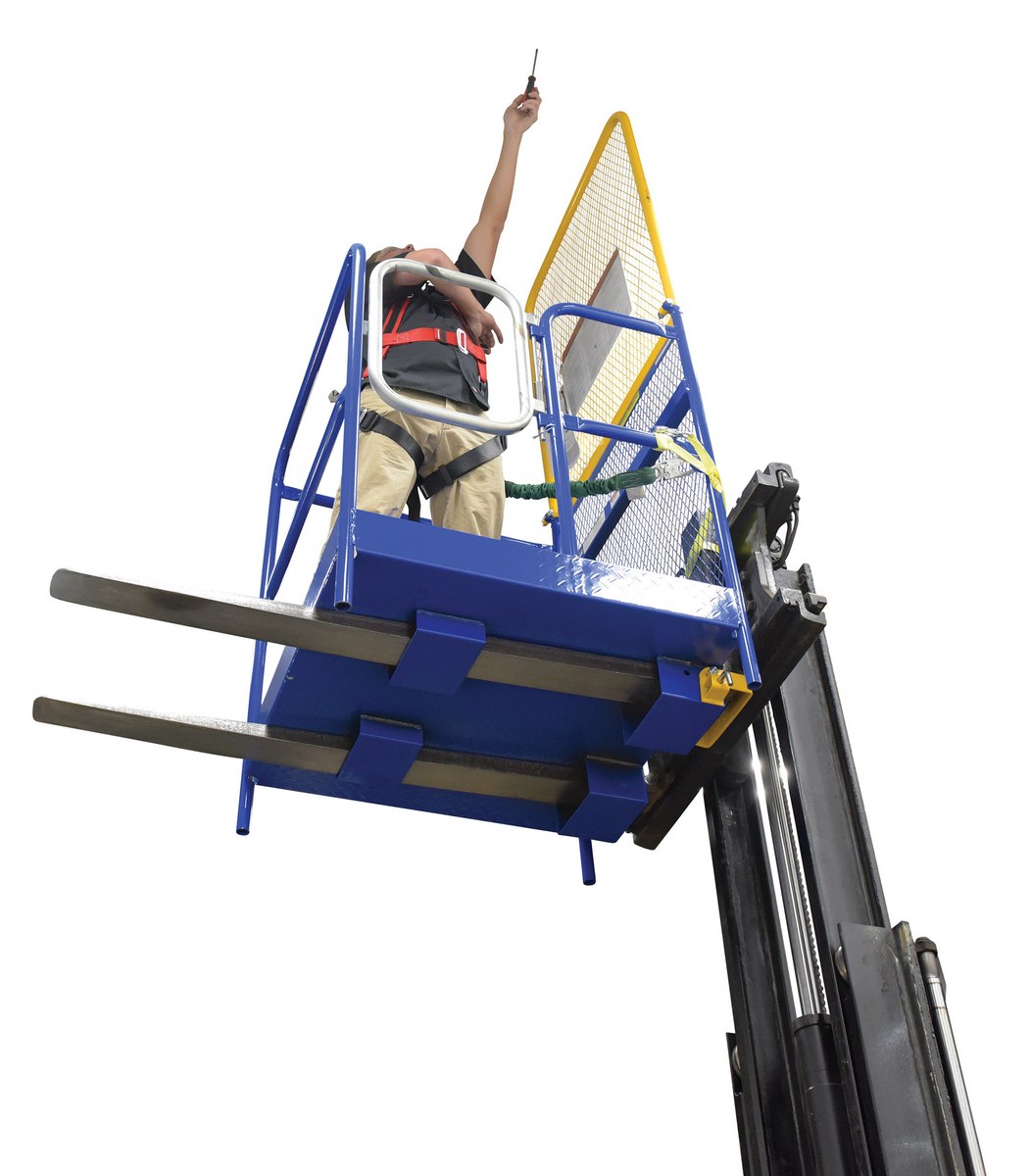

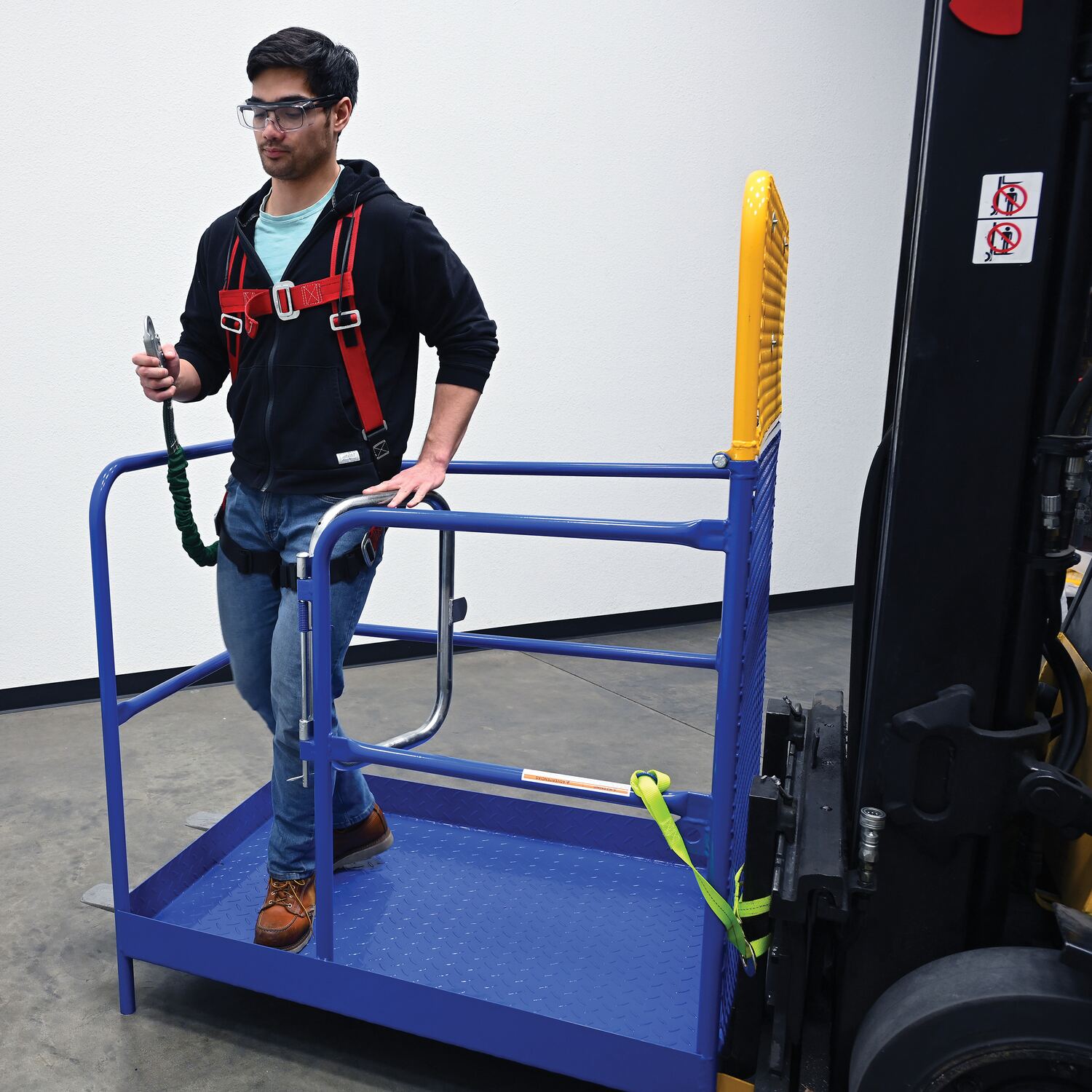

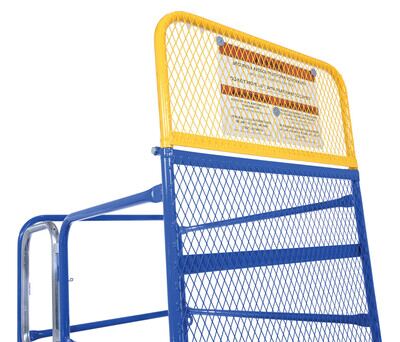

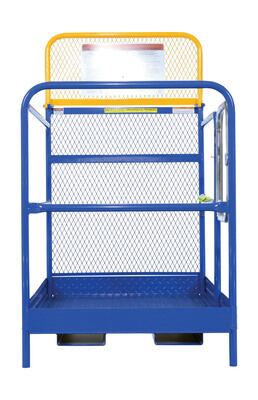

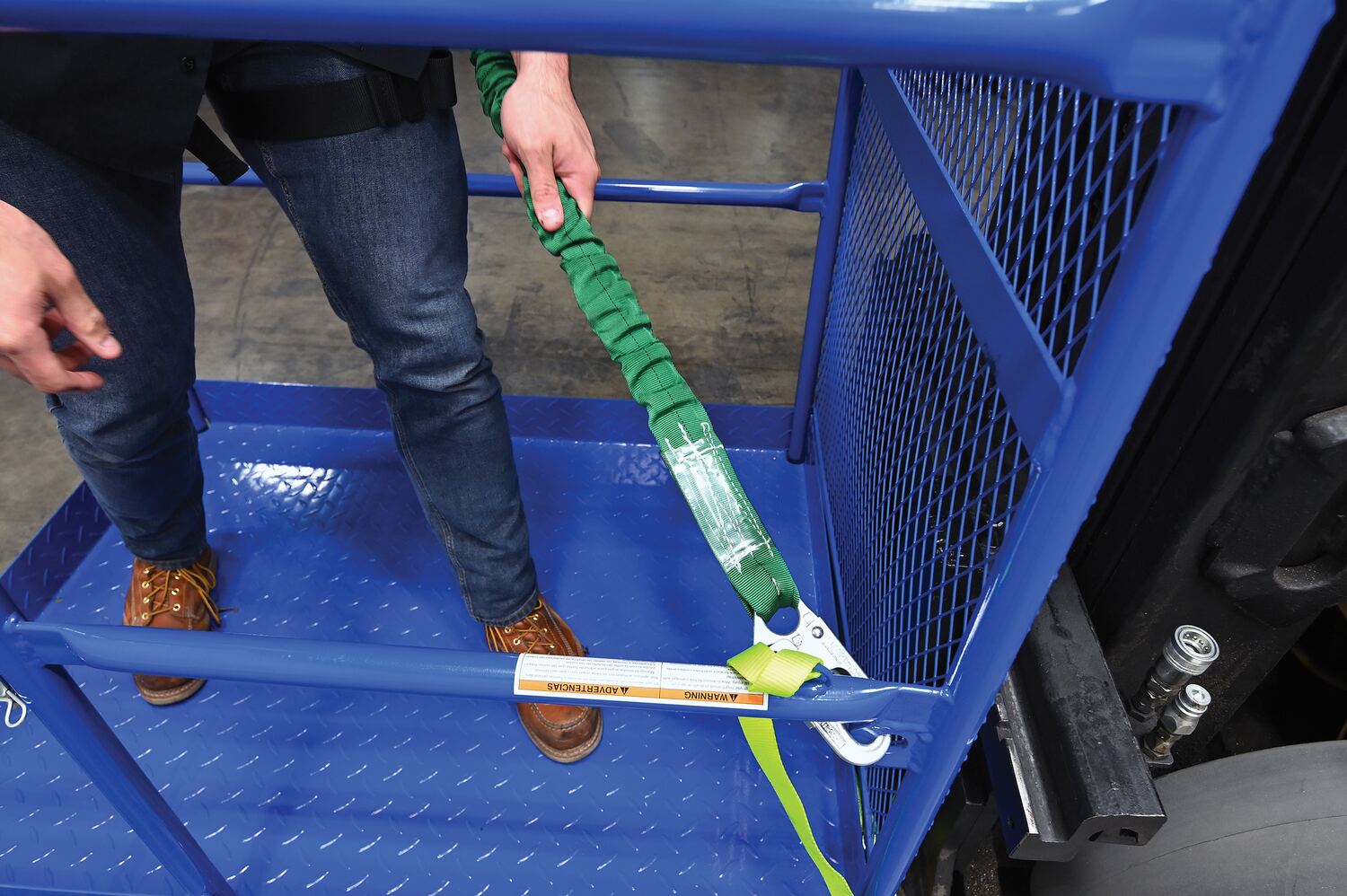

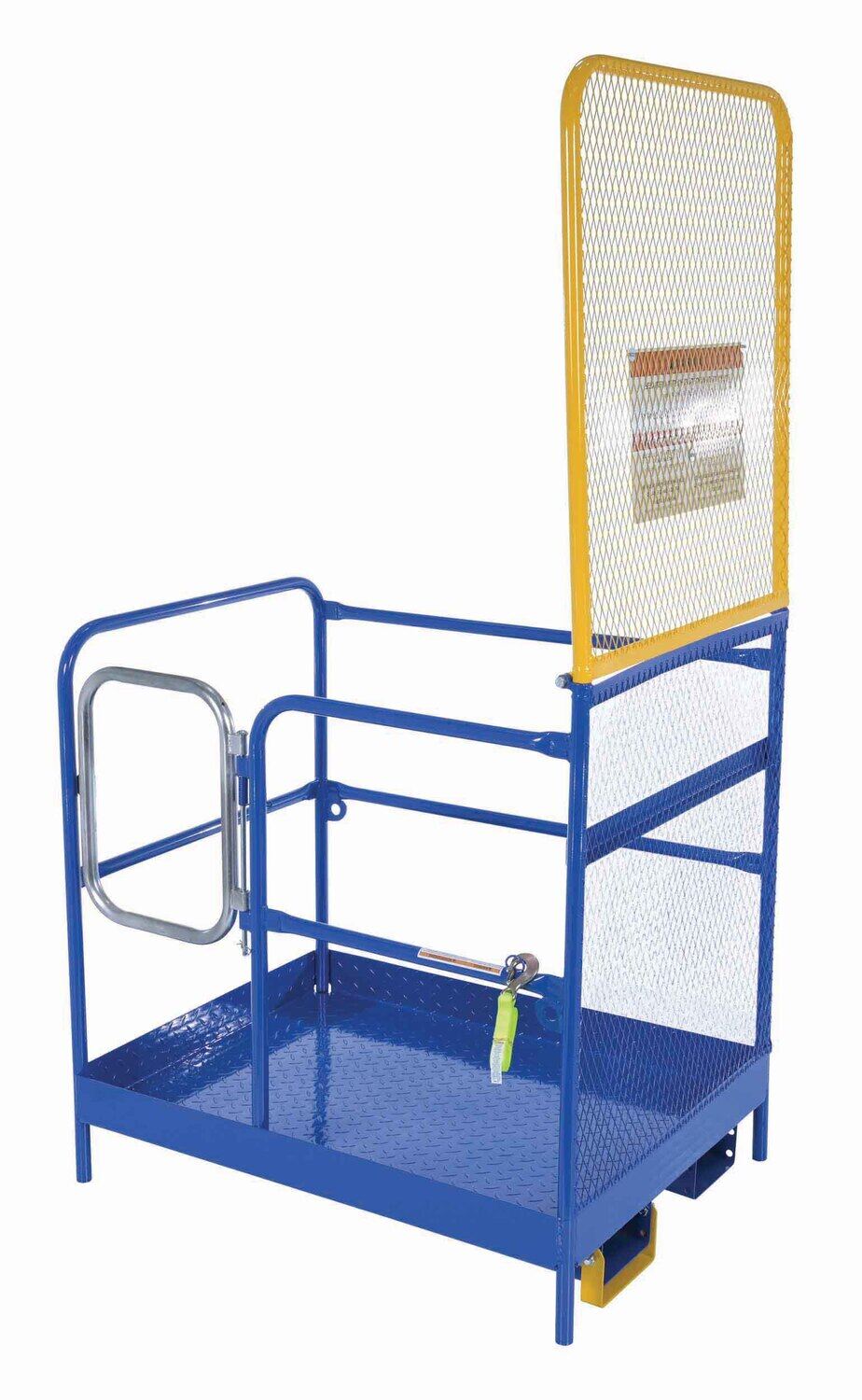

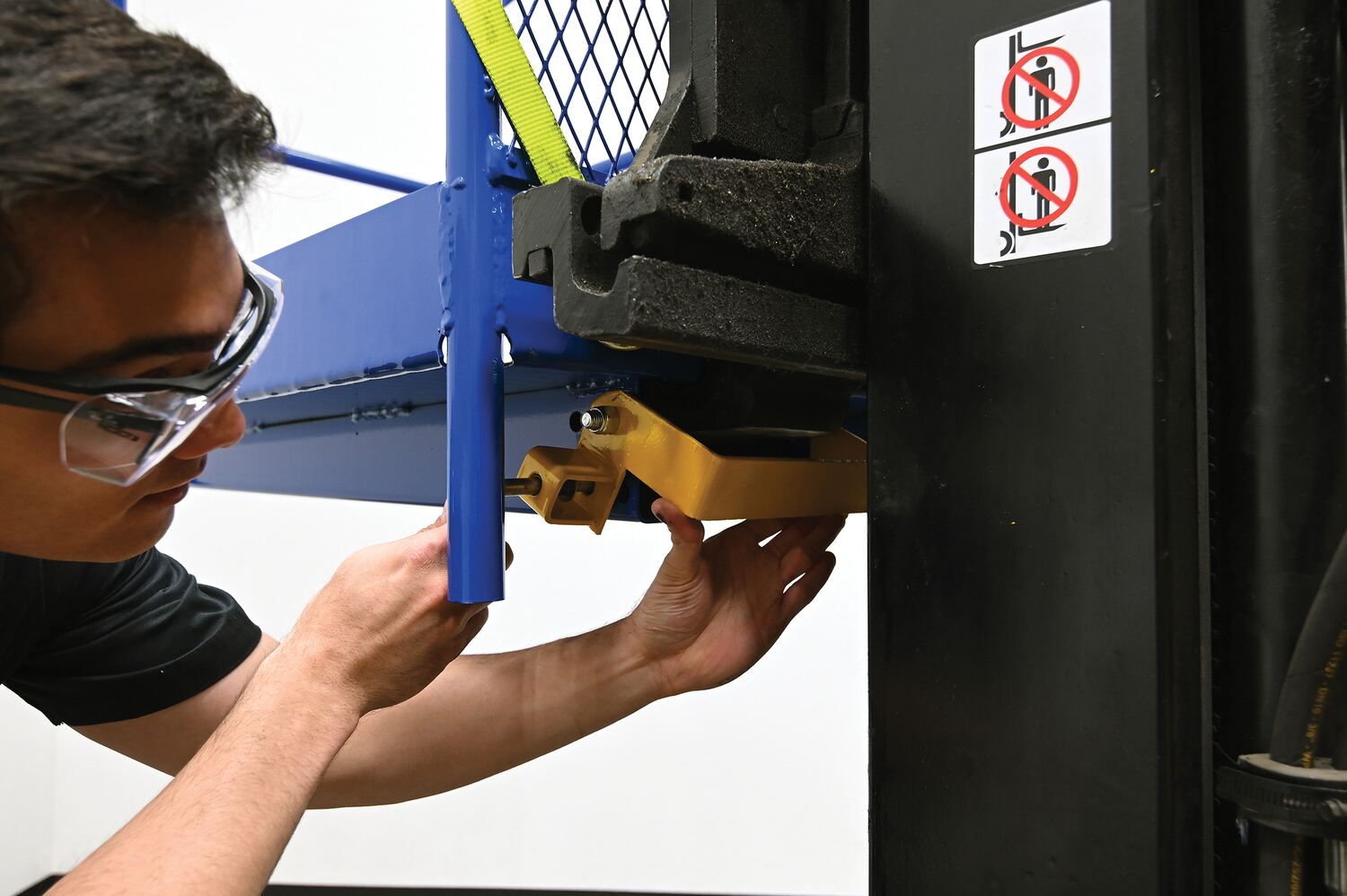

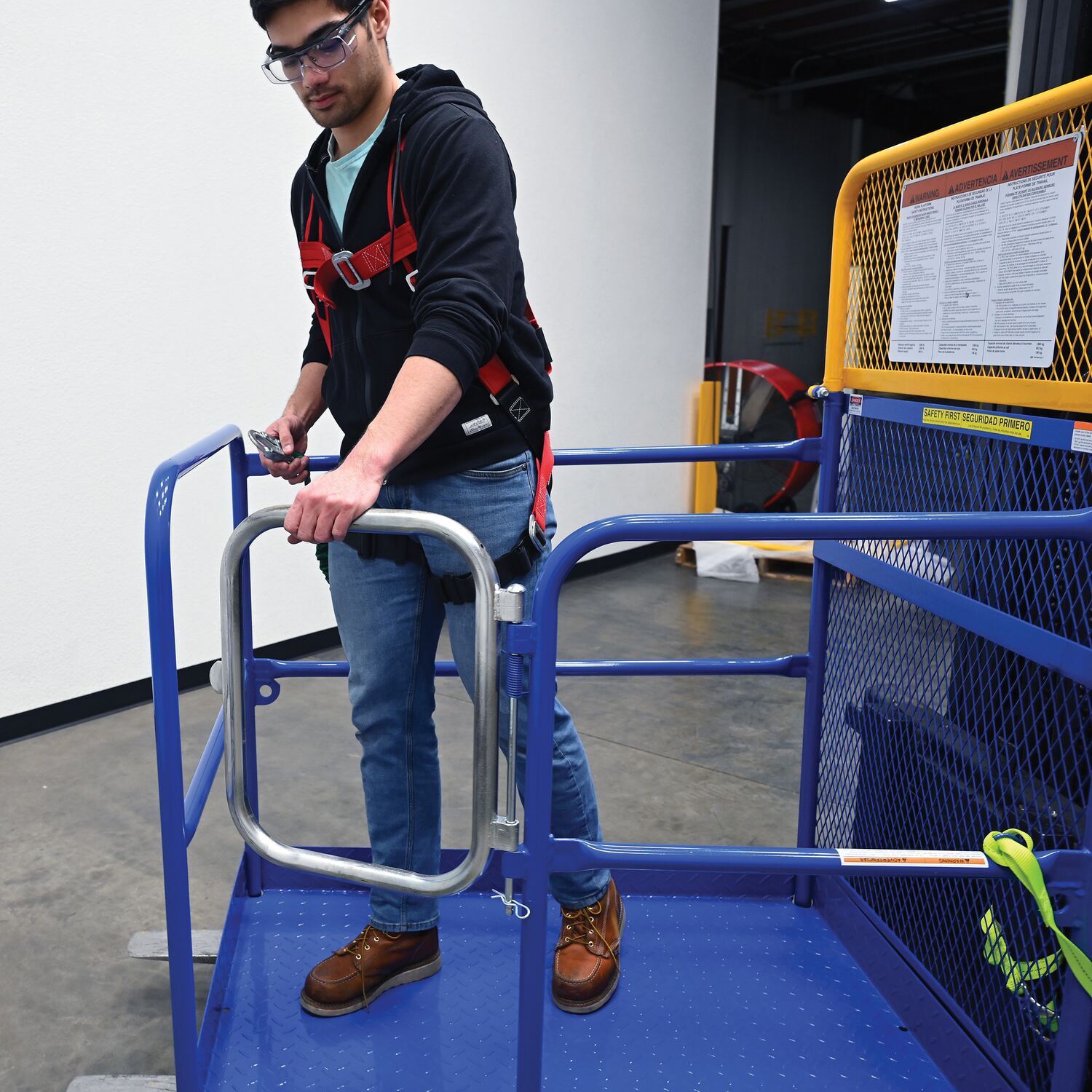

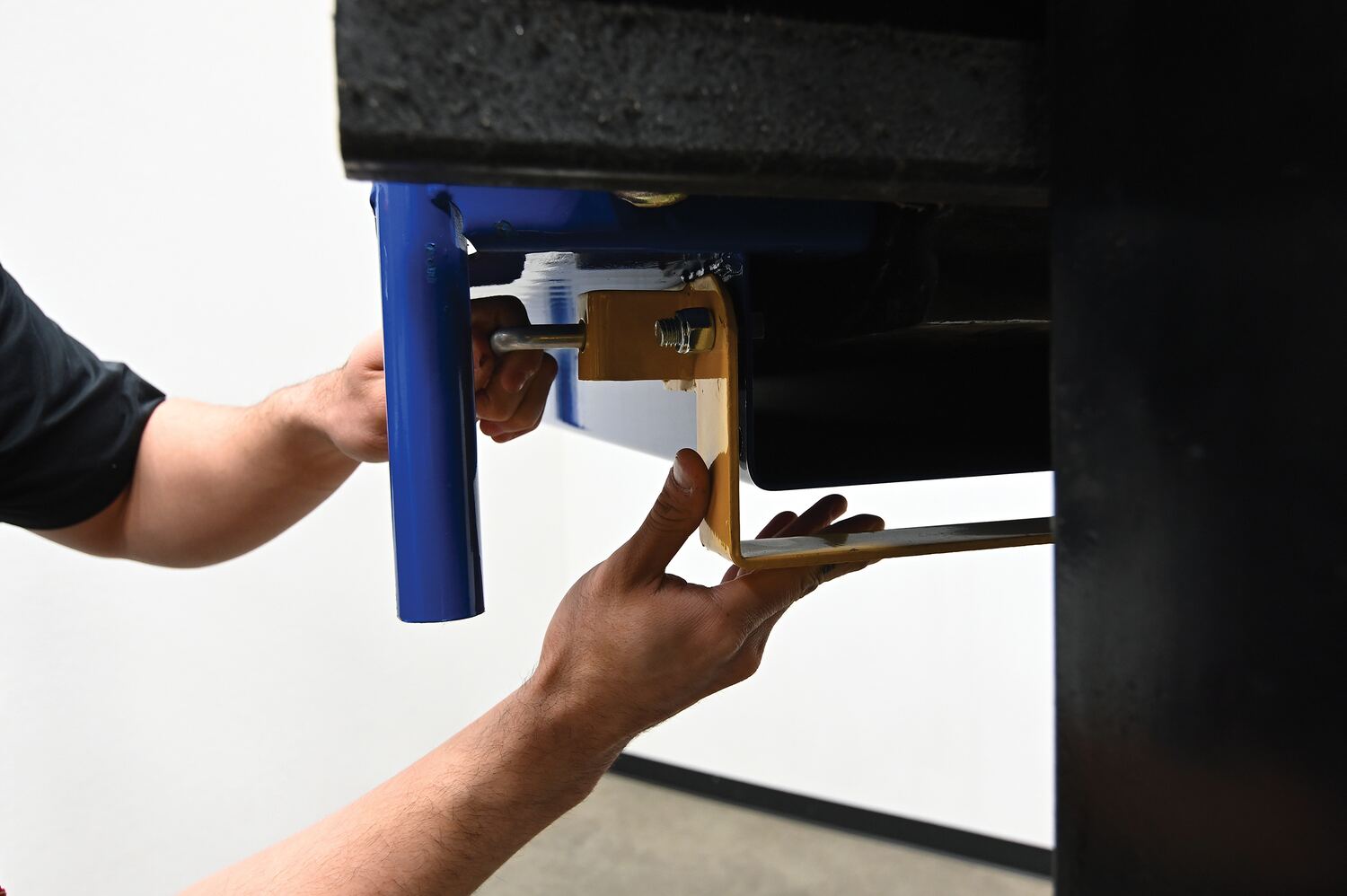

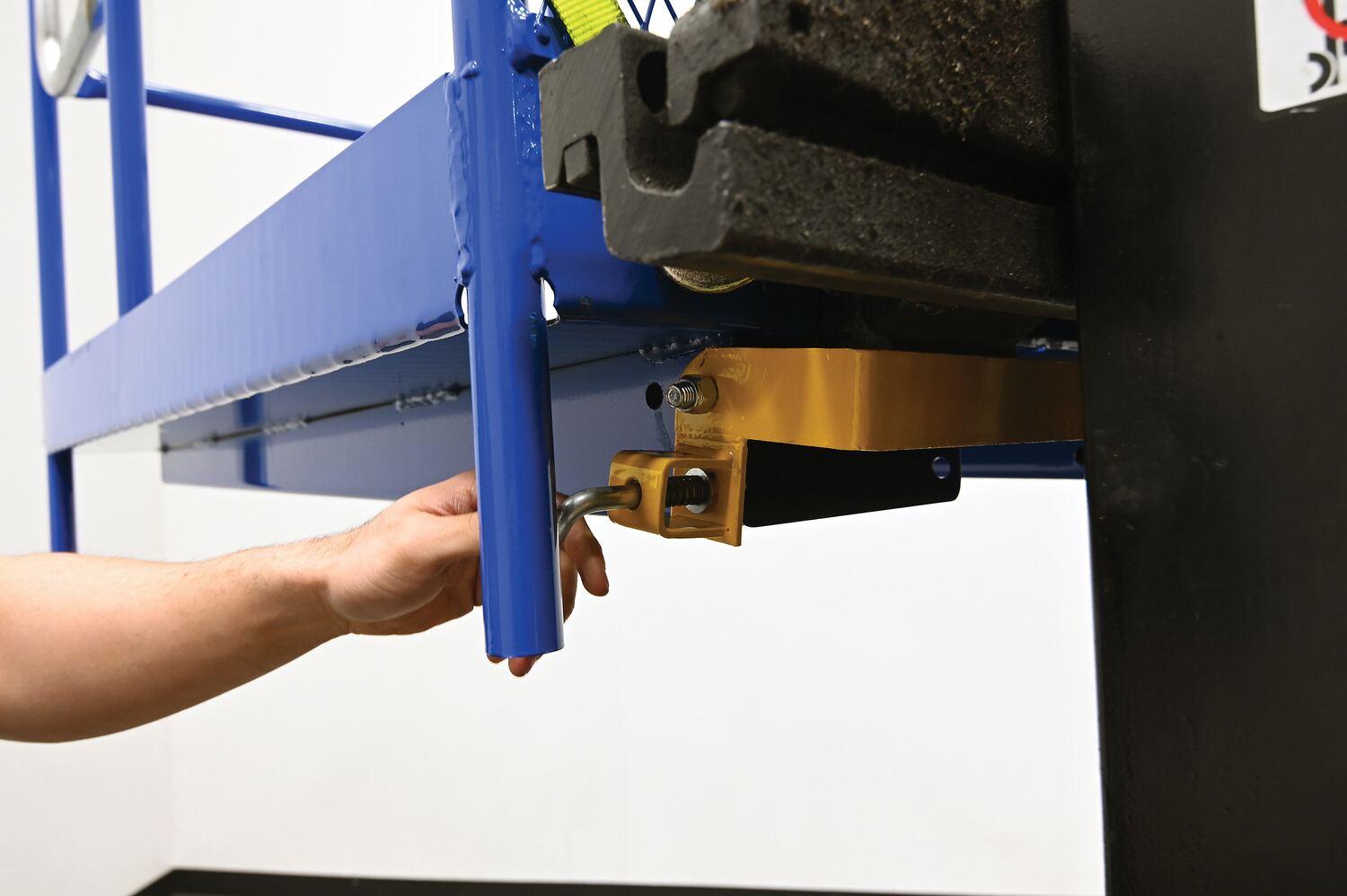

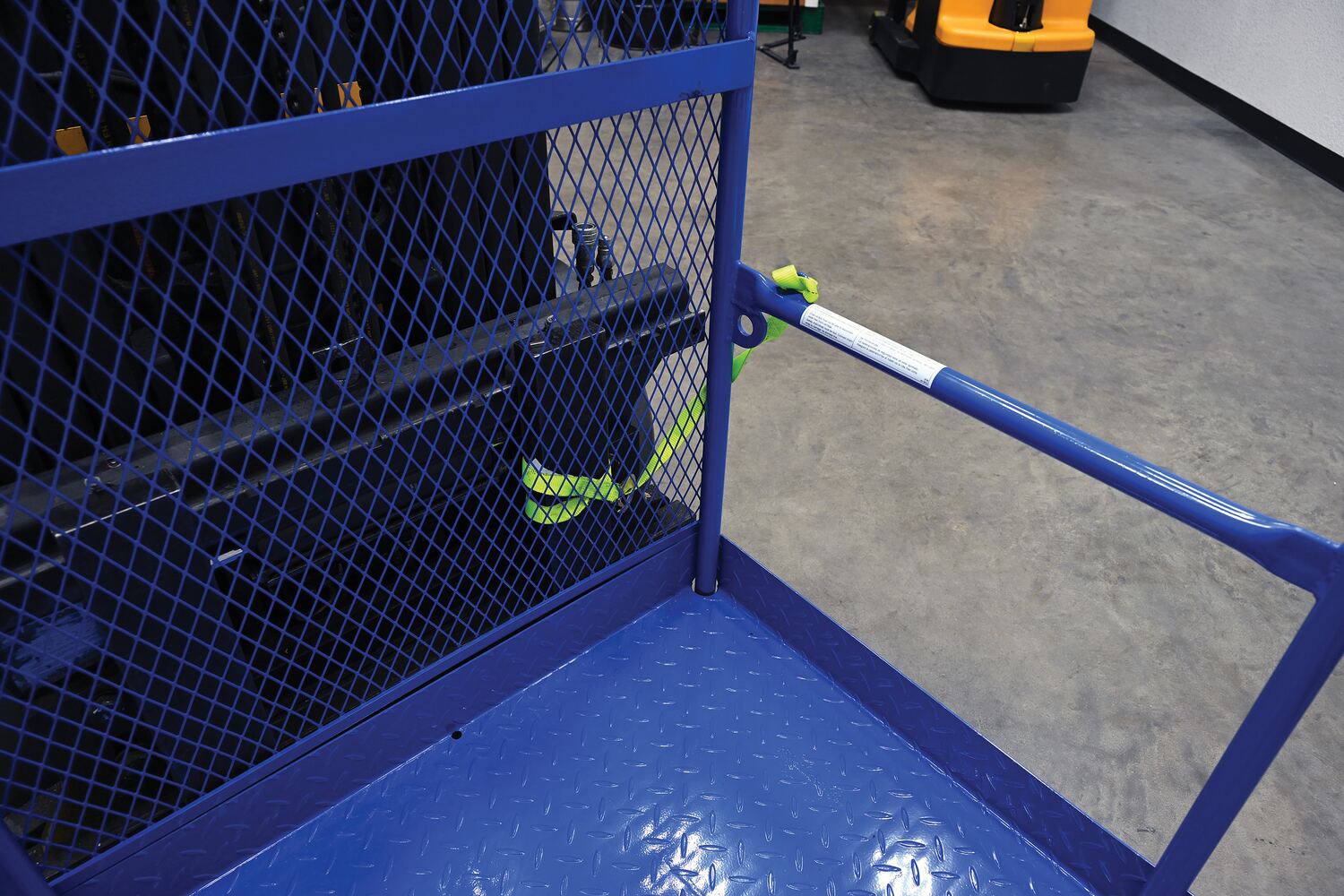

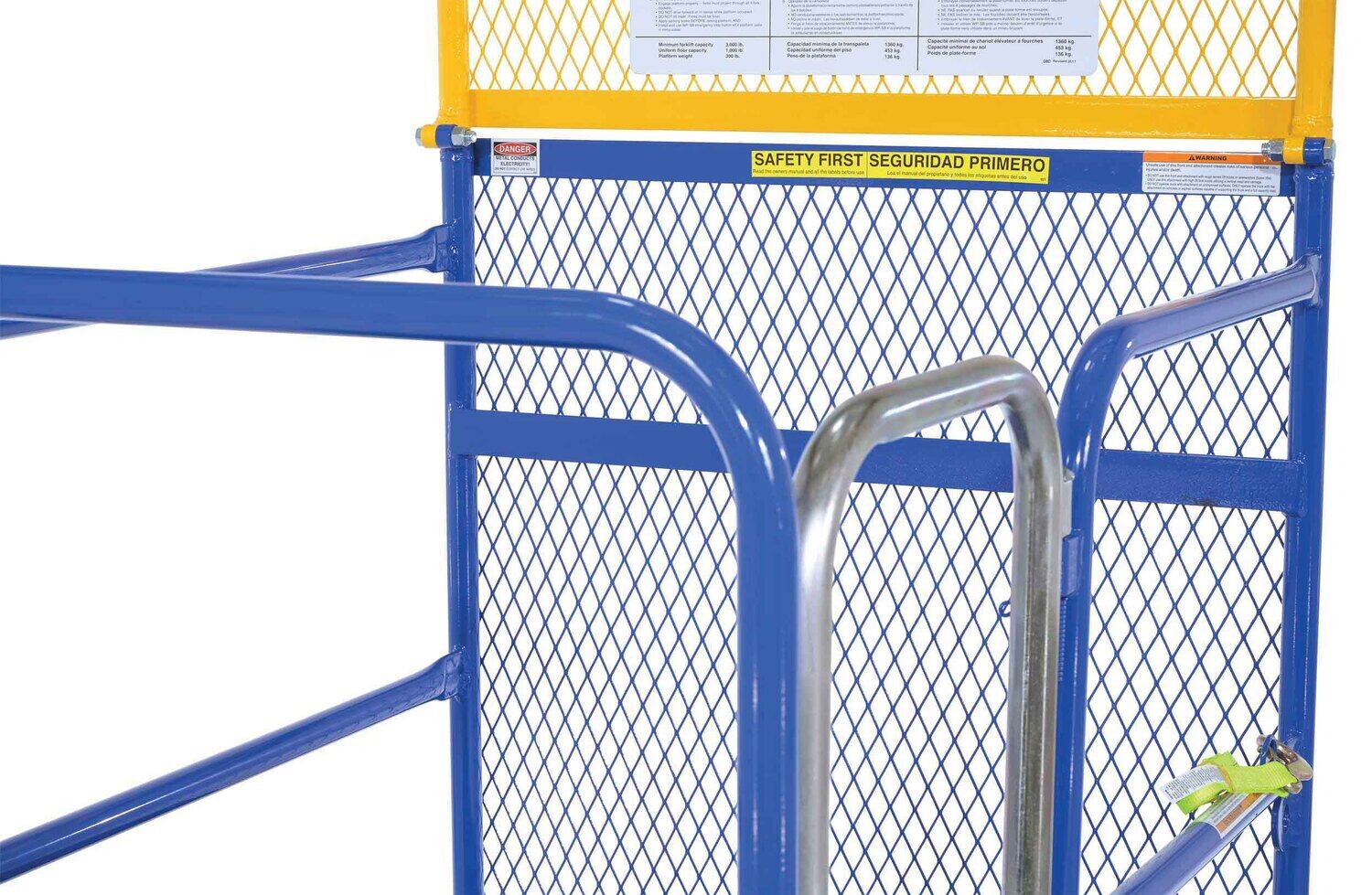

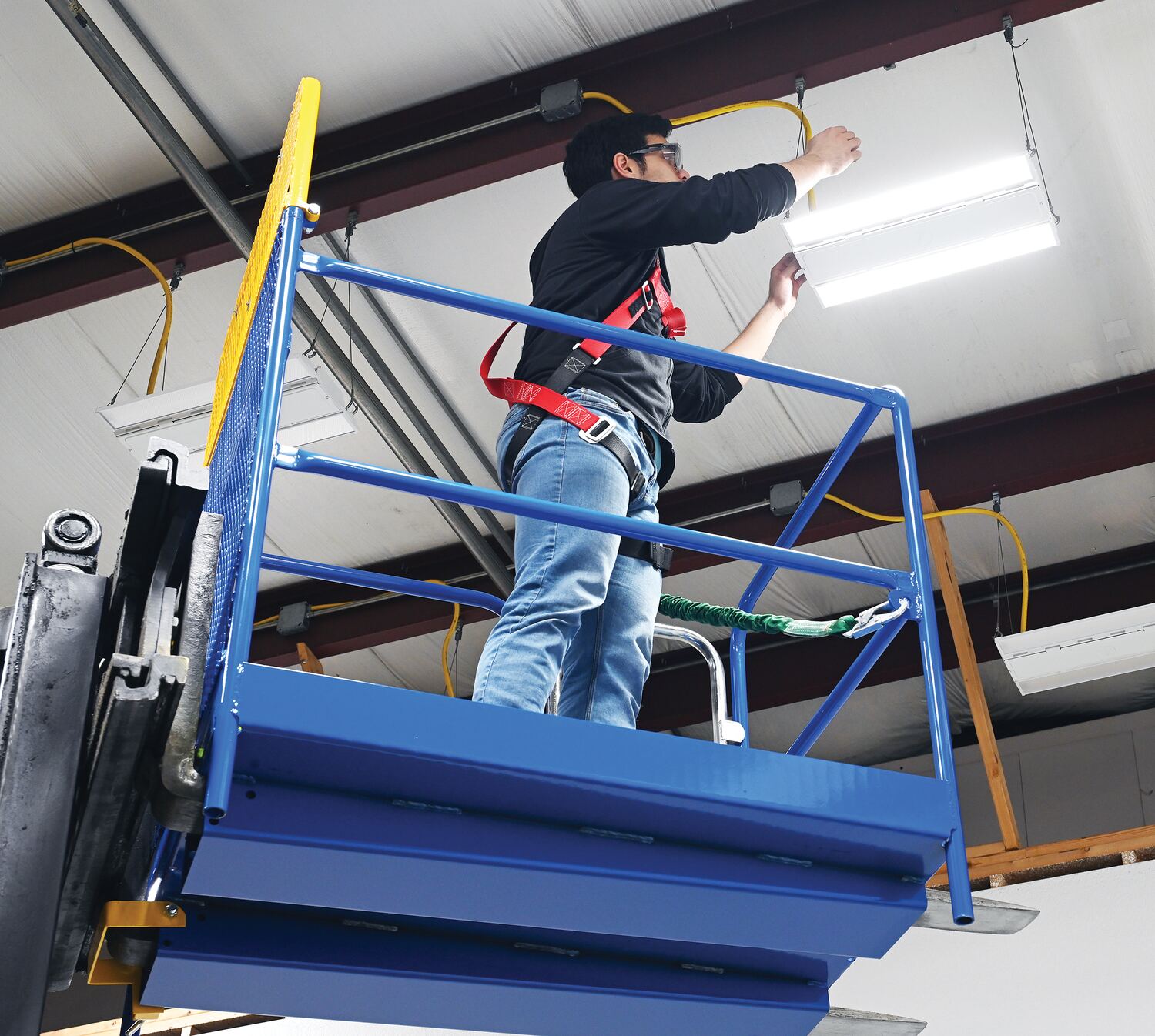

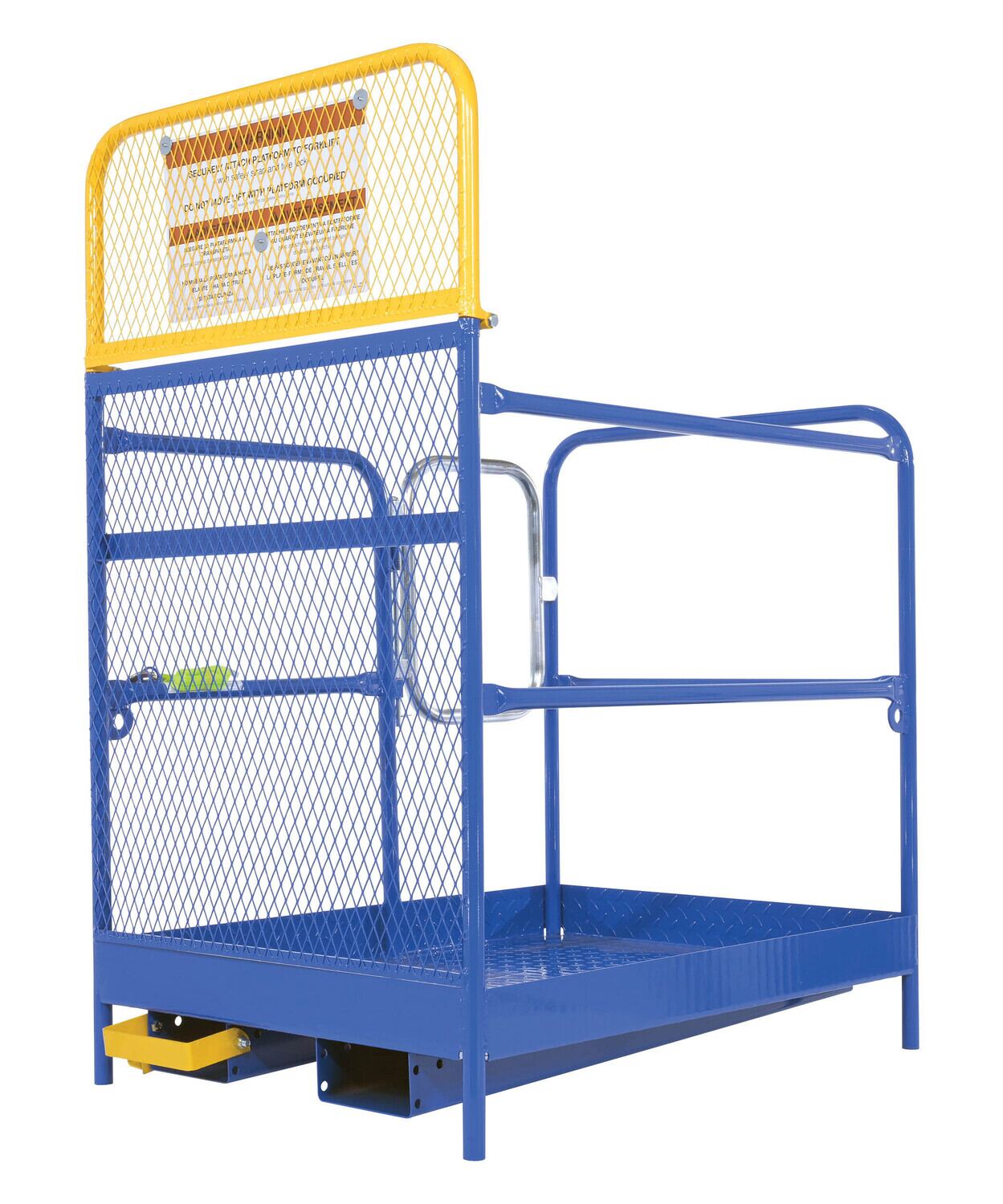

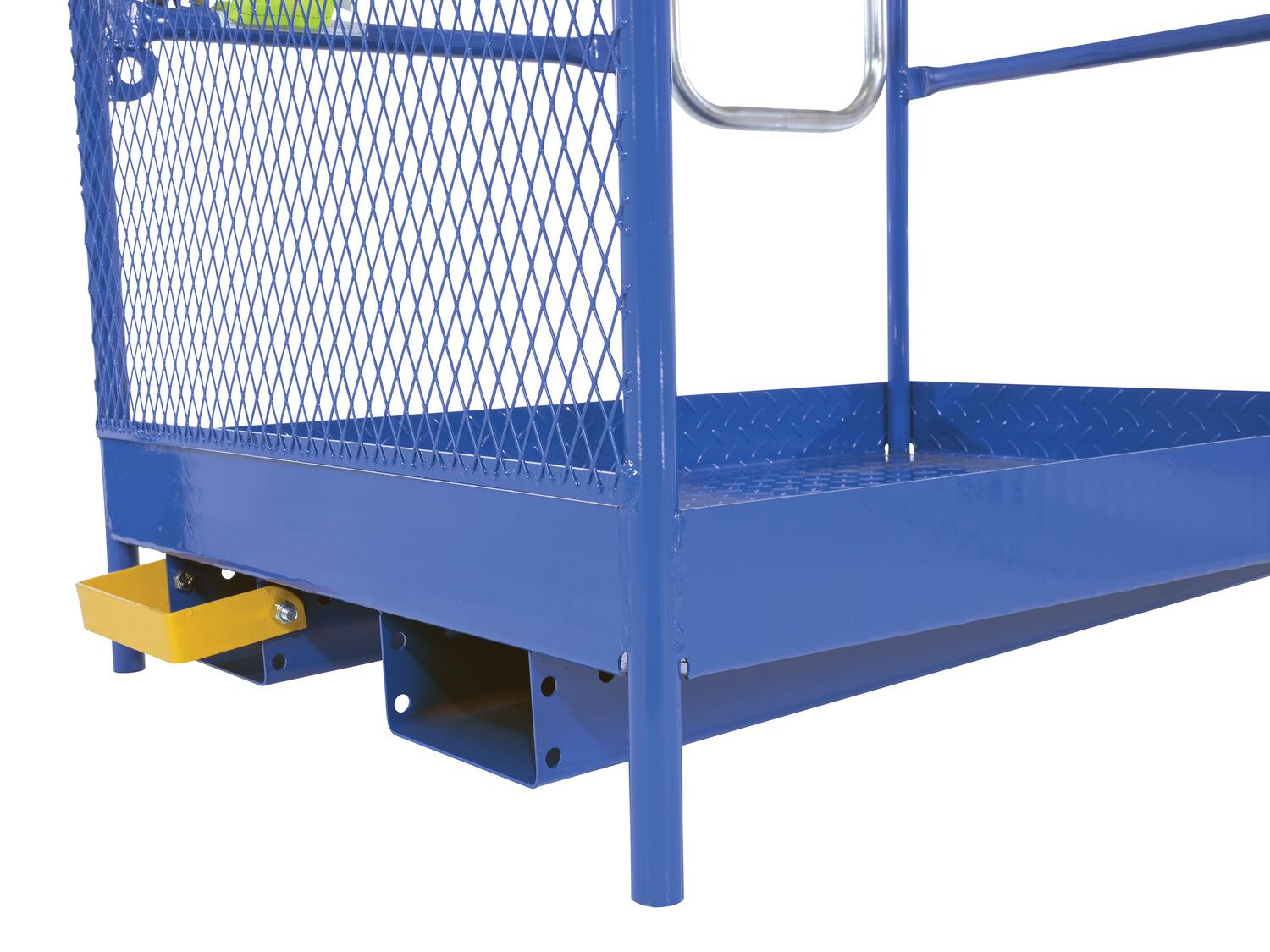

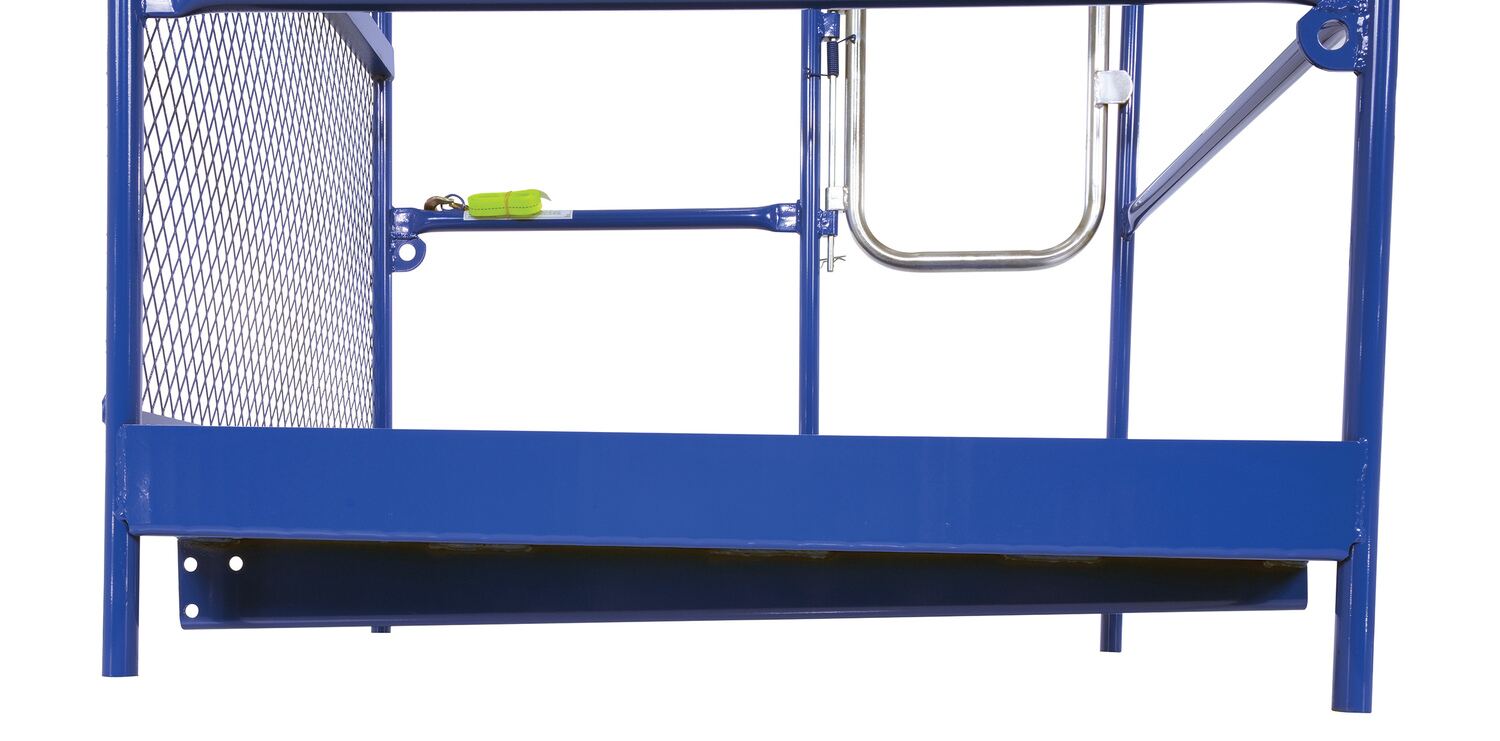

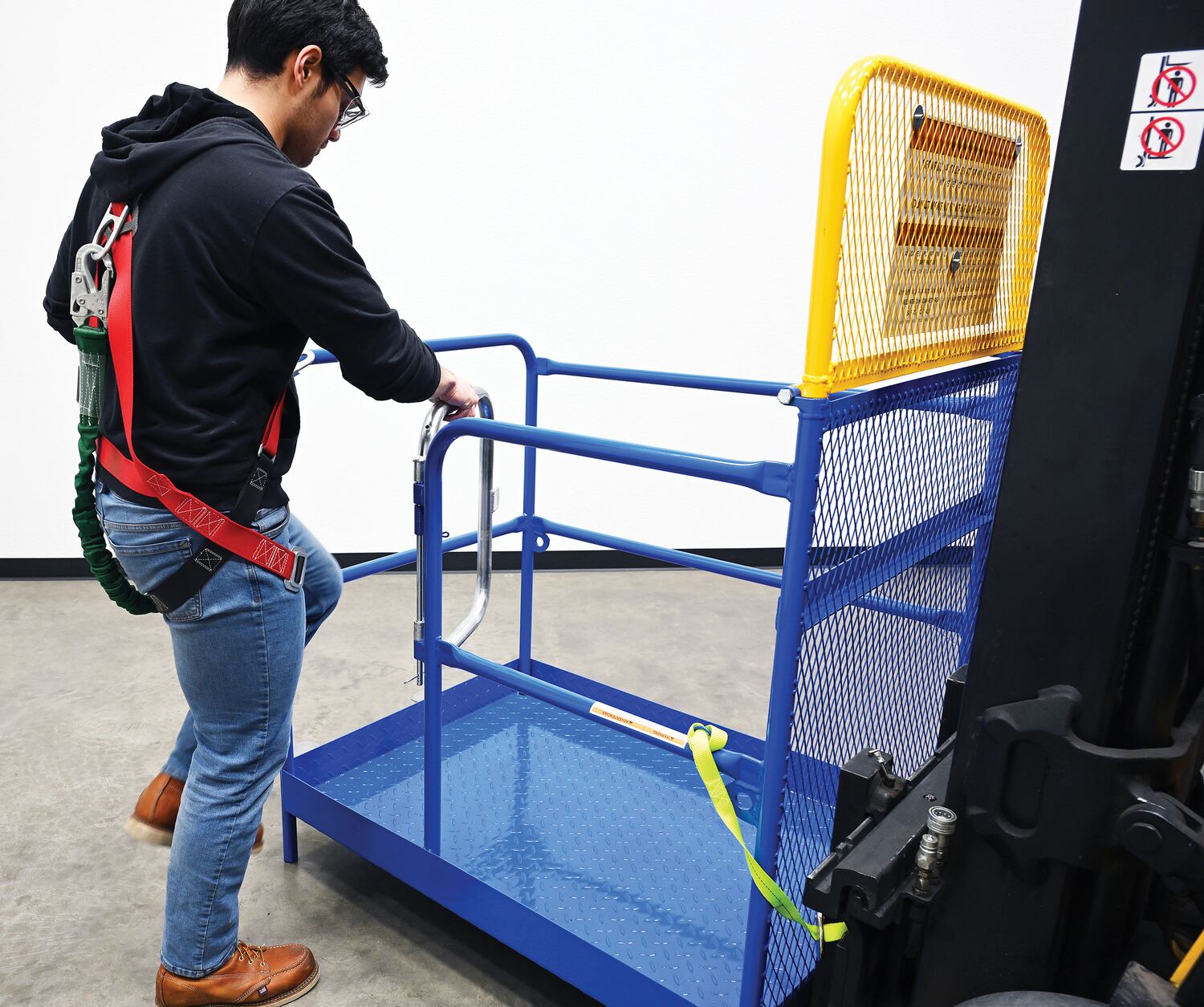

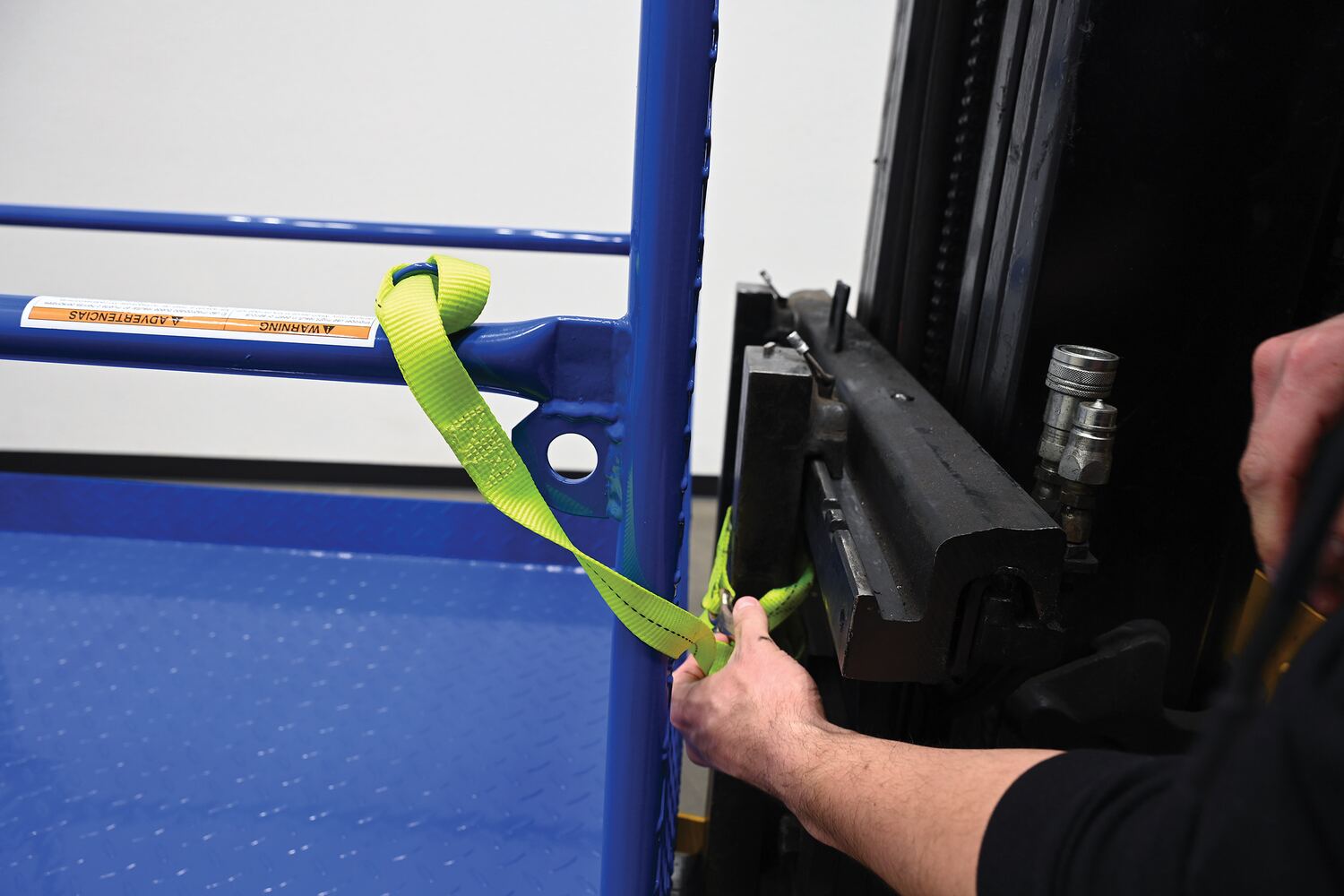

Convenient fork truck work platforms quickly and safely raise maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to back of forks and a 36" long strap with hook attaches platform to fork truck. 42" high handrail with 21" high mid-rail on three sides. 60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications on models with suffix -84B). Includes diamond plate platform. The usable fork pockets are 7-3/4"W x 3-7/8"H in rear and 7-3/4"W x 1-7/8"H in front. A maximum of two people can be in the work platform at one time. Uniform weight capacity is 1,000 lb. evenly distributed. Welded steel construction. Baked-in powder-coated toughness. The Full Featured units include an Emergency Stop Button Kit and Web Lanyard with Safety Harness.

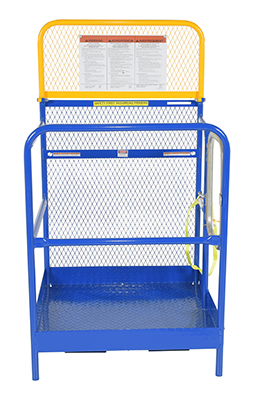

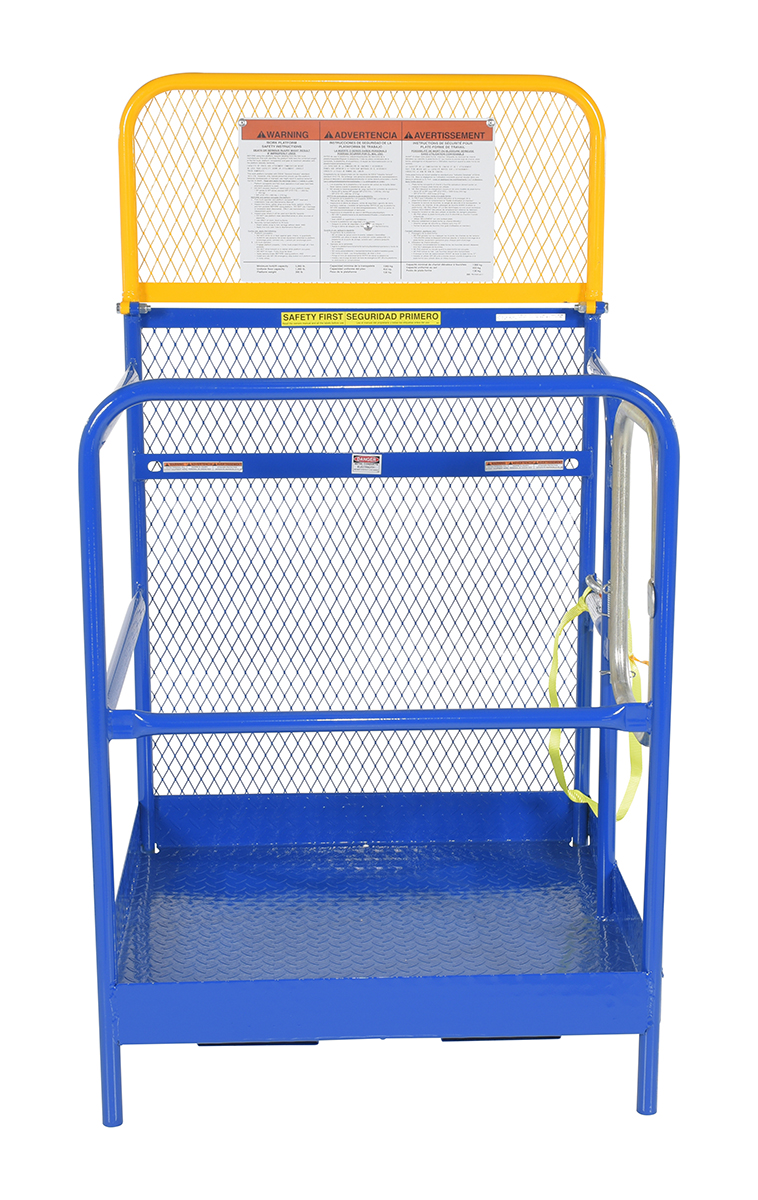

WP-3636

model WP-3636

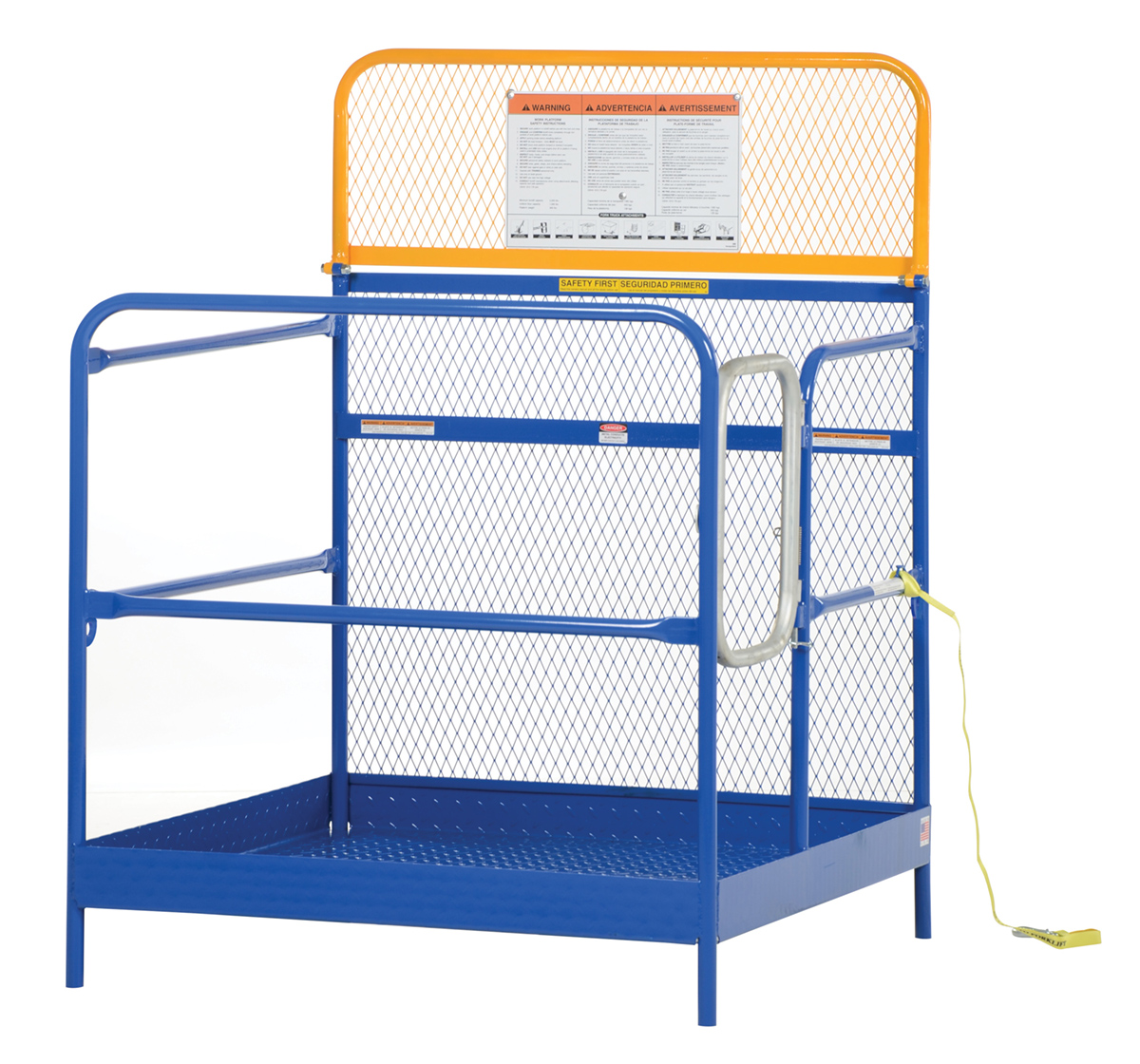

WP-4848

model WP-4848

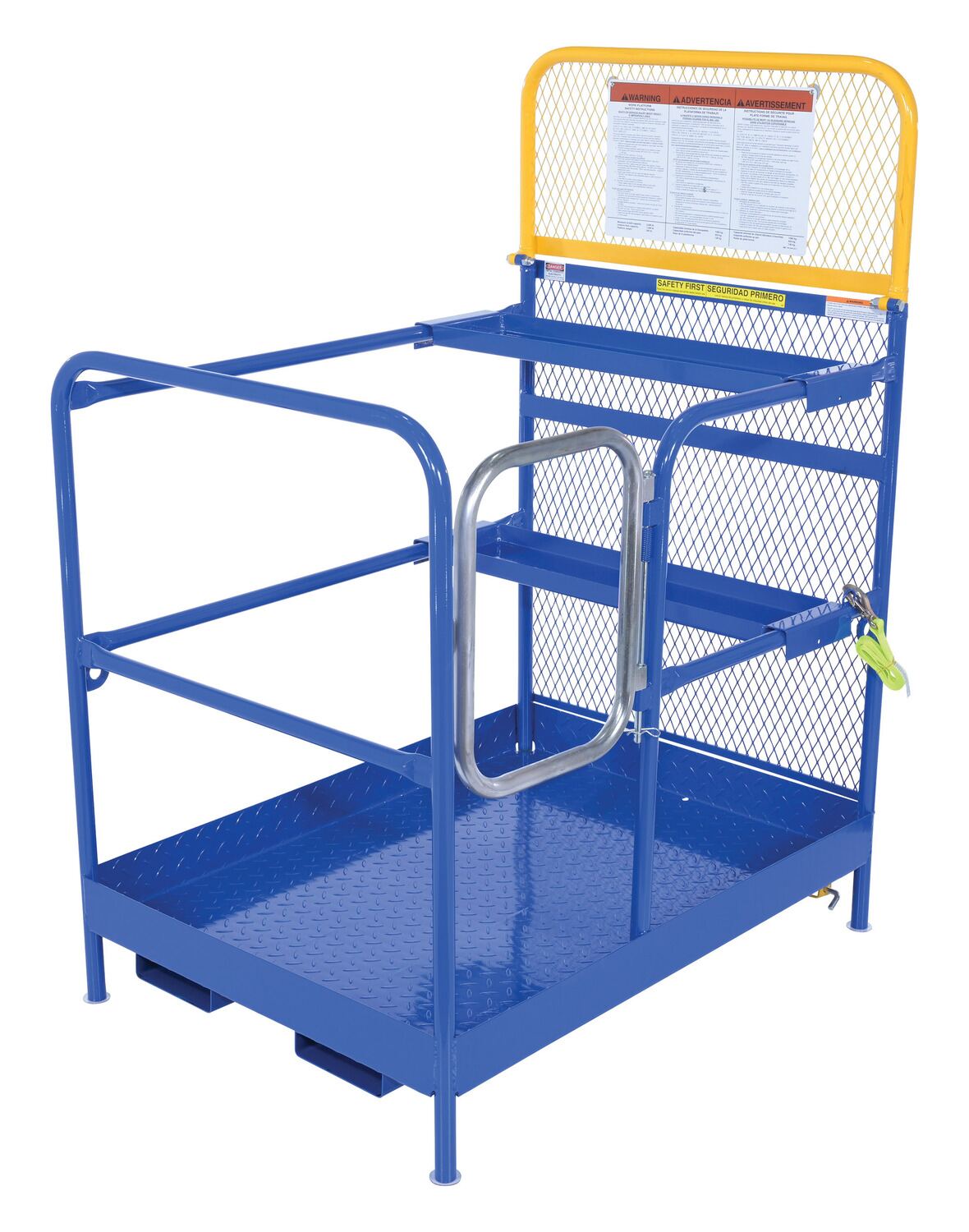

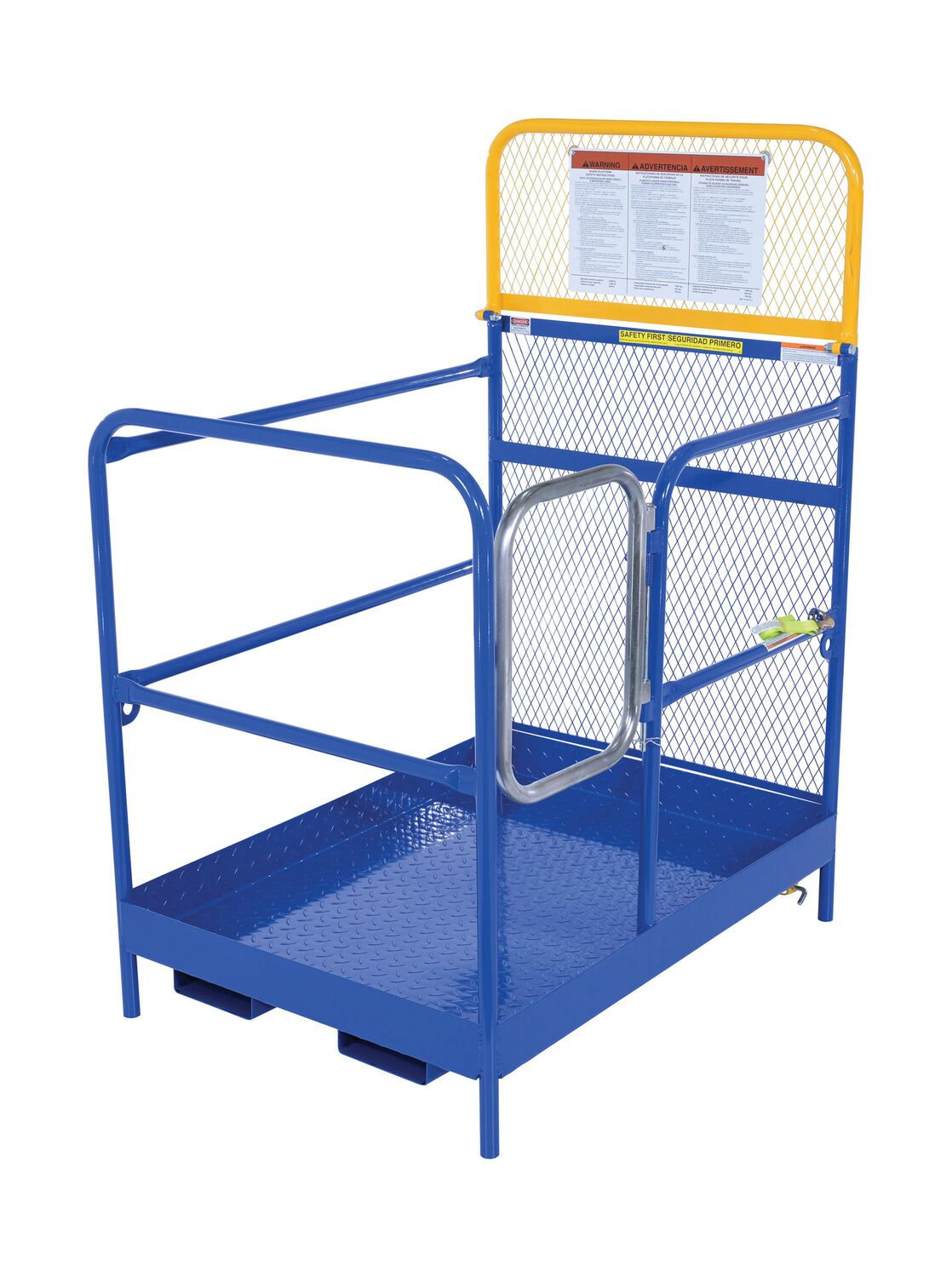

WP-3648

model WP-3648

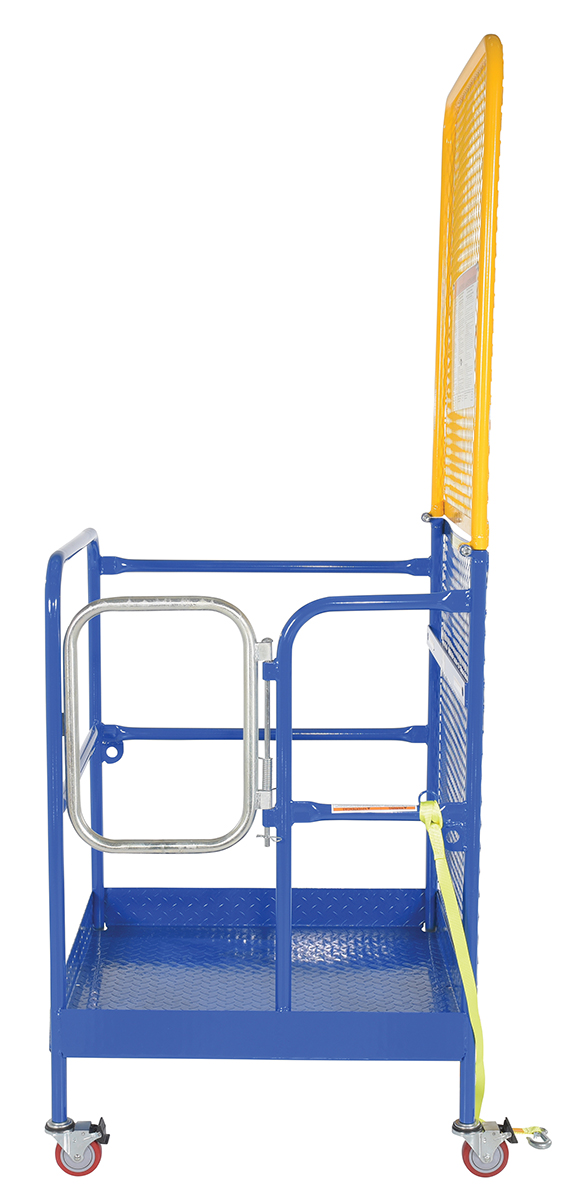

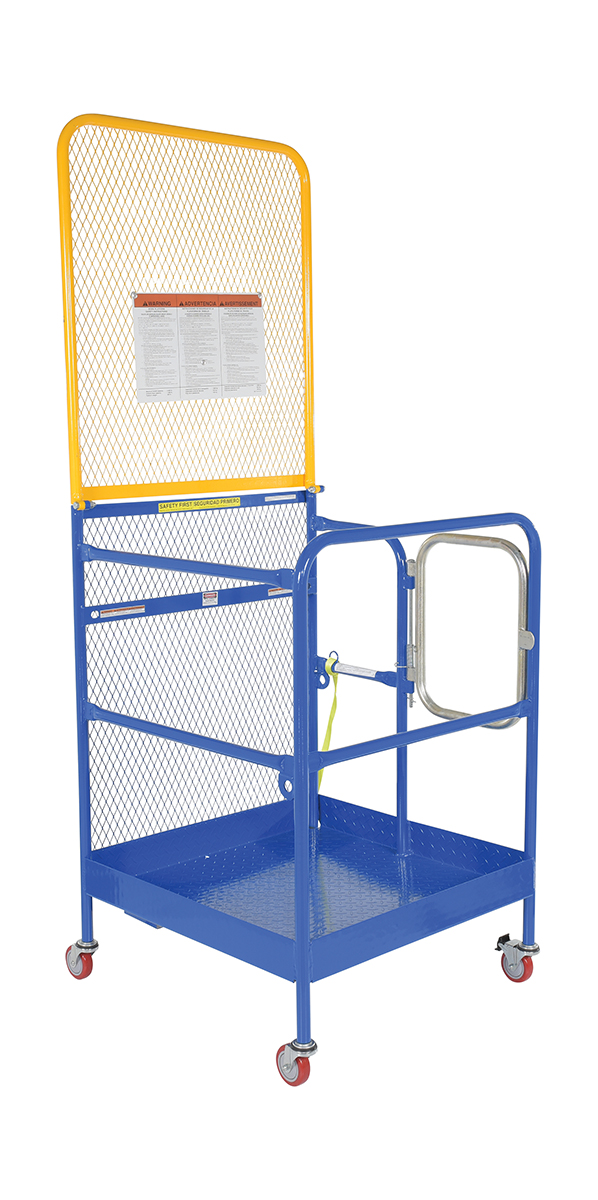

WP-3636-CA-84B

model WP-3636-CA-84B

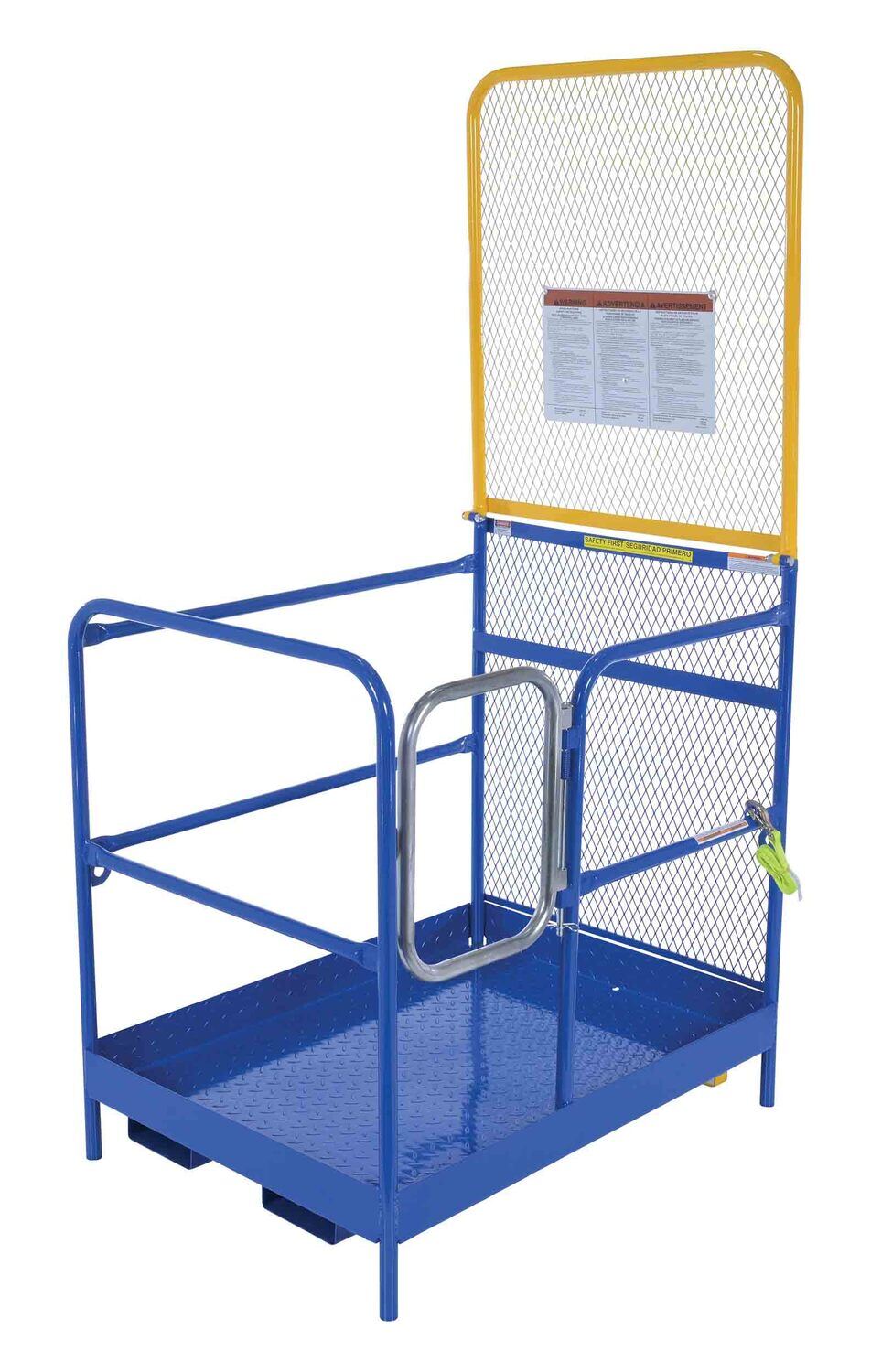

WP-3648-84B

model WP-3648-84B

WP-3648-DD

model WP-3648-DD

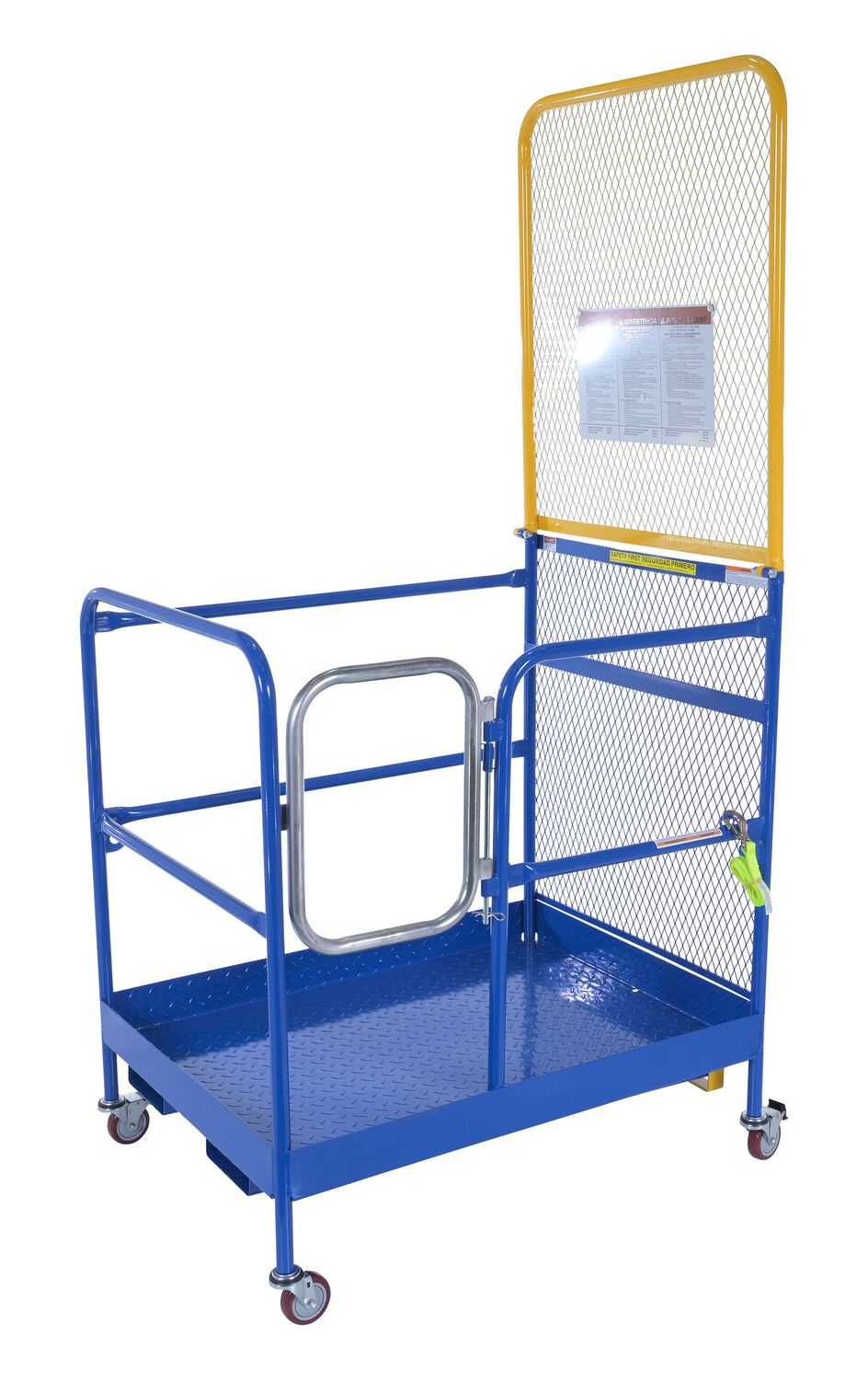

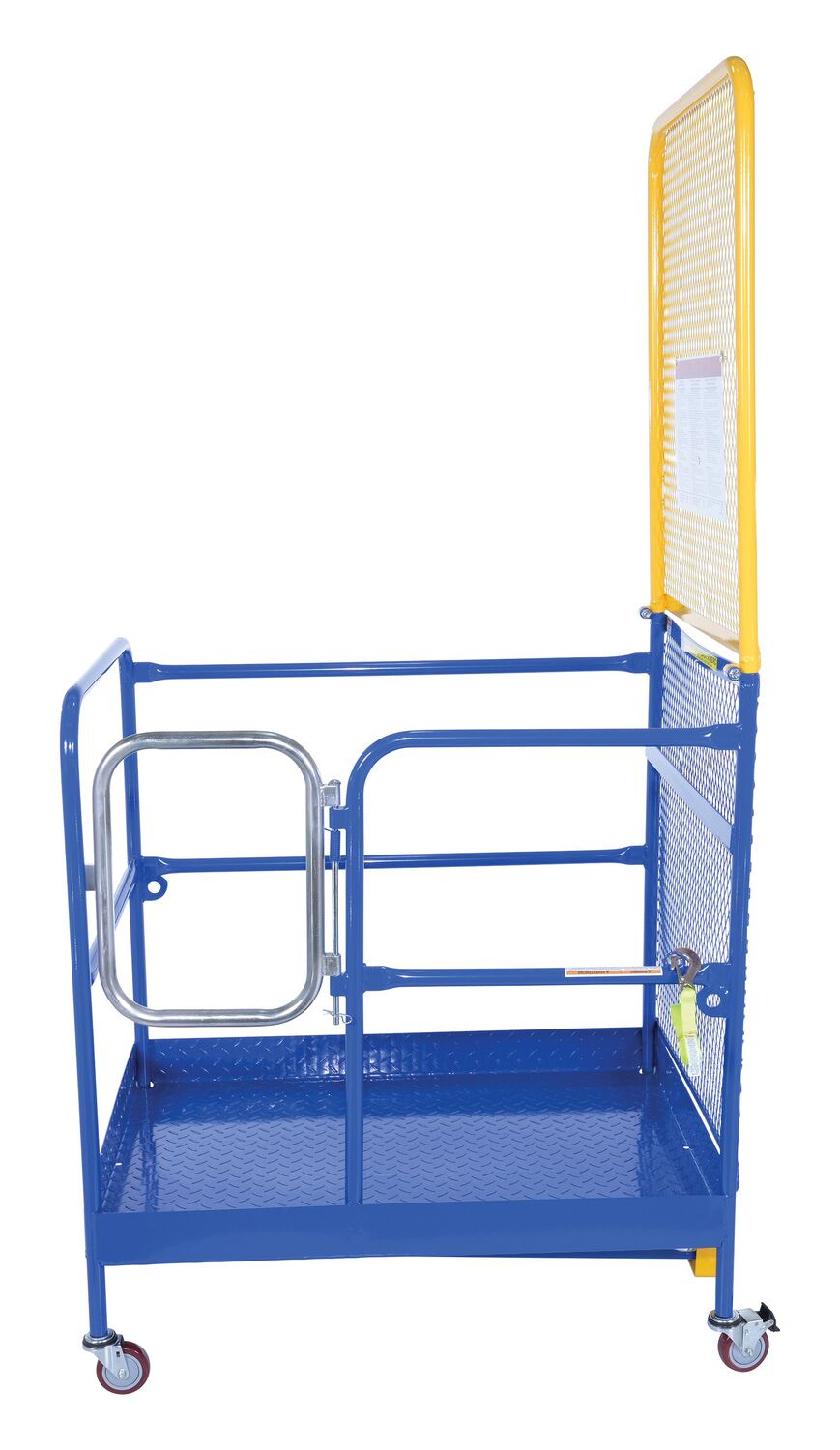

WP-3648-CA-84B

model WP-3648-CA-84B

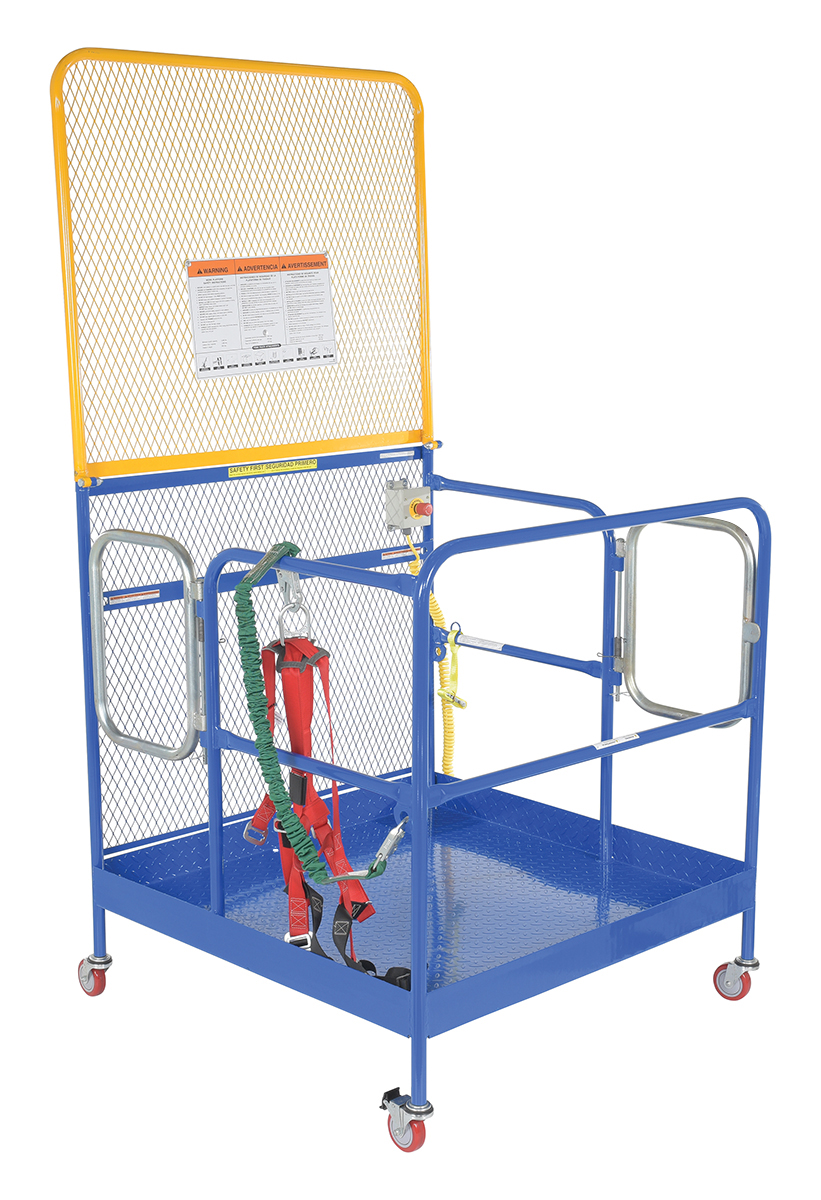

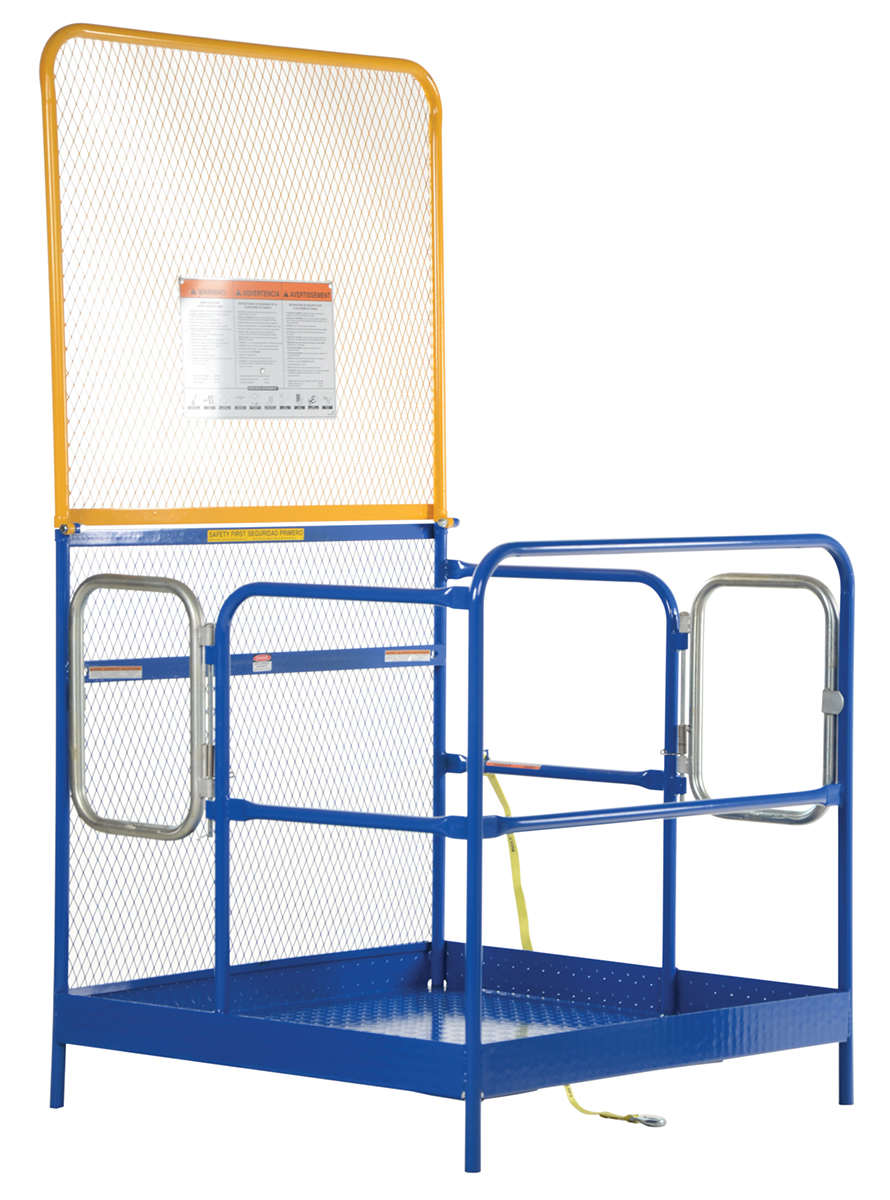

WP-4848-84B-DD-FF

model WP-4848-84B-DD-FF

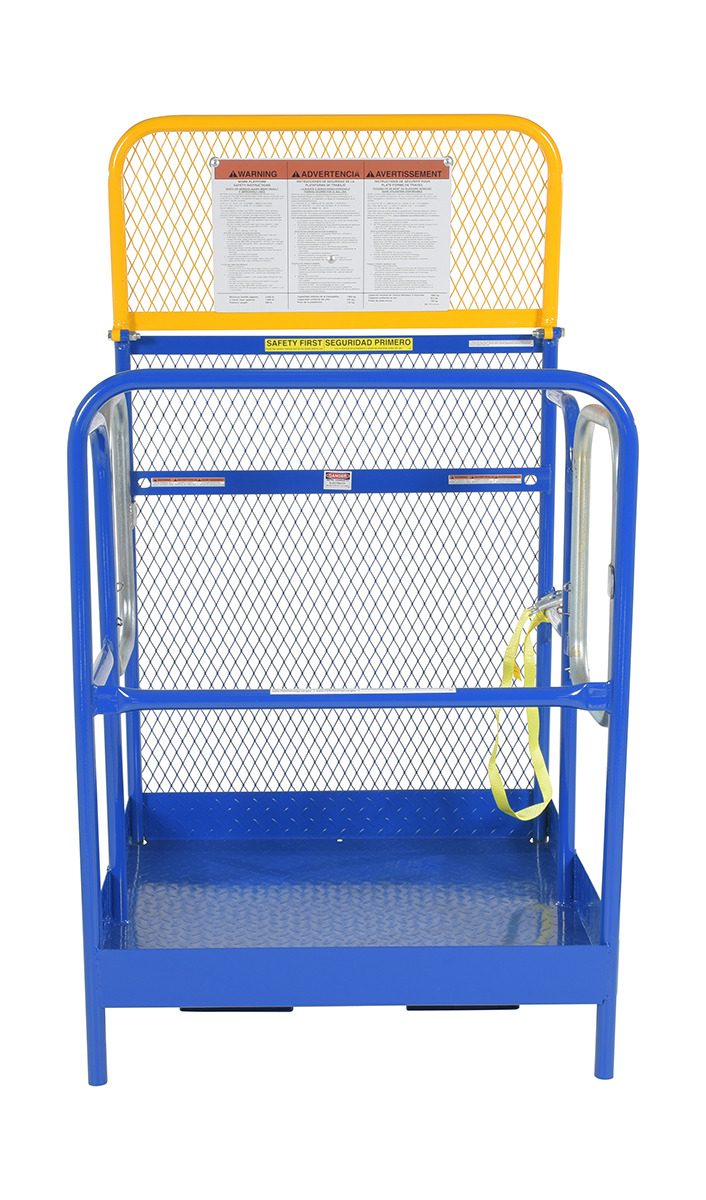

WP-3636-84B-DD

model WP-3636-84B-DD

WP-4848-FF

model WP-4848-FF

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Work Platforms
Model PDF's Platform Size
(WxL)
Fork Pocket Centers Expanded Metal Back Wt.
(lbs)

Single Side Door Entry

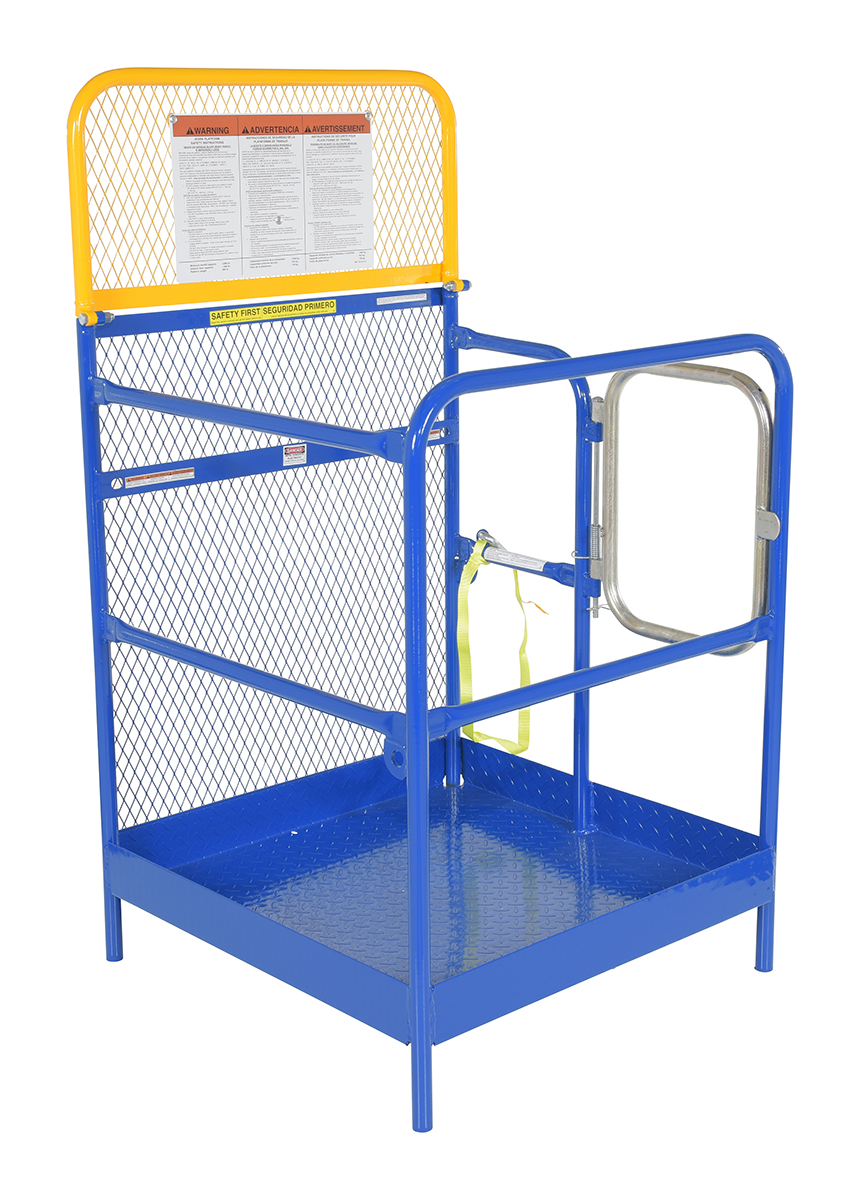

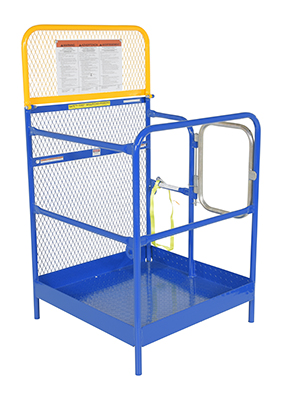

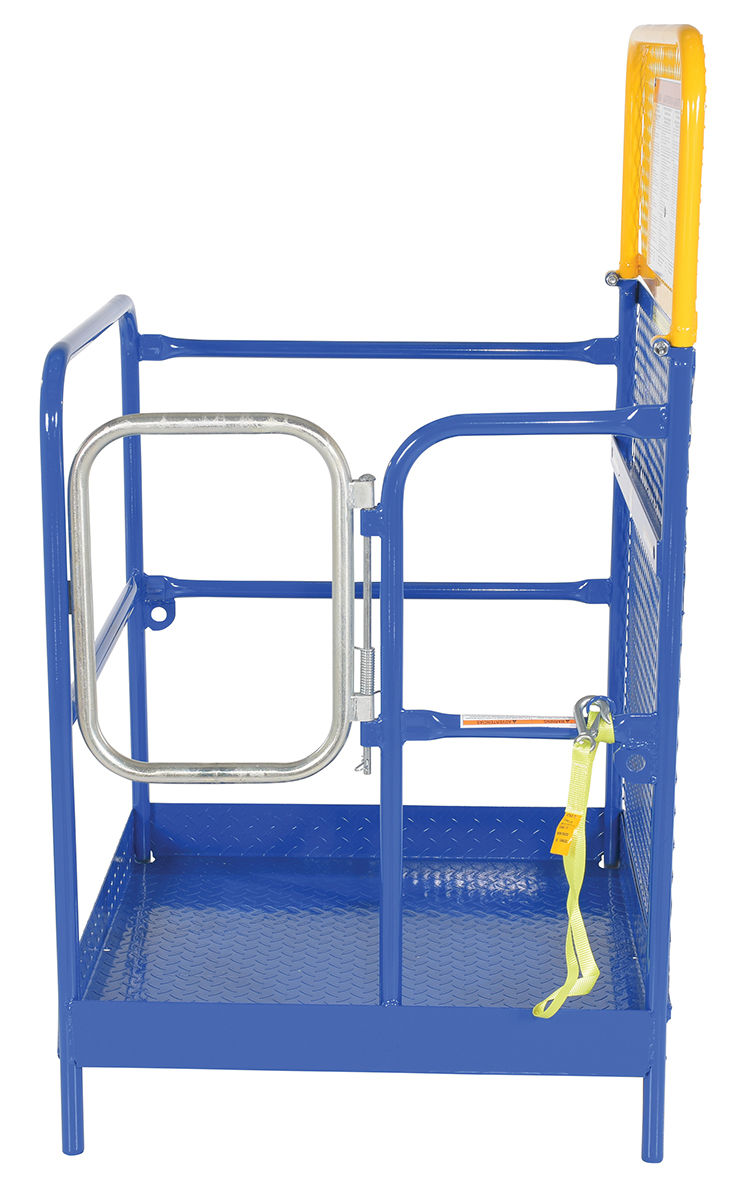

WP-3636 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 36" 16" 60" 146

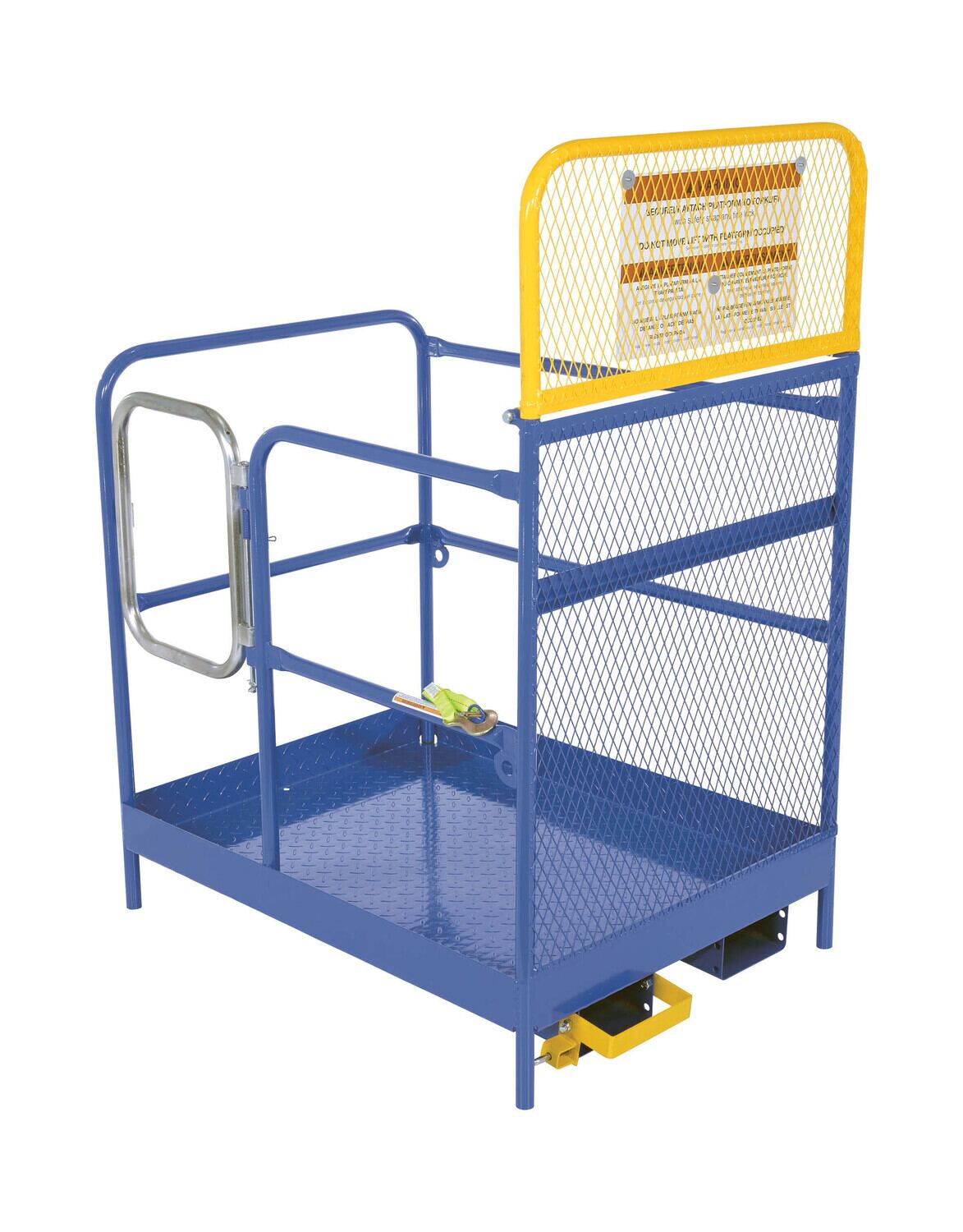

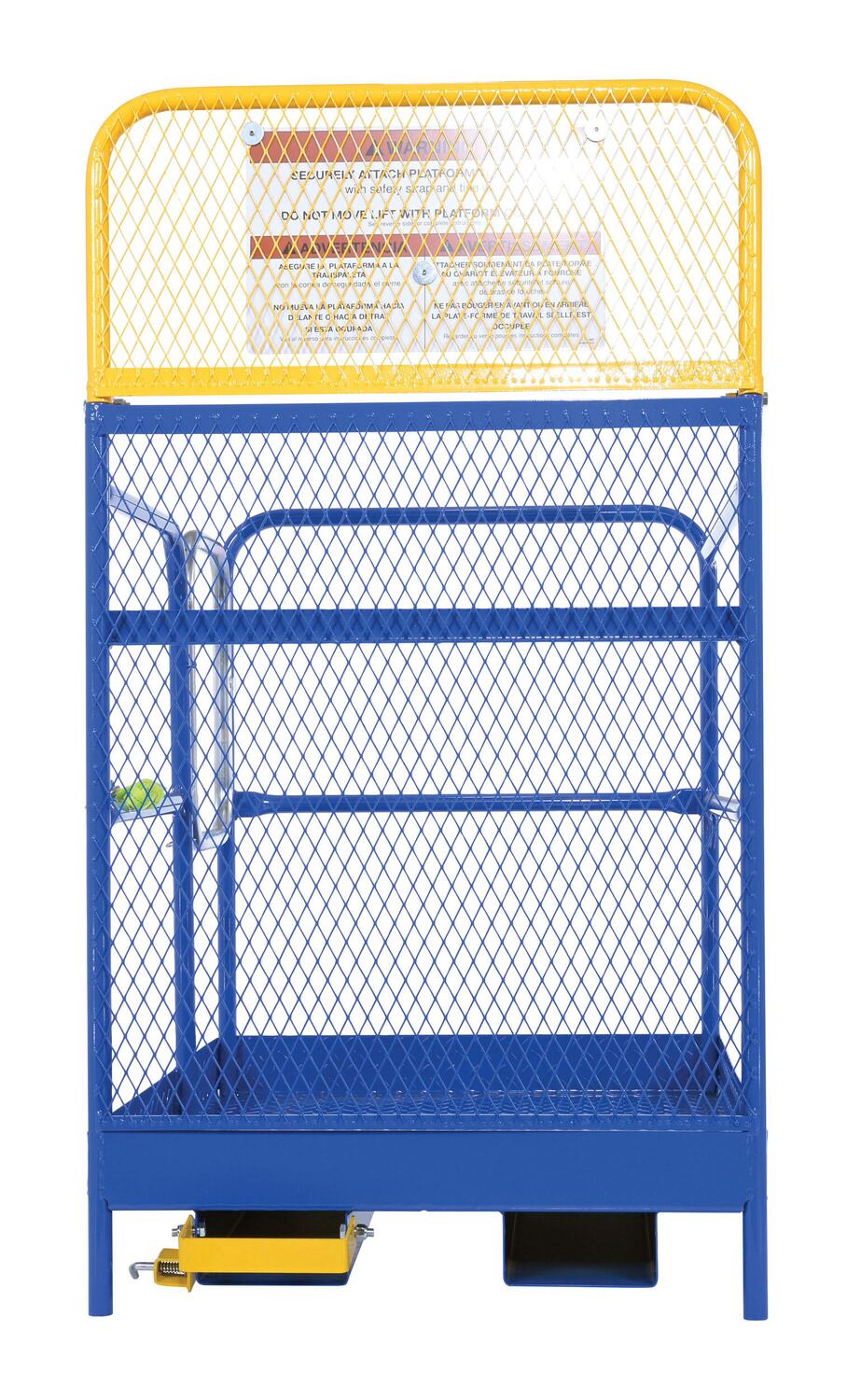

WP-3648 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 48" 16" 60" 165
WP-4848 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" x 48" 24" 60" 195

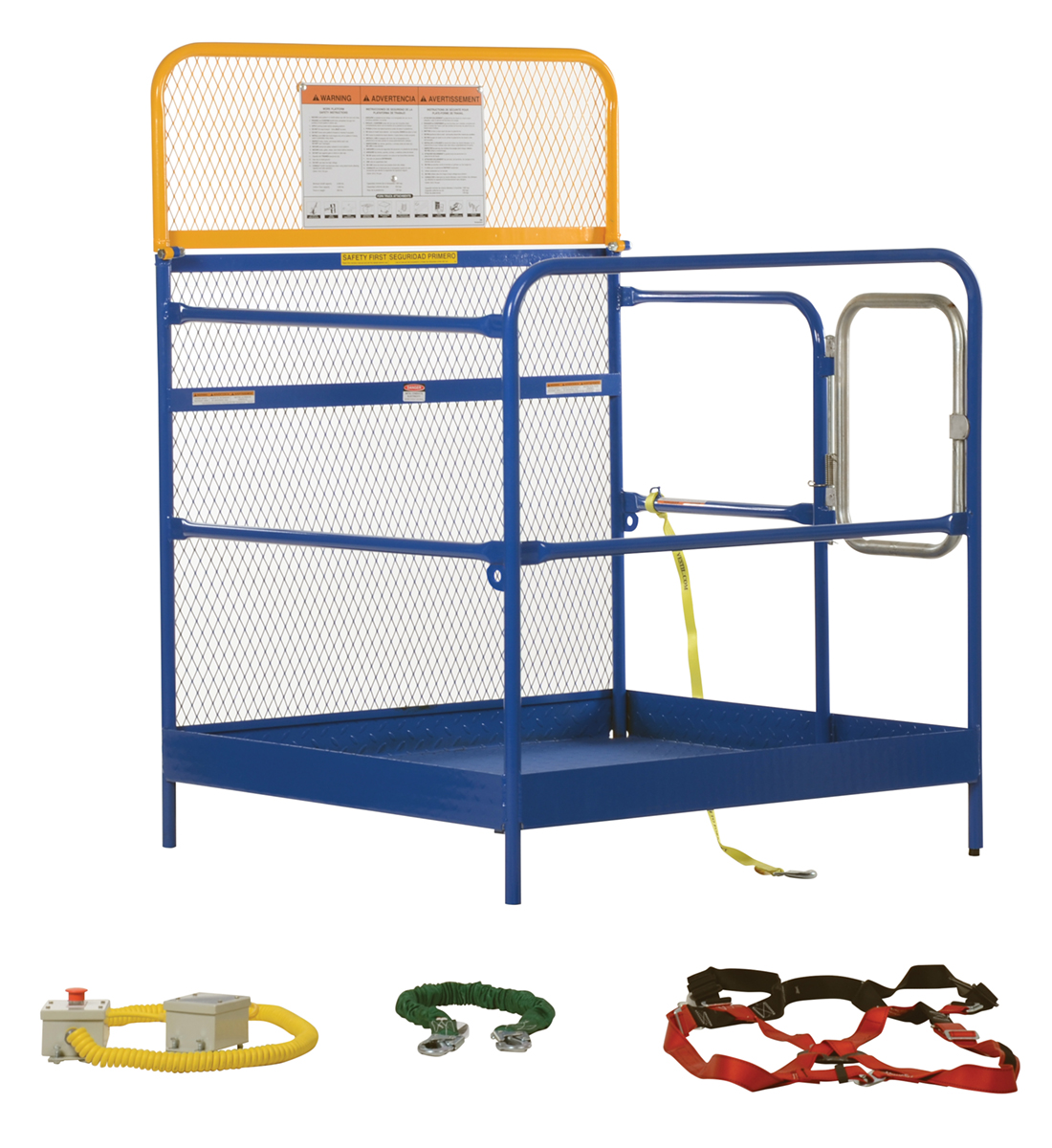

WP-4848-FF
(full featured)
Warranty PDFCompliance Certificate 48" x 48" 24" 60" 208

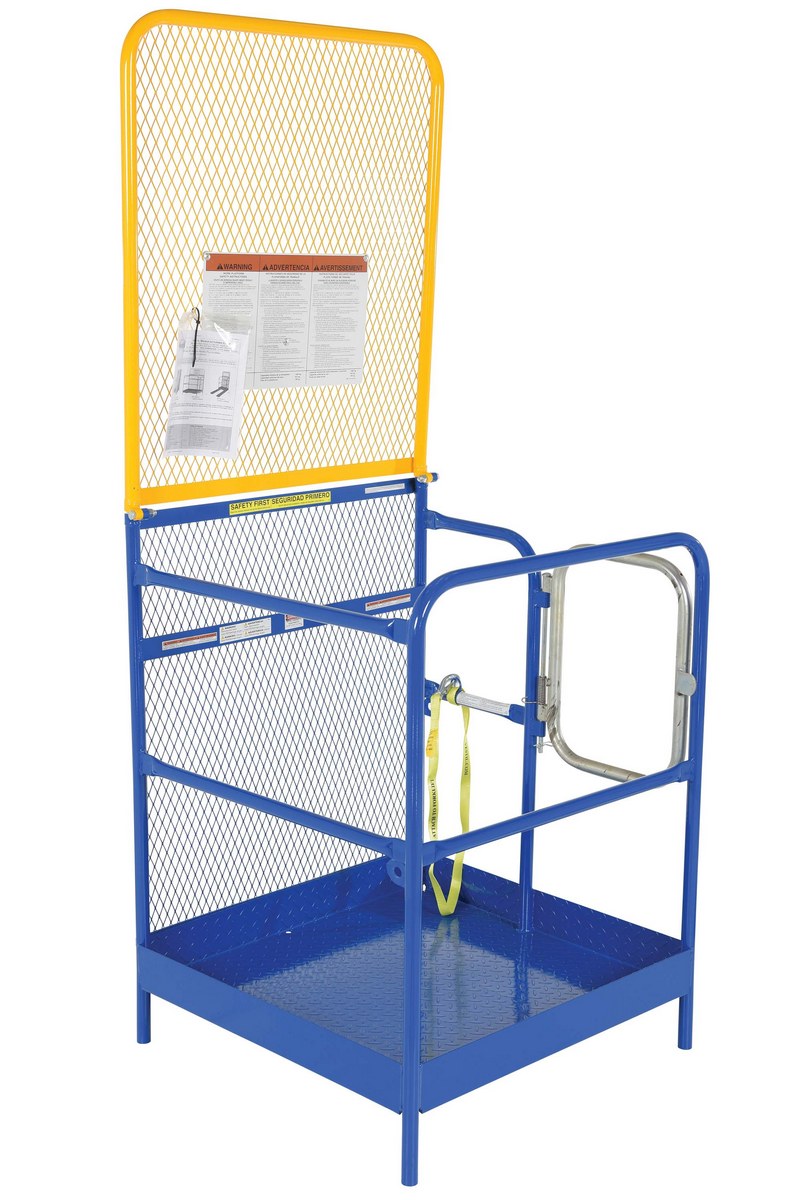

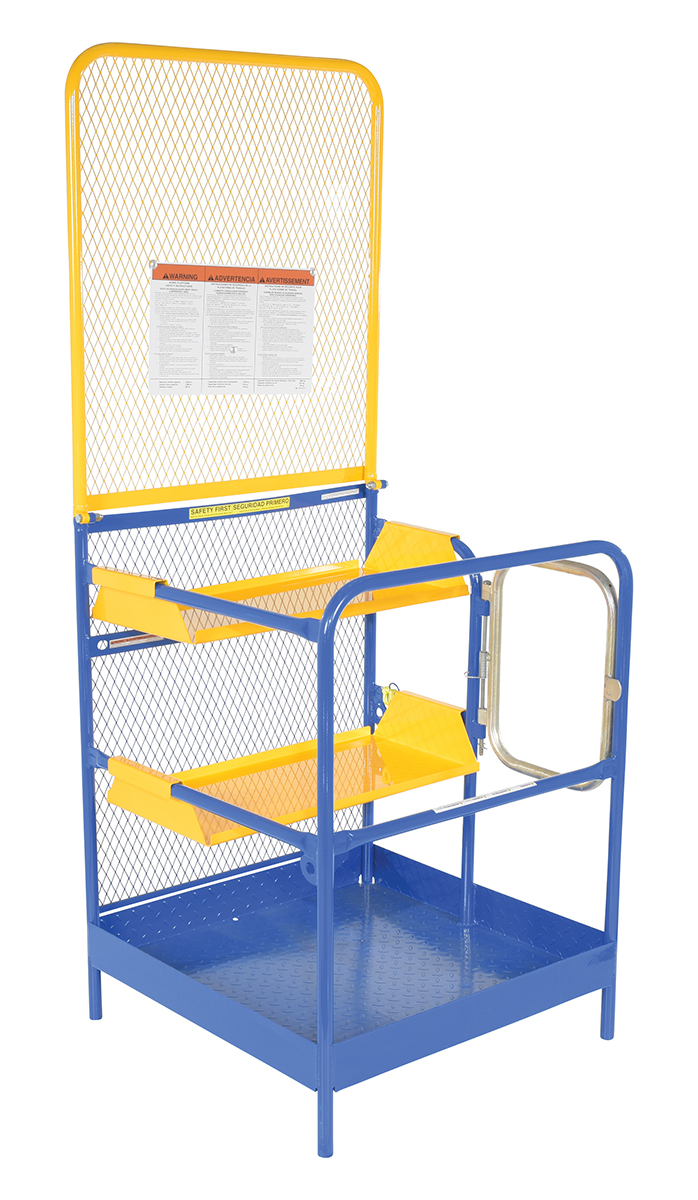

WP-3636-84B icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 36" 16" 84" 151
WP-3648-84B icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 48" 16" 84" 175

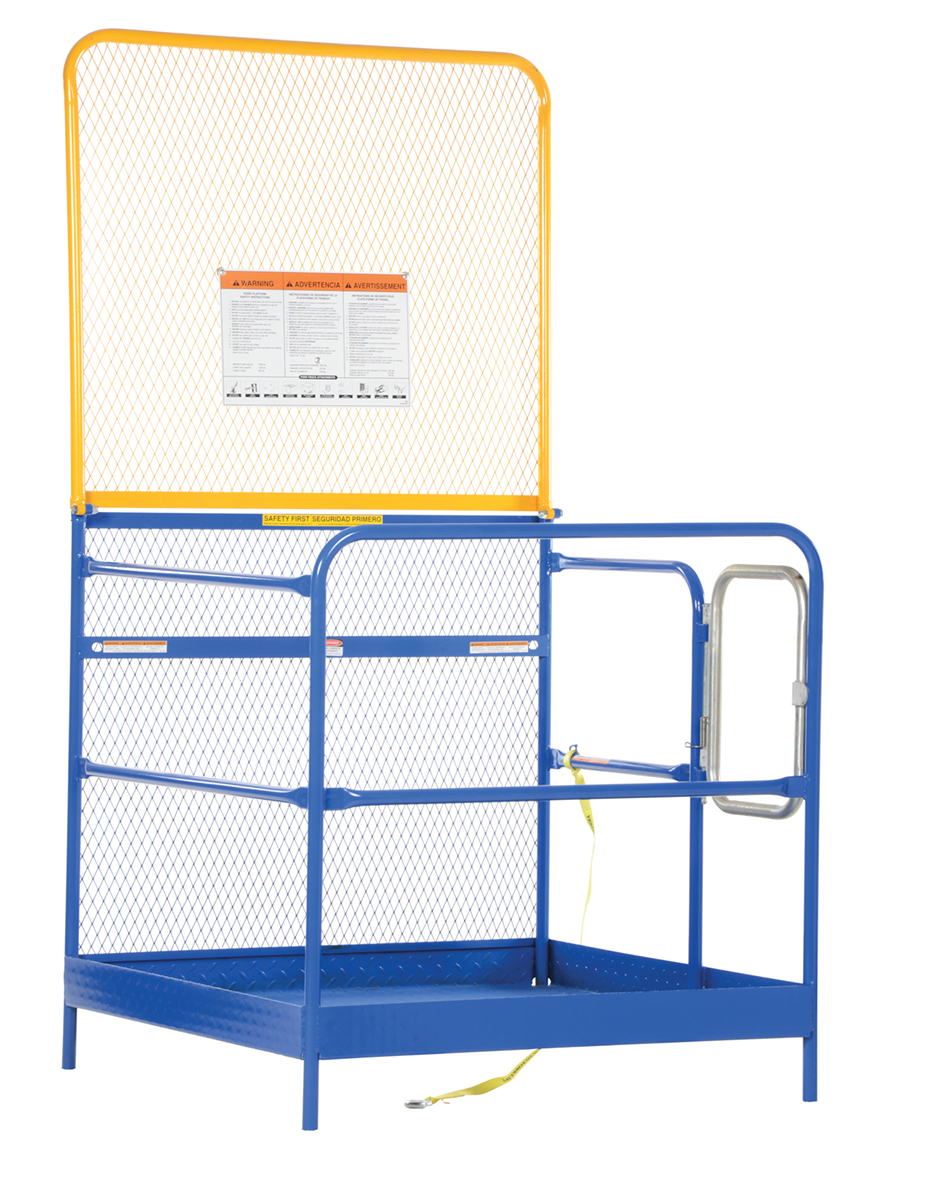

WP-4848-84B icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" x 48" 24" 84" 205

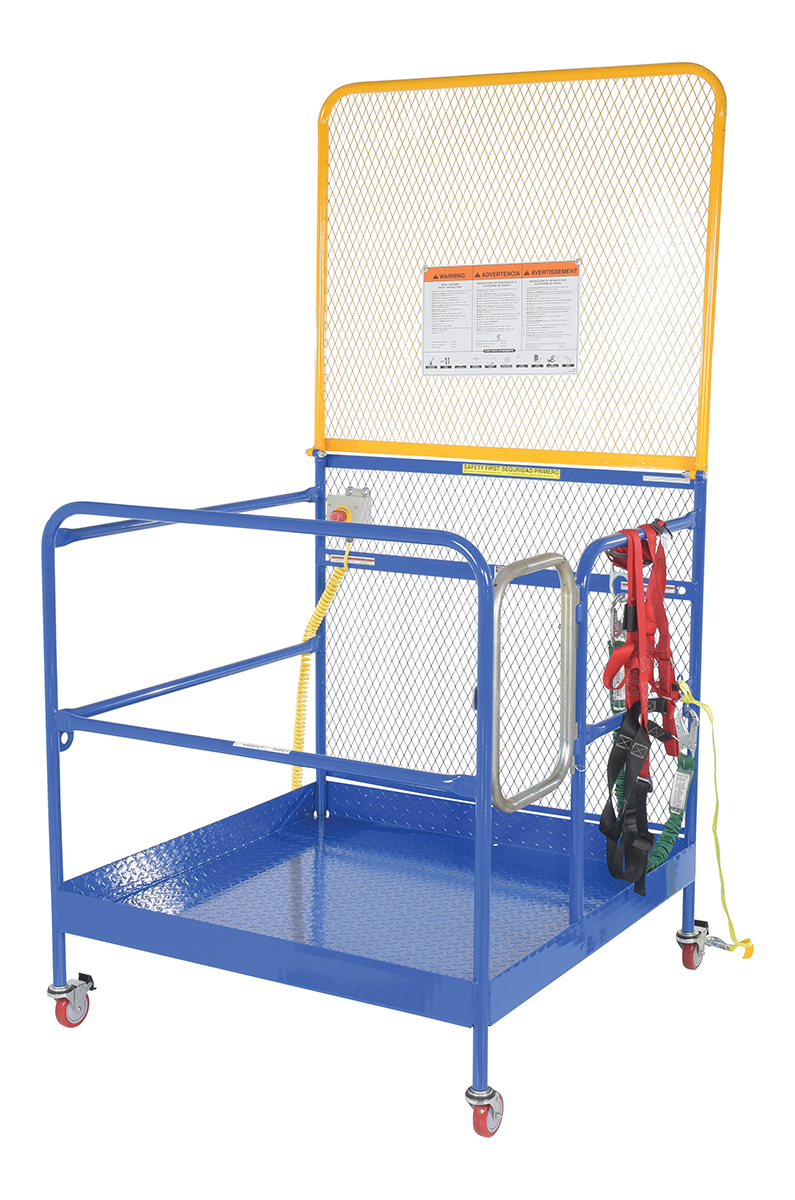

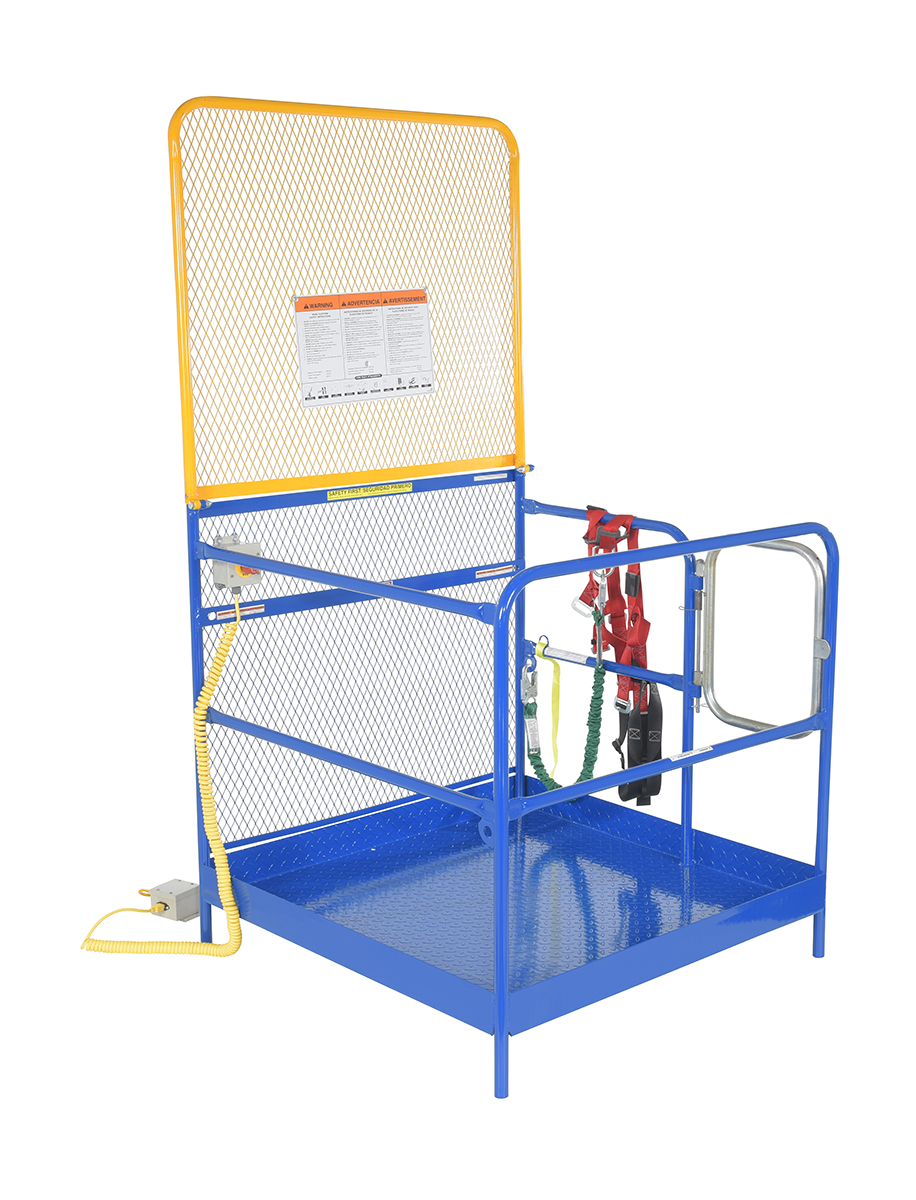

WP-4848-84B-FF (full featured) Warranty PDFCompliance Certificate 48" x 48" 24" 84" 218

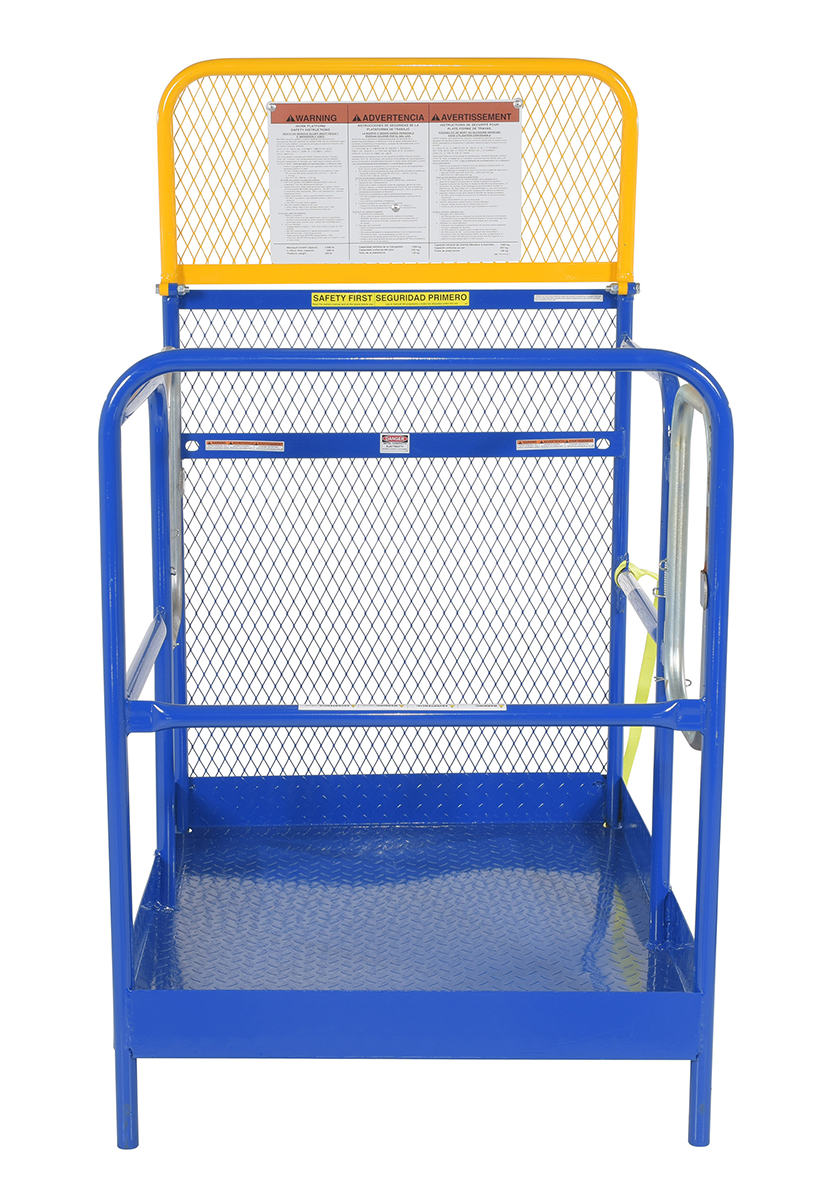

Dual Side Door Entry

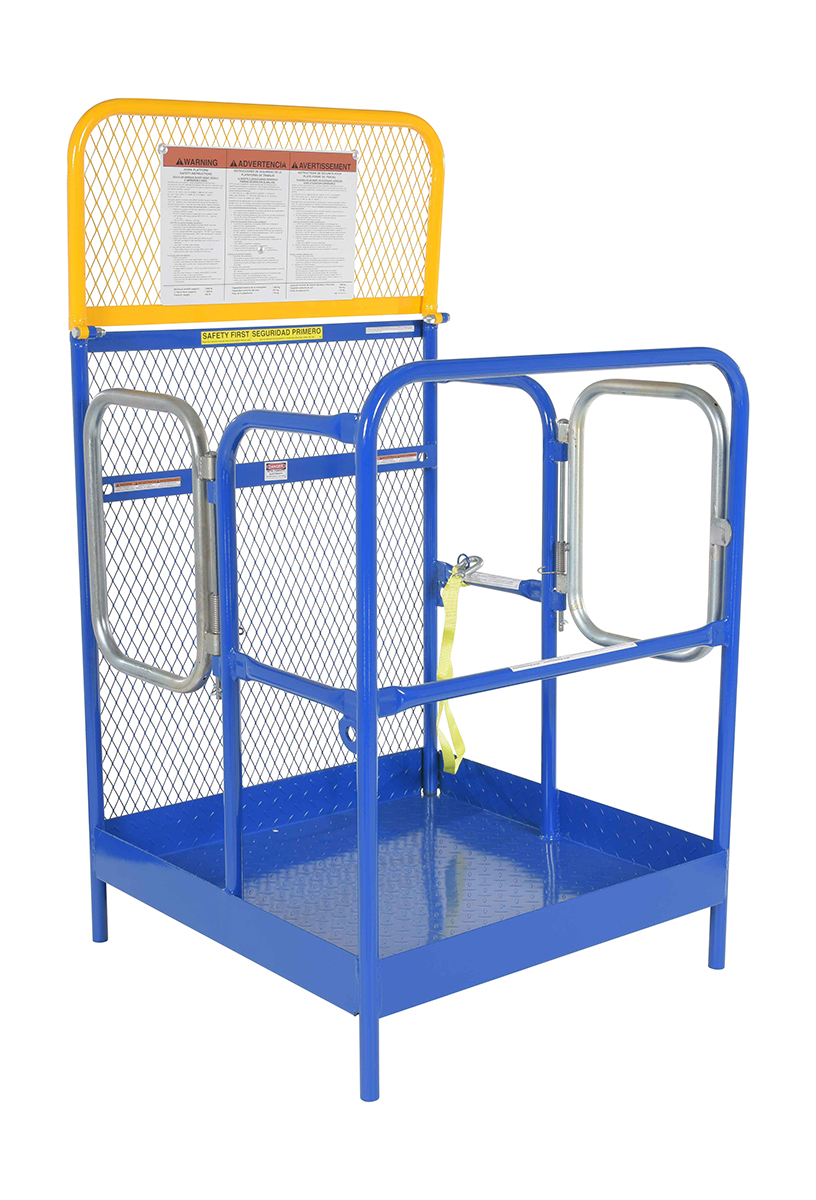

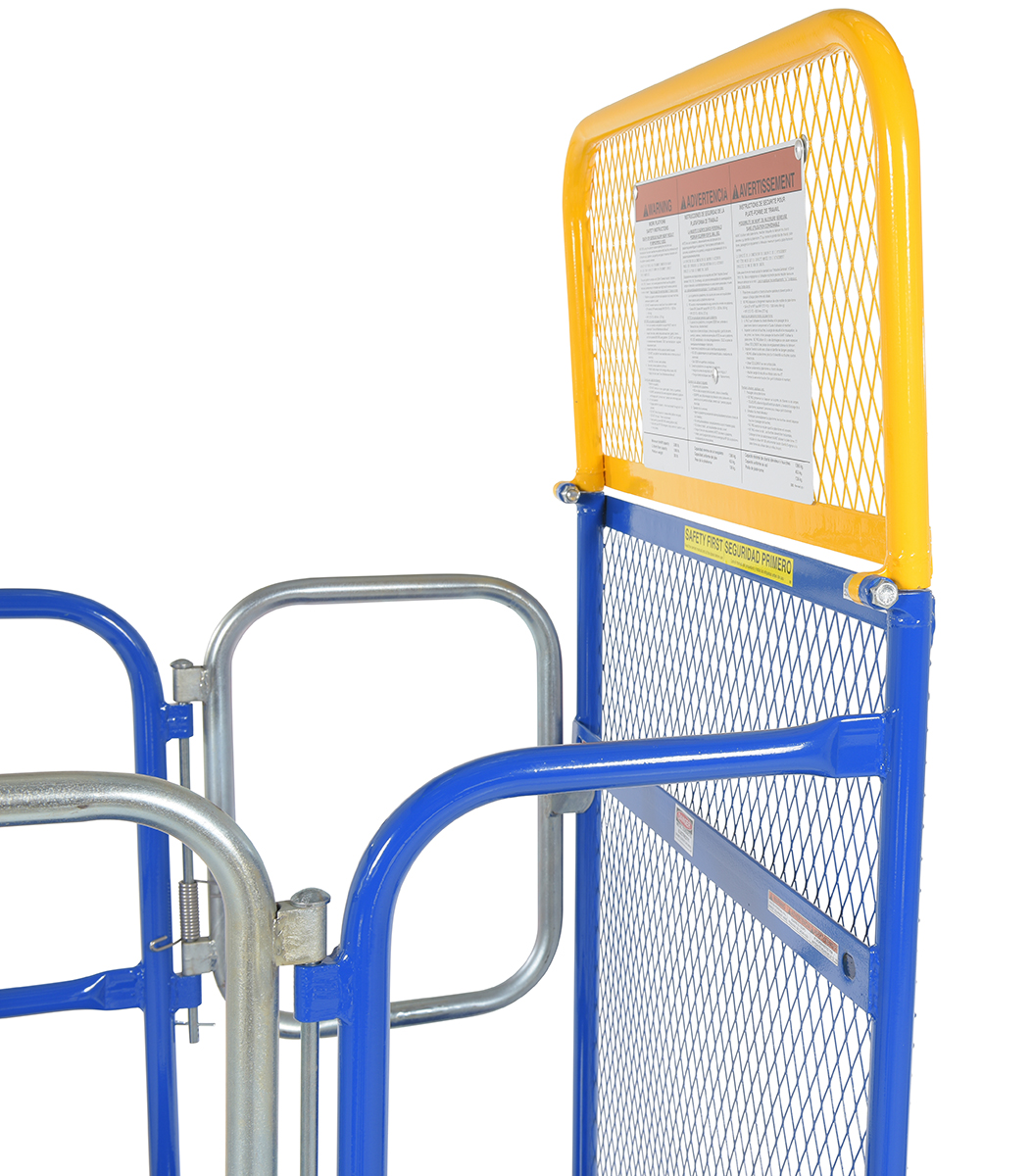

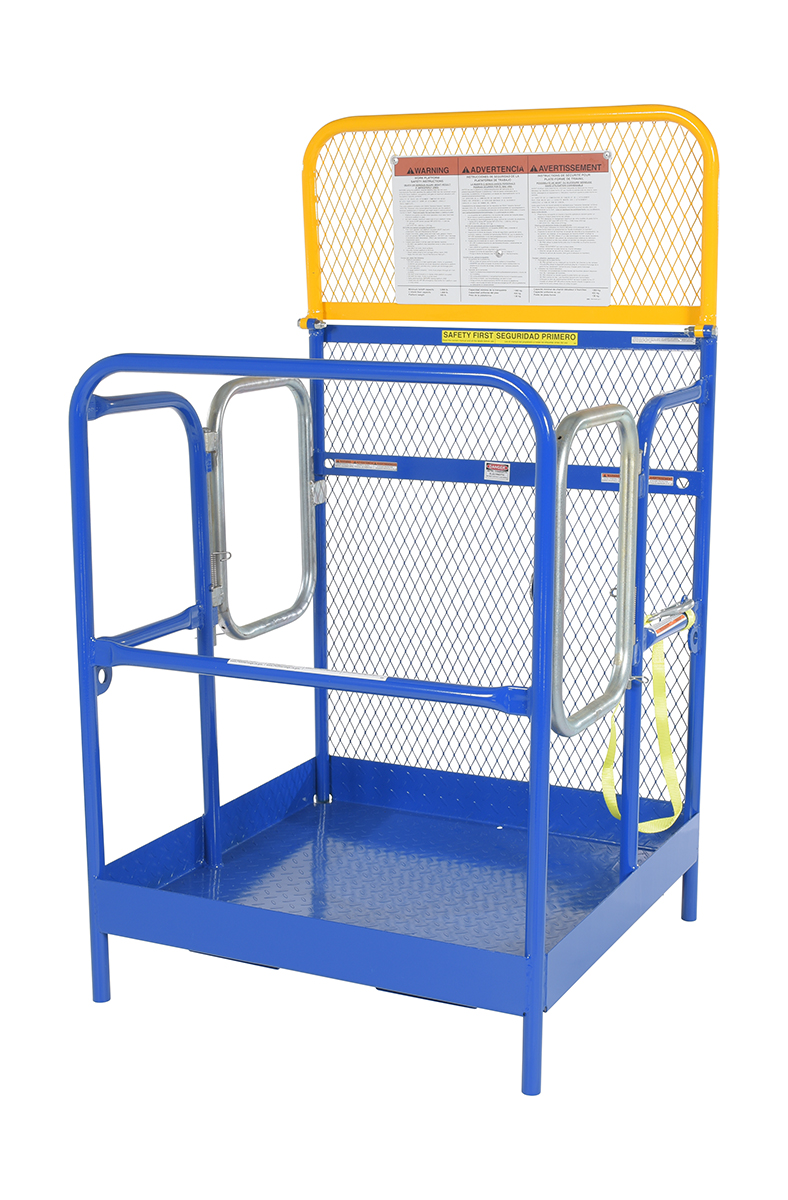

WP-3636-DD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 36" 16" 60" 143

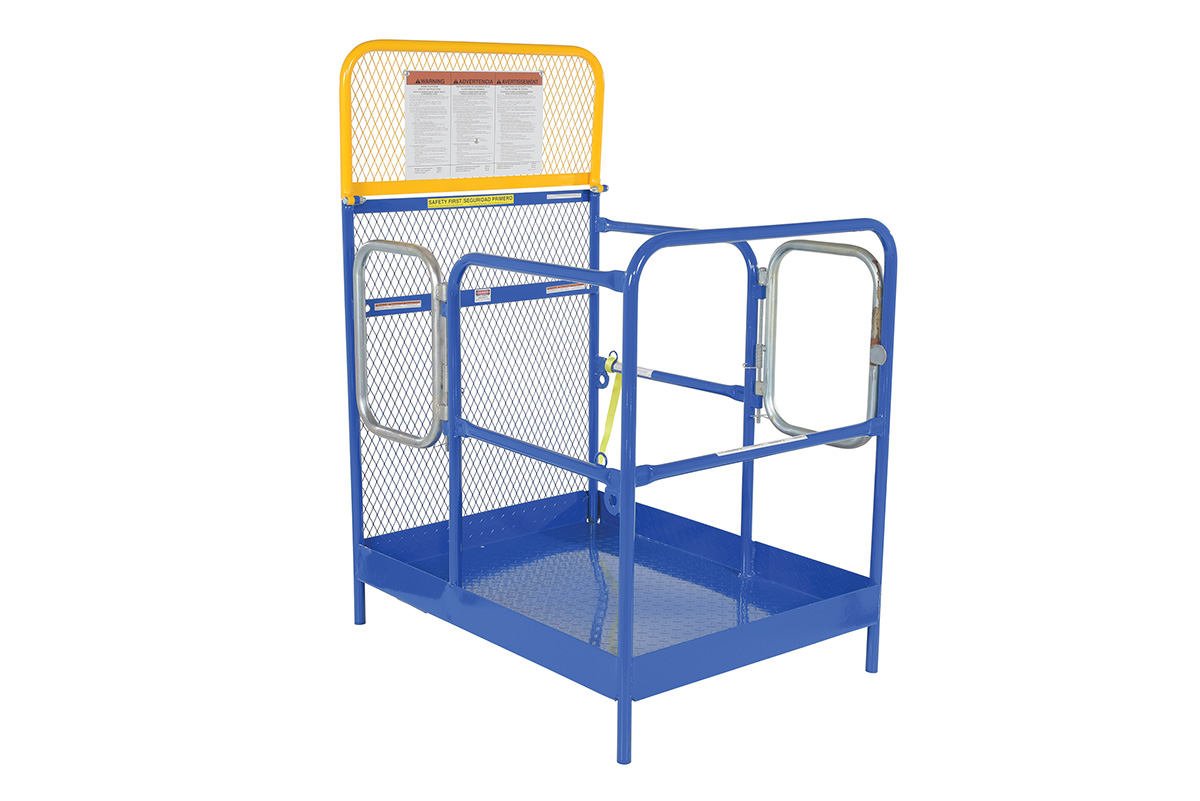

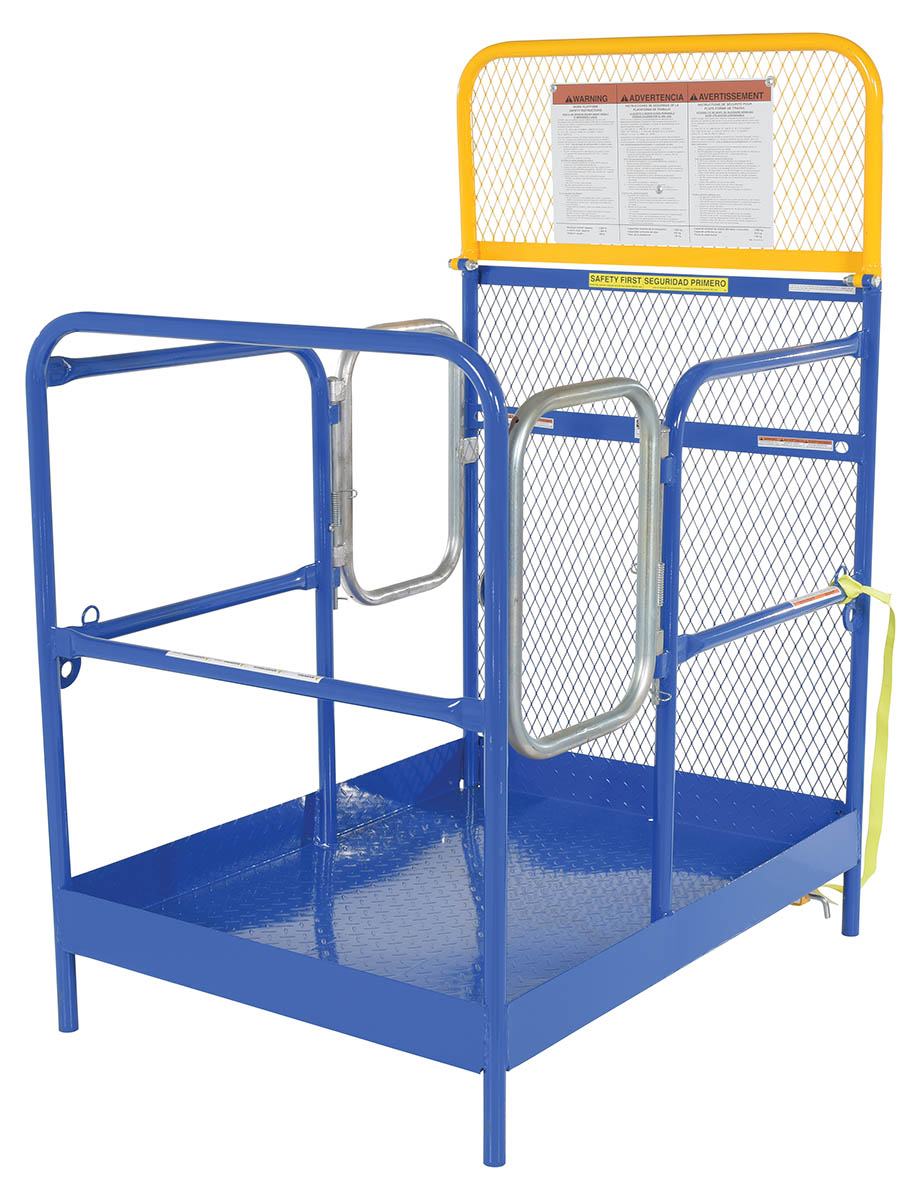

WP-3648-DD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 48" 16" 60" 175

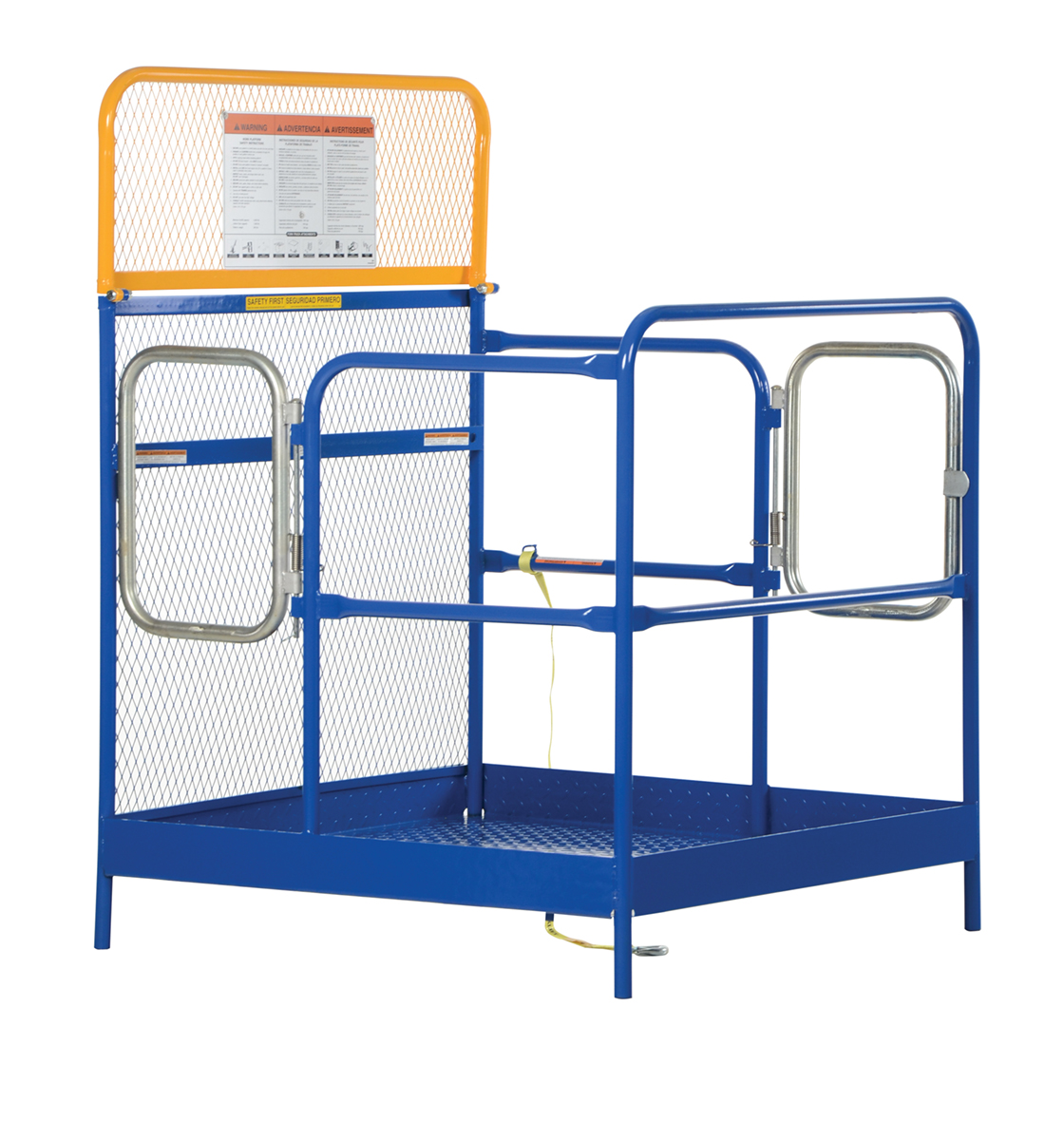

WP-4848-DD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" x 48" 24" 60" 207

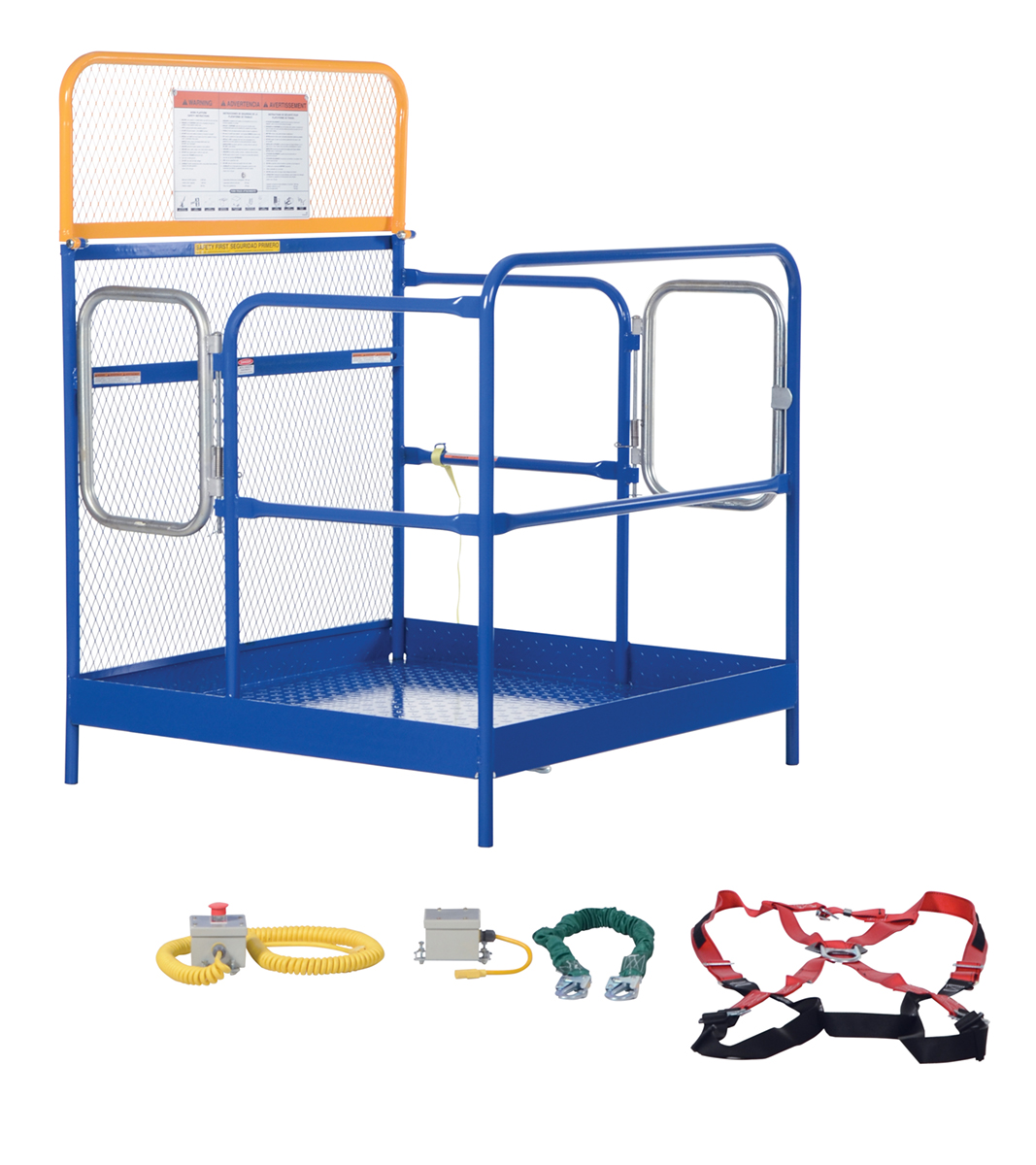

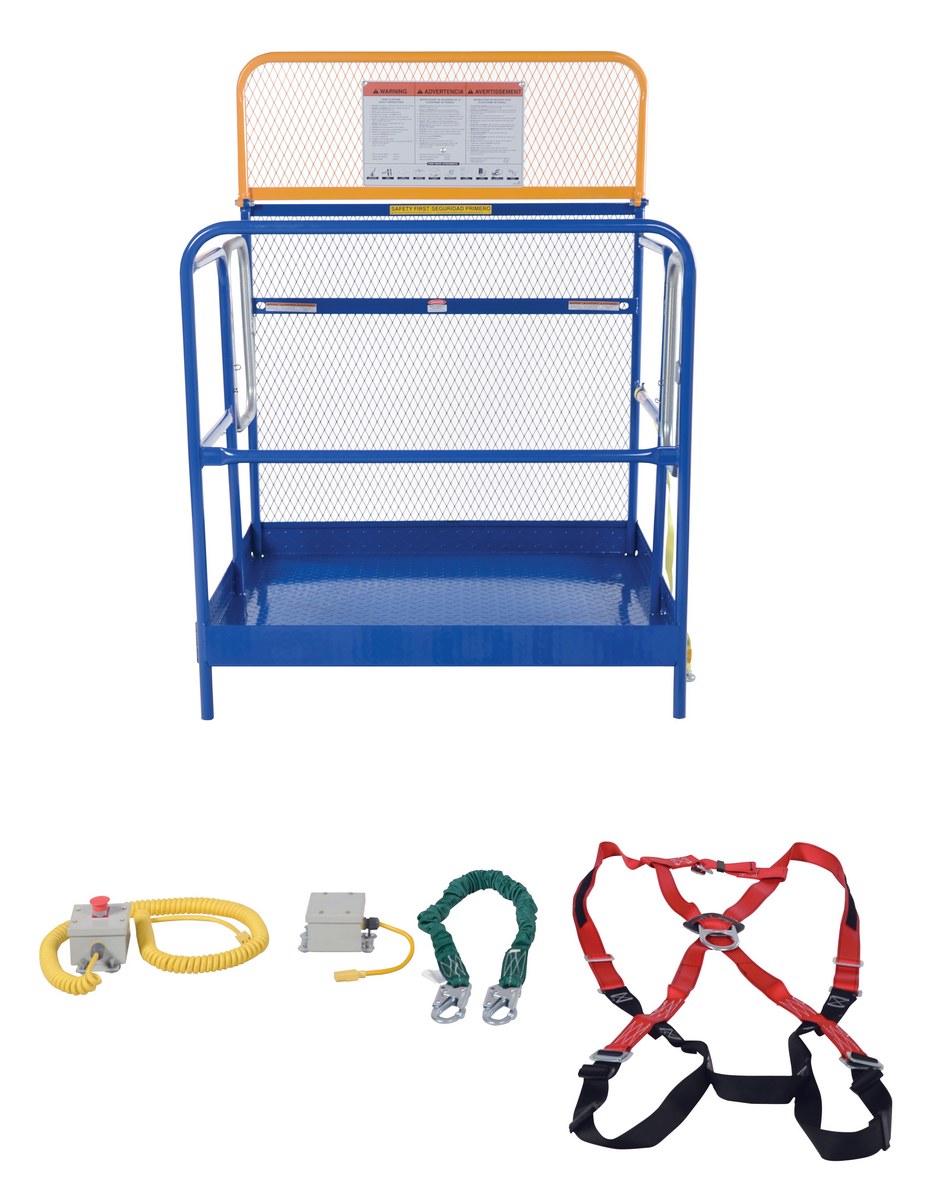

WP-4848-DD-FF
(full featured)
Warranty PDFCompliance Certificate 48" x 48" 24" 60" 220

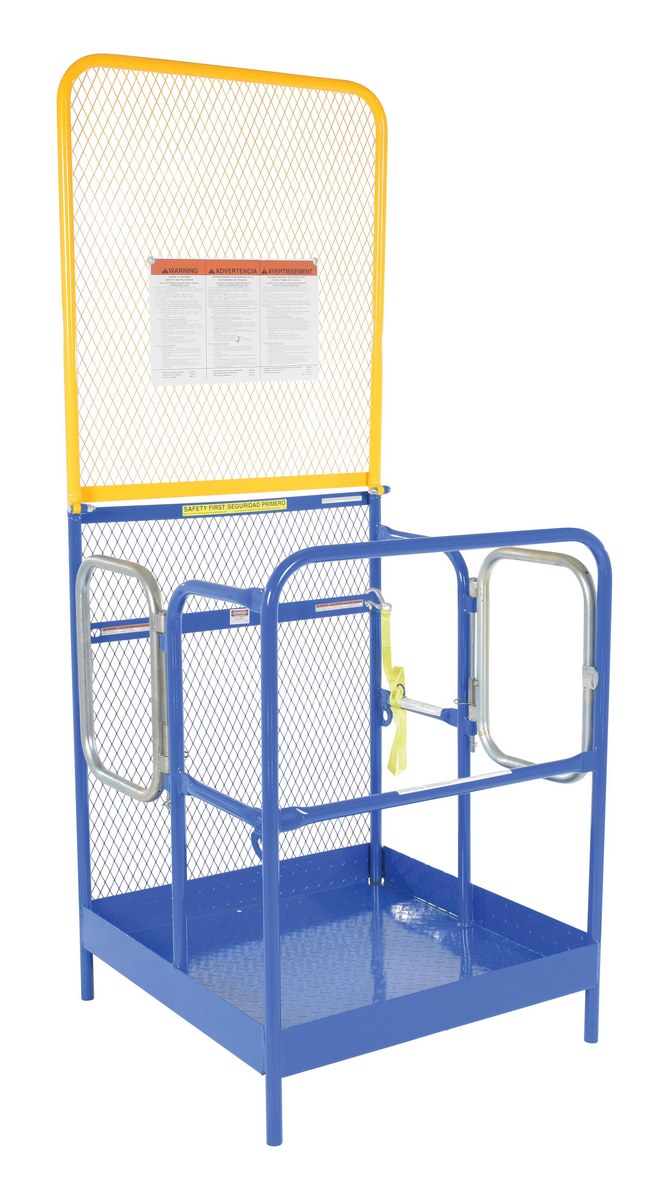

WP-3636-84B-DD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 36" 16" 84" 215

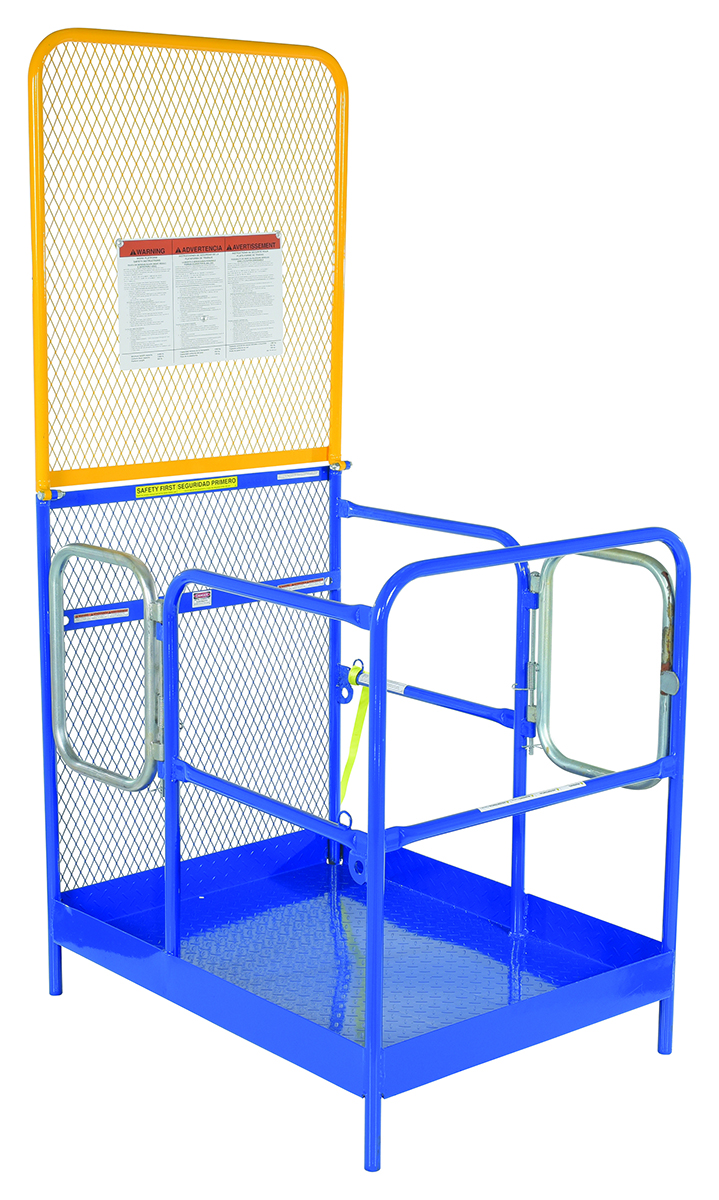

WP-3648-84B-DD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" x 48" 16" 84" 183
WP-4848-84B-DD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" x 48" 24" 84" 213

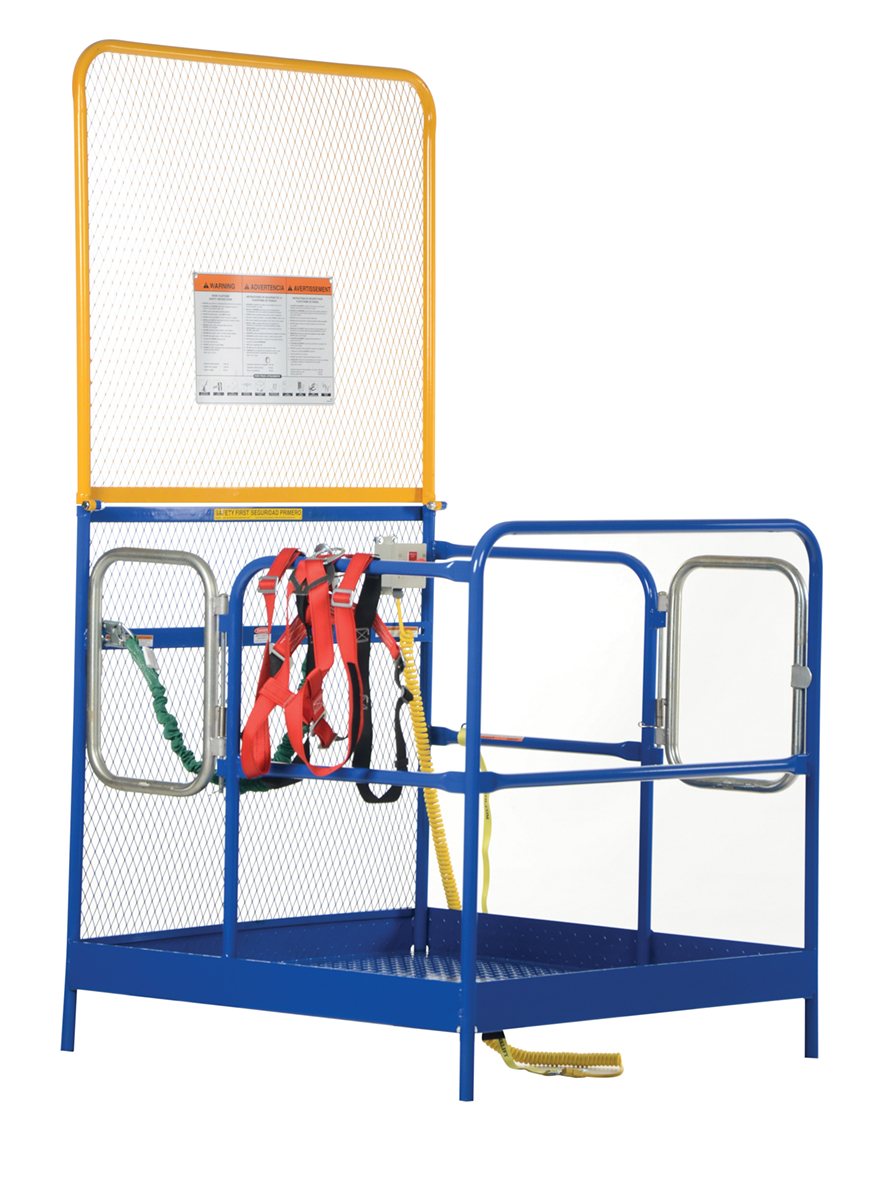

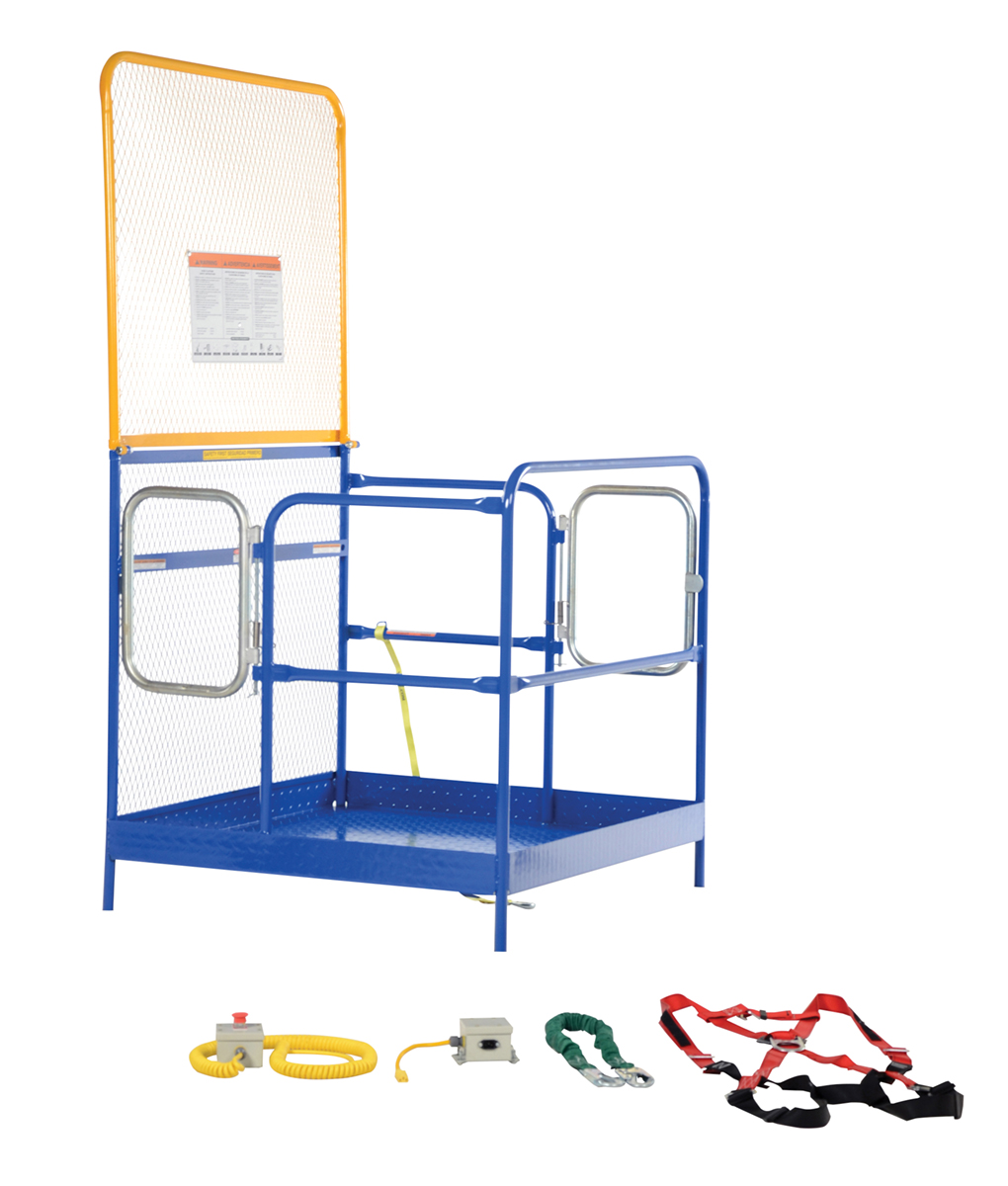

WP-4848-84B-DD-FF
(full featured)
Warranty PDFCompliance Certificate 48" x 48" 24" 84" 226

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets


Approval Drawings

WP-3636
WP-3636-84B
WP-3636-84B-DD
WP-3636-DD
WP-3648
WP-3648-84B
WP-3648-84B-DD
WP-3648-DD
WP-4848
WP-4848-84B
WP-4848-84B-DD
WP-4848-DD
WP-SB
WP-TC
WP-TT36
WP-TT48

Testing Certificates

WP-3636
WP-3636-84B
WP-3636-84B-DD
WP-3636-CA
WP-3636-CA-84B
WP-3636-DD
WP-3648
WP-3648-84B
WP-3648-84B-DD

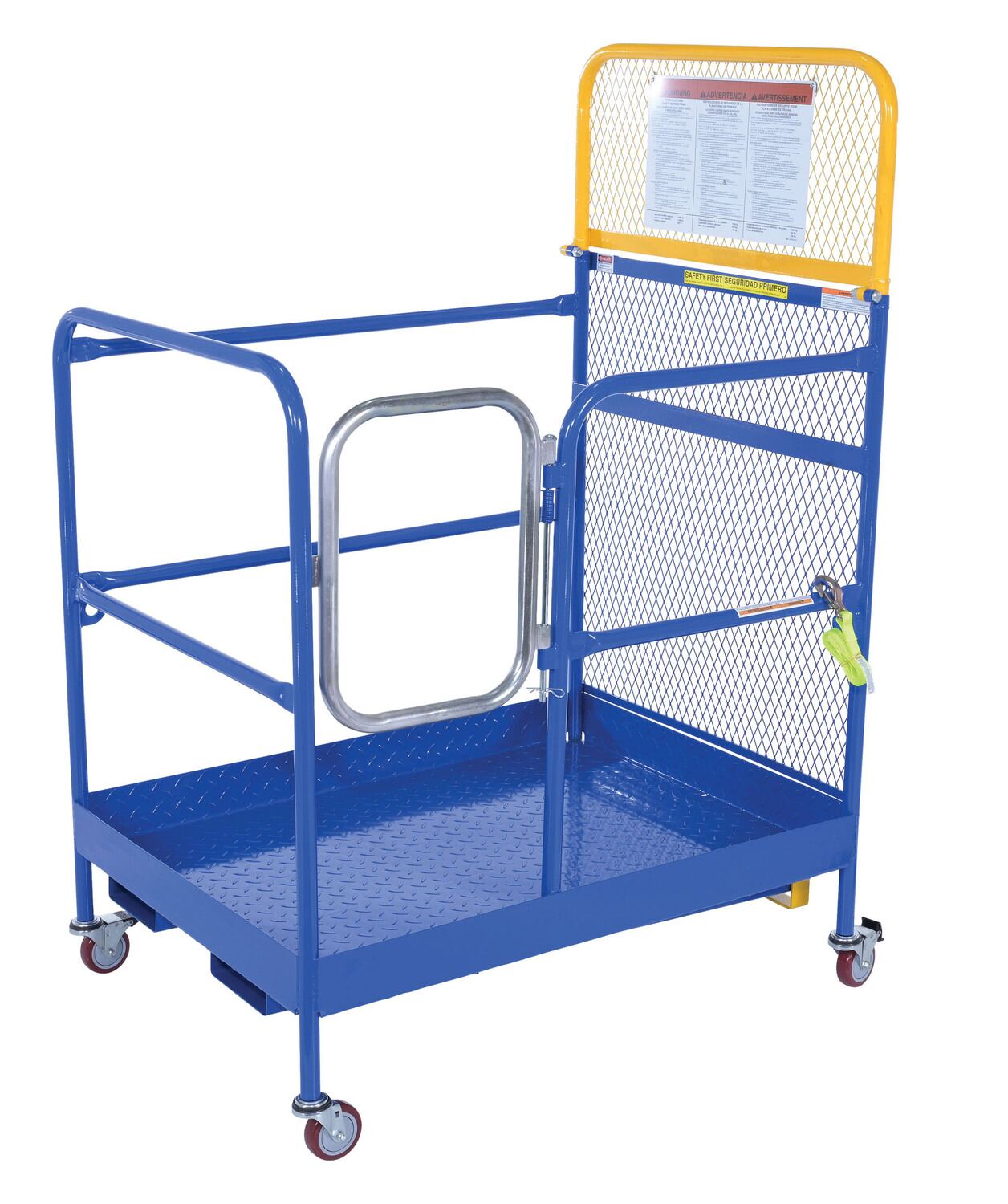

WP-3648-CA
WP-3648-CA-84B
WP-3648-DD
WP-4848
WP-4848-84B
WP-4848-84B-DD
WP-4848-84B-DD-FF
WP-4848-84B-FF
WP-4848-CA
WP-4848-DD
WP-4848-DD-FF
WP-4848-FF
WP-CA
WP-DL
WP-LH-L
WP-LH-M
WP-LH-S
WP-LH-XL
WP-LH-XXL
WP-LH-XXXL
WP-SB
WP-SB-FTJB
WP-SB-WPJB
WP-TC
WP-TT36
WP-TT48
WP-WS

Other PDF's


Directory Links Of Available PDF's For All Products

Image Gallery

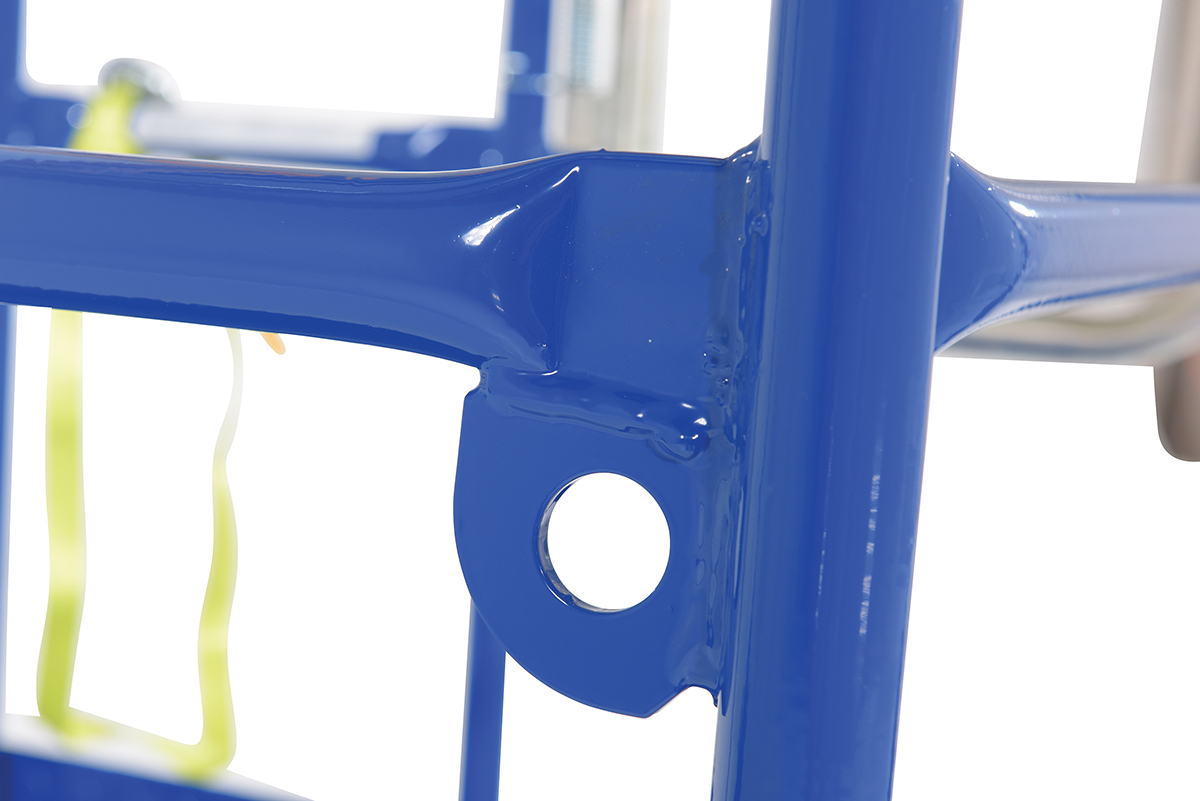

WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B
WP-3636-84B-DD
WP-3636-84B-DD
WP-3636-CA
WP-3636-CA

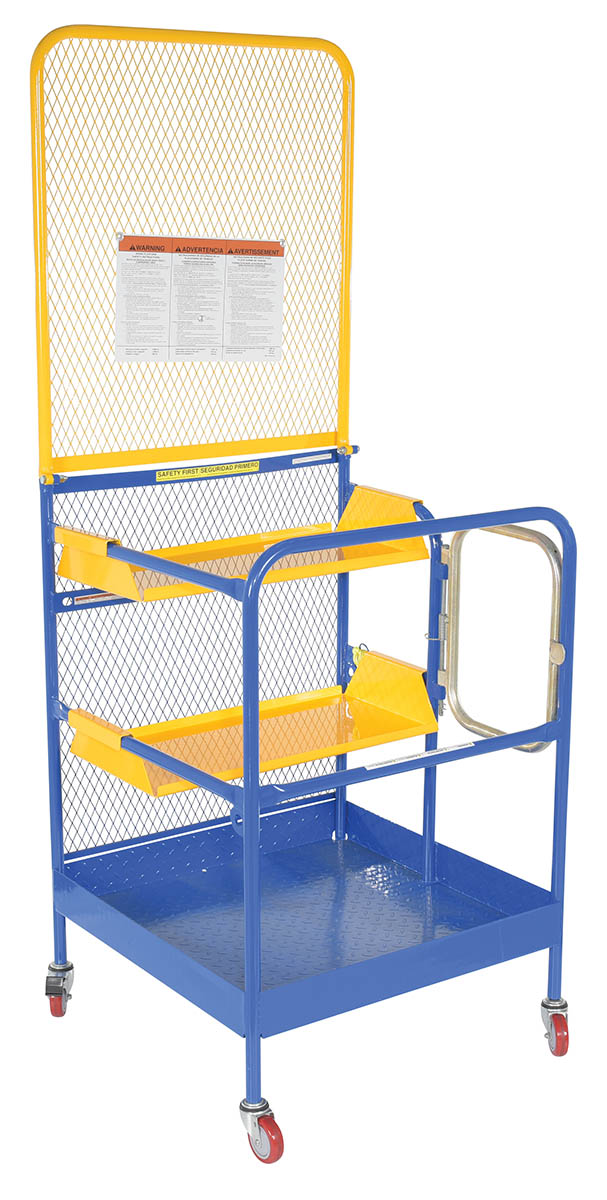

WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B
WP-3648-84B-DD
WP-3648-84B-DD
WP-3648-84B-DD
WP-3648-84B-DD
WP-3648-84B-DD
WP-3648-84B-DD

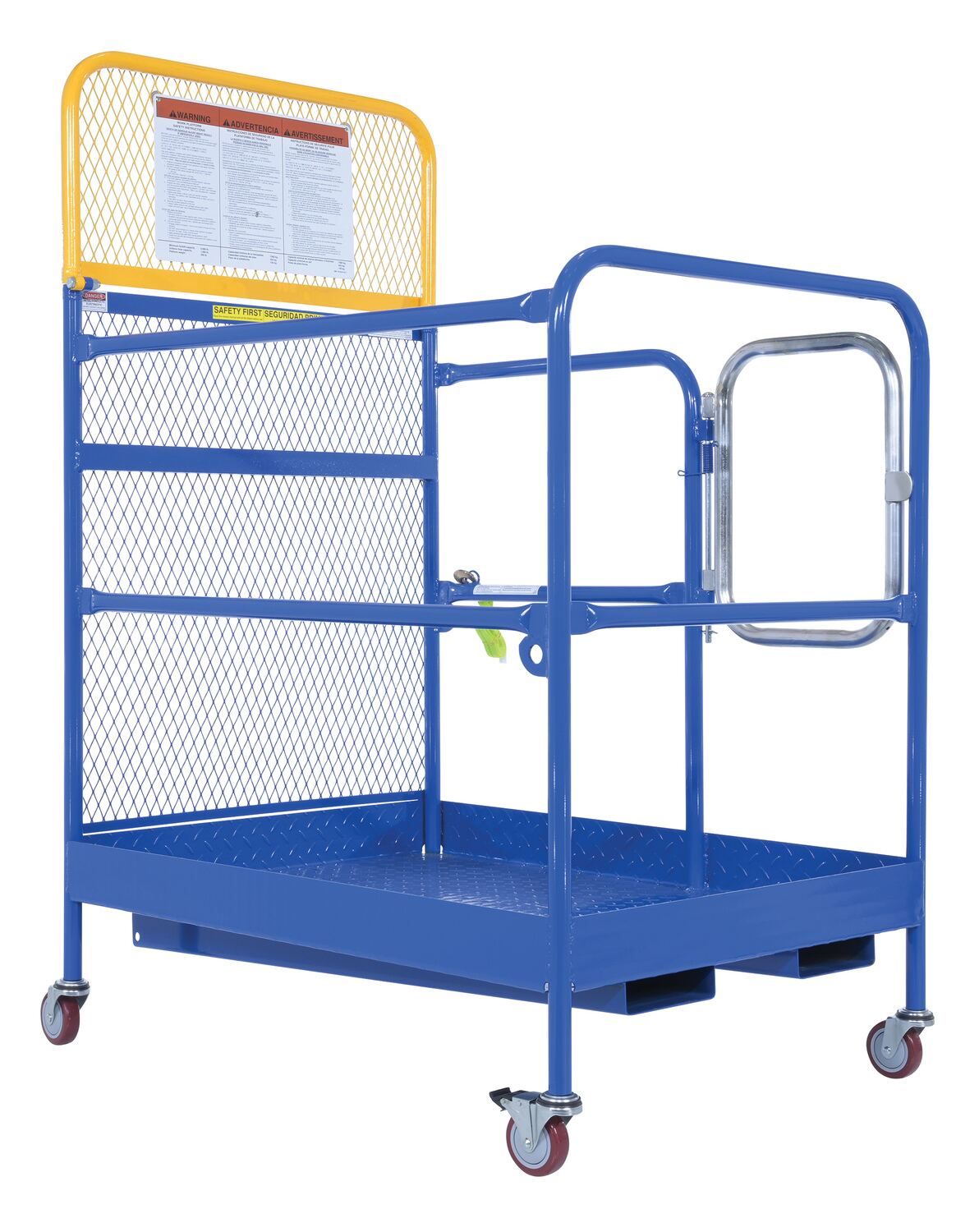

WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA
WP-3648-CA

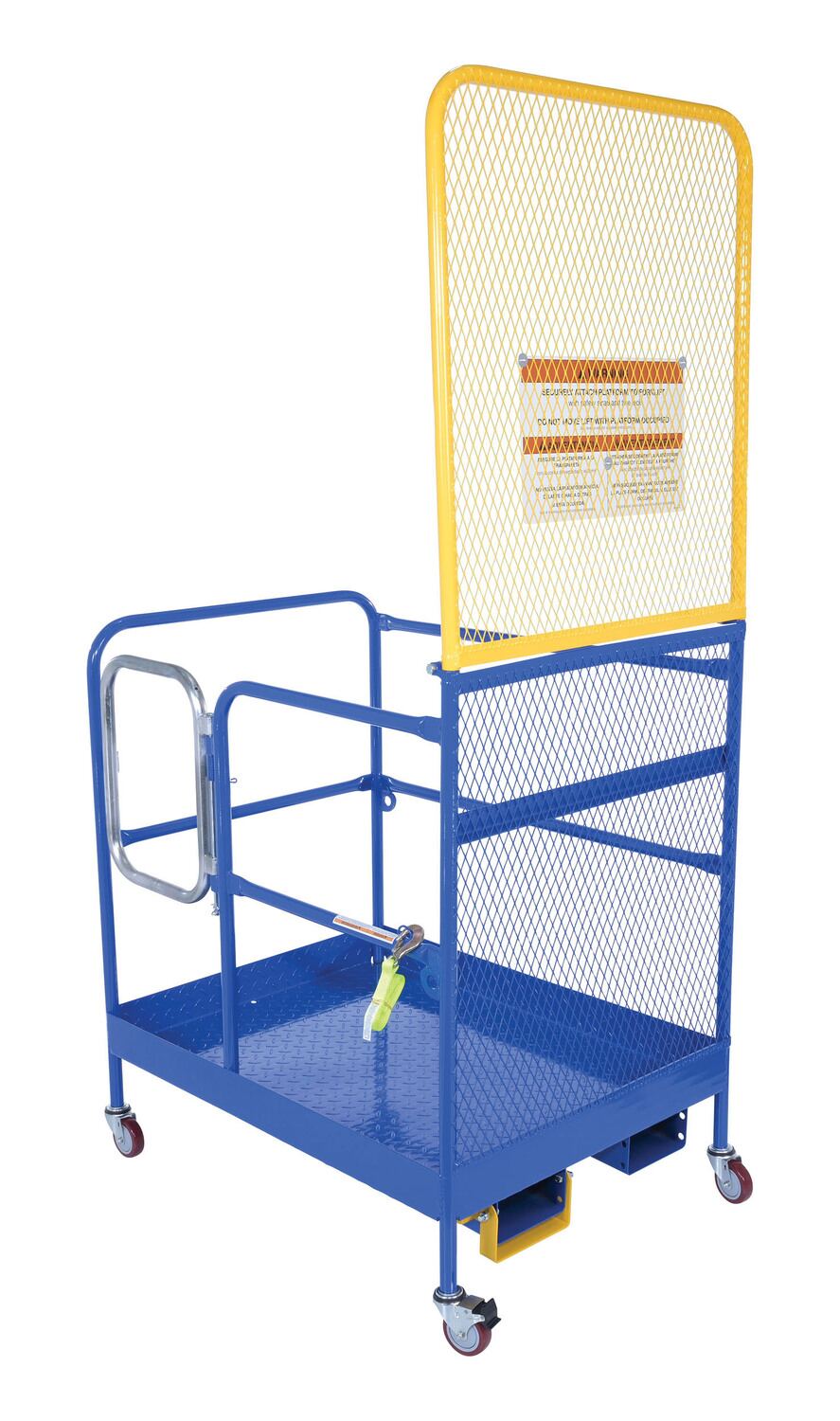

WP-3648-CA-84B
WP-3648-CA-84B
WP-3648-CA-84B
WP-3648-CA-84B
WP-3648-CA-84B
WP-3648-CA-84B
WP-3648-CA-84B
WP-3648-CA-84B
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-4848
WP-4848
WP-4848
WP-4848
WP-4848
WP-4848
WP-4848-84B
WP-4848-84B
WP-4848-84B
WP-4848-84B
WP-4848-84B
WP-4848-84B

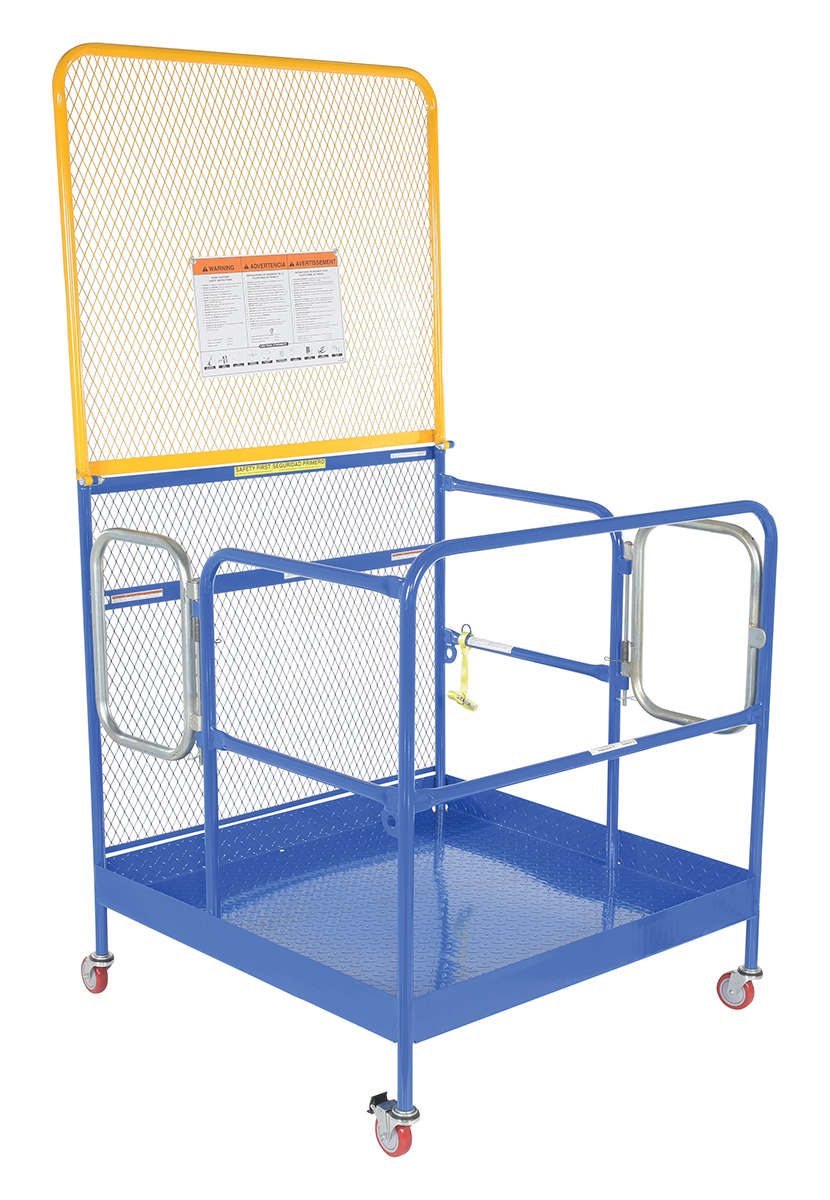

WP-4848-84B-DD
WP-4848-84B-DD
WP-4848-84B-DD
WP-4848-84B-DD
WP-4848-84B-DD
WP-4848-84B-DD
WP-4848-84B-DD-FF
WP-4848-84B-DD-FF
WP-4848-84B-DD-FF
WP-4848-84B-DD-FF
WP-4848-84B-DD-FF
WP-4848-84B-DD-FF
WP-4848-84B-DD-FF
WP-4848-84B-DD-FF

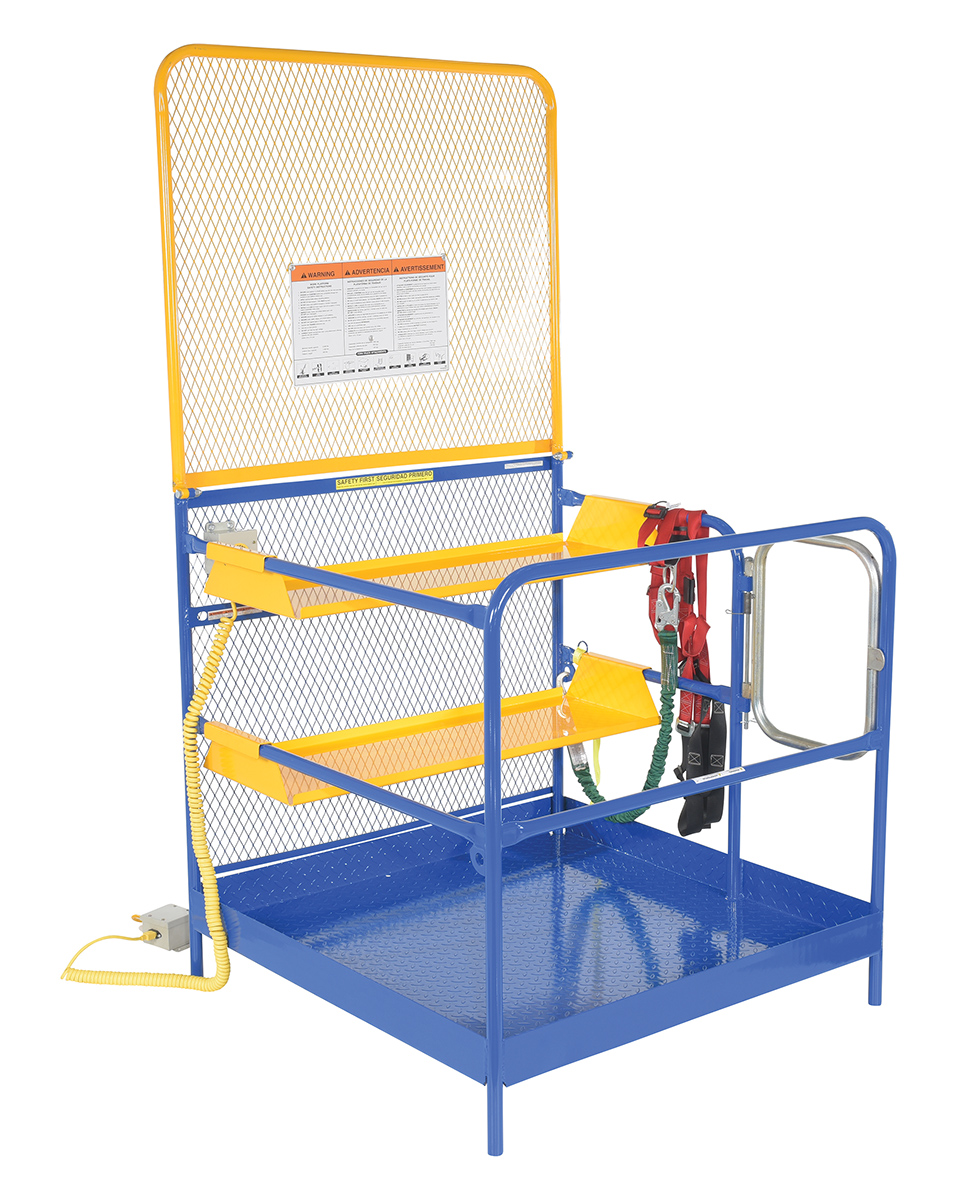

WP-4848-84B-FF
WP-4848-84B-FF
WP-4848-84B-FF
WP-4848-84B-FF
WP-4848-84B-FF
WP-4848-84B-FF
WP-4848-CA
WP-4848-CA
WP-4848-CA
WP-4848-CA
WP-4848-CA
WP-4848-CA
WP-4848-CA
WP-4848-CA
WP-4848-CA-84B
WP-4848-CA-84B
WP-4848-CA-84B
WP-4848-CA-84B
WP-4848-DD
WP-4848-DD
WP-4848-DD
WP-4848-DD
WP-4848-DD
WP-4848-DD

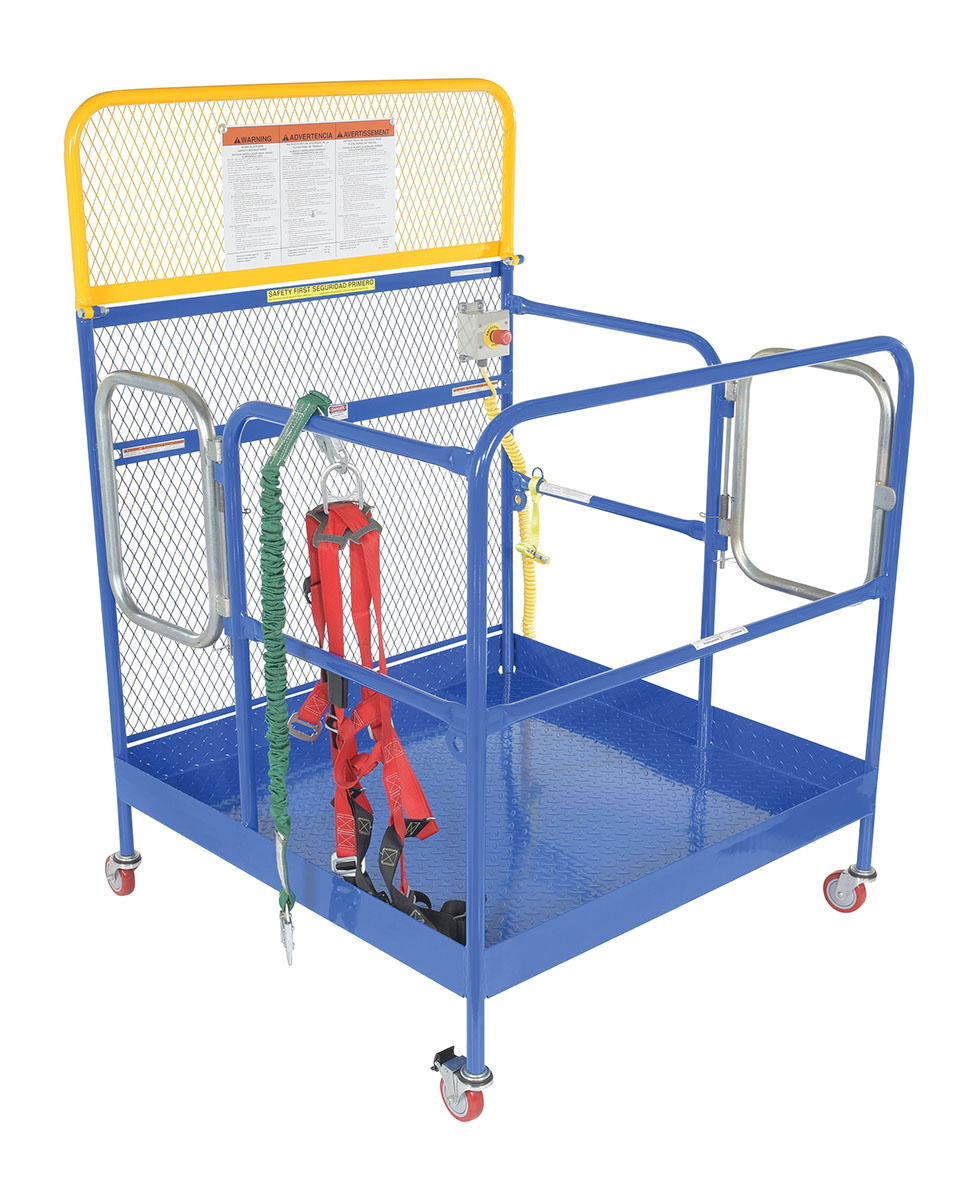

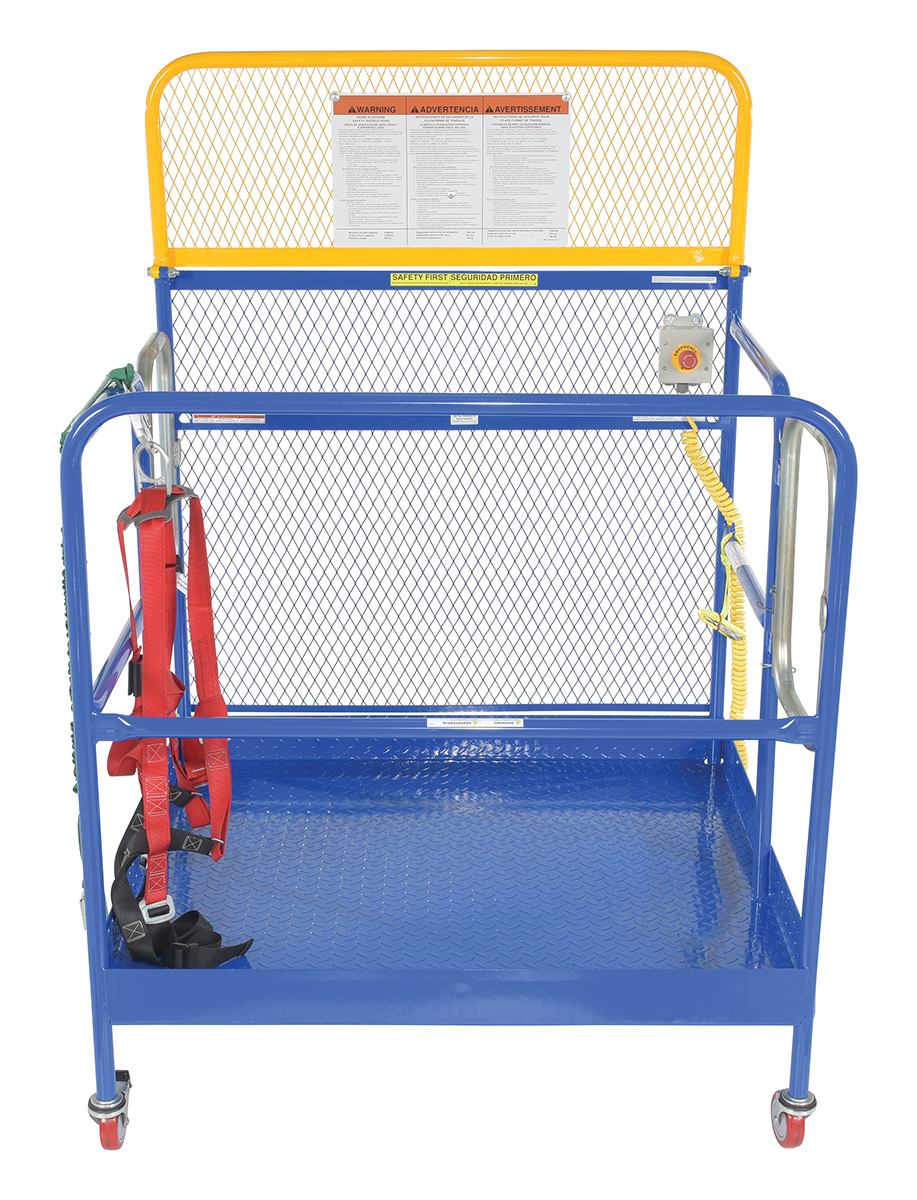

WP-4848-DD-FF
WP-4848-DD-FF
WP-4848-DD-FF
WP-4848-DD-FF
WP-4848-DD-FF
WP-4848-DD-FF
WP-4848-FF
WP-4848-FF
WP-4848-FF
WP-4848-FF
WP-4848-FF
WP-4848-FF
WP-CA
WP-CA
WP-CA
WP-CA
WP-DL
WP-DL
WP-DL
WP-DL
WP-LH-L
WP-LH-L
WP-LH-L
WP-LH-L
WP-LH-L
WP-LH-L
WP-LH-M
WP-LH-M
WP-LH-M
WP-LH-M
WP-LH-M
WP-LH-M
WP-LH-S
WP-LH-S
WP-LH-S
WP-LH-S
WP-LH-S
WP-LH-S
WP-LH-S
WP-LH-S
WP-LH-XL
WP-LH-XL
WP-LH-XL
WP-LH-XL
WP-LH-XL
WP-LH-XL
WP-LH-XXL
WP-LH-XXL
WP-LH-XXL
WP-LH-XXL
WP-LH-XXL
WP-LH-XXL
WP-LH-XXXL
WP-LH-XXXL
WP-LH-XXXL
WP-LH-XXXL
WP-SB
WP-SB
WP-SB-FTJB
WP-SB-FTJB
WP-SB-FTJB
WP-SB-FTJB
WP-SB-FTJB
WP-SB-FTJB
WP-SB-WPJB
WP-SB-WPJB
WP-SB-WPJB
WP-SB-WPJB
WP-SB-WPJB
WP-SB-WPJB
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TC
WP-TT36
WP-TT36
WP-TT48
WP-TT48
WP-WS
WP-WS
WP-WS
WP-WS
WP-3636
WP-3636
WP-3636
WP-3636
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-CA-84B
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3636-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3648-DD
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA
WP-3636-CA

Options

Work Platform Safety Options
Model PDF's Description Wt.
(lbs)

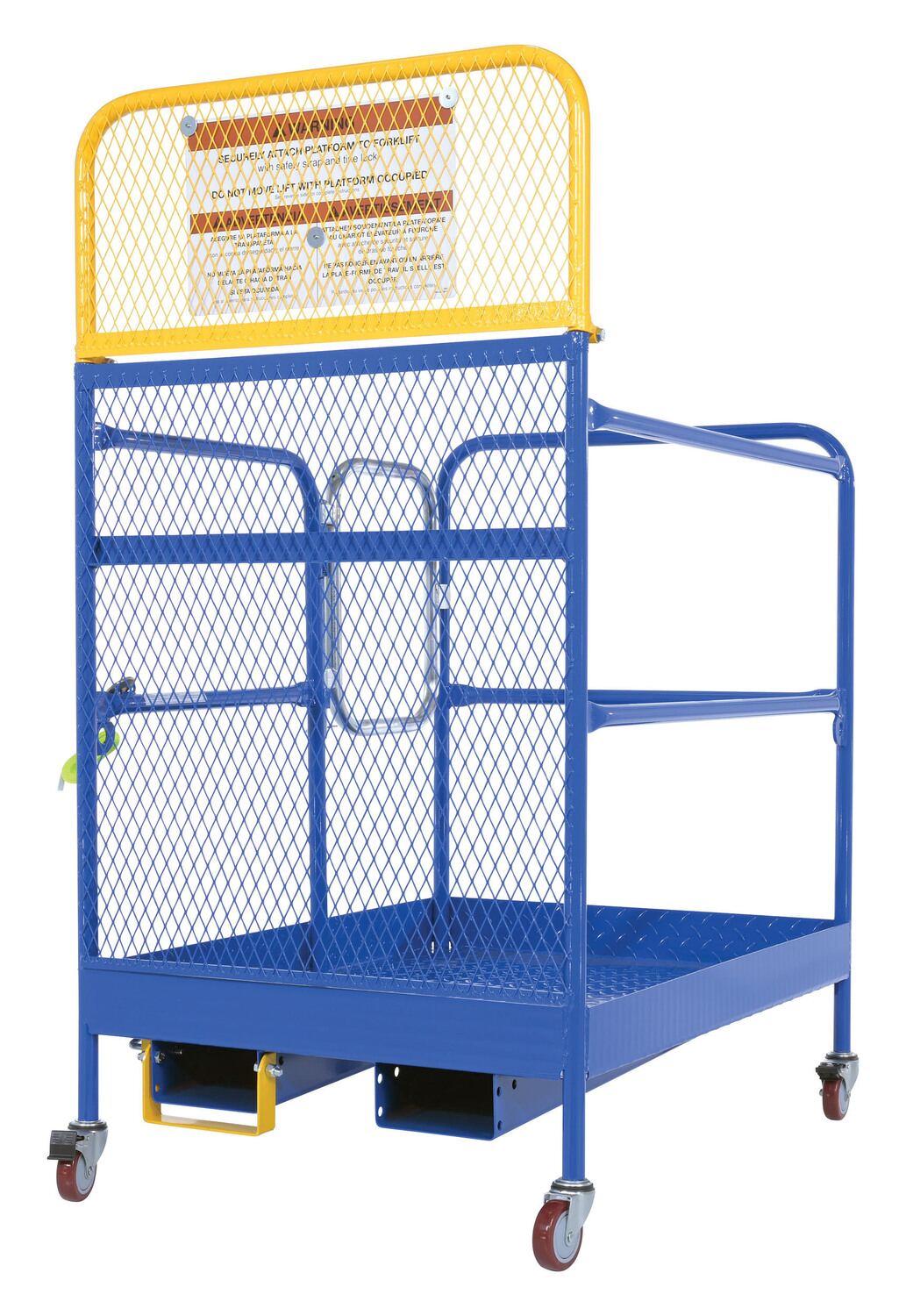

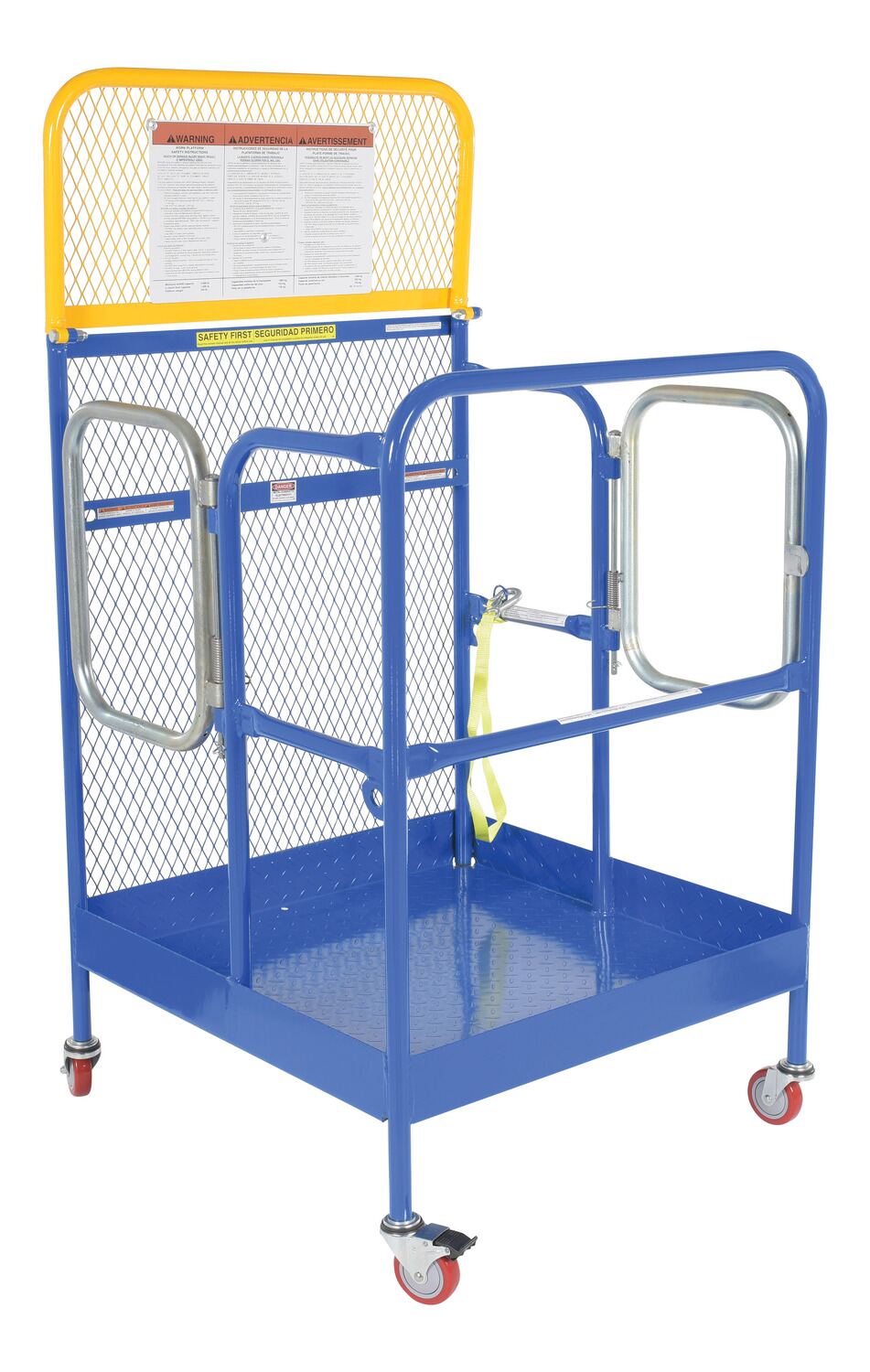

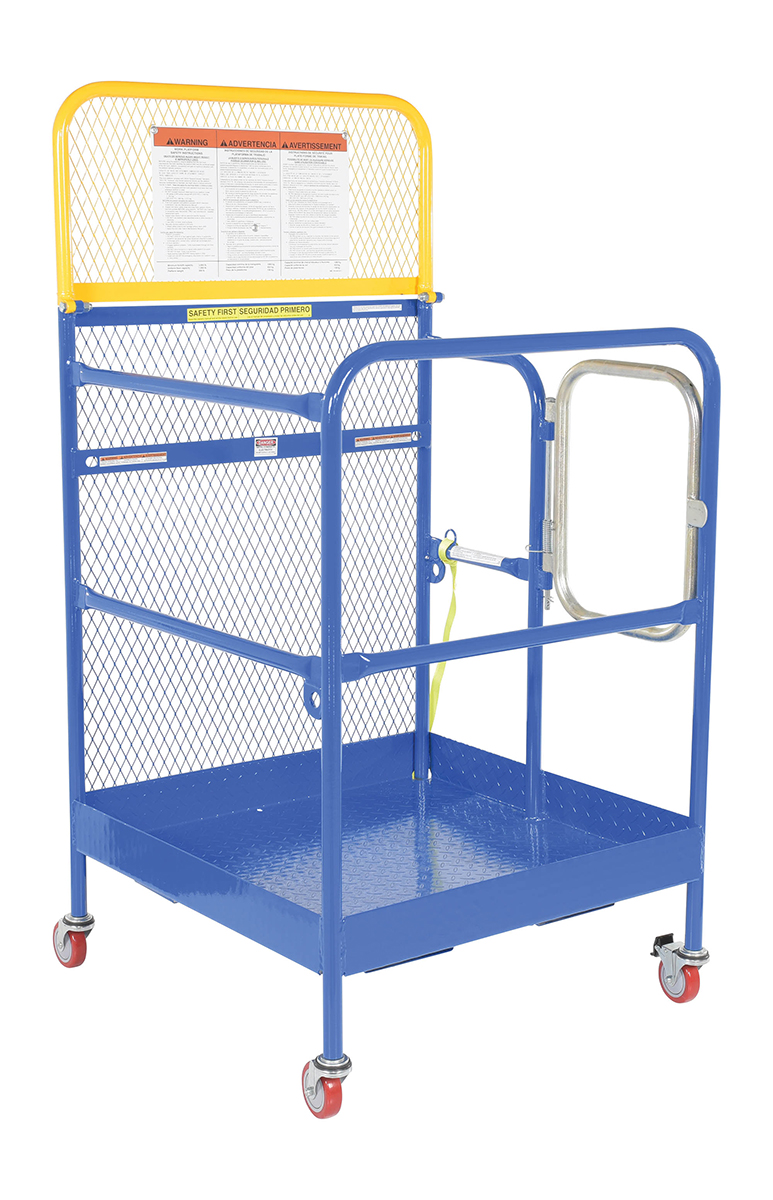

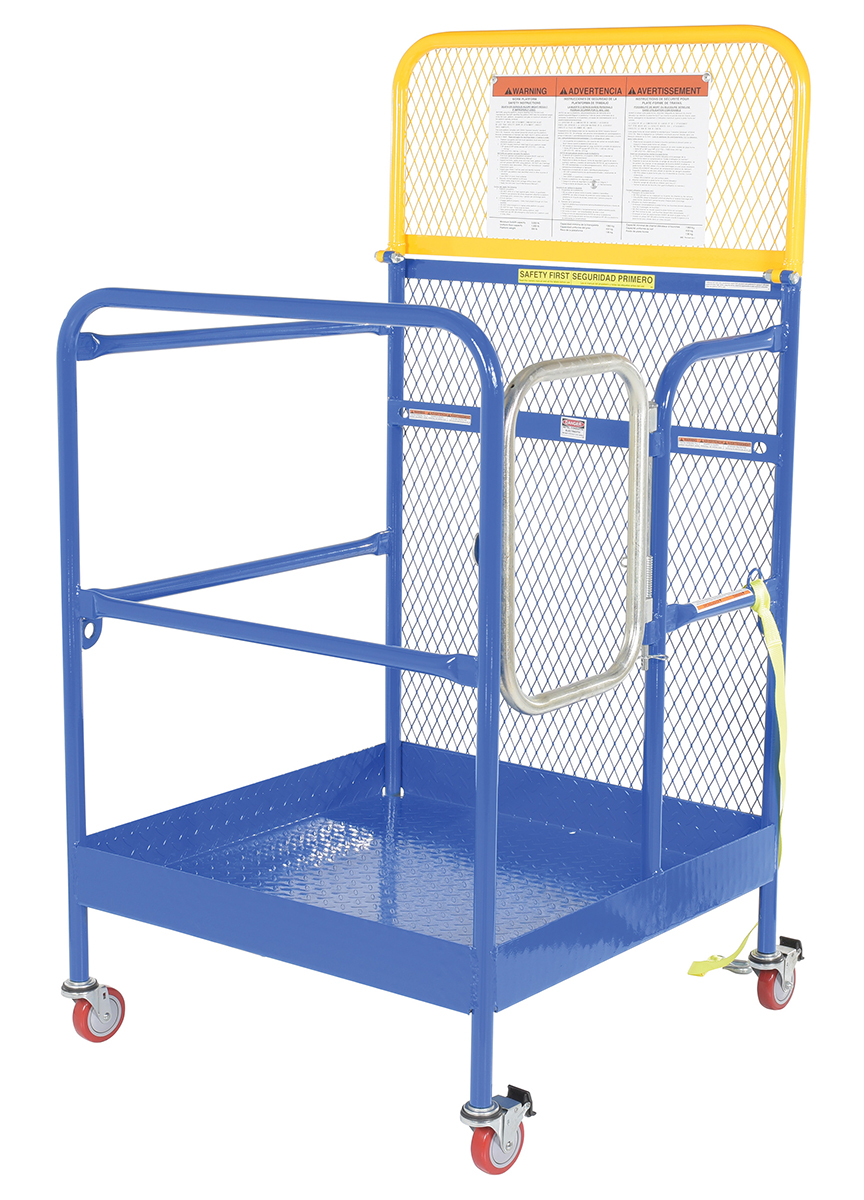

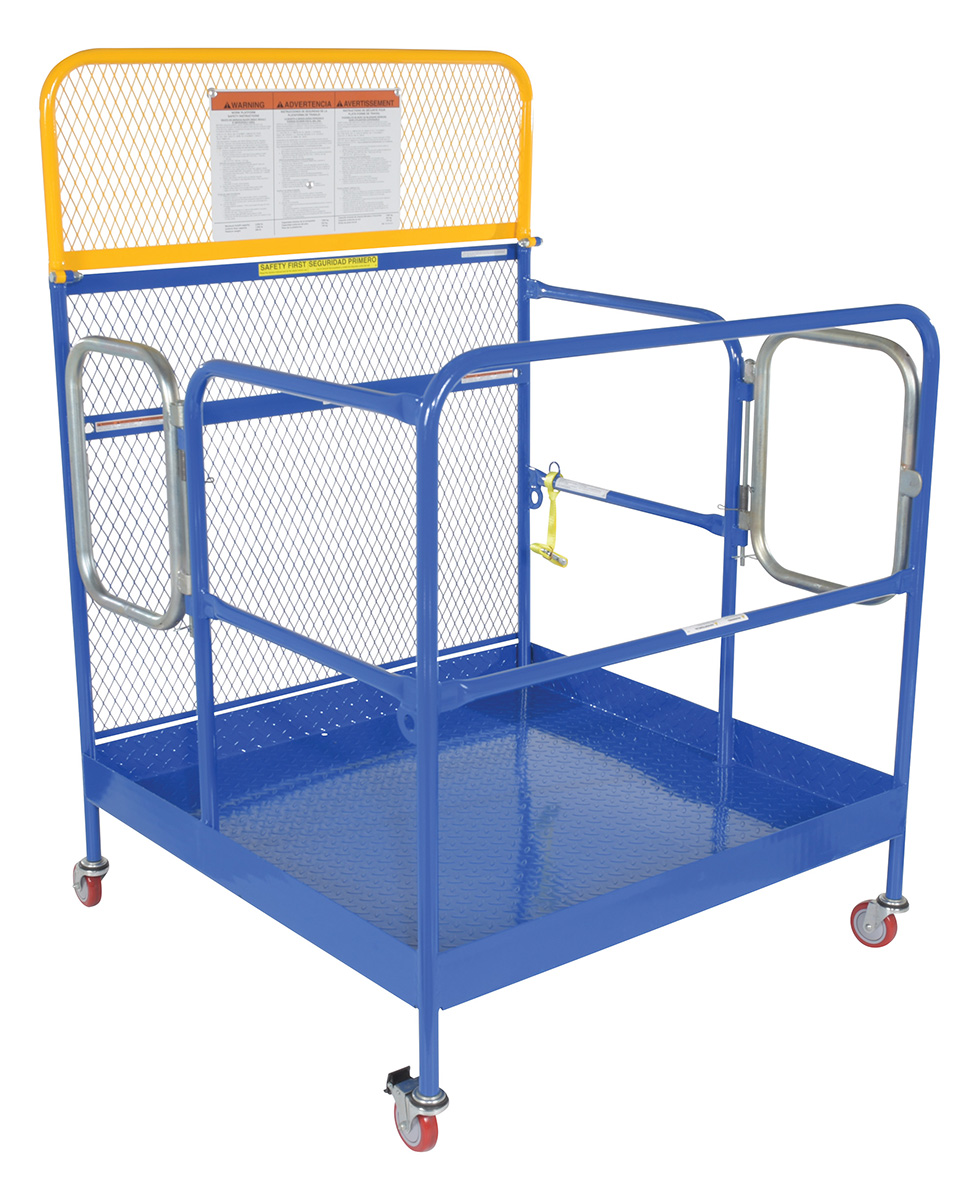

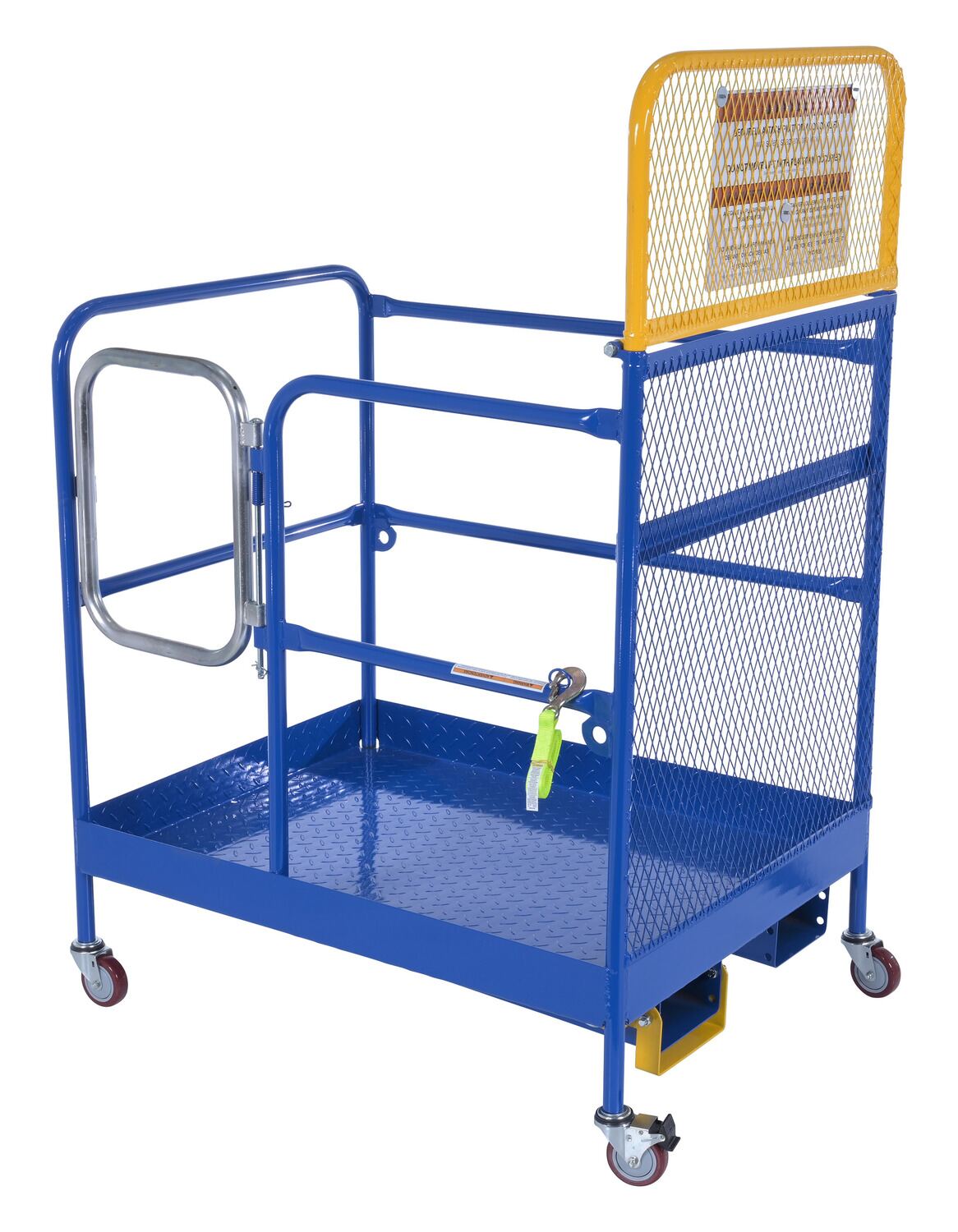

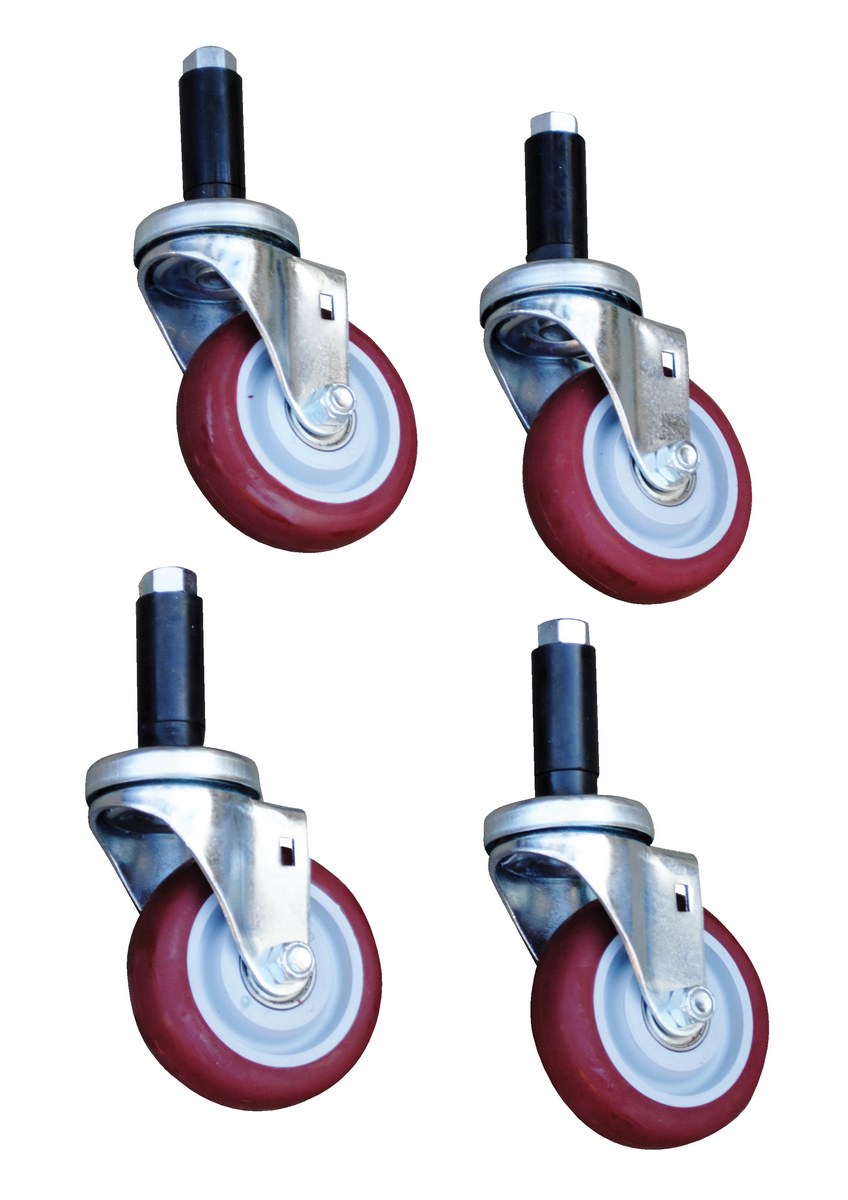

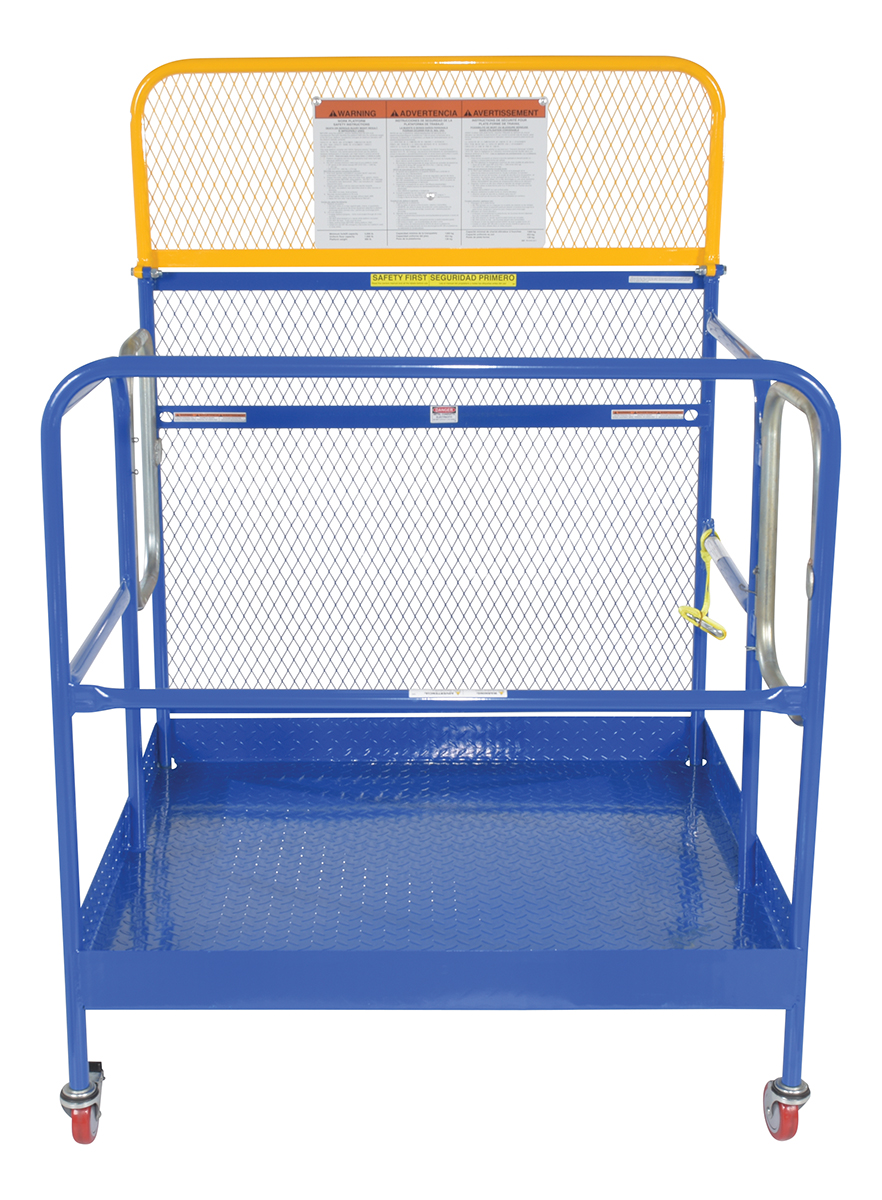

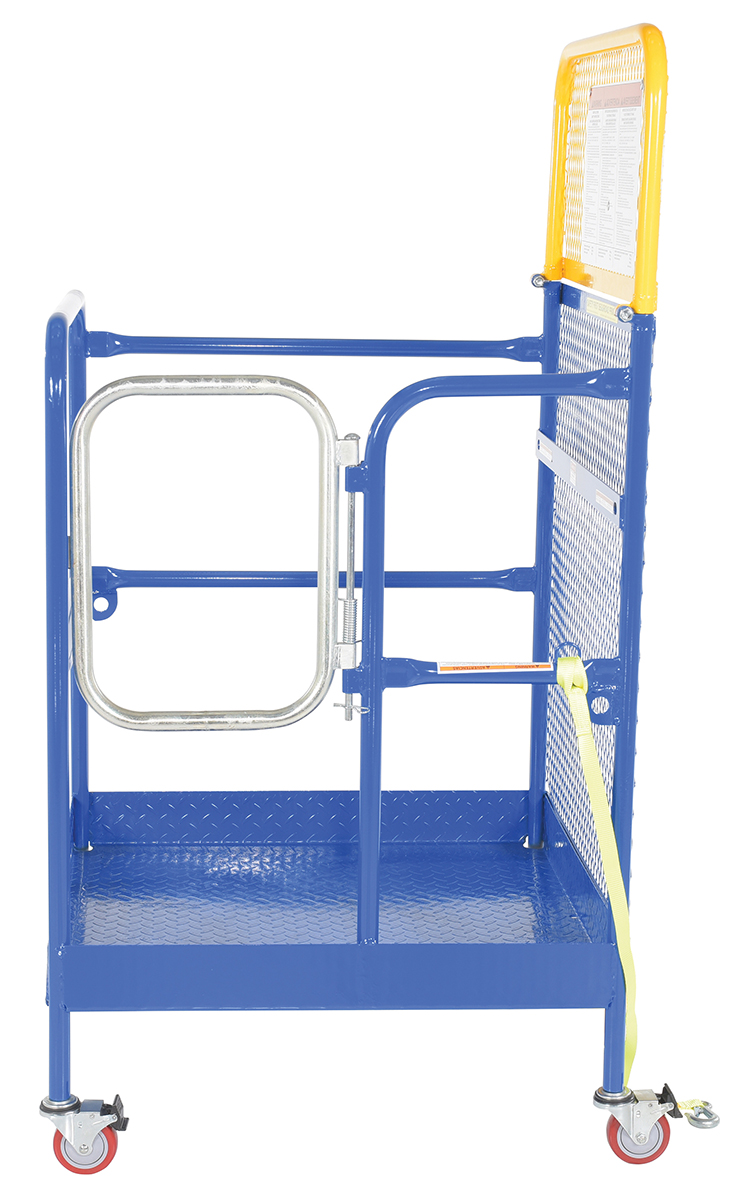

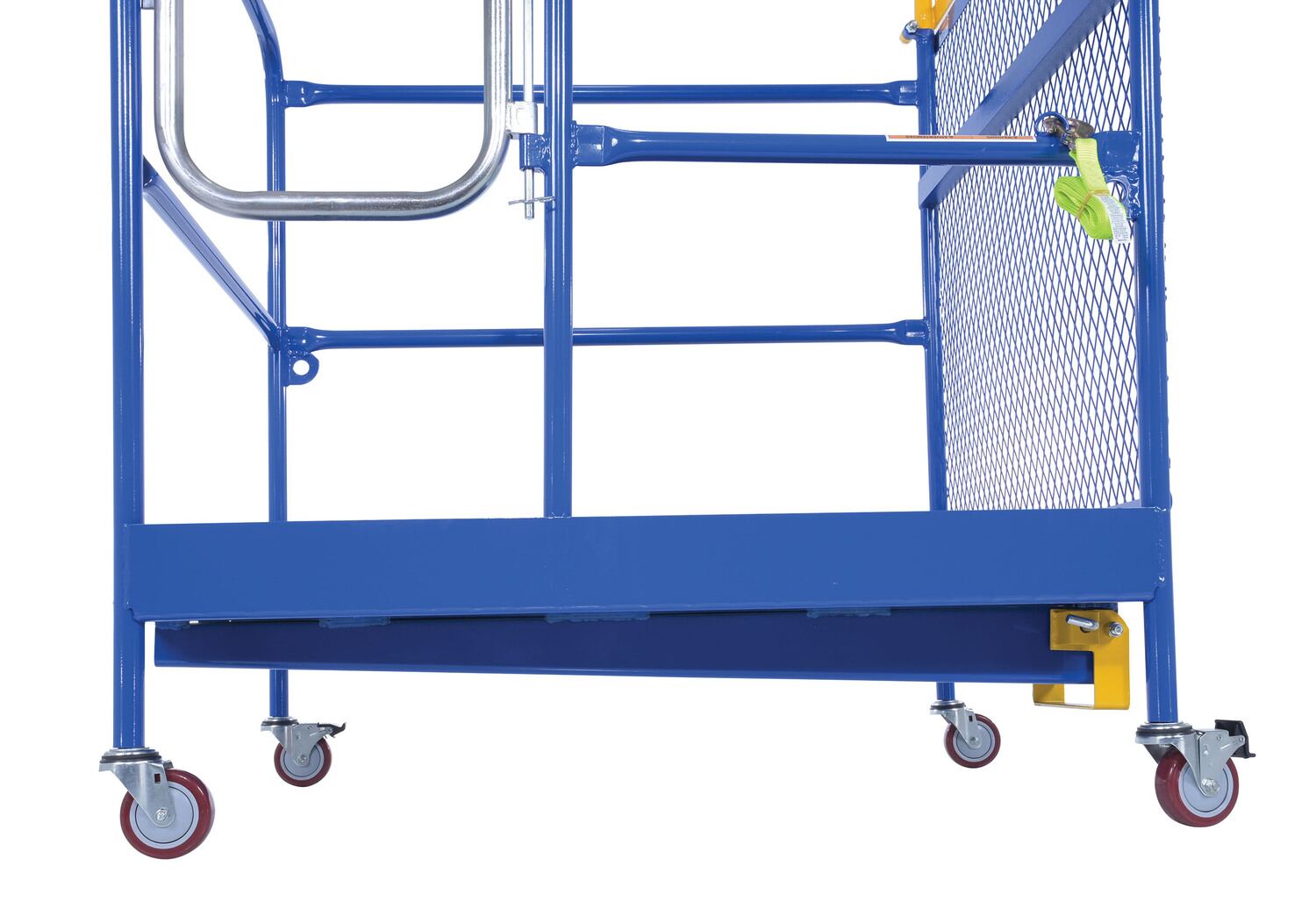

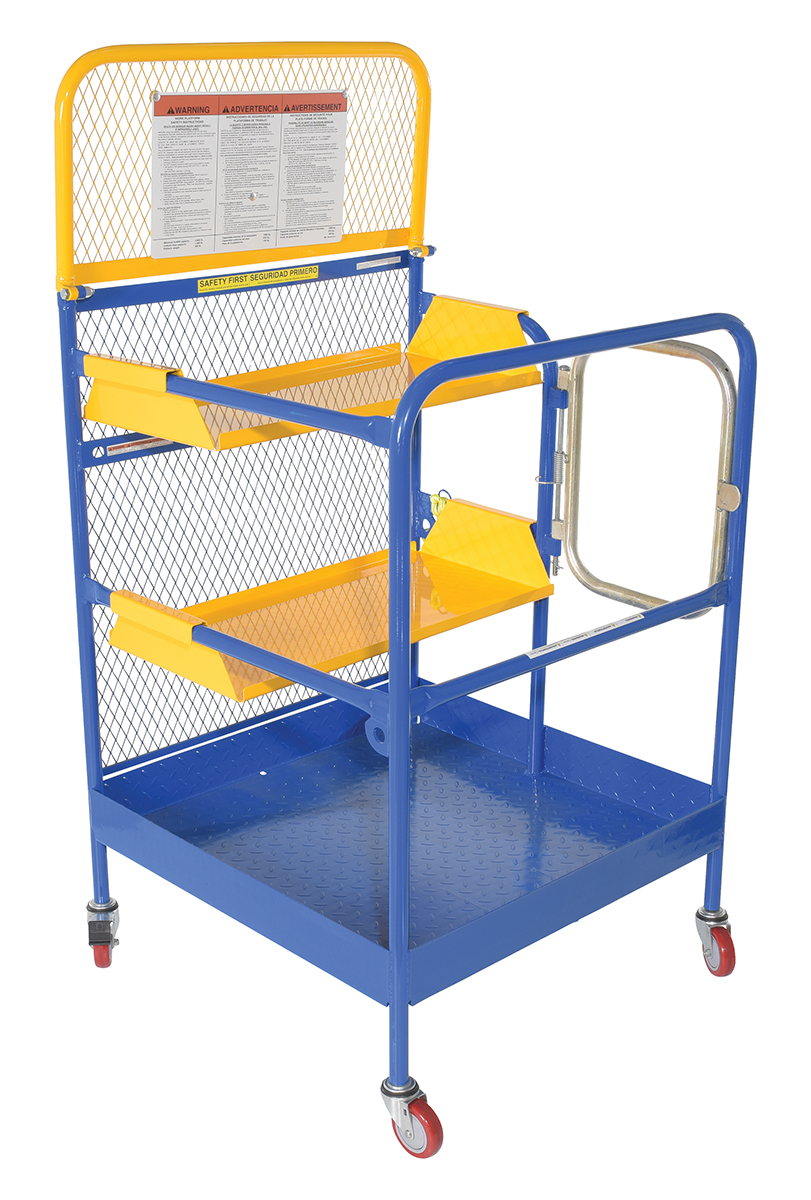

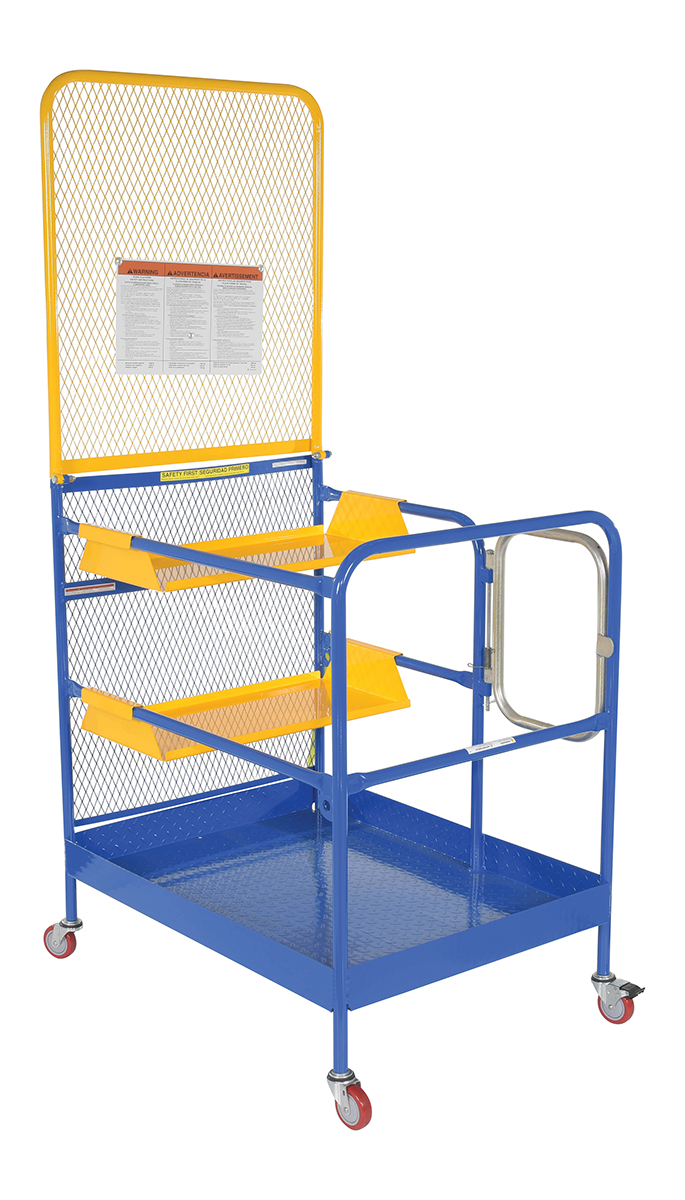

WP-CA Warranty PDF 4"x1-1/4" Poly-on-Poly (2) Swivel, (2) Swivel with Brake Casters* 20

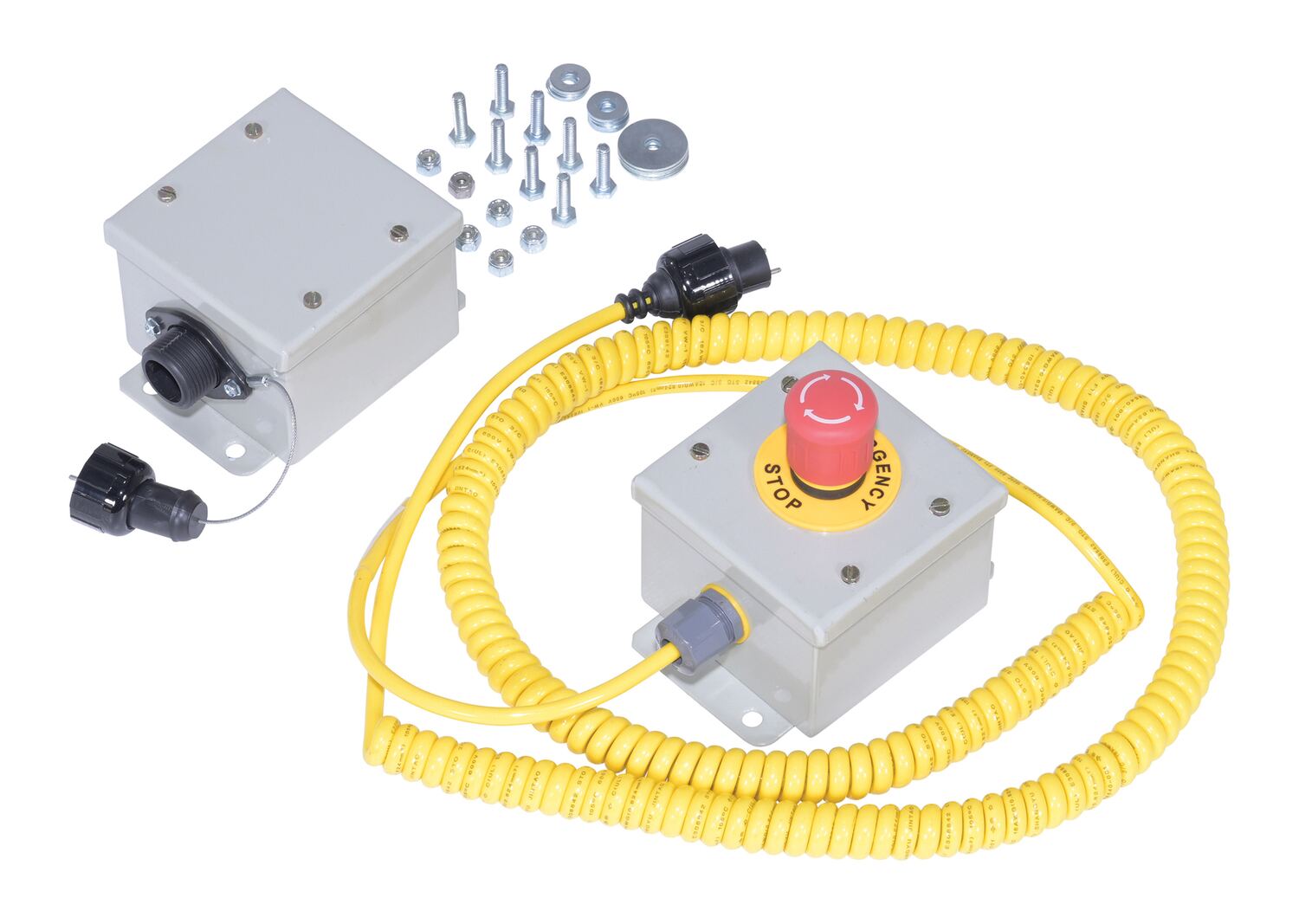

WP-SB icon_approvaldrawings.jpgWarranty PDF Emergency Stop button kit + 7

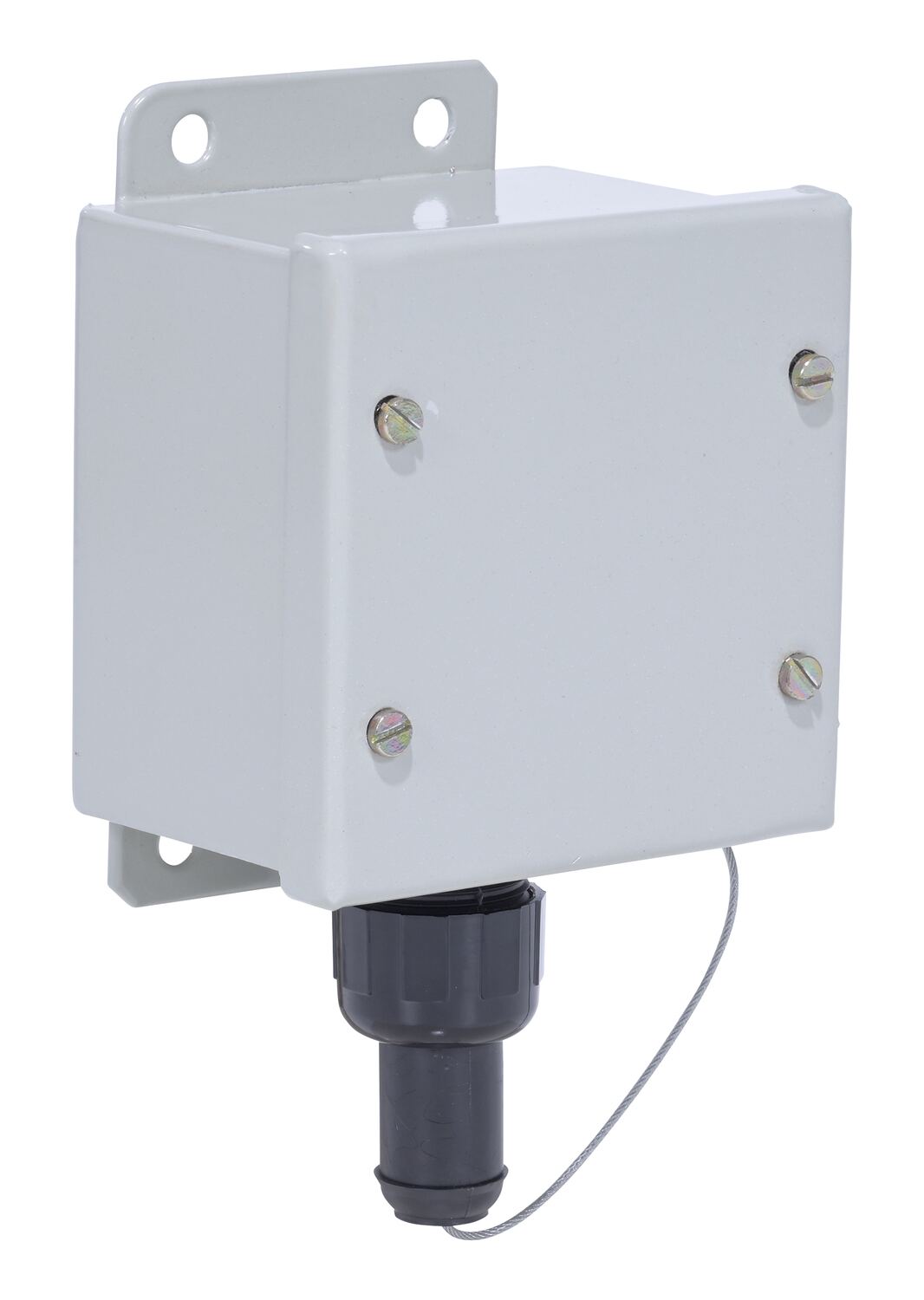

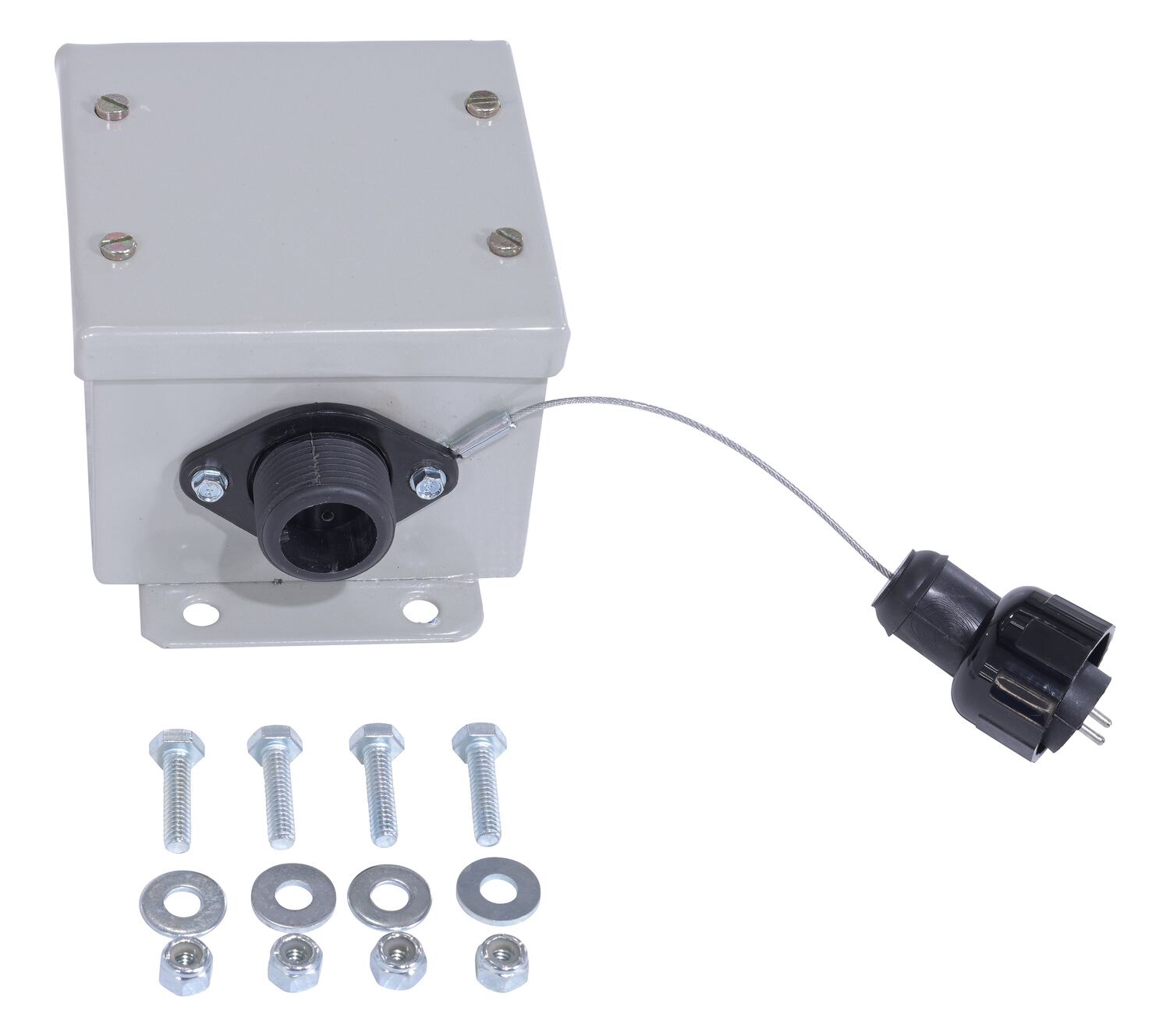

WP-SB-FTJB Warranty PDF Emergency stop fork truck junction box only + 8

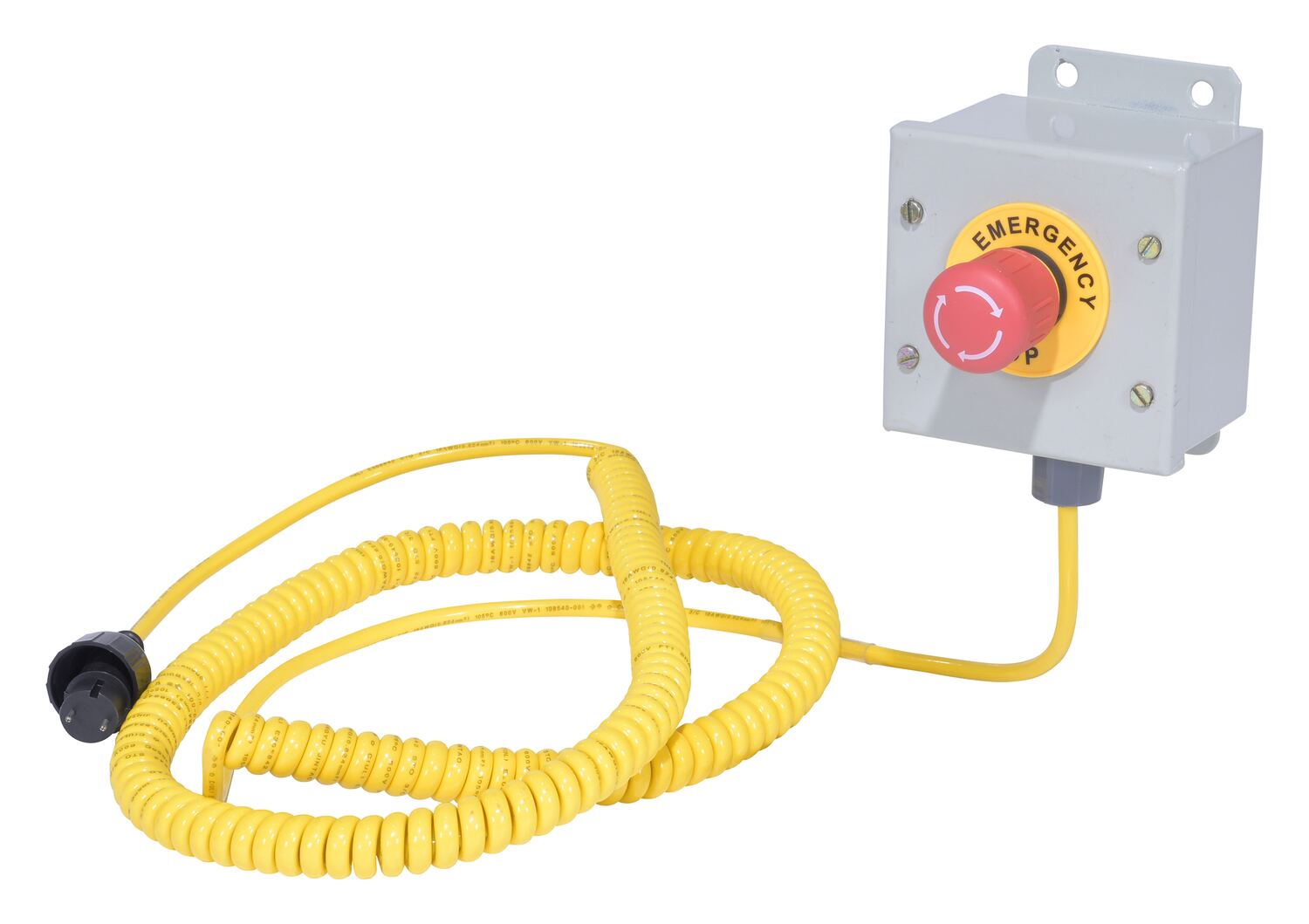

WP-SB-WPJB Warranty PDF Emergency stop work platform junction box only + 5

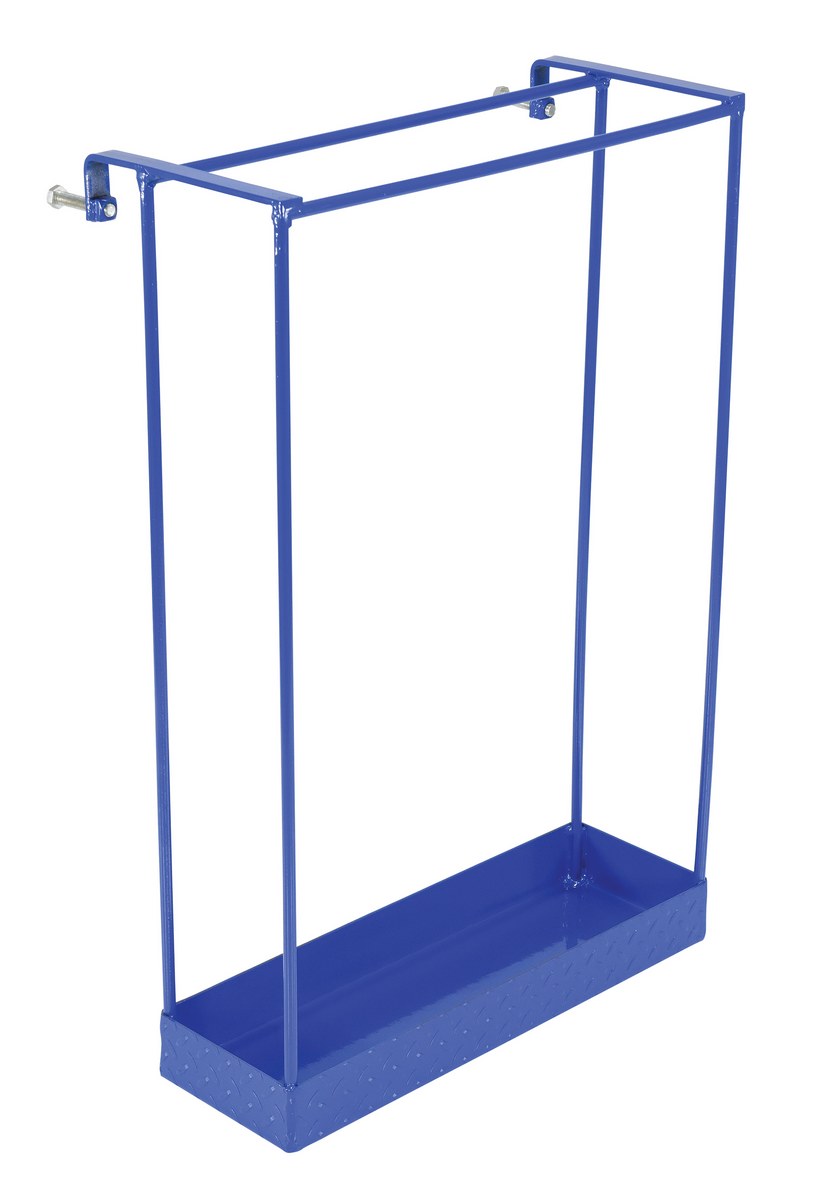

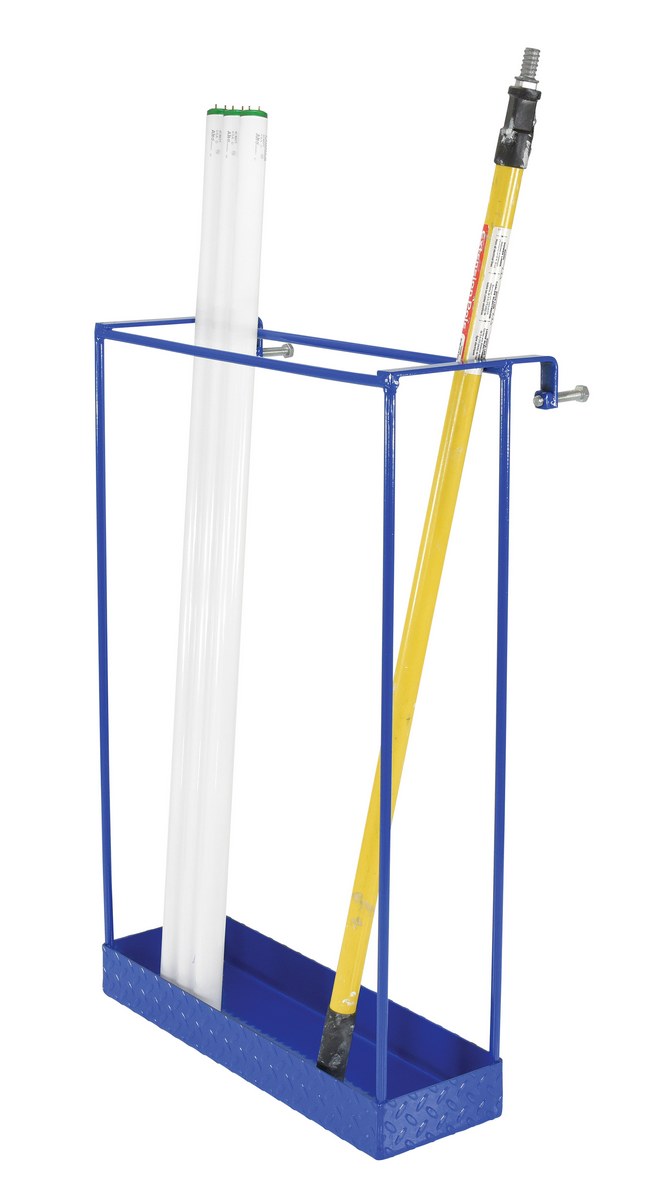

WP-TC icon_approvaldrawings.jpgWarranty PDF Fluorescent tube caddy + 15

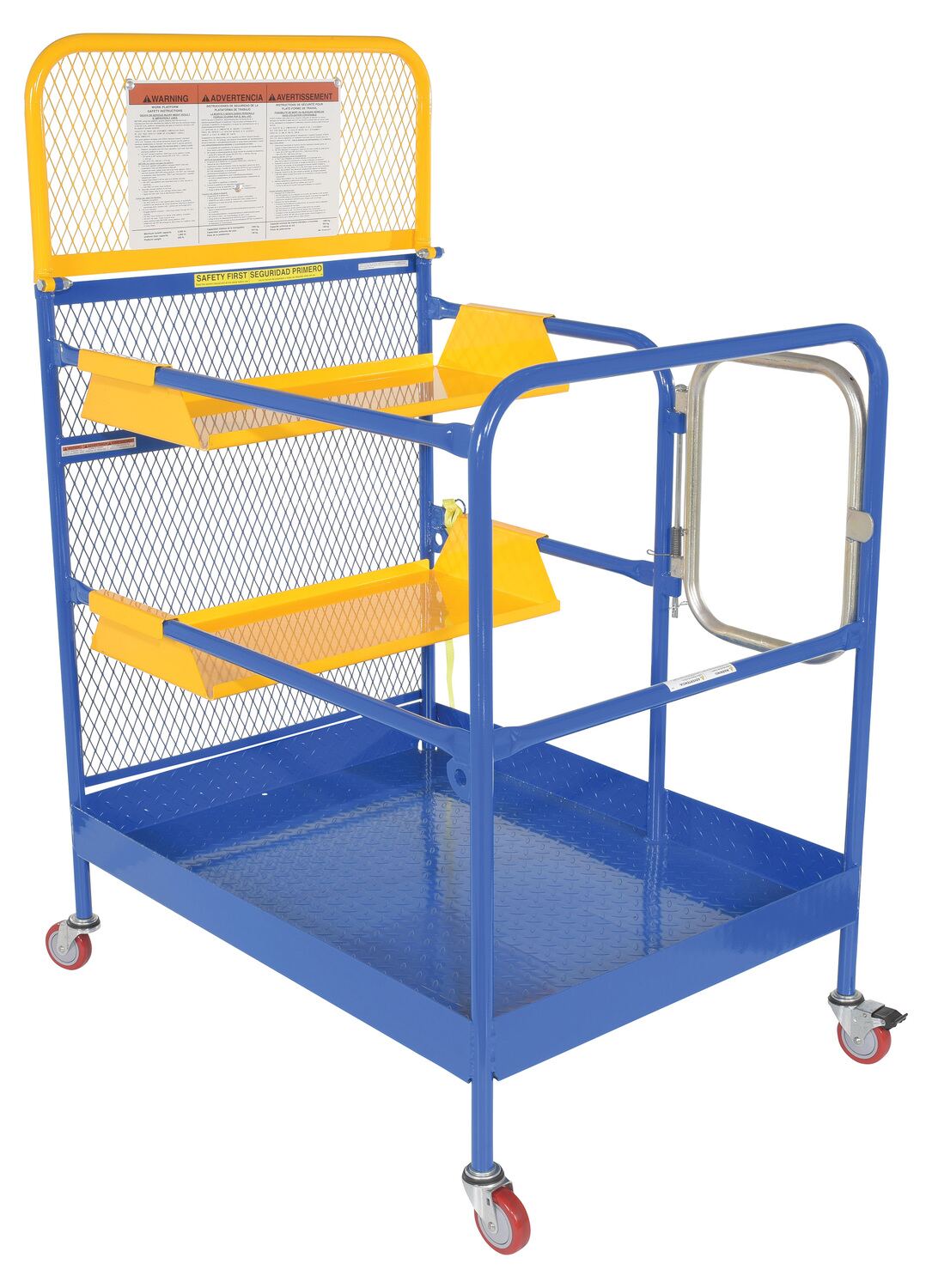

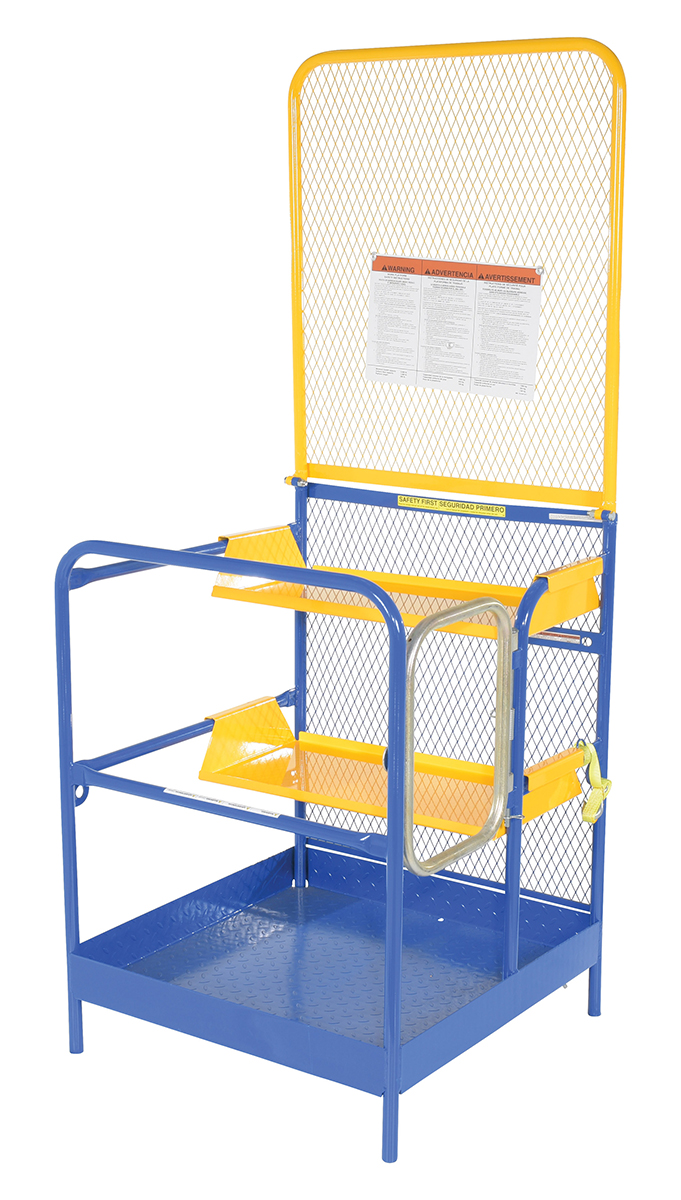

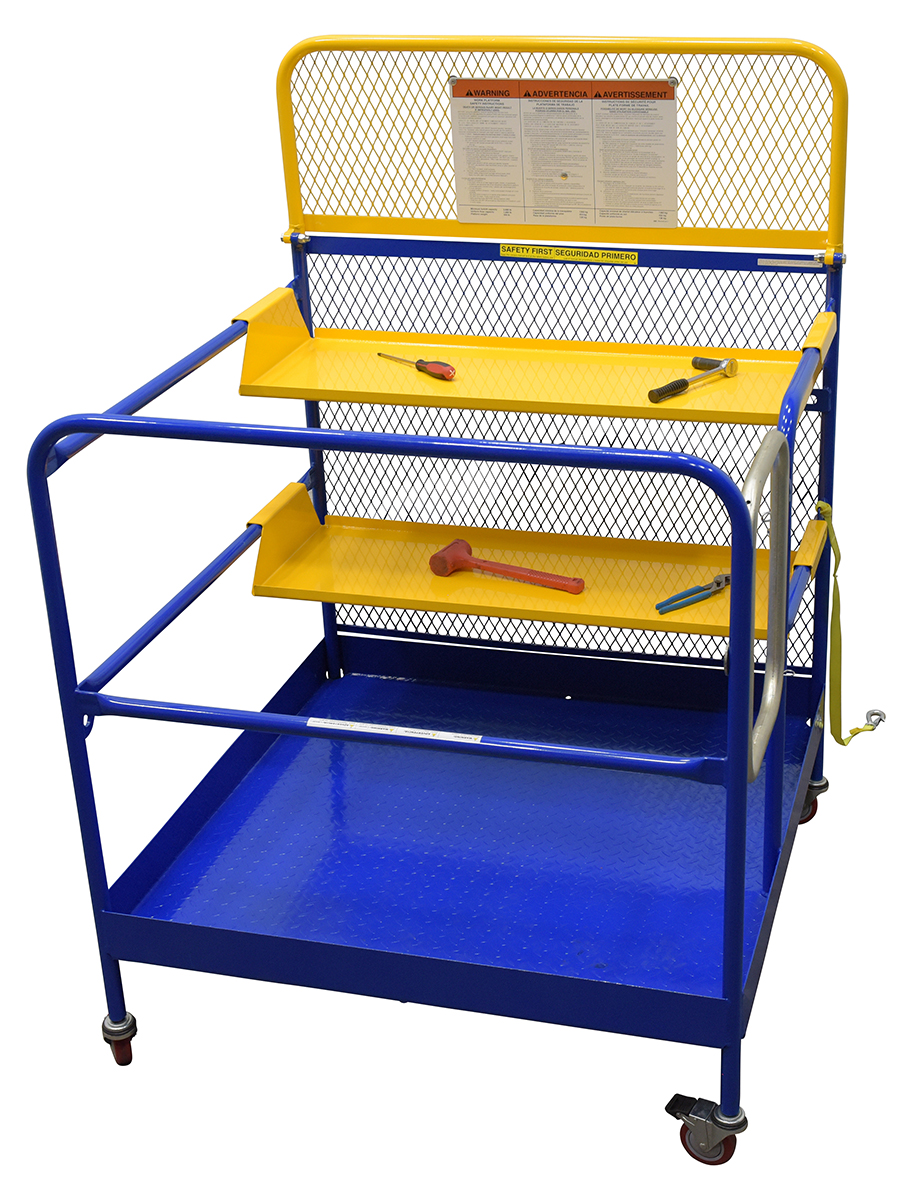

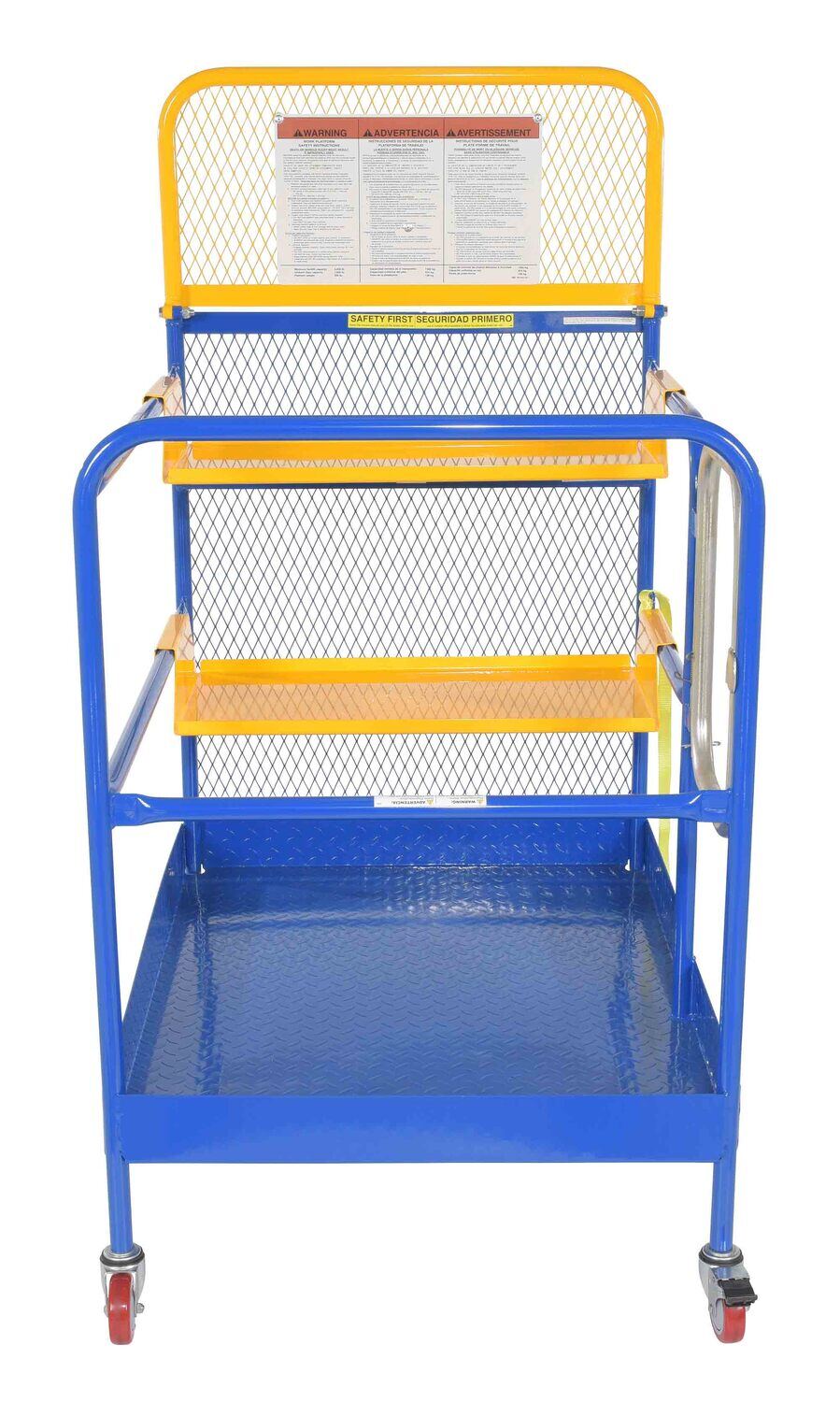

WP-TT36 icon_approvaldrawings.jpgWarranty PDF Sliding tool tray (36") + (Only Available to be used with single door units) 13

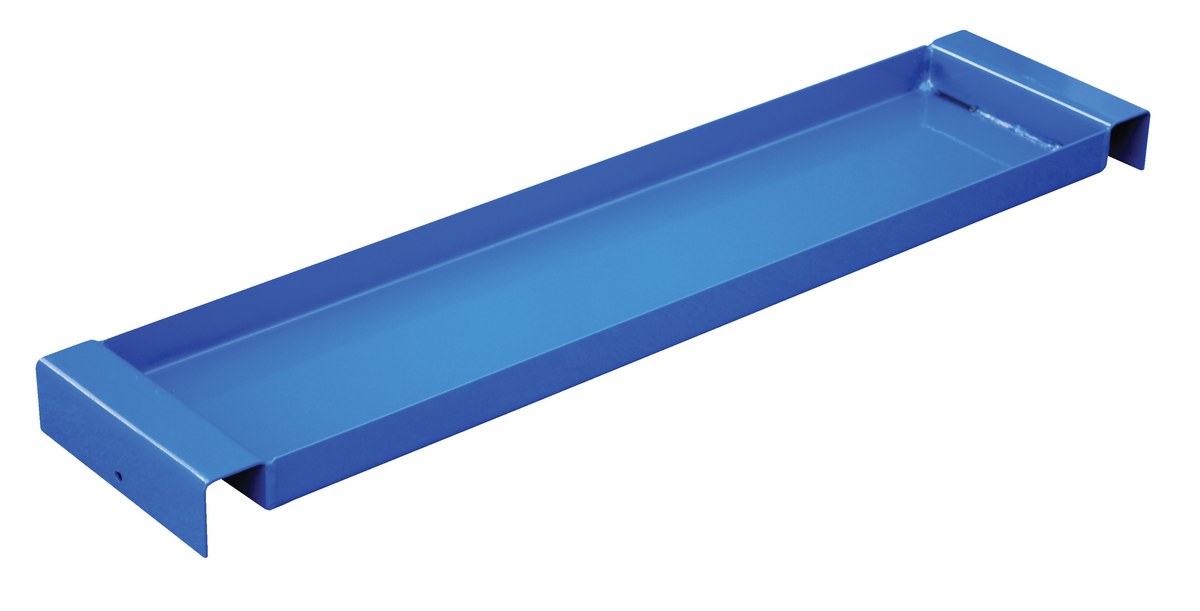

WP-TT48 icon_approvaldrawings.jpgWarranty PDF Sliding tool tray (48") + (Only Available to be used with single door units) 22

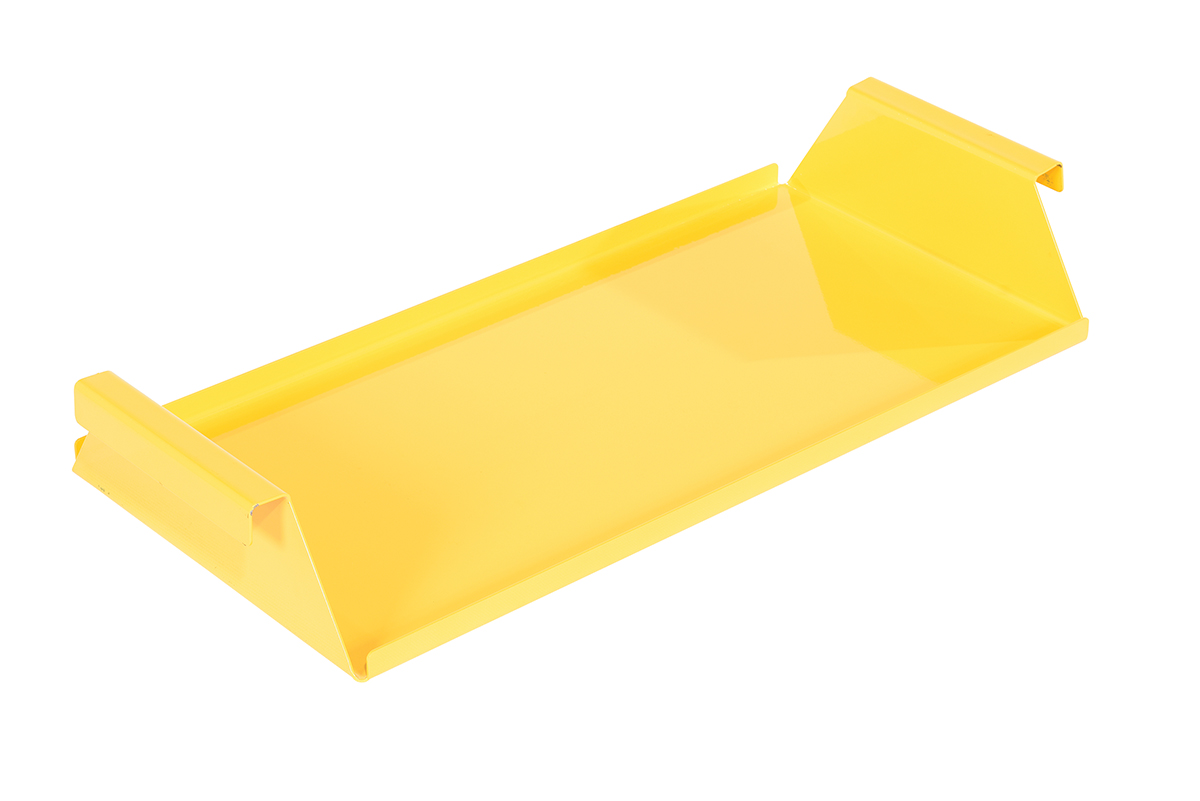

WP-TT36-D Warranty PDF 36" Deep Shelf Option for Work Platorms -

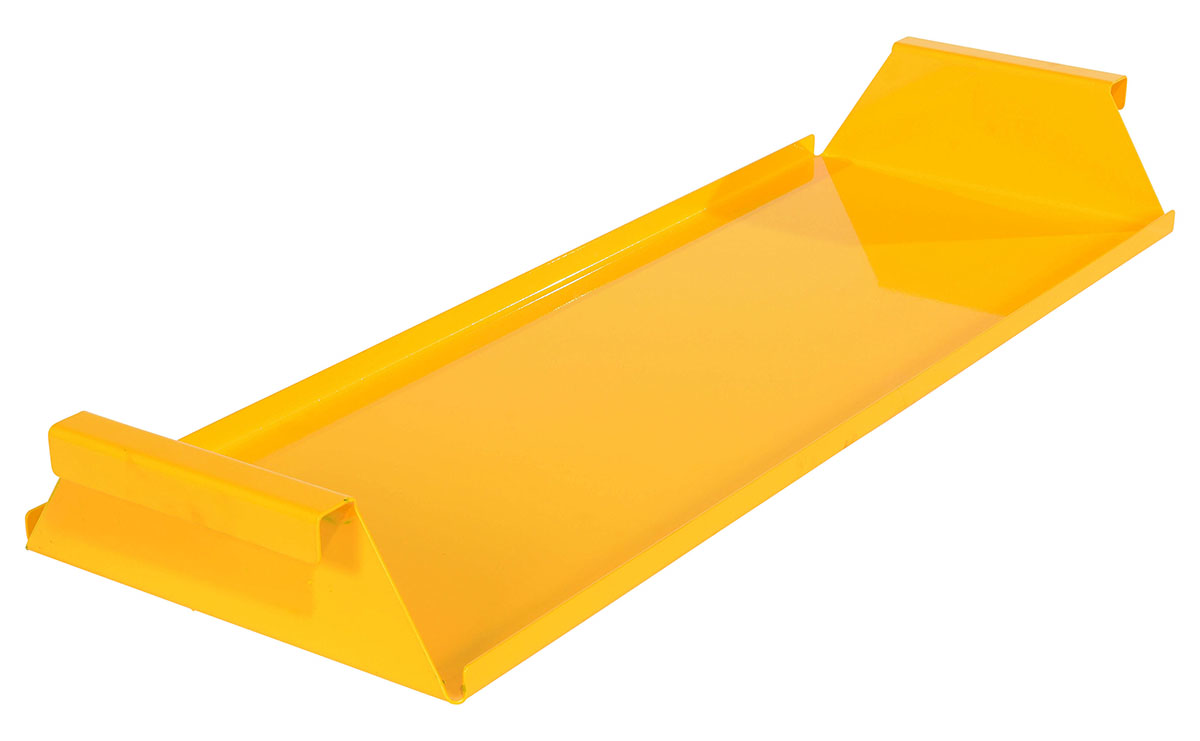

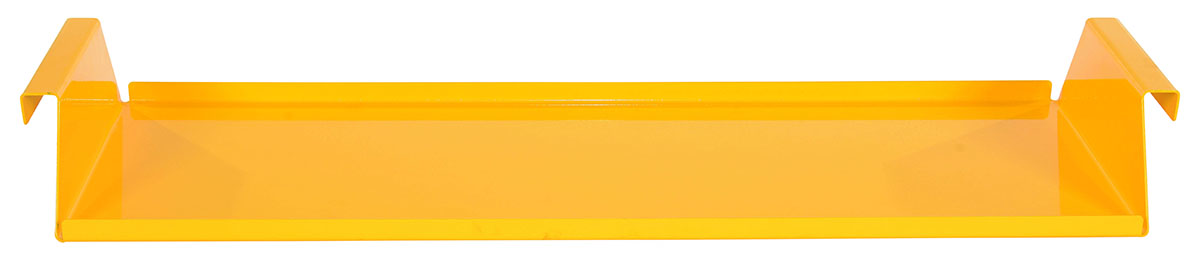

WP-TT48-D Warranty PDF 48" Deep Shelf Option for Work Platorms -

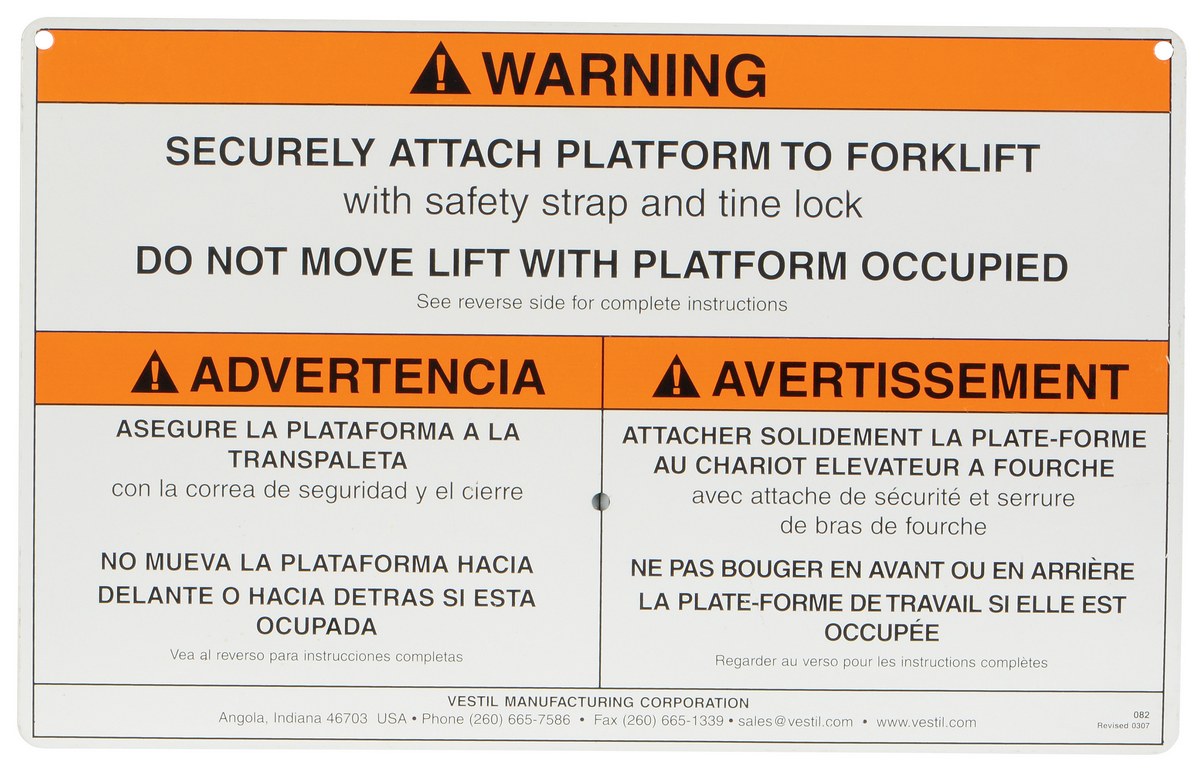

WP-WS Warranty PDF Caution sign w/ mounting hardware (add'l) + 3

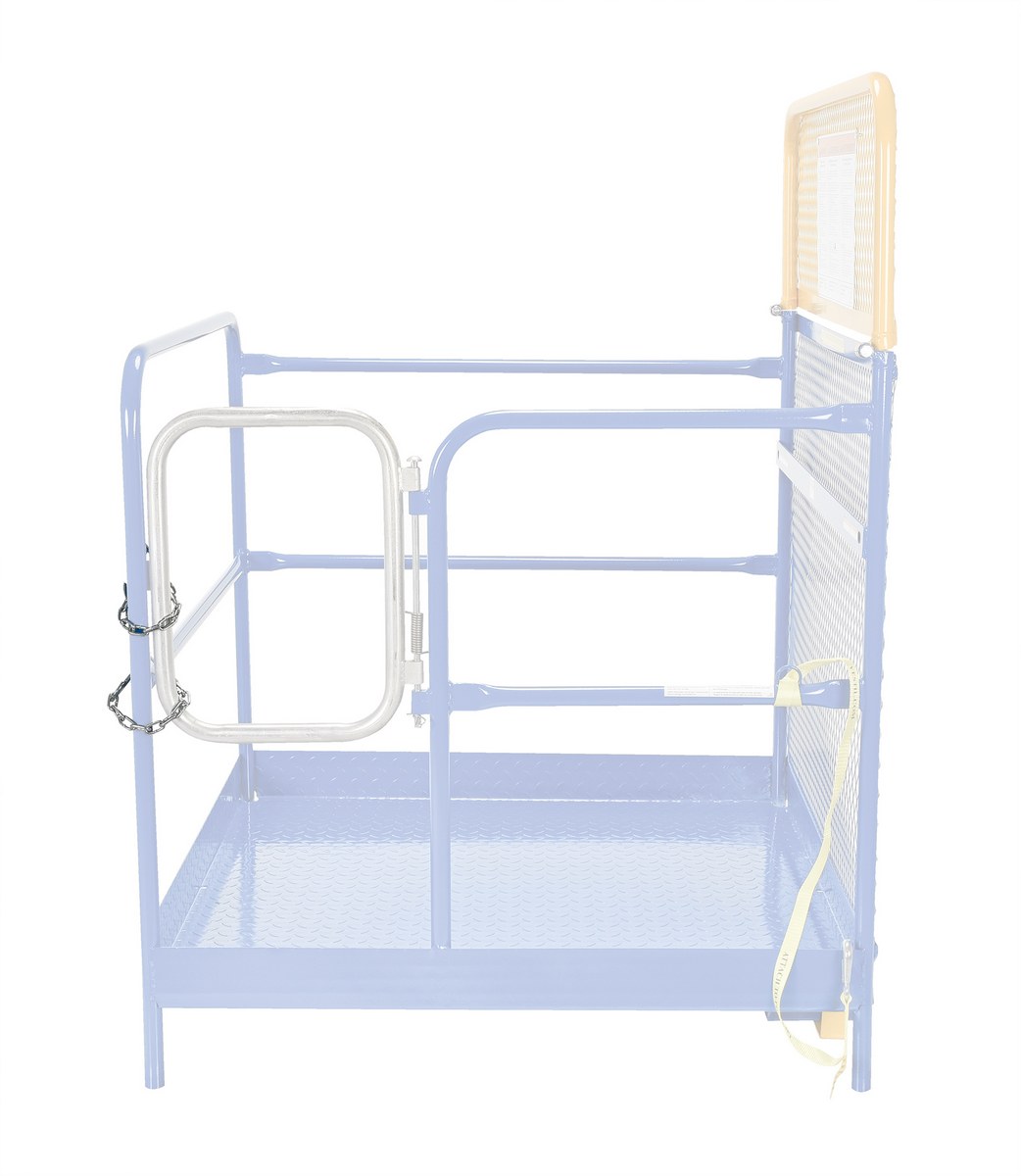

WP-DL Warranty PDF Double chain door lock * 2

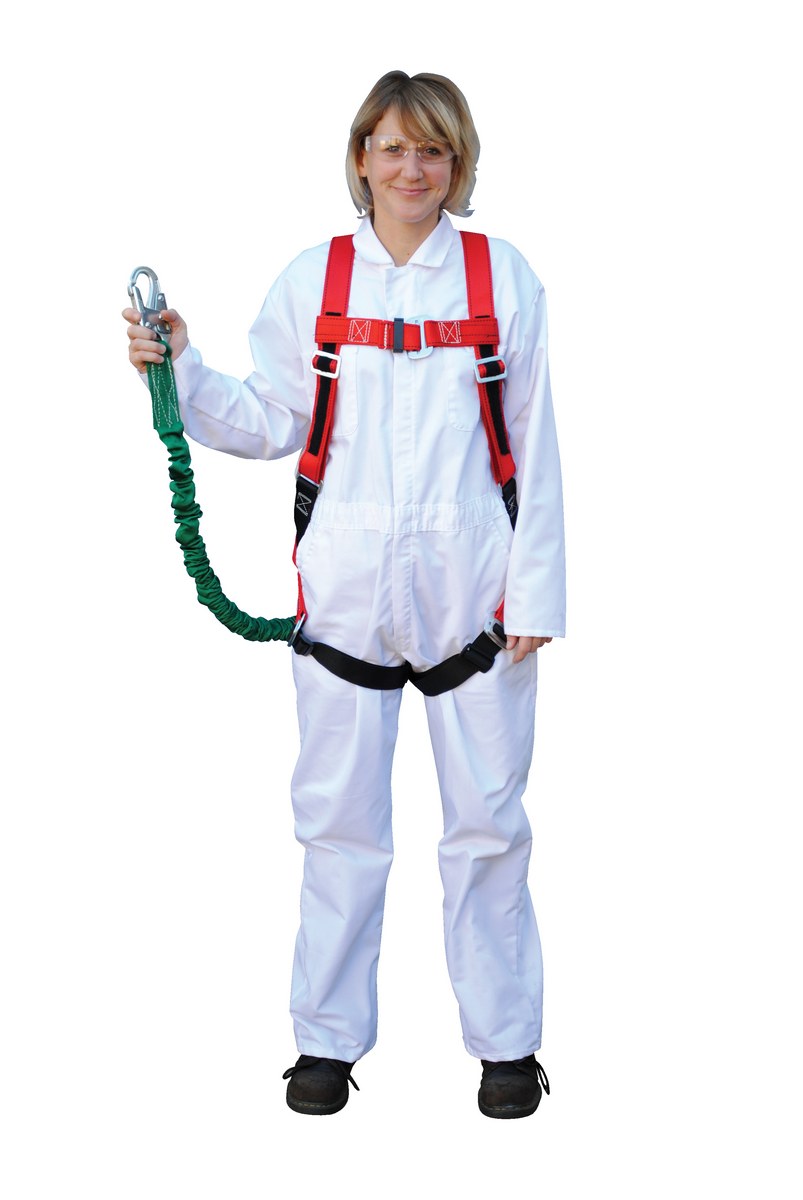

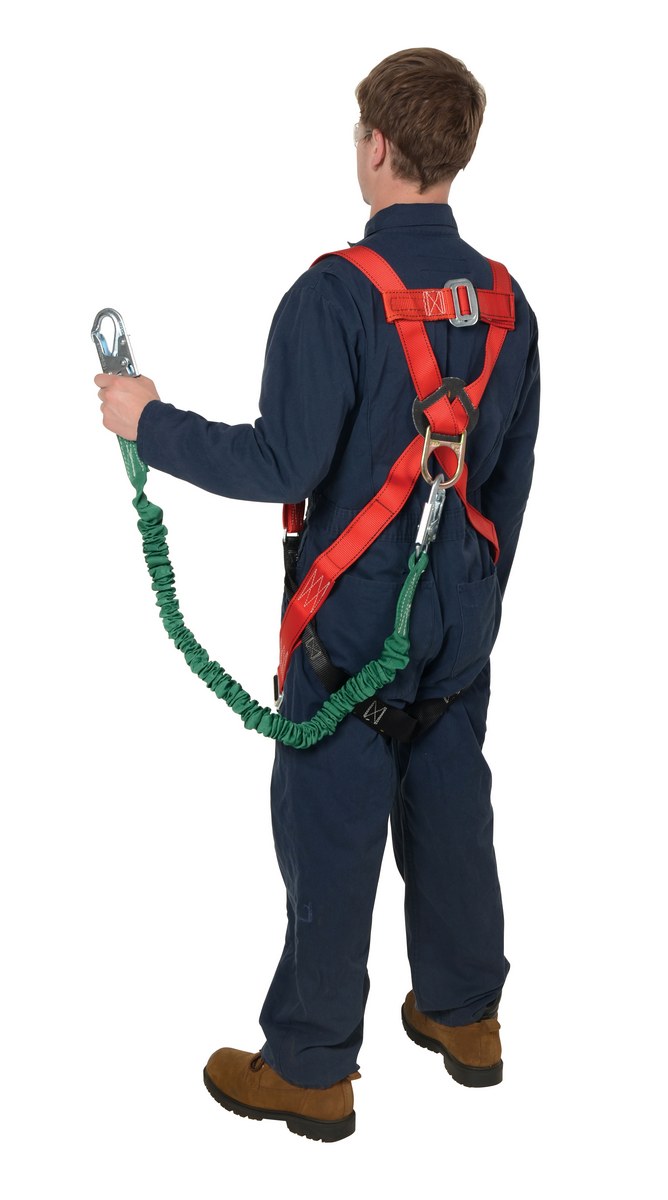

Lanyard with Safety Harness or Safety Belt
Model PDF Description Capacity
(lbs)
Length of Lanyard Wt.
(lbs)
WP-LH-S Warranty PDFCompliance Certificate Harness Small 350 6ft. 5

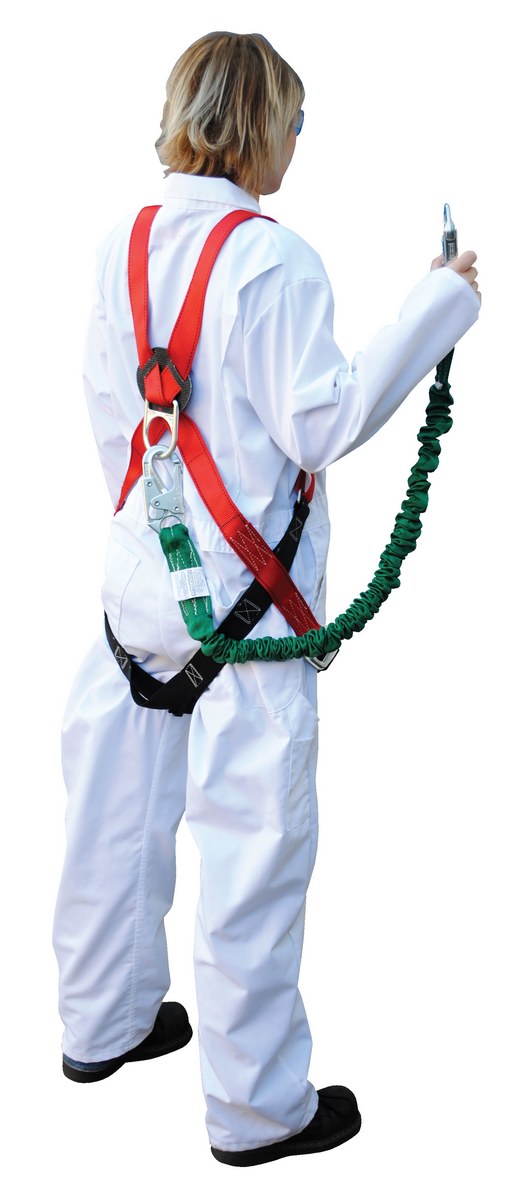

WP-LH-M Warranty PDFCompliance Certificate Harness Medium 350 6ft. 5
WP-LH-L Warranty PDFCompliance Certificate Harness Large 350 6ft. 5
WP-LH-XL Warranty PDFCompliance Certificate Harness X-Large 350 6ft. 5
WP-LH-XXL Warranty PDFCompliance Certificate Harness XX-Large 350 6ft. 5
WP-LH-XXXL Warranty PDFCompliance Certificate

Harness XXX-Large.

*Note: Customer's Completion of this waiver form mandatory for this item

350 6ft. 5

Harness Sizing Chart

Height 34"-36" 38"-40" 42"-44" 46"-48" 50"-54" 56"-60"
Small (5'4-5'7") Small Small Medium Large X-Large XX-Large
Reg(5'8"-5'11") Small Medium Large X-Large XX-Large XXX-Large
Tall(6'0"-6'3") Medium Medium Large X-Large XX-Large XXX-Large
X-Tall(6'3-Plus) Large Large X-Large X-Large XX-Large XXX-Large

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Questions & Answers

Q: We purchased the work platform and want casters added. Is it possible to add them now?

A: The options for the work platform include casters, emergency stop button kit, fluorescent tube caddy, and tool tray and can be purchased at any time. Please see the options tab on the work platform information page.


Q: Is there a safety harness with the work platform?

A: The lanyard with safety harness is available in sizes small through xxx-large. Please see the options tab on the work platform information page.
