Model Details

WTJ-2-G-DC

WTJ-2-G-DC

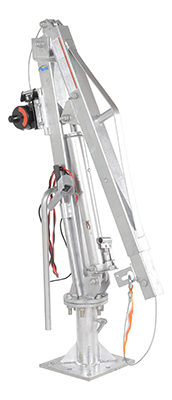

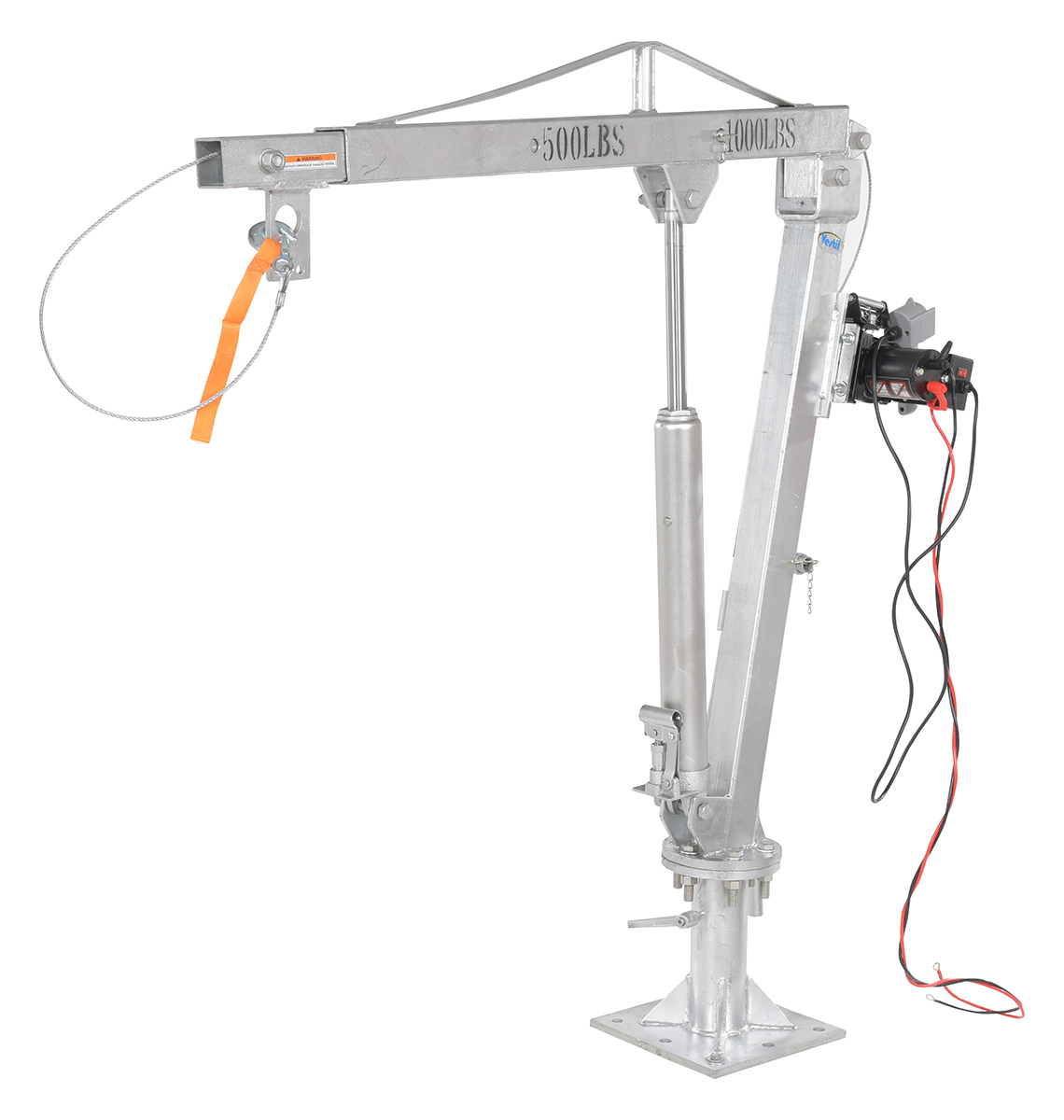

Galvanized Steel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity Gray

Installed in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. DC powered cable winch to lift and lower loads. Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch.

  • Simple base installation
  • Powered unit for quick lifting
  • Large capacity for heavy loads
  • Wide lift range for maneuvering products
Total Ship Wt.(lbs.): 165 (only 1 package) Size: 32.875"W x 11"L x 59.5"H Color: Gray

Uniform Cable Winch Capacity (lb.): 500 Extended Fixed Hook Capacity (lb.): 500 Extended Usable Reach (in.): 52
Extended Maximum Hook Height (in.): 99 Extended Minimum Hook Height (in.): Zero Retracted Fixed Hook Capacity (lb.): 1,000
Retracted Usable Reach (in.): 30-1/2 Retracted Maximum Hook Height (in.): 84 Retracted Minimum Hook Height (in.): 12-1/2
Overall Cable Length (ft.): 32 Usable Cable Length (ft.): 24 Cable Diameter (in.): 3/16
Mounting Plate Length (in.): 11 Mounting Plate Width (in.): 11 Base Height (in.): 11-1/2
Rotation (degrees): 360

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-2-G-DC


WTJ-2-G-DC

Galvanized Steel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity Gray

Installed in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. DC powered cable winch to lift and lower loads. Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch.

  • Simple base installation
  • Powered unit for quick lifting
  • Large capacity for heavy loads
  • Wide lift range for maneuvering products
Dimensions: 32.875"W x 11"L x 59.5"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215129572 GTIN: 00691215129572
Warranty: -- Shipping Weight: 165 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Cable Winch Capacity (lb.): 500 Extended Fixed Hook Capacity (lb.): 500 Extended Usable Reach (in.): 52
Extended Maximum Hook Height (in.): 99 Extended Minimum Hook Height (in.): Zero Retracted Fixed Hook Capacity (lb.): 1,000
Retracted Usable Reach (in.): 30-1/2 Retracted Maximum Hook Height (in.): 84 Retracted Minimum Hook Height (in.): 12-1/2
Overall Cable Length (ft.): 32 Usable Cable Length (ft.): 24 Cable Diameter (in.): 3/16
Mounting Plate Length (in.): 11 Mounting Plate Width (in.): 11 Base Height (in.): 11-1/2
Rotation (degrees): 360
