Winch Operated Truck Jib Cranes

  2. Overhead Lifting
  3. Engine Hoists & Floor Cranes
  4. ...
Click Image to Enlarge

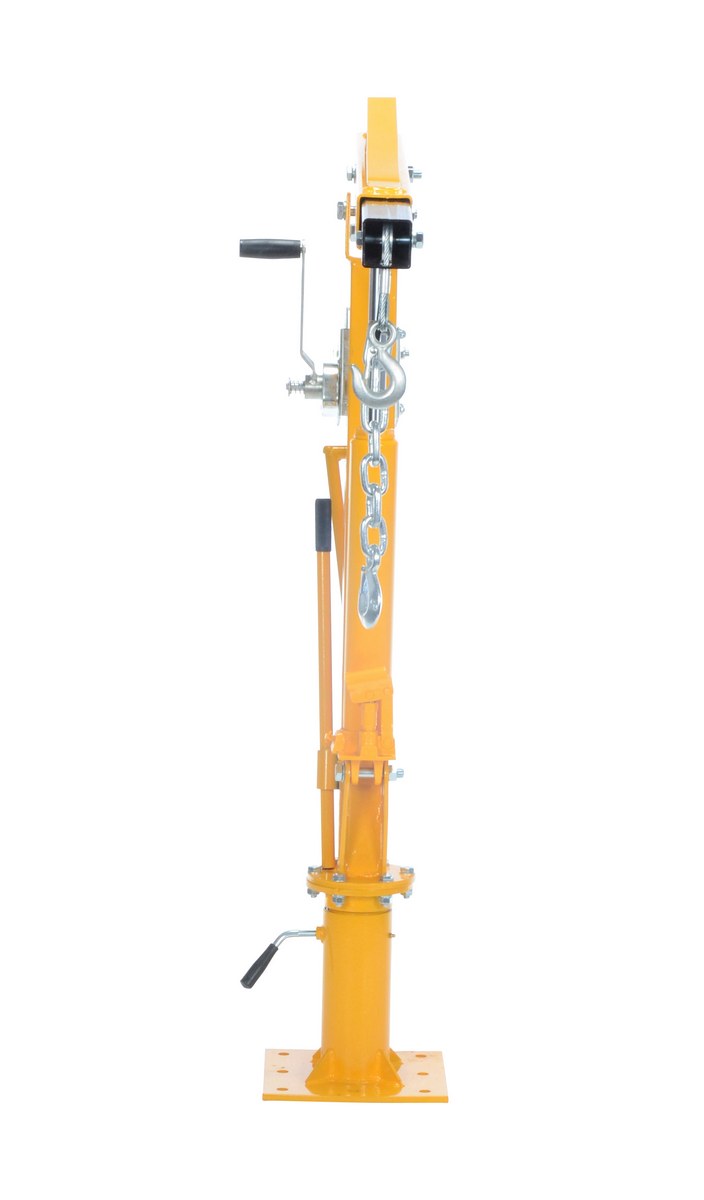

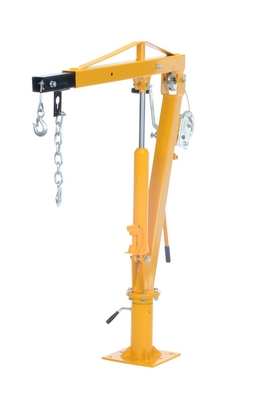

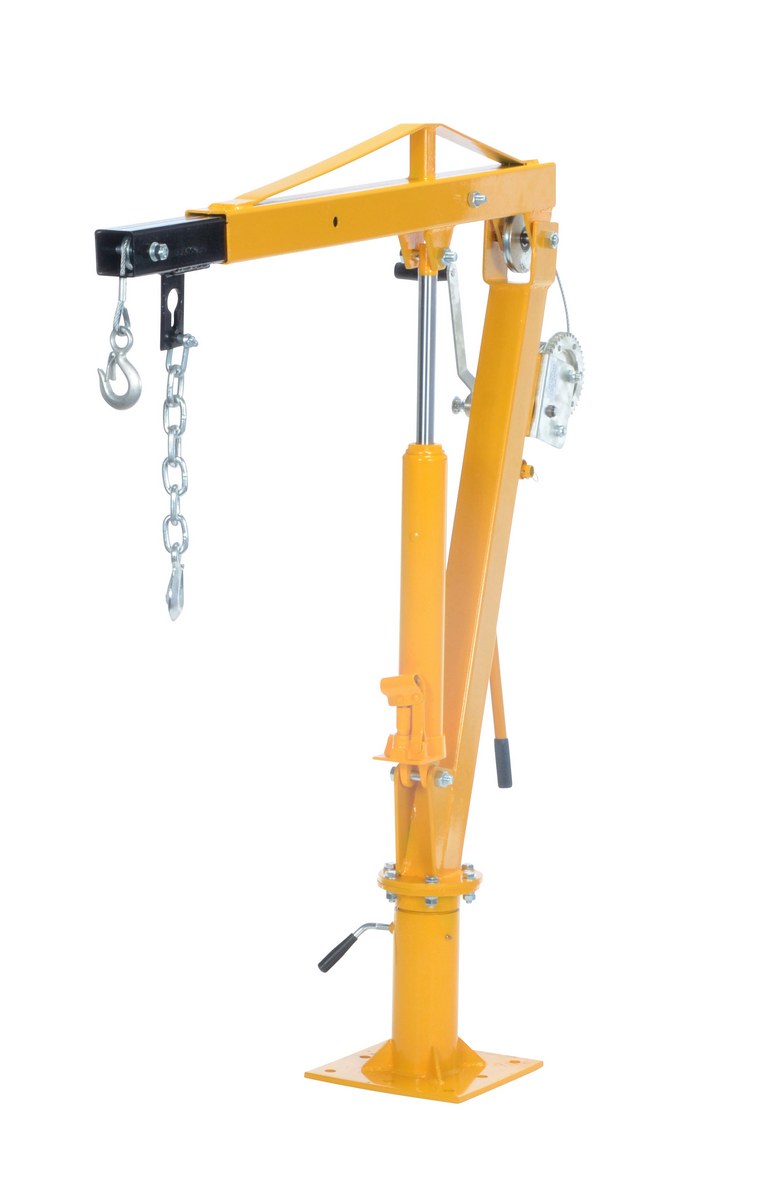

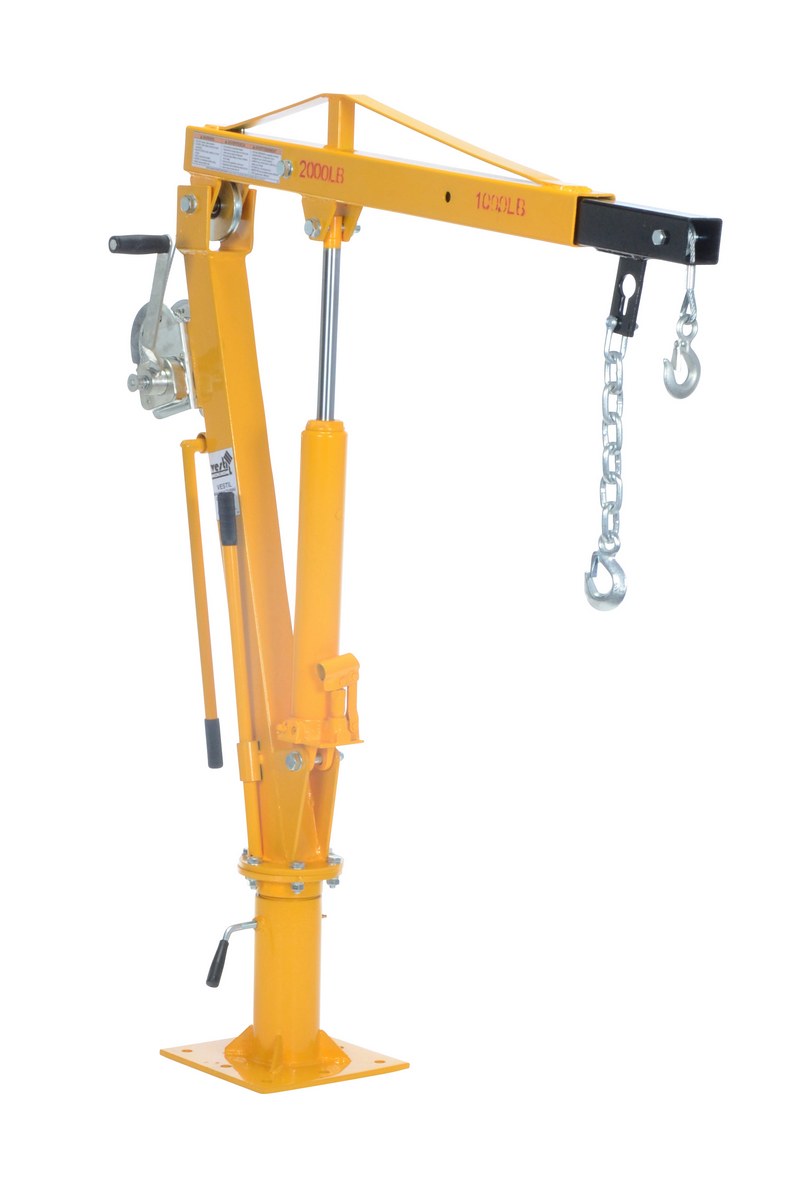

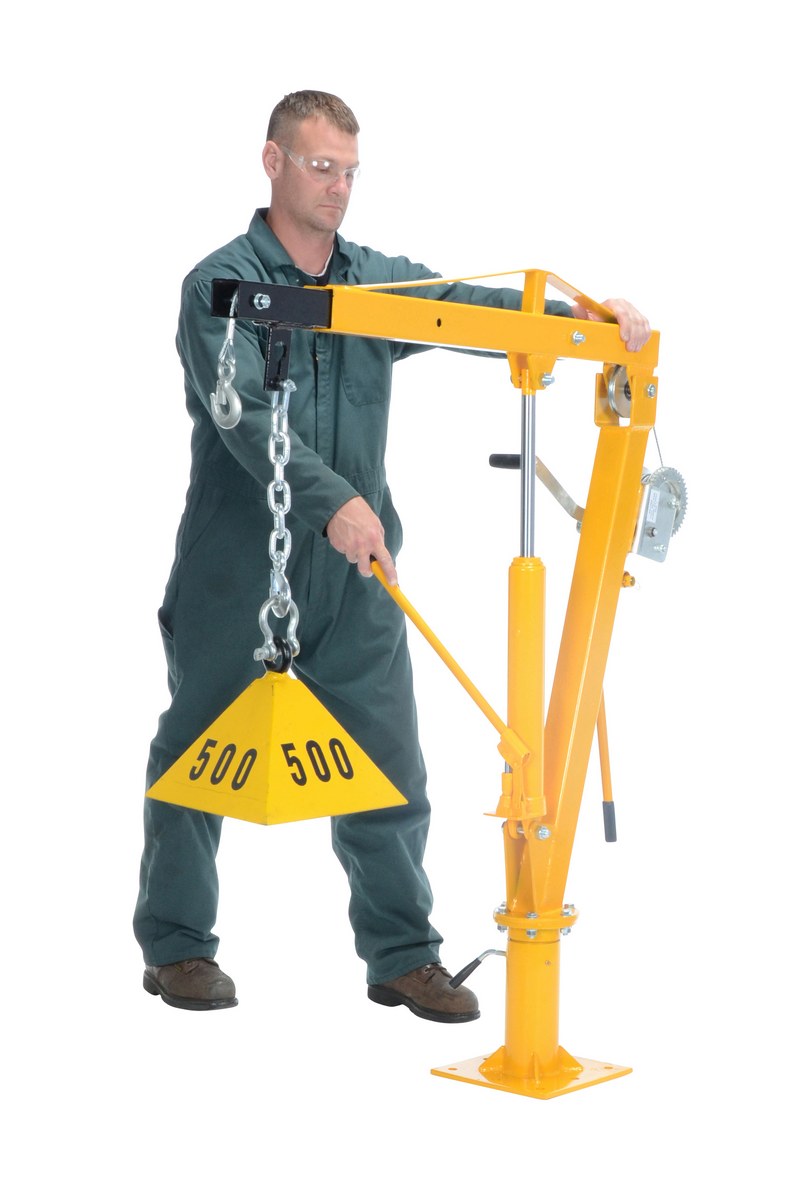

model: WTJ-4

WTJ-4_E.jpg WTJ-4_A.jpg WTJ-4_B.jpg WTJ-4_C.jpg
Print Friendly
Winch Operated Truck Jib Cranes
SERIES: WTJ

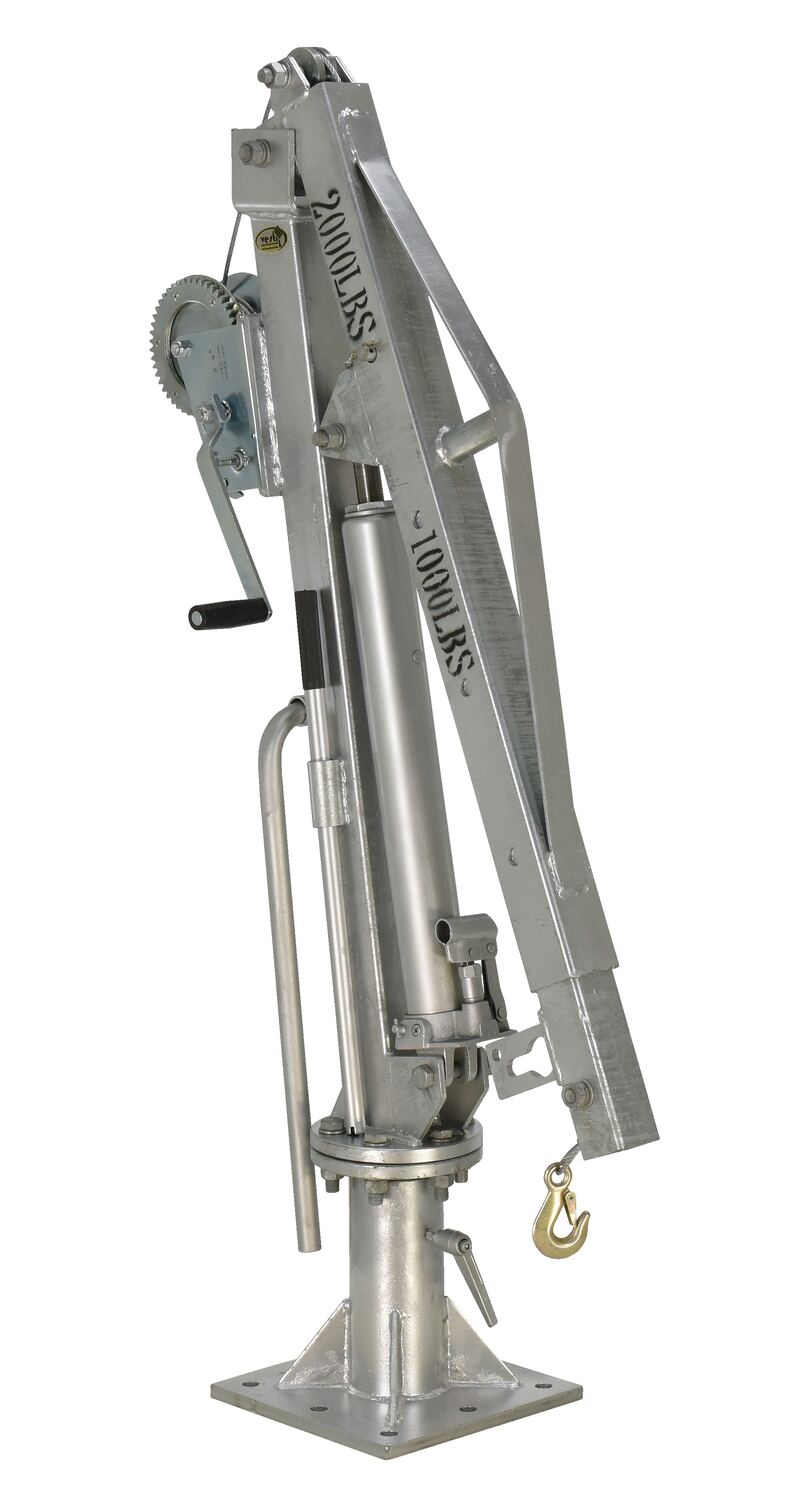

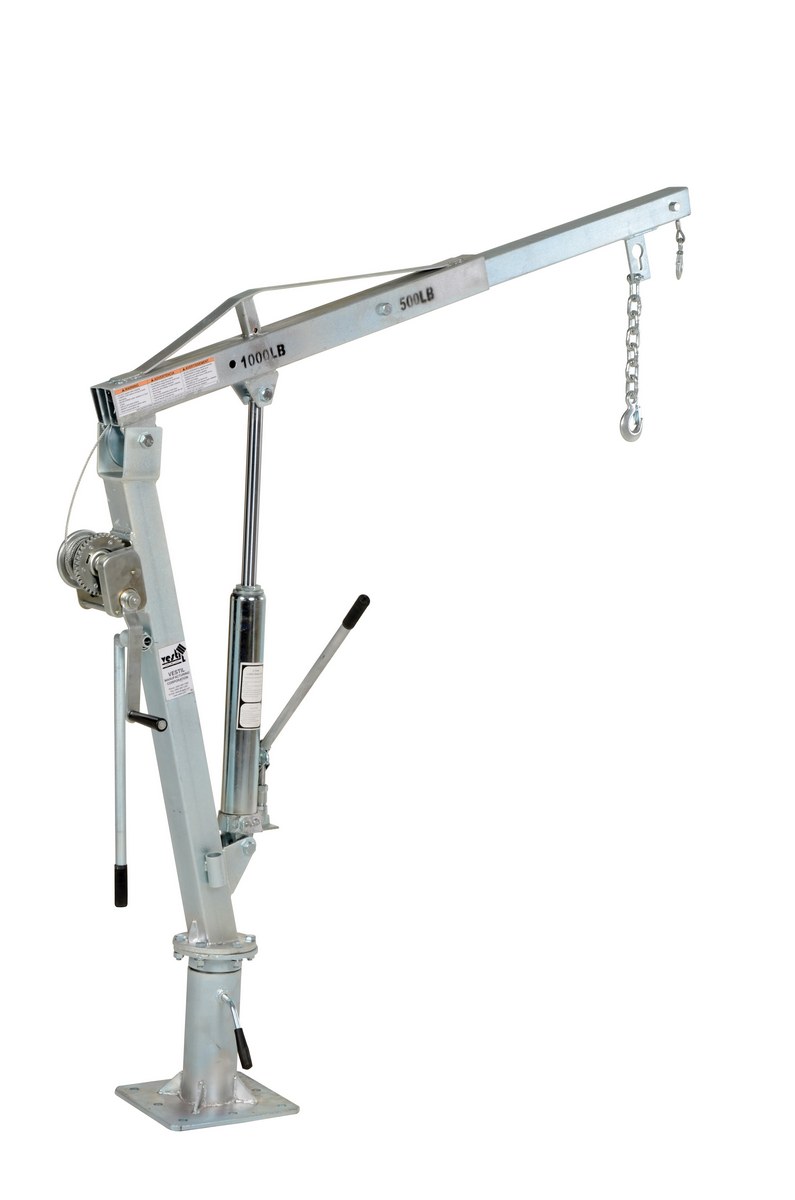

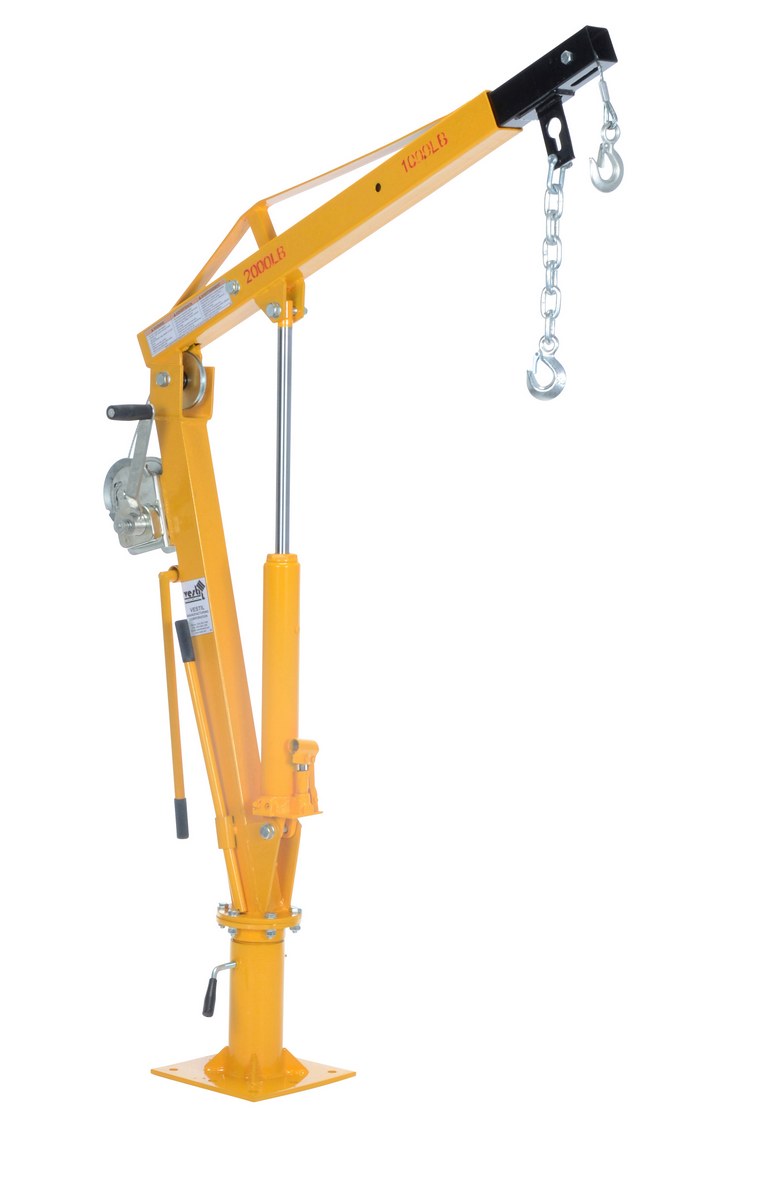

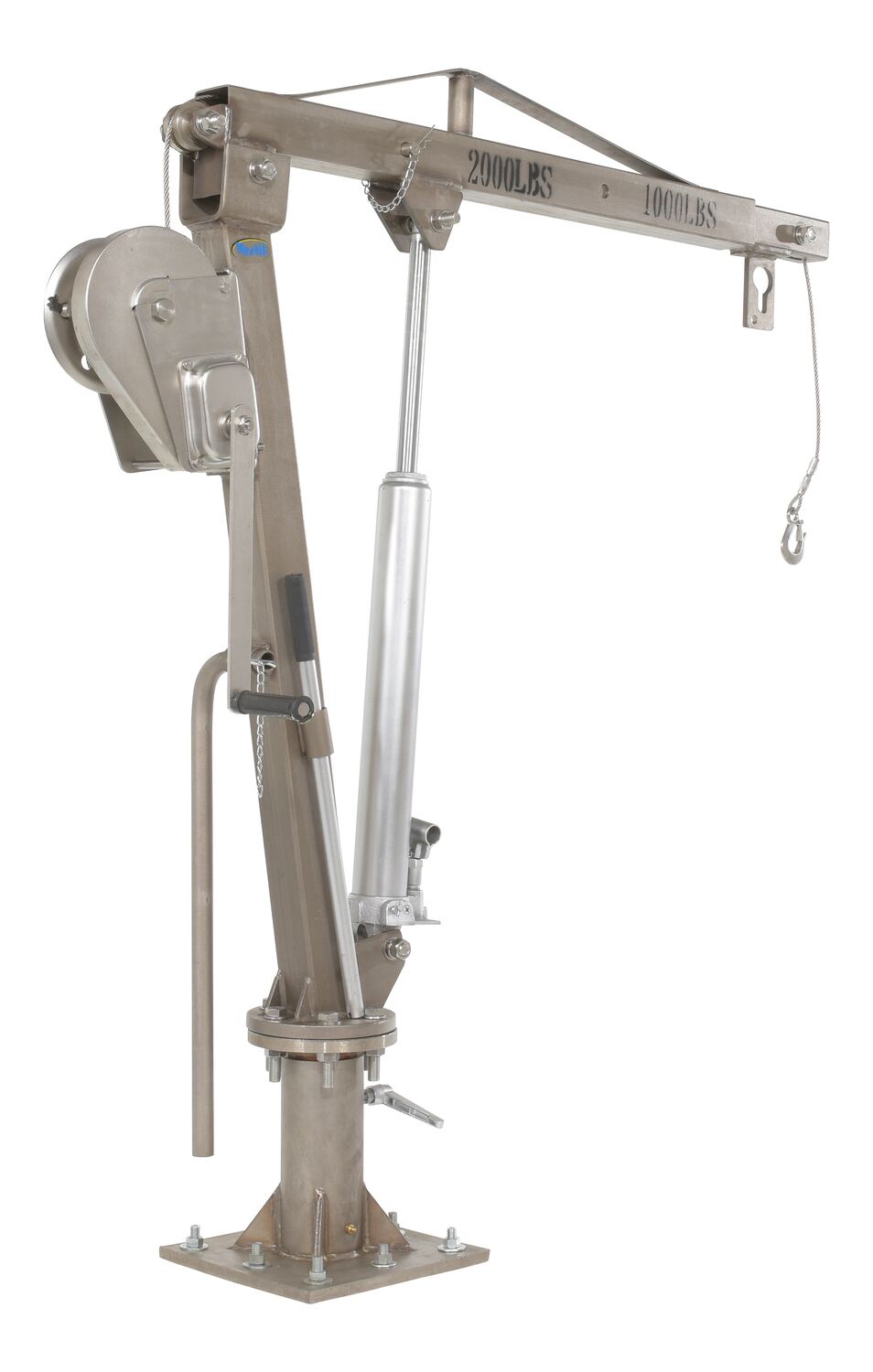

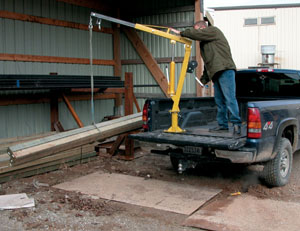

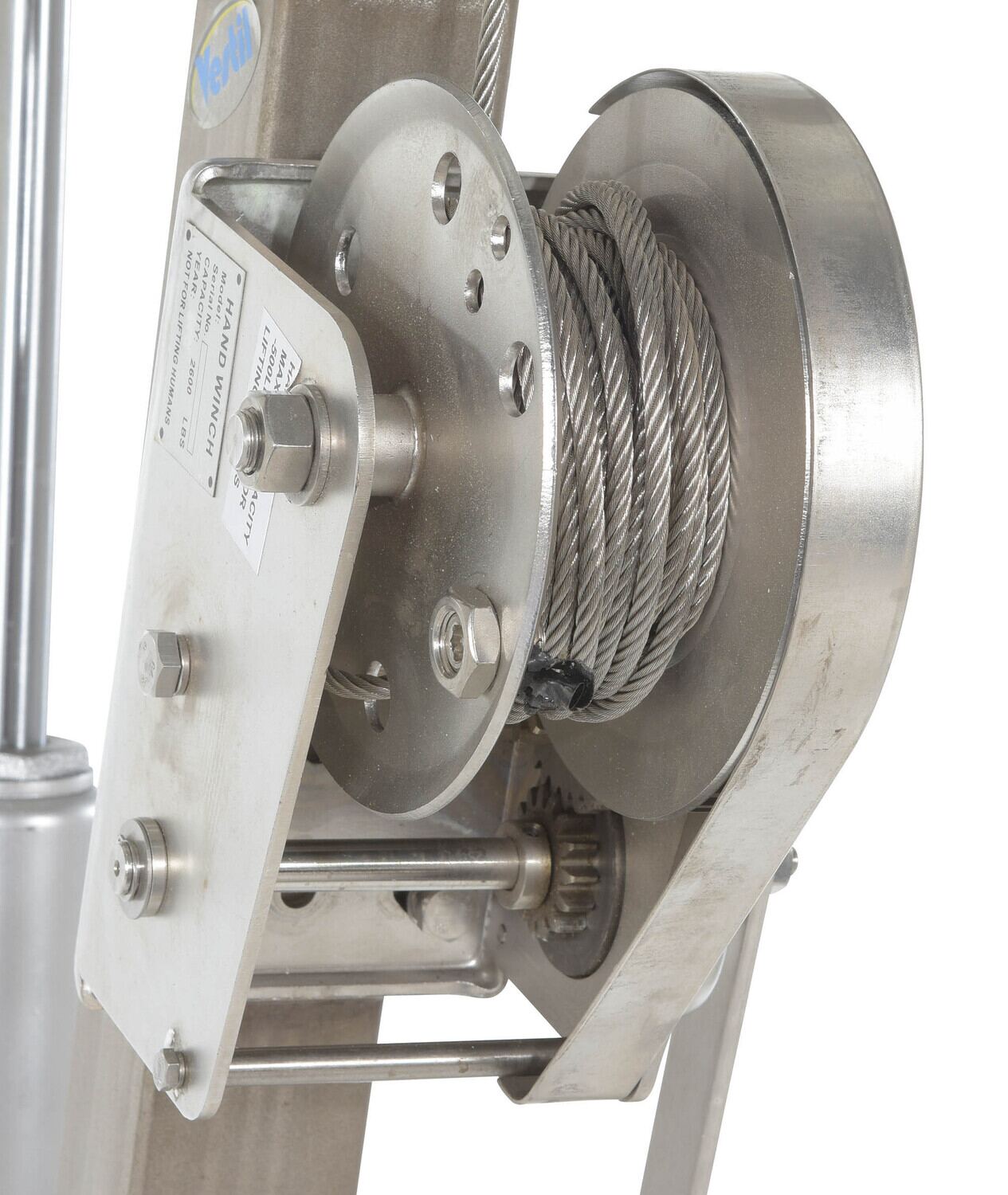

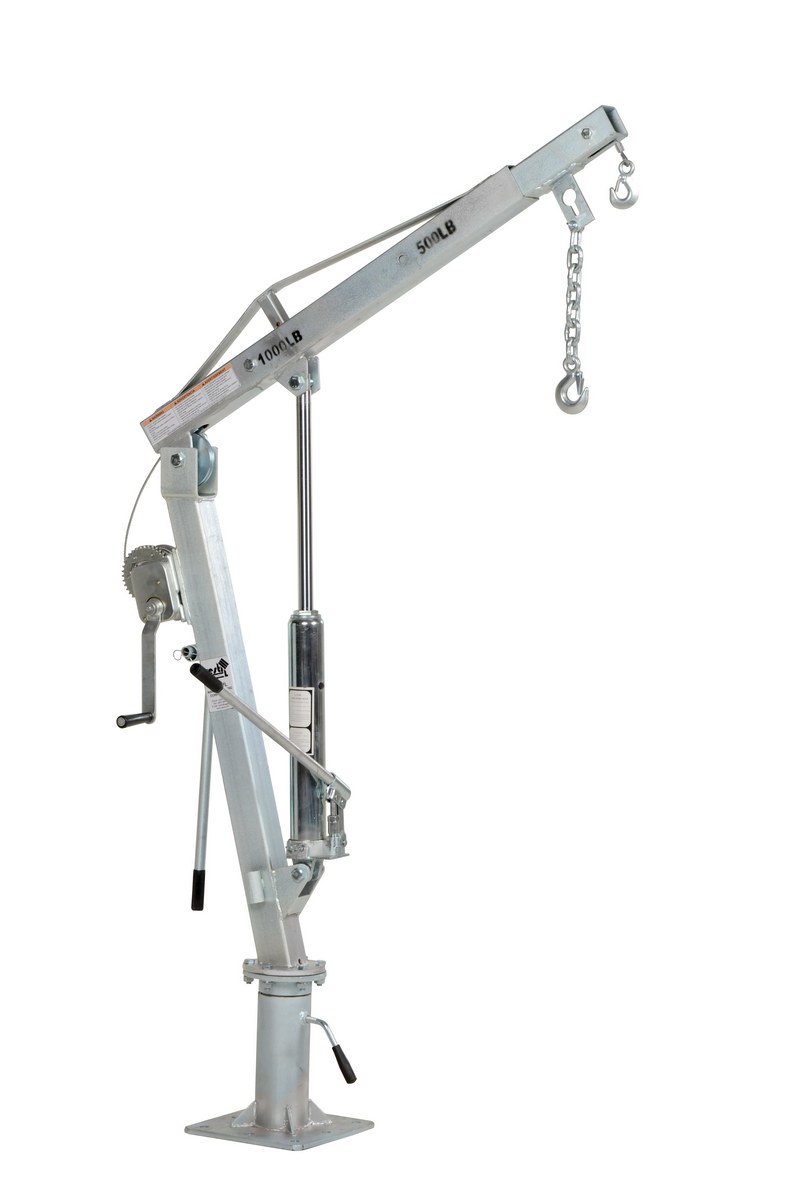

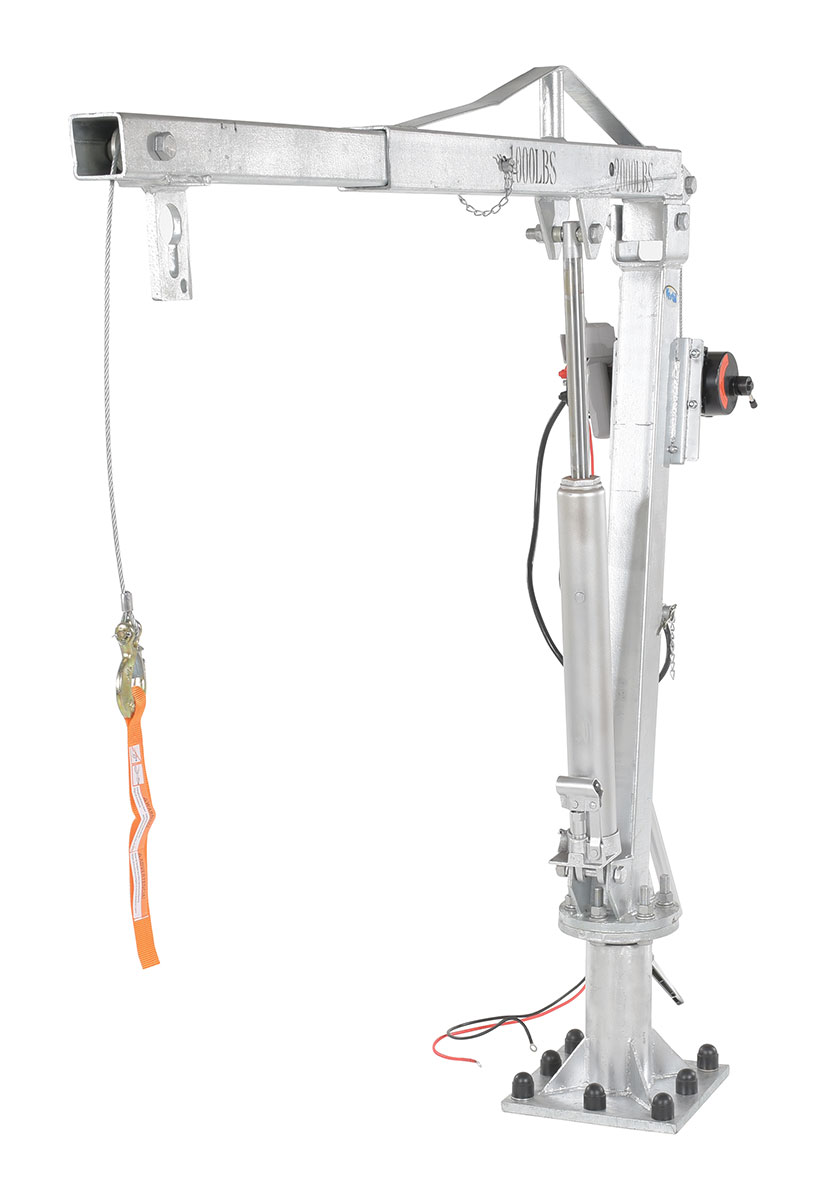

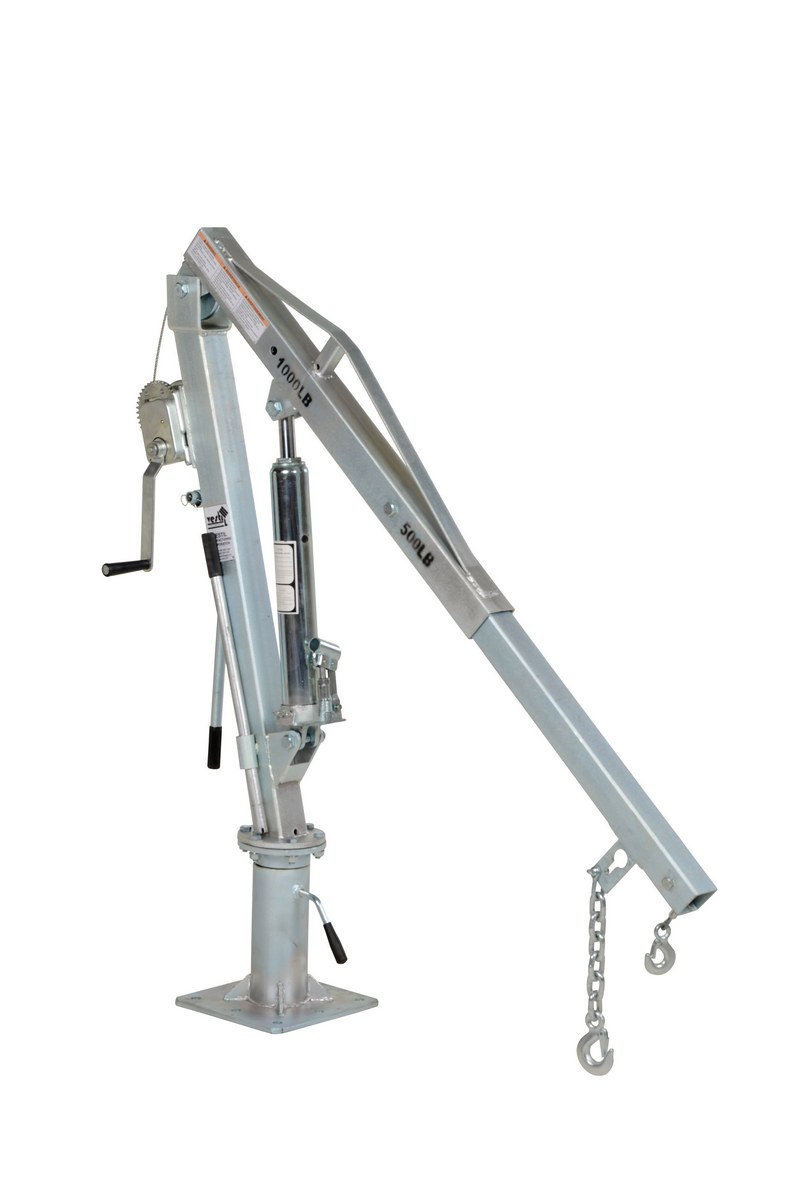

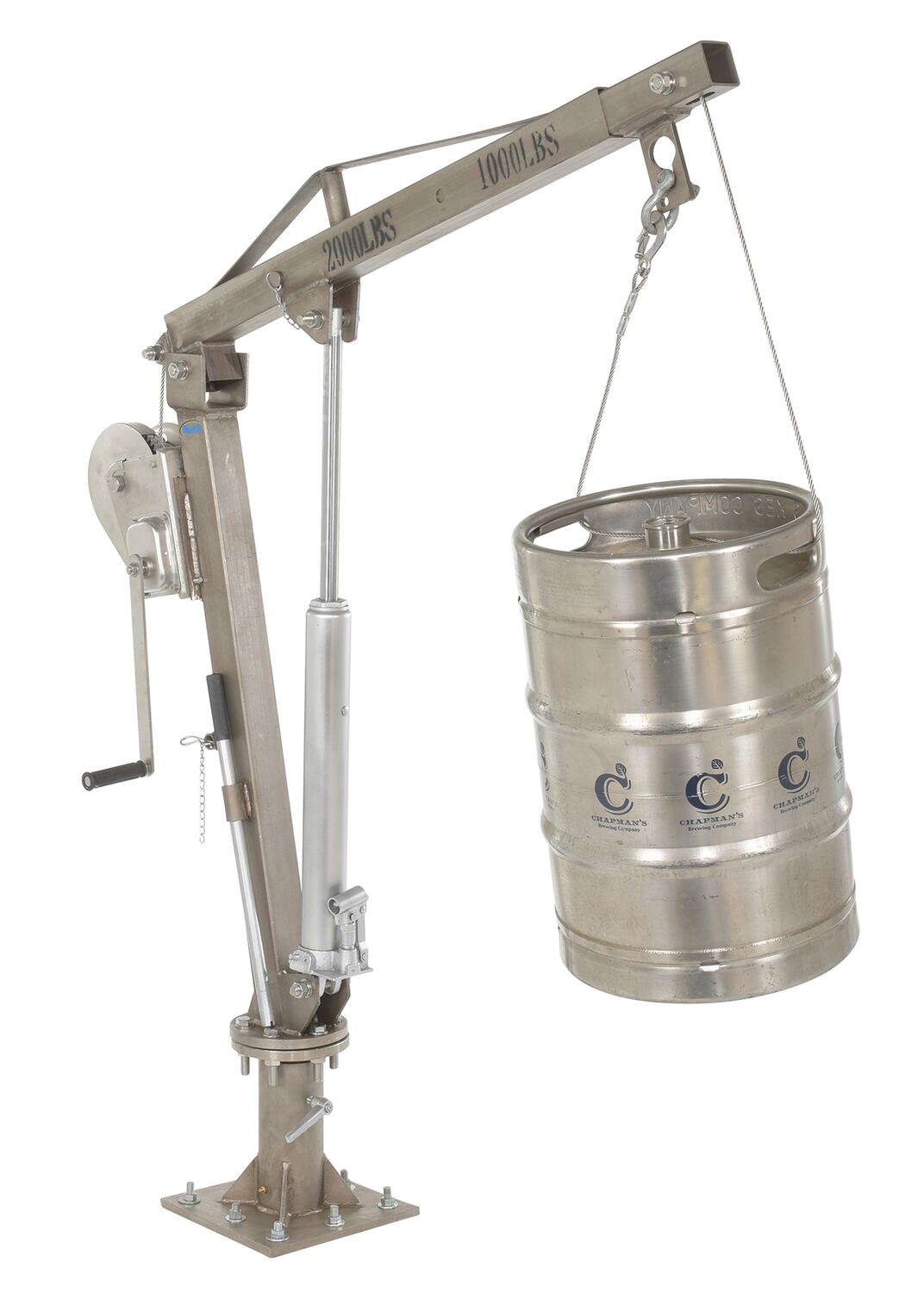

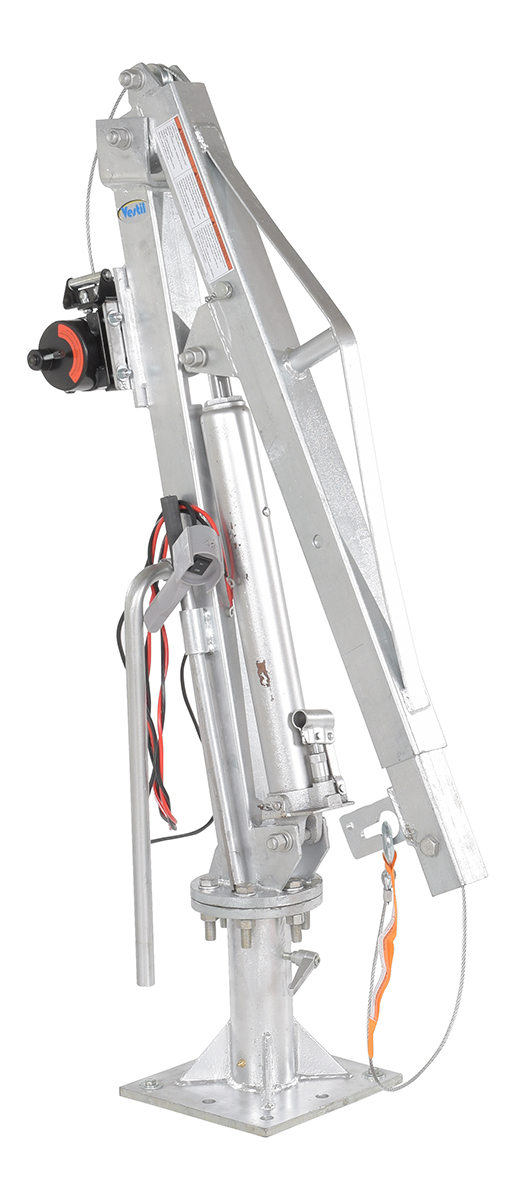

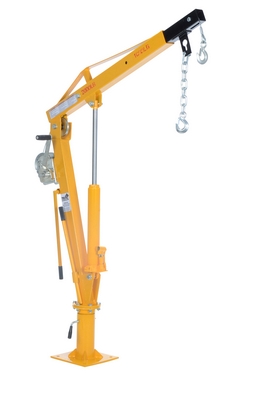

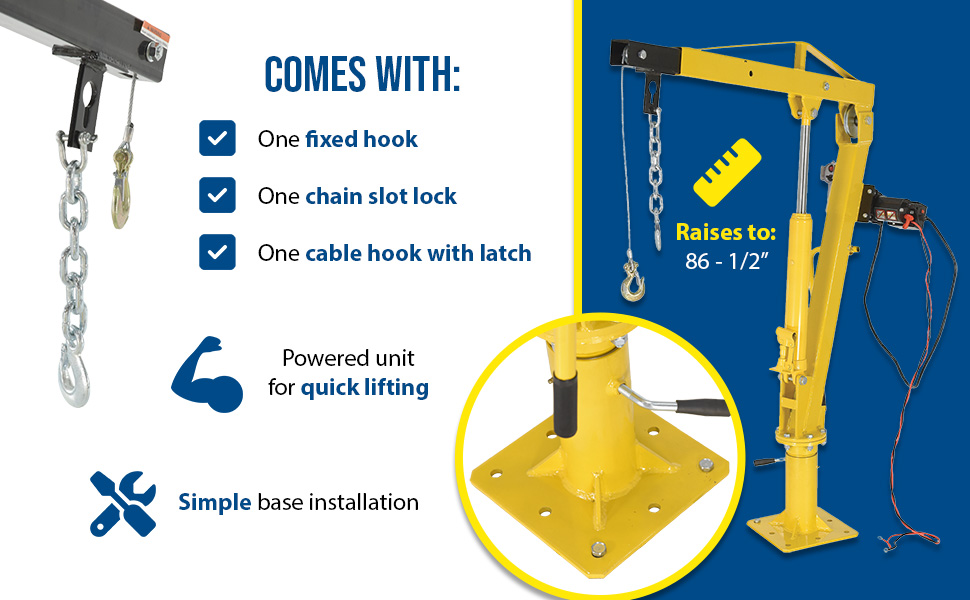

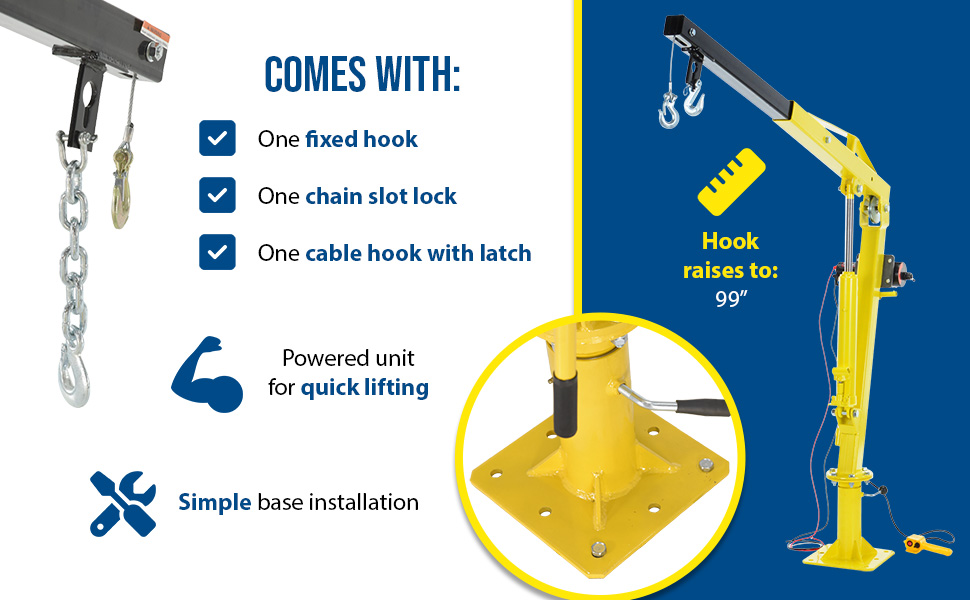

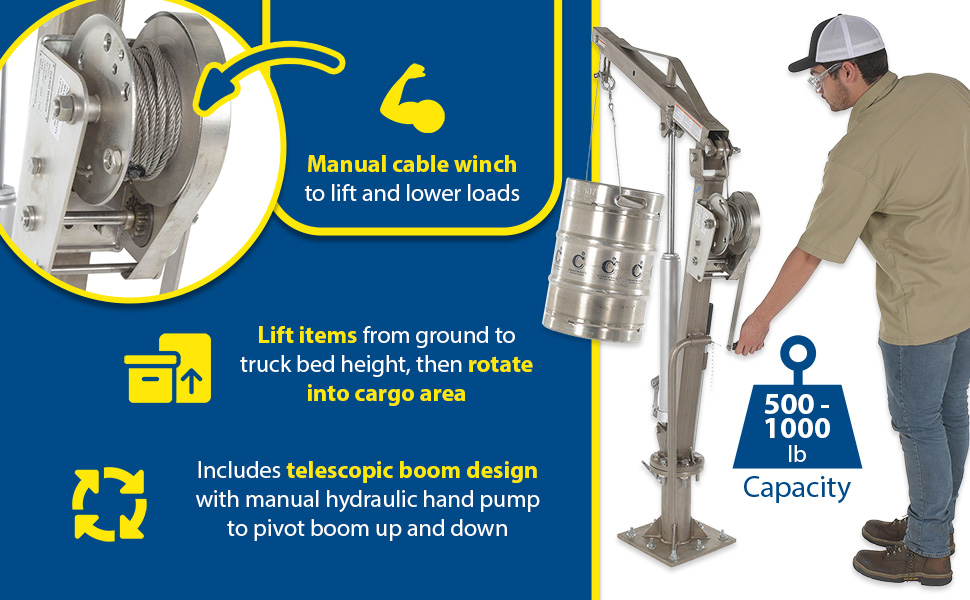

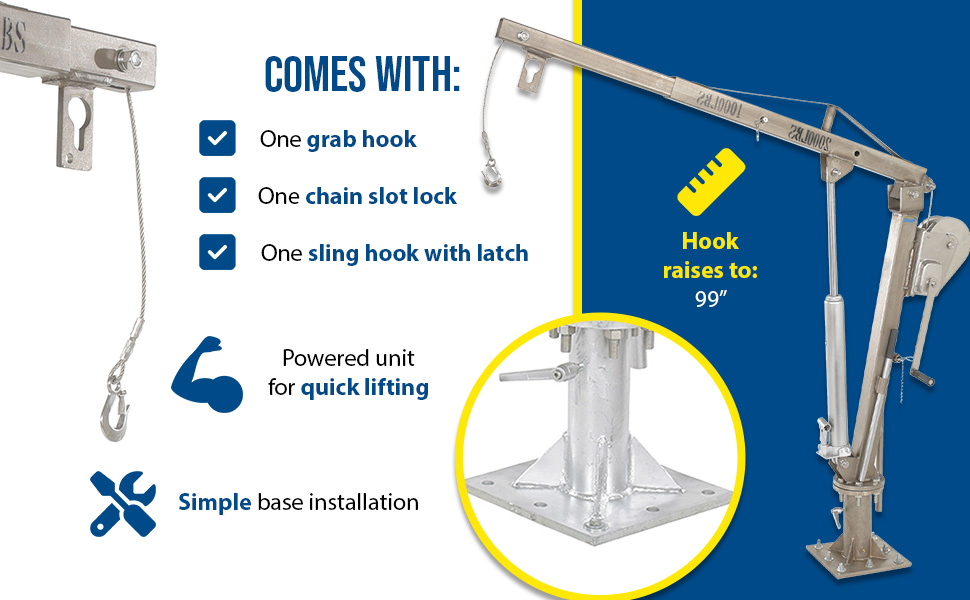

Installed in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle counterclockwise to lower load. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Welded steel construction. 12V DC power option available.


Installed in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle counterclockwise to lower load. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Welded steel construction. 12V DC power option available.


Other Engine Hoists & Floor Cranes

 Hitch-Mounted Truck Jib Crane Power Lift Jib Cranes Lifter Jibs Shop Crane Engine Hoists

WTJ-2

model WTJ-2

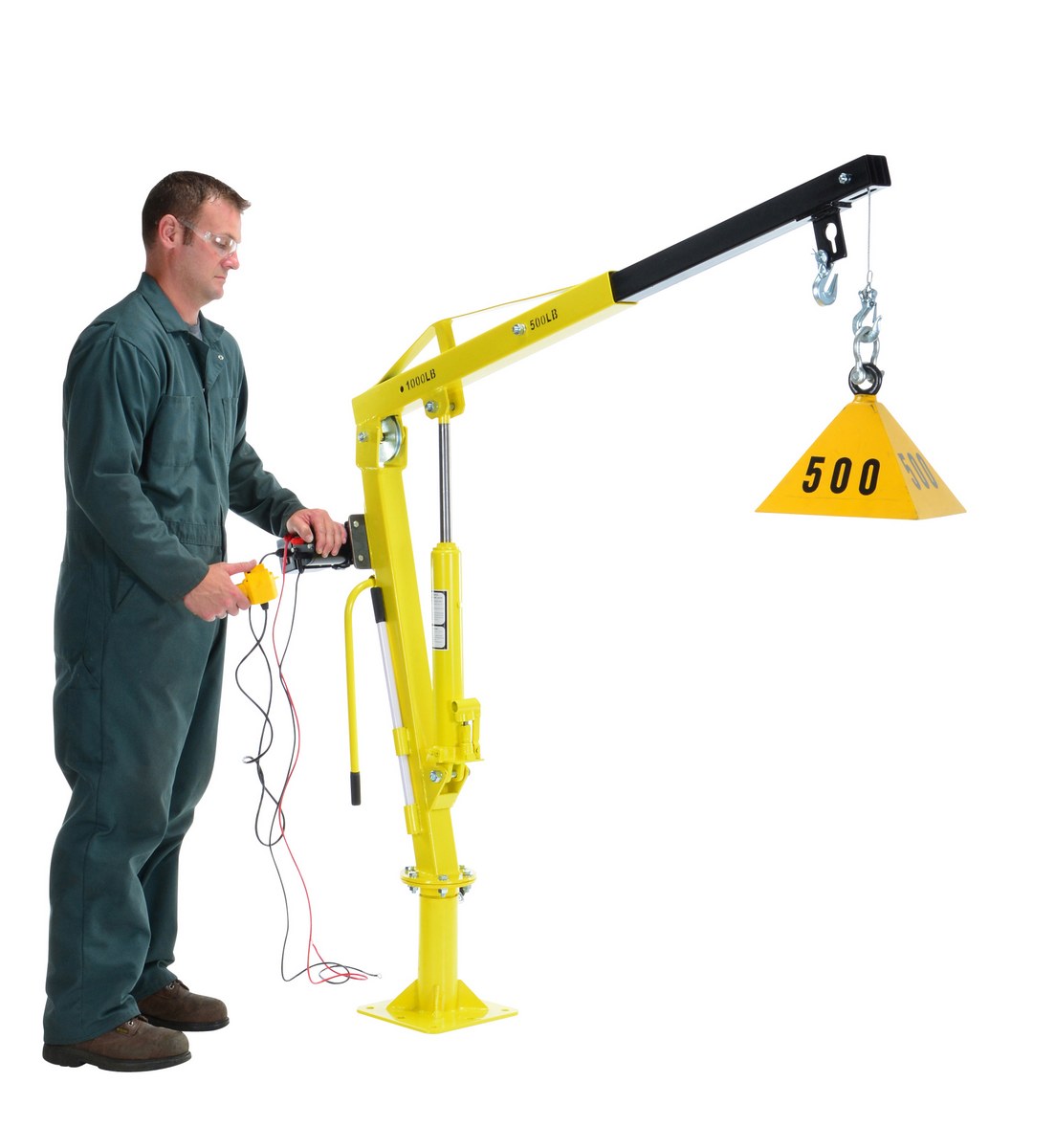

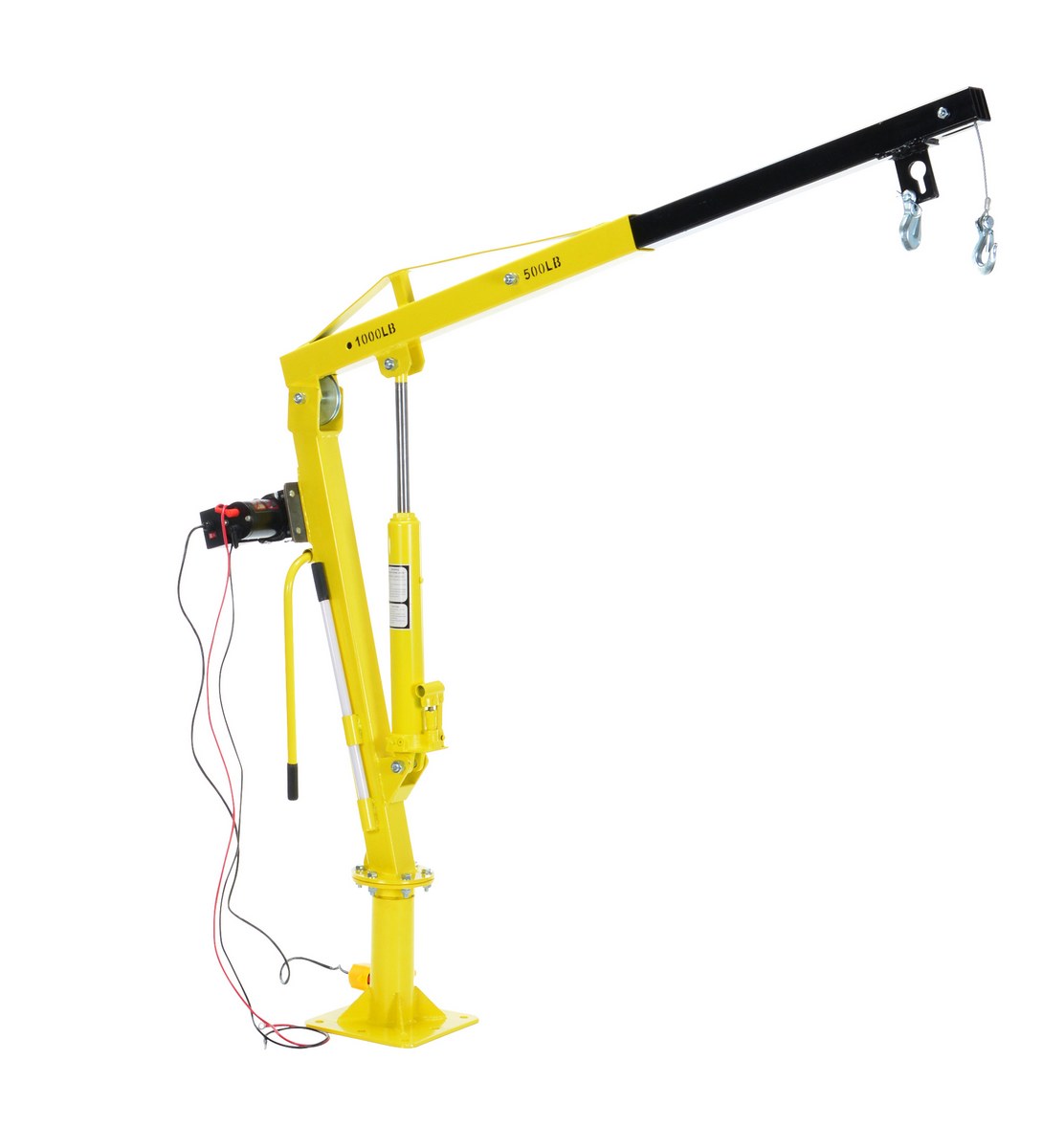

WTJ-2-DC

model WTJ-2-DC

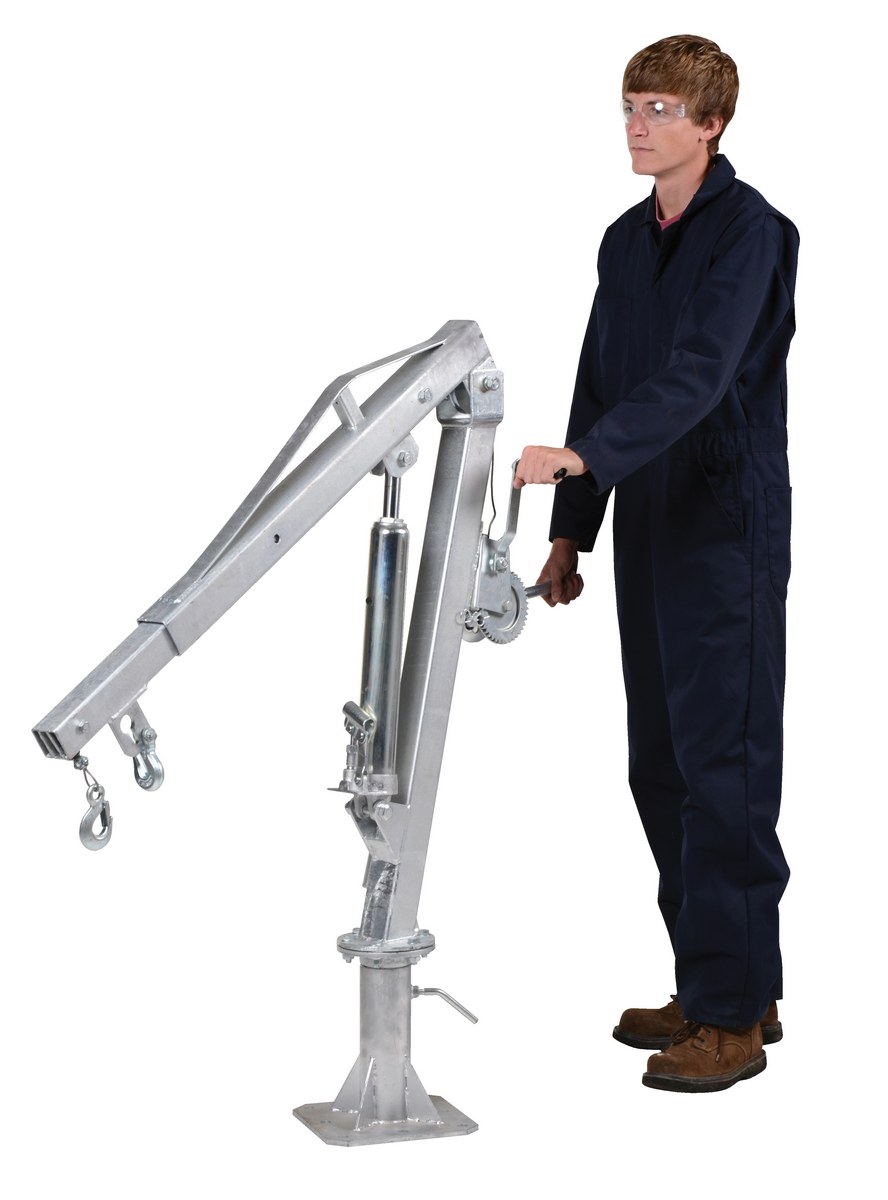

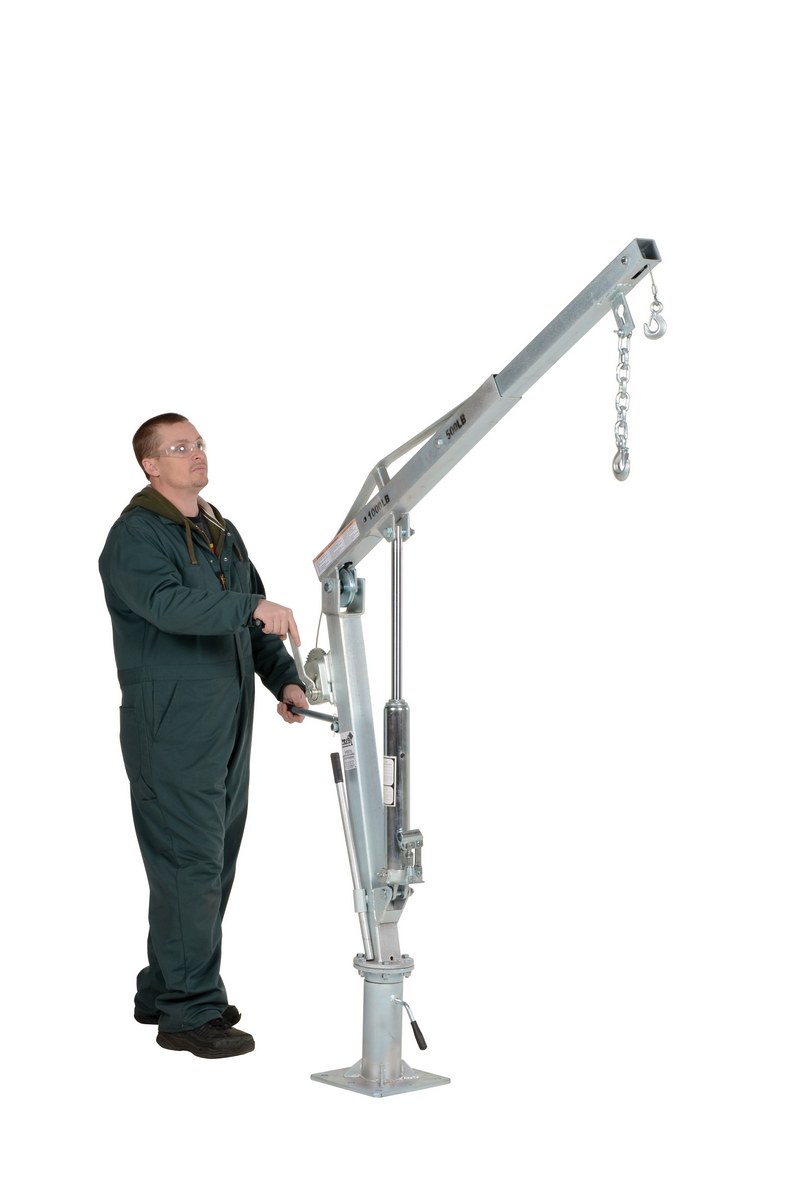

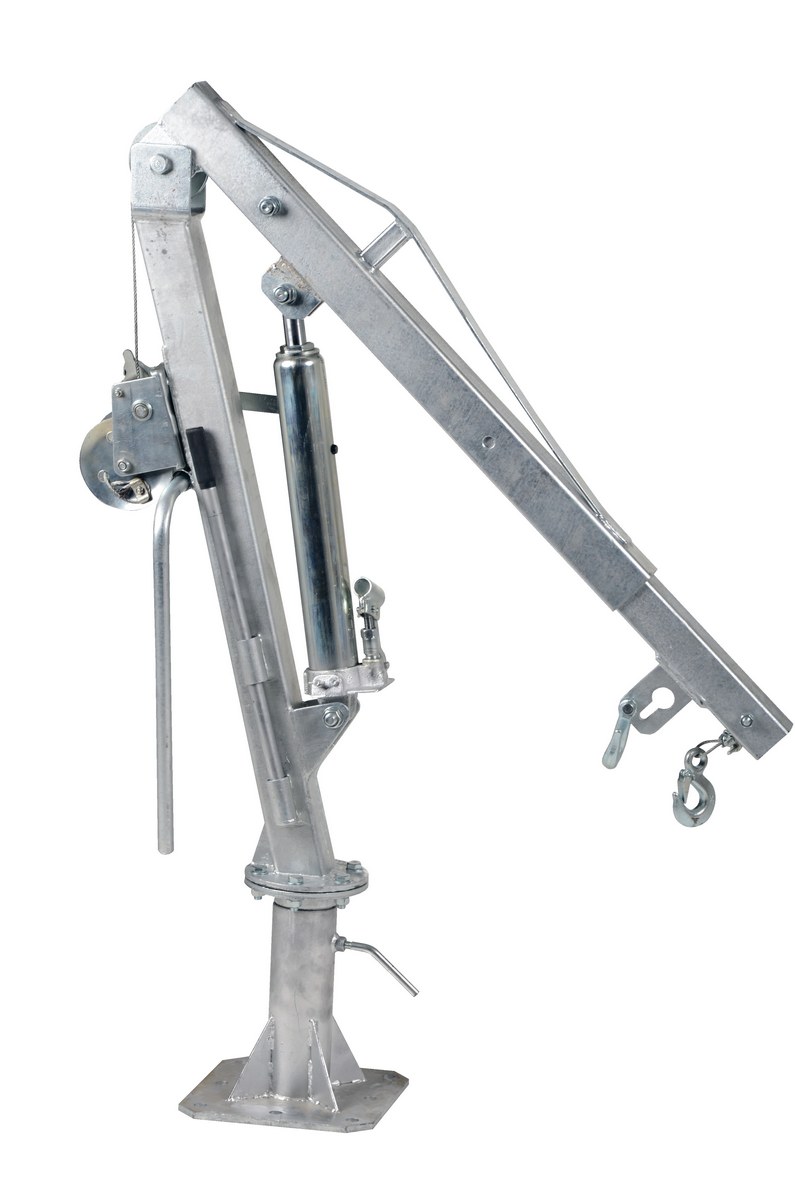

WTJ-2-G

model WTJ-2-G

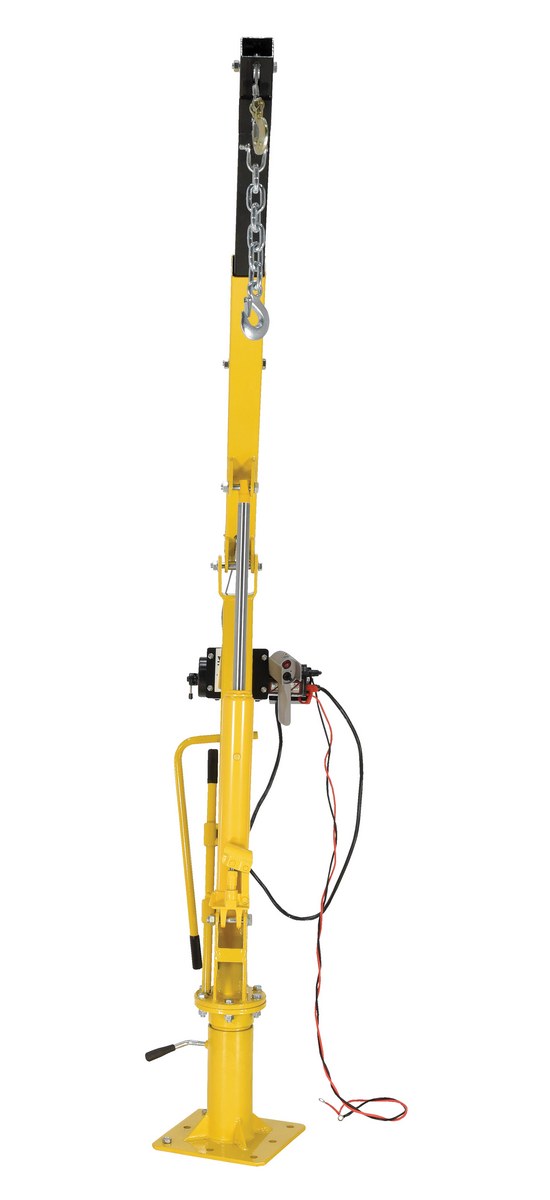

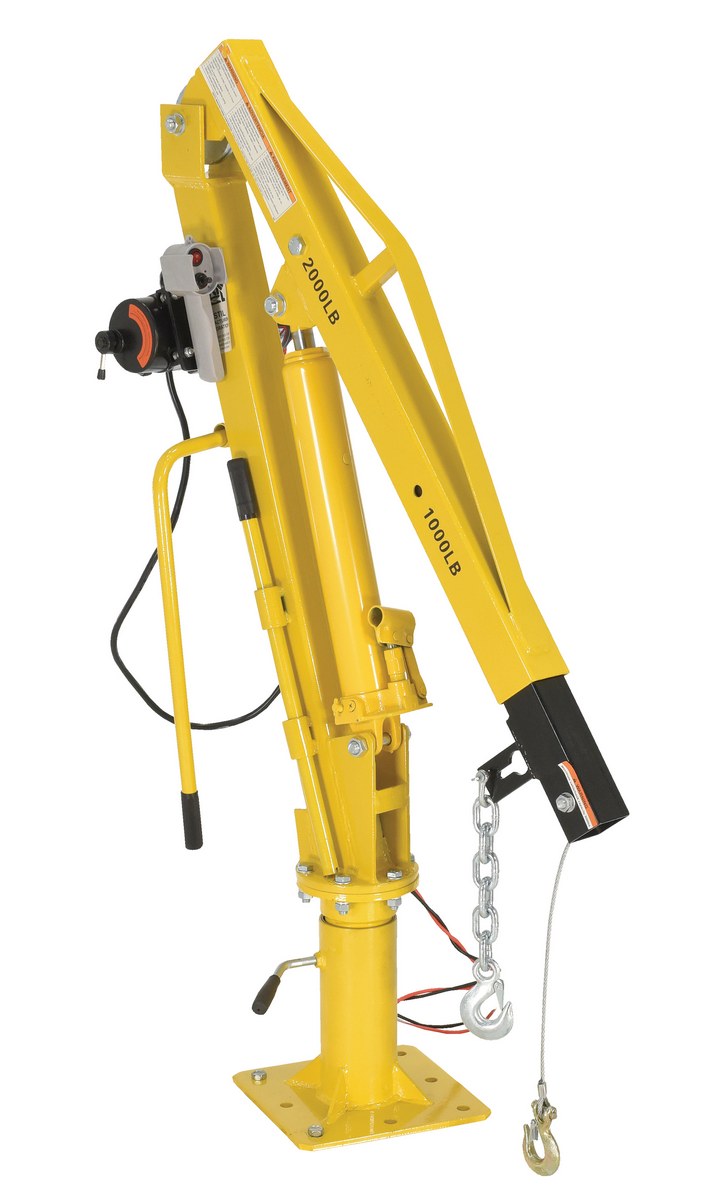

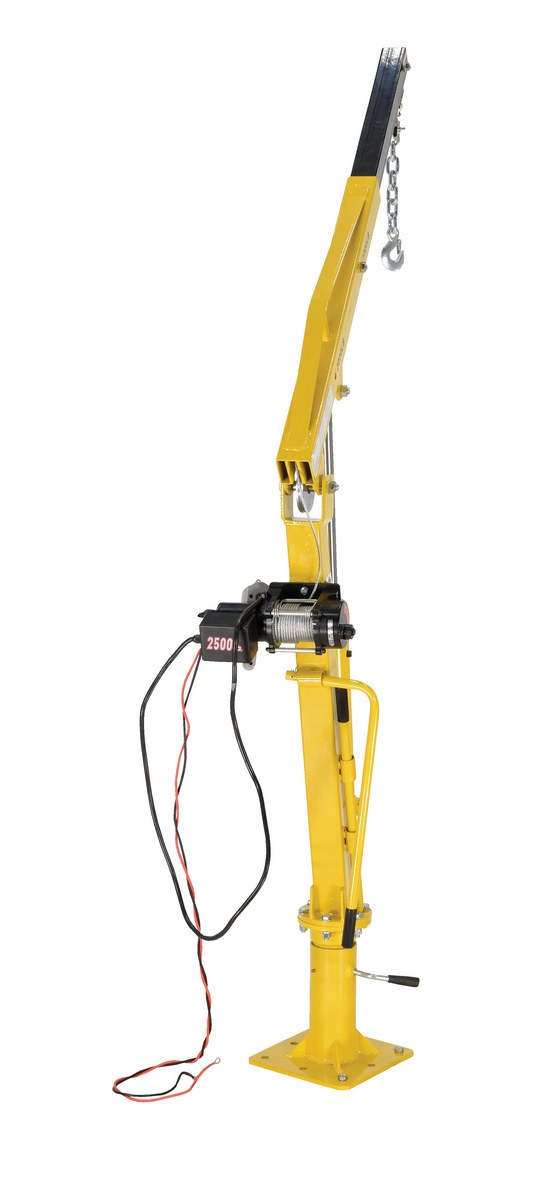

WTJ-4-DC

model WTJ-4-DC

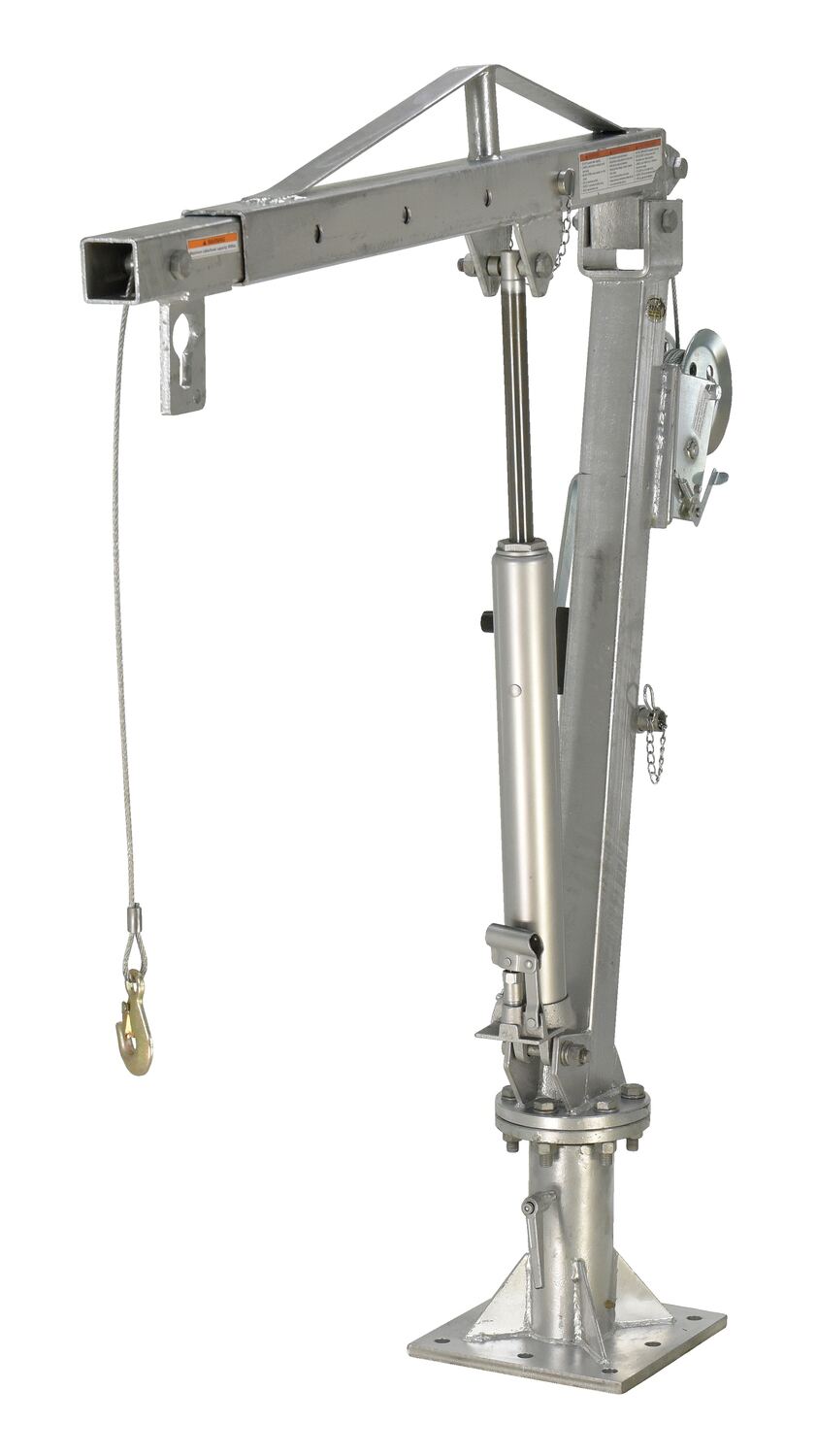

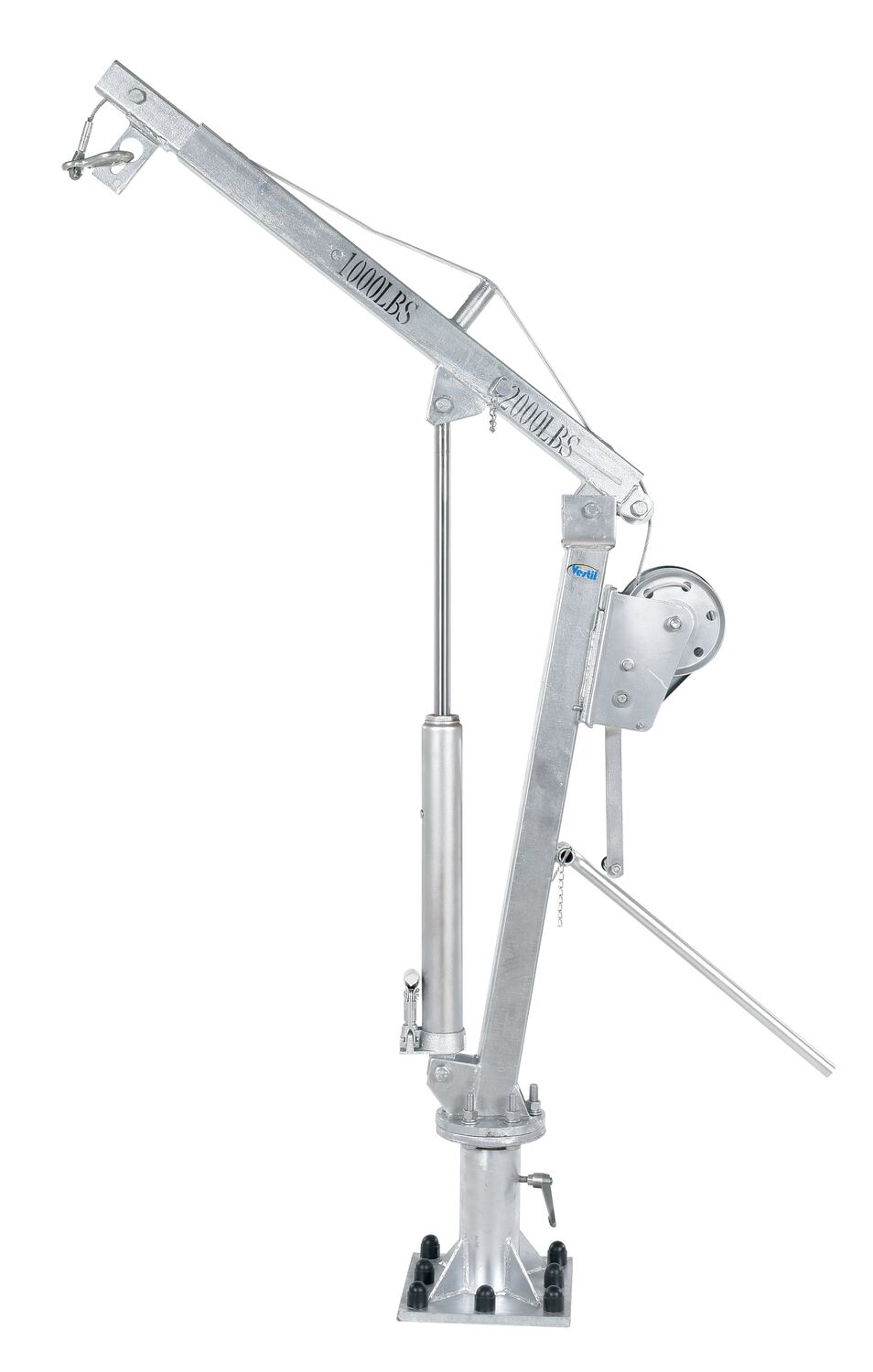

WTJ-4-G

model WTJ-4-G

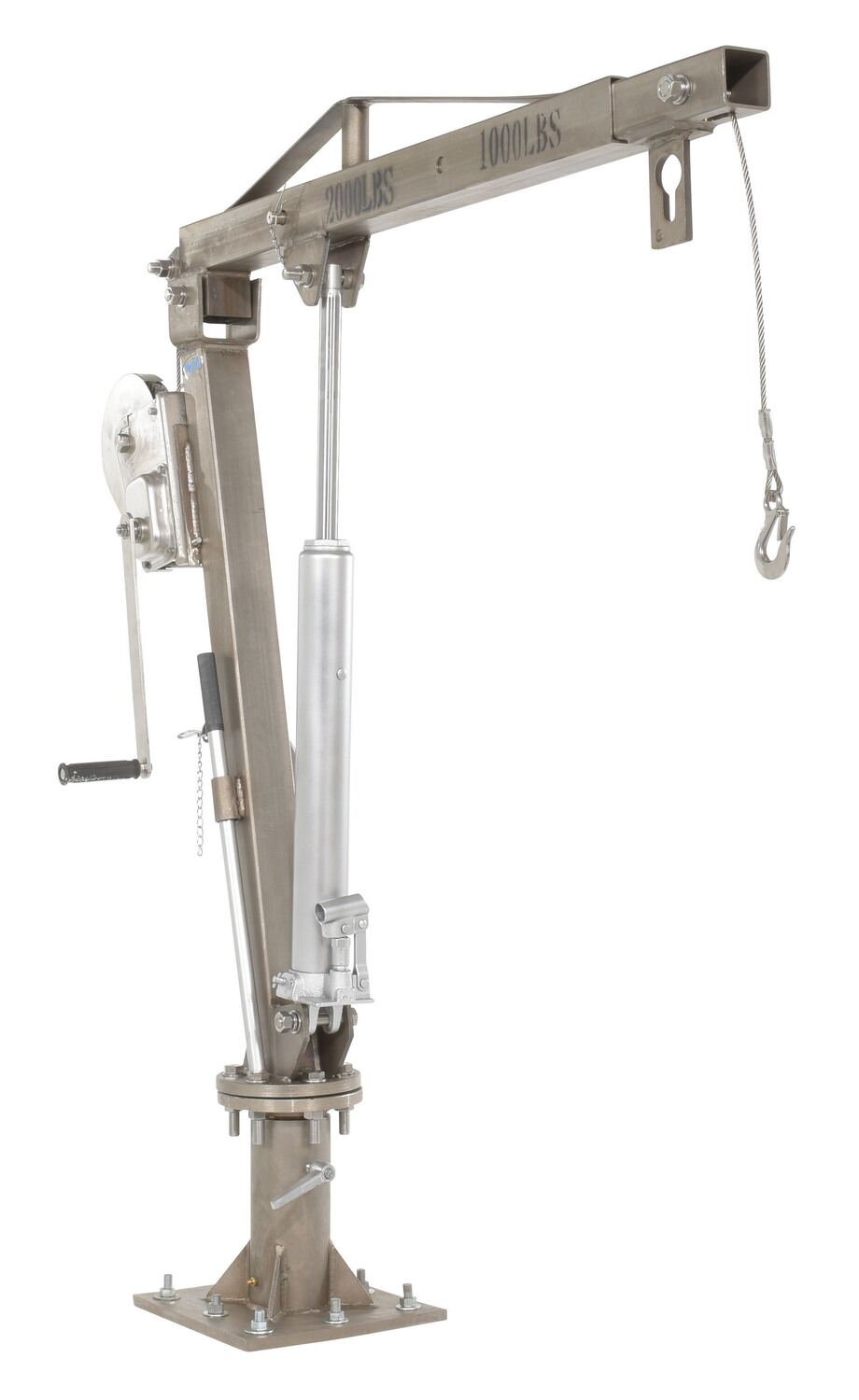

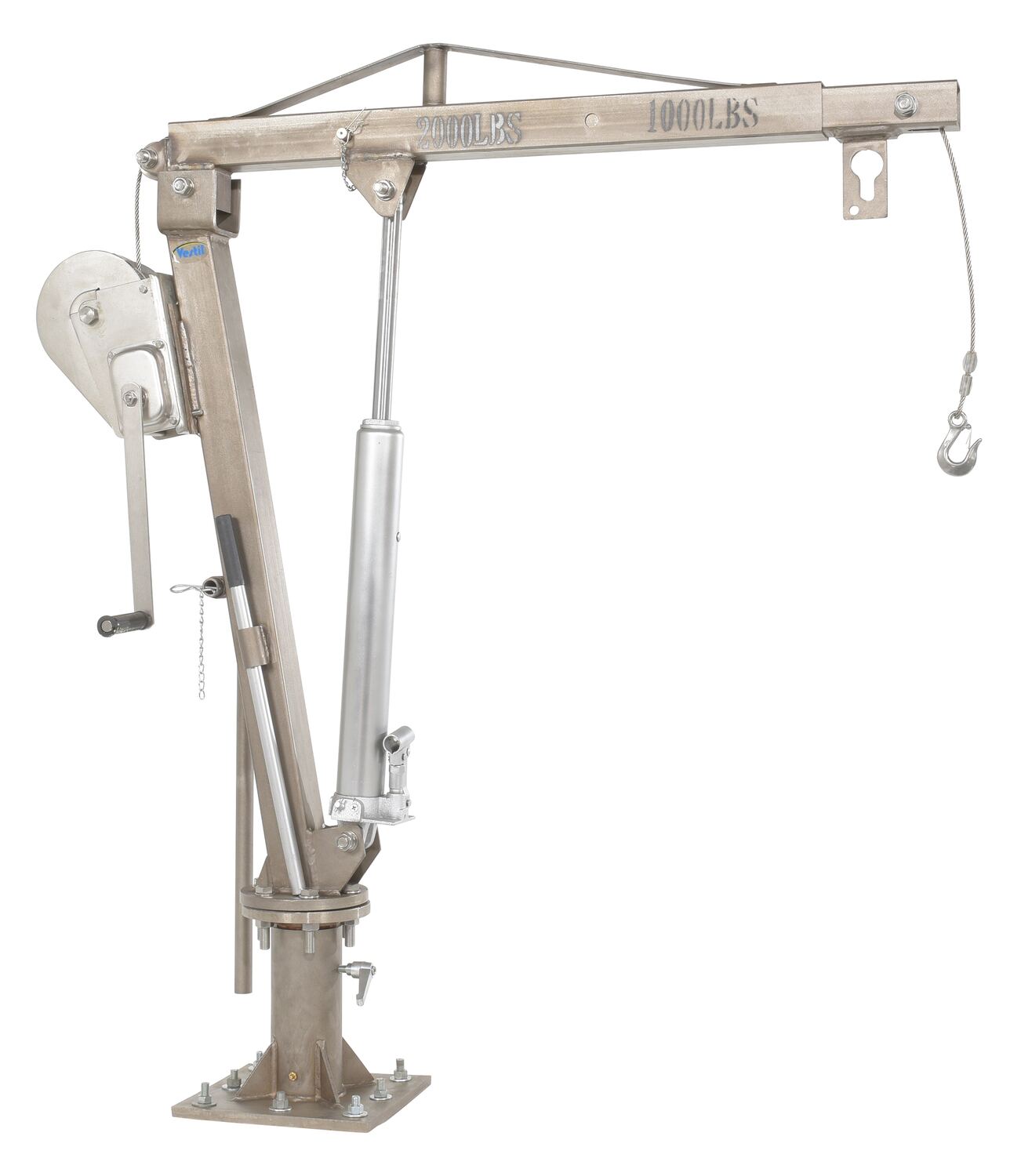

WTJ-4-SS

model WTJ-4-SS

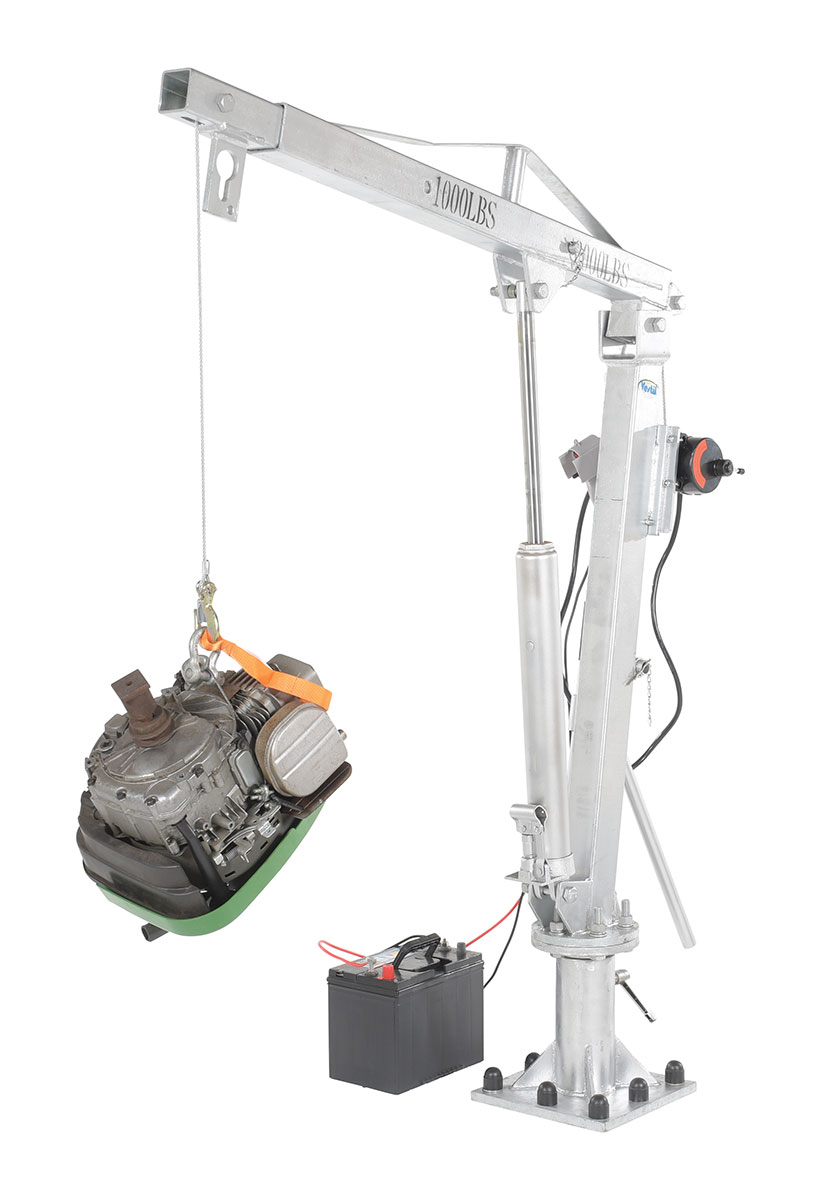

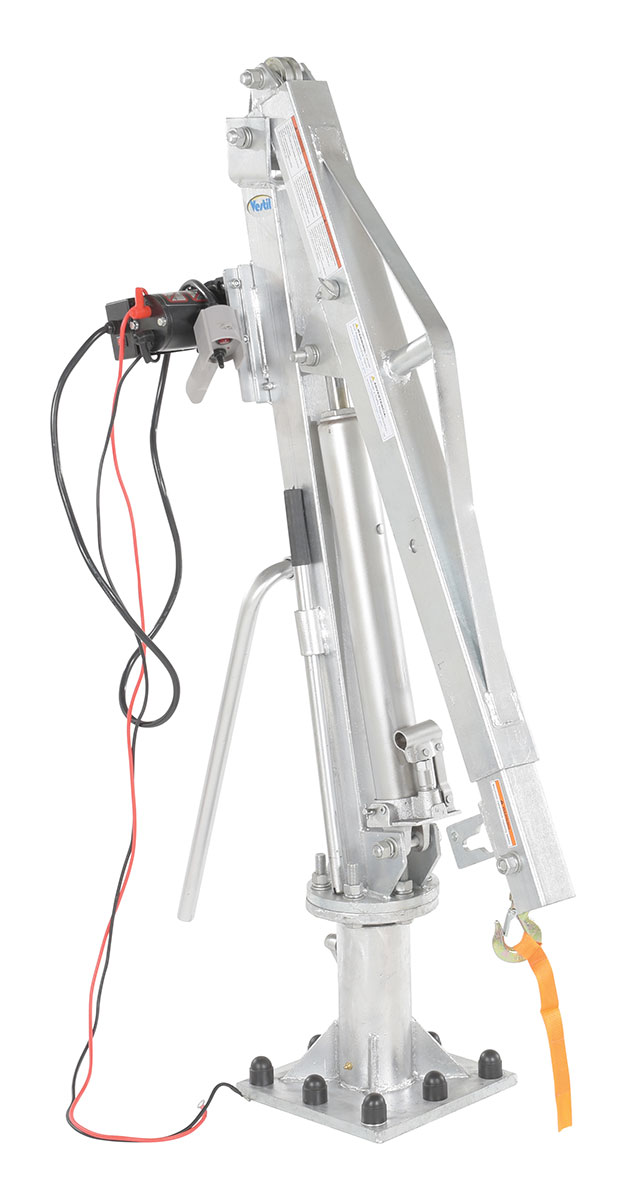

WTJ-4-G-DC

model WTJ-4-G-DC

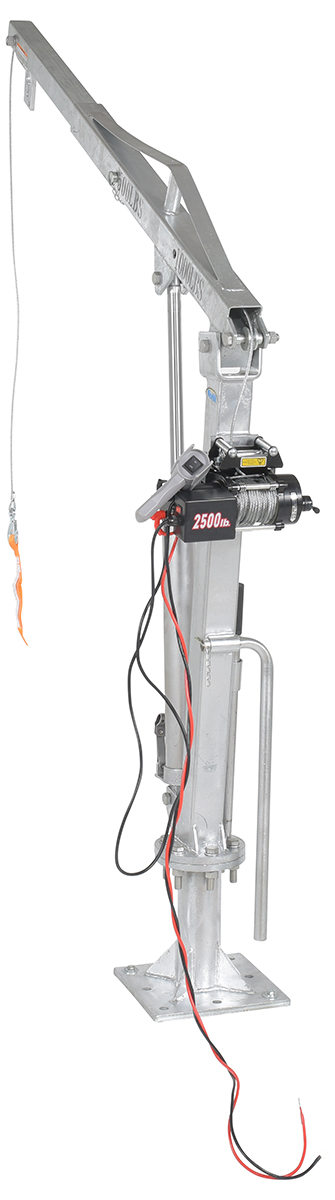

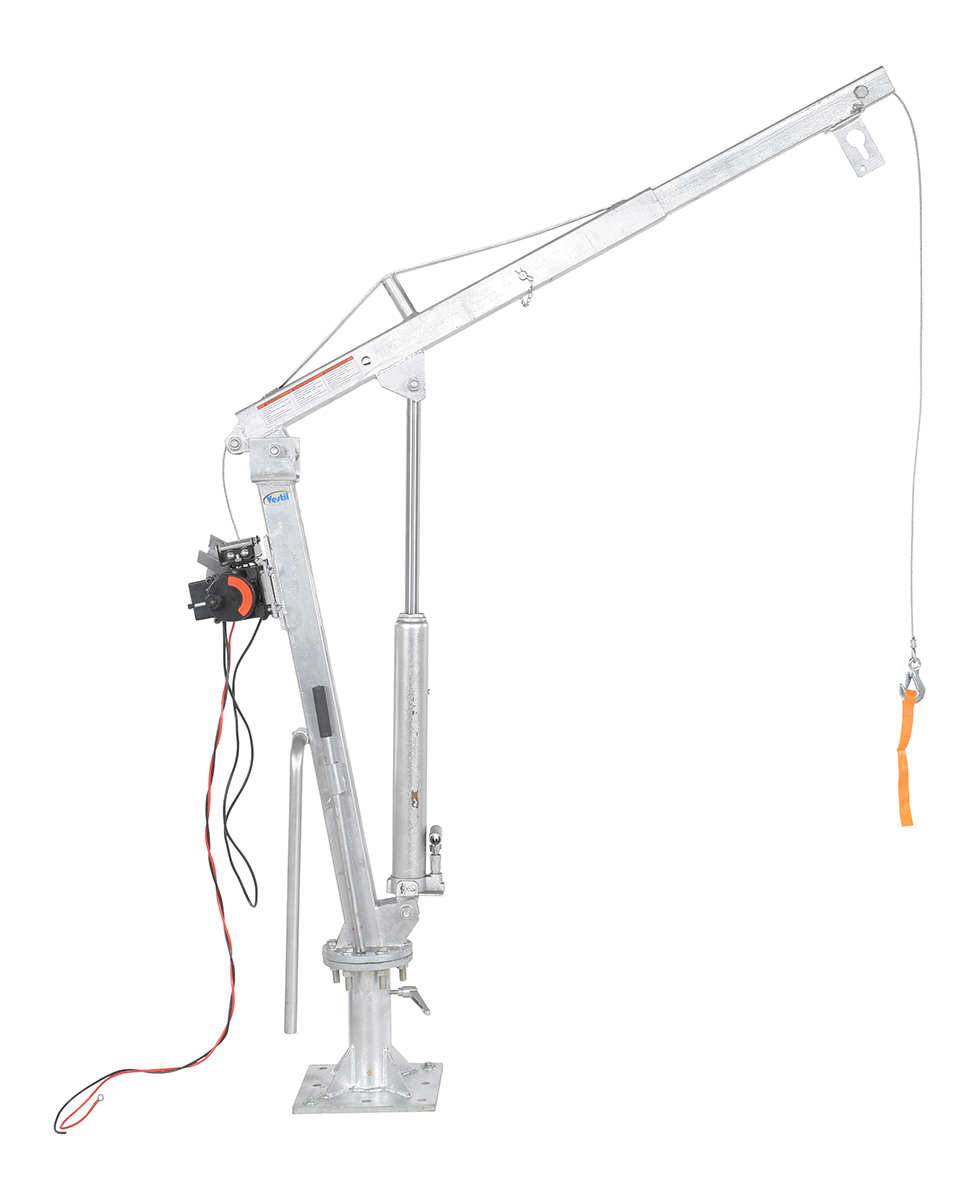

WTJ-2-G-DC

model WTJ-2-G-DC

How To Order
Share:


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
WTJ-2 90 Days Limited WarrantyWINCH OPERATED TRUCK JIB CRANE 500 EXTUniform Cable Winch Capacity (lb.): 500135
WTJ-2-DC 90 Days Limited WarrantyWINCH OPERATED TRUCK JIB CRANE - DCUniform Cable Winch Capacity (lb.): 500160
WTJ-2-G 90 Days Limited WarrantyWINCH TRUCK JIB CRANE .5K EXTENDED GALVUniform Cable Winch Capacity (lb.): 500134
WTJ-2-G-DC 90 Days Limited WarrantyWINCH OPERATED TRUCK JIB CRANE - GALV DCUniform Cable Winch Capacity (lb.): 500165
WTJ-2-SS 90 Days Limited WarrantyWINCH TRUCK JIB CRANE .5K EXTENDED SSUniform Cable Winch Capacity (lb.): 500134
WTJ-4 90 Days Limited WarrantyWINCH OPERATED TRUCK JIB CRANE 1K EXTENDUniform Cable Winch Capacity (lb.): 500145
WTJ-4-DC 90 Days Limited WarrantyWINCH OPERATED TRUCK JIB CRANE - DCUniform Capacity (lb.): 1000204
WTJ-4-G 90 Days Limited WarrantyWINCH TRUCK JIB CRANE 1K EXTENDED GALVUniform Cable Winch Capacity (lb.): 500218
WTJ-4-G-DC 90 Days Limited WarrantyWINCH OPERATED TRUCK JIB CRANE - GALV DC: 245
WTJ-4-SS 90 Days Limited WarrantyWINCH TRUCK JIB CRANE 1K EXTENDED SSUniform Cable Winch Capacity (lb.): 500218

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Winch Operated Truck Jib Crane
Model Image PDF's Operation Boom Fixed Hook
Capacity
(lbs)		 Boom Reach Lift
Range		 Wt.
(lbs)
Painted Safety Yellow Finish

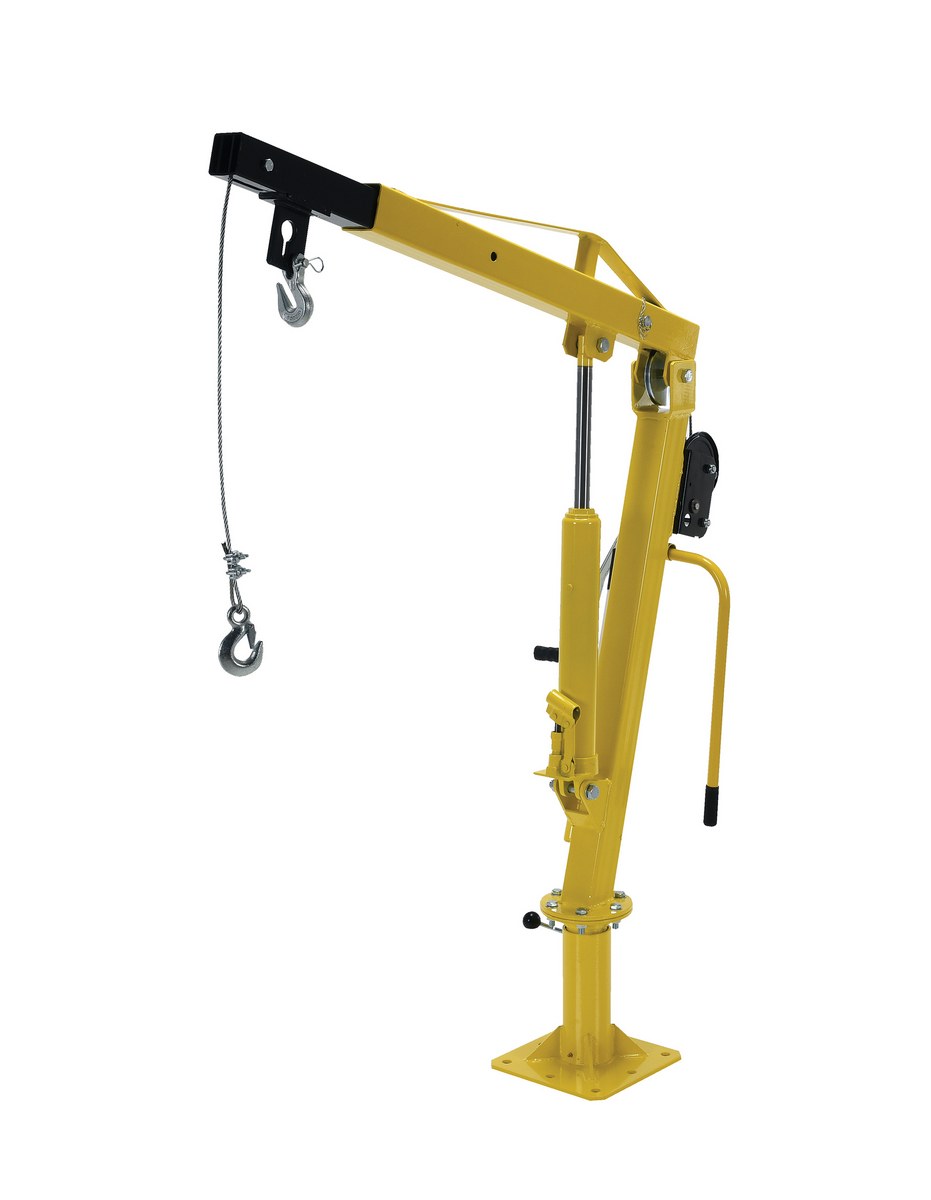

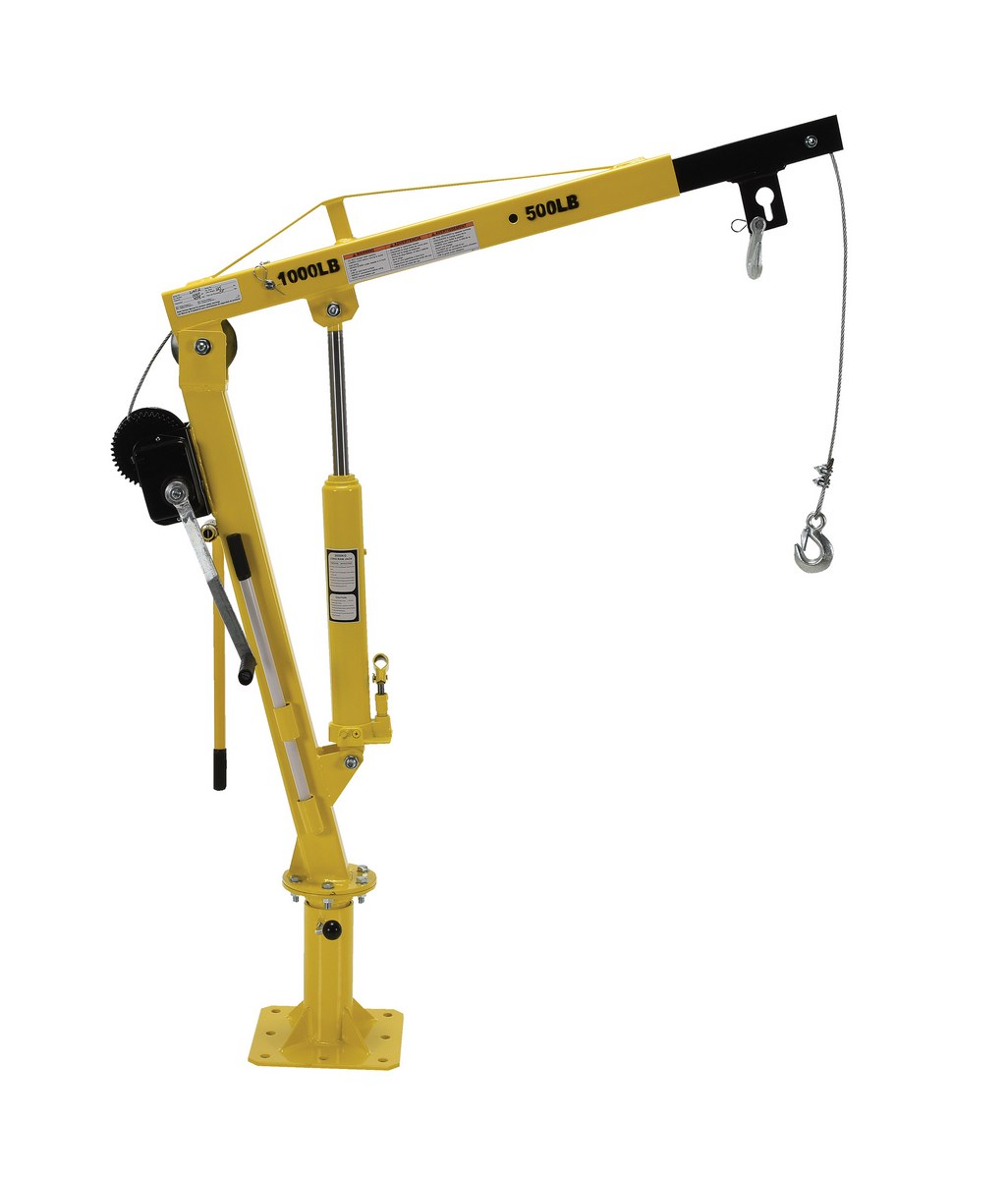

WTJ-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Hand Pump Extended
Retracted		 500
1,000		 54"
30-1/4"		 0 TO 102"
10" TO 89-1/2"		 135
WTJ-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Hand Pump Extended
Retracted		 1,000
2,000		 44"
30"		 0 TO 86-1/2"
13-1/2" TO 77-1/2"		 145

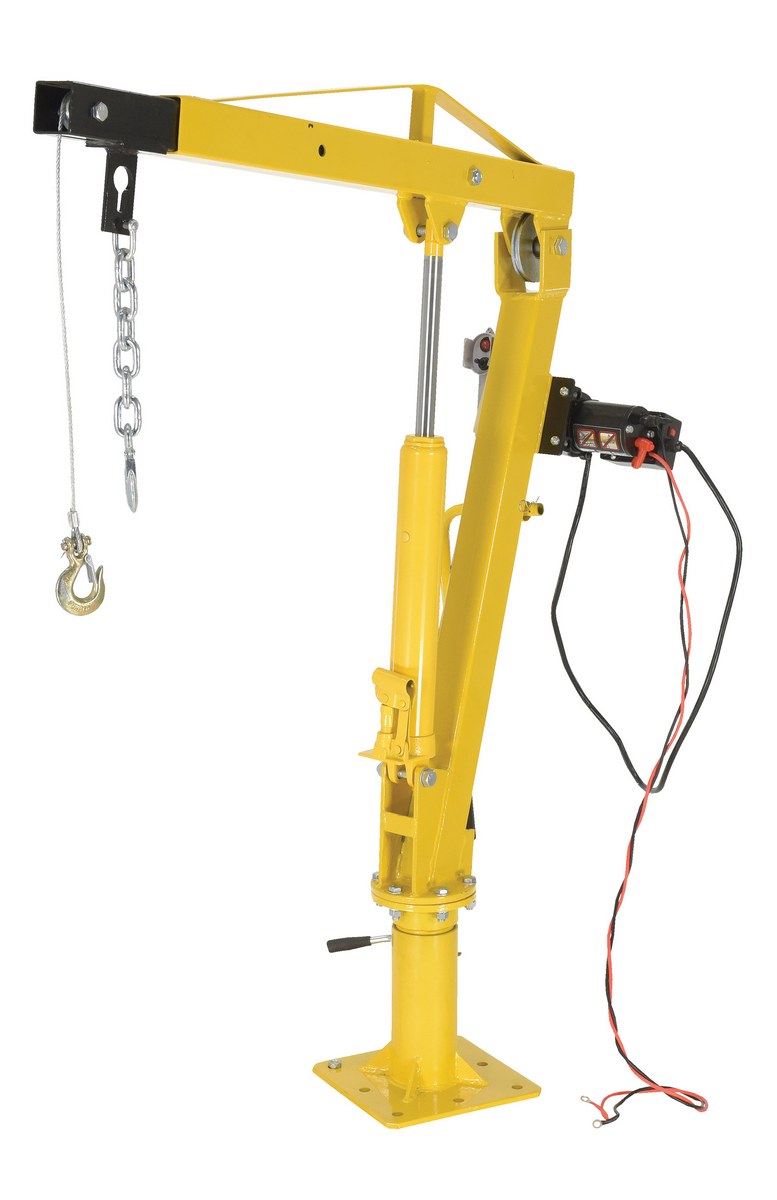

WTJ-2-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted		 500
1,000		 54"
30-1/4"		 0 TO 102"
10" TO 89-1/2"		 160
WTJ-4-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted		 1,000
2,000		 44"
30"		 0 TO 86-1/2"
13-1/2" TO 77-1/2"		 170
Galvanized Finish

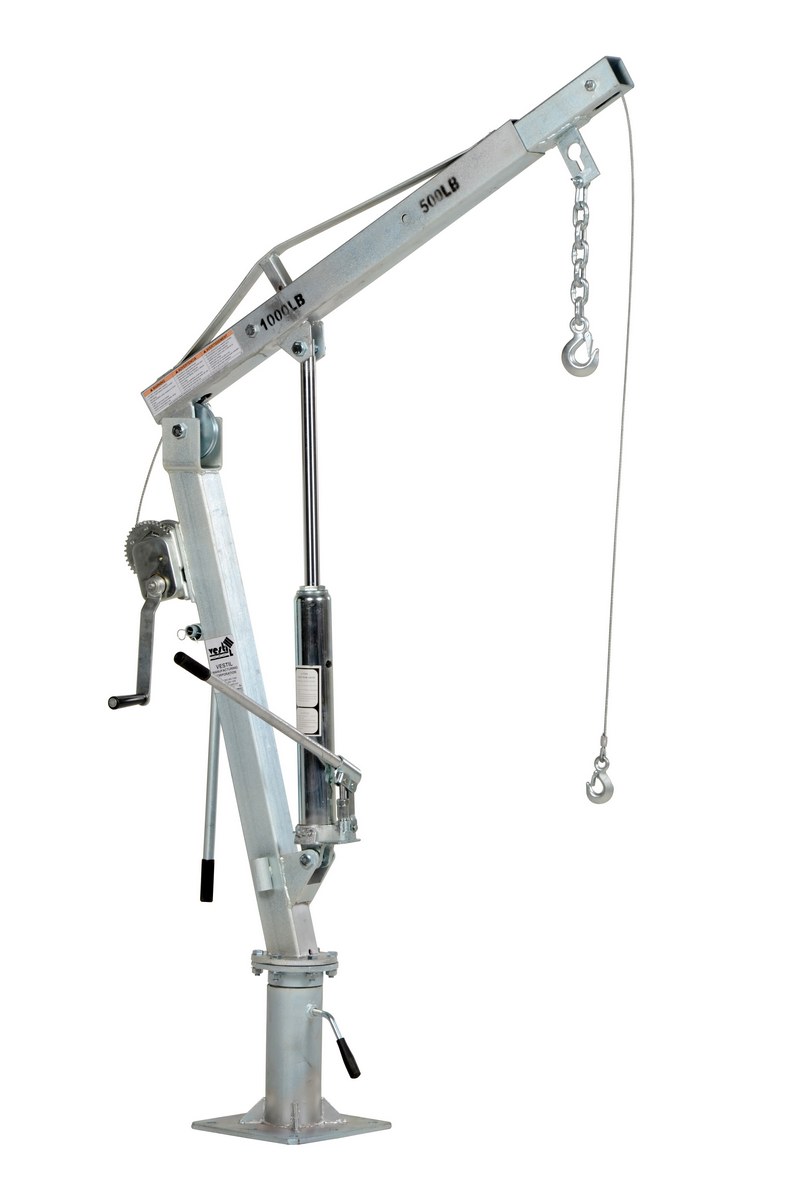

WTJ-2-G icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Hand Pump Extended
Retracted		 500
1,000		 52"
30-1/2		 0 TO 86"
15-1/2" TO 72"		 134
WTJ-4-G icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Hand Pump Extended
Retracted		 1,000
2,000		 52"
31"		 0 TO 85-7/8"
15-1/2" TO 74-1/2"		 218

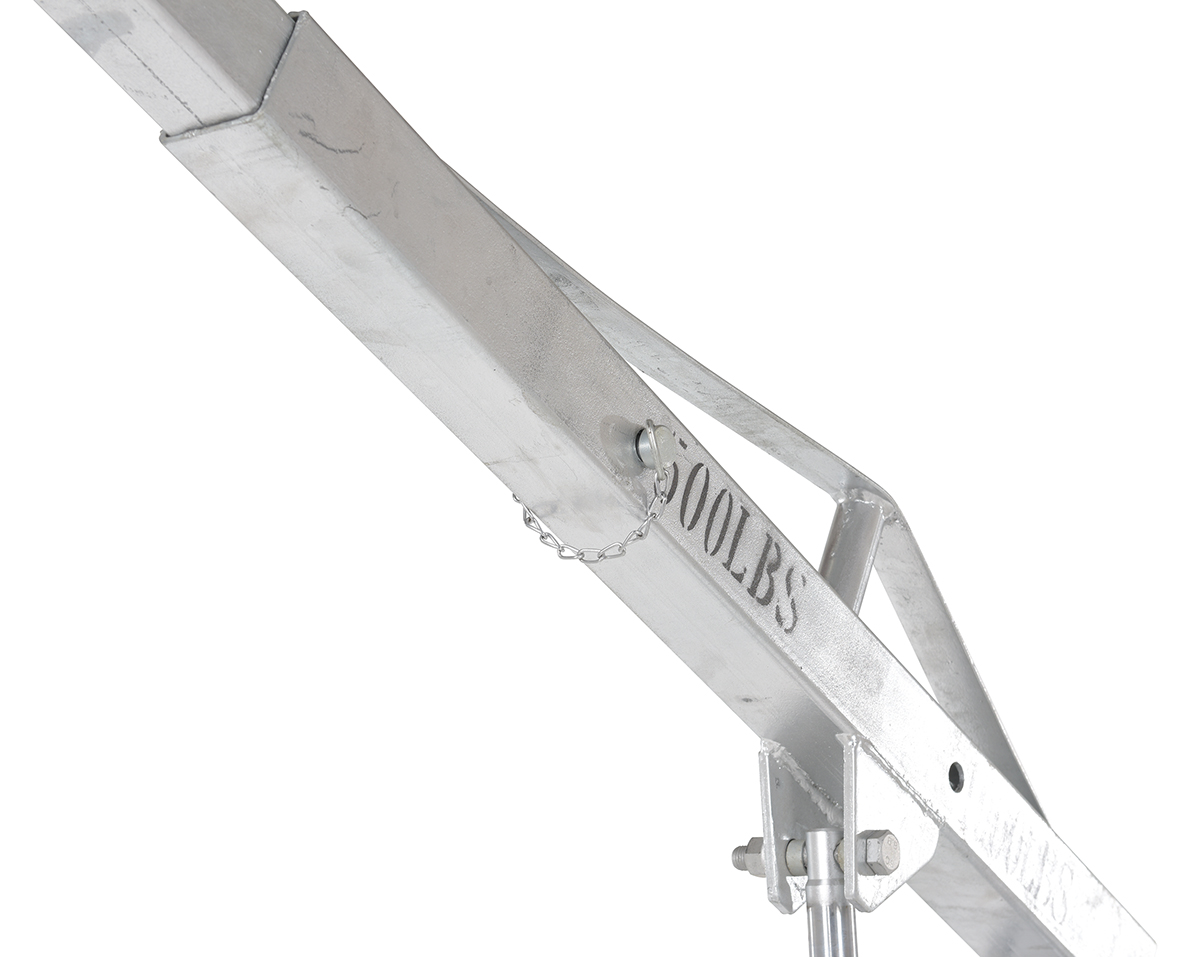

WTJ-2-G-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted		 500
1,000		 52"
30-12"		 0 TO 86"
15-1/2" TO 72"		 165

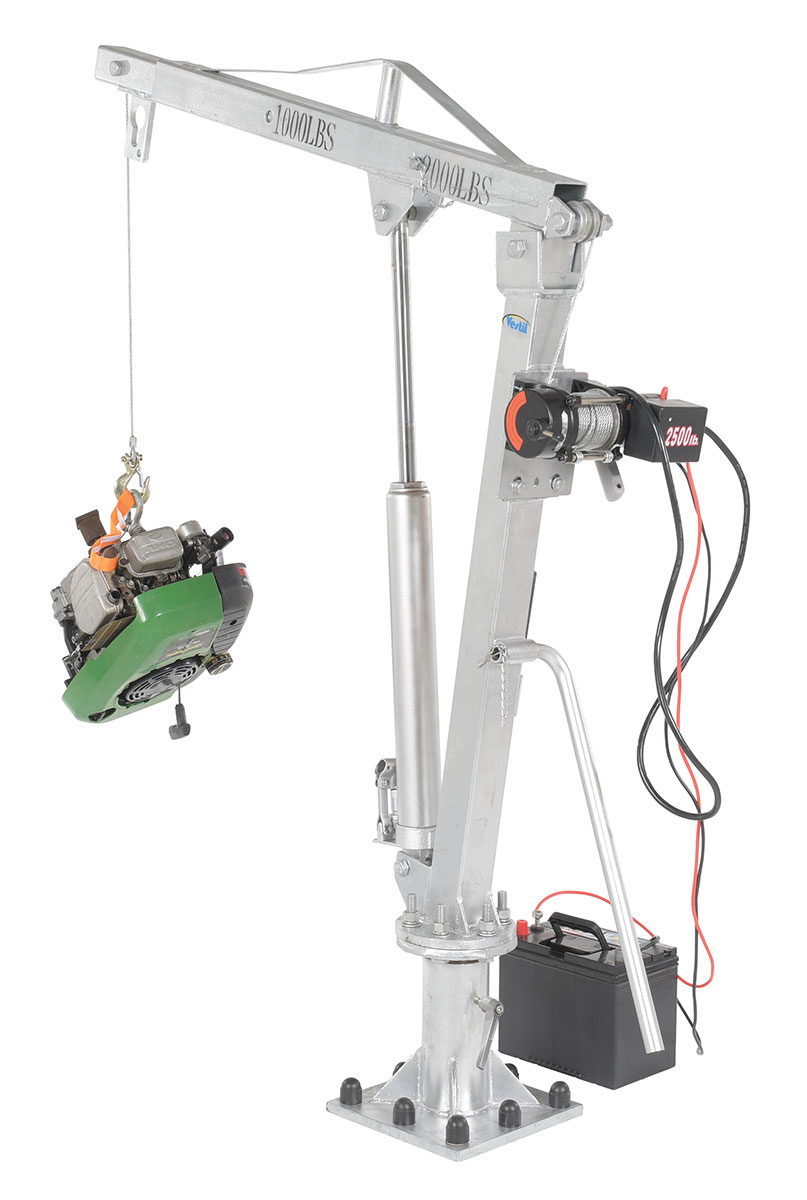

WTJ-4-G-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted		 1,000
2,000		 52"
31"		 0 TO 85-7/8"
15-1/2" TO 74-1/2"		 245
Stainless Steel Finish

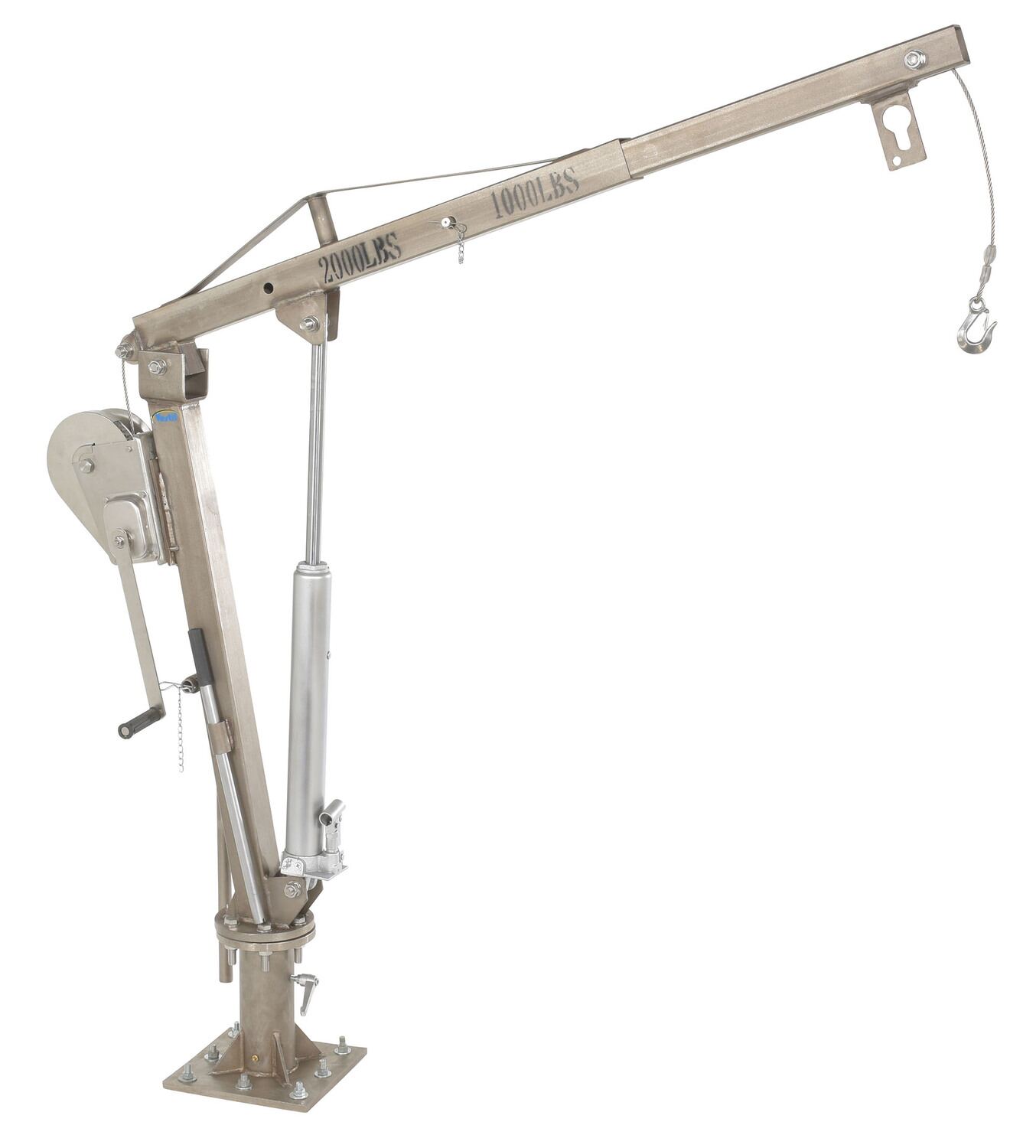

WTJ-2-SS - Warranty PDFCompliance Certificate Hand Pump Extended
Retracted		 500
1,000		 52"
30-1/2"		 0 to 86"
15-1/2" to 72"		 134
WTJ-4-SS Warranty PDFCompliance Certificate Hand Pump Extended
Retracted		 1,000
2,000		 52"
31"		 0 TO 85-7/8"
15-1/2" TO 74-1/2"		 218

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate



Winch Operated Truck Jib Cranes PDF's will open in a new window when clicked.

WTJ-2
Owners Manual

WTJ-4
Owners Manual

WTJ-4-G
Owners Manual

WTJ-2-G
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


WTJ-2

WTJ-2-G

WTJ-4

WTJ-4-G

Testing Certificates


WTJ-2

WTJ-2-DC

WTJ-2-G

WTJ-2-G-DC

WTJ-2-SS

WTJ-4

WTJ-4-DC

WTJ-4-G

WTJ-4-G-DC

WTJ-4-SS

Other PDF's


Truck Jib Cranes Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets









Visit Our Youtube Channel For All Available Videos For All Products


WTJ-2-DC
 WTJ-2-DC WTJ-2-DC
 WTJ-2-DC WTJ-2-DC
 WTJ-2-DC WTJ-2-DC
 WTJ-2-DC WTJ-2-G-DC
 WTJ-2-G-DC WTJ-2-G-DC
 WTJ-2-G-DC WTJ-2-G-DC
 WTJ-2-G-DC WTJ-2-G-DC
 WTJ-2-G-DC WTJ-2-G-DC
 WTJ-2-G-DC WTJ-2-G-DC
 WTJ-2-G-DC WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2-G
 WTJ-2-G WTJ-2
 WTJ-2 WTJ-2
 WTJ-2 WTJ-2
 WTJ-2 WTJ-2
 WTJ-2 WTJ-4-DC
 WTJ-4-DC WTJ-4-DC
 WTJ-4-DC WTJ-4-DC
 WTJ-4-DC WTJ-4-DC
 WTJ-4-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G-DC
 WTJ-4-G-DC WTJ-4-G
 WTJ-4-G WTJ-4-G
 WTJ-4-G WTJ-4-G
 WTJ-4-G WTJ-4-G
 WTJ-4-G WTJ-4-G
 WTJ-4-G WTJ-4-SS
 WTJ-4-SS WTJ-4-SS
 WTJ-4-SS WTJ-4-SS
 WTJ-4-SS WTJ-4-SS
 WTJ-4-SS WTJ-4
 WTJ-4 WTJ-4
 WTJ-4 WTJ-4
 WTJ-4 WTJ-4
 WTJ-4 WTJ-4
 WTJ-4
We are hoping to continue adding new product pictures to each gallery. Check back soon.

Q: Does the truck jib come with a charger?

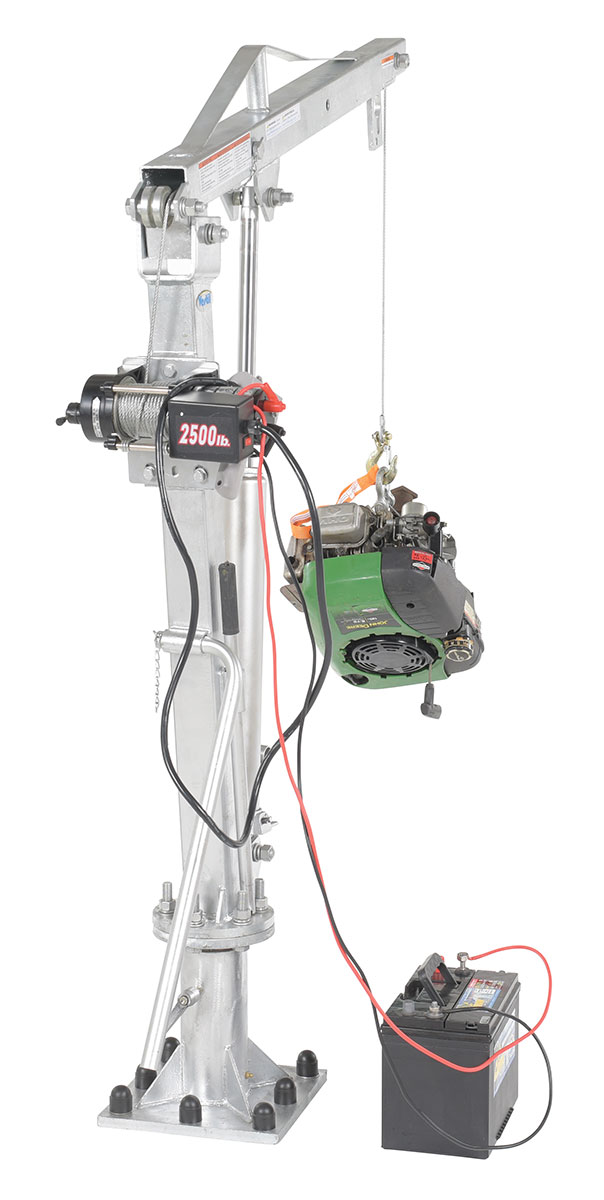

A: The WTJ is intended to be hooked up to a truck battery. If using the jib in some other application other than mounting on a truck, we suggest a 12V car battery that can be purchased at most stores locally. If the jib is hooked up to truck, a charger is not needed. If using in some other application, a charger can be purchased with the battery.




Print Friendly

Related or Similar Products:

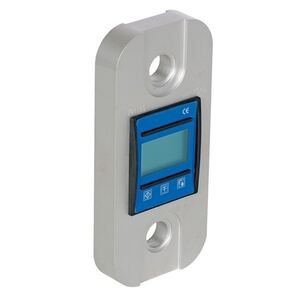

Digital Load Indicators
Product

Digital Load Indicators

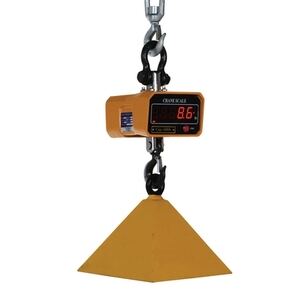

Crane Scales
