CART-PN-1500

Steel Rough Terrain Elevating Cart 20-1/2 In. x 42 In. 1500 Lb. Capacity Blue

The Pneumatic tire Hydraulic elevating carts are designed to be ergonomically friendly for use in landscaping and construction sites. The unit is constructed of powder coated welded steel for long lasting durability, while moving smoothly on pneumatic tires over the roughest of conditions. The cart can be elevated or lowered with the foot actuated pump and can be held in place while in use with the additional safety stops.
Contact Vestil QuickShip
Key Features
  • Hydraulic cart design is ergonomic and for landscaping and construction sites
  • Unit is powder coated and constructed of welded steel for long lasting durability
  • Pneumatic tires are ideal for moving smoothly over rough conditions
  • Foot actuated pump can elevate or lower for maximum efficiency

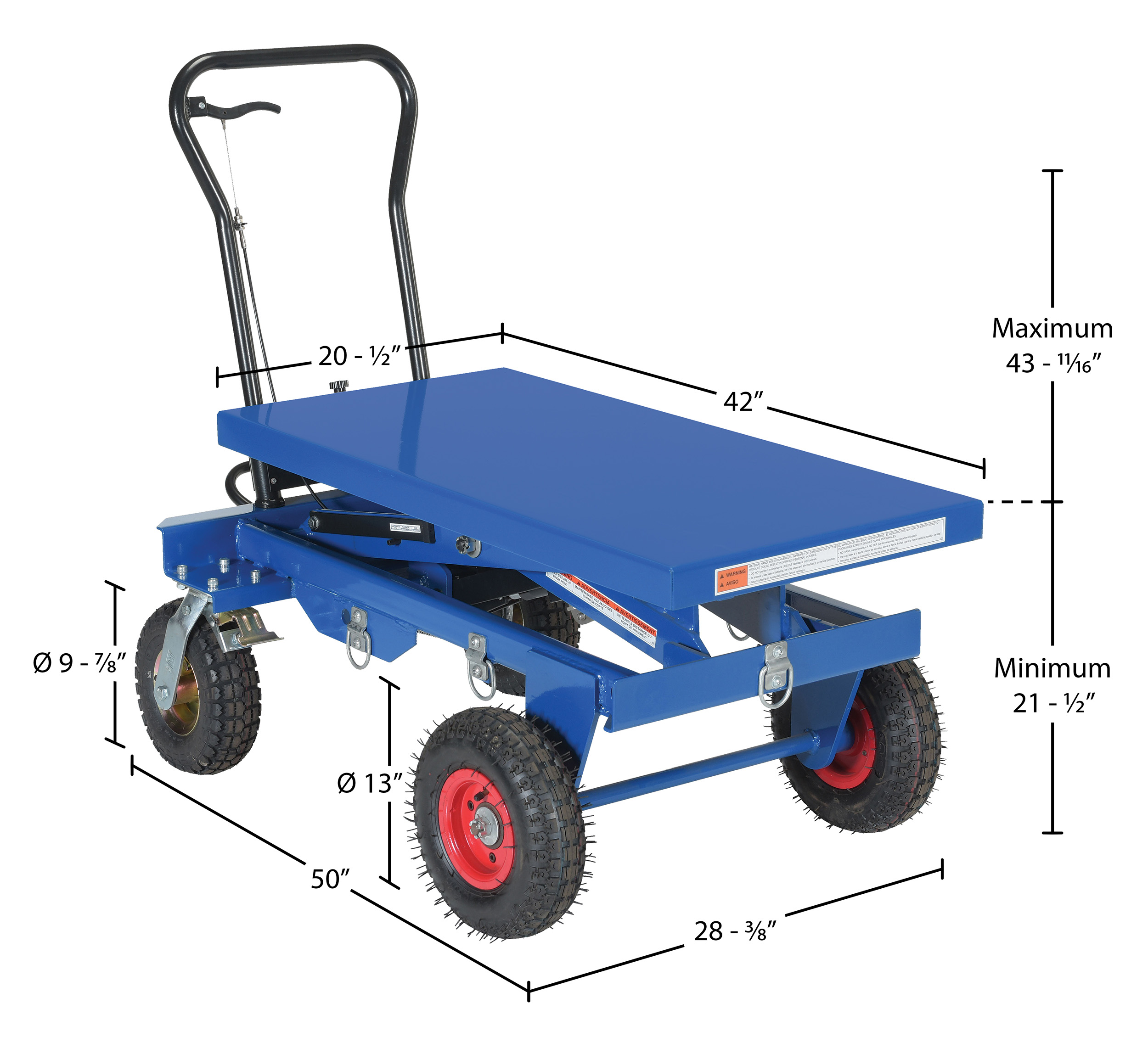

Product Image

Visual Reference

CART-PN-1500
CART-PN-1500
CART-PN-1500
CART-PN-1500
CART-PN-1500
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 287 lbs
Assembled Size 28.375"W x 50"L x 38.375"H
Total Ship Weight 396 lbs
Package 1 Size 41"W x 48"D x 36"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Platform Width (in.) 20-1/2
Platform Length (in.) 42
Service Range (in.) 21-1/2 to 43-11/16
Front Wheel Diameter (in.) 13
Rear Wheel Diameter (in.) 9-7/8
Wheel Type Pneumatic
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-PN-1500

CART-PN-1500

Steel Rough Terrain Elevating Cart 20-1/2 In. x 42 In. 1500 Lb. Capacity Blue

The Pneumatic tire Hydraulic elevating carts are designed to be ergonomically friendly for use in landscaping and construction sites. The unit is constructed of powder coated welded steel for long lasting durability, while moving smoothly on pneumatic tires over the roughest of conditions. The cart can be elevated or lowered with the foot actuated pump and can be held in place while in use with the additional safety stops.

  • Hydraulic cart design is ergonomic and for landscaping and construction sites
  • Unit is powder coated and constructed of welded steel for long lasting durability
  • Pneumatic tires are ideal for moving smoothly over rough conditions
  • Foot actuated pump can elevate or lower for maximum efficiency

Core Data

Assembled Weight: 287 Assembled Size: 28.375"W x 50"L x 38.375"H Color: Blue
Total Ship Weight: 396 Package 1 Size: 41"W x 48"D x 36"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Platform Width (in.): 20-1/2
Platform Length (in.): 42
Service Range (in.): 21-1/2 to 43-11/16
Front Wheel Diameter (in.): 13
Rear Wheel Diameter (in.): 9-7/8
Wheel Type: Pneumatic
