D-CK4-SC8-2

Semi Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity Silver

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.
Contact Vestil QuickShip
Key Features
  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use
Product Image

Visual Reference

D-CK4-SC8-2
D-CK4-SC8-2
D-CK4-SC8-2
D-CK4-SC8-2
D-CK4-SC8-2
Quick Actions

Product Resources

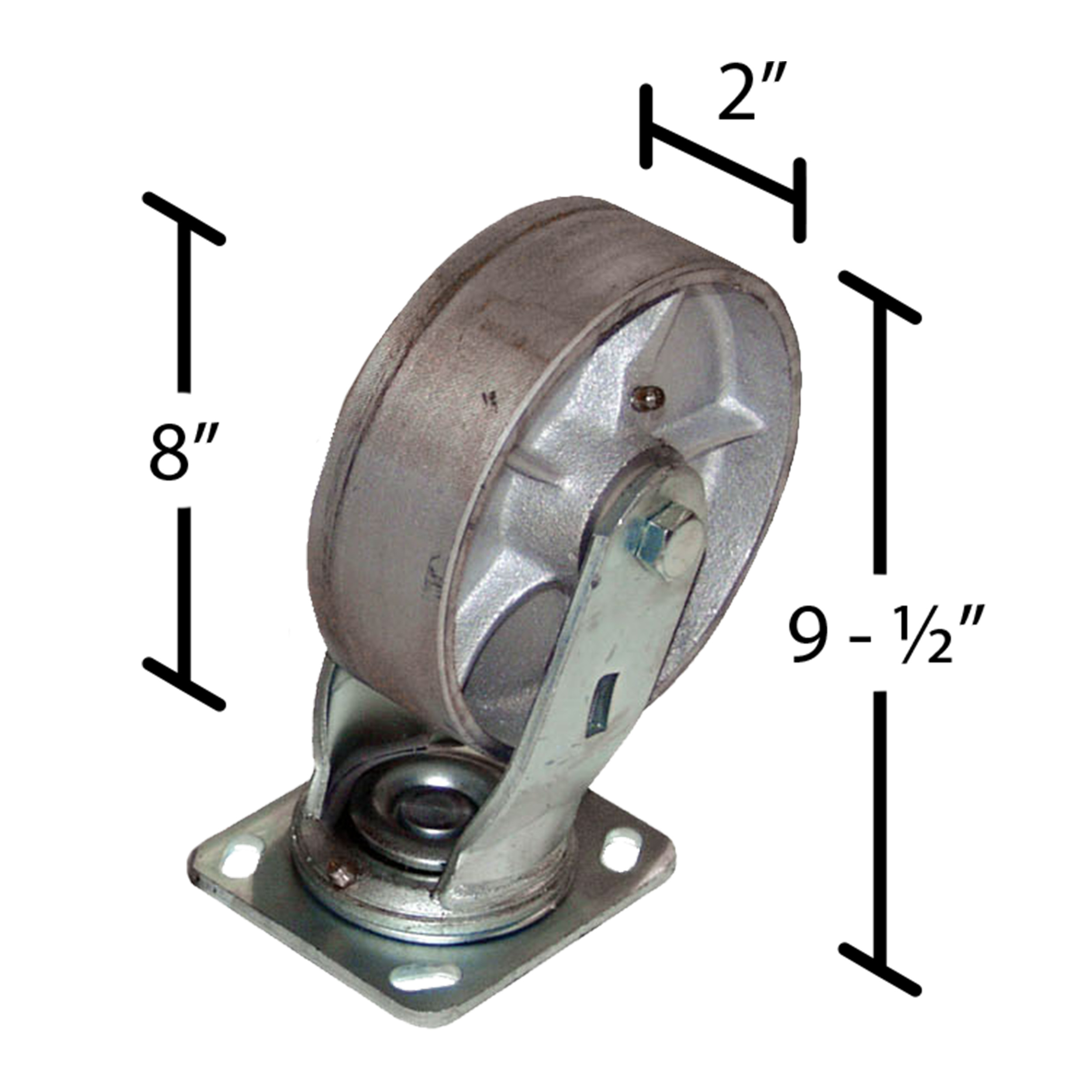

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 27 lbs
Assembled Size 2"W x 8"L x 8"H
Total Ship Weight 42 lbs
Package 1 Size 10"W x 18"D x 11"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 4,800
Caster Quantity/Diameter/Width (in.) (4) 8 x 2
Caster Quantity/Type (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.) 9-1/2
Hex Bolt (qty.) 16
Flat Washer (qty.) 16
Lock Nut (qty.) 16
Top Plate Dimensions (in.) 4 x 4-1/2
Hole Spacing (Center to Center) (in.) 2-3/4 x 3-1/4
Bolt Size (in.) 3/8 x 1-1/4
Documents

PDFs & Product Files

  Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-CK4-SC8-2

D-CK4-SC8-2

Semi Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity Silver

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.

  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use

Core Data

Assembled Weight: 27 Assembled Size: 2"W x 8"L x 8"H Color: Silver
Total Ship Weight: 42 Package 1 Size: 10"W x 18"D x 11"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Caster Quantity/Type: (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.): 9-1/2
Hex Bolt (qty.): 16
Flat Washer (qty.): 16
Lock Nut (qty.): 16
Top Plate Dimensions (in.): 4 x 4-1/2
Hole Spacing (Center to Center) (in.): 2-3/4 x 3-1/4
Bolt Size (in.): 3/8 x 1-1/4
