LM-OBT-4-24

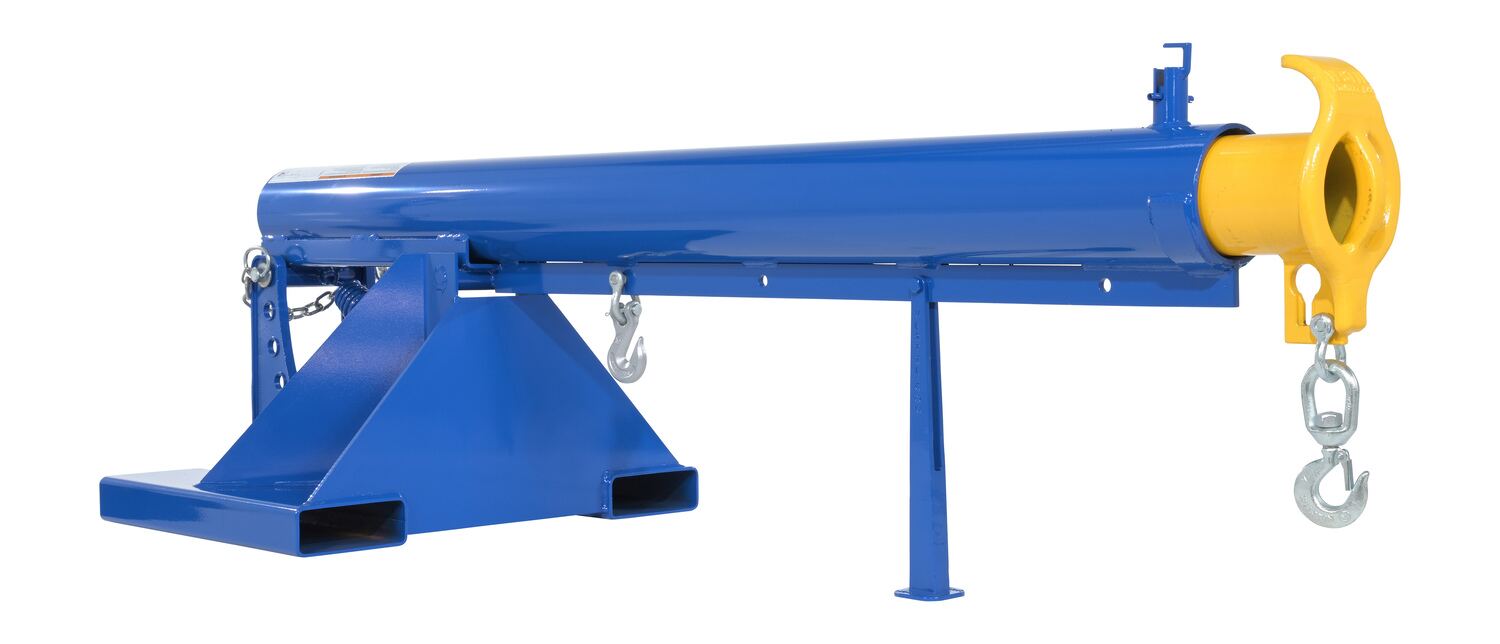

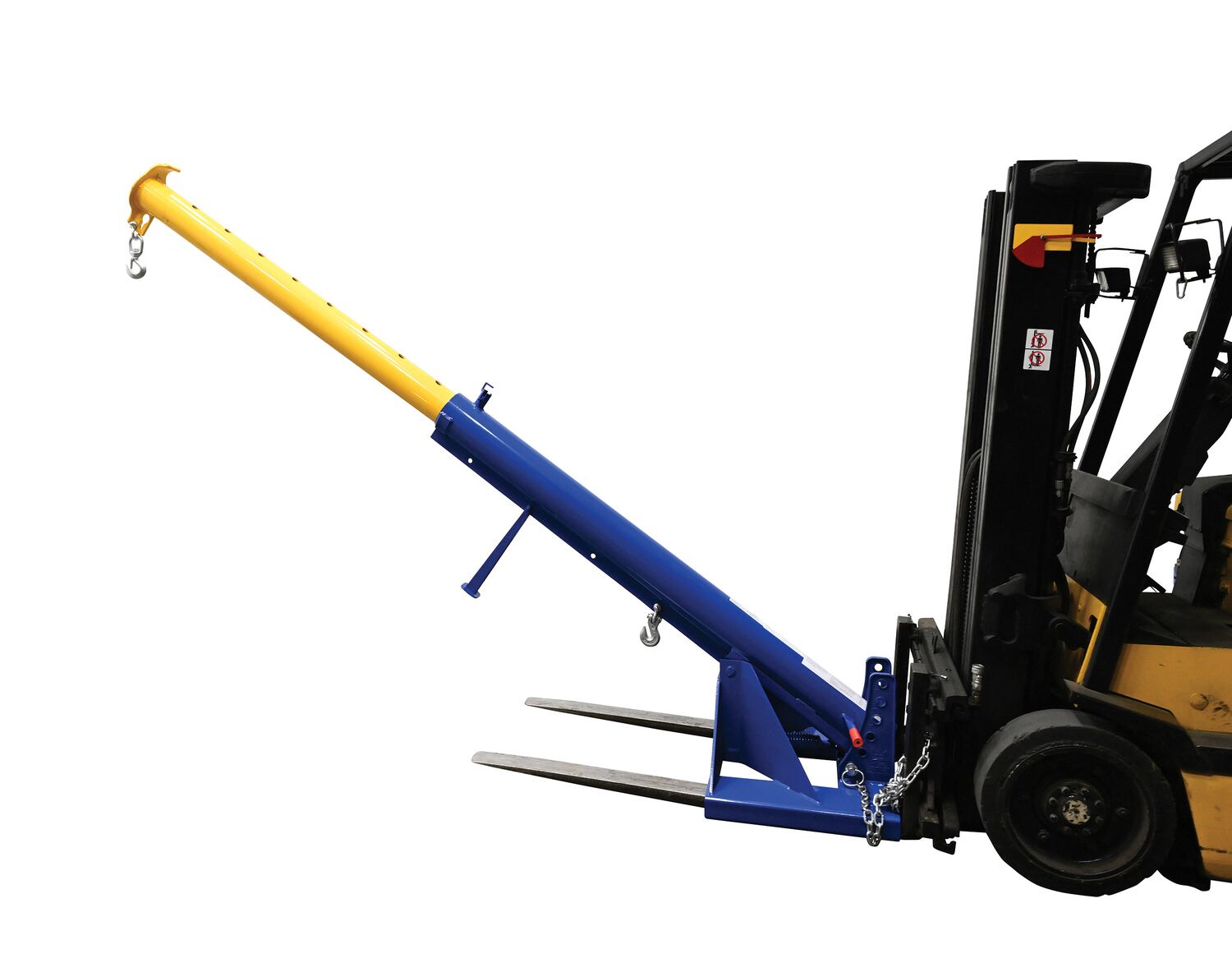

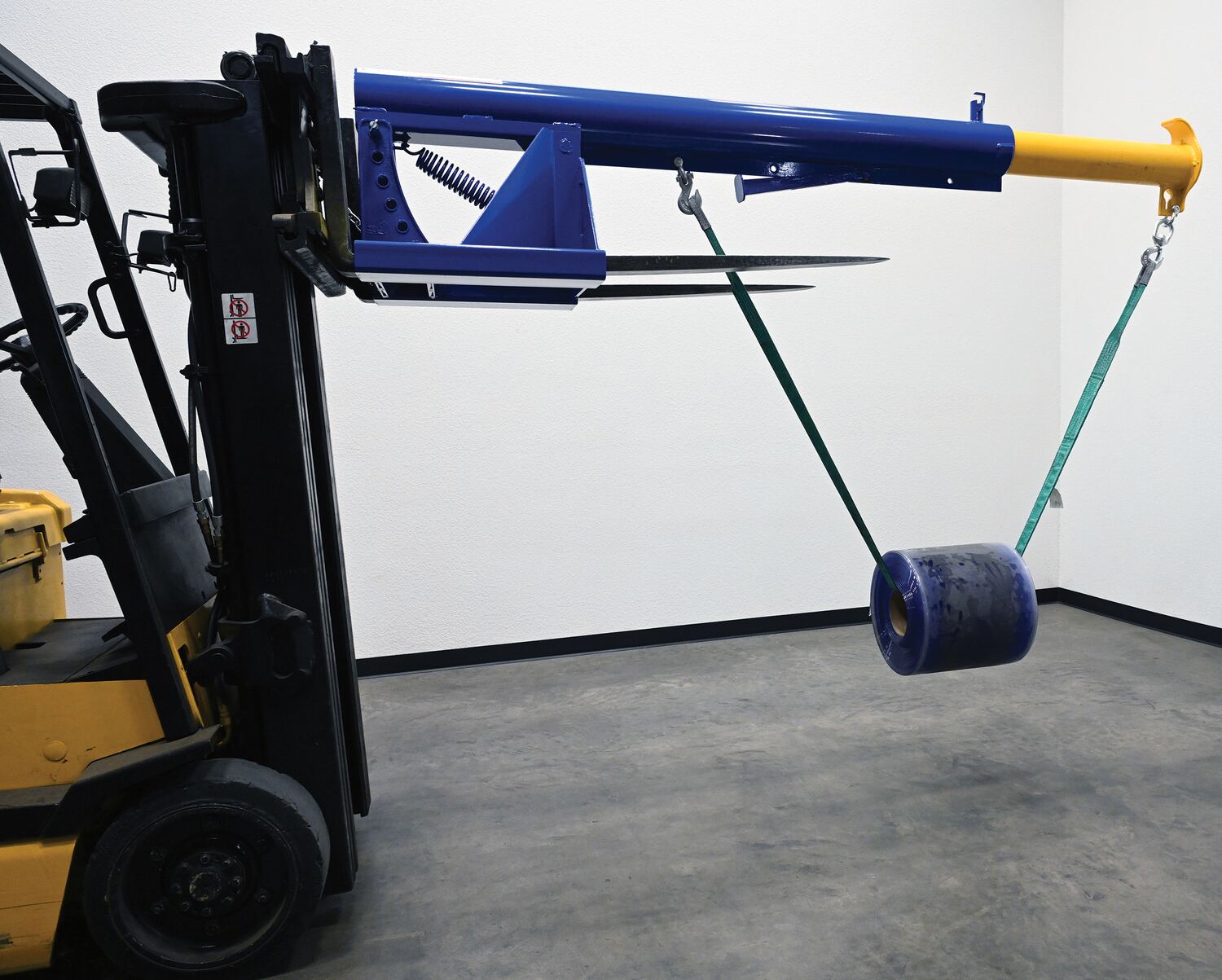

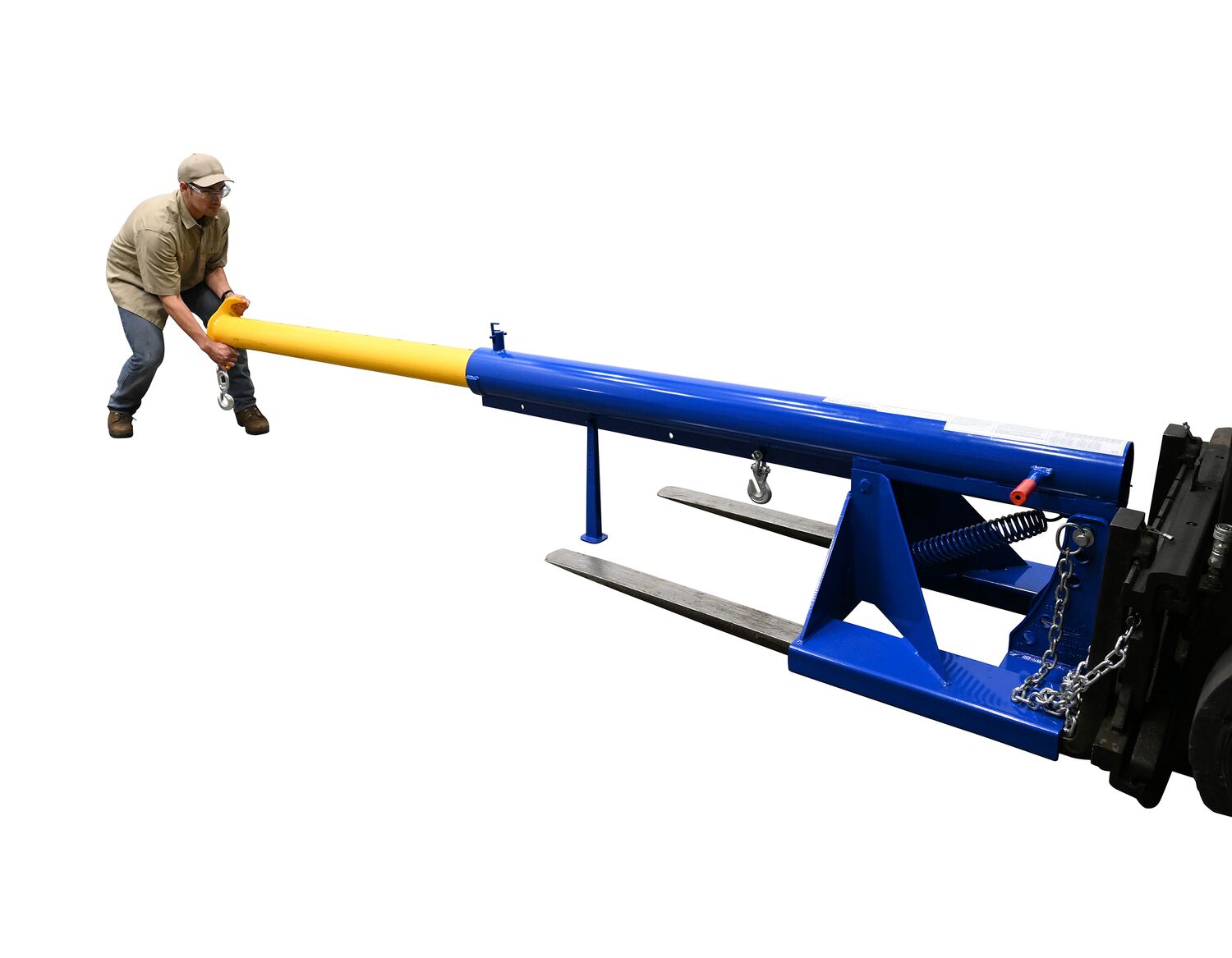

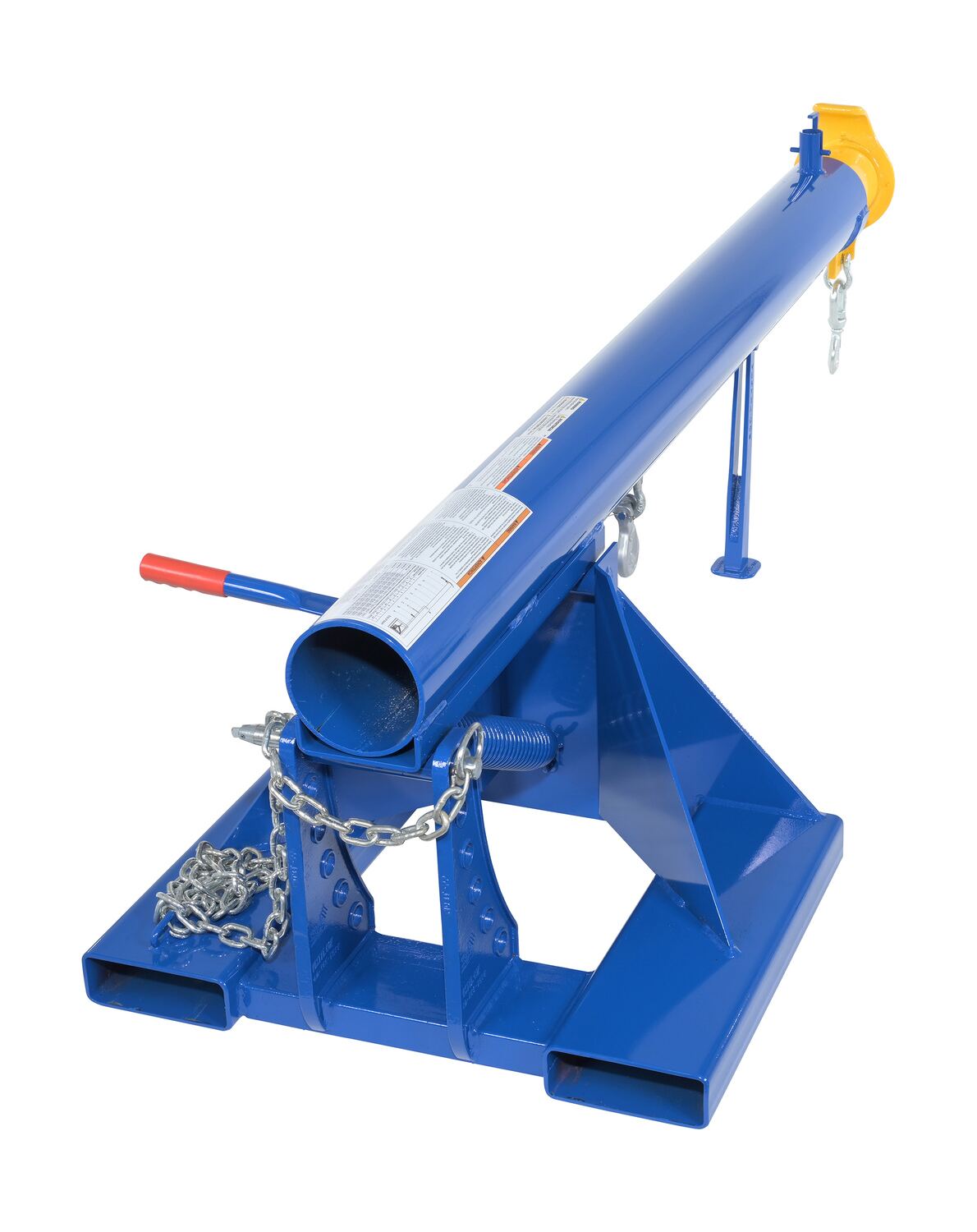

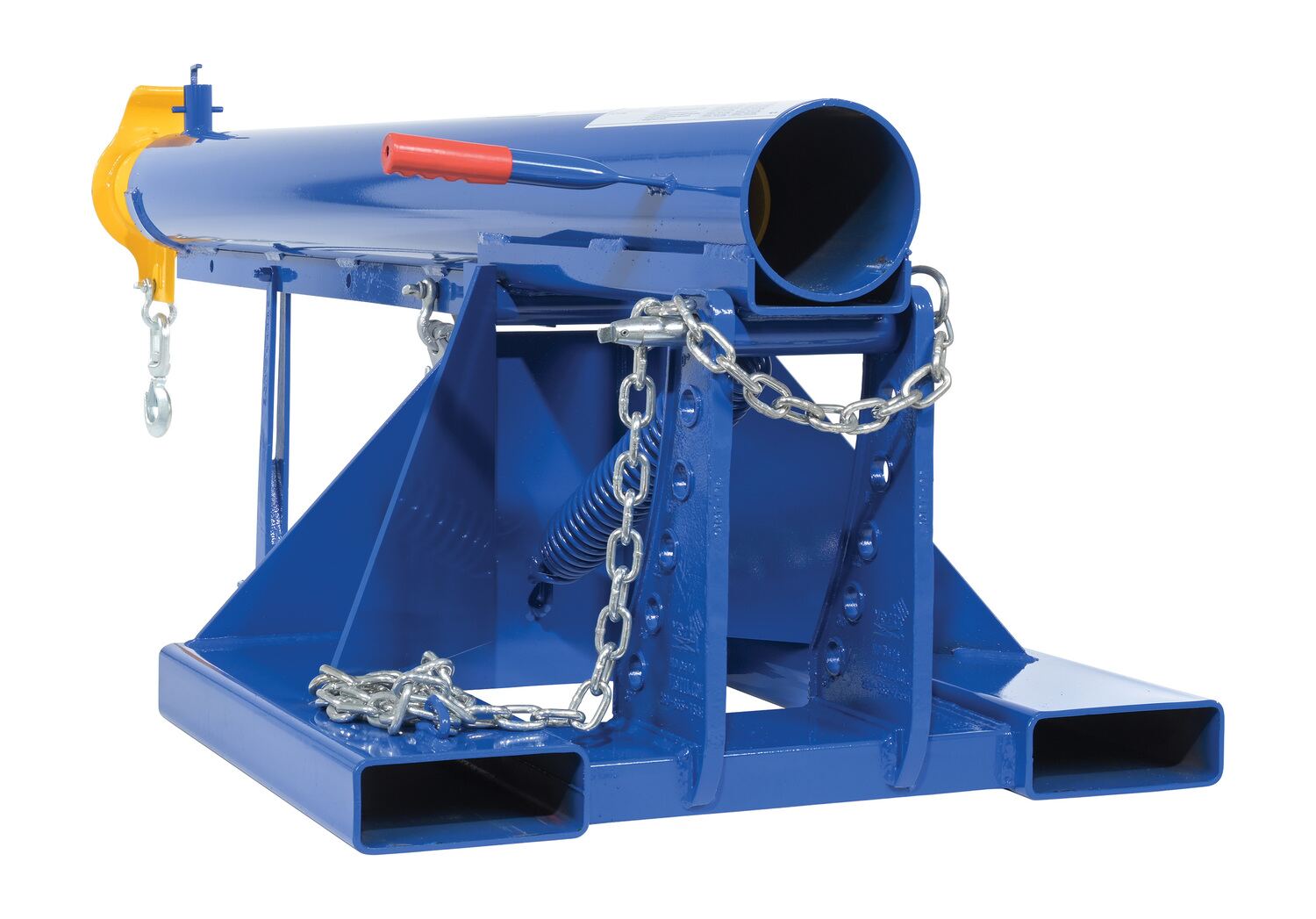

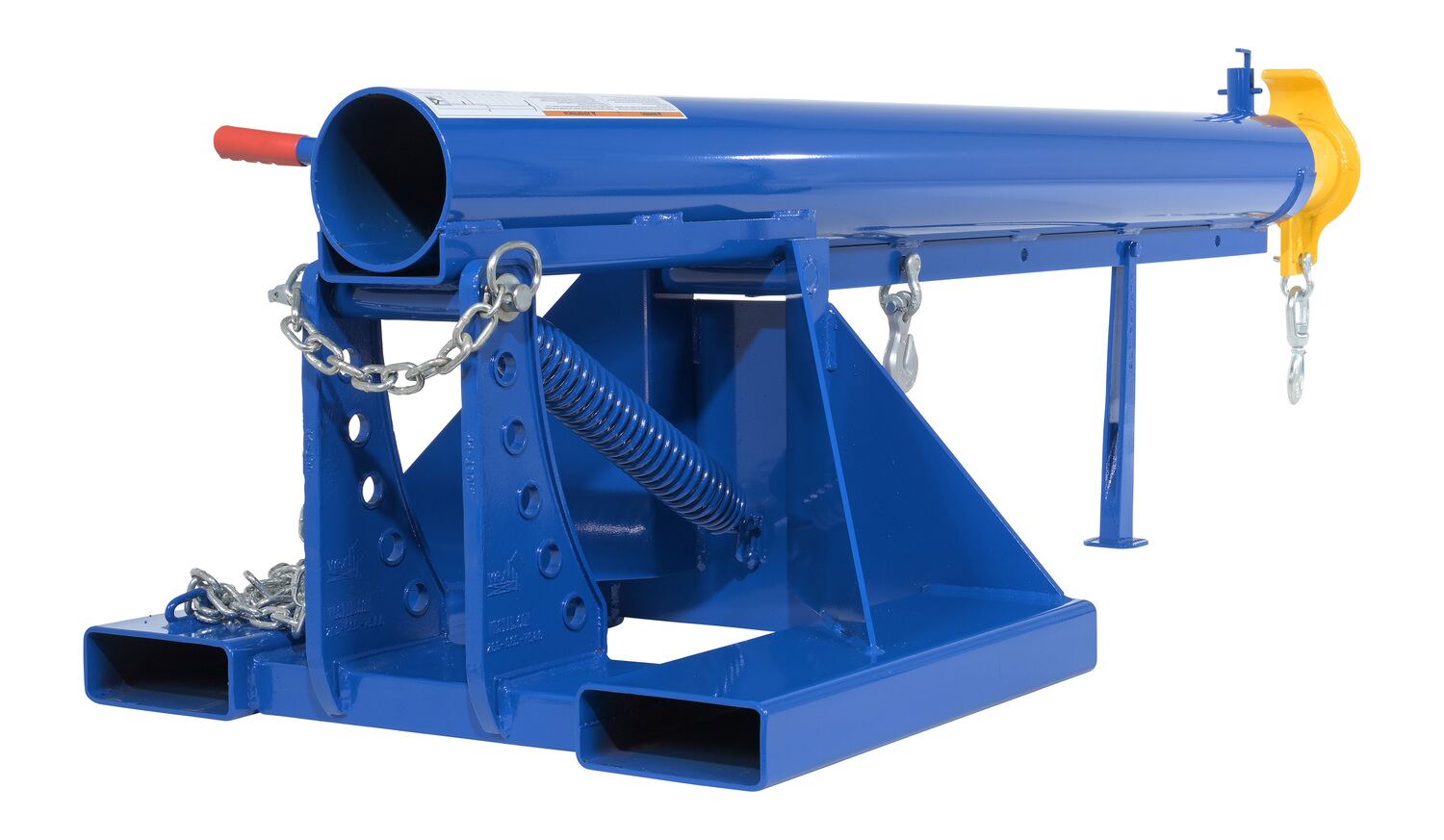

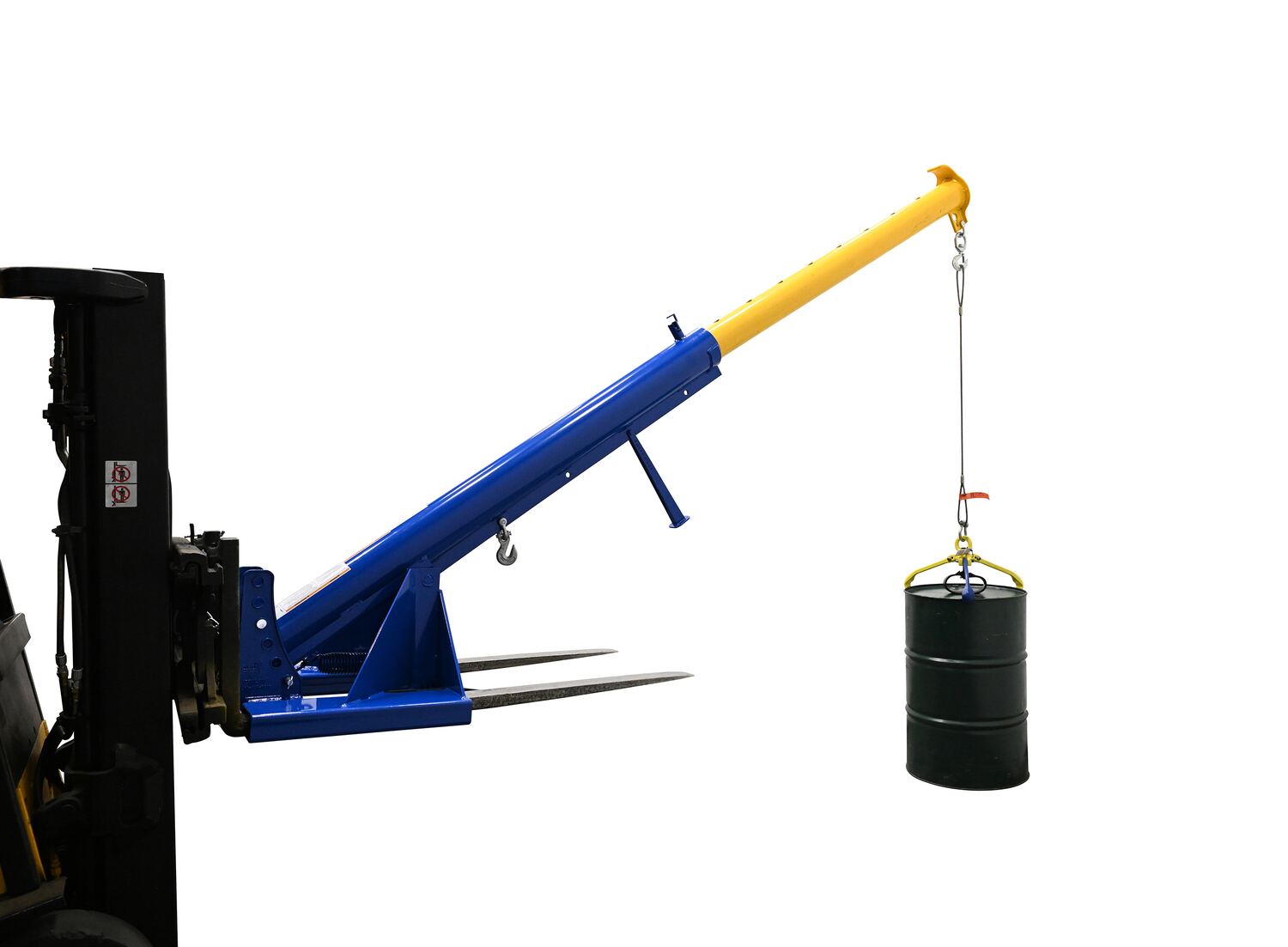

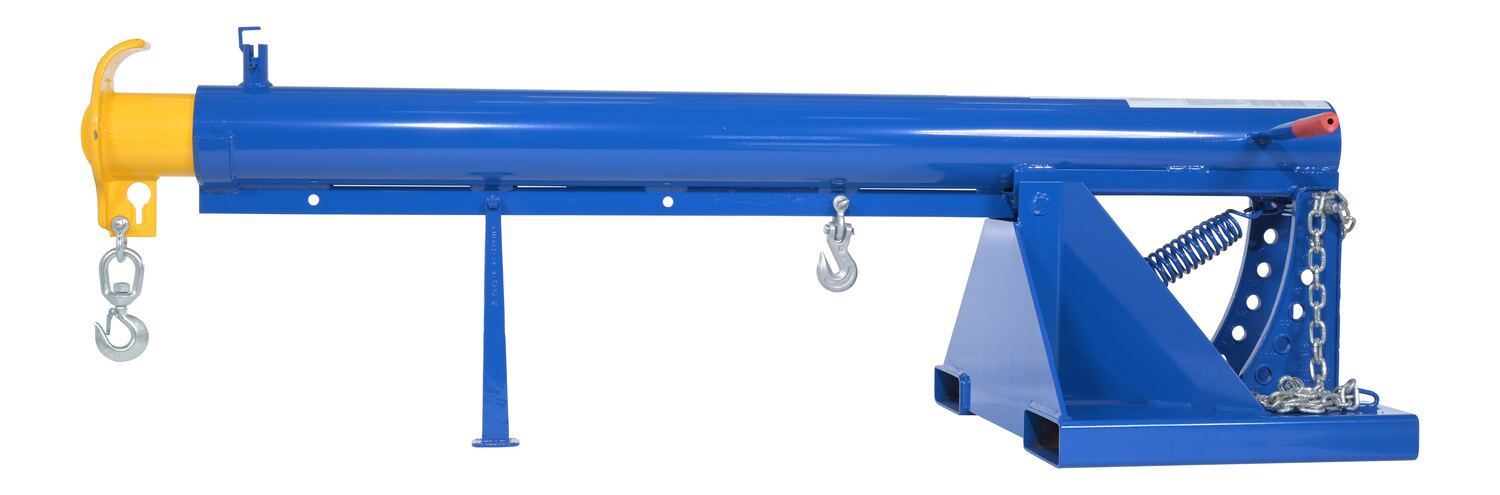

Steel Orbit Telescoping Lift Boom 24 In. Fork Pocket Center 4,000 Lb. Capacity Blue

The orbit lift boom delivers heavy-duty performance, maximum operator convenience, and uncompromising safety in challenging manufacturing and warehouse environments. Fabricated from high-strength structural steel and welded to rigorous AWS standards, this rugged, durable unit is engineered for years of reliable, long-term service. For precision operation, it features a locking detest and safety restraint that secures the boom directly to the fork truck to ensure secure, slip-free performance. Ready for immediate use, each unit comes fully equipped with two high-capacity lifting hooks to maximize your facility's material handling efficiency.
Out of Stock QuickShip
Key Features

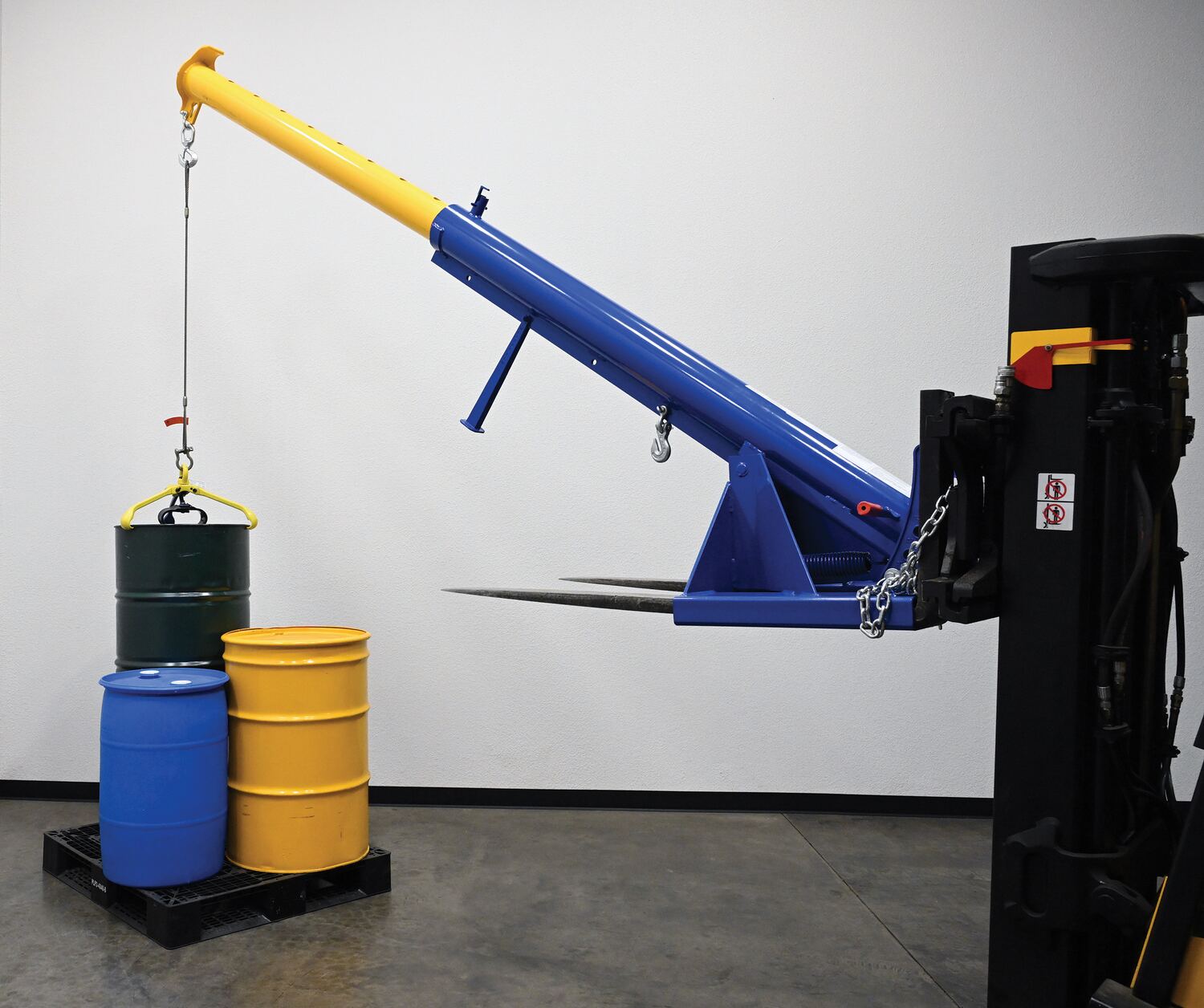

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Product Image

Visual Reference

LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
LM-OBT-4-24
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 463 lbs
Assembled Size 32"W x 86.625"L x 27.6875"H
Total Ship Weight 463 lbs
Package 1 Size 32"W x 89"D x 24"H
Color / Finish Blue (Base Frame)/Yellow (Extension)
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 4,000
Fork Pocket Center (in.) 24
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Restraint Length (in.) 36
Boom Style Telescoping
Minimum/Maximum Hook Point (in.) 36/144
Single-Hook Capacity at 36" (lb.) 4000
Single-Hook Capacity at 48" (lb.) 3750
Single-Hook Capacity at 60" (lb.) 3500
Single-Hook Capacity at 72" (lb.) 3250
Single-Hook Capacity at 84" (lb.) 3000
Single-Hook Capacity at 96" (lbs.) 2750
Single-Hook Capacity at 108" (lbs.) 2500
Single-Hook Capacity at 120" (lbs.) 2250
Single-Hook Capacity at 132" (lbs.) 2000
Single-Hook Capacity at 144" (lbs.) 1750
Overall Extended Height (in.) 99-1/2
Retracted Hook Height (in.) 6
Extended Hook Height (in.) 78-5/16
Overall Extended Length (in.) 146-5/8
Overall Height (in.) 27-11/16
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LM-Series and LMS-Series Fork Truck Attachments Use and Maintenance Manual   Label Page PDF   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LM-OBT-4-24

LM-OBT-4-24

Steel Orbit Telescoping Lift Boom 24 In. Fork Pocket Center 4,000 Lb. Capacity Blue

The orbit lift boom delivers heavy-duty performance, maximum operator convenience, and uncompromising safety in challenging manufacturing and warehouse environments. Fabricated from high-strength structural steel and welded to rigorous AWS standards, this rugged, durable unit is engineered for years of reliable, long-term service. For precision operation, it features a locking detest and safety restraint that secures the boom directly to the fork truck to ensure secure, slip-free performance. Ready for immediate use, each unit comes fully equipped with two high-capacity lifting hooks to maximize your facility's material handling efficiency.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety

Core Data

Assembled Weight: 463 Assembled Size: 32"W x 86.625"L x 27.6875"H Color: Blue (Base Frame)/Yellow (Extension)
Total Ship Weight: 463 Package 1 Size: 32"W x 89"D x 24"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 4,000
Fork Pocket Center (in.): 24
Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Restraint Length (in.): 36
Boom Style: Telescoping
Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 4000
Single-Hook Capacity at 48" (lb.): 3750
Single-Hook Capacity at 60" (lb.): 3500
Single-Hook Capacity at 72" (lb.): 3250
Single-Hook Capacity at 84" (lb.): 3000
Single-Hook Capacity at 96" (lbs.): 2750
Single-Hook Capacity at 108" (lbs.): 2500
Single-Hook Capacity at 120" (lbs.): 2250
Single-Hook Capacity at 132" (lbs.): 2000
Single-Hook Capacity at 144" (lbs.): 1750
Overall Extended Height (in.): 99-1/2
Retracted Hook Height (in.): 6
Extended Hook Height (in.): 78-5/16
Overall Extended Length (in.): 146-5/8
Overall Height (in.): 27-11/16
