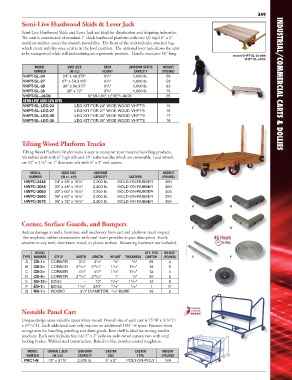

Page 15 - Industrial Carts & Dollies

349
Semi-Live Hardwood Skids & Lever Jack

Semi-Live Hardwood Skids and Lever Jack are ideal for distribution and shipping industries.
The unit is constructed of nominal 1" thick hardwood platform with two (2) rigid 6" x 2"
mold-on-rubber casters for smooth portability. The front of the unit includes attached legs
which create stability once unit is in the level position. The optional lever jack allows the unit
to be transported while still maintaining an ergonomic position. Handle measures 58" long.
model VHPT-SL-24 with
VHPT-SL-JACK
MODEL SKID SIZE DECK UNIFORM STATIC WEIGHT
NUMBER (W x L) HEIGHT CAPACITY (POUND)
VHPT-SL-24 24" x 48.375" 9 /8" 1,600 lb. 56
3
VHPT-SL-27 27" x 54.3125" 9 /8" 1,600 lb. 59
3
VHPT-SL-30 30" x 60.375" 9 /8" 1,600 lb. 63 INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
3
VHPT-SL-36 36" x 72" 9 /8" 1,600 lb. 75
3
VHPT-SL-JACK SEMI-LIVE LEVER JACK 25
SEMI-LIVE SKID LEG KITS
VHPT-SL-LEG-24 LEG KIT FOR 24" WIDE WOOD VHPT'S 15
VHPT-SL-LEG-27 LEG KIT FOR 27" WIDE WOOD VHPT'S 16
VHPT-SL-LEG-30 LEG KIT FOR 30" WIDE WOOD VHPT'S 17
VHPT-SL-LEG-36 LEG KIT FOR 36" WIDE WOOD VHPT'S 18

Tilting Wood Platform Trucks
Tilting Wood Platform Trucks make it easy to transport your material handling products.
Varnished deck with 6" high sills and 29" stake handles which are removable. Load wheels
are 12" x 2 ½" on 1" diameter axle with 6" x 2" end casters.

MODEL DECK SIZE UNIFORM WEIGHT
NUMBER (W x L x H) CAPACITY CASTERS (POUND)
HWPC-2448 24" x 48" x 16¼" 2,200 lb. MOLD-ON-RUBBER 260
HWPC-3048 30" x 48" x 16¼" 2,200 lb. MOLD-ON-RUBBER 260
HWPC-3060 30" x 60" x 16¼" 2,200 lb. MOLD-ON-RUBBER 305
HWPC-3660 36" x 60" x 16¼" 2,200 lb. MOLD-ON-RUBBER 320
HWPC-3672 36" x 72" x 16¼" 2,200 lb. MOLD-ON-RUBBER 355
A B

Corner, Surface Guards, and Bumpers
C D
Reduce damage to walls, furniture, and machinery from cart and platform truck impact.
Thermoplastic rubber construction with steel insert provides impact absorption. Easily
attaches to any steel, aluminum, wood, or plastic surface. Mounting hardware not included.
MODEL QTY. PER WEIGHT
TYPE NUMBER STYLE WIDTH LENGTH HEIGHT THICKNESS CARTON (POUND) E F
1
1
A CB-1 CORNER 3 /8" 3 /8" 5 /8" 5 /8" 28 4
15
15
1
1
B CB-2 CORNER 3 /16" 3 /16" 1 /16" 1 /16" 16 5
1
1
1
1
C CB-3 CORNER 4 /4" 4 /4" 1 /16" 1 /16" 12 4 G
15
15
D CB-4 CORNER 3 /16" 3 /16" 1" 7 /8" 20 5
E SB-12 EDGE -- 12" 1 /16" 1 /16" 12 5
3
3
1
F EB-1 EDGE 1 /16" 240" 15 /16" 5 /32" 1 11
5
1
G RB-1 ROUND 3 /4" DIAMETER, /16" BORE 16 5
Nestable Panel Cart
Unique design saves valuable space when stored. Overall size of each cart is 73"W x 31¼"D
x 37 /16"H. Each additional cart only requires an additional 10½" of space. Features front
3
storage area for handling paneling and sheet goods. Rear shelf is ideal for storing smaller
products. Each unit includes four (4) 5" x 2" poly-on-poly swivel casters; two with total
locking brakes. Welded steel construction. Baked-in blue powder-coated toughness.
MODEL OVERALL SIZE UNIFORM CASTER CASTER WEIGHT
NUMBER (W x D) CAPACITY SIZE TYPE (POUND)
PRCT-N 73" x 31¼" 2,000 lb. 5" x 2" POLY-ON-POLY 169
