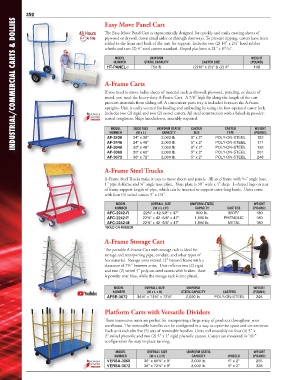

Page 18 - Industrial Carts & Dollies

352
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Easy Move Panel Cart

The Easy Move Panel Cart is ergonomically designed for quickly and easily moving sheets of
plywood or drywall down small aisles or through doorways. To prevent tipping, casters have been
added to the front and back of the unit for support. Includes two (2) 10" x 2½" hard rubber
wheels and two (2) 4" steel casters standard. Sloped platform is 21" x 8 /16".
15
MODEL UNIFORM WEIGHT
NUMBER STATIC CAPACITY CASTER SIZE (POUND)
HT-PANEL 750 lb. (2)10" x 2½" & (2) 4" 108

A-Frame Carts
If you need to move bulky sheets of material such as drywall, plywood, paneling, or sheets of
metal, you need the heavy-duty A-Frame Cart. A 7/8" high lip along the length of the cart
prevents materials from sliding off. A convenient parts tray is included between the A-frame
uprights. Unit is easily secured for loading and unloading by using the foot operated caster lock.
Includes two (2) rigid and two (2) swivel casters. All steel construction with a baked-in powder-
coated toughness. Ships knockdown, assembly required.
MODEL DECK SIZE UNIFORM STATIC CASTER CASTER WEIGHT
NUMBER (W x L) CAPACITY SIZE TYPE (POUND)
AF-2436 24" x 36" 2,000 lb. 5" x 2" POLY-ON-STEEL 152
AF-2448 24" x 48" 2,000 lb. 5" x 2" POLY-ON-STEEL 171
AF-3048 30" x 48" 2,000 lb. 5" x 2" POLY-ON-STEEL 192
AF-3060 30" x 60" 2,000 lb. 5" x 2" POLY-ON-STEEL 201
AF-3672 36" x 72" 2,000 lb. 5" x 2" POLY-ON-STEEL 248

A-Frame Steel Trucks
A-Frame Steel Trucks make it easy to move sheets and panels. All steel frame with /16" angle base,
3
1" pipe A-frame and ¼" angle nose plate. Nose plate is 30" wide x 4" deep. L-shaped lugs on rear
of frame support length of pipe, which can be inserted to support extra-long loads. Units come
with four (4) swivel casters 5" x 1½".

MODEL OVERALL SIZE UNIFORM STATIC WEIGHT
NUMBER (W x L x H) CAPACITY CASTERS (POUND)
AFC-2242-R 22¾" x 42-5/8" x 47" 800 lb. MOR* 180
AFC-2242-P 22¾" x 42 -5/8" x 47" 1,500 lb. PHENOLIC 180
AFC-2242-M 22¾" x 42 -5/8" x 47" 1,500 lb. METAL 180
*MOLD-ON-RUBBER

A-Frame Storage Cart

The portable A-Frame Cart with storage rack is ideal for
storage and transporting pipe, conduit, and other types of
bar material. Storage arms extend 12" beyond frame with a
clearance of 7¼" between arms. Unit rolls on two (2) rigid
and two (2) swivel 5" poly-on-steel casters with brakes. Base
is powder coat blue, while the storage rack is zinc plated.

MODEL OVERALL SIZE UNIFORM WEIGHT
NUMBER (W x L x H) STATIC CAPACITY CASTERS (POUND)
AFSR-3672 36¾" x 73¾" x 72½" 2,000 lb. POLY-ON-STEEL 245

Platform Carts with Versatile Dividers

These innovative units are perfect for transporting a large array of products throughout your
warehouse. The removable handles can be configured in a way to optimize space and convenience.
Each unit includes five (5) sets of removable handles. Units roll smoothly on four (4) 5" x
2" swivel phenolic and two (2) 5" x 2" rigid phenolic casters. Casters are mounted in "tilt"
configuration for easy in-place turning.

MODEL OVERALL SIZE UNIFORM STATIC WEIGHT
NUMBER (W x L x H) CAPACITY WHEELS (POUND)
VERSA-3060 30" x 60¼" x 9" 3,000 lb. 5" x 2" 255
VERSA-3672 36" x 72¼" x 9" 3,000 lb. 5" x 2" 328
