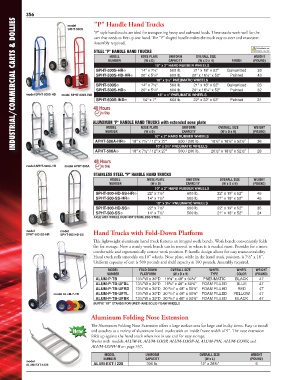

Page 22 - Industrial Carts & Dollies
P. 22
356
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
"P" Handle Hand Trucks
model
SPHT-500S
"P" style hand trucks are ideal for transporting heavy and awkward loads. These trucks work well for the
user that needs to free up one hand. The "P" shaped handle makes the truck easy to steer and maneuver.
Assembly required.
CA Residents see
STEEL "P" HANDLE HAND TRUCKS WARNING A, Pg. 459
MODEL NOSE PLATE UNIFORM OVERALL SIZE WEIGHT
NUMBER (W x D) CAPACITY (W x D x H) FINISH (POUND)
10" x 2" HARD RUBBER WHEELS
SPHT-500S-HR 14" x 7½" 500 lb. 21" x 18" x 52" Galvanized 33
1
SPHT-500S-HD-HR 20" x 5 /8" 600 lb. 20" x 16¼" x 52" Painted 43
10" x 3½" PNEUMATIC WHEELS
SPHT-500S 14" x 7½" 500 lb. 21" x 18" x 52" Galvanized 23
1
SPHT-500S-HD 20" x 5 /8" 600 lb. 20" x 16¼" x 52" Painted 32
model SPHT-500S-HD model SPHT-600S-IND 13" x 4" PNEUMATIC WHEELS
SPHT-600S-IND 14" x 7" 600 lb. 22" x 22" x 52" Painted 31
ALUMINUM "P" HANDLE HAND TRUCKS with extended nose plate
MODEL NOSE PLATE UNIFORM OVERALL SIZE WEIGHT
NUMBER (W x D) CAPACITY (W x D x H) (POUND)
10" x 2" HARD RUBBER WHEELS
APHT-500A-HR 18" x 7½" / 12" x 27" 500 / 200 lb. 18½" x 18½" x 52½" 38
10" x 3½" PNEUMATIC WHEELS
APHT-500A 18" x 7½" / 12" x 27" 500 / 200 lb. 20½" x 18½" x 52½" 28
model APHT-500A-HR model APHT-500A
STAINLESS STEEL "P" HANDLE HAND TRUCKS
MODEL NOSE PLATE UNIFORM OVERALL SIZE WEIGHT
NUMBER (W x D) CAPACITY (W x D x H) (POUND)
10" x 2" HARD RUBBER WHEELS
SPHT-500-HD-SS-HR 22" x 7½" 600 lb. 22" x 19" x 52" 45
SPHT-500-SS-HR 14" x 7½" 500 lb. 21" x 18" x 52" 45
10" x 3½" PNEUMATIC WHEELS
SPHT-500-HD-SS 22" x 7½" 600 lb. 22" x 19" x 52" 35
SPHT-500-SS 14" x 7½" 500 lb. 21" x 18" x 52" 24
AXLE AND WHEEL HUB NOT STAINLESS STEEL
model model Hand Trucks with Fold-Down Platform
SPHT-500-SS-HR SPHT-500-HD-SS
This lightweight aluminum hand truck features an integral work bench. Work bench conveniently folds
flat for storage. Now a sturdy work bench can be moved to where it is needed most. Provides for a more
comfortable and ergonomically correct work position. P-handle design allows for easy maneuverability.
Hand truck rolls smoothly on 10" wheels. Nose plate, while in the hand truck position, is 7½" x 18".
Uniform capacity of cart is 500 pounds and shelf capacity is 100 pounds. Assembly required.
MODEL FOLD-DOWN OVERALL SIZE WHEEL WHEEL WEIGHT
NUMBER PLATFORM (W x D x H) TYPE COLOR (POUND)
ALUM-P-TB 13¼"W x 30"D 19¾" x 48" x 50¾" PNEUMATIC BLACK 47
ALUM-P-TB-UFBL 13¼"W x 30"D 19 /8" x 48" x 50¾" FOAM FILLED BLUE 47
5
ALUM-P-TB-UFRD 13¼"W x 30"D 20 /16" x 48" x 50¾" FOAM FILLED RED 47
13
13
model ALUM-P-TB ALUM-P-TB-UFYL 13¼"W x 30"D 20 /16" x 48" x 50¾" FOAM FILLED YELLOW 47
ALUM-P-TB-UFBK 13¼"W x 30"D 20 /16" x 48" x 50¾" FOAM FILLED BLACK 47
13
SUFFIX "UF" STANDS FOR URETHANE SOLID FOAM WHEELS
Aluminum Folding Nose Extension
The Aluminum Folding Nose Extension offers a large surface area for large and bulky items. Easy to install
New and attaches to a variety of aluminum hand trucks with an inside frame width of 9". The nose extension
folds up against the hand truck when not in use and for easy storage.
Works with models ALUM-H, ALUM-LOOP, ALUM-LOOP-H, ALUM-PIN, ALUM-CONV, and
ALUM-CONV-B on page 357.
MODEL UNIFORM OVERALL SIZE WEIGHT
NUMBER CAPACITY (W x L) (POUND)
model
ALUM-EXT-1228 ALUM-EXT-1228 300 lb. 12" x 28½" 6
