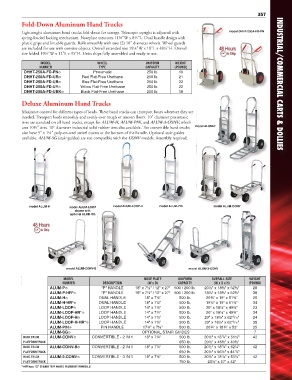

Page 23 - Industrial Carts & Dollies

357
Fold-Down Aluminum Hand Trucks

Lightweight aluminum hand trucks fold-down for storage. Telescopic upright is adjusted with model DHHT-250A-FD-PN
spring-loaded locking mechanism. Noseplate measures 11¾"W x 8¼"L. Dual handle design with
plastic grips and knuckle guards. Rolls smoothly with two (2) 10" diameter wheels. Wheel guards
are included for use with oversize objects. Overall extended size 19¼"W x 18"L x 48½"H. Overall
size folded 19¼"W x 12"L x 33"H. Units ships fully assembled and ready to use.

MODEL WHEEL UNIFORM WEIGHT
NUMBER TYPE CAPACITY (POUND)
DHHT-250A-FD-PN Pneumatic 250 lb. 19
DHHT-250A-FD-UR Red Flat-Free Urethane 250 lb. 21
DHHT-250A-FD-UB Blue Flat-Free Urethane 250 lb. 22 INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
DHHT-250A-FD-UY Yellow Flat-Free Urethane 250 lb. 22
DHHT-250A-FD-UBK Black Flat-Free Urethane 250 lb. 18

Deluxe Aluminum Hand Trucks
Maximize control for different types of loads. These hand trucks can transport boxes wherever they are
needed. Transport loads smoothly and evenly over rough or uneven floors. 10" diameter pneumatic
tires are standard on all hand trucks, except for ALUM-H, ALUM-PIN, and ALUM-3-CONV, which
ares 10½" tires. 10" diameter industrial solid rubber tires also available. The convertible hand trucks model ALUM-P
also have 5" x 1¼" poly-on-steel swivel casters at the bottom of the handle. Optional stair guides
available. ALUM-SG (stair guides) are not compatible with the CONV models. Assembly required.

model ALUM-H model ALUM-LOOP model ALUM-LOOP-H model ALUM-PIN model ALUM-CONV
shown with
optional ALUM-SG

model ALUM-CONV-B model ALUM-3-CONV
MODEL NOSE PLATE UNIFORM OVERALL SIZE WEIGHT
NUMBER DESCRIPTION (W x D) CAPACITY (W x D x H) (POUND)
ALUM-P "P" HANDLE 18" x 7½" / 12" x 27" 500 / 200 lb. 20½" x 18½" x 52½" 28
ALUM-P-HR* "P" HANDLE 18" x 7½" / 12" x 27" 500 / 200 lb. 18½" x 18½" x 52½" 38
ALUM-H DUAL HANDLE 18" x 7½" 500 lb. 20¼" x 19" x 51¼" 25
ALUM-H-HR* DUAL HANDLE 18" x 7½" 500 lb. 19½" x 19" x 51¼" 34
ALUM-LOOP LOOP HANDLE 14" x 7¼" 500 lb. 20" x 18½" x 49¼" 23
ALUM-LOOP-HR* LOOP HANDLE 14" x 7¼" 500 lb. 20" x 18½" x 49¼" 34
ALUM-LOOP-H LOOP HANDLE 14" x 7¼" 500 lb. 20" x 18½" x 62 /16" 24
13
13
ALUM-LOOP-H-HR* LOOP HANDLE 14" x 7¼" 500 lb. 20" x 18½" x 62 /16" 38
ALUM-PIN PIN HANDLE 17¾" x 7½" 500 lb. 20¾" x 18¼" x 53" 25
ALUM-SG OPTIONAL STAIR GUIDES 7
7
HAND TRUCK ALUM-CONV CONVERTIBLE - 2 IN 1 18" x 7¼" 500 lb. 20½" x 18 /8" x 51½" 42
PLATFORM TRUCK 650 lb. 20½" x 46½" x 40½"
7
HAND TRUCK ALUM-CONV-B CONVERTIBLE - 2 IN 1 18" x 7¼" 500 lb. 20½" x 18 /8" x 62¼" 42
PLATFORM TRUCK 650 lb. 20½" x 56½" x 44 /8"
7
HAND TRUCK ALUM-3-CONV CONVERTIBLE - 3 IN 1 18" x 7½" 500 lb. 20½" x 18 /8" x 51½" 42
7
PLATFORM TRUCK 750 lb. 20½" x 57" x 42"
*-HR has 10" DIAMETER HARD RUBBER WHEELS
