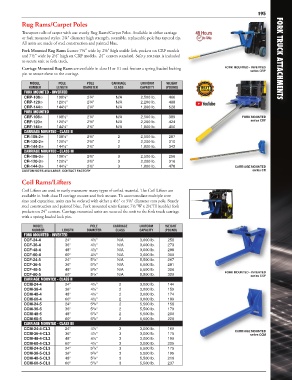

P. 19

195
          Rug Rams/Carpet Poles

          Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage
          or fork mounted styles. 2¾" diameter high strength, rotatable, replaceable pole has tapered tip.
          All units are made of steel construction and painted blue.
          Fork Mounted Rug Rams feature 7⅝" wide by 2⅝" high usable fork pockets on CRF models
          and 7½" wide by 2½" high on CRP models.  24" centers standard. Safety restraint is included
          to secure unit to fork truck.                                                                            FORK TRUCK ATTACHMENTS
          Carriage Mounted Rug Rams are available in class II or III and feature a spring loaded locking   FORK MOUNTED - INVERTED
                                                                                                        series CRP
          pin to secure them to the carriage.
             MODEL       POLE        POLE      CARRIAGE    UNIFORM    WEIGHT
             NUMBER     LENGTH     DIAMETER     CLASS      CAPACITY  (POUND)
           FORK MOUNTED - INVERTED
           CRP-108�     108½"        2¾"         N/A       2,500 lb.   466
           CRP-120�     120½"        2¾"         N/A       2,200 lb.   488
           CRP-144�     144½"        2¾"         N/A       1,800 lb.   528
           FORK MOUNTED
           CRF-108�     108½"        2¾"         N/A       2,500 lb.   389                           FORK MOUNTED
           CRF-120�     120½"        2¾"         N/A       2,200 lb.   424                               series CRF
           CRF-144�     144½"        2¾"         N/A       1,800 lb.   450
           CARRIAGE MOUNTED - CLASS II
           CR-108-2�    108½"        2¾"          2        2,500 lb.   287
           CR-120-2�    120½"        2¾"          2        2,200 lb.   310
           CR-144-2�    144½"        2¾"          2        1,800 lb.   342
           CARRIAGE MOUNTED - CLASS III
           CR-108-3�    108½"        2¾"          3        2,500 lb.   296
           CR-120-3�    120½"        2¾"          3        2,200 lb.   316
           CR-144-3�    144½"        2¾"          3        1,800 lb.   478                        CARRIAGE MOUNTED
          CUSTOM SIZES AVAILABLE, CONTACT FACTORY                                                        series CR
          Coil Rams/Lifters
          Coil Lifters are used to easily maneuver many types of coiled material. The Coil Lifters are
          available in both class II carriage mount and fork mount. To accommodate multiple core
          sizes and capacities, units can be ordered with either a 4½" or 5⅝" diameter ram pole. Sturdy
          steel construction and painted blue. Fork mounted units feature 7½"W x 2½"H (usable) fork
          pockets on 24" centers. Carriage mounted units are secured the unit to the fork truck carriage
          with a spring loaded lock pin.

               MODEL                  POLE      CARRIAGE   UNIFORM   WEIGHT
              NUMBER       LENGTH    DIAMETER    CLASS     CAPACITY  (POUND)
           FORK MOUNTED - INVERTED
           CCF-24-4         24"       4½"        N/A       3,000 lb.  258
           CCF-36-4         36"       4½"        N/A       3,000 lb.  273
           CCF-48-4         48"       4½"        N/A       3,000 lb.  288
           CCF-60-4         60"       4½"        N/A       3,000 lb.  300
           CCF-24-5         24"       5 /8"      N/A       5,500 lb.  267
                                       5
           CCF-36-5         36"       5 /8"      N/A       5,500 lb.  281
                                       5
           CCF-48-5         48"       5 /8"      N/A       5,500 lb.  306                     FORK MOUNTED - INVERTED
                                       5
           CCF-60-5         60"       5 /8"      N/A       5,500 lb.  320                                series CCF
                                       5
           CARRIAGE MOUNTED - CLASS II
           CCM-24-4         24"       4½"         2        3,000 lb.  144
           CCM-36-4         36"       4½"         2        3,000 lb.  159
           CCM-48-4         48"       4½"         2        3,000 lb.  174
           CCM-60-4         60"       4½"         2        3,000 lb.  189
           CCM-24-5         24"       5 /8"       2        5,500 lb.  158
                                       5
                                       5
           CCM-36-5         36"       5 /8"       2        5,500 lb.  179
           CCM-48-5         48"       5 /8"       2        5,500 lb.  200
                                       5
           CCM-60-5         60"       5 /8"       2        5,500 lb.  220
                                       5
           CARRIAGE MOUNTED - CLASS III
           CCM-24-4-CL3     24"       4½"         3        3,000 lb.  160                         CARRIAGE MOUNTED
           CCM-36-4-CL3     36"       4½"         3        3,000 lb.  175                               series CCM
           CCM-48-4-CL3     48"       4½"         3        3,000 lb.  190
           CCM-60-4-CL3     60"       4½"         3        3,000 lb.  205
                                       5
           CCM-24-5-CL3     24"       5 /8"       3        5,500 lb.  175
                                       5
           CCM-36-5-CL3     36"       5 /8"       3        5,500 lb.  195
           CCM-48-5-CL3     48"       5 /8"       3        5,500 lb.  216
                                       5
           CCM-60-5-CL3     60"       5 /8"       3        5,500 lb.  237
                                       5
