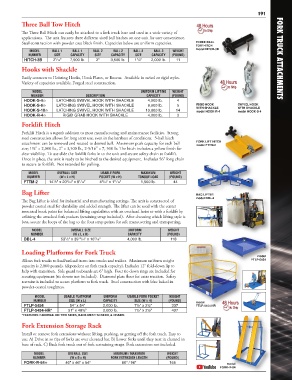

P. 15

191
          Three Ball Tow Hitch

          The Three Ball Hitch can easily be attached to a fork truck base and used in a wide variety of
          applications.  The unit features three different sized ball hitches on one unit for user convenience.
          Steel construction with powder coat black finish. Capacities below are uniform capacities.  THREE BALL
                                                                                  TOW HITCH
             MODEL     BALL 1  BALL 1  BALL 2   BALL 2  BALL 3   BALL 3  WEIGHT   model HITCH-3B
             NUMBER    SIZE   CAPACITY  SIZE   CAPACITY  SIZE   CAPACITY  (POUND)
                                                          7
                        5
           HITCH-3B    2 /16"  7,500 lb.  2"   3,500 lb.  1 /8"  2,000 lb.  11                                     FORK TRUCK ATTACHMENTS
          Hooks with Shackle
          Easily connects to Hoisting Hooks, Hook Plates, or Booms.  Available in swivel or rigid styles.
          Variety of capacities available. Forged steel construction.
              MODEL                                        UNIFORM LIFTING  WEIGHT
              NUMBER                DESCRIPTION               CAPACITY  (POUND)
           HOOK-S-4�    LATCHING SWIVEL HOOK WITH SHACKLE     4,000 lb.   4
           HOOK-S-6�    LATCHING SWIVEL HOOK WITH SHACKLE     6,000 lb.   5       RIGID HOOK       SWIVEL HOOK
                                                                                  WITH SHACKLE
                                                                                                   WITH SHACKLE
           HOOK-S-10�   LATCHING SWIVEL HOOK WITH SHACKLE    10,000 lb.   14      model HOOK-R-4   model HOOK-S-4
           HOOK-R-4�       RIGID GRAB HOOK WITH SHACKLE       4,000 lb.   3
          Forklift Hitch
          Forklift Hitch is a superb addition to most manufacturing and maintenance facilities.  Strong
          steel construction allows for long term use, even in the harshest of conditions.  3-ball hitch
          attachment can be removed and rotated to desired ball.  Maximum push capacity for each ball   FORK LIFT HITCH
                                                                                  model FTTM-2
          size; 1⅞" = 2,000 lb., 2" = 3,500 lb., 2-5/16" = 7, 500 lb. The hitch includes a yellow finish for
          clear visibility.  To use slide the forklift forks in to the unit and secure safety chain to forklift.
          Once in place, the unit is ready to be hitched to the desired equipment.  Includes 56" long chain
          to secure to forklift.  Not intended for pulling.
             MODEL       OVERALL SIZE      USABLE FORK     MAXIMUM     WEIGHT
            NUMBER        (W x L x H)     POCKET (W x H)  TONGUE LOAD  (POUND)
           FTTM-2    14 /2" x 20 /16" x 8 /16"  4 /16" x 1 /16"  1,500 lb.  44
                                  1
                                           5
                                                11
                       1
                             9
          Bag Lifter                                                              BAG LIFTER
                                                                                  model BBL-4
          The Bag Lifter is ideal for industrial and manufacturing settings. The unit is constructed of
          powder coated steel for durability and added strength. The lifter can be used with the center
          mounted hook point for balanced lifting capabilities with an overhead hoist or with a forklift by
          utilizing the attached fork pockets (retaining strap included).  After choosing which lifting style is
          best, secure the loops of the bag to the four strap points for safe maneuvering and transporting.
              MODEL           OVERALL SIZE            UNIFORM         WEIGHT
              NUMBER           (W x L x H)            CAPACITY        (POUND)
                            1
                                        7
           BBL-4          53 /2" x 39 /16" x 10 /16"  4,000 lb.        118
                                 15
          Loading Platforms for Fork Truck
                                                                                                           model
          Allows fork trucks to load/unload items into trucks and trailers.  Maximum uniform weight      FTLP-5454
          capacity is 2,000 pounds. (dependent on fork truck capacity). Includes 12" fold-down lip to
          help with transition.  Side guard toeboards are 6" high.  Four tie-down rings are included for
          securing equipment (tie downs not included).  Diamond plate floor for extra traction.  Safety
          restraint is included to secure platform to fork truck.  Steel construction with blue baked-in
          powder-coated toughness.

               MODEL       USABLE PLATFORM  UNIFORM   USABLE FORK POCKET   WEIGHT
               NUMBER        SIZE (W x L)   CAPACITY     SIZE (W x H)  (POUND)    model
           FTLP-5454          54" x 54"     2,000 lb.    7½" x 2½"      337       FTLP-5454-HR
           FTLP-5454-HR*     51" x 48½"     2,000 lb.    7½" x 2½"      407
          *FEATURES HANDRAIL ON TWO SIDES, BACK MESH SCREEN, & CHAINS
          Fork Extension Storage Rack
          Install or remove fork extensions without lifting, pushing, or getting off the fork truck. Easy to
          use: A) Drive in so tips of forks are over elevated bar. B) Lower forks until they nest in channel in
          base of rack. C) Back fork truck out of fork restraining straps. Fork extensions not included.
               MODEL         OVERALL SIZE       MINIMUM / MAXIMUM     WEIGHT
               NUMBER         (W x D x H)      FORK EXTENSION LENGTH  (POUND)
           FORK-R-54�       40" x 46" x 54"        60" / 96"           165                     model
                                                                                            FORK-R-54
