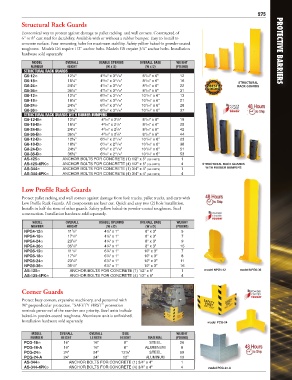

Page 27 - Protective Barriers

275
Structural Rack Guards

Economical way to protect against damage to pallet racking and wall corners. Constructed of
6" or 8" cast steel for durability. Available with or without a rubber bumper. Easy to install to
concrete surface. Four mounting holes for maximum stability. Safety yellow baked-in powder-coated
toughness. Models G6 require 1/2" anchor bolts. Models G8 require 3/4" anchor bolts. Installation
hardware sold separately. PROTECTIVE BARRIERS

MODEL OVERALL USABLE OPENING OVERALL BASE WEIGHT
NUMBER HEIGHT (W x D) (W x D) (POUND)
STRUCTURAL RACK GUARDS
9
1
11
G6-12� 12¼" 4 /16" x 3 /16" 8 /16" x 6" 12
1
11
9
G6-18� 18¼" 4 /16" x 3 /16" 8 /16" x 6" 16 STRUCTURAL
11
1
9
G6-24� 24¼" 4 /16" x 3 /16" 8 /16" x 6" 22 RACK GUARDS
1
9
11
G6-36� 36¼" 4 /16" x 3 /16" 8 /16" x 6" 31
9
1
11
G8-12� 12¼" 6 /16" x 3 /16" 10 /16" x 6" 13
9
1
11
G8-18� 18¼" 6 /16" x 3 /16" 10 /16" x 6" 21
9
G8-24� 24¼" 6 /16" x 3 /16" 10 /16" x 6" 28
1
11
1
11
9
G8-36� 36¼" 6 /16" x 3 /16" 10 /16" x 6" 37
STRUCTURAL RACK GUARDS WITH RUBBER BUMPERS
1
7
9
G6-12-B� 12¼" 4 /16" x 2 /8" 8 /16" x 6" 19
7
9
1
G6-18-B� 18¼" 4 /16" x 2 /8" 8 /16" x 6" 25
7
9
1
G6-24-B� 24¼" 4 /16" x 2 /8" 8 /16" x 6" 42
9
1
7
G6-36-B� 36¼" 4 /16" x 2 /8" 8 /16" x 6" 44
11
9
1
G8-12-B� 12½" 6 /16" x 2 /16" 10 /16" x 6" 23
1
9
G8-18-B� 18½" 6 /16" x 2 /16" 10 /16" x 6" 38
11
1
11
9
G8-24-B� 24½" 6 /16" x 2 /16" 10 /16" x 6" 51
9
1
11
G8-36-B� 36½" 6 /16" x 2 /16" 10 /16" x 6" 53
AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" (G6 UNITS) 1
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" (G6 UNITS) 4 STRUCTURAL RACK GUARDS
WITH RUBBER BUMPERS
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" (G8 UNITS) 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" (G8 UNITS) 4
Low Profile Rack Guards
Protect pallet racking and wall corners against damage from fork trucks, pallet trucks, and carts with
Low Profile Rack Guards. All components are laser cut. Quick and easy two (2) hole installation.
Installs in half the time of other guards. Safety yellow baked-in powder-coated toughness. Steel
construction. Installation hardware sold separately.
MODEL OVERALL USABLE OPENING OVERALL BASE WEIGHT
NUMBER HEIGHT (W x D) (W x D) (POUND)
7
NPG4-12� 11 /8" 4¼" x 1" 8" x 3" 5
7
NPG4-18� 17 /8" 4¼" x 1" 8" x 3" 7
7
NPG4-24� 23 /8" 4¼" x 1" 8" x 3" 9
NPG4-36� 35 /8" 4¼" x 1" 8" x 3" 15
7
NPG6-12� 11 /8" 6¼" x 1" 10" x 3" 7
7
7
NPG6-18� 17 /8" 6¼" x 1" 10" x 3" 8
7
NPG6-24� 23 /8" 6¼" x 1" 10" x 3" 11
7
NPG6-36� 35 /8" 6¼" x 1" 10" x 3" 16
AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" 1 model NPG4-12 model NPG6-36
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" 4
Corner Guards
Protect busy corners, expensive machinery, and personnel with
90° perpendicular protection. "SAFETY FIRST" promotion
reminds personnel of the number one priority. Steel units include
baked-in powder-coated toughness. Aluminum unit is unfinished.
Installation hardware sold separately. model PCG-24
MODEL OVERALL OVERALL SIDE WEIGHT
NUMBER HEIGHT LENGTH HEIGHT MATERIAL (POUND)
PCG-16� 16" 16" 8" STEEL 26
PCG-16-A 16" 16" 8" ALUMINUM 8
PCG-24� 24" 24" 12¼" STEEL 59
PCG-24-A 24" 24" 12" ALUMINUM 10
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4 model PCG-24-A
