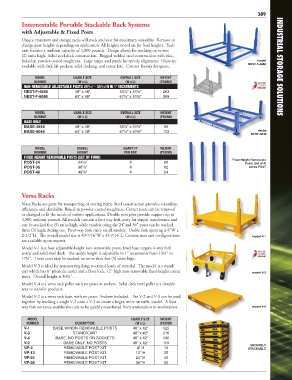

Page 15 - Storage Solutions
P. 15

          Internestable Portable Stackable Rack Systems
          with Adjustable & Fixed Posts

          Unique transport and storage racks will stack and nest for maximum versatility.  Remove or
          change post heights depending on application. All heights noted are for load heights.  Each
          unit features a uniform capacity of 4,000 pounds.  Design allows for stacking up to two
          (2) units high.  Solid steel deck construction.  Rugged welded steel construction with blue,
          baked-in powder-coated toughness.  Large target and pintle for speedy alignment.  Units are      model
          available with fork lift pockets, solid decking, and caster kits.  Contact factory for quote.   NEST-F-4848  INDUSTRIAL STORAGE SOLUTIONS

                MODEL          USABLE SIZE         OVERALL SIZE    WEIGHT
               NUMBER            (W x L)             (W x L)       (POUND)
           NEST-F-4848          48" x 48"         55½" x 51¾"       263
           NEST-F-6048          60" x 48"         67½" x 51¾"       399
                MODEL          USABLE SIZE         OVERALL SIZE    WEIGHT
               NUMBER            (W x L)             (W x L)       (POUND)
           BASE ONLY
           BASE-4848            48" x 48"         55½" x 51¾"        90
           BASE-6048            60" x 48"         67½" x 51¾"       113                                    model

                MODEL            USABLE             QUANTITY       WEIGHT
               NUMBER            HEIGHT             PER BOX        (POUND)
           FIXED HEIGHT REMOVABLE POSTS (SET OF FOUR)                                            Fixed Height Removable
           POST-24               24 /8"                4             60                               Posts (set of 4)
           POST-36               36 /8"                4             62                                 series POST
           POST-48               48 /8"                4             64
          Versa Racks

          Versa Racks are great for transporting or storing items. Steel construction provides versatility,
          efficiency, and durability. Baked-in powder-coated toughness. Corner posts can be removed
          or changed to fit the needs of various applications. Double post pins provide support up to
          4,000 uniform pounds. All models contain a four way fork entry for simple transference and
          can be stacked five (5) units high, while models using the 24"and 36" posts can be stacked
          three (3) high, during use.  The overall model size is 49-7/16" W x 43-7/16" L. Custom sizes
          and configurations are available upon request.
          Model V-1 has four adjustable-height non-removable posts, fixed base targets, 4-way fork       model V-1
          entry, and solid steel deck.  The usable height is adjustable in 1" increments from 11¼" to
          Model V-3 is ideal for transporting long, oversized loads of material.  The model is a stand/
          cart which has 8" glass-filled nylon wheels and a floor lock. 12" high non-removable fixed-
          height corner posts secure loads.  Overall height is 30".
          Model V-4 is a versa rack pallet with no posts or sockets.  Solid deck steel pallet is a durable   model V-3
          way to transfer products.  The model has 4-way fork entrance for convenient portability.
          Usable fork opening is 8" W x 2½" H.
          Model V-2 is a versa rack base, with no posts.  Sockets included.  The V-2 and V-3 can be
          used together by stacking a single V-2 onto a V-3 to create a larger, more versatile, model.
          A four way fork entrance enables the unit to be quickly transferred from workstation to
          workstation.                                                                                   model V-4

            MODEL                                      USABLE SIZE  WEIGHT
            NUMBER              DESCRIPTION              (W x L)   (POUND)
           V-1         BASE W/NON-REMOVABLE POSTS       48" x 42"   125
           V-3                 STAND/CART               48" x 42"   210
           V-4          BASE, NO POSTS OR SOCKETS       48" x 42"   100
           V-2             BASE ONLY, NO POSTS          48" x 42"   110                                 SECURELY
           VP-4            REMOVABLE POST KIT             4" H       15                                STACKABLE
           VP-12           REMOVABLE POST KIT            12" H       25
           VP-24           REMOVABLE POST KIT            24" H       40
           VP-36           REMOVABLE POST KIT            36" H       50
