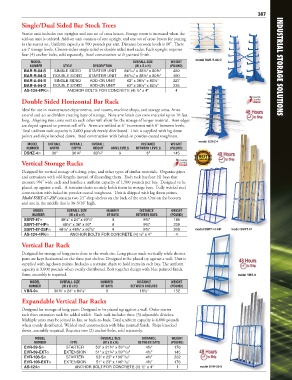

          Single/Dual Sided Bar Stock Trees
          Starter unit includes two uprights and one set of cross braces. Storage room is increased when the
          add-on unit is ordered. Add-on unit consists of one upright and one set of cross braces for joining
          to the starter set. Uniform capacity is 500 pounds per arm. Distance between levels is 10". There
          are 7 storage levels. Choose either single sided or double sided steel racks. Each upright requires
          four (4) anchor bolts, sold separately.  Steel construction with painted finish.
                                                                                  model BAR-R-84-D
              MODEL                                     OVERALL SIZE   WEIGHT
             NUMBER        STYLE       DESCRIPTION       (W x D x H)   (POUND)                                     INDUSTRIAL STORAGE SOLUTIONS
           BAR-R-84-S  SINGLE SIDED   STARTER UNIT  84 /16" x 38½" x 80½"  450
                                                      1
           BAR-R-84-D  DOUBLE SIDED   STARTER UNIT  84 /16" x 38½" x 80½"  490
                                                      1
           BAR-A-84-S  SINGLE SIDED   ADD-ON UNIT    62" x 38½" x 80½"   227
           BAR-A-84-D  DOUBLE SIDED   ADD-ON UNIT    62" x 38½" x 80½"   235
           AS-124-4PK�       ANCHOR BOLTS FOR CONCRETE (4) ½" x 4"       4
          Double Sided Horizontal Bar Rack

          Ideal for use in maintenance departments, tool rooms, machine shops, and storage areas. Arms
          extend and act as dividers creating bays of storage.  Nine arm levels can store material up to 10 feet
          long.  Aligning two units next to each other will allow for the storage of longer material.  Arm edges
          are sloped upward to prevent roll off's.  Arms are welded at 6" increments with 6" between levels.
          Total uniform rack capacity is 2,600 pounds evenly distributed.  Unit is supplied with lag down
          points and ships knocked down.  Steel construction with baked-in powder-coated toughness.
                                                                                   model DSHZ-4
            MODEL    OVERALL   OVERALL   OVERALL           DISTANCE    WEIGHT
            NUMBER    WIDTH    DEPTH   HEIGHT  ARM LEVELS  BETWEEN LEVELS  (POUND)
                                         7
           DSHZ-4�    30"      30¼"     83 /8"    9           6"         145
          Vertical Storage Racks

          Designed for vertical storage of tubing, pipe, and other types of similar materials.  Organize pipes
          and extrusions with odd lengths instead of discarding them.  Each rack has four (4) bays that
          measure 9¾" wide each and handles a uniform capacity of 1,500 pounds per bay.  Designed to be
          placed up against a wall.  A restraint chain securely holds items in storage bays.  Fully welded steel
          construction with baked-in powder-coated toughness.  Unit is shipped with lag down points.
          Model SSRT-47-2SF contains two 24" deep shelves on the back of the unit. One on the bottom
          and one in the middle that is 36-3/16" high.
               MODEL         OVERALL SIZE    NUMBER        DISTANCE     WEIGHT
              NUMBER          (W x D x H)    OF BAYS     BETWEEN BAYS  (POUND)
                                     7
           SSRT-47�       48½" x 24" x 60 /8"  4            9¾"          185
           SSRT-47-HP�     48½" x 36" x 92"    4            9¾"          239
                                      7
                           3
           SSRT-47-2SF�  48 /8" x 48½" x 60 /8"  4          9¾"          205      model SSRT-47-HP  model SSRT-47
           AS-124-4PK�        ANCHOR BOLTS FOR CONCRETE (4) ½" x 4"       4
          Vertical Bar Rack
          Designed for storage of long parts close to the work site. Long pieces stack vertically while shorter
          parts are kept horizontal on the three pan shelves. Designed to be placed up against a wall. Unit is
          supplied with lag down points. Includes a restraint chain to hold items in each bay. The uniform
          capacity is 3,000 pounds when evenly distributed. Bolt together design with blue painted finish.
          Some assembly is required.                                                               model VBR-9
             MODEL        OVERALL SIZE     NUMBER         DISTANCE      WEIGHT
             NUMBER        (W x D x H)     OF BAYS     BETWEEN SHELVES  (POUND)
           VBR-9�      39¼" x 24" x 84½"     3             18½"          152
          Expandable Vertical Bar Racks

          Designed for storage of long parts. Designed to be placed up against a wall. Order starter
          rack then extension rack for added width.  Each rack includes three (3) adjustable dividers.
          Multiple units may be joined in-line or back-to-back. Total uniform capacity is 4,000 pounds
          when evenly distributed. Welded steel construction with blue painted finish.  Ships knocked
          down, assembly required. Requires two (2) anchor bolts, sold separately.
                MODEL                      OVERALL SIZE     DISTANCE    WEIGHT
               NUMBER         TYPE         (W x D x H)    BETWEEN BAYS  (POUND)
                                                    17
           EVR-59-S�        STARTER     53" x 21¾" x 59 /32"  4½"        176
                                                    17
           EVR-59-EXT�     EXTENSION    51" x 21¾" x 59 /32"  4½"        145
                                                   17
           EVR-106-S�       STARTER      53" x 23" x 106 /32"  4½"       202
                                                   17
           EVR-106-EXT�    EXTENSION     51" x 23" x 106 /32"  4½"       176
           AS-124�              ANCHOR BOLT FOR CONCRETE (1) ½" x 4"      1         model EVR-59-S
