Model Details

D-150-15

Printer Friendly
D-150-15

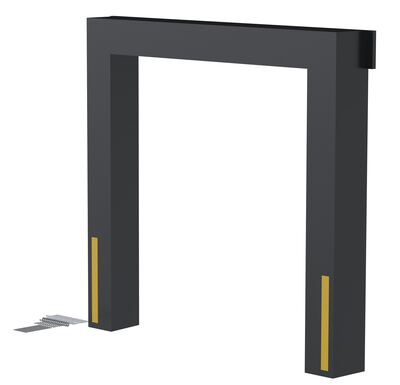

Vinyl Dock Seal 15 In. 8 Ft. x 8 Ft. Black

The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight halon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable womanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five (5") maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet. This unit is non-returnable.

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Total Ship Wt.(lbs.): 220 (only 1 package) Size: 120"W x 15"L x 108"H Color: Black Non-Returnable

Projection (in.): 15 Nylon Reinforced Vinyl (oz.): 36 Nylon Reinforced Guide Strips (in.): 2
Top Height (in.): 12 Side Wall Width (in.): 9-1/2 Face Width (in.): 12
Maximum Compression (in.): 5 Standard Guide Stipe Height (in.): 30 Side Height (in.): 96
Max Door Width (in.): 96 Max Door Height (in.): 96

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: D-150-15
D-150-15

Vinyl Dock Seal 15 In. 8 Ft. x 8 Ft. Black

The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight halon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable womanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five (5") maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet. This unit is non-returnable.

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Dimensions: 120"W x 15"L x 108"H Sell UOM: EA-Each Color: Black
Material: Vinyl UPC: 691215012102 GTIN: 00691215012102
Warranty: -- Shipping Weight: 220 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Projection (in.): 15 Nylon Reinforced Vinyl (oz.): 36 Nylon Reinforced Guide Strips (in.): 2
Top Height (in.): 12 Side Wall Width (in.): 9-1/2 Face Width (in.): 12
Maximum Compression (in.): 5 Standard Guide Stipe Height (in.): 30 Side Height (in.): 96
Max Door Width (in.): 96 Max Door Height (in.): 96
