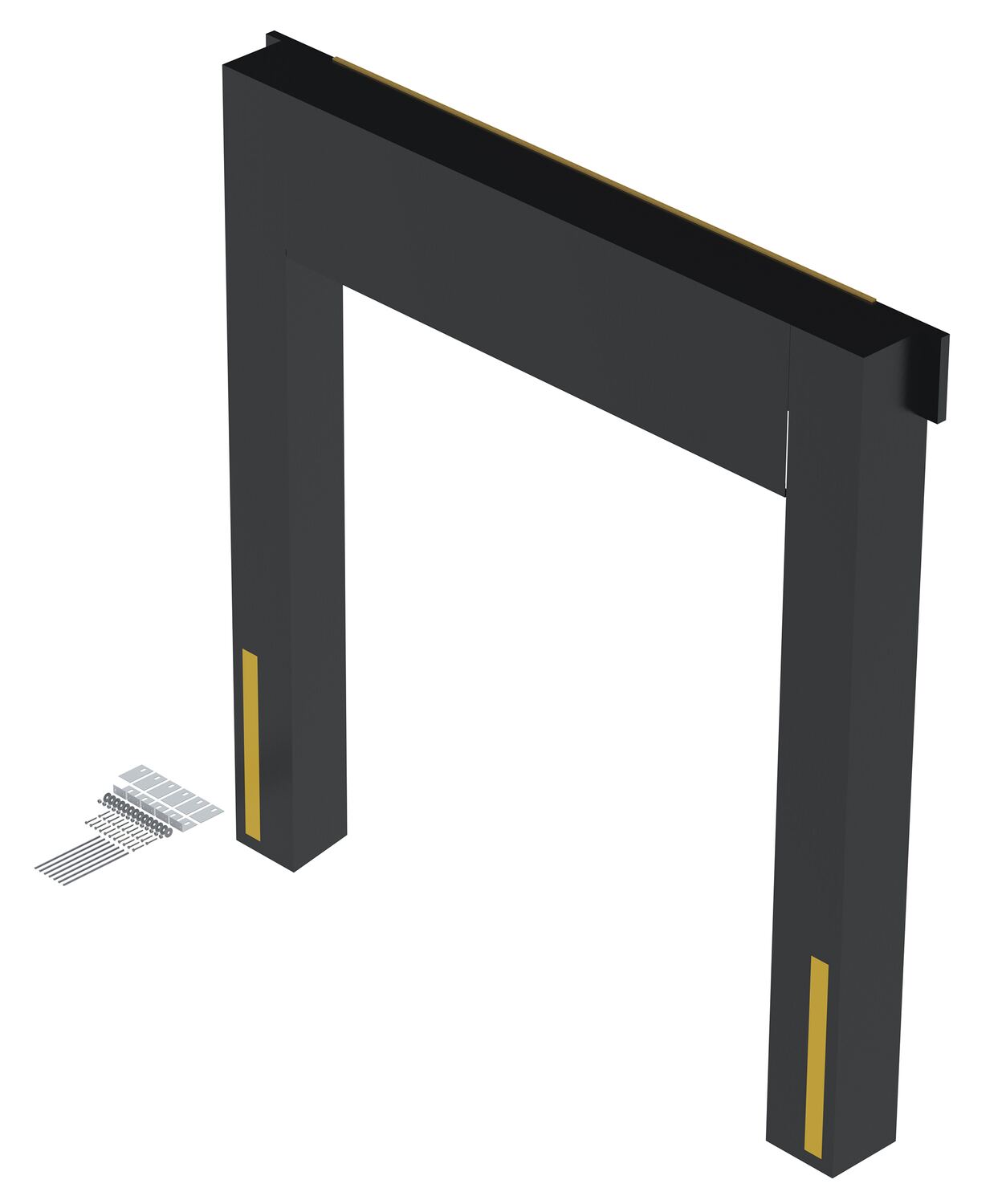

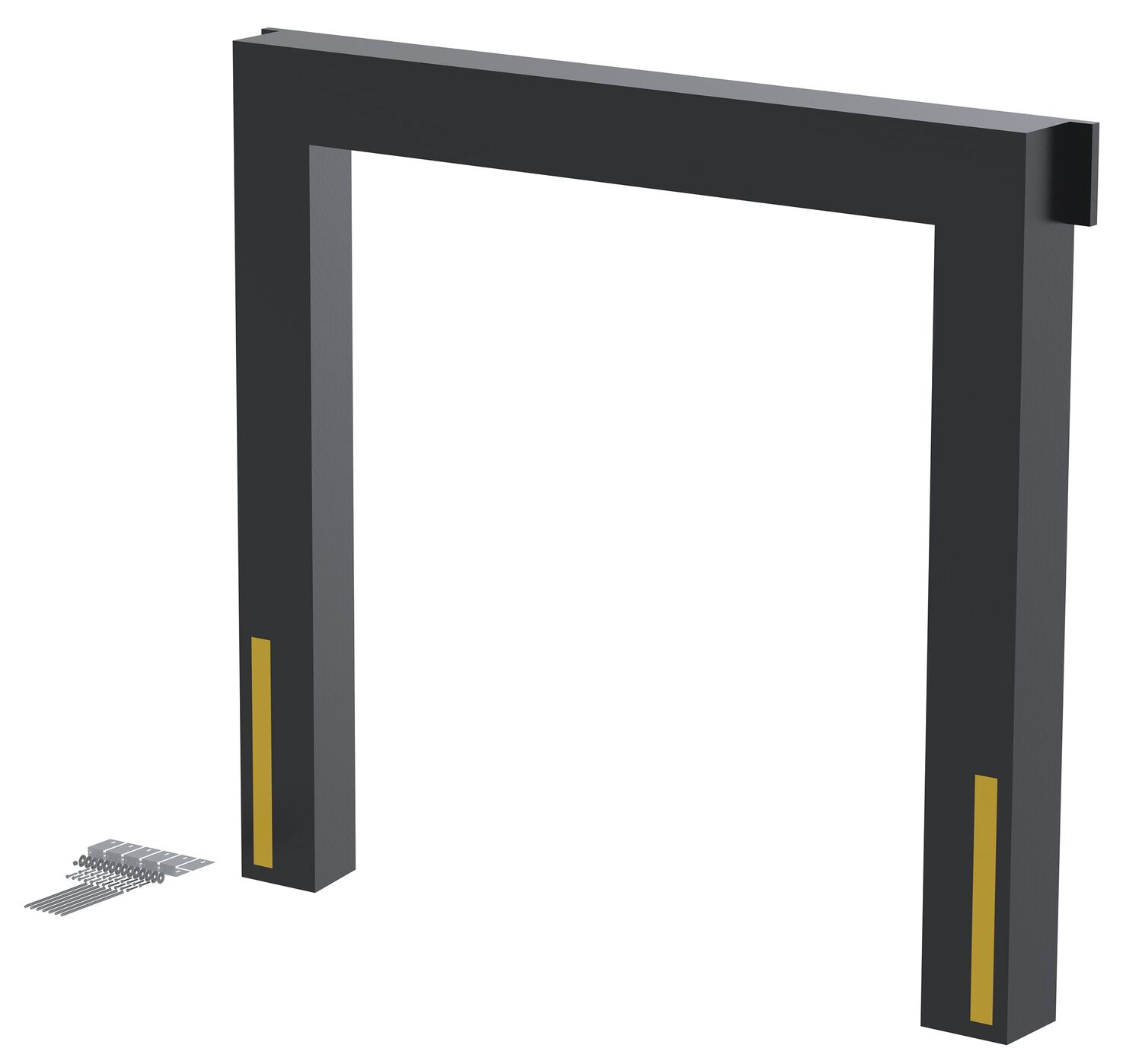

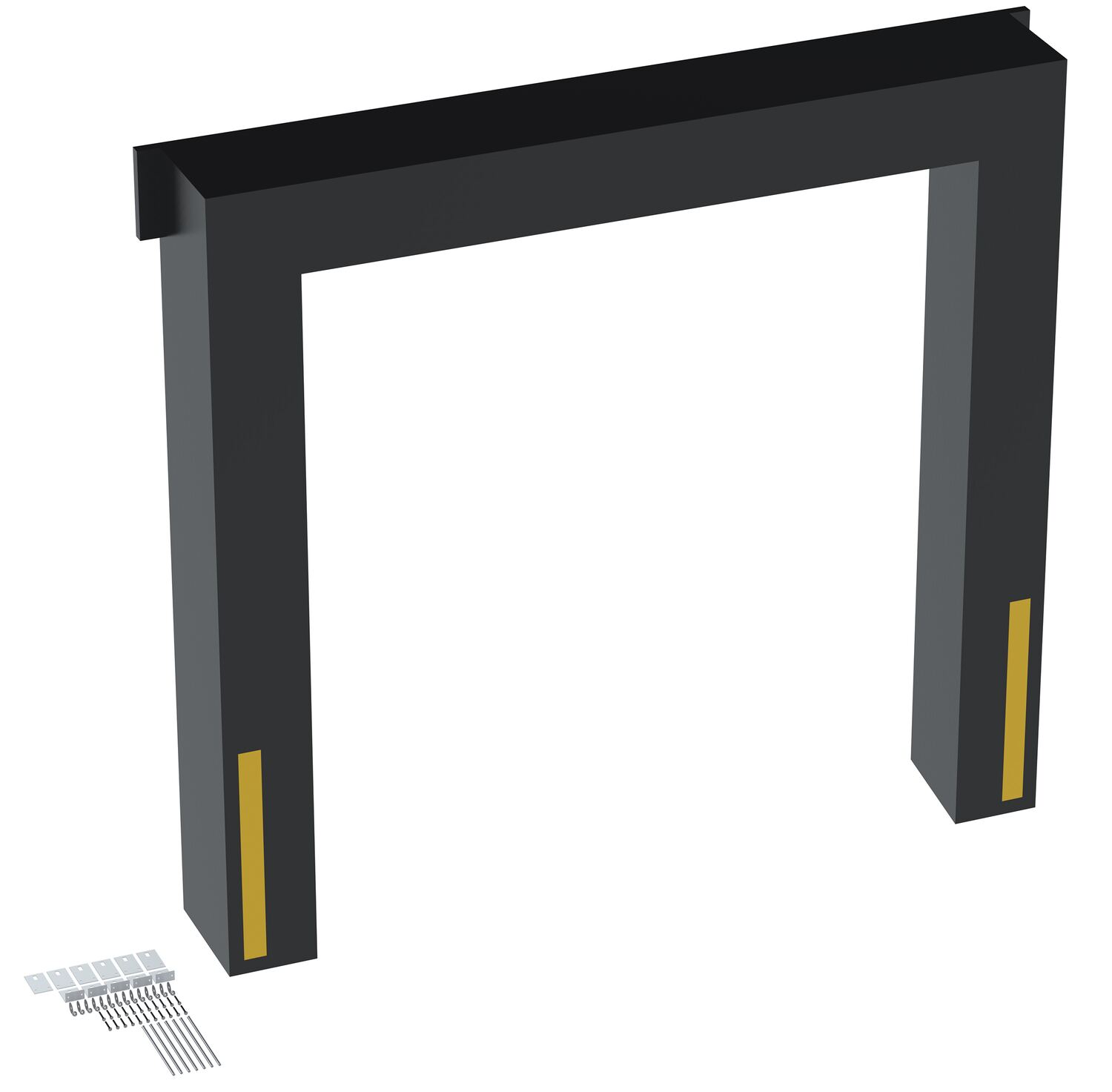

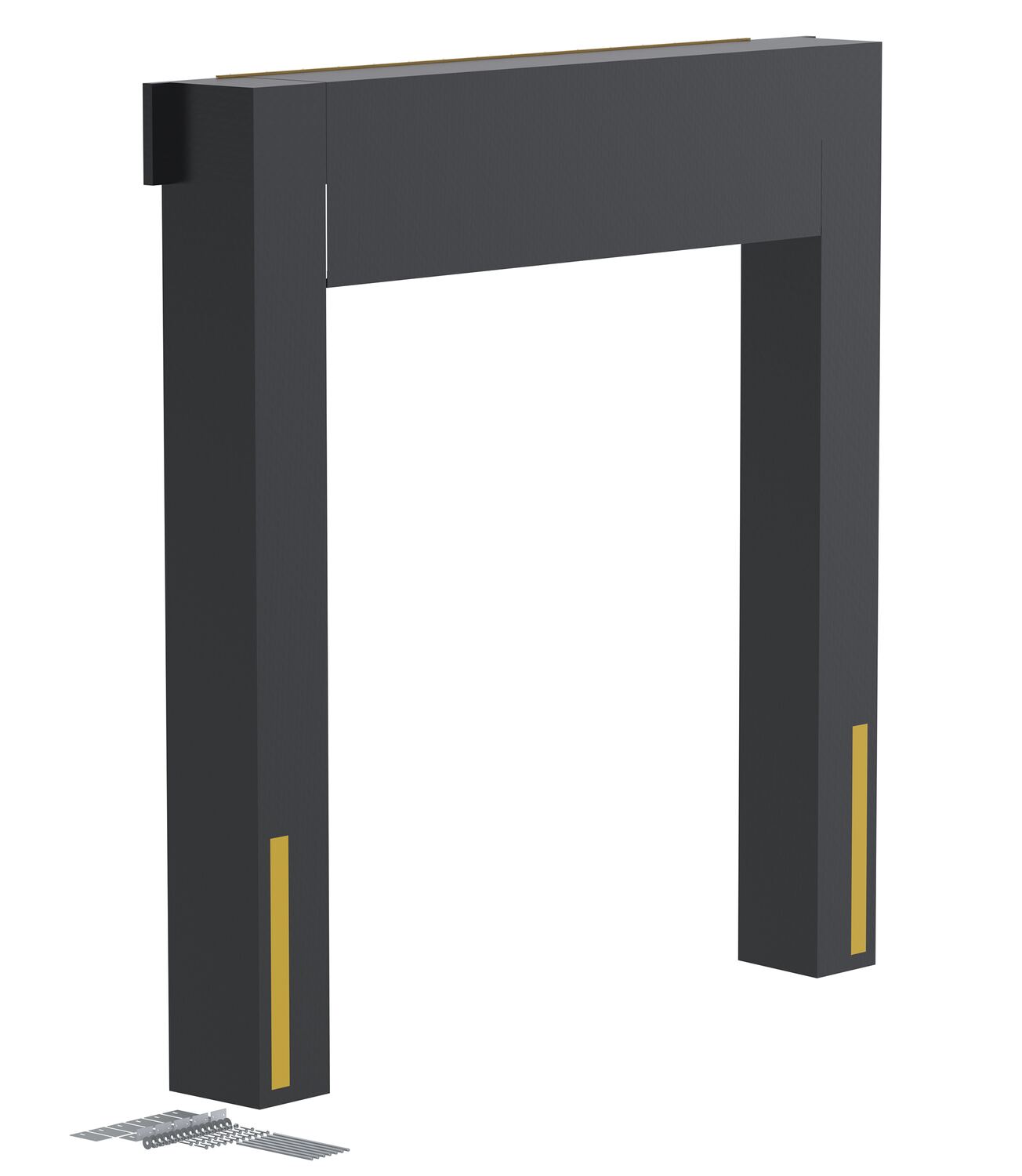

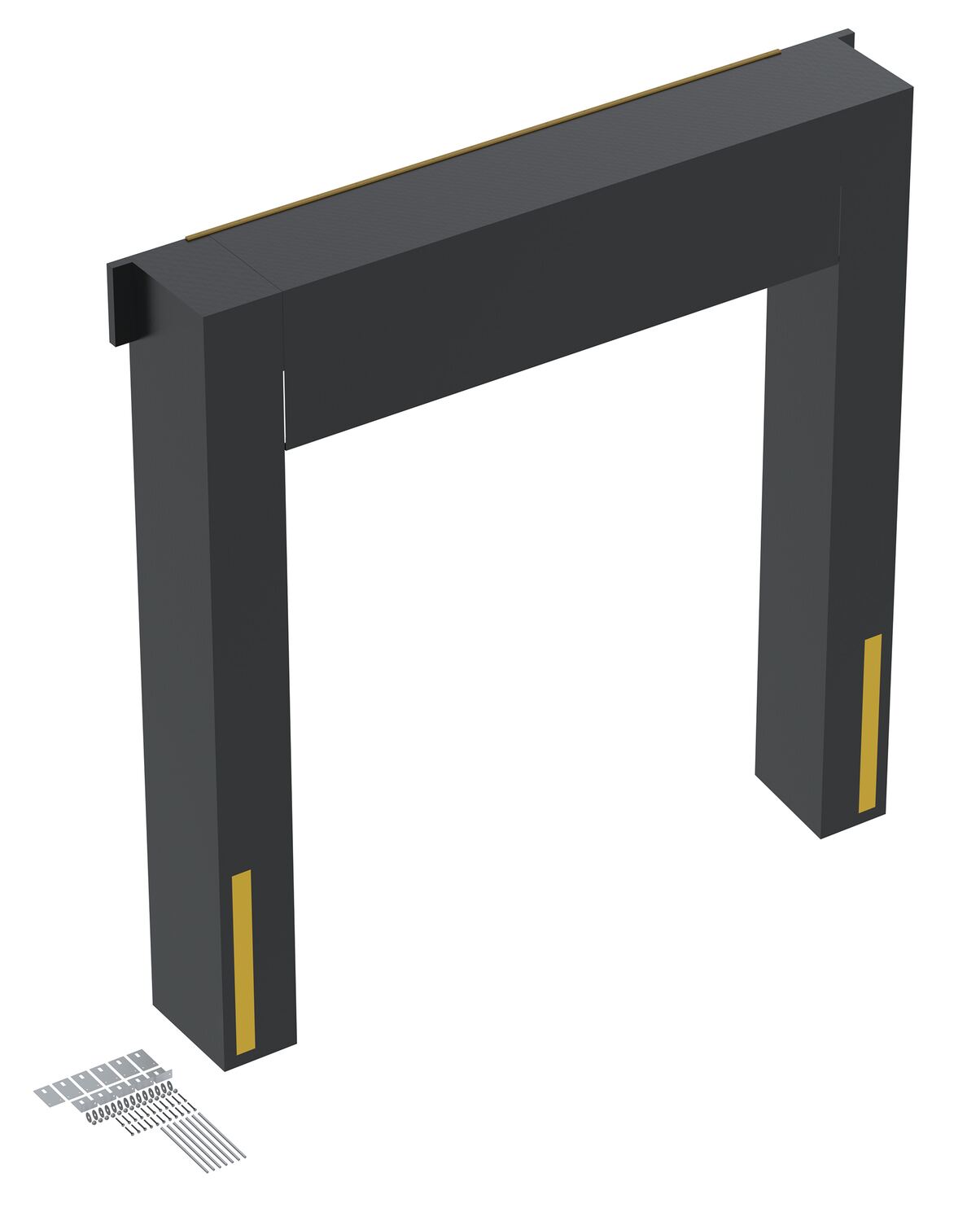

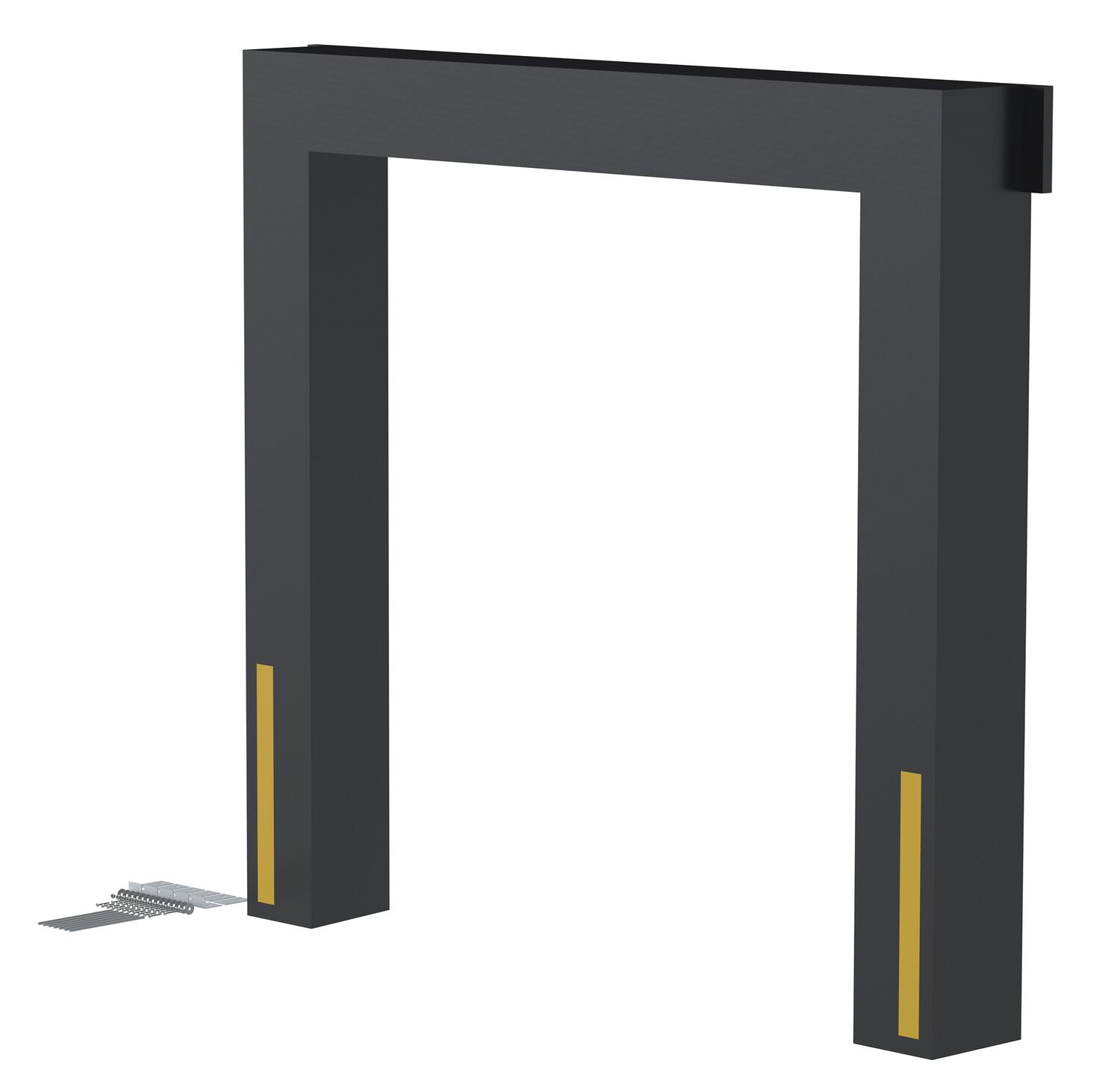

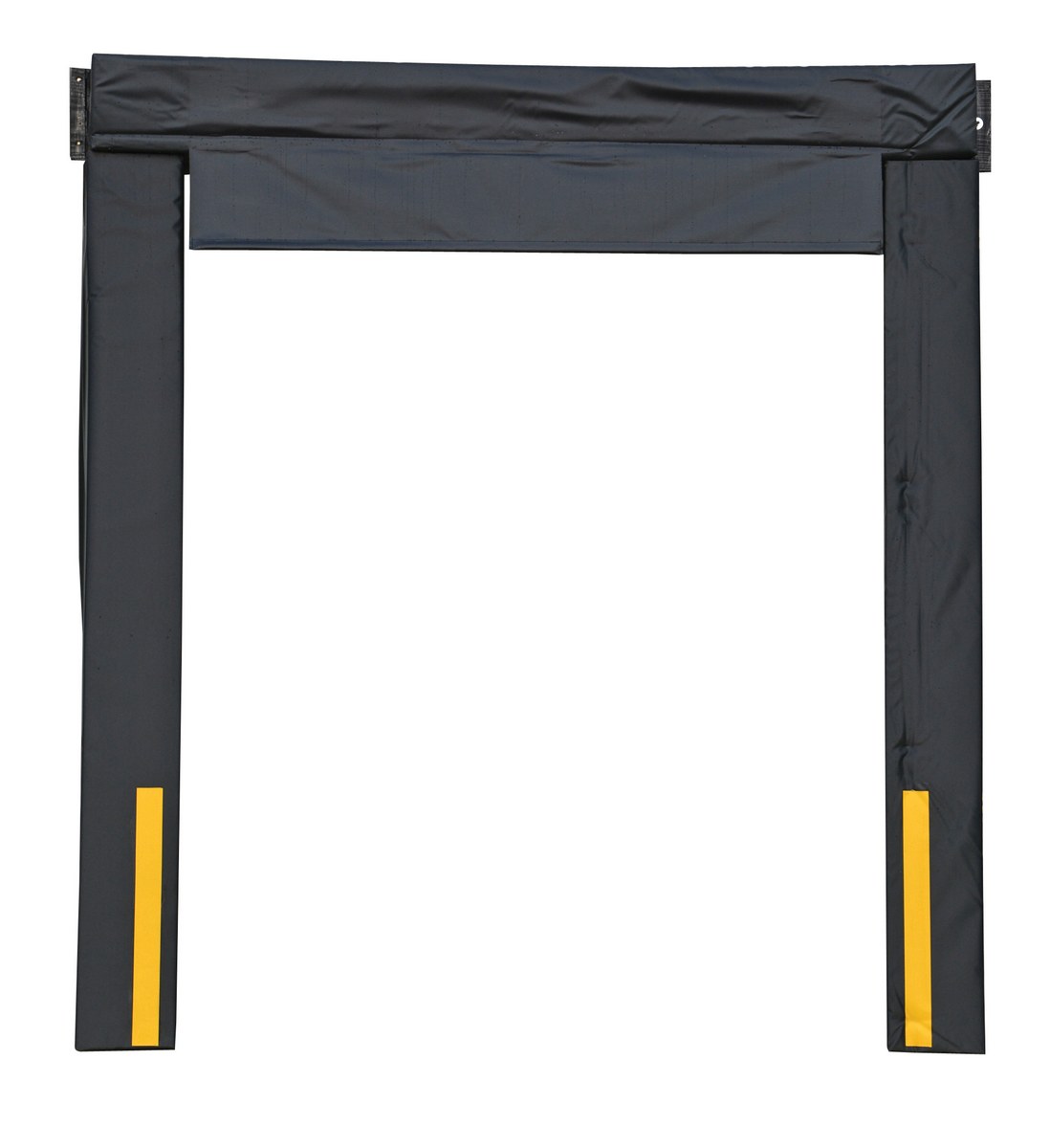

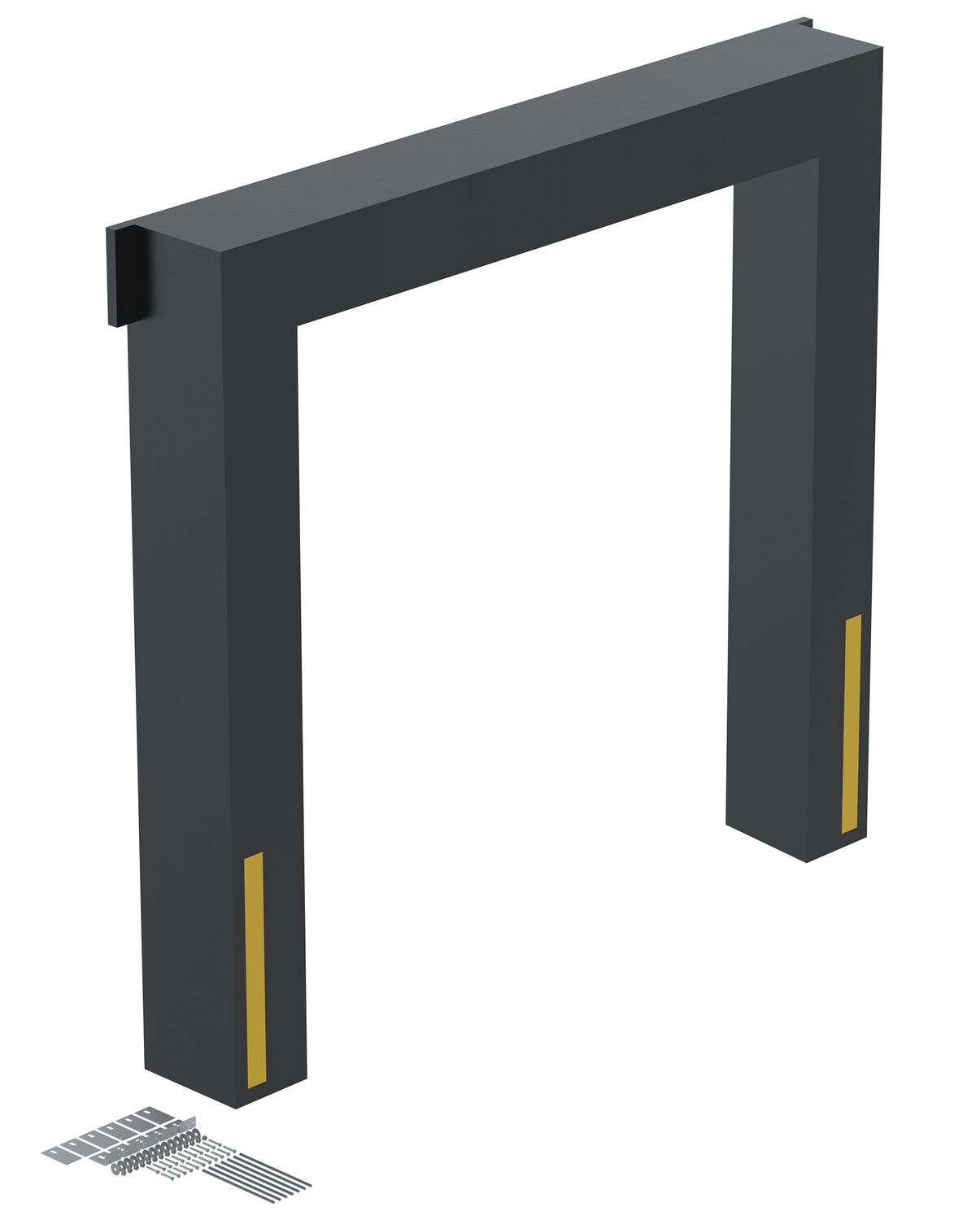

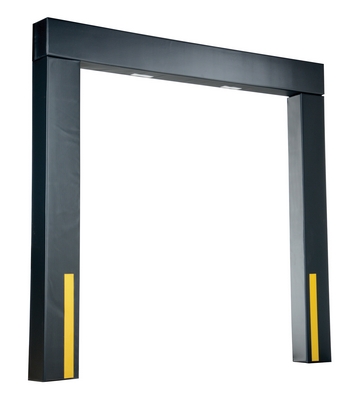

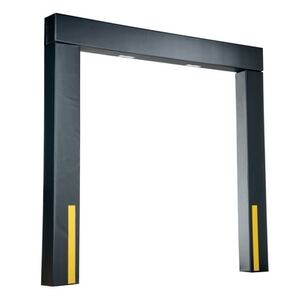

model: D-350-10


Dock Seals
SERIES: D

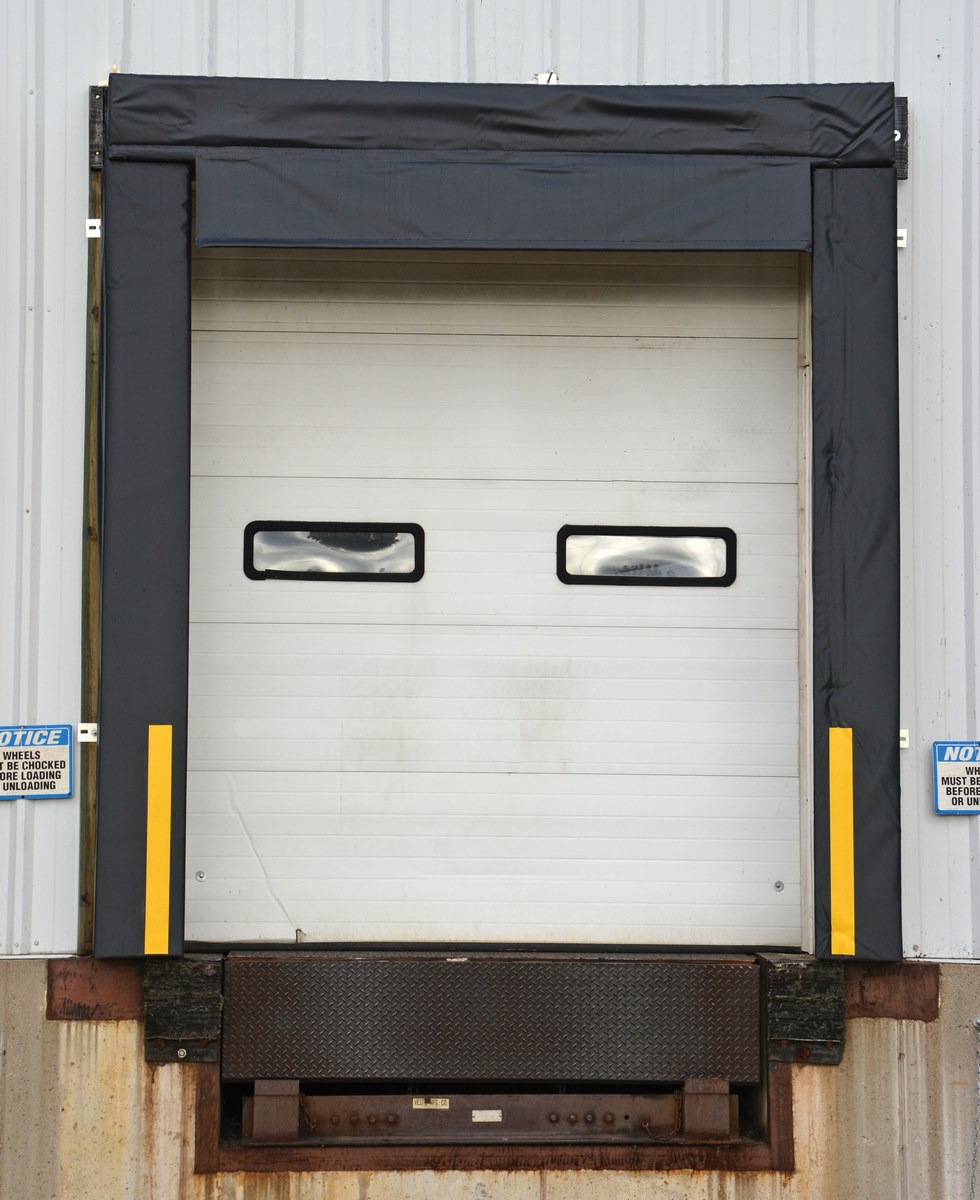

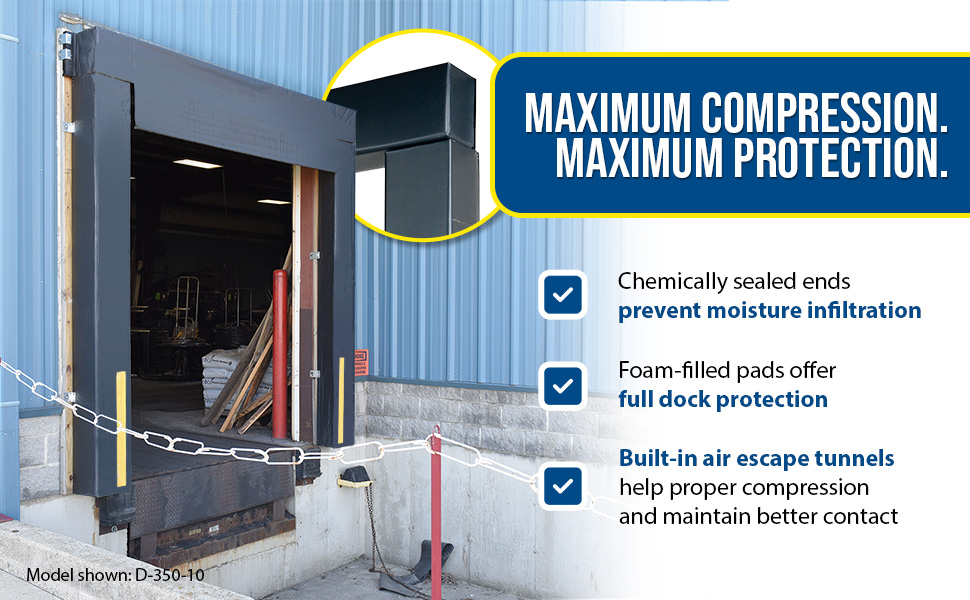

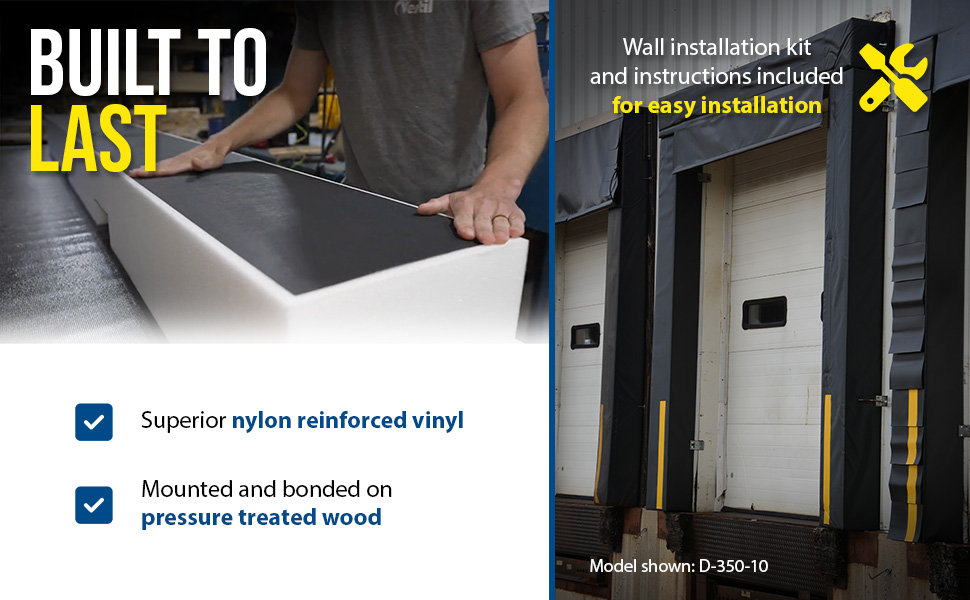

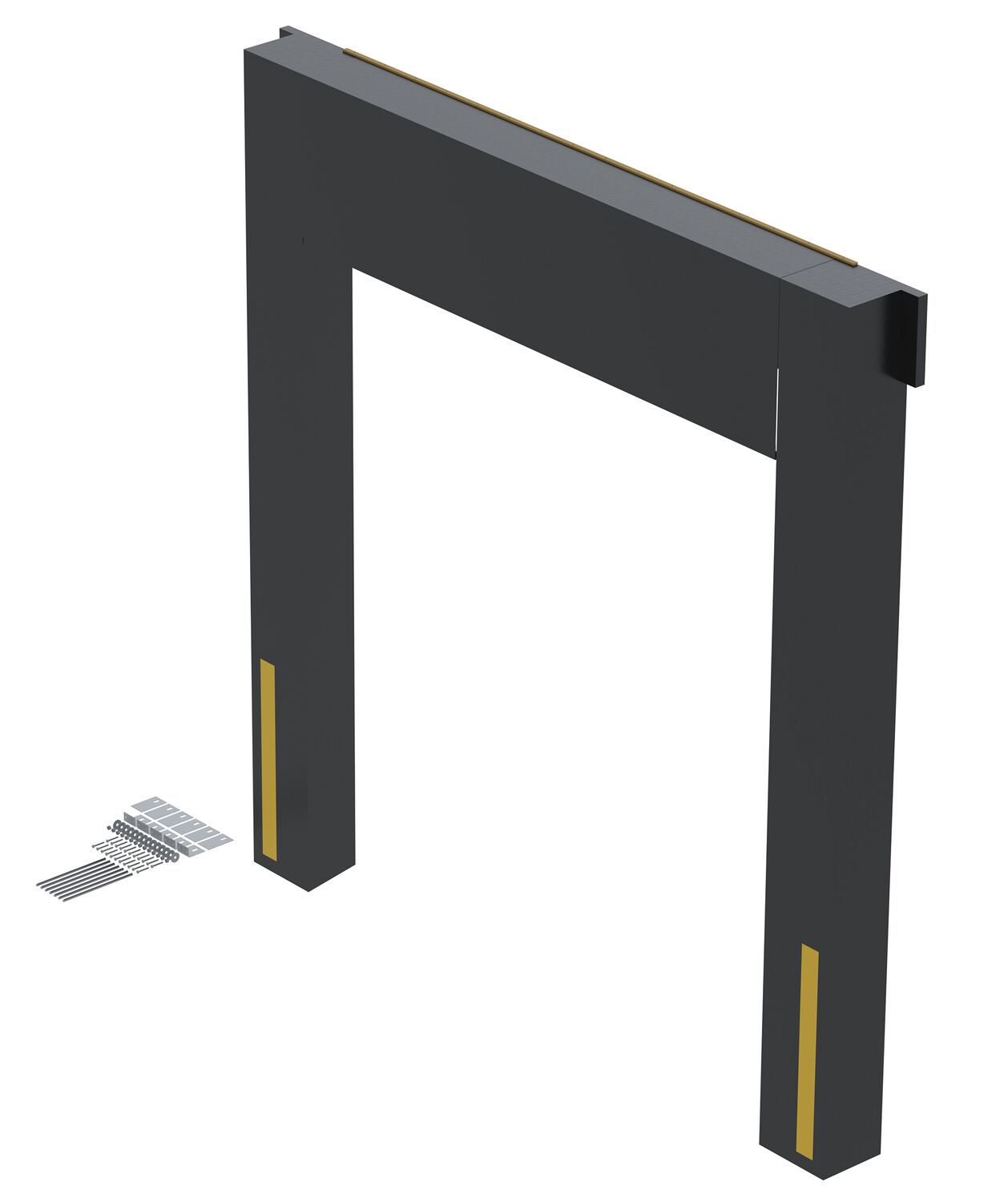

The Dock Seals superior 36 oz. nylon reinforced vinyl facings havea higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

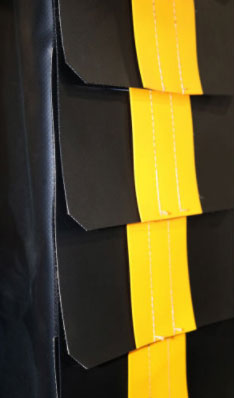

Optional Wear Pleats For Dock Seals

The Dock Seals superior 36 oz. nylon reinforced vinyl facings havea higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

Optional Wear Pleats For Dock Seals

Share This Page

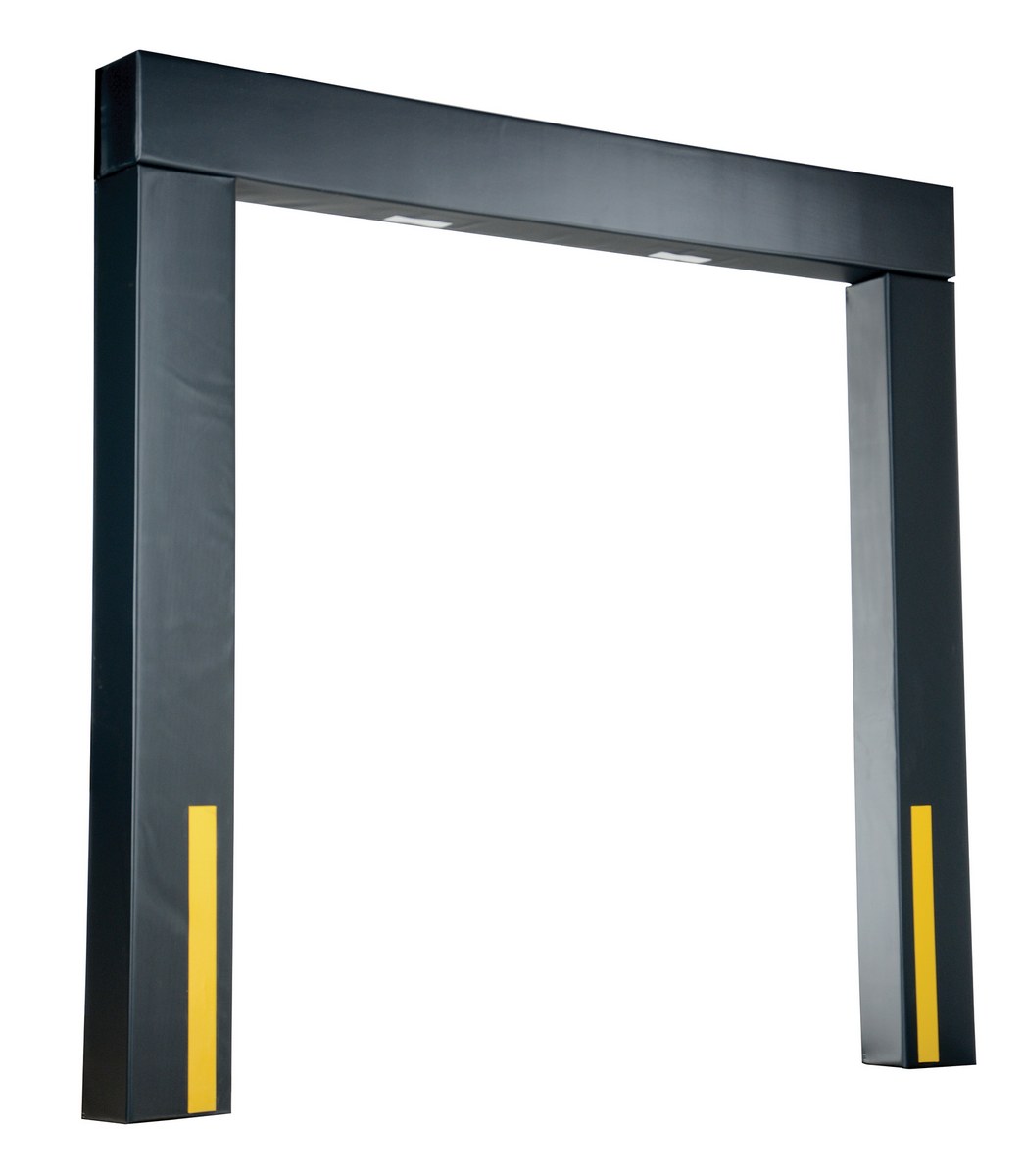

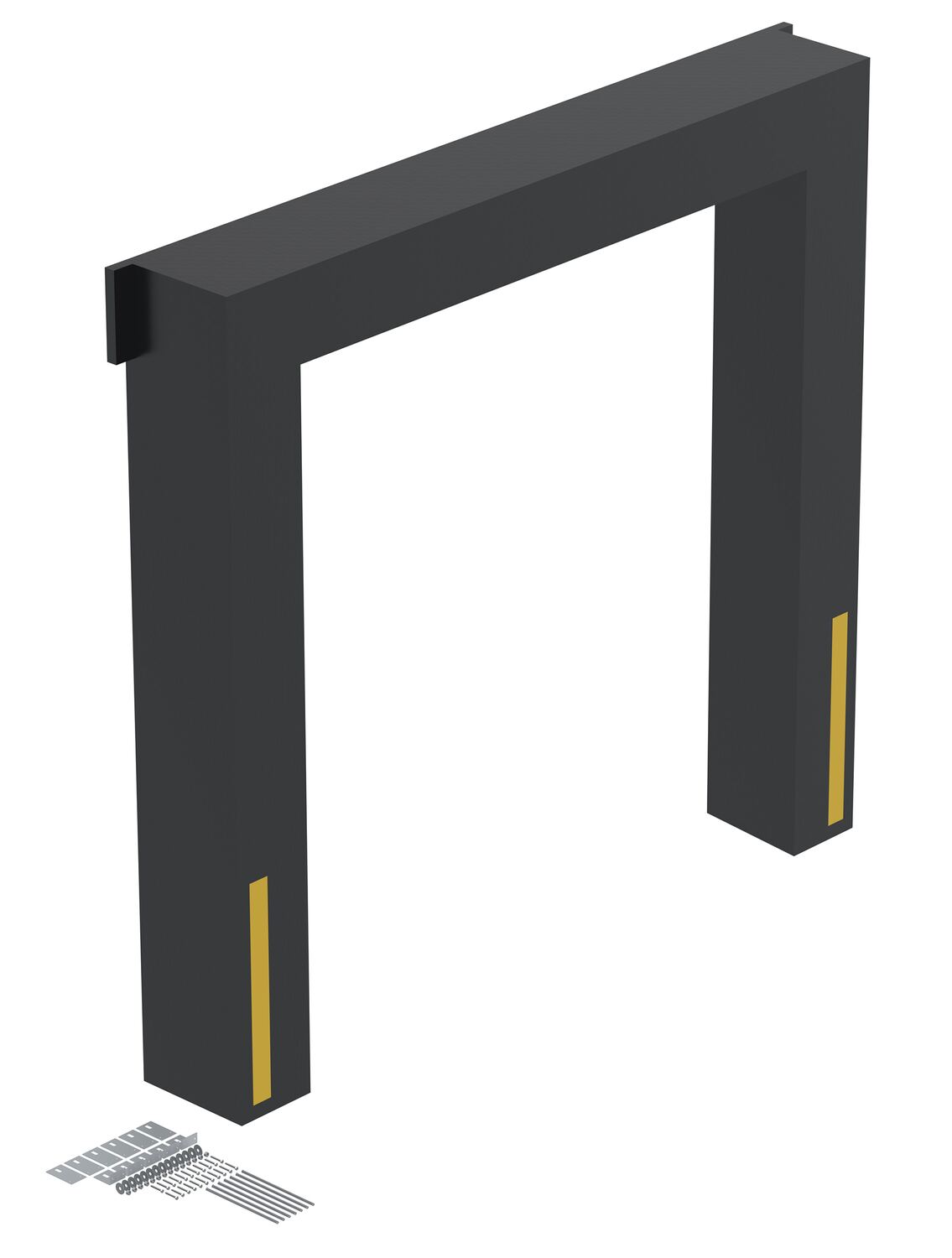

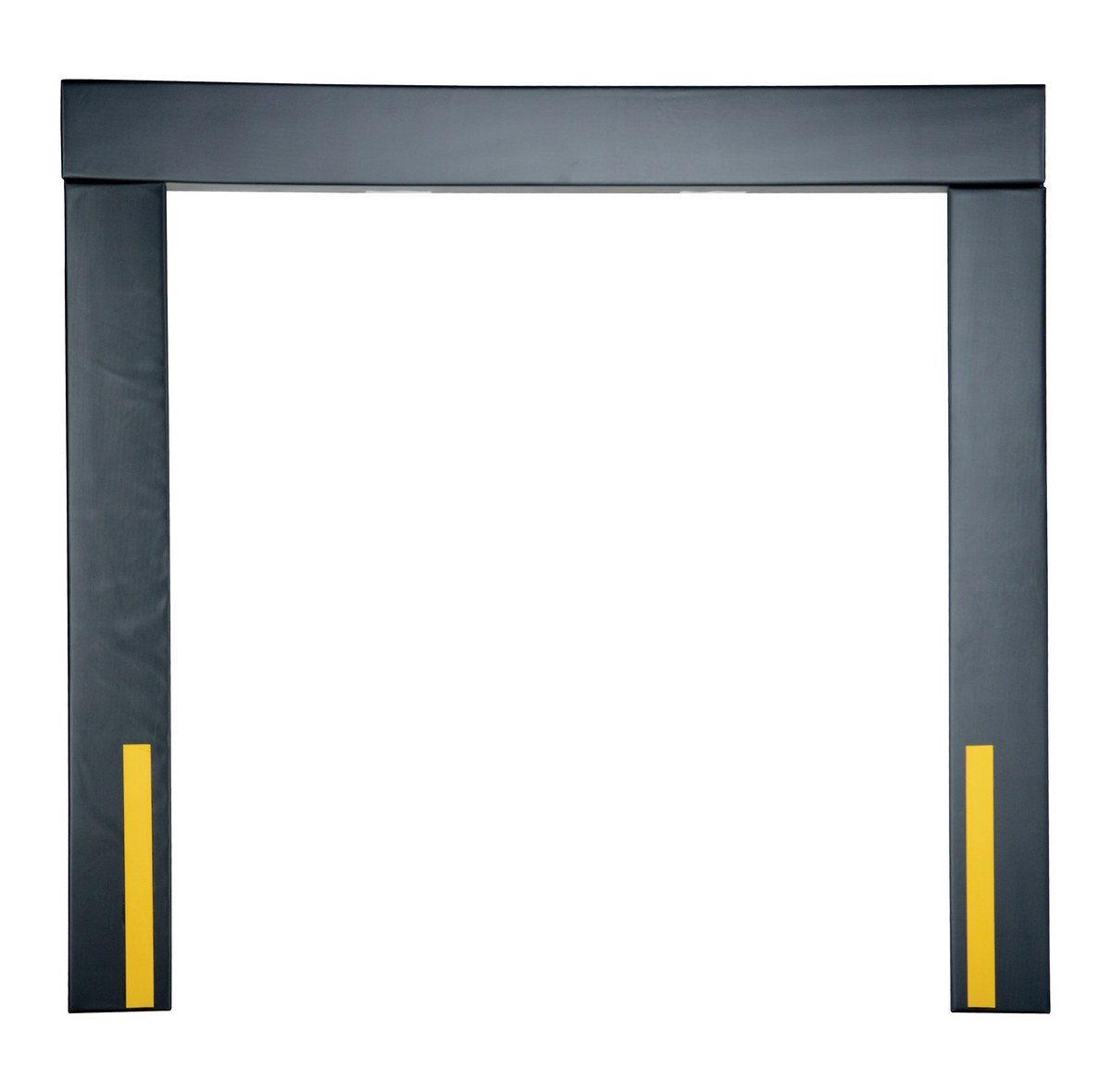

D-150-10

model D-150-10

D-KIT

model D-KIT




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Dock Seals (for 8' wide x 8' high doors)

Model Number

Image PDF

Projection

Overall
Height

Overall
Width

Door
Openings

Wt.
lbs.
D-150-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 10" 108" 120" 8' X 8' 212
D-150-11 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 11" 108" 120" 8' X 8' 214
D-150-12 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12" 108" 120" 8' X 8' 216
D-150-13 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 13" 108" 120" 8' X 8' 218
D-150-14 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 14" 108" 120" 8' X 8' 219
D-150-15 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 15" 108" 120" 8' X 8' 220
D-150-16 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16" 108" 120" 8' X 8' 221
D-150-17 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 17" 108" 120" 8' X 8' 222
D-150-18 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 18" 108" 120" 8' X 8' 249
D-150-19 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 19" 108" 120" 8' X 8' 251
D-150-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20" 108" 120" 8' X 8' 252
Dock Seals (for 8' wide x 9' high doors)

Model Number

Image PDF

Projection

Overall
Height

Overall
Width

Door
Openings

Wt.
lbs.
D-350-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 10" 120" 120" 8' X 9' 216
D-350-11 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 11" 120" 120" 8' X 9' 218
D-350-12 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12" 120" 120" 8' X 9' 220
D-350-13 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 13" 120" 120" 8' X 9' 225
D-350-14 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 14" 120" 120" 8' X 9' 237
D-350-15 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 15" 120" 120" 8' X 9' 243
D-350-16 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16" 120" 120" 8' X 9' 248
D-350-17 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 17" 120" 120" 8' X 9' 250
D-350-18 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 18" 120" 120" 8' X 9' 264
D-350-19 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 19" 120" 120" 8' X 9' 270
D-350-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20" 120" 120" 8' X 9' 275

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Dock Seals & Shelter Options

Model Number

PDFs Description
D-FHPFS Compliance Certificate Full height pleats, full height guide stripes
D-FHPS Compliance Certificate Full height pleats, standard guide (24" high)
D-AP Compliance Certificate Armor pleats, top 24" only
D-54OZ Compliance Certificate 54 ounce material - face only
D-18H Compliance Certificate 1818" header
D-SV Compliance Certificate Sloped verticals
D-BBF Compliance Certificate Bottom Bun
D-BBFB Compliance Certificate Bottom bun with bumpers
D-GS Compliance Certificate Full height guide stripes
D-12F Compliance Certificate 12" flap
D-SIDE Compliance Certificate Dock seal sides between 97" and 120"

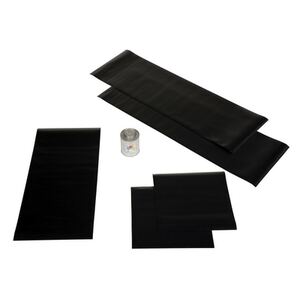

D-KIT Compliance Certificate Six piece black vinyl patch kit (Dock Seals - D-150, D-350 and D-150/650 only)
D-750-RK - Six piece white vinyl patch kit (Dock Shelters - D-750 only)

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Model Image PDFs Description * Net Wt.
(lbs)
D-150-10 download.gif90 Days WarrantyDOCK SEAL 10 IN PROJECTION 8X8 DOORProjection (in.): 10110
D-150-11 download.gif90 Days WarrantyDOCK SEAL 11 IN PROJECTION 8X8 DOORProjection (in.): 11113
D-150-12 download.gif90 Days WarrantyDOCK SEAL 12 IN PROJECTION 8X8 DOORProjection (in.): 12116
D-150-13 download.gif90 Days WarrantyDOCK SEAL 13 IN PROJECTION 8X8 DOORProjection (in.): 13119
D-150-14 download.gif90 Days WarrantyDOCK SEAL 14 IN PROJECTION 8X8 DOORProjection (in.): 14122
D-150-15 download.gif90 Days WarrantyDOCK SEAL 15 IN PROJECTION 8X8 DOORProjection (in.): 15125
D-150-16 download.gif90 Days WarrantyDOCK SEAL 16 IN PROJECTION 8X8 DOORProjection (in.): 16128
D-150-17 download.gif90 Days WarrantyDOCK SEAL 17 IN PROJECTION 8X8 DOORProjection (in.): 17131
D-150-18 download.gif90 Days WarrantyDOCK SEAL 18 IN PROJECTION 8X8 DOORProjection (in.): 18134

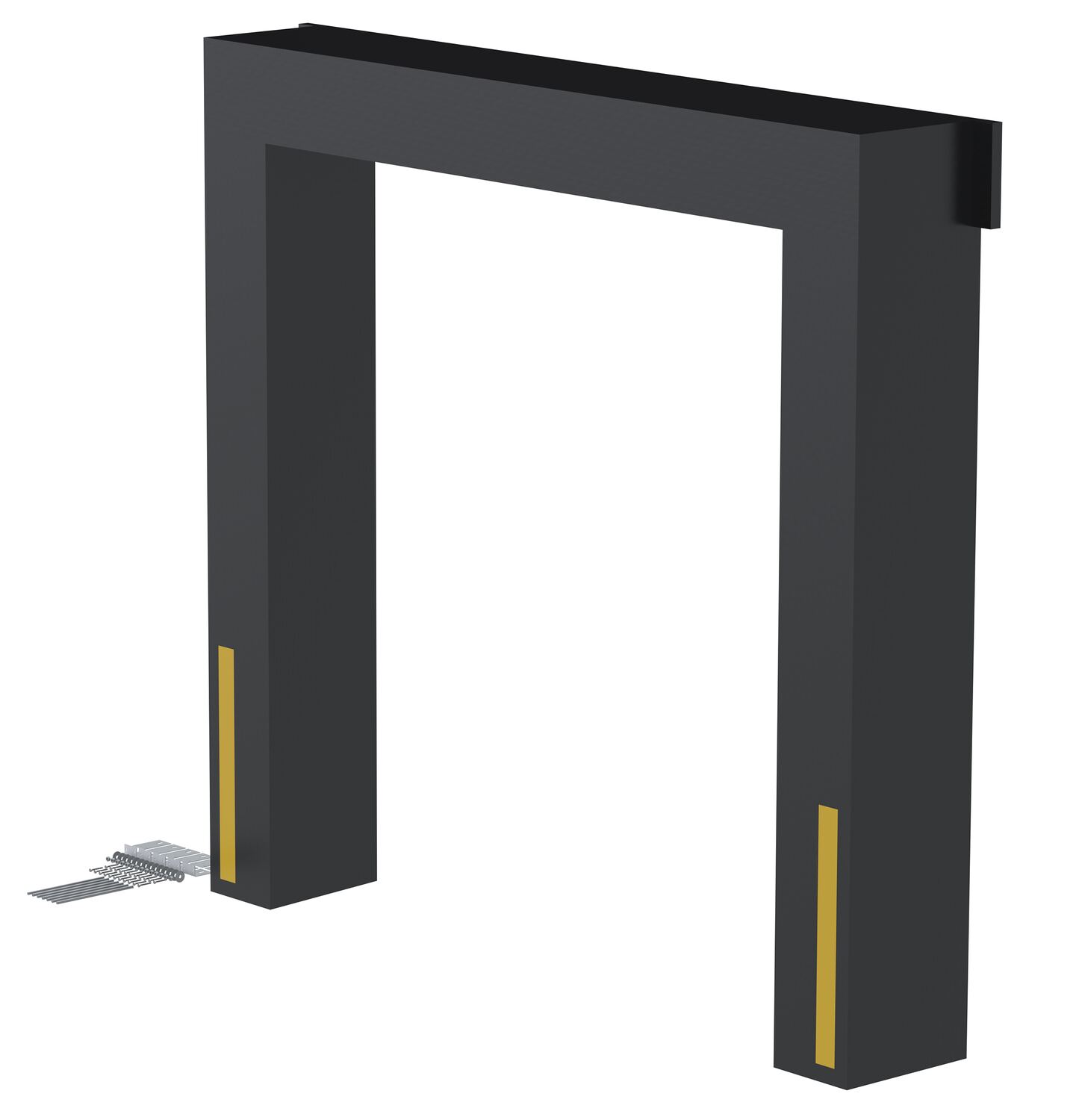

D-150-19 download.gif90 Days WarrantyDOCK SEAL 19 IN PROJECTION 8X8 DOORProjection (in.): 19137

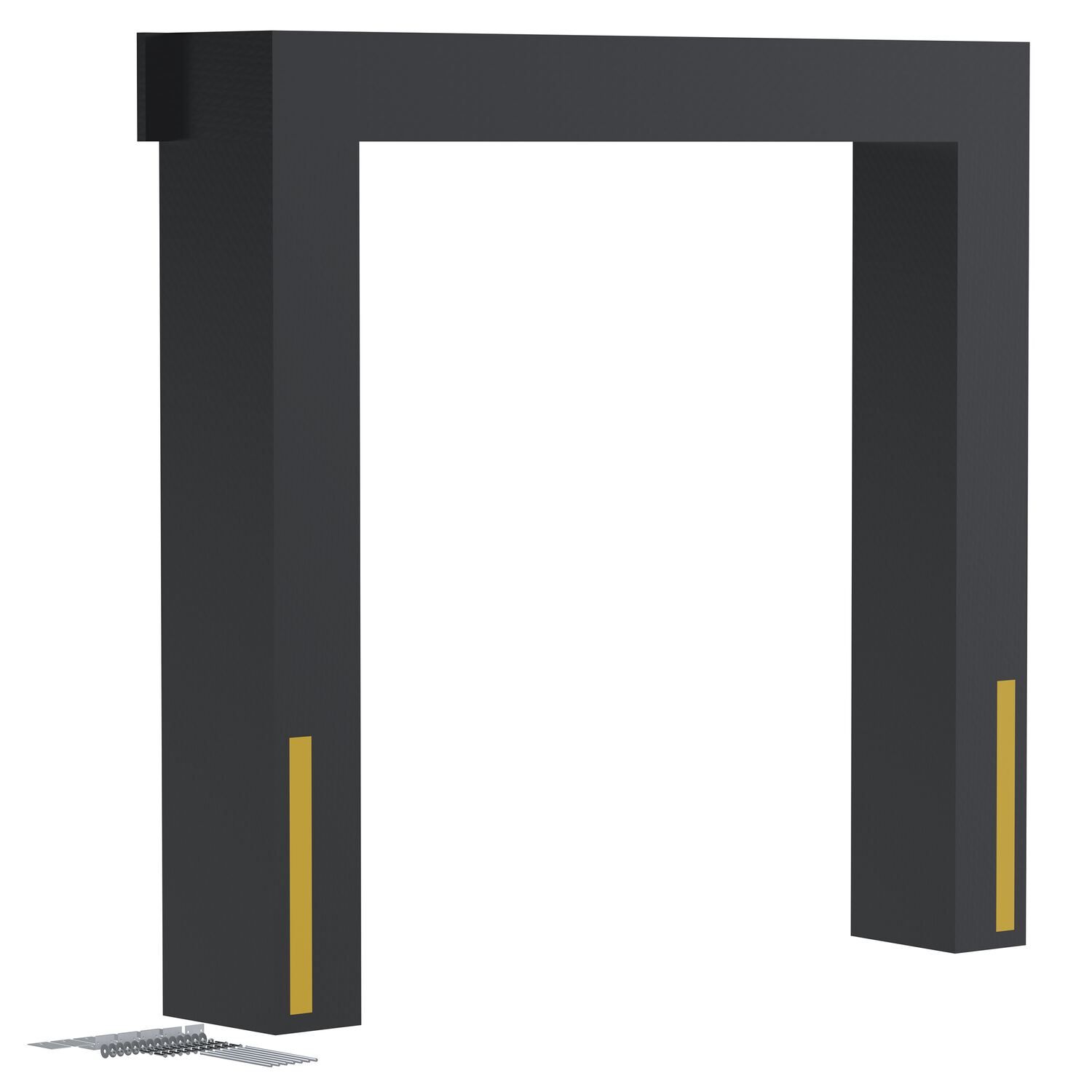

D-150-20 download.gif90 Days WarrantyDOCK SEAL 20 IN PROJECTION 8X8 DOORProjection (in.): 20140

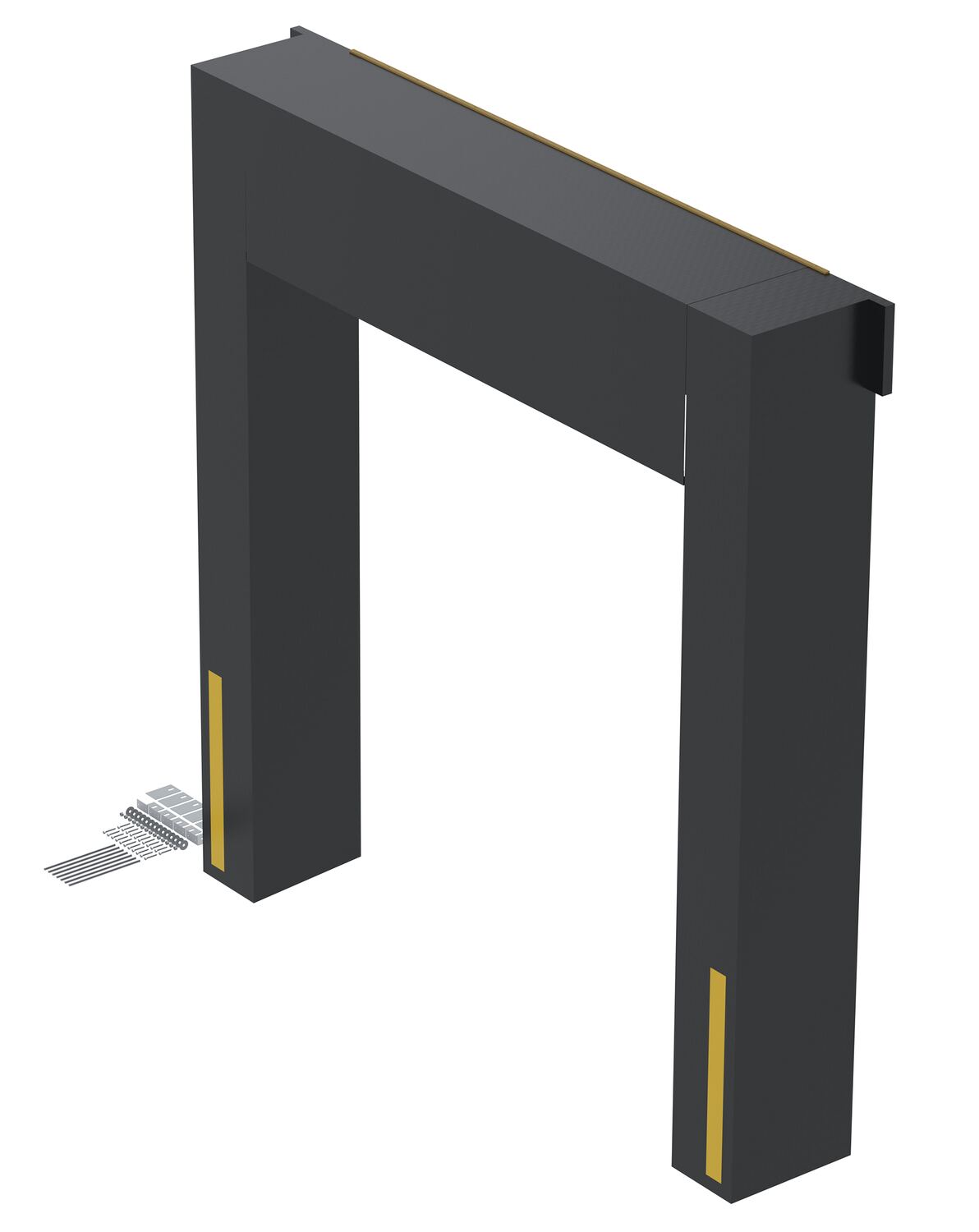

D-350-10 download.gif90 Days WarrantyDOCK SEAL 10 IN PROJECTION 8X9 DOORProjection (in.): 10137
D-350-11 download.gif90 Days WarrantyDOCK SEAL 11 IN PROJECTION 8X9 DOORProjection (in.): 11139
D-350-12 download.gif90 Days WarrantyDOCK SEAL 12 IN PROJECTION 8X9 DOORProjection (in.): 12141

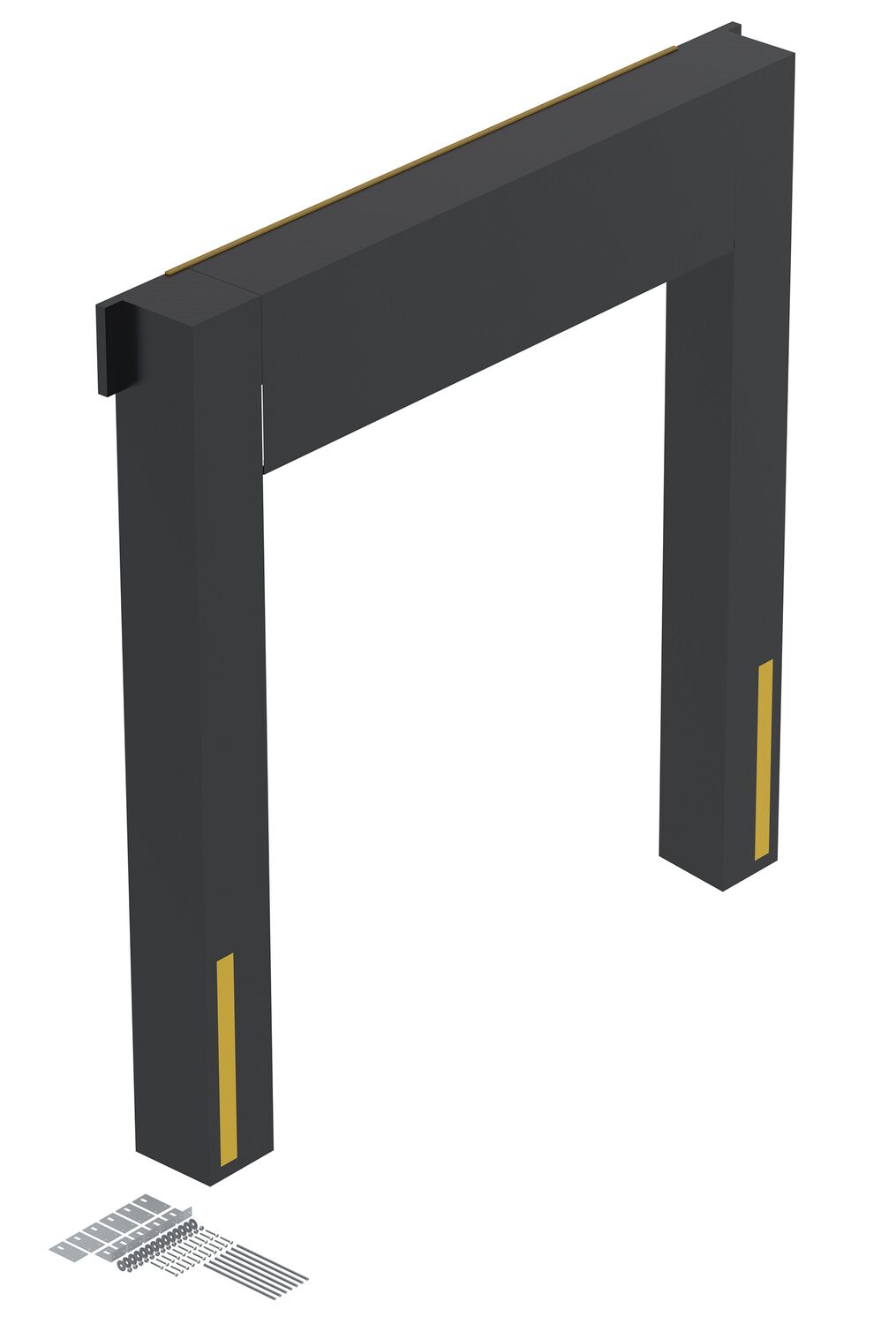

D-350-13 download.gif90 Days WarrantyDOCK SEAL 13 IN PROJECTION 8X9 DOORProjection (in.): 13152

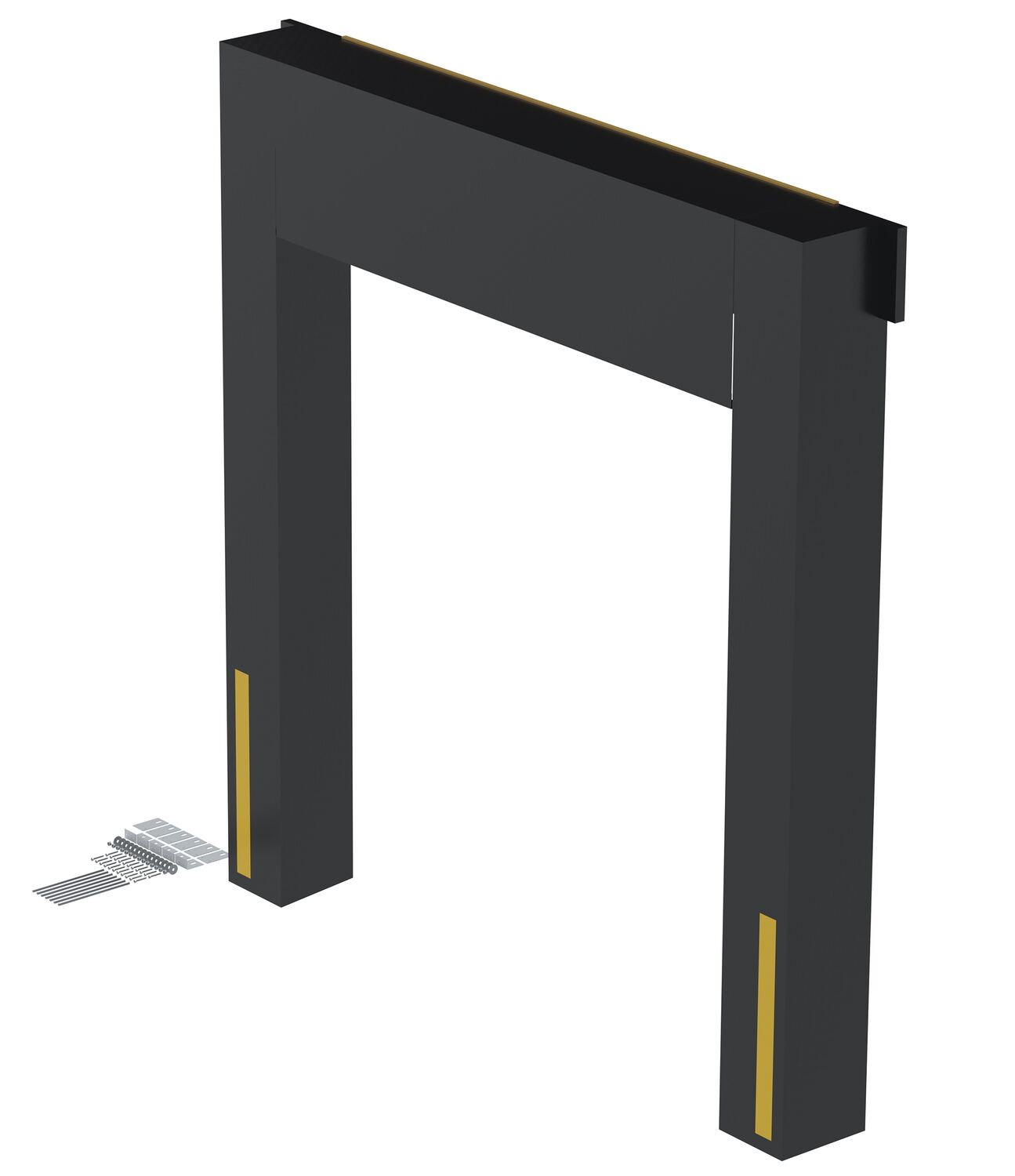

D-350-14 download.gif90 Days WarrantyDOCK SEAL 14 IN PROJECTION 8X9 DOORProjection (in.): 14158
D-350-15 download.gif90 Days WarrantyDOCK SEAL 15 IN PROJECTION 8X9 DOORProjection (in.): 15169
D-350-16 download.gif90 Days WarrantyDOCK SEAL 16 IN PROJECTION 8X9 DOORProjection (in.): 16170
D-350-17 download.gif90 Days WarrantyDOCK SEAL 17 IN PROJECTION 8X9 DOORProjection (in.): 17190
D-350-18 download.gif90 Days WarrantyDOCK SEAL 18 IN PROJECTION 8X9 DOORProjection (in.): 18170
D-350-19 download.gif90 Days WarrantyDOCK SEAL 19 IN PROJECTION 8X9 DOORProjection (in.): 19185
D-350-20 download.gif90 Days WarrantyDOCK SEAL 20 IN PROJECTION 8X9 DOORProjection (in.): 20196

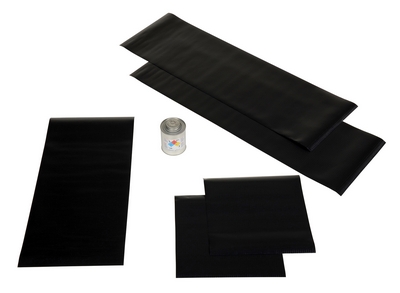

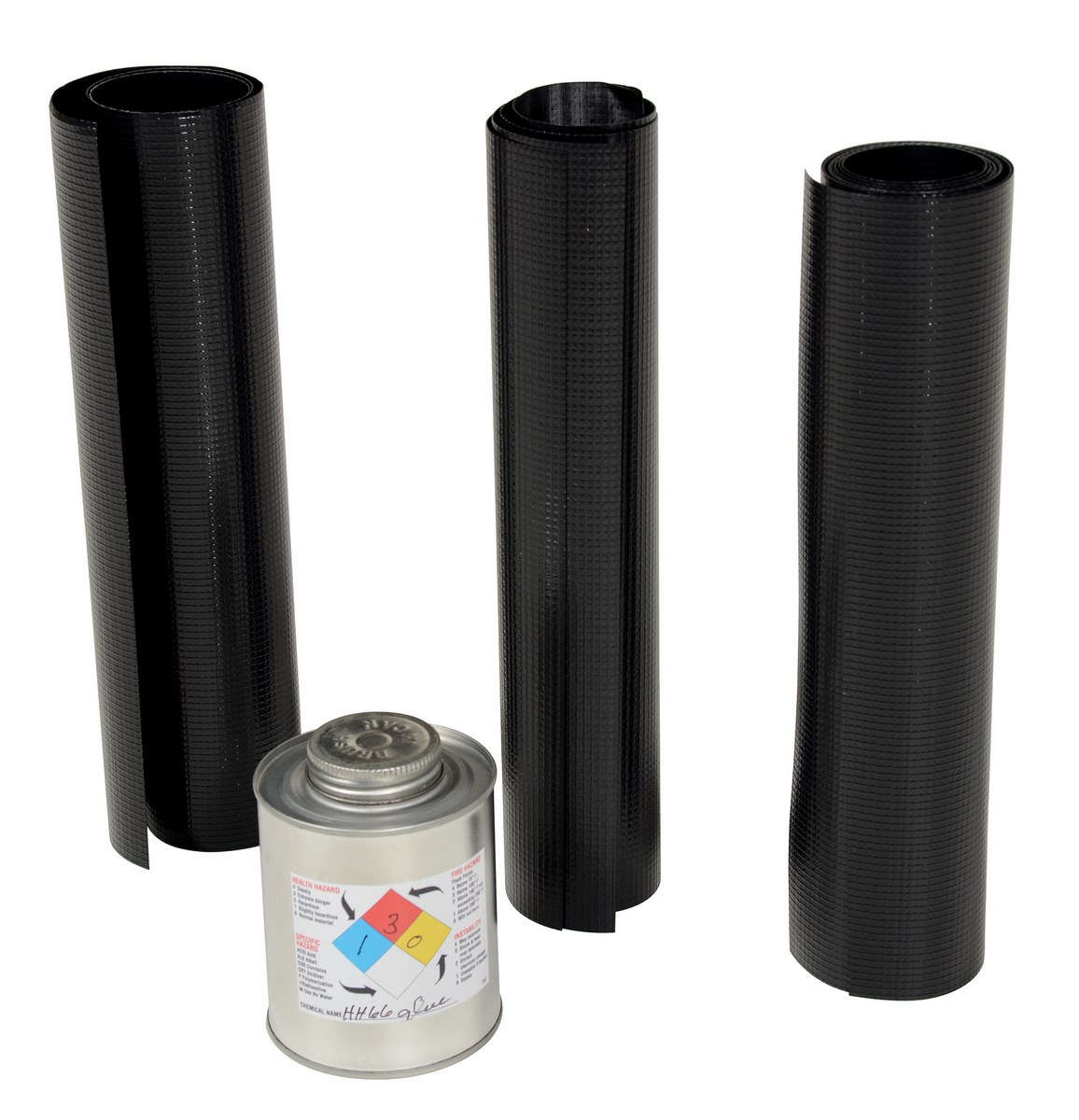

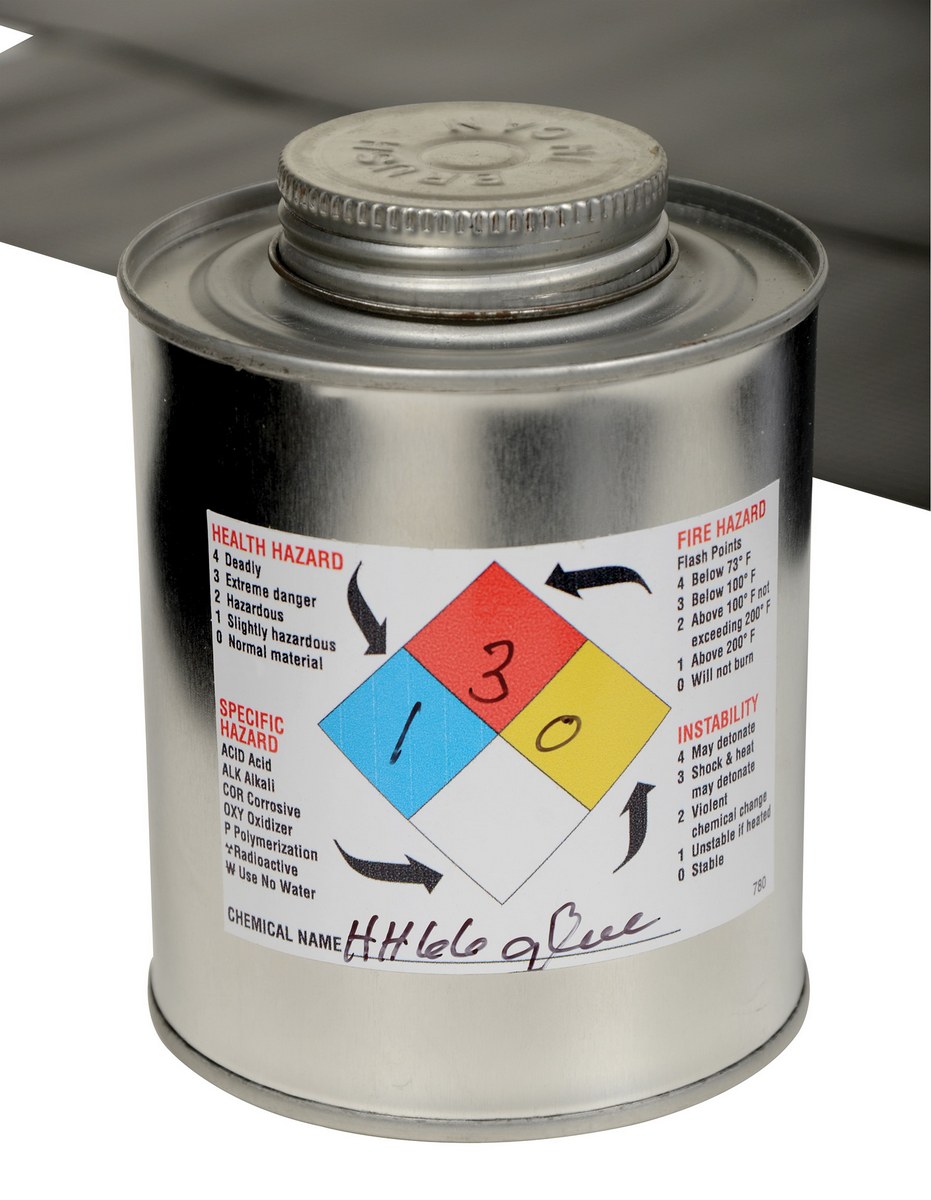

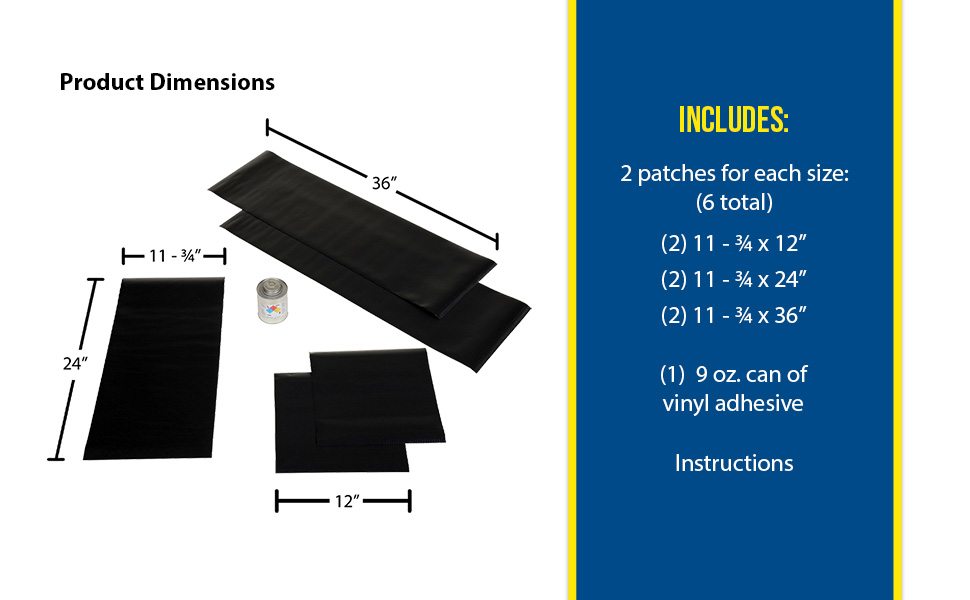

D-KIT download.gif30 Days WarrantyDOCK SEAL OPTION REPAIR KITGlue Weight (oz.): 163
SP-STL 90 Days WarrantySTEEL DOCK BOARD OPTION-SPAN PINS/HOLES: 0
