Model Details

DRUM-P-30

DRUM-P-30

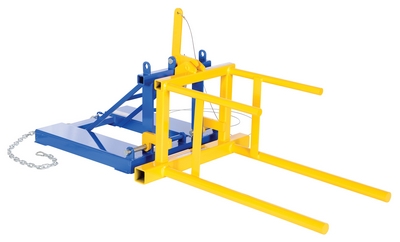

Steel Drum Positioner 30 Gallon 74-3/4 In. x 32-1/2 In. x 32-3/8 In. 800 Lb. Capacity Blue / Yellow

The drum positioner allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa. Positive latching system ensures safe handling of drums. Slide the positioned extensions over the vertical drum. With the aid of the drum positioned, rotate drum to horizontal position. Latching system will engage to allow horizontal positioning of drum. It's now ready to slide into the rack. Mechanical operation relies on fork truck to rotate and lift drums.

  • Accepts 30 gallon drums
  • 20.5" fork pocket centers
  • Features a welded spacer to protect drum fixtures from damage when rotating
  • Constructed of heavy-duty steel for greater strength
Total Ship Wt.(lbs.): 335 (only 1 package) Size: 32.5"W x 74.75"L x 32.375"H Color: Blue / Yellow

Uniform Capacity (lb.): 800 Drum Type: 30-gallon drum Fork Pocket on Center (in.): 20-1/2
Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2 Drum Diameter (in.): 20

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DRUM-P-30


DRUM-P-30

Steel Drum Positioner 30 Gallon 74-3/4 In. x 32-1/2 In. x 32-3/8 In. 800 Lb. Capacity Blue / Yellow

The drum positioner allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa. Positive latching system ensures safe handling of drums. Slide the positioned extensions over the vertical drum. With the aid of the drum positioned, rotate drum to horizontal position. Latching system will engage to allow horizontal positioning of drum. It's now ready to slide into the rack. Mechanical operation relies on fork truck to rotate and lift drums.

  • Accepts 30 gallon drums
  • 20.5" fork pocket centers
  • Features a welded spacer to protect drum fixtures from damage when rotating
  • Constructed of heavy-duty steel for greater strength
Dimensions: 32.5"W x 74.75"L x 32.375"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Heavy-duty Welded Steel UPC: 691215015561 GTIN: 00691215015561
Warranty: -- Shipping Weight: 335 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Drum Type: 30-gallon drum Fork Pocket on Center (in.): 20-1/2
Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2 Drum Diameter (in.): 20
