Product Family Overview


Drum Positioners
SERIES: DRUM-P

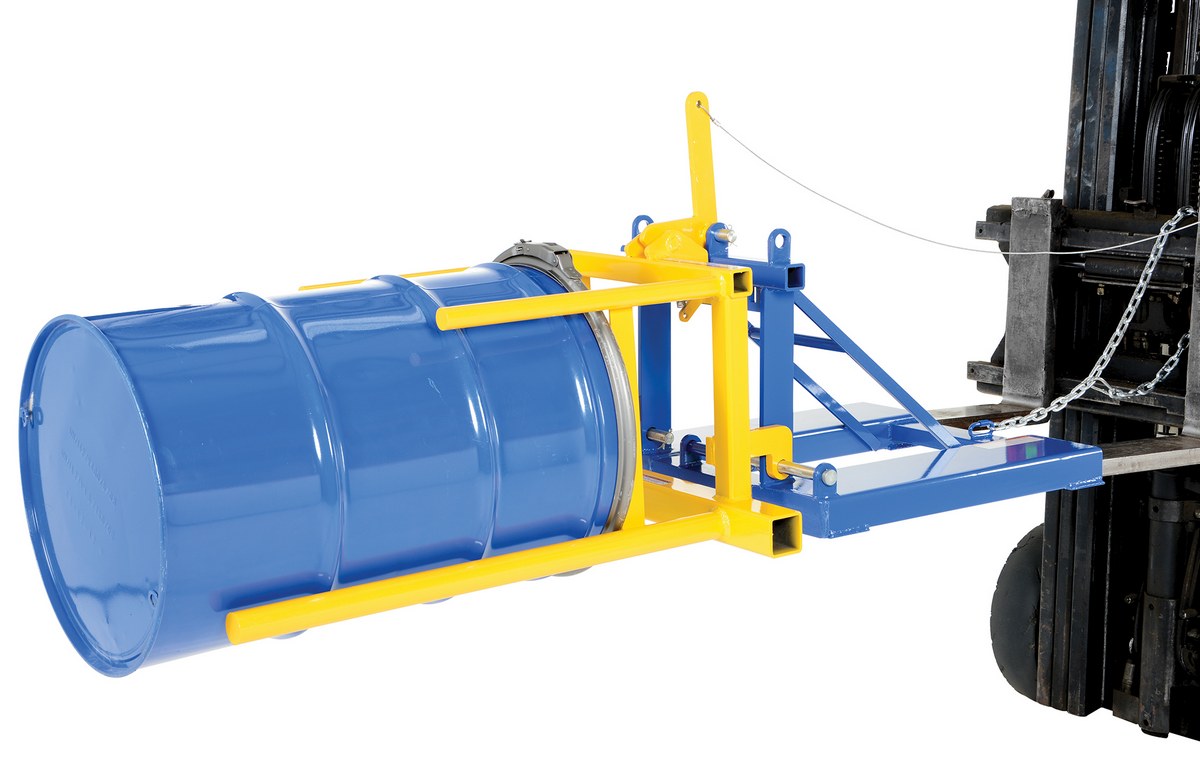

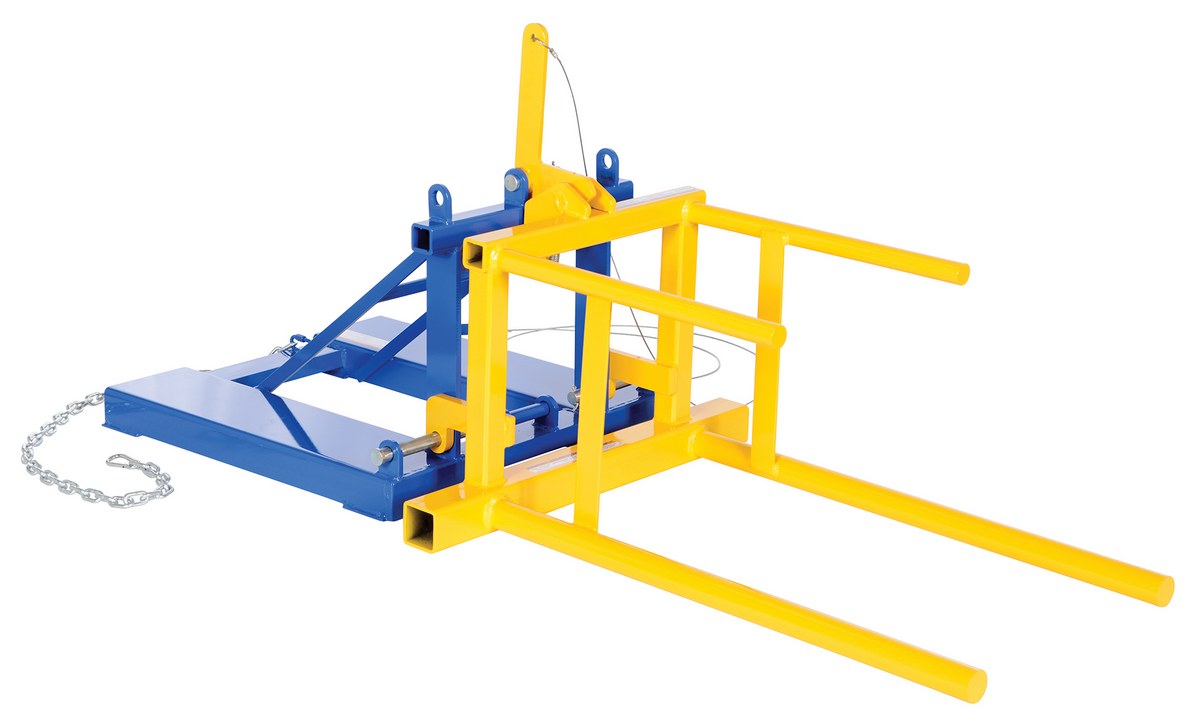

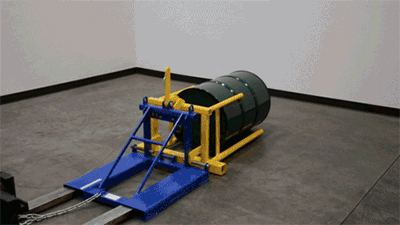

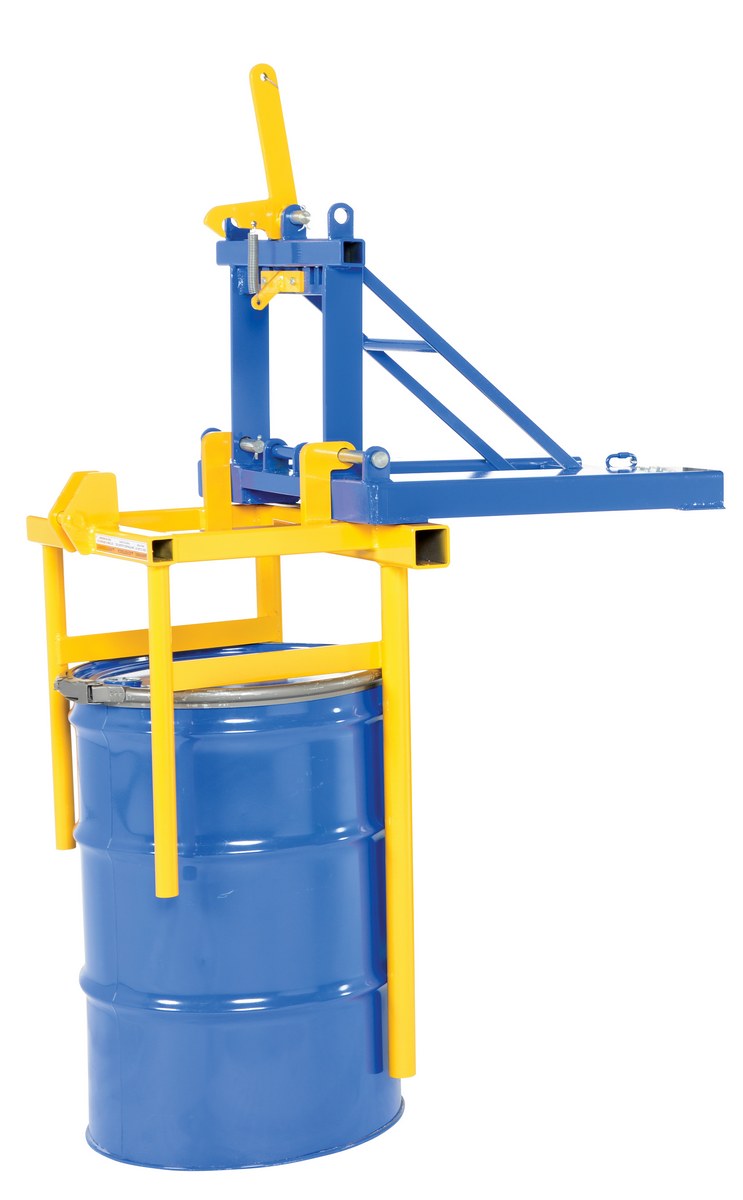

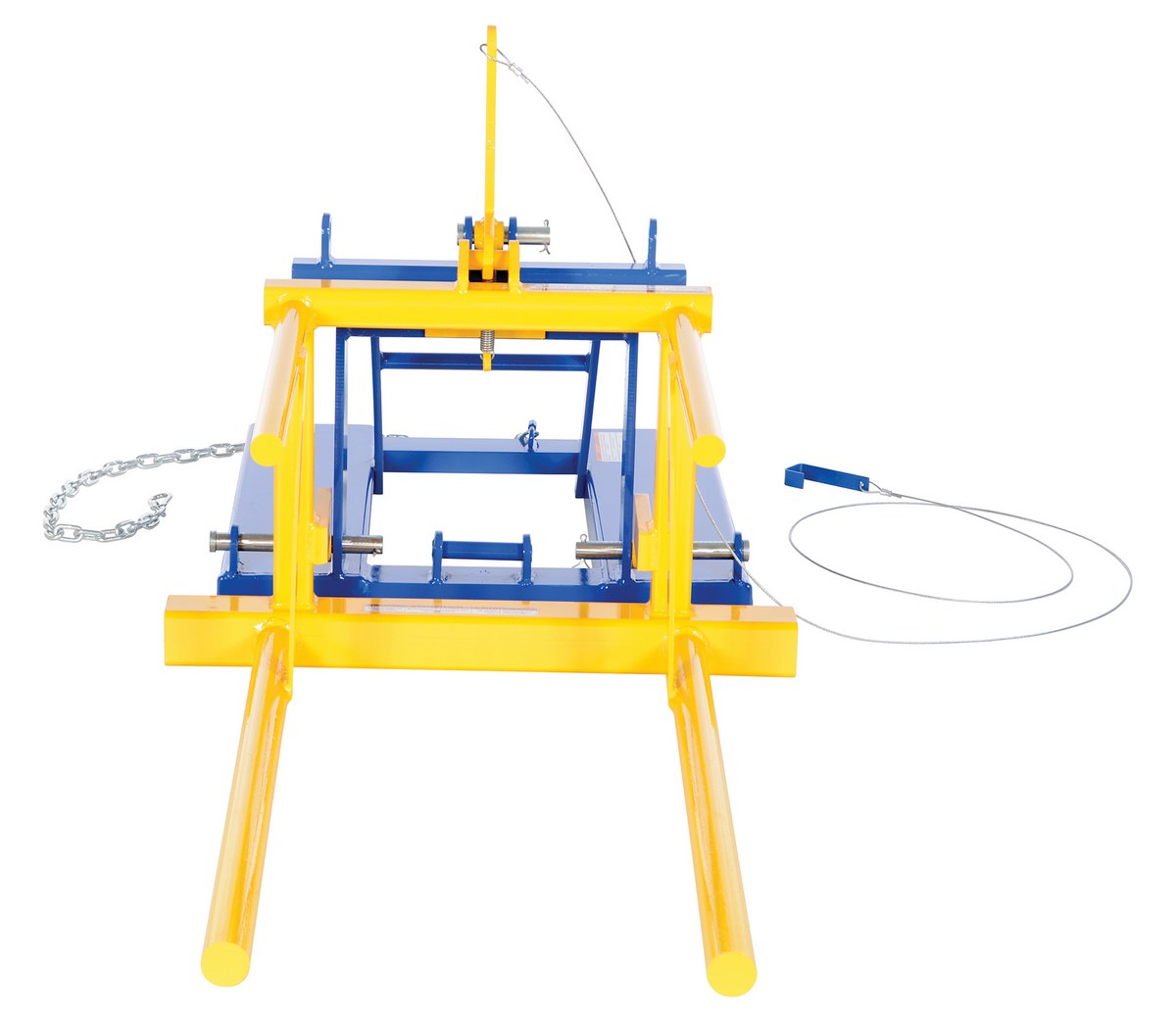

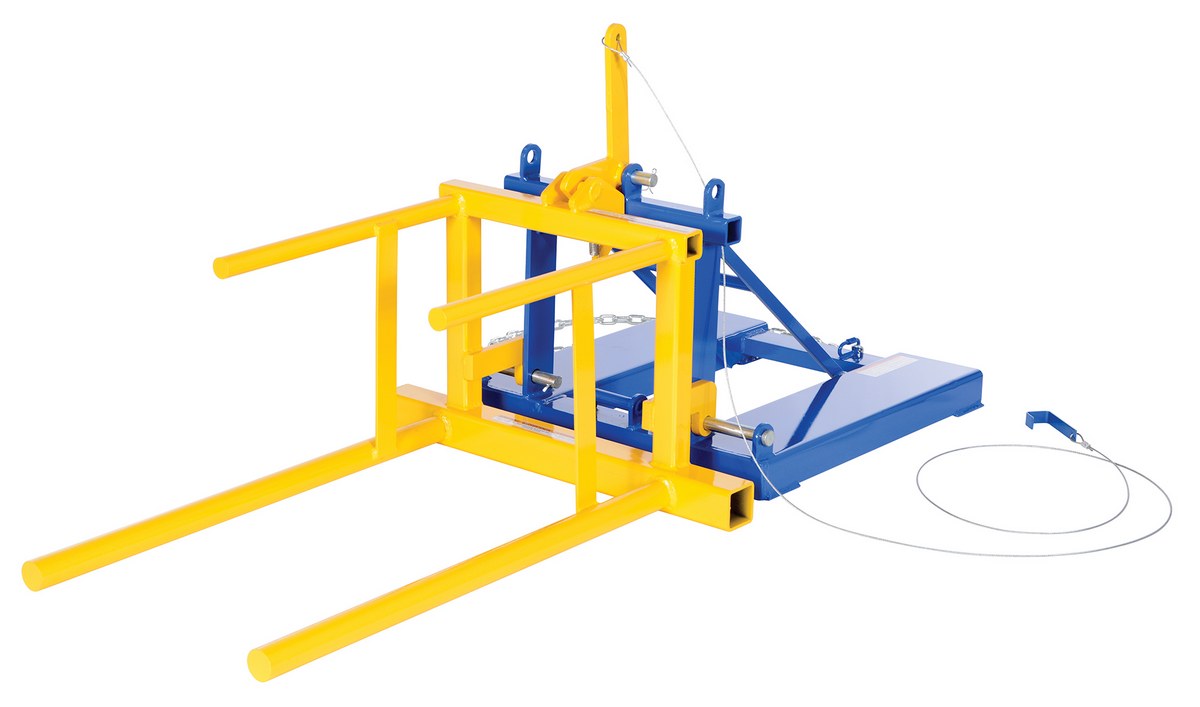

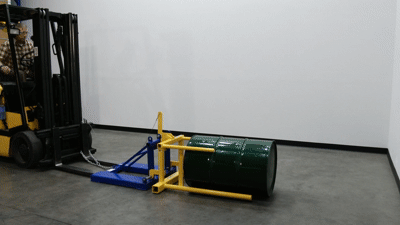

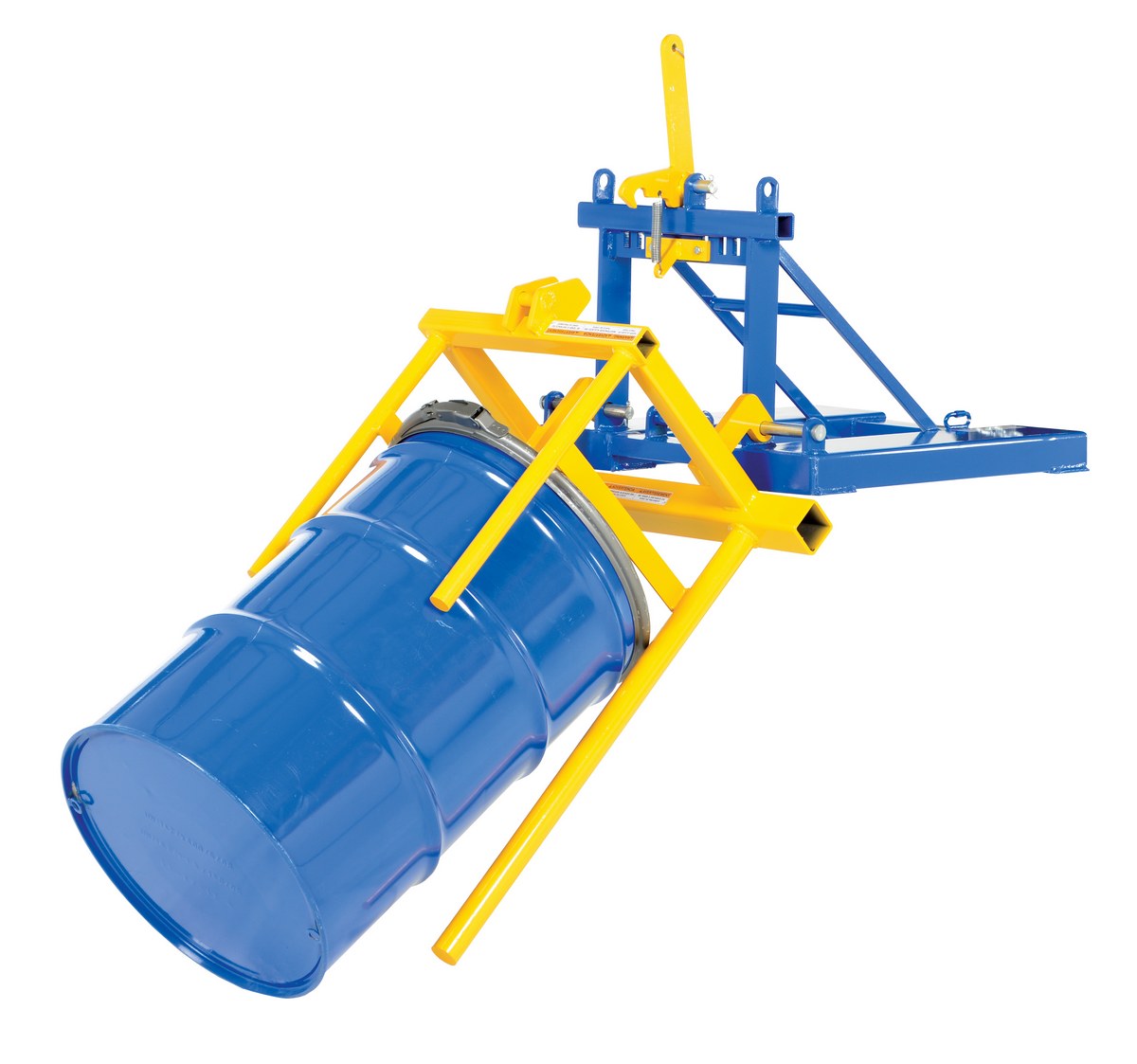

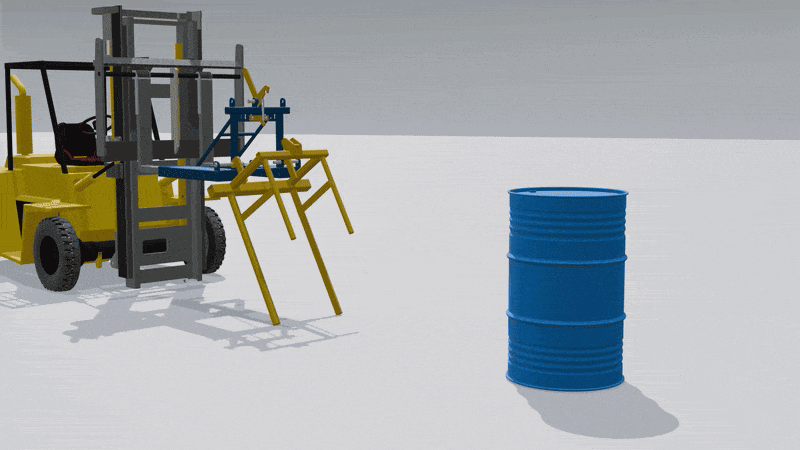

Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa. Positive latching system ensures safe handling of drums weighing up to 800 pounds. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position. Latching system will engage to allow horizontal positioning of drum. It's now ready to slide into the rack. Mechanical operation relies on fork truck to rotate and lift drums. Fork pockets measure 7."W x 2."H usable on 20." centers. Units now feature a welded spacer to protect drum fixtures from damage when rotating.

Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa. Positive latching system ensures safe handling of drums weighing up to 800 pounds. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position. Latching system will engage to allow horizontal positioning of drum. It's now ready to slide into the rack. Mechanical operation relies on fork truck to rotate and lift drums. Fork pockets measure 7."W x 2."H usable on 20." centers. Units now feature a welded spacer to protect drum fixtures from damage when rotating.

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DRUM-P-30 DRUM-P-3090 Days Limited WarrantySteel Drum Positioned 30 Gallon 74-3/4 In. x 32-1/2 In. x 32-3/8 In. 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Drum Type: 30-gallon drum
335
DRUM-P-55 DRUM-P-5590 Days Limited WarrantySteel Drum Positioned 55 Gallon 74-3/4 In. x 32-1/2 In. x 32-3/8 In. 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Drum Type: 55-gallon steel drum
318

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate = 360 Image Warranty

DRUM-P-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Drum Type: 30-gallon drum
Uniform Capacity (lb.): 800
Drum Type: 30-gallon drum

DRUM-P-55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Drum Type: 55-gallon steel drum
Uniform Capacity (lb.): 800
Drum Type: 55-gallon steel drum

Drum Positioners PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DRUM-P-30

DRUM-P-55

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Drum Positioners




Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa. Positive latching system ensures safe handling of drums weighing up to 800 pounds. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position. Latching system will engage to allow horizontal positioning of drum. It's now ready to slide into the rack. Mechanical operation relies on fork truck to rotate and lift drums. Fork pockets measure 7."W x 2."H usable on 20." centers. Units now feature a welded spacer to protect drum fixtures from damage when rotating.



Model # Description Attributes Net Wt.
(lbs)
DRUM-P-30 DRUM-P-30Steel Drum Positioned 30 Gallon 74-3/4 In. x 32-1/2 In. x 32-3/8 In. 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Drum Type: 30-gallon drum
335
DRUM-P-55 DRUM-P-55Steel Drum Positioned 55 Gallon 74-3/4 In. x 32-1/2 In. x 32-3/8 In. 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Drum Type: 55-gallon steel drum
318
