Model Details

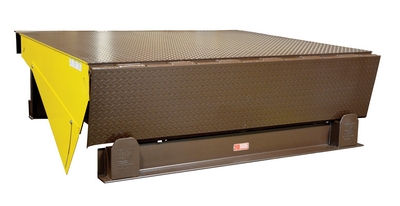

EH-610-20

EH-610-20

Steel Electric Hydraulic Dock Leveler 72"W x 110"L x 23-1/2"D Pit Dimensions, 20000 Lb. Capacity Brown/Yellow

The electric hydraulic dock leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. It includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers.

  • State of the art design features push of the button operation
  • Control box includes a red emergency stop button
  • Returns automatically to the level cross traffic position
  • Includes telescopic steel toe guards and two laminated bumpers
Total Ship Wt.(lbs.): 2267 (only 1 package) Size: 74"W x 110"L x 24"H Color: Brown / Yellow Non-Returnable

Uniform Capacity (lb.): 20,000 Service Range Above Dock (in.): 12 Service Range Below Dock (in.): 12
Voltage/Phase: 460/3 Platform Thickness (in.): 1/4 Motor Horsepower: 2
Installation Type: Crew must install (due to electrical requirements) Laminated Bumper Length (in.): 4.5 Laminated Bumper Width (in.): 14
Laminated Bumper Height (in.): 10 Unit Width (in.): 74 Unit Depth (in.): 24

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EH-610-20


EH-610-20

Steel Electric Hydraulic Dock Leveler 72"W x 110"L x 23-1/2"D Pit Dimensions, 20000 Lb. Capacity Brown/Yellow

The electric hydraulic dock leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. It includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers.

  • State of the art design features push of the button operation
  • Control box includes a red emergency stop button
  • Returns automatically to the level cross traffic position
  • Includes telescopic steel toe guards and two laminated bumpers
Dimensions: 74"W x 110"L x 24"H Sell UOM: EA-Each Color: Brown / Yellow
Material: Steel UPC: 691215128018 GTIN: 00691215128018
Warranty: -- Shipping Weight: 2267 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 20,000 Service Range Above Dock (in.): 12 Service Range Below Dock (in.): 12
Voltage/Phase: 460/3 Platform Thickness (in.): 1/4 Motor Horsepower: 2
Installation Type: Crew must install (due to electrical requirements) Laminated Bumper Length (in.): 4.5 Laminated Bumper Width (in.): 14
Laminated Bumper Height (in.): 10 Unit Width (in.): 74 Unit Depth (in.): 24
