Model Details

HDC-305-60

HDC-305-60

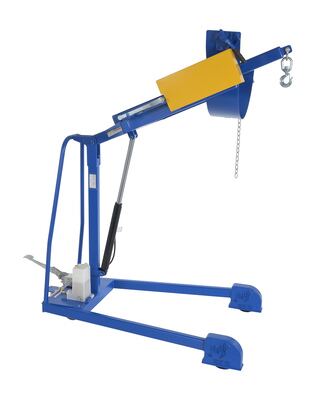

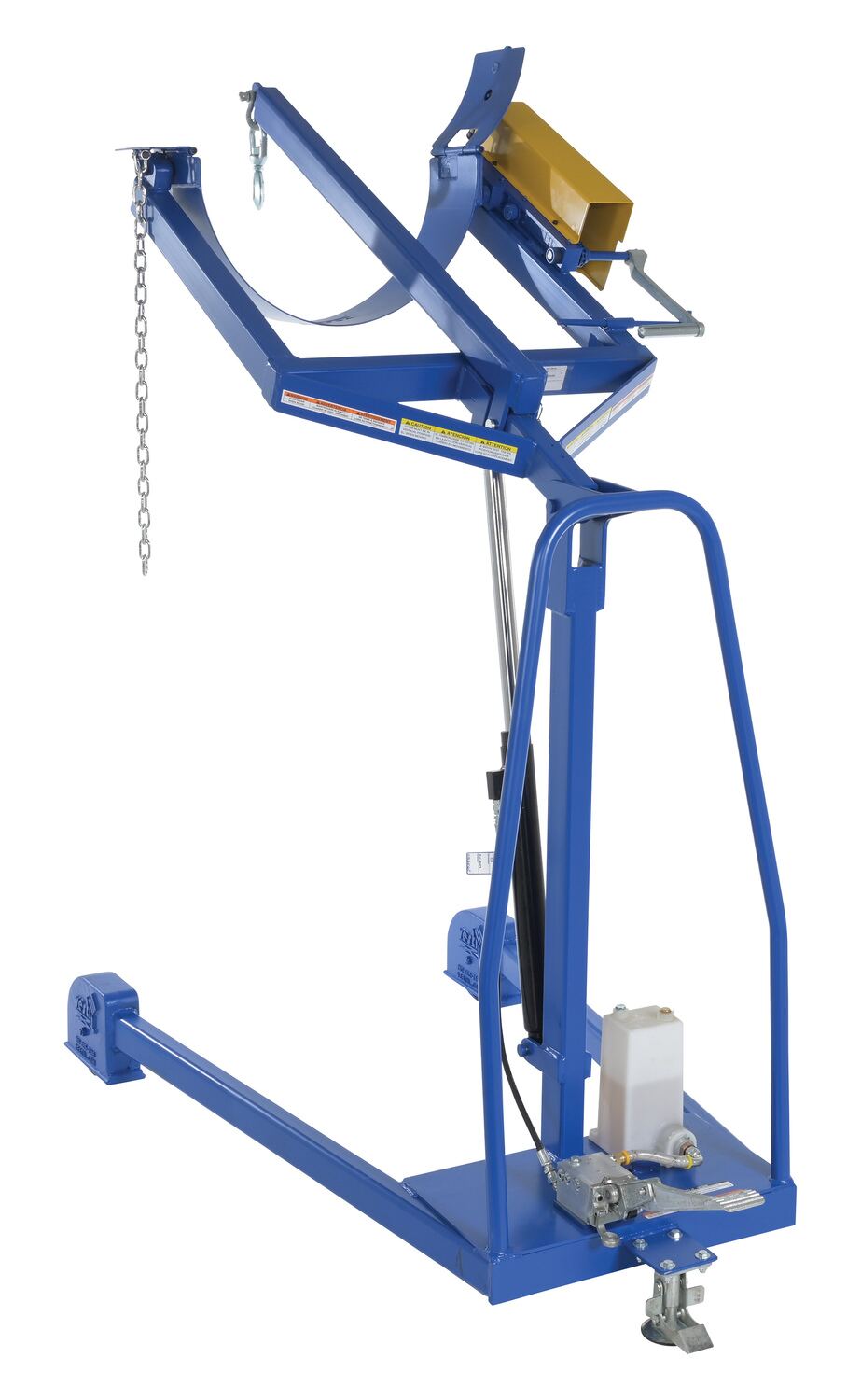

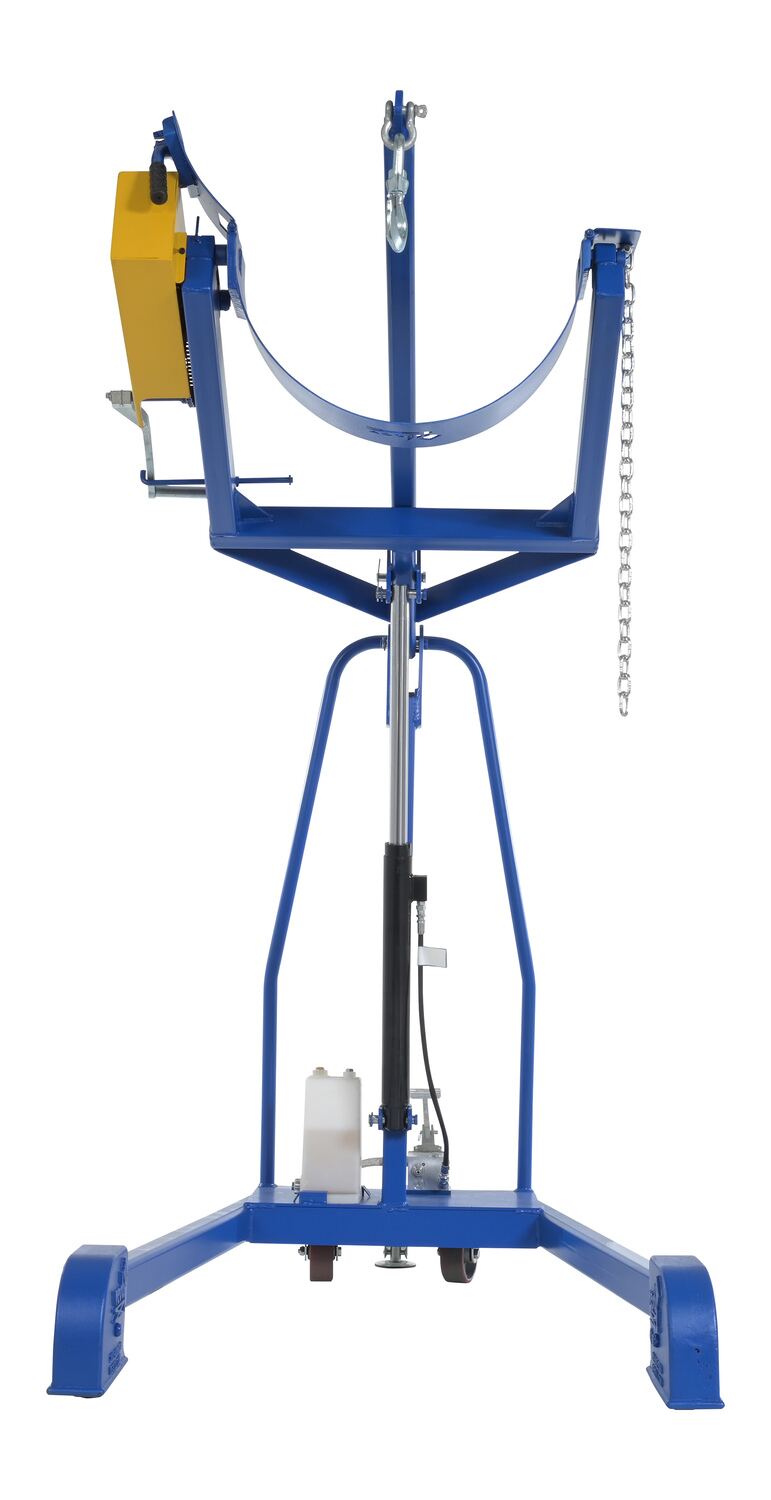

Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

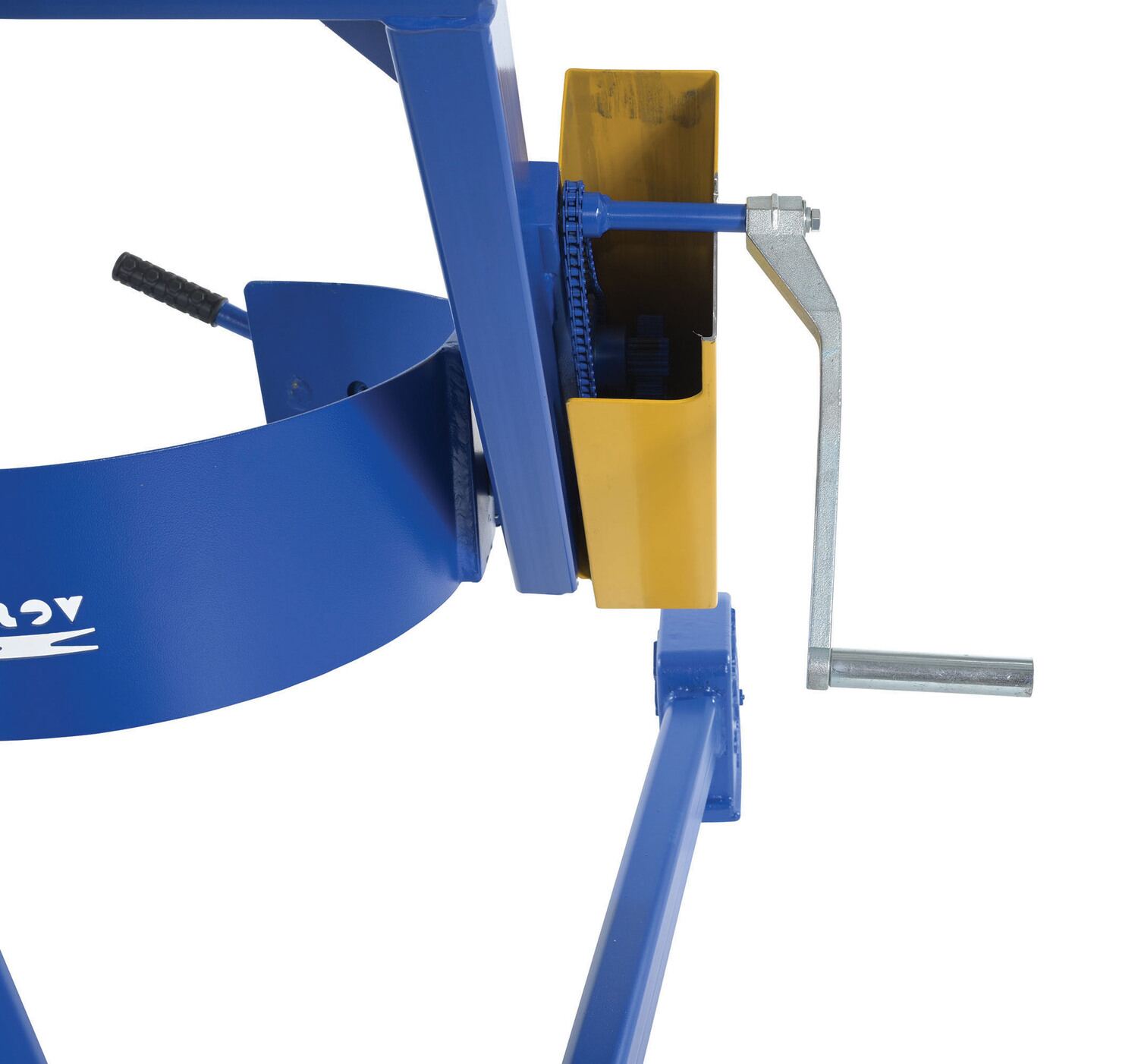

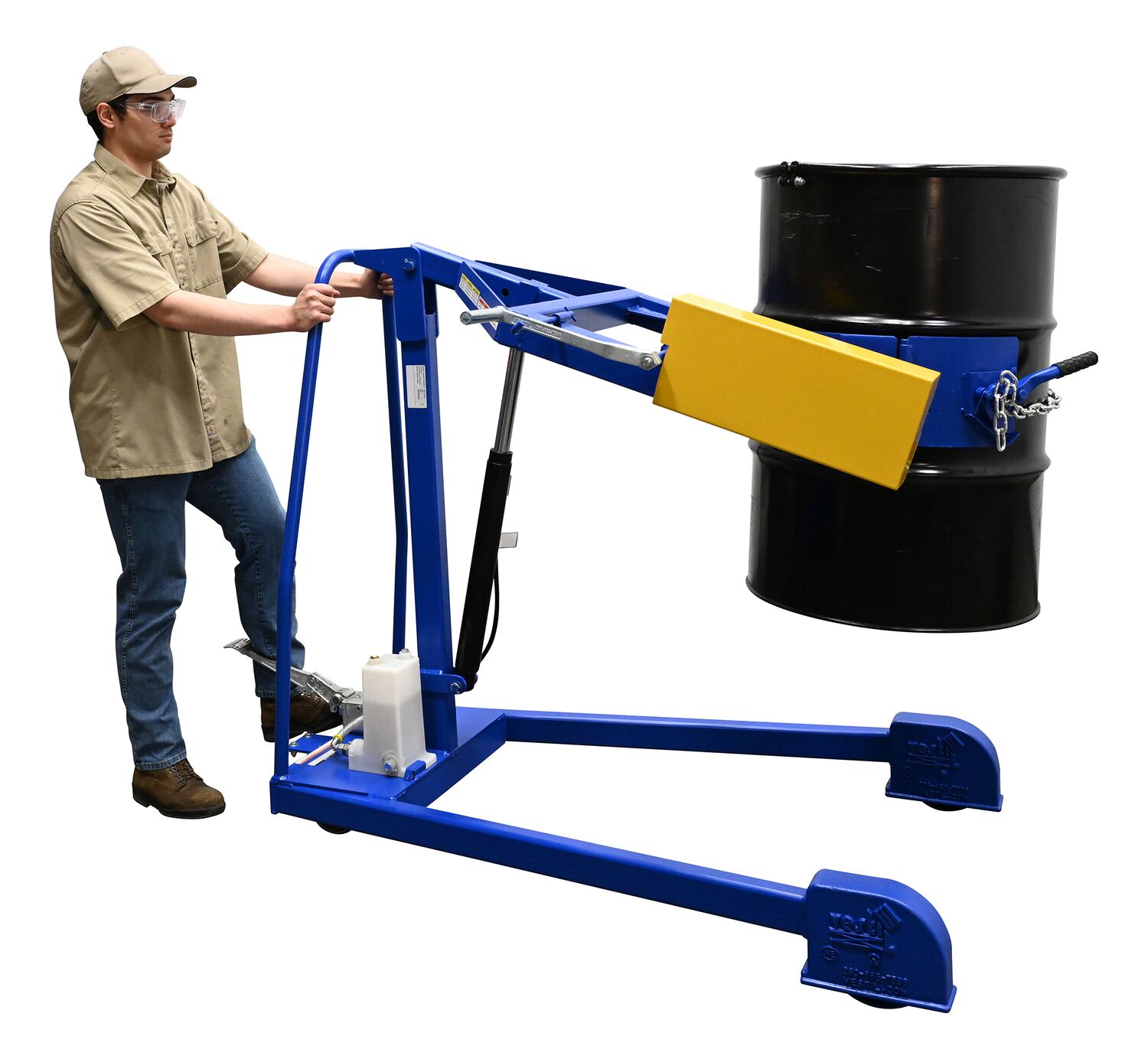

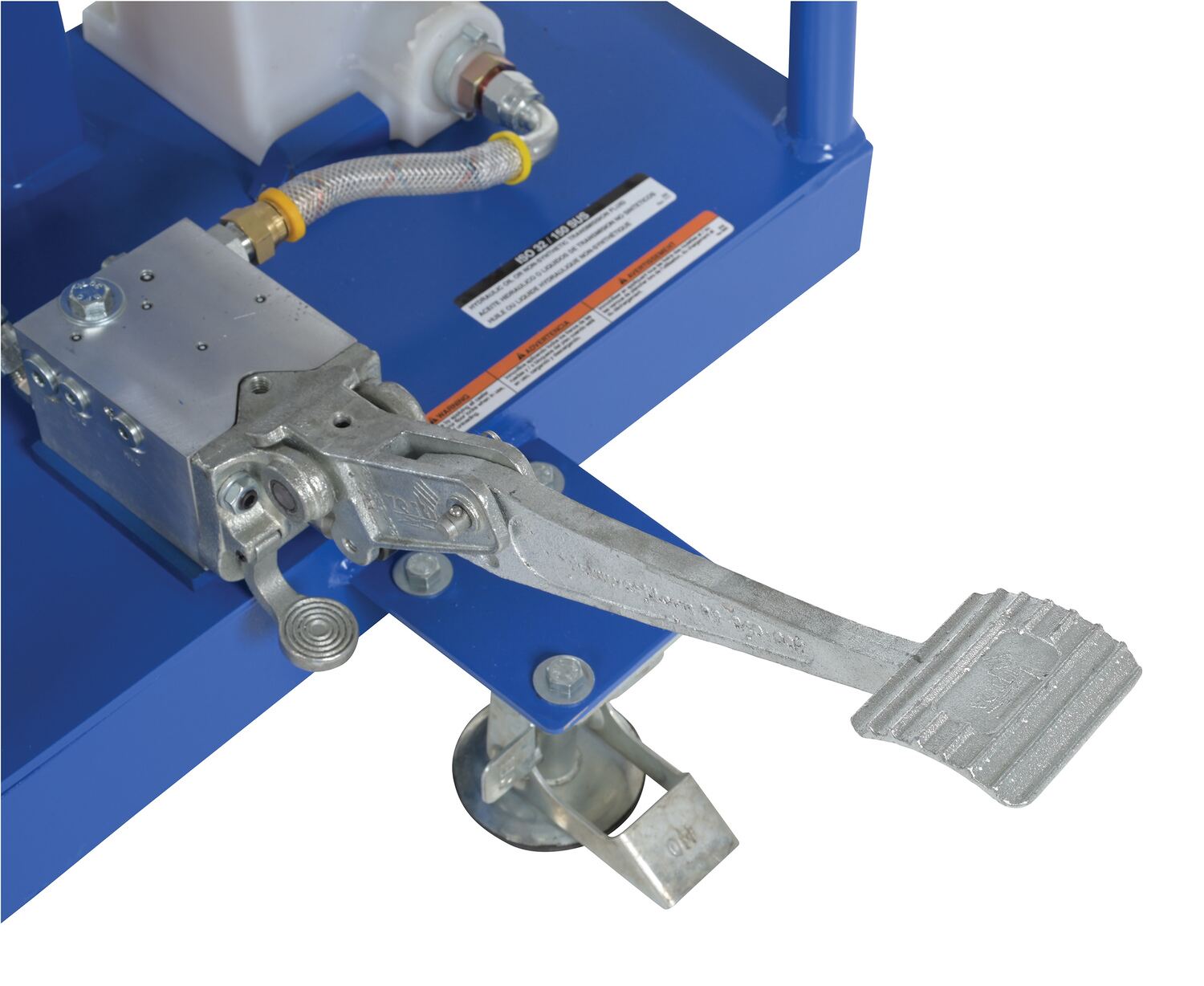

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. The hand crank rotates the drum. This unit features a lifting boom attachment which stores on the outriggers.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 485 (only 1 package) Size: 46.875"W x 72.5"L x 80.125"H Color: Blue

Uniform Capacity (lb.): 800 Lift Height (in.): 59-11/16 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Maximum Drum Diameter: 23.5 Minimum Drum Diameter: 20.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDC-305-60


HDC-305-60

Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. The hand crank rotates the drum. This unit features a lifting boom attachment which stores on the outriggers.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Dimensions: 46.875"W x 72.5"L x 80.125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215022071 GTIN: 00691215022071
Warranty: -- Shipping Weight: 485 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Lift Height (in.): 59-11/16 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Maximum Drum Diameter: 23.5 Minimum Drum Diameter: 20.5
