Model Details

PU-800-SCB

- Temporarily Unavailable - Please Contact Sales

PU-800-SCB

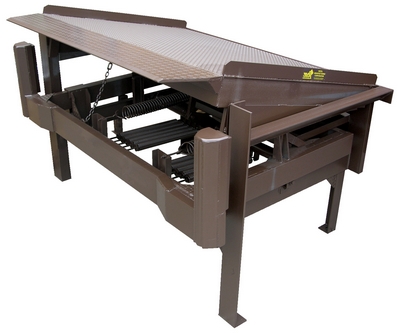

Steel Truck Actuated Dock Leveler Front of Dock 8 Ft. Length 20000 Lb. Capacity Brown

This is a fully automatic loading ramp where there is no dock attendant needed. It is a dock leveler unit with legs for in front of dock placement. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically. Please specify dock height when ordering.

  • Fully-automatic loading ramp where no dock attendant needed
  • Dock leveler unit with legs for in front of dock placement for ideal use
  • Consists of a lift by-pass and toe guards on each side for optimal safety
  • Deck returns to level supported position automatically
Total Ship Wt.(lbs.): 2830 (only 1 package) Size: 88"W x 107.25"L x 50.875"H Color: Brown Non-Returnable

Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 Molded Bumper Height (in.): 16
Molded Bumper Depth (in.): 2 PSI Checker Plated Deck: 55,000 Service Range Above Dock (in.): 12
Service Range Below Dock (in.): 8 Long Lip (in.): 12 (extends 6-1/2 (in.) into truck) Deck Width (in.): 72
Deck Length (in.): 96 Platform Thickness (in.): 1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PU-800-SCB


PU-800-SCB

Steel Truck Actuated Dock Leveler Front of Dock 8 Ft. Length 20000 Lb. Capacity Brown

This is a fully automatic loading ramp where there is no dock attendant needed. It is a dock leveler unit with legs for in front of dock placement. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically. Please specify dock height when ordering.

  • Fully-automatic loading ramp where no dock attendant needed
  • Dock leveler unit with legs for in front of dock placement for ideal use
  • Consists of a lift by-pass and toe guards on each side for optimal safety
  • Deck returns to level supported position automatically
Dimensions: 88"W x 107.25"L x 50.875"H Sell UOM: EA-Each Color: Brown
Material: Steel UPC: 691215032001 GTIN: 00691215032001
Warranty: -- Shipping Weight: 2830 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 Molded Bumper Height (in.): 16
Molded Bumper Depth (in.): 2 PSI Checker Plated Deck: 55,000 Service Range Above Dock (in.): 12
Service Range Below Dock (in.): 8 Long Lip (in.): 12 (extends 6-1/2 (in.) into truck) Deck Width (in.): 72
Deck Length (in.): 96 Platform Thickness (in.): 1/4
