Truck Actuated Dock Levelers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
RU-600-SCB_A.jpg PU-600-SCB_A.jpg
Truck Actuated Dock Levelers

model: RU-600-SCB



Featured Loading Dock Equipment:


Shelter Guard Posts
Overhead Door Warning Barriers
Heavy-Duty Fiberglass Walk Ramps
Extruded Aluminum Hose & Cable Crossovers
Steel Truck Dockboards
Cable Guard
Trailer Stabilizing Jacks
Economical Overhead Door Warning Barriers
Swivel Dock Gates
model chart

Product Family Overview

Print Friendly
Truck Actuated Dock Levelers
SERIES: RU,PU,SU

The Truck Actuated Dock Leveler is a fully automatic loading ramp where there is no dock attendant needed. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • 55,000 psi high strength checker plate deck
  • 12" long lip (extends 6-1/2" into truck)
  • Toeguards on each side
  • (2) Molded Bumpers; 5"W x 16"H x 2"D
  • Lift By-Pass for Safety
  • Service range of 12" above through 8" below dock

The Truck Actuated Dock Leveler is a fully automatic loading ramp where there is no dock attendant needed. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • 55,000 psi high strength checker plate deck
  • 12" long lip (extends 6-1/2" into truck)
  • Toeguards on each side
  • (2) Molded Bumpers; 5"W x 16"H x 2"D
  • Lift By-Pass for Safety
  • Service range of 12" above through 8" below dock

Other Dock Levelers

 Dock Leveler Insulation Blanket Edge-O-Dock Levelers Electric Hydraulic Dock Levelers Weather Stripping (for pit mounted dock levelers)

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PU-1000-SCB PU-1000-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler Front of Dock 10 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		3203
PU-600-SCB PU-600-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler Front of Dock 6 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2394
PU-800-SCB PU-800-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler Front of Dock 8 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2830
RU-1000-SCB RU-1000-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler 131-1/16 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2730

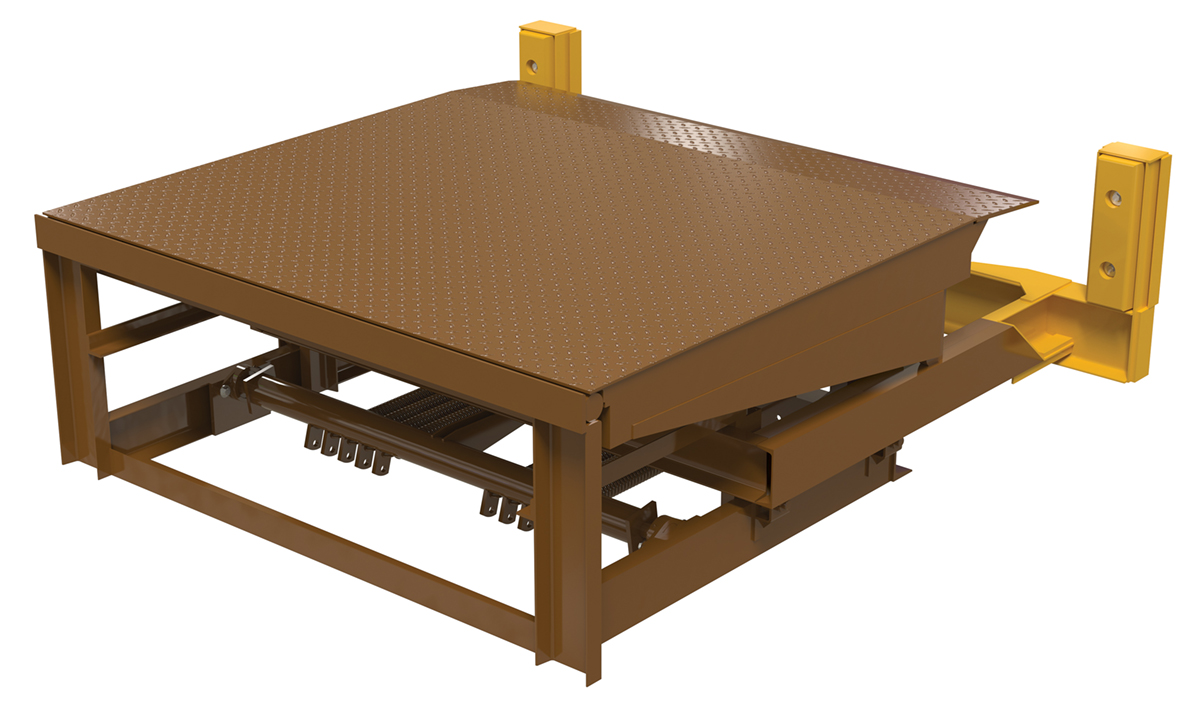

RU-600-SCB RU-600-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler 85-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2056

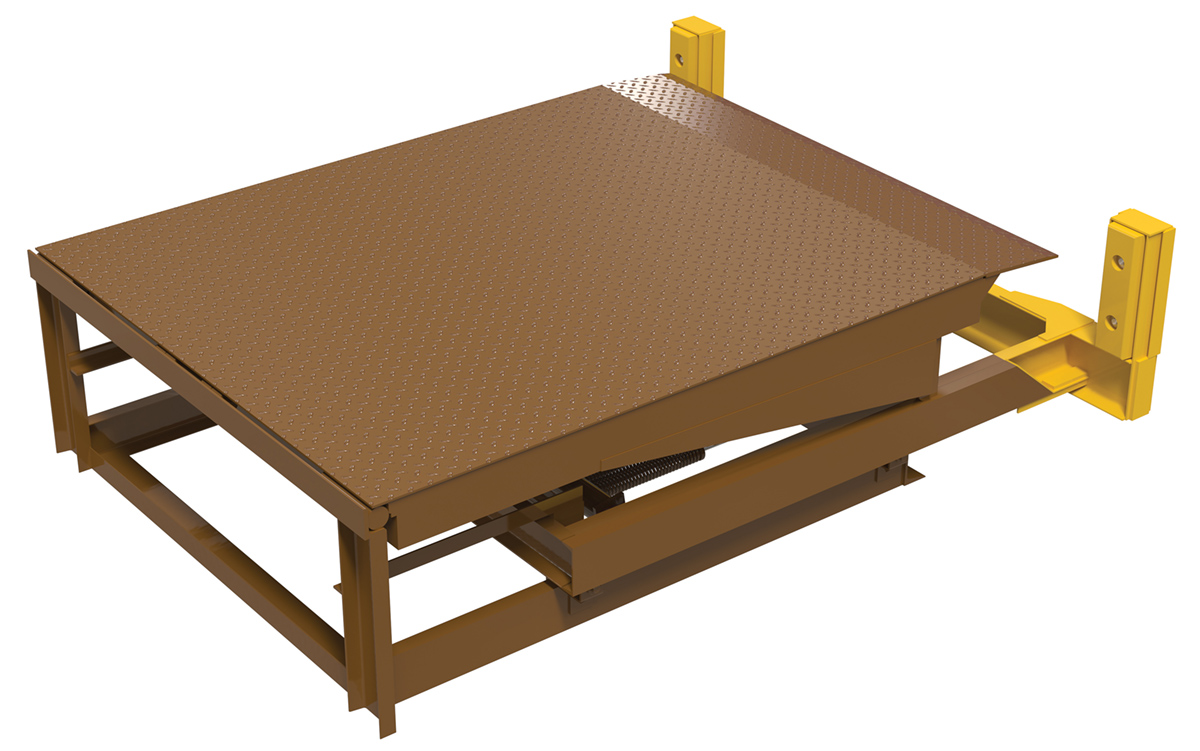

RU-800-SCB RU-800-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler 107-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2425

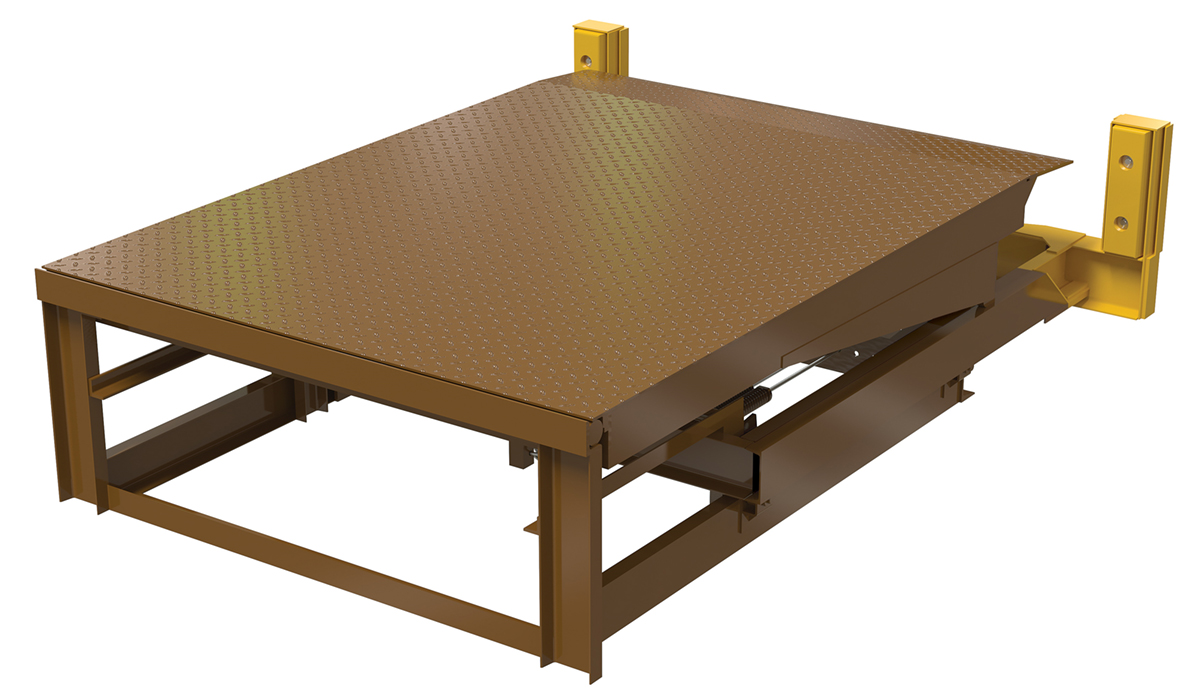

RU-800-SCB-F RU-800-SCB-F1 Year Limited WarrantySteel Truck Actuated Dock Leveler 113-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2475
SU-1000-SCB SU-1000-SCB1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 131 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2821
SU-600-SCB SU-600-SCB1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 84-1/2 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2147
SU-800-SCB SU-800-SCB1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2516
SU-800-SCB-F SU-800-SCB-F1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 113-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2592

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PU-1000-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

PU-600-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

PU-800-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-1000-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-600-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-800-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-800-SCB-F
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-1000-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-600-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-800-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-800-SCB-F
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
For More Details of the Option Click the Red Model Button
BE 30 Days Limited WarrantyFactory Installed Welded Bumper Extension For Truck Actuated Dock LevelersSize: Fabricated to Fit Unit
48

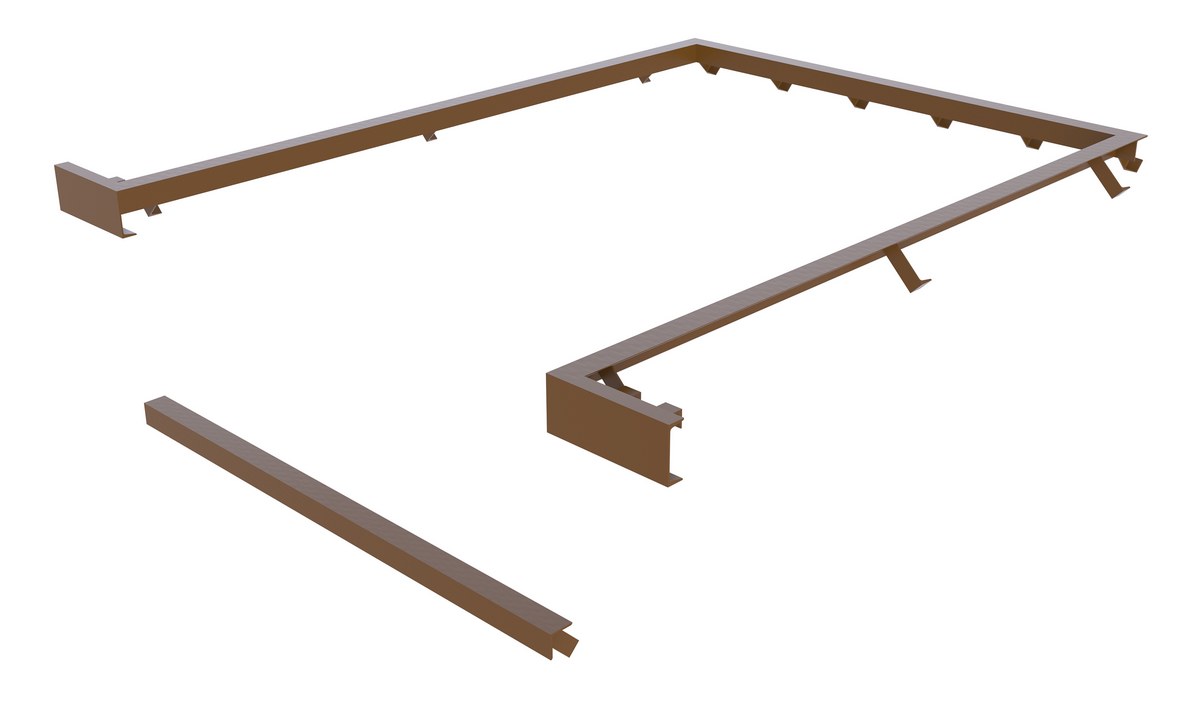

CAS-RU-1000 CAS-RU-100090 Days Limited WarrantyFactory Installed Steel Curb Angle Set Usable Dimensions 104-1/2 In. x 74 In. x 28 In. For RU-1000-SCBUsable Width (in.): 74
Usable Length (in.): 104-1/2		233

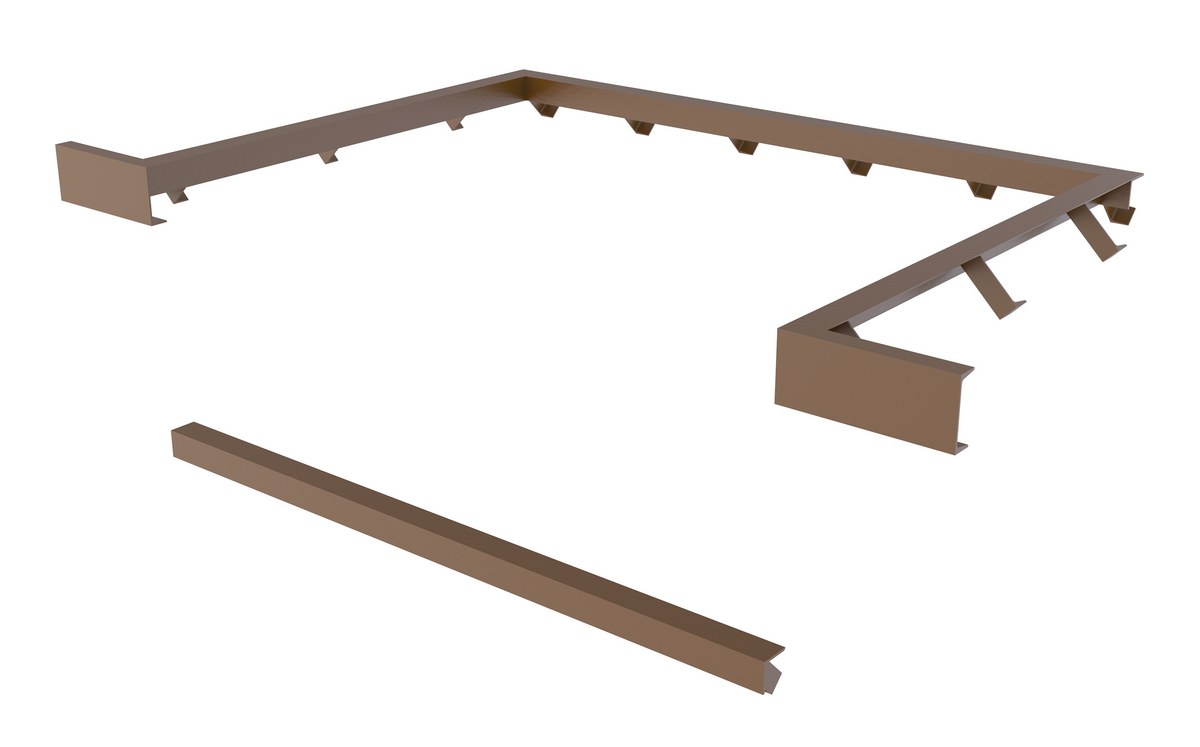

CAS-RU-600 CAS-RU-60090 Days Limited WarrantyFactory Installed Steel Curb Angle Set Usable Dimensions 56-1/2 In. x 74 In. x 28 In. For RU-600-SCBUsable Width (in.): 74
Usable Length (in.): 56-1/2		196

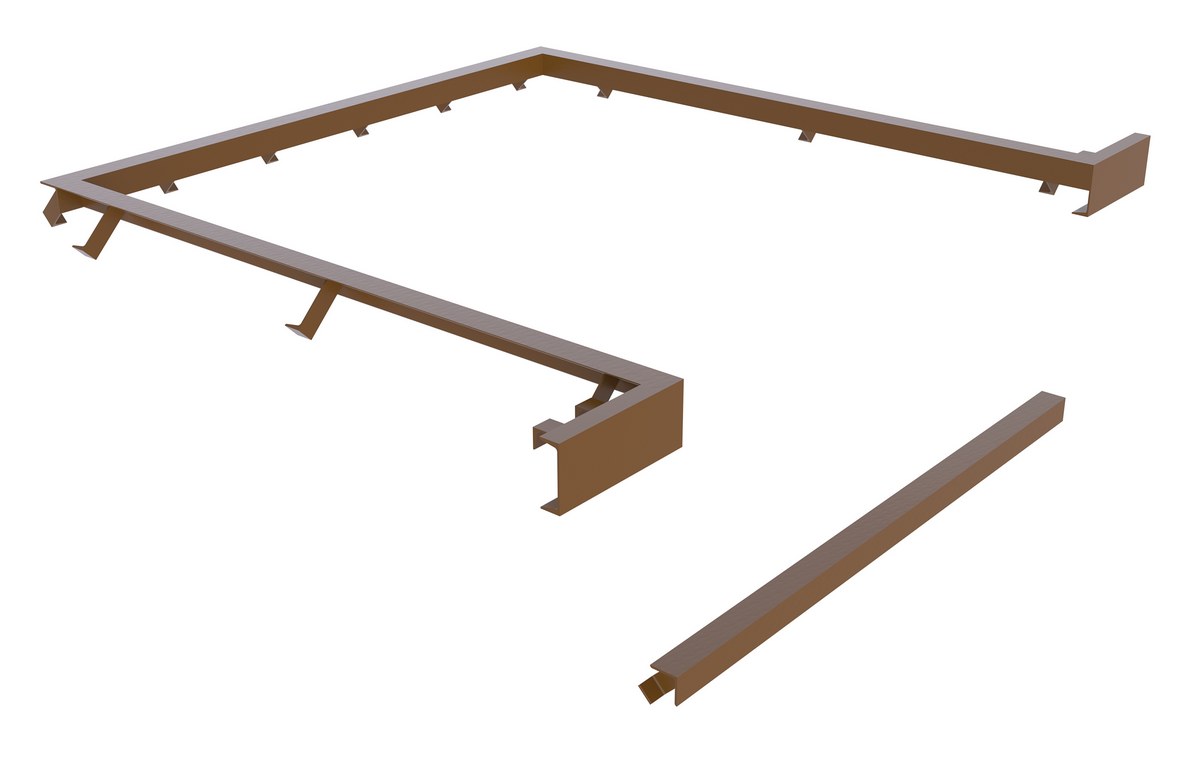

CAS-RU-800 CAS-RU-80090 Days Limited WarrantyFactory Installed Steel Curb Angle Set Usable Dimensions 80-1/2 In. x 74 In. x 28 In. For RU-800-SCBUsable Width (in.): 74
Usable Length (in.): 80-1/2		214

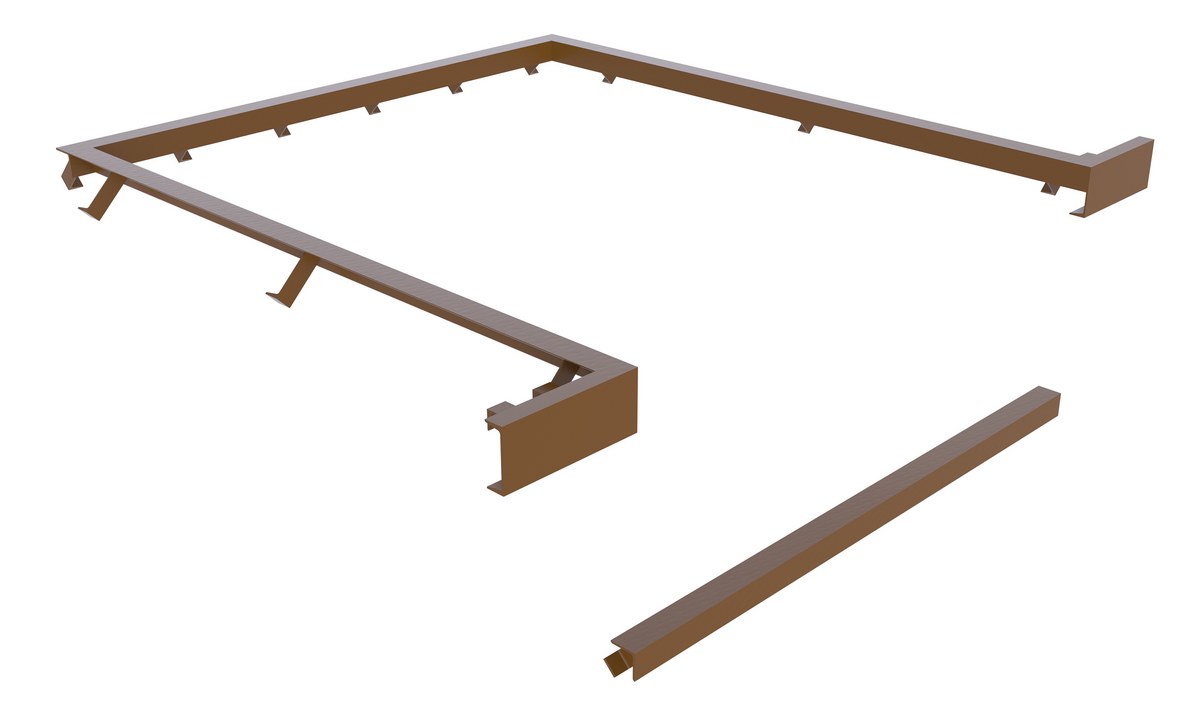

CAS-RU-800-F CAS-RU-800-F90 Days Limited WarrantyFactory Installed Steel Curb Angle Set Usable Dimensions 86-1/2 In. x 74 In. x 28 In. For RU-800-SCB-FUsable Width (in.): 74
Usable Length (in.): 86-1/2		318
SPO 30 Days Limited WarrantyFactory Installed Fabricated Shallow Pit To Fit Dock Leveler UnitsSizes: Fabricated to Fit Unit
SPO-RU 30 Days Limited WarrantyFactory Installed/Fabricated Shallow Pit 24 In. Minimum Depth To Fit Fully Automatic Loading Ramp UnitsSizes: Fabricated to Fit Unit
Minimum Depth (in.): 24
TA-30K/10 30 Days Limited WarrantyFactory Installed Additional 30,000 Lb. Capacity for 10' Length Truck Actuated Dock LevelerAdditional Capacity Amount (lb.): 10000
TA-30K/6 30 Days Limited WarrantyFactory Installed Additional 30,000 Lb. Capacity for 6' Length Truck Actuated Dock LevelerAdditional Capacity Amount (lb.): 10000
TA-30K/8 30 Days Limited WarrantyFactory Installed Additional 30,000 Lb. Capacity for 8' Length Truck Actuated Dock LevelerAdditional Capacity Amount (lb.): 10000
TL 30 Days Limited WarrantyFactory Installed Trailer Lock Notch For Dock LevelersPackage Contents: Factory Installed Trailer Lock Notch
Model Image Description Wt.
(lbs.)
WS-DV Dual vinyl weather stripping (factory installed) -
FI Foam Insulation 6
Capacities to 100,000 pounds available - contact factory
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Truck Actuated Dock Levelers PDF's will open in a new window when clicked.

Manuals


RU
Owners Manual

WS
Owners Manual

Survey Sheets


DOCK%20LEVELER
Survey Sheet

Approval Drawings


CAS-RU-1000

CAS-RU-600

CAS-RU-800

CAS-RU-800-F

PU-1000-SCB

PU-600-SCB

PU-800-SCB

RU-1000-SCB

RU-600-SCB

RU-800-SCB

RU-800-SCB-F

SU-1000-SCB

SU-600-SCB

SU-800-SCB

SU-800-SCB-F

Testing Certificates


BE

CAS-RU-1000

CAS-RU-600

CAS-RU-800

CAS-RU-800-F

PU-1000-SCB

PU-600-SCB

PU-800-SCB

RU-1000-SCB

RU-600-SCB

RU-800-SCB

RU-800-SCB-F

SPO

SPO-RU

SU-1000-SCB

SU-600-SCB

SU-800-SCB

SU-800-SCB-F

TL

SDS Sheets

Hydraulic Oil SDS Sheet for: SU-1000-SCB
Hydraulic Oil SDS Sheet for: SU-600-SCB
Hydraulic Oil SDS Sheet for: SU-800-SCB
Hydraulic Oil SDS Sheet for: SU-800-SCB-F

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Mechanical Dock Levelers
Product

Mechanical Dock Levelers

Electric Hydraulic Dock Levelers
Product

Electric Hydraulic Dock Levelers

Weather Stripping (for pit mounted dock levelers)
Product

Weather Stripping (for pit mounted dock levelers)

Dock Doors
Product

Dock Doors

Dock Safety & Maintenance
Product

Dock Safety & Maintenance

Premium Truck Scissor Dock Lifts
Product

Premium Truck Scissor Dock Lifts

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Truck Actuated Dock Levelers




The Truck Actuated Dock Leveler is a fully automatic loading ramp where there is no dock attendant needed. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • 55,000 psi high strength checker plate deck
  • 12" long lip (extends 6-1/2" into truck)
  • Toeguards on each side
  • (2) Molded Bumpers; 5"W x 16"H x 2"D
  • Lift By-Pass for Safety
  • Service range of 12" above through 8" below dock

Model # Description Attributes Net Wt.
(lbs)
PU-1000-SCB PU-1000-SCBSteel Truck Actuated Dock Leveler Front of Dock 10 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		3203
PU-600-SCB PU-600-SCBSteel Truck Actuated Dock Leveler Front of Dock 6 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2394

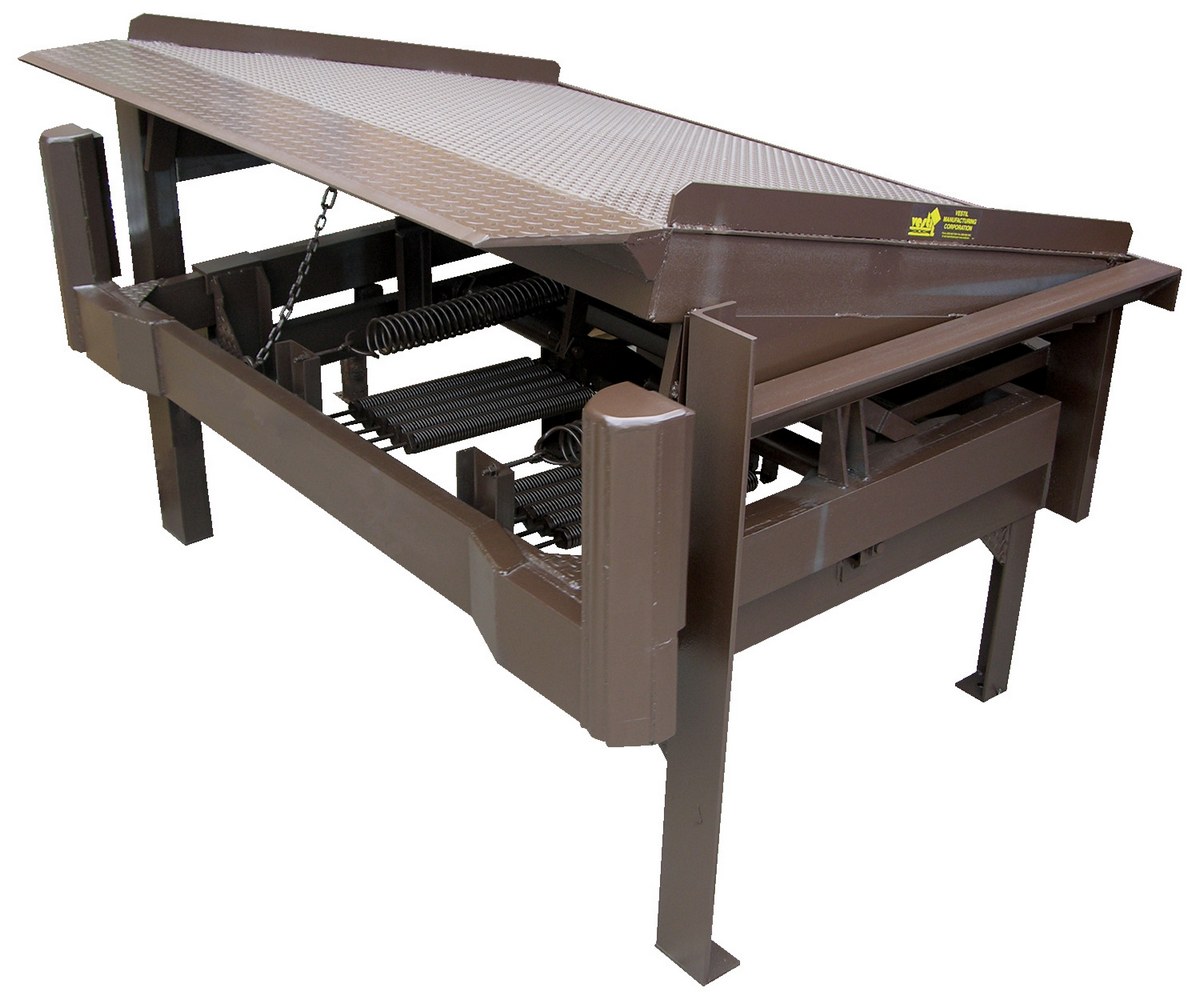

PU-800-SCB PU-800-SCBSteel Truck Actuated Dock Leveler Front of Dock 8 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2830

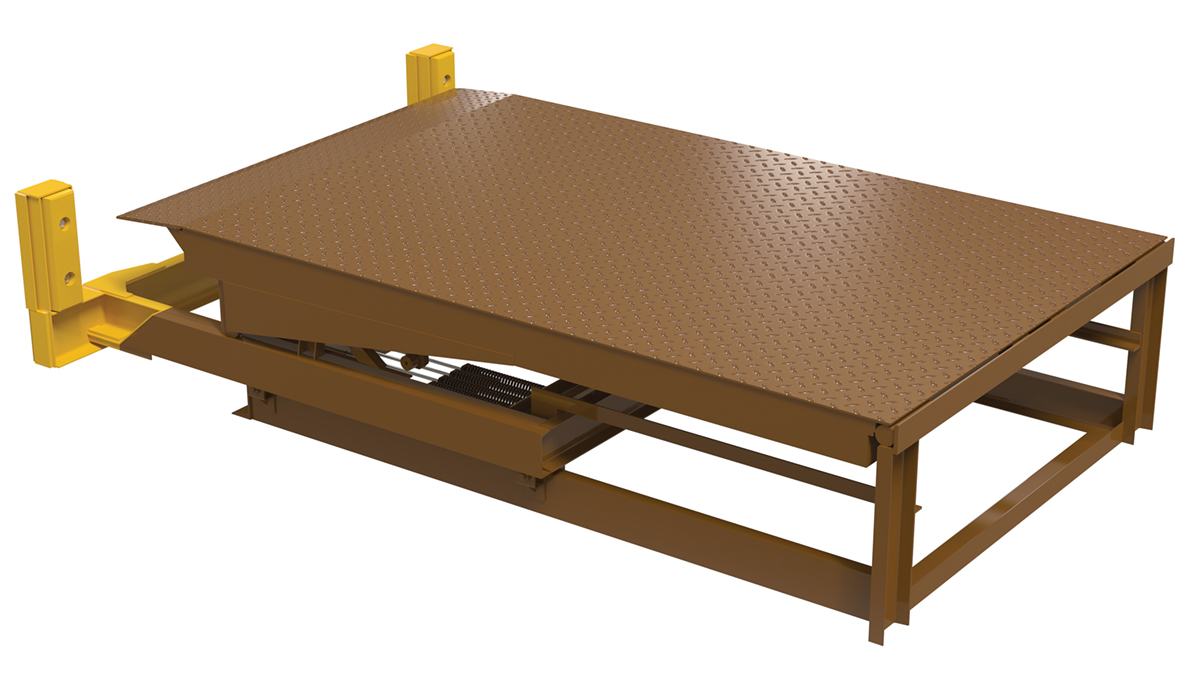

RU-1000-SCB RU-1000-SCBSteel Truck Actuated Dock Leveler 131-1/16 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2730
RU-600-SCB RU-600-SCBSteel Truck Actuated Dock Leveler 85-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2056
RU-800-SCB RU-800-SCBSteel Truck Actuated Dock Leveler 107-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2425
RU-800-SCB-F RU-800-SCB-FSteel Truck Actuated Dock Leveler 113-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2475

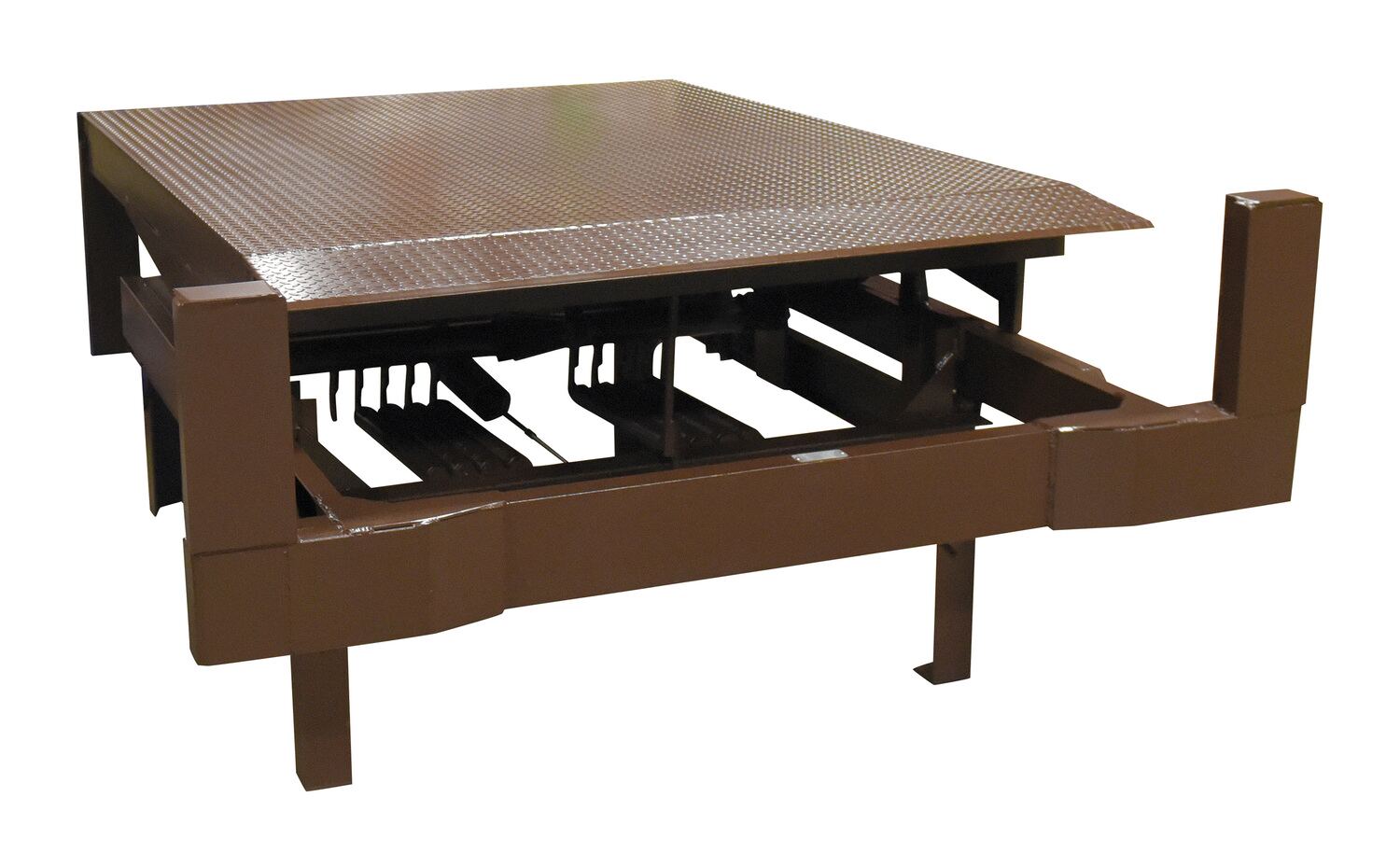

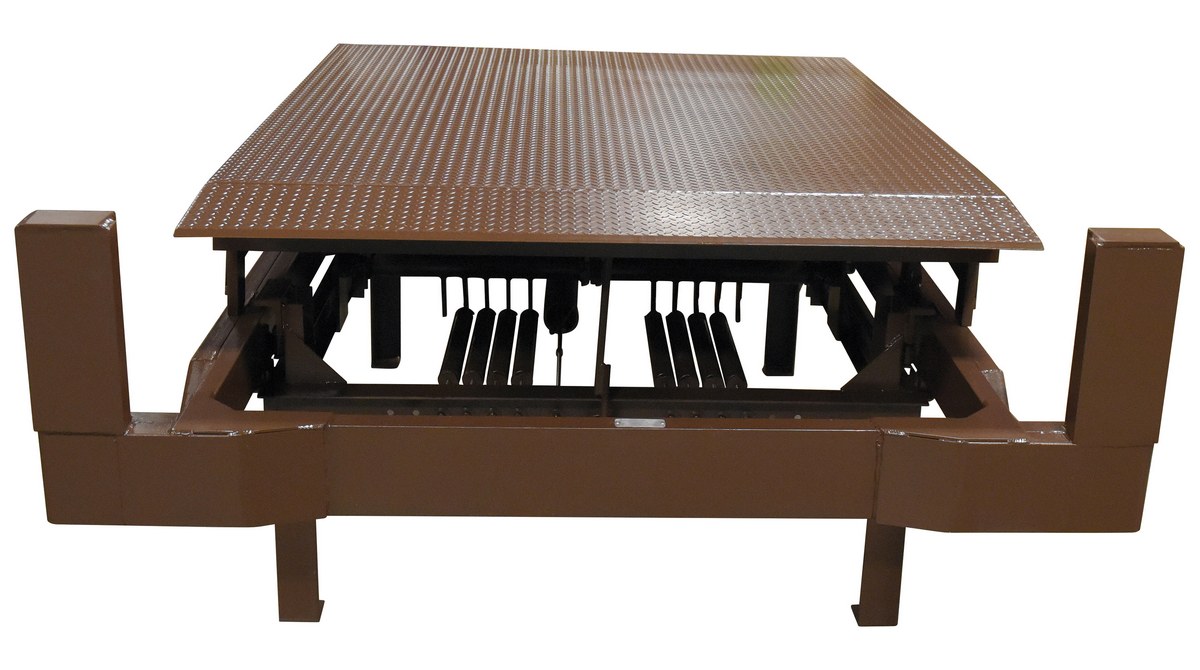

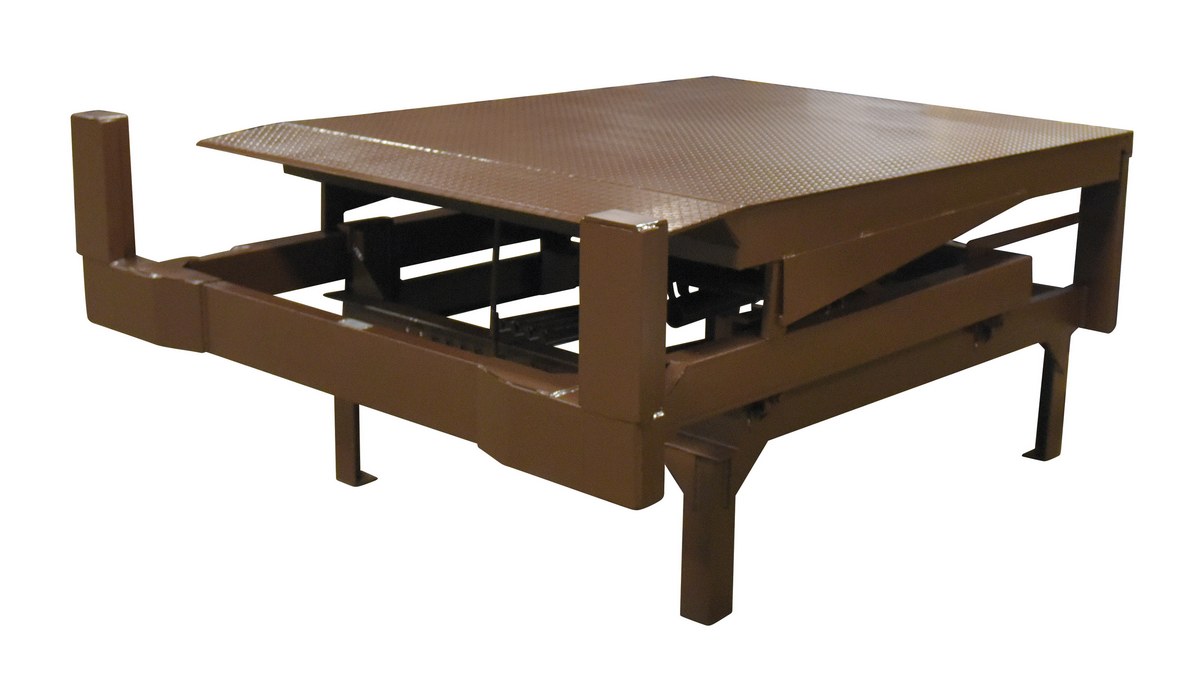

SU-1000-SCB SU-1000-SCBSteel Actuated Dock Leveler with Legs 131 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2821
SU-600-SCB SU-600-SCBSteel Actuated Dock Leveler with Legs 84-1/2 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2147
SU-800-SCB SU-800-SCBSteel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2516
SU-800-SCB-F SU-800-SCB-FSteel Actuated Dock Leveler with Legs 113-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2592

Options


Model Image Description Wt.
(lbs.)
WS-DV Dual vinyl weather stripping (factory installed) -
FI Foam Insulation 6
Capacities to 100,000 pounds available - contact factory
