S-62-FF

S-62-FF

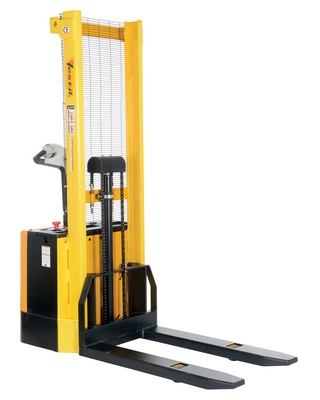

Steel Fixed Powered Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow

The stacker with powered drive and powered lift is a fully powered electric stacker that transports loads throughout warehouse facilities quickly and with less effort. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The power lifter features a lead acid deep cycle battery, integral battery charger, and a battery level gauge. The stacker rolls smoothly on poly-on-steel steer and load wheels.

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction
Total Ship Wt.(lbs.): 997 (only 1 package) Size: 30"W x 67.3125"L x 81.875"H Color: Black / Yellow Non-Returnable QuickShip

Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4 Fork Length (in.): 42
Lowered Height (in.): 3-3/8 Raised Height (in.): 62 Battery: (2) 12V
Drive Motor: DC 24V Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4
Operation at Full Charge when Used Intermittently (hrs.): 8 Individual Fork Width (in.): 5.9 Drive Wheel Quantity/Diameter/Width (in.): (1) 10x3-1/8
Front Wheel Quantity/Diameter/Width (in.): (2) 3-1/8x3-3/8 Stabilizer Wheel Quantity/Diameter/Width (in.): (2) 4x2-1/4 Wheel Material: Poly-on-Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-62-FF


S-62-FF

Steel Fixed Powered Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow

The stacker with powered drive and powered lift is a fully powered electric stacker that transports loads throughout warehouse facilities quickly and with less effort. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The power lifter features a lead acid deep cycle battery, integral battery charger, and a battery level gauge. The stacker rolls smoothly on poly-on-steel steer and load wheels.

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction
Dimensions: 30"W x 67.3125"L x 81.875"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215062466 GTIN: 00691215062466
Warranty: -- Shipping Weight: 997 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4 Fork Length (in.): 42
Lowered Height (in.): 3-3/8 Raised Height (in.): 62 Battery: (2) 12V
Drive Motor: DC 24V Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4
Operation at Full Charge when Used Intermittently (hrs.): 8 Individual Fork Width (in.): 5.9 Drive Wheel Quantity/Diameter/Width (in.): (1) 10x3-1/8
Front Wheel Quantity/Diameter/Width (in.): (2) 3-1/8x3-3/8 Stabilizer Wheel Quantity/Diameter/Width (in.): (2) 4x2-1/4 Wheel Material: Poly-on-Steel
