Product Family Overview


Stackers with Powered Drive and Powered Lift
SERIES: S

Fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Battery options available; Absorbed Glass Matt, suffix AGM. Batteries are maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

Fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Battery options available; Absorbed Glass Matt, suffix AGM. Batteries are maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

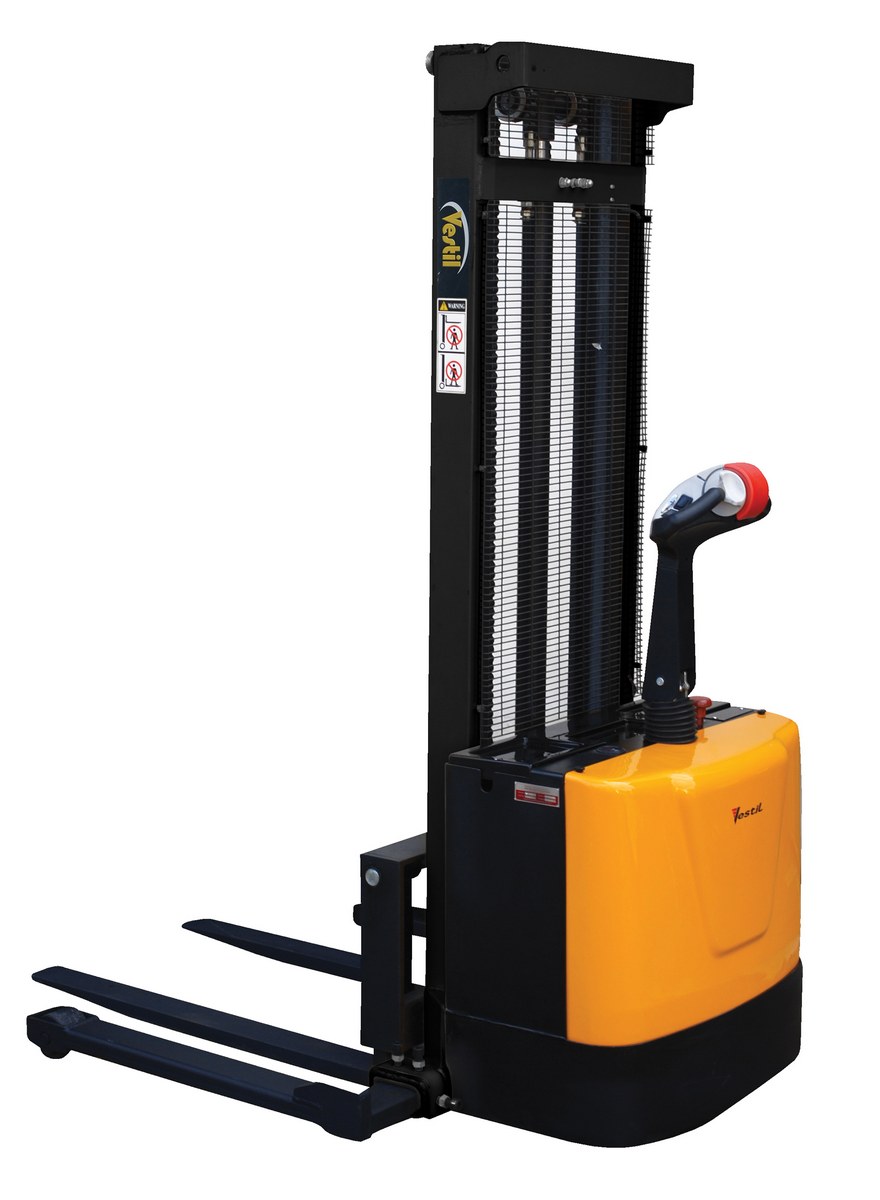

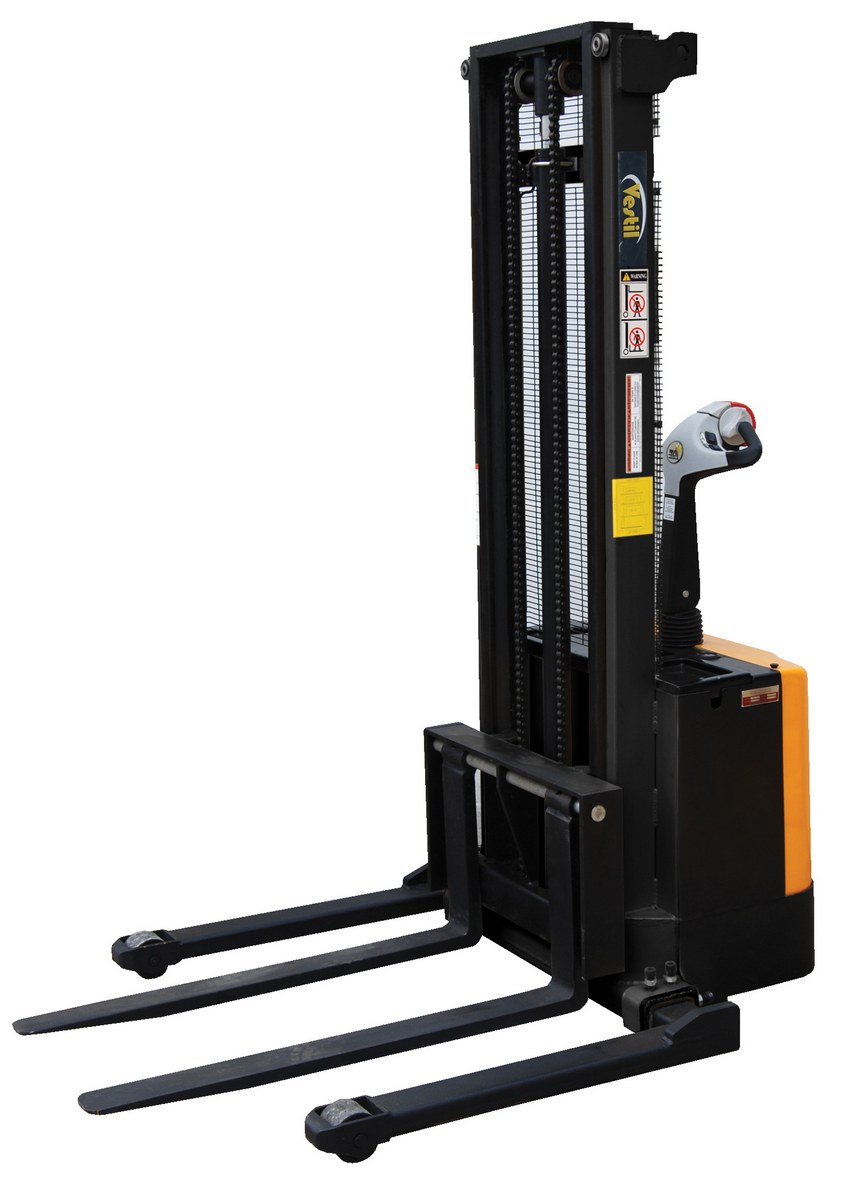

S-118-AA S-118-AA1 Year Limited WarrantySteel Adjustable Powered Lift Stacker 118 In. Raised Height 2000 Lb. Capacity Black / YellowUniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
1556

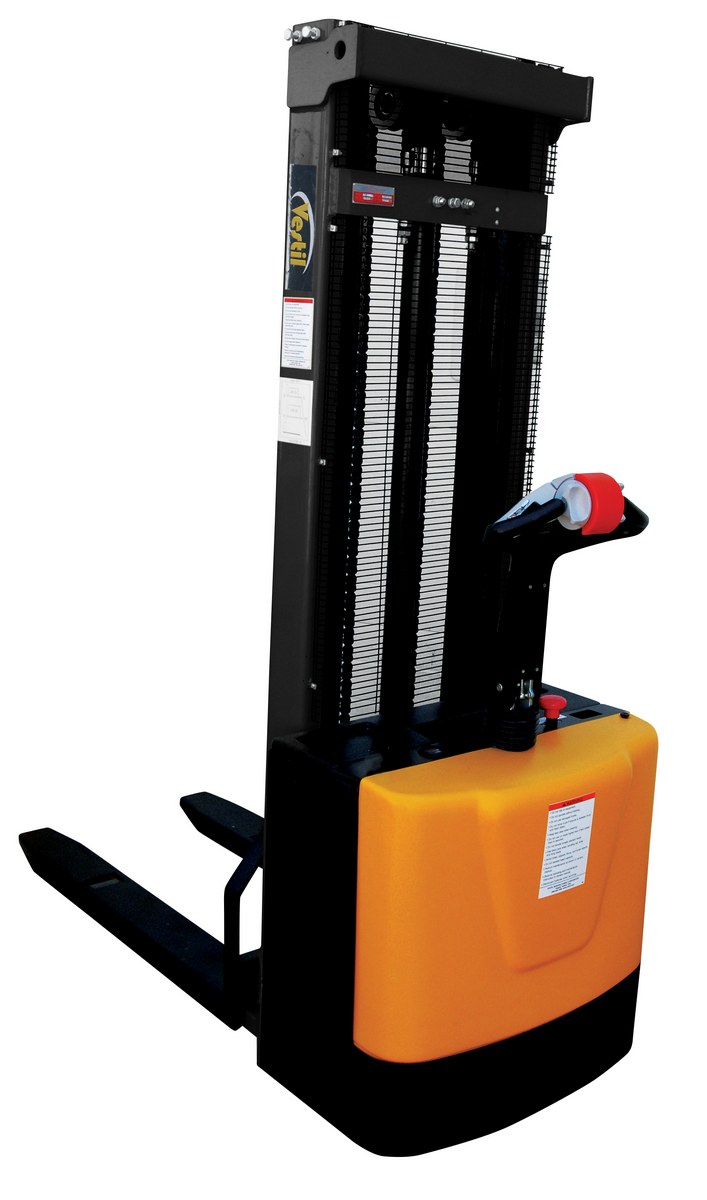

S-118-FF
S-118-FF1 Year Limited WarrantySteel Fixed Forks Powered Lift Stacker 118 In. Raised Height 2000 Lb. Capacity Black / YellowUniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
1249

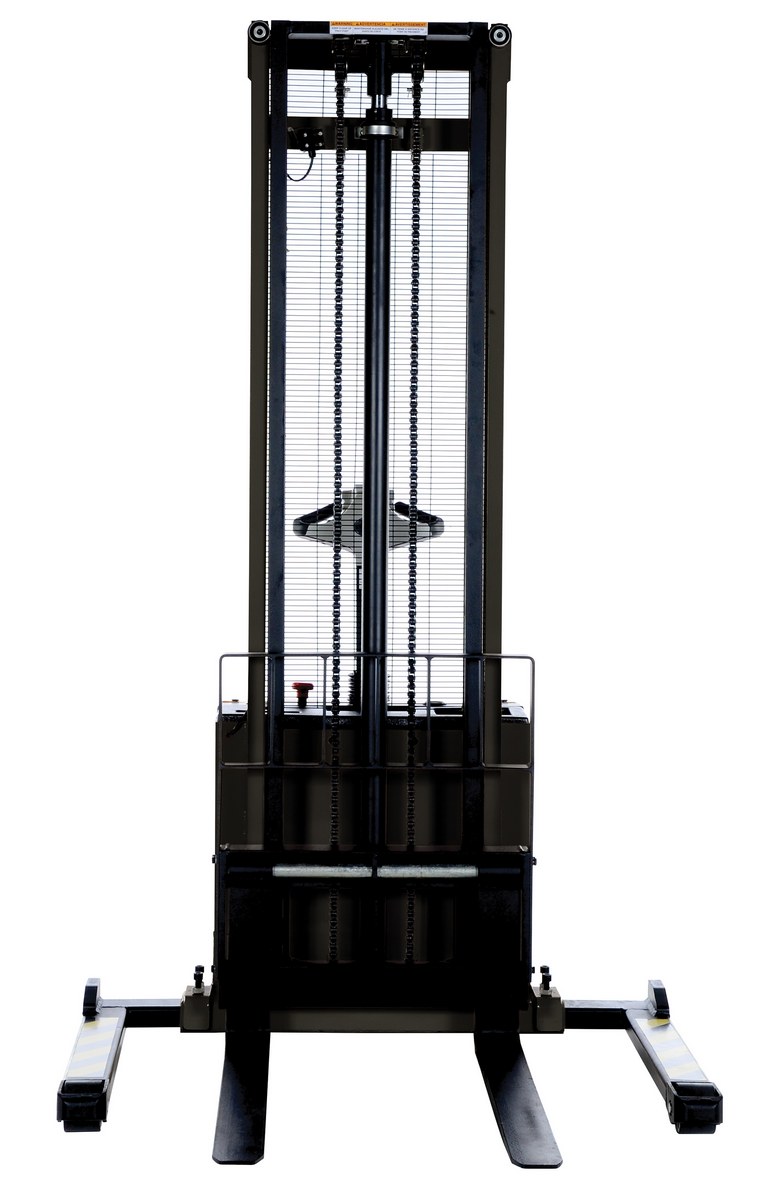

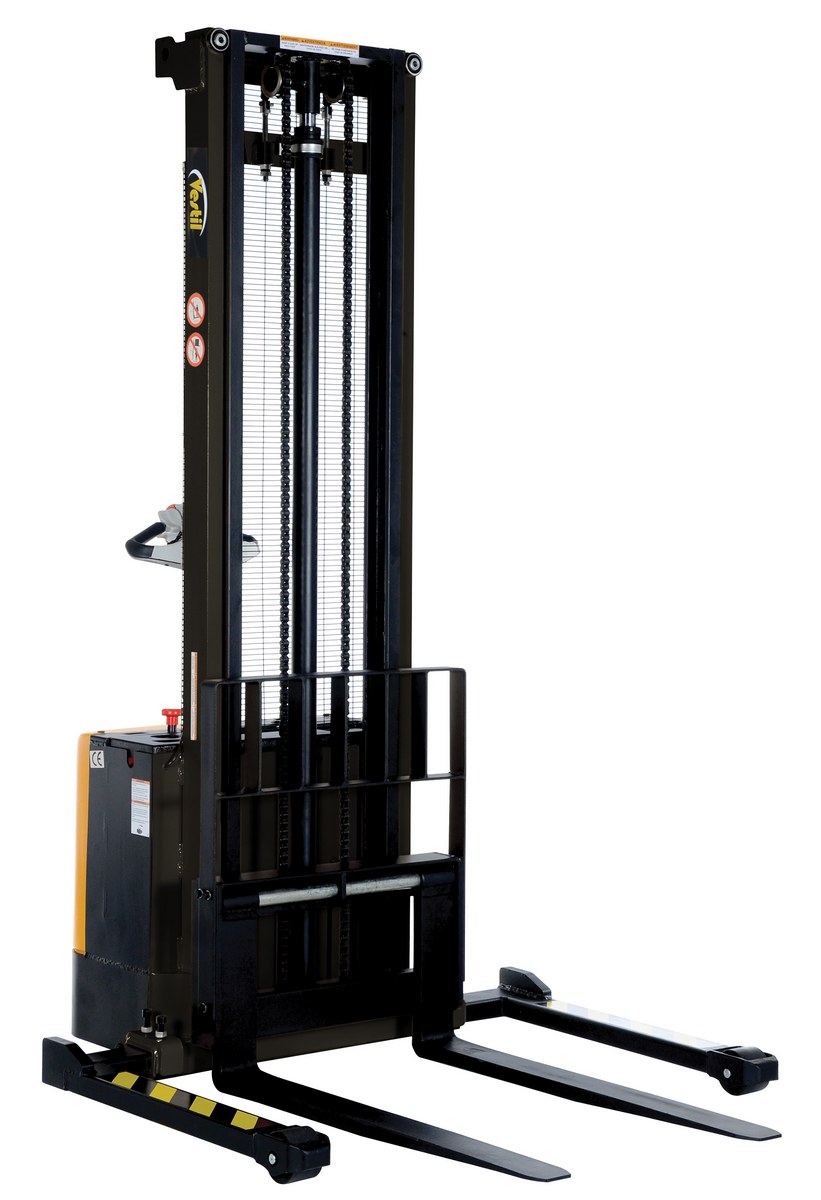

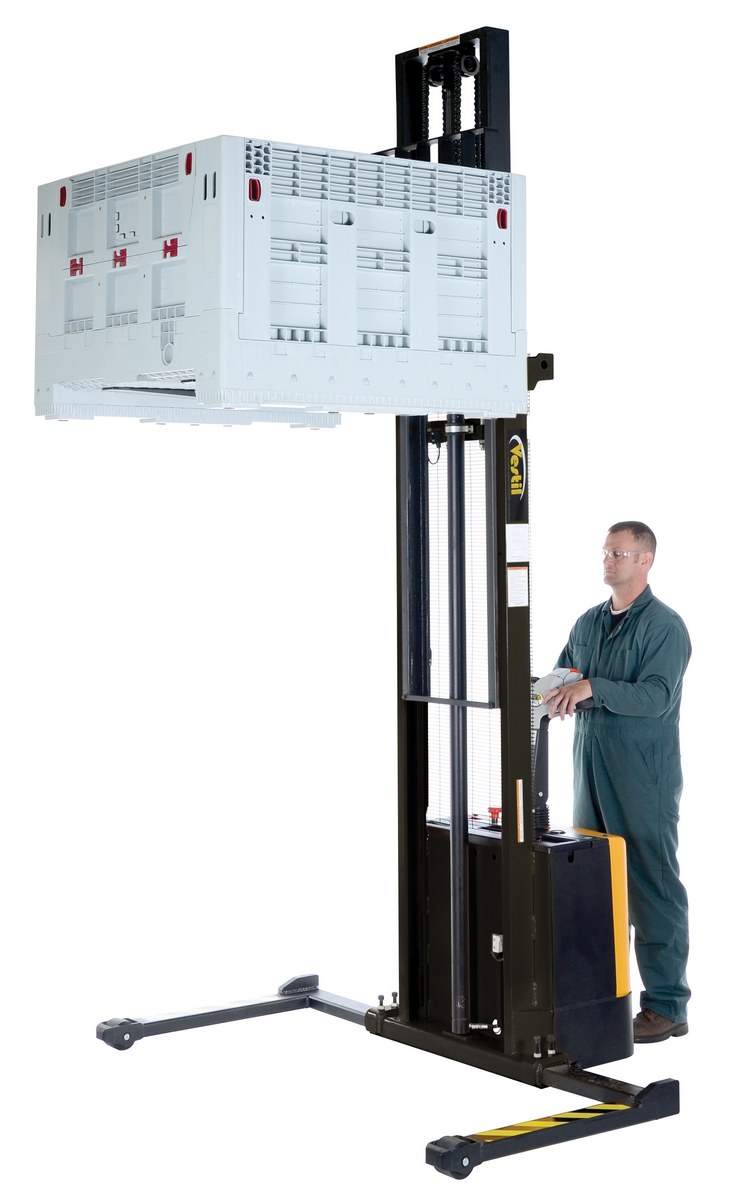

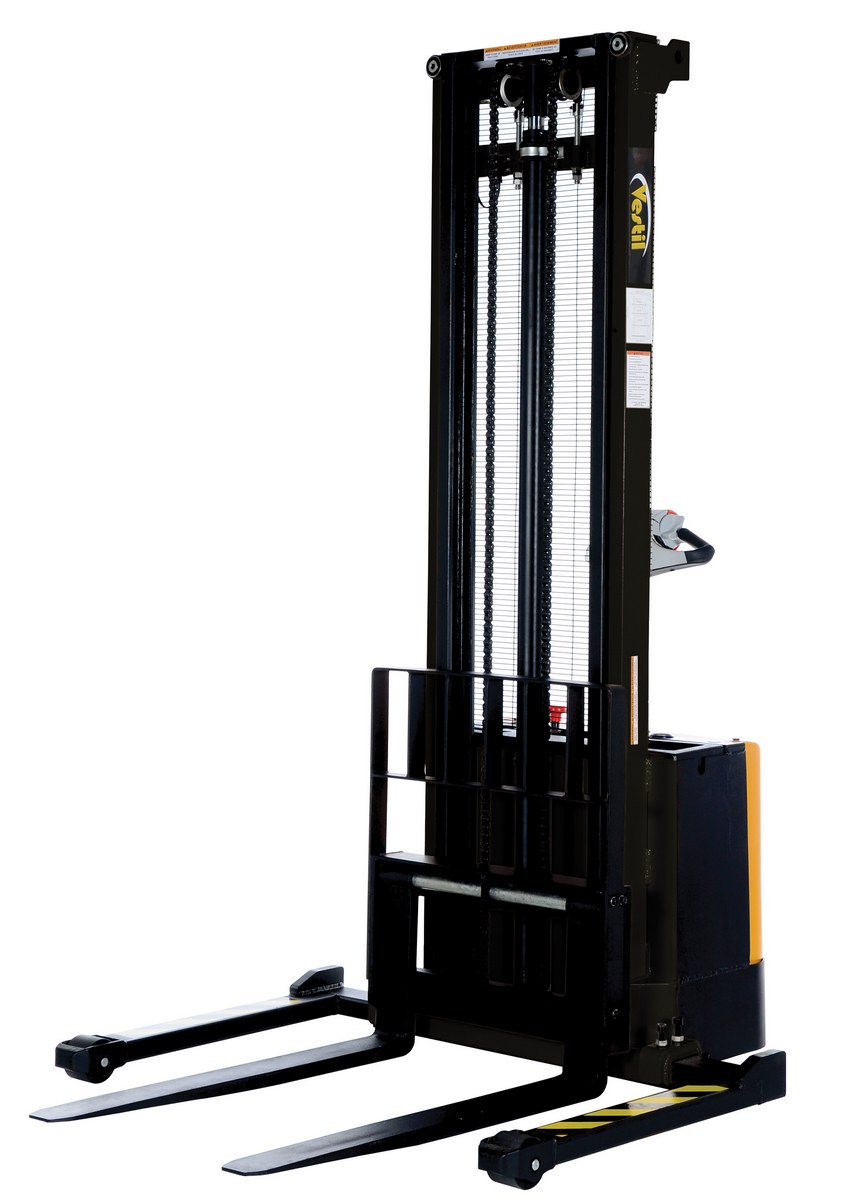

S-150-AA S-150-AA1 Year Limited WarrantySteel Adjustable Powered Lift Stacker 150 In. Raised Height 2000 Lb. Capacity Black / YellowUniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
1657

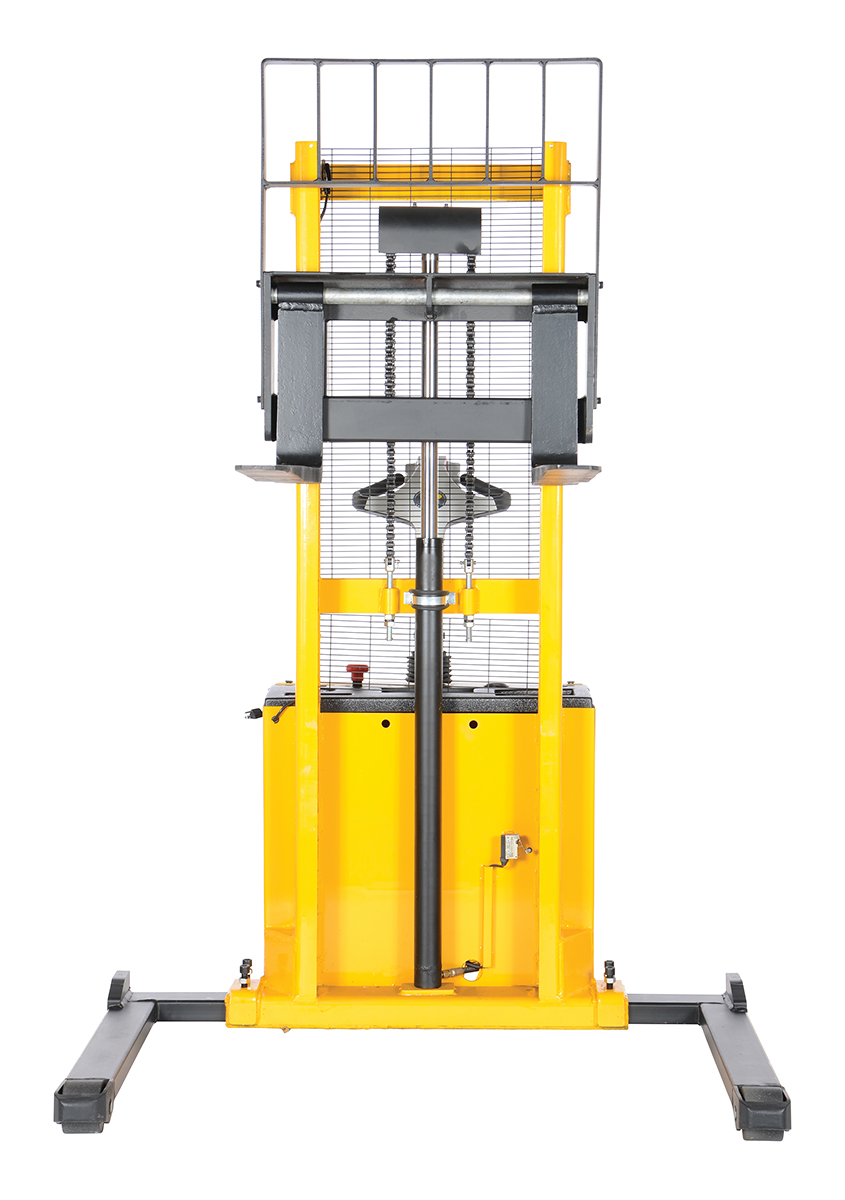

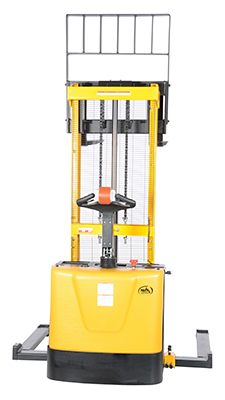

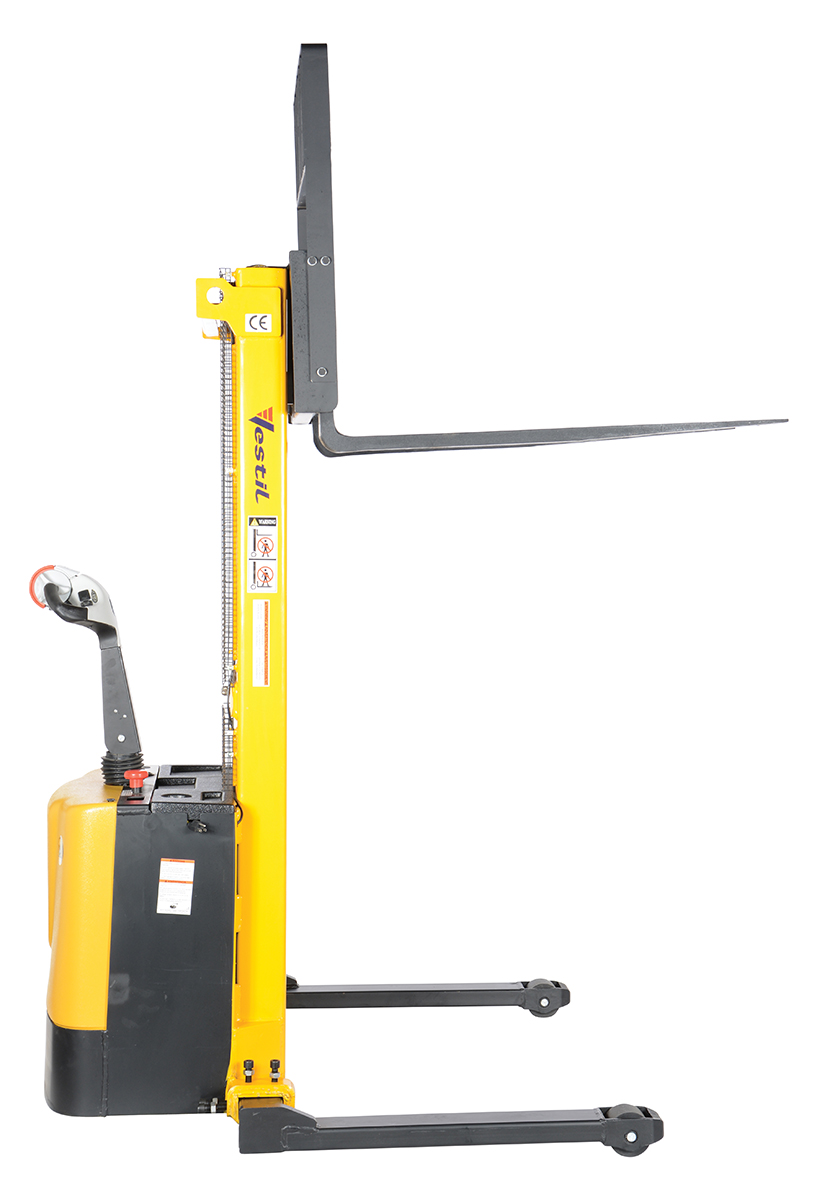

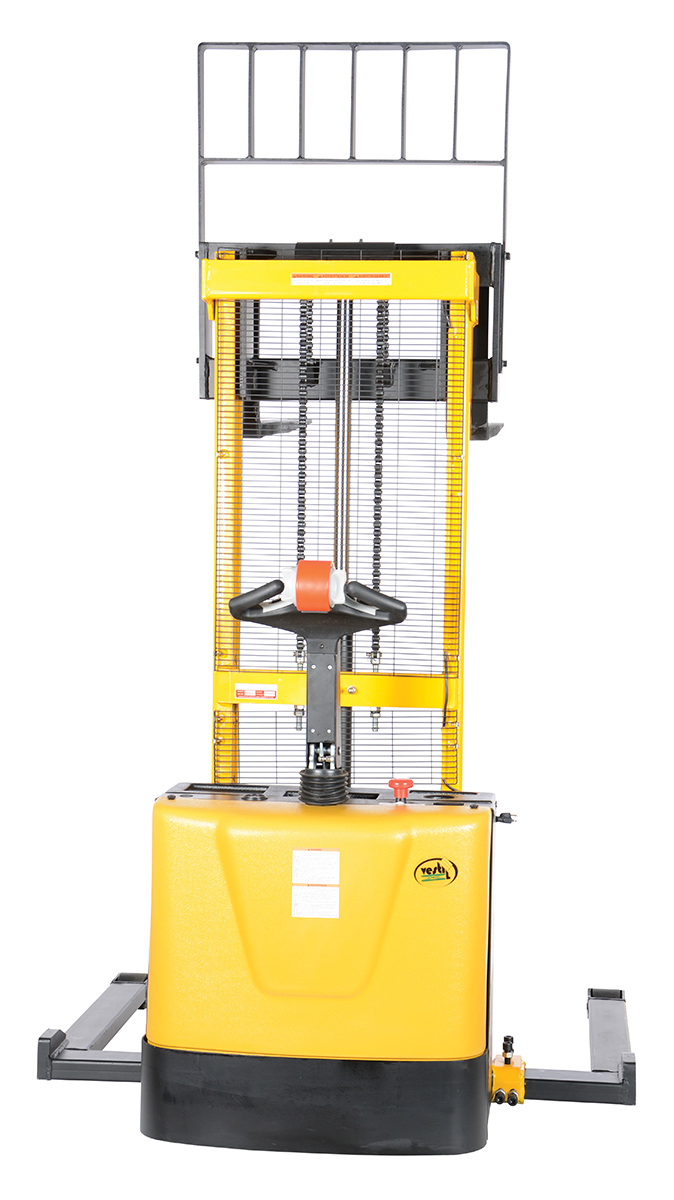

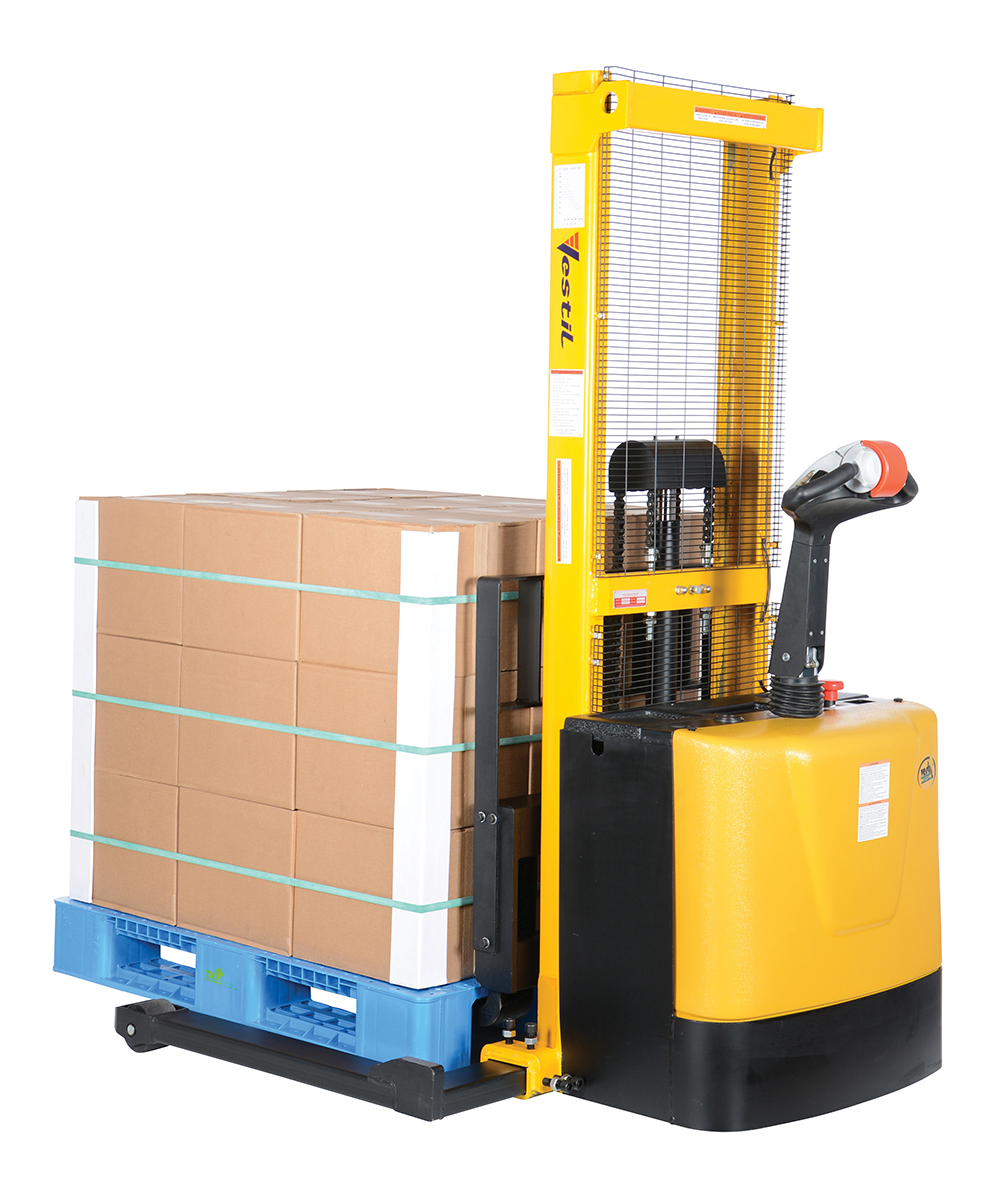

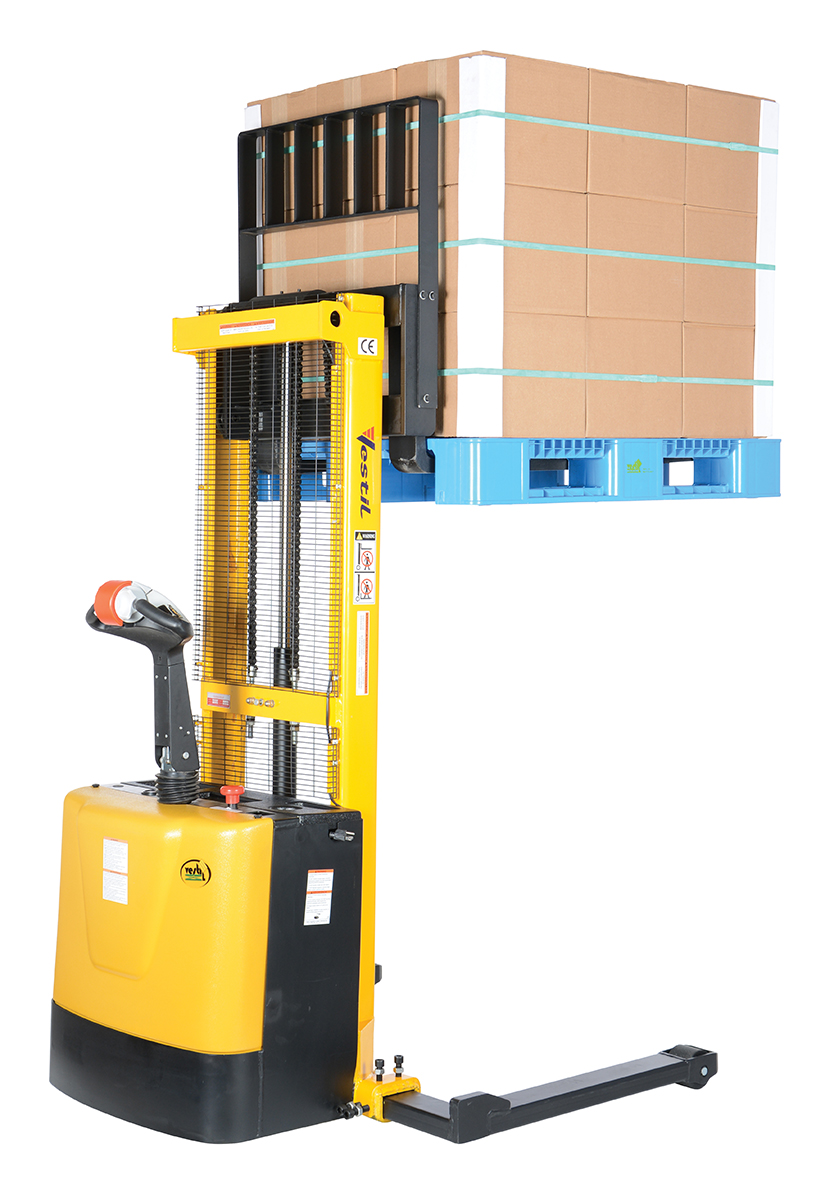

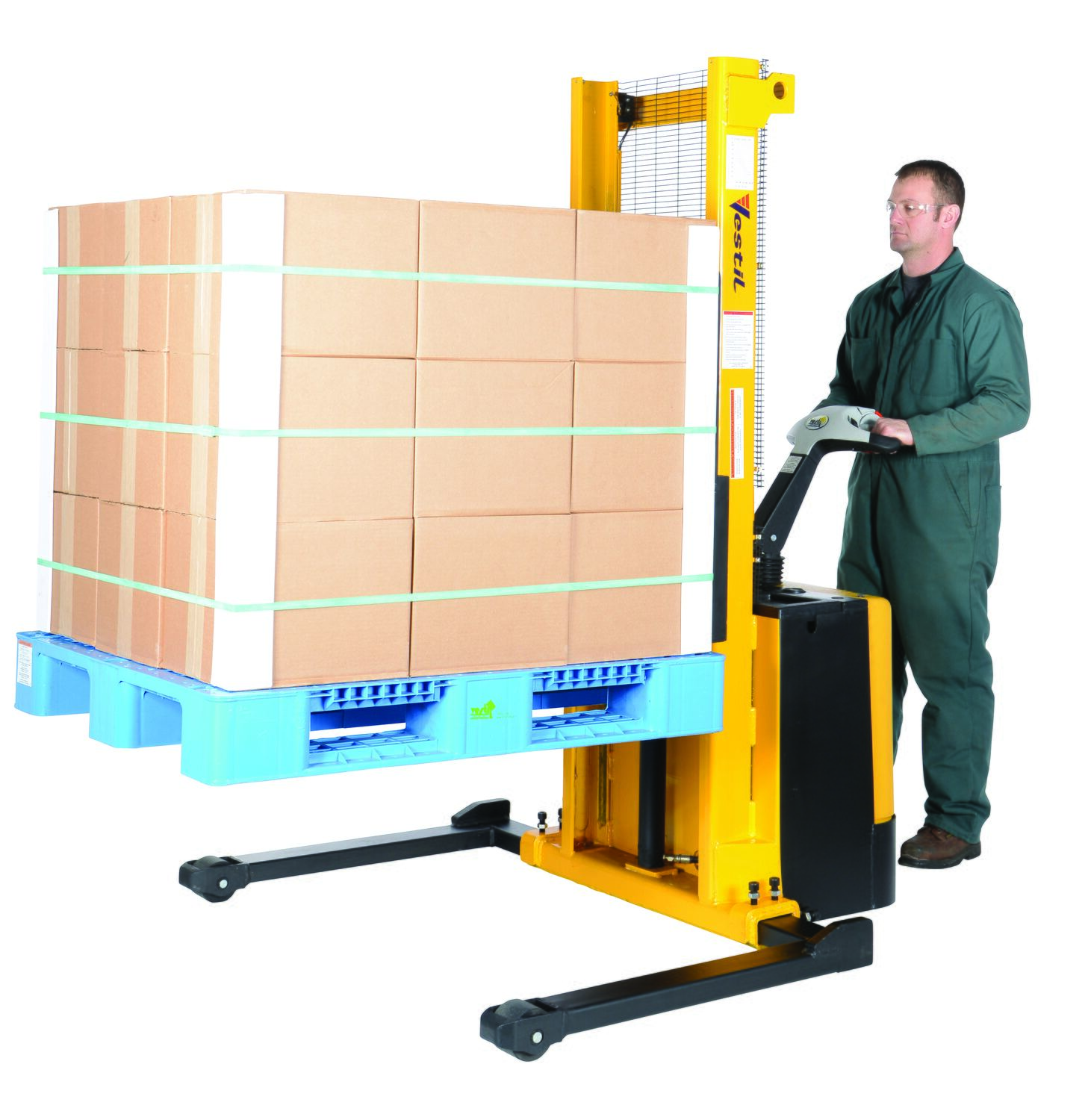

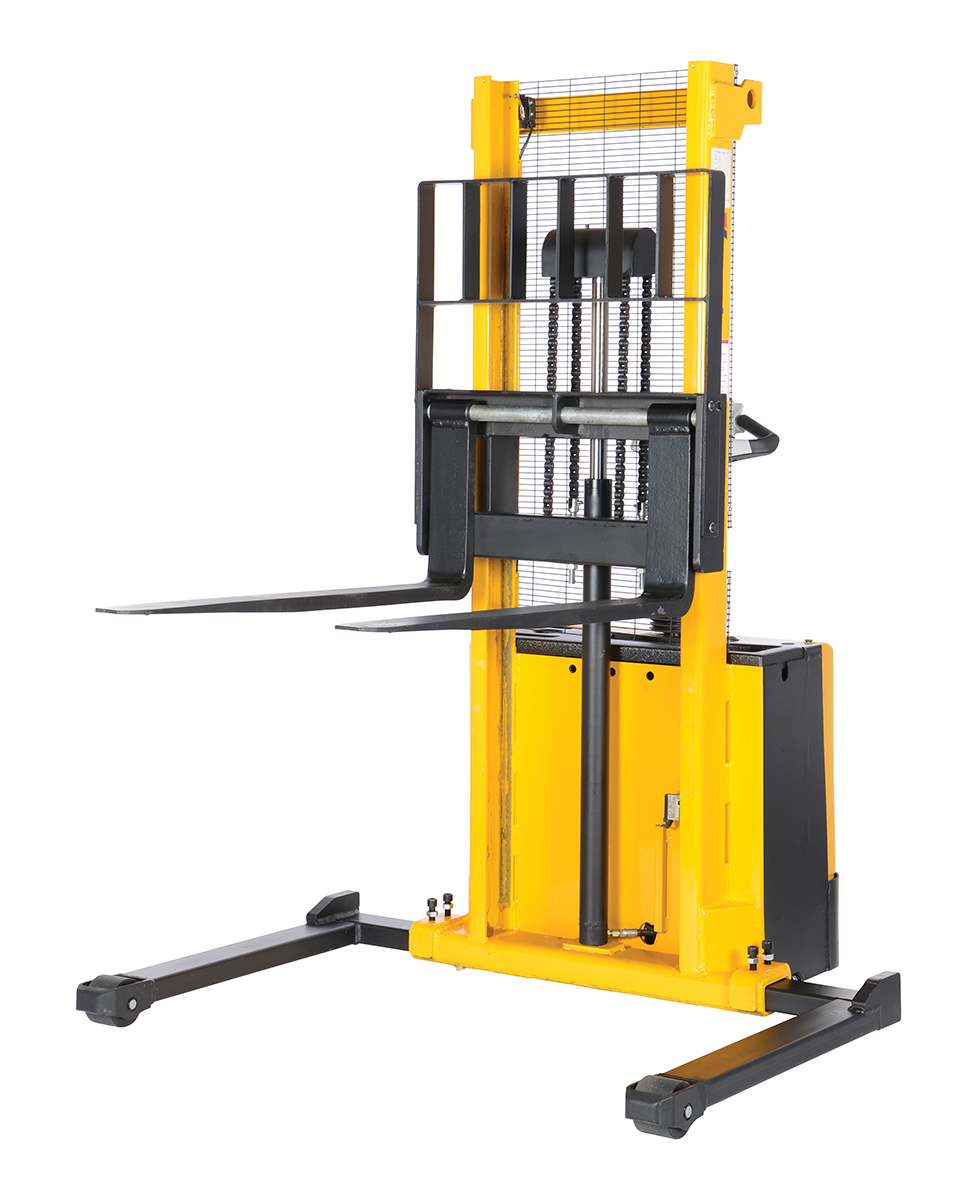

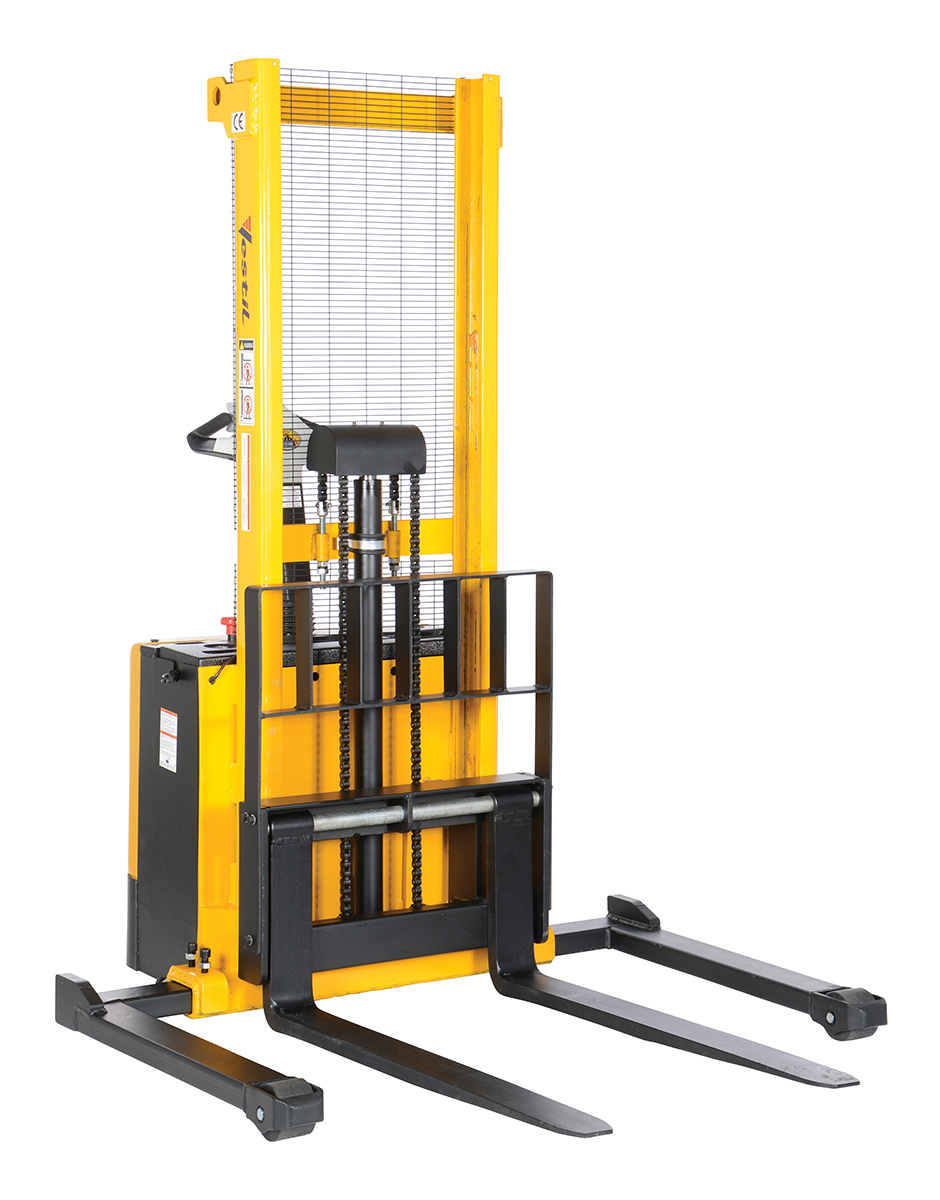

S-62-AA S-62-AA1 Year Limited WarrantySteel Adjustable Powered Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width Min./Max. (in.): 8 - 26-3/4
1245

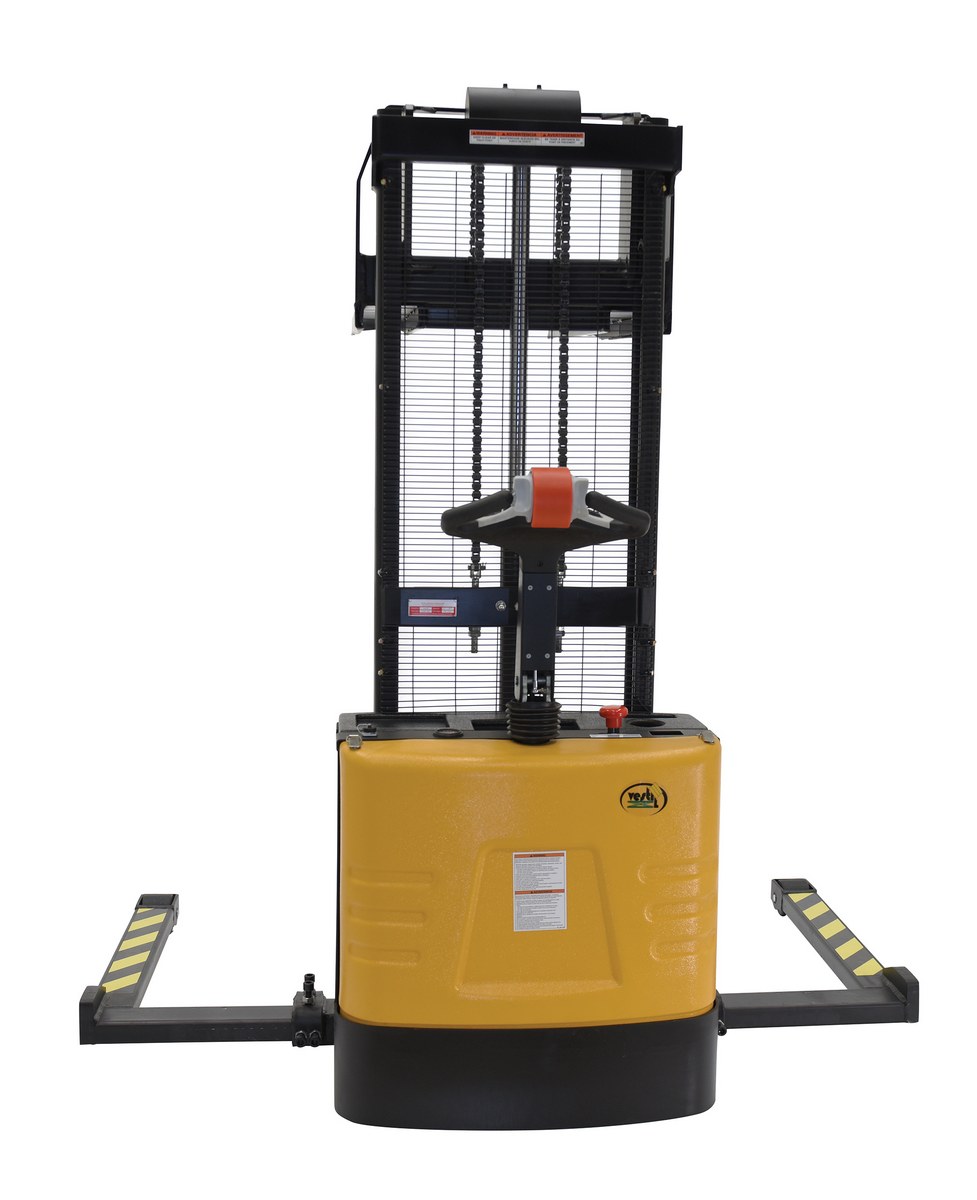

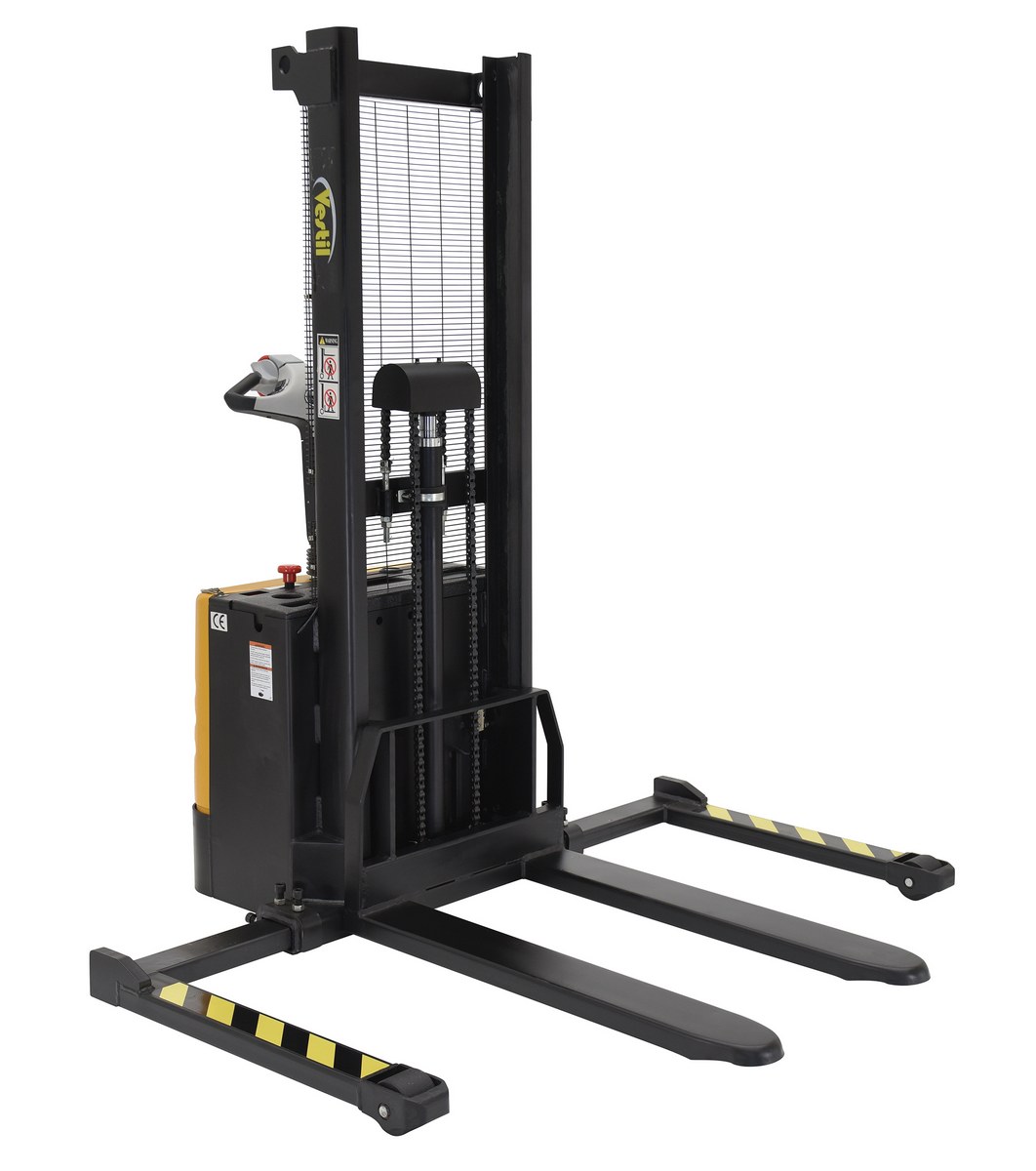

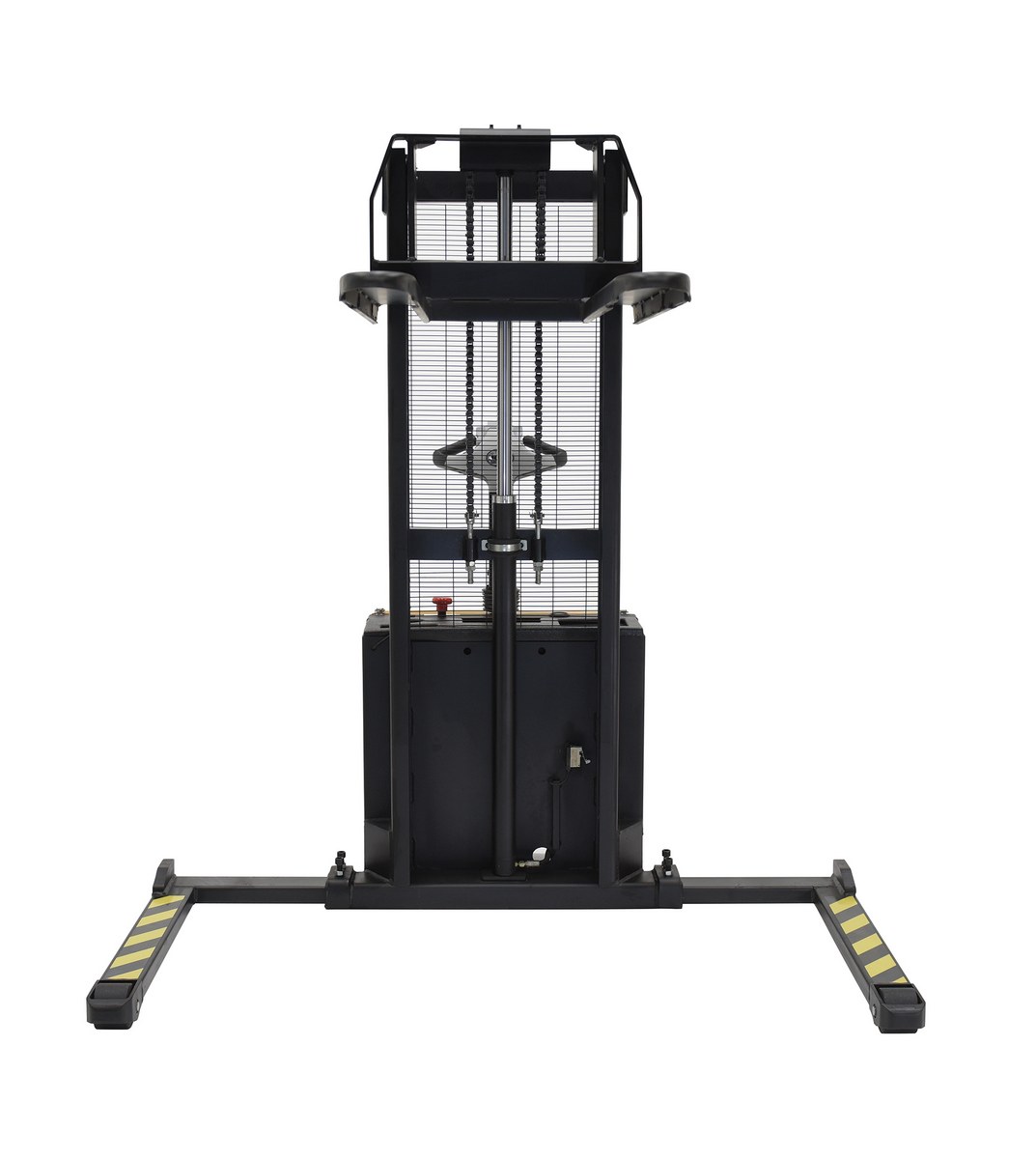

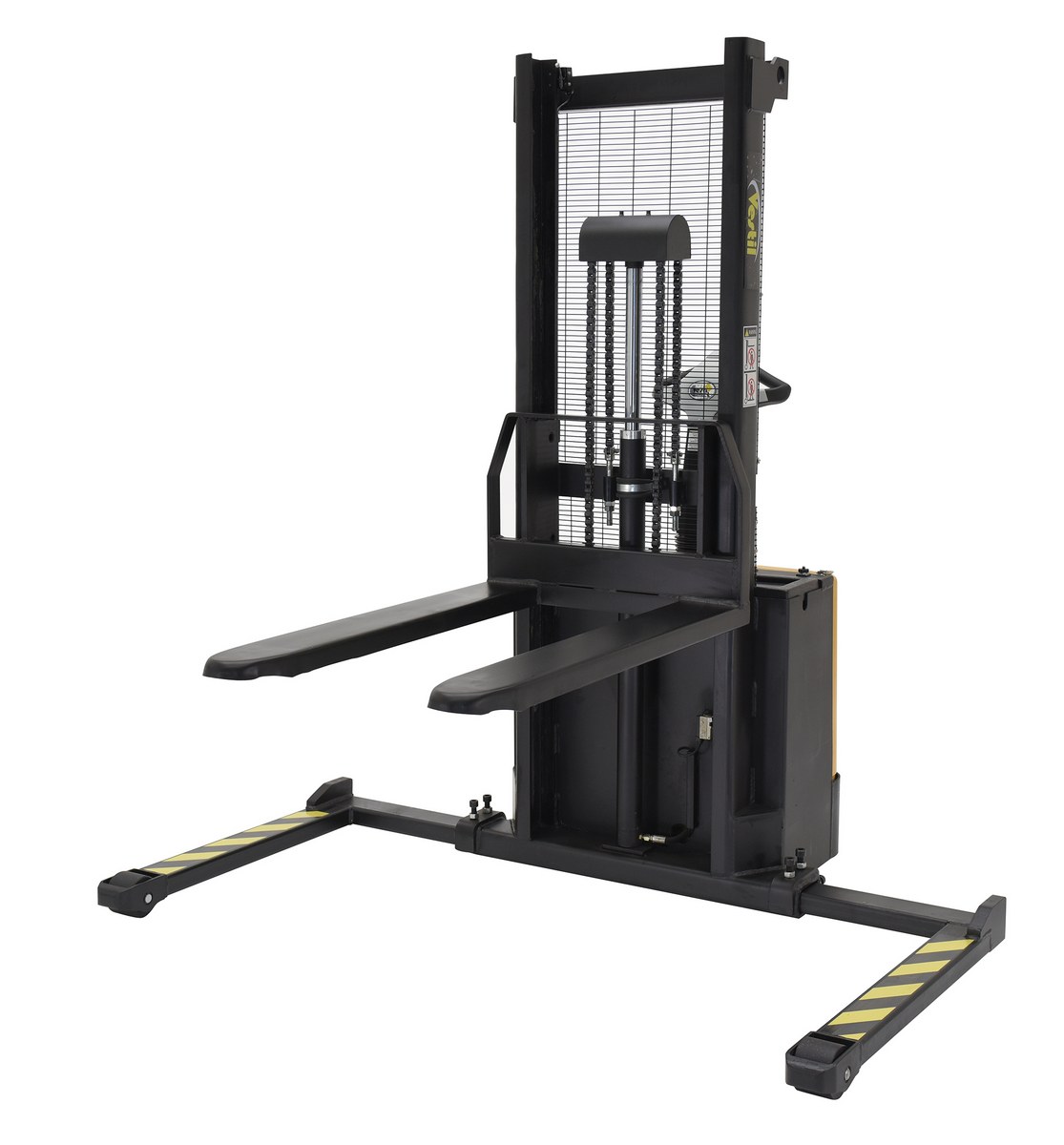

S-62-FA S-62-FA1 Year Limited WarrantySteel Fixed Fork Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
1075

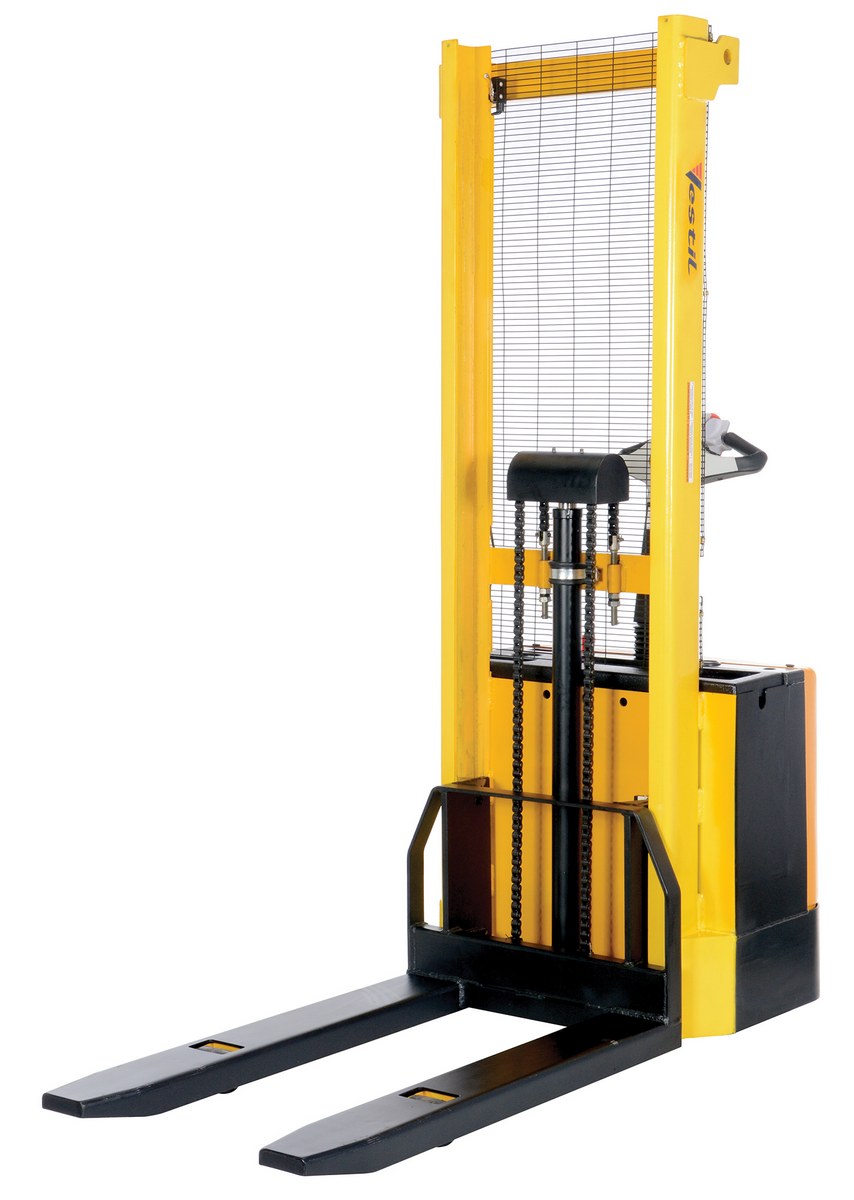

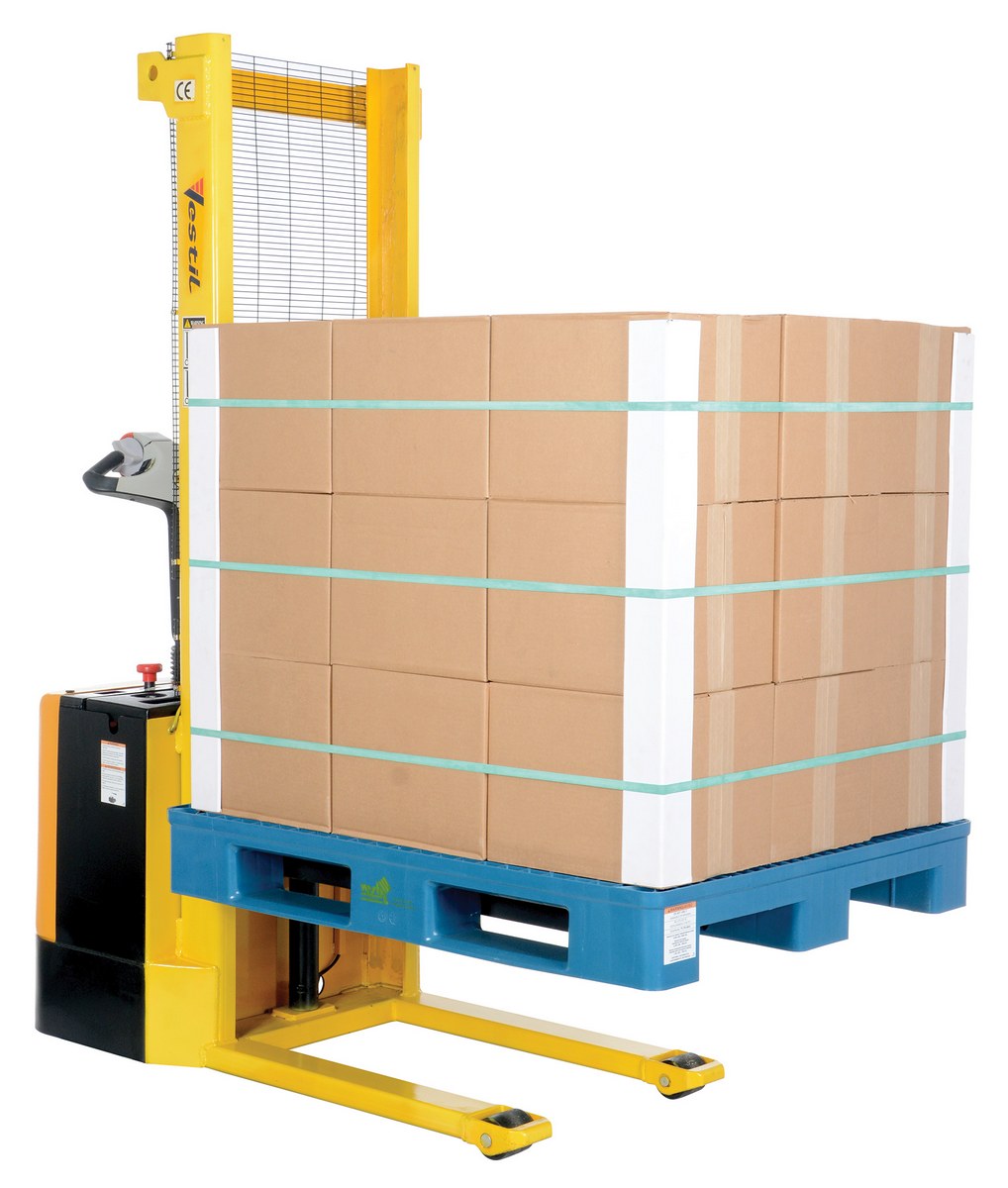

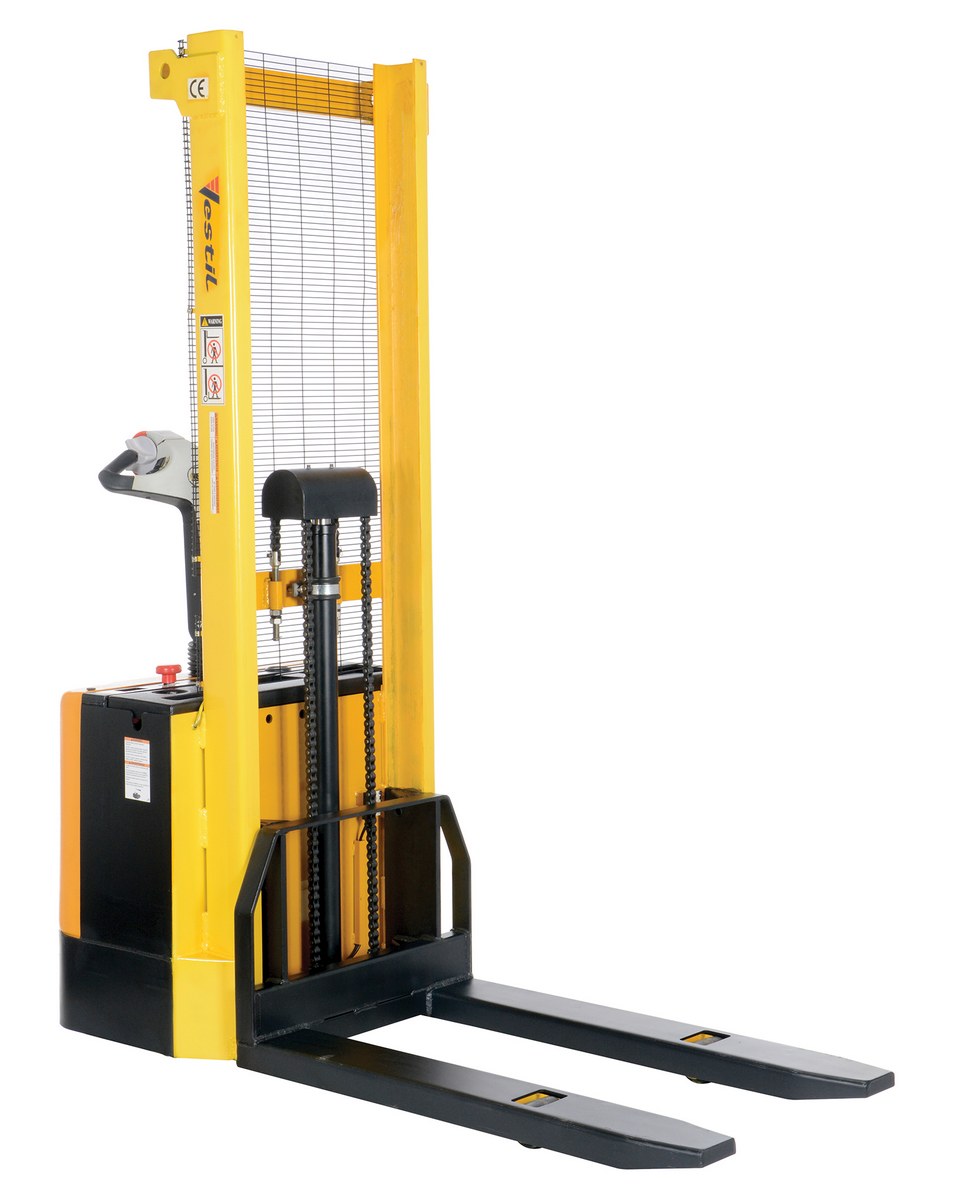

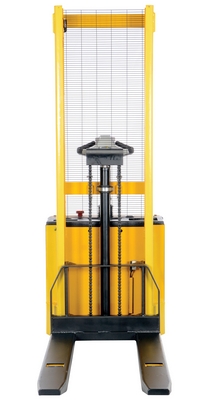

S-62-FF

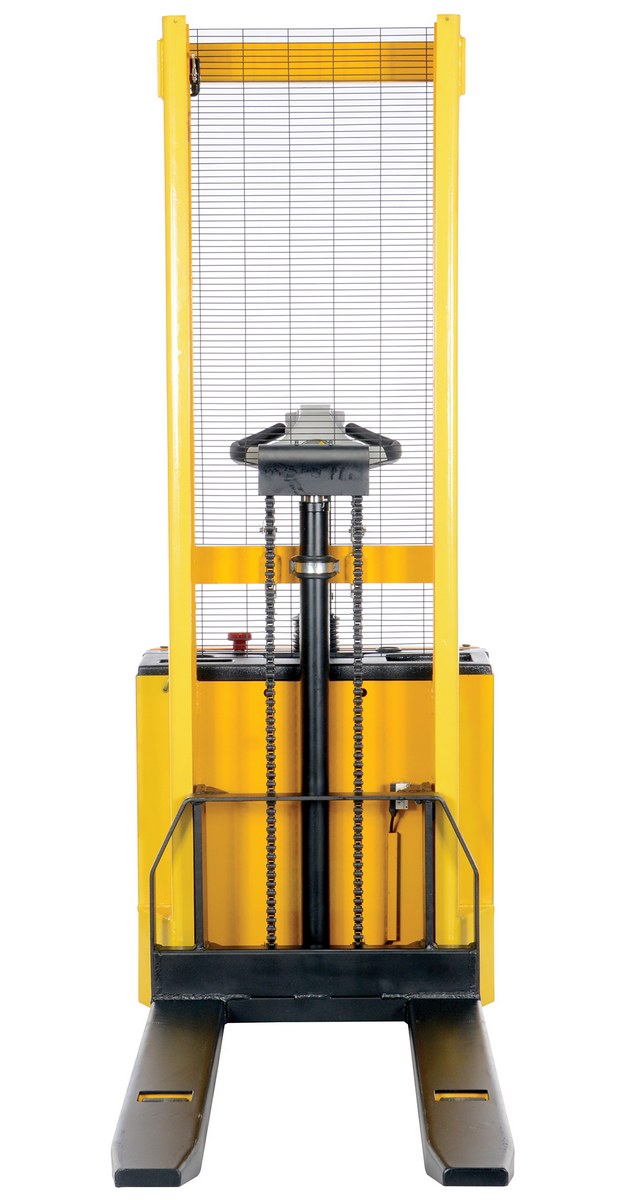

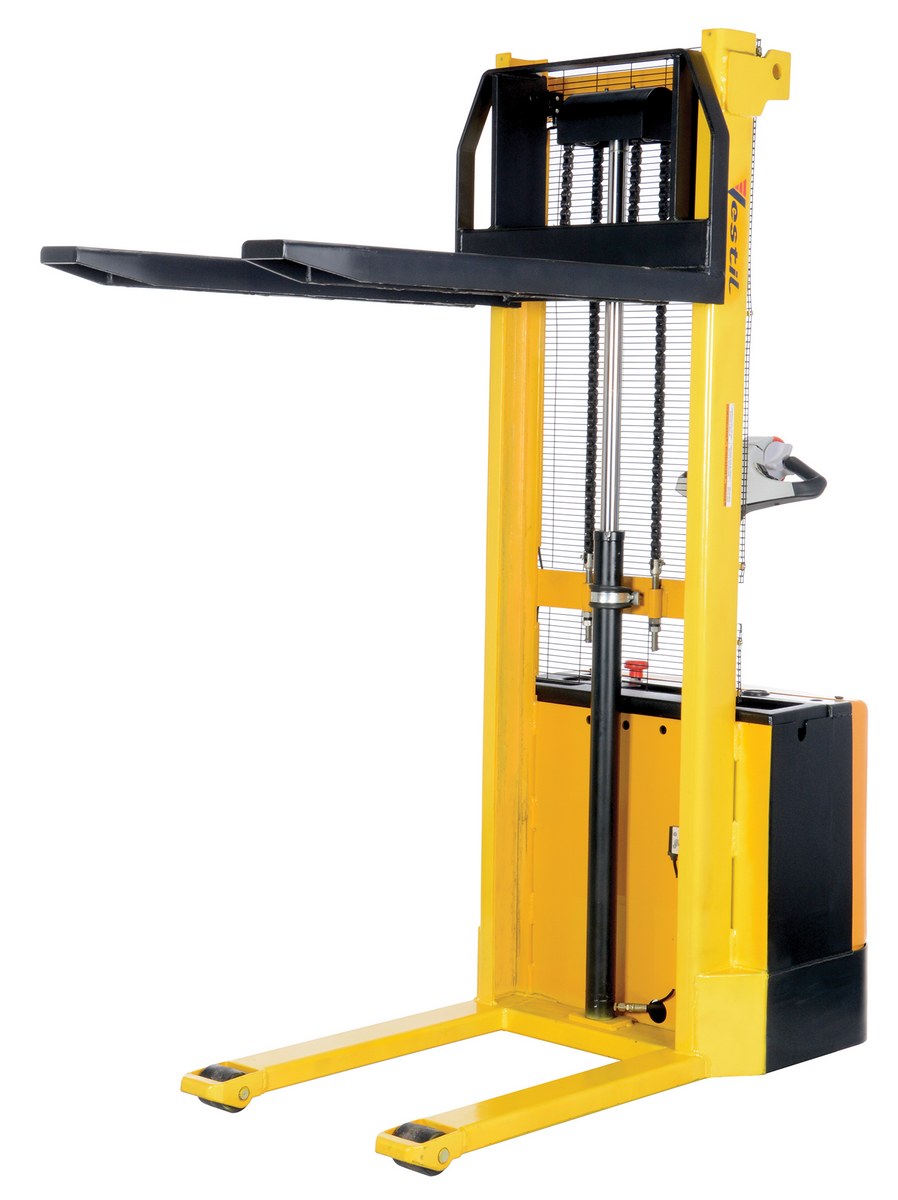

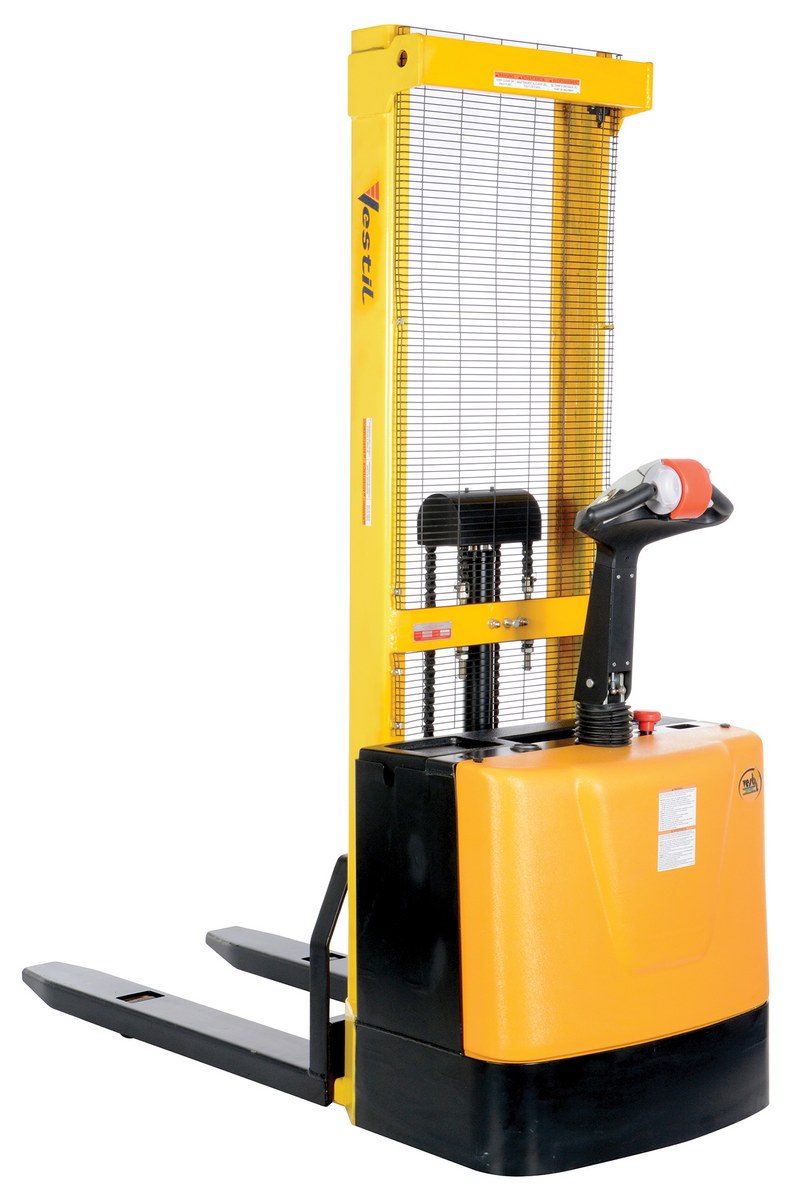

S-62-FF1 Year Limited WarrantySteel Fixed Powered Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
997

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

S-118-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500

S-118-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500

S-150-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500

S-62-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width Min./Max. (in.): 8 - 26-3/4
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width Min./Max. (in.): 8 - 26-3/4

S-62-FA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4

S-62-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
For More Details of the Option Click the Red Model Button

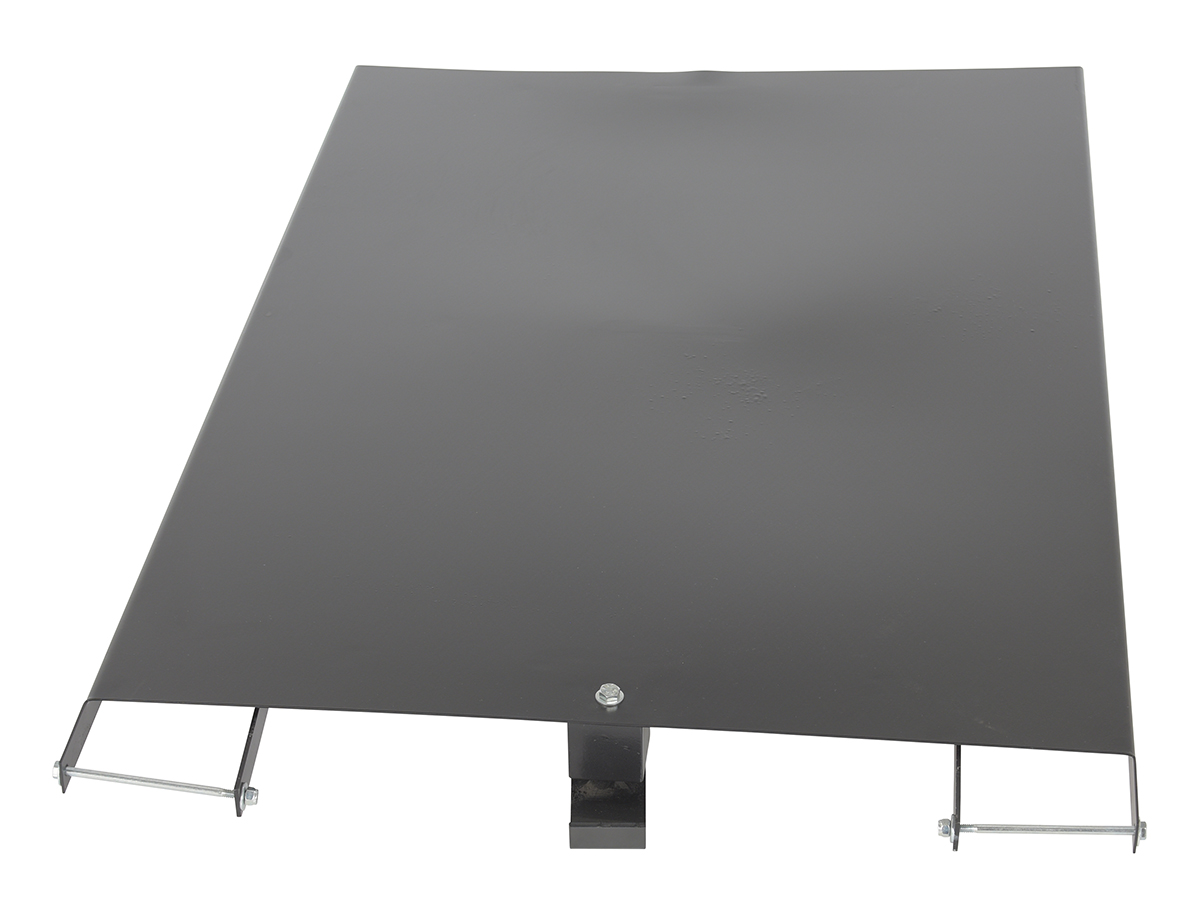

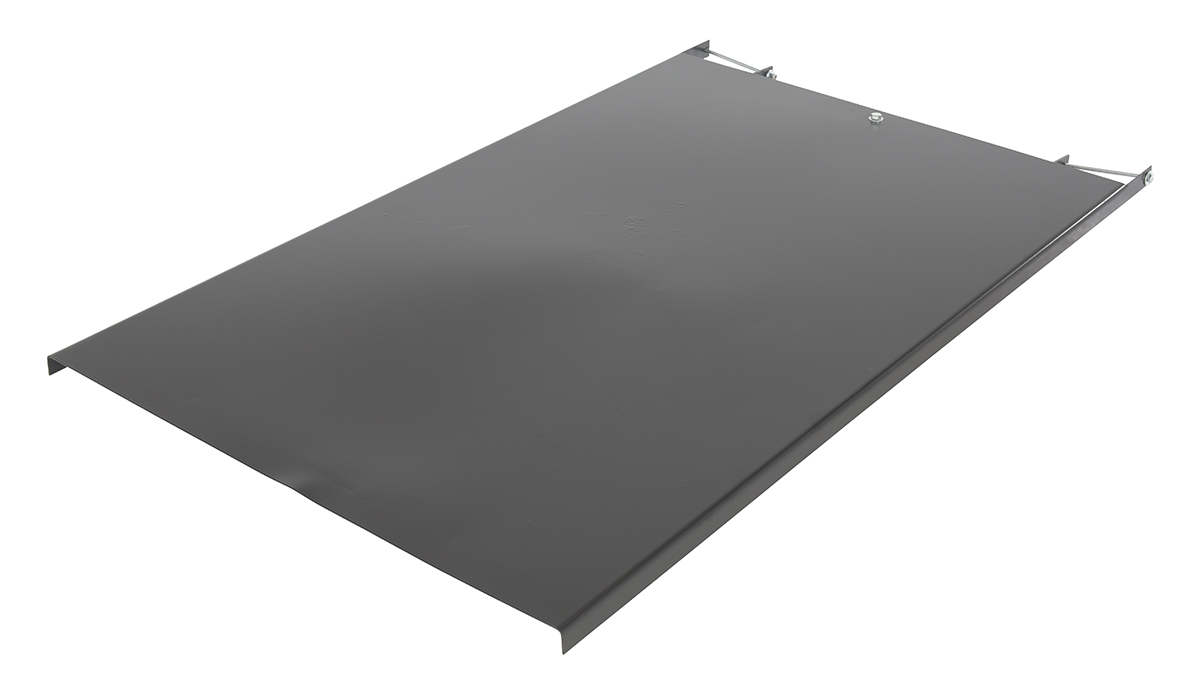

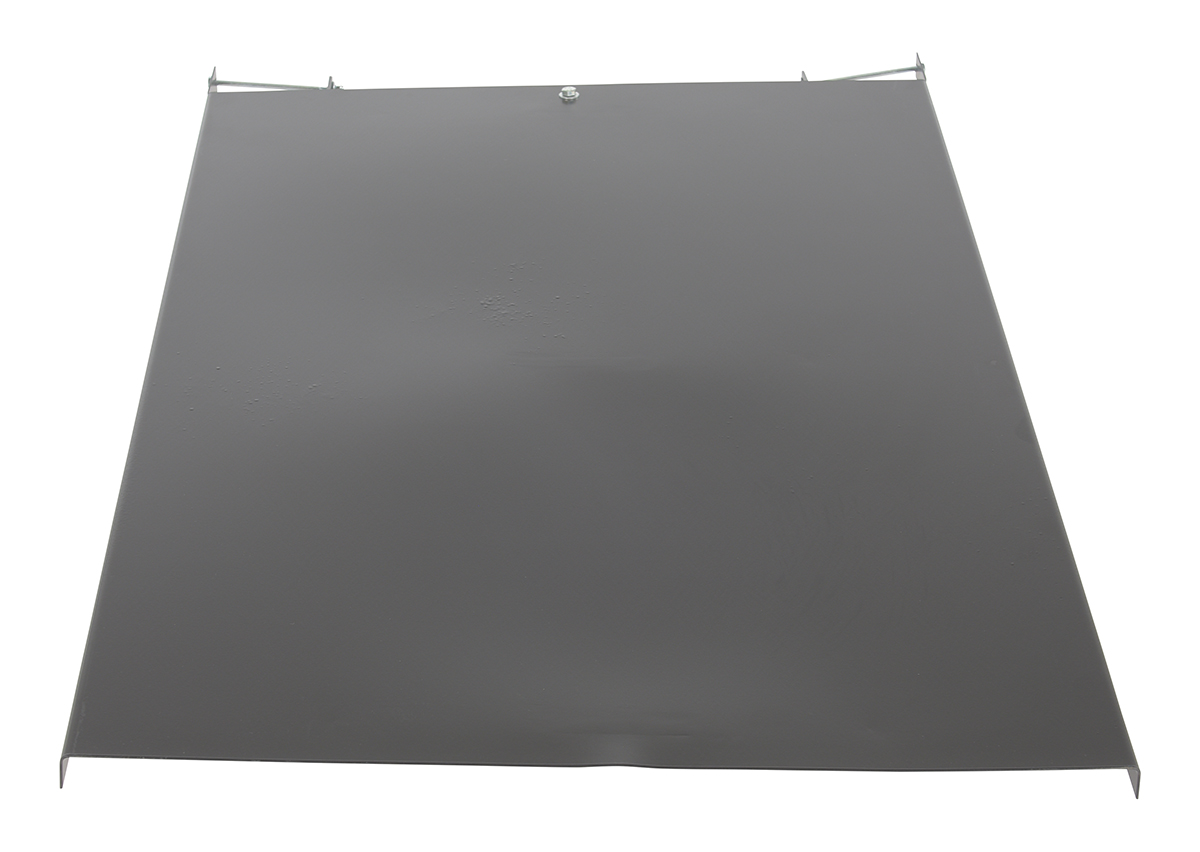

S-DK S-DK30 Days Limited WarrantyFactory Installed Steel Removable Platform 46 In. x 28 In. x 2 In. For Powered Drive/Lift UnitsWeight Capacity (lbs): 2000
Attachment Method: Factory Installed
40
Model Image Description Wt (lbs.)
AGM-UPG-2-12V AGM Battery (2x12V) must be purchased with new unit 80
S-AA-DRR-FK Drum/Roll/Reel Forks 140
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Stackers with Powered Drive and Powered Lift PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


S-118-AA

S-118-FF

S-150-AA

S-62-AA

S-62-FA

S-62-FF

S-DK

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-AA
Hydraulic Oil SDS Sheet for: S-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-FF
Hydraulic Oil SDS Sheet for: S-118-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-150-AA
Hydraulic Oil SDS Sheet for: S-150-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-62-AA
Hydraulic Oil SDS Sheet for: S-62-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-62-FA
Hydraulic Oil SDS Sheet for: S-62-FA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-62-FF
Hydraulic Oil SDS Sheet for: S-62-FF
Hydraulic Oil SDS Sheet for: S-DK

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Do these stackers have a FREE LIFT (the forks are raised higher than the mast)?

A: We currently do not have a stacker in our product inventory with a free lift.


Q: What is the travel speed for this powered drive unit?

A: This unit comes with variable travel speed. Customer can adjust the speed by rotating the throttle from 0 mph to 1.8 mph.


Q: Do you have fork extensions for the stacker?

A: We do not. Fork extensions are NOT recommended for use with the stackers.
