Model Details

VHPS-2000-AA

Printer Friendly
VHPS-2000-AA

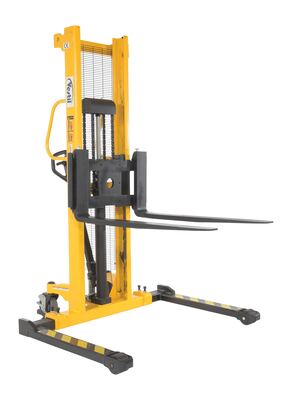

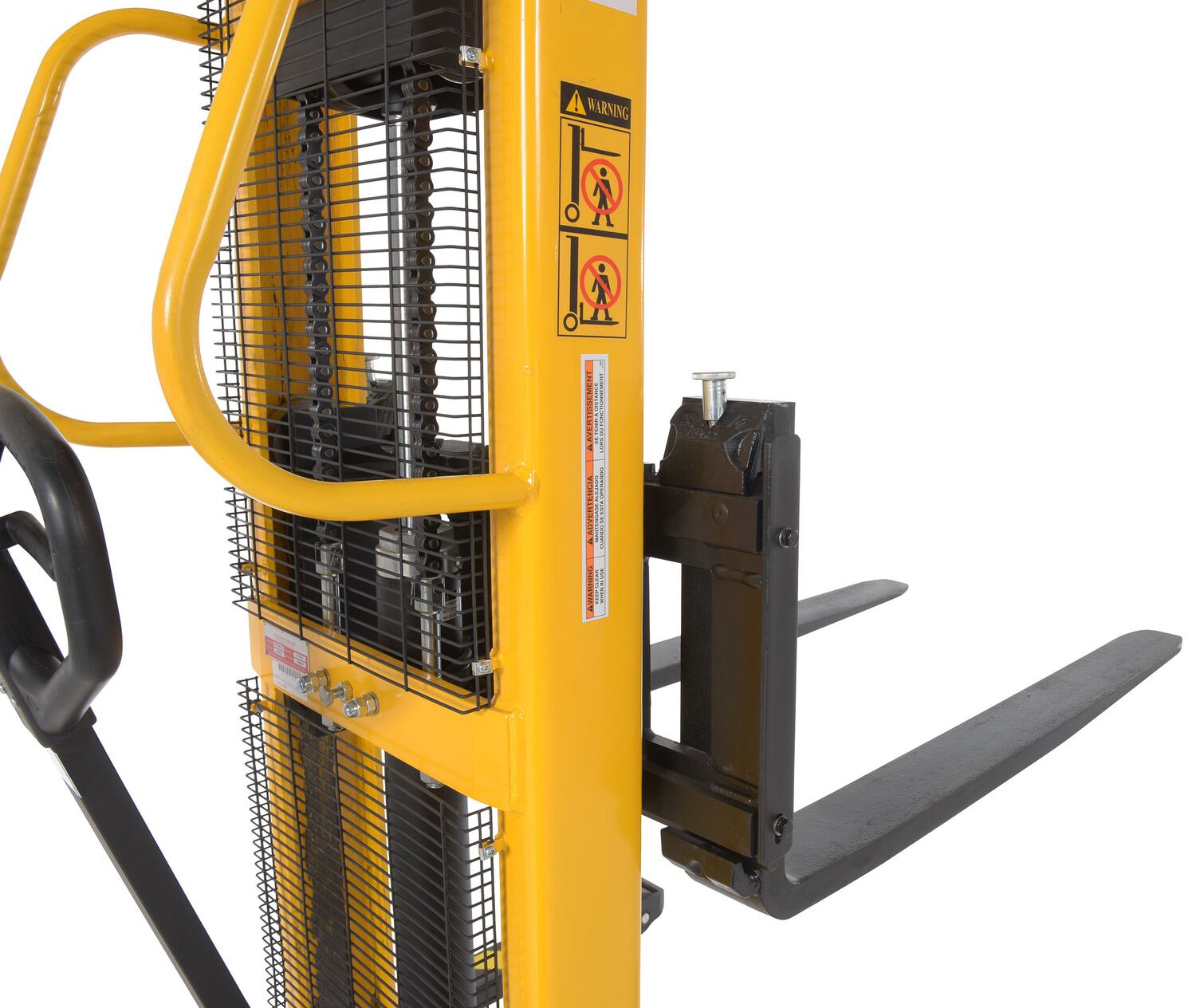

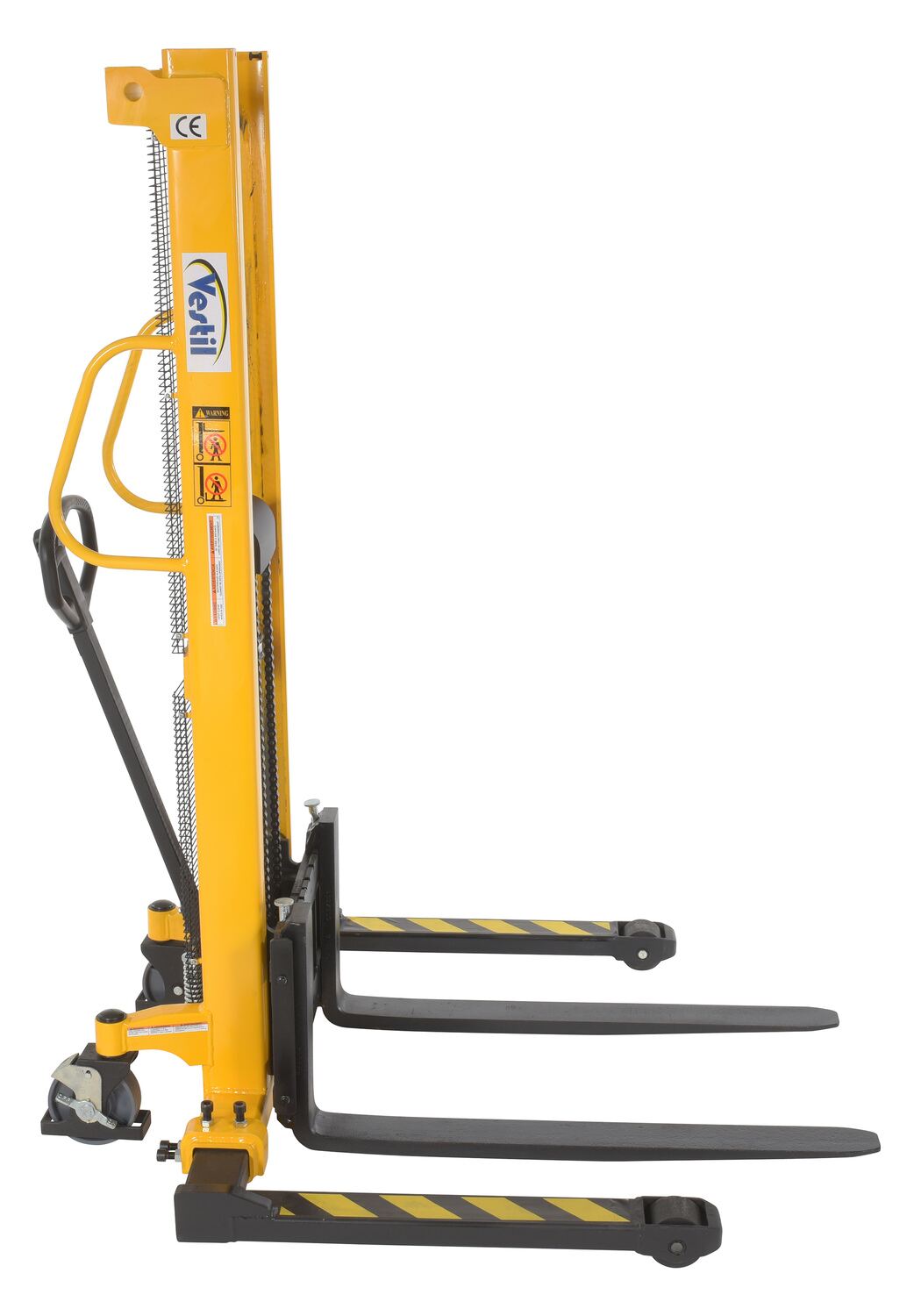

Steel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Stacker design meets the most challenging tasks
  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting
Total Ship Wt.(lbs.): 860 (only 1 package) Size: 54"W x 62"L x 79"H Color: Black / Yellow QuickShip

Uniform Capacity (lb.): 2000 Service Range (in.): 2 to 63 Fork Length (in.): 42-1/8
Lift per Handle Pump (in.): 3/4 Straddle Leg Minimum (in.): 38 (I.D) Straddle Leg Maximum (in.): 50 (I.D)
Fork Adjustment Minimum (in.): 7-7/8 (O.D) Fork Adjustment Maximum (in.): 26-3/4 (O.D) Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Type: Swivel with Brake Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2-29/32 Front Caster Type: Rigid
Individual Fork Width (in.): 3-15/16 Operation: Hand Pump
Min. Travel Distance (in.): 36 Max. Travel Distance (in.): 64 Leg Width (in.): 4
Horizontal Load Center (in.): 24

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VHPS-2000-AA
VHPS-2000-AA

Steel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Stacker design meets the most challenging tasks
  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting
Dimensions: 54"W x 62"L x 79"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215096171 GTIN: 00691215096171
Warranty: -- Shipping Weight: 860 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Service Range (in.): 2 to 63 Fork Length (in.): 42-1/8
Lift per Handle Pump (in.): 3/4 Straddle Leg Minimum (in.): 38 (I.D) Straddle Leg Maximum (in.): 50 (I.D)
Fork Adjustment Minimum (in.): 7-7/8 (O.D) Fork Adjustment Maximum (in.): 26-3/4 (O.D) Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Type: Swivel with Brake Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2-29/32 Front Caster Type: Rigid
Individual Fork Width (in.): 3-15/16 Operation: Hand Pump
Min. Travel Distance (in.): 36 Max. Travel Distance (in.): 64 Leg Width (in.): 4
Horizontal Load Center (in.): 24
