Manual & Electric Stackers

- - - -

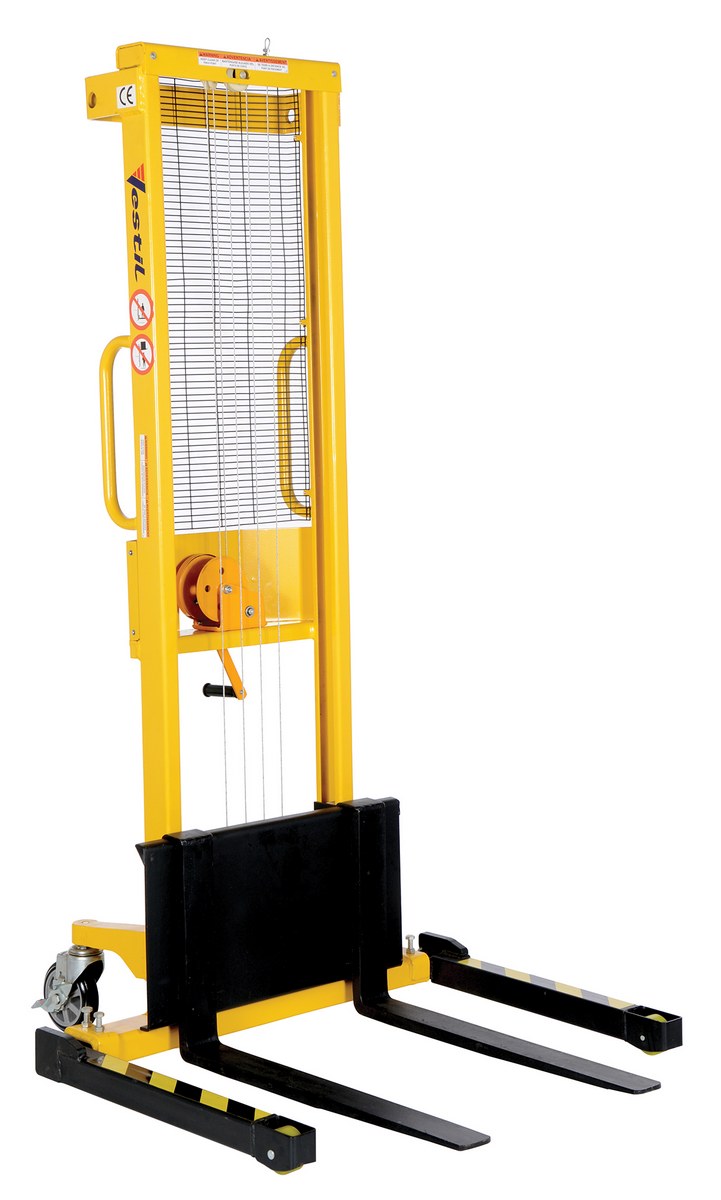

VWS-770-AA_D.jpg VWS-770-AA_A.jpg VWS-770-AA_B.jpg VWS-770-AA_C.jpg
Manual & Electric Stackers

model: VWS-770-AA



Featured Ergonomic Solutions:


Heavy Duty Low Profile Scissor Lift Cart
Electric/Hydraulic Corner Tilters
Mechanical Machinery Jacks
Versatile Quick Lifts
Hardware Kits
Posi-Crank Worker Platforms
Manual Adjustable Ergonomic Work Benches
Roller Work Positioner
Pallet Truck Accessories

Product Family Overview

Print Friendly
Manual & Electric Stackers
SERIES: VWS,VHPS

Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

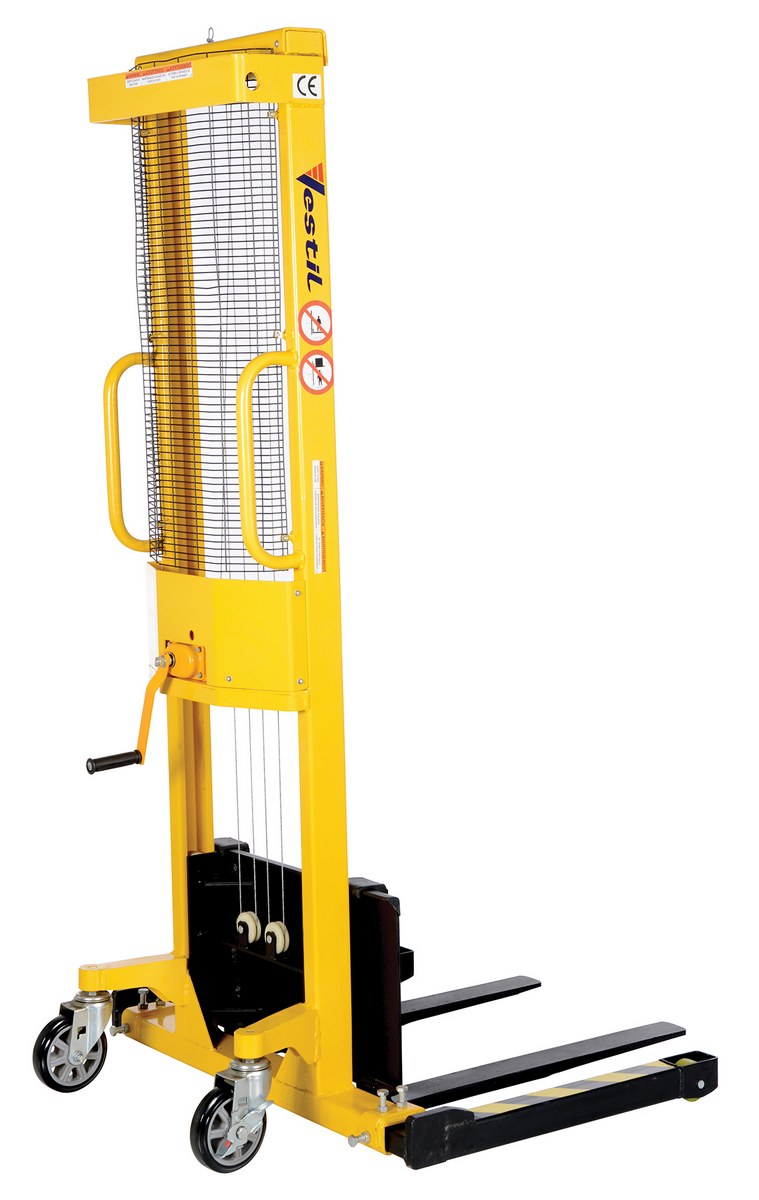

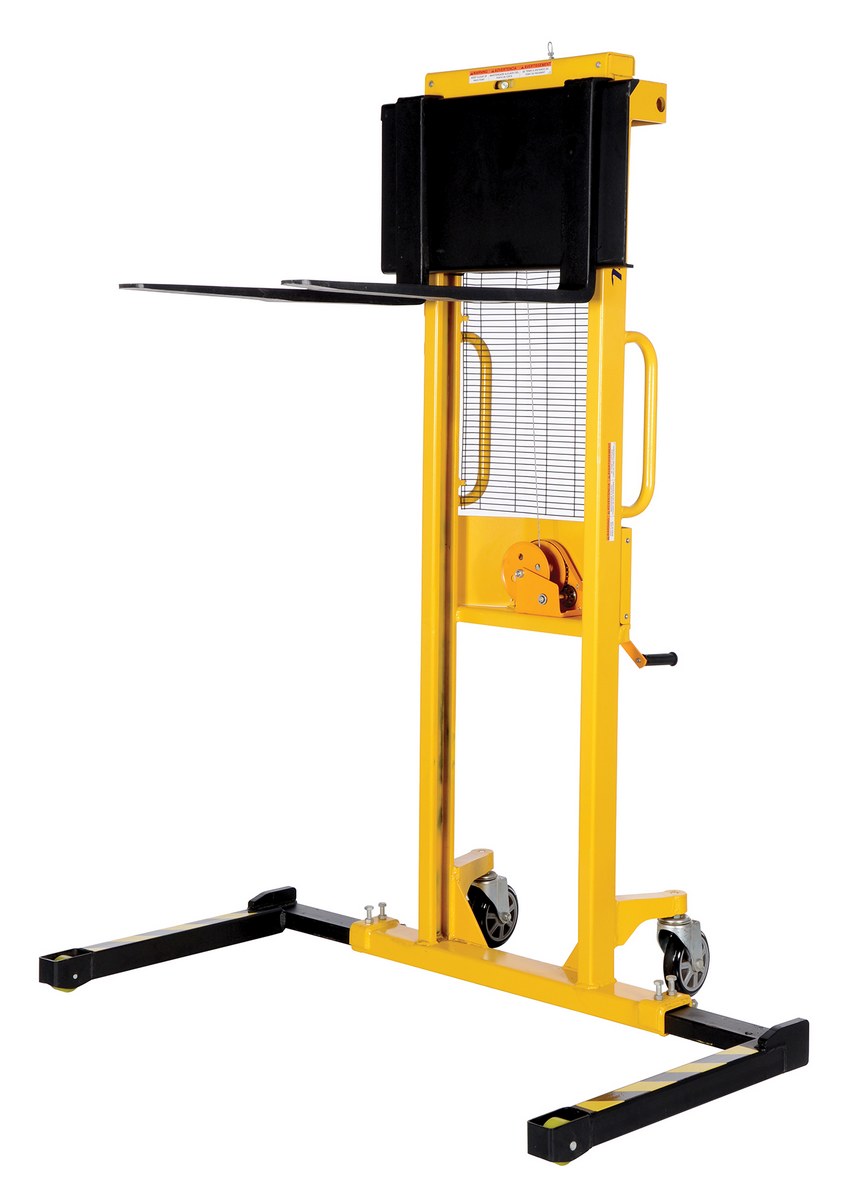

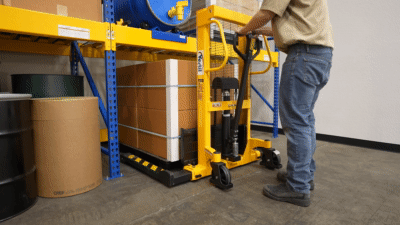

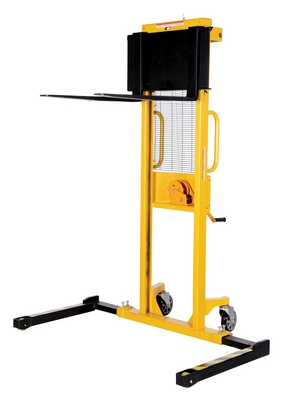

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

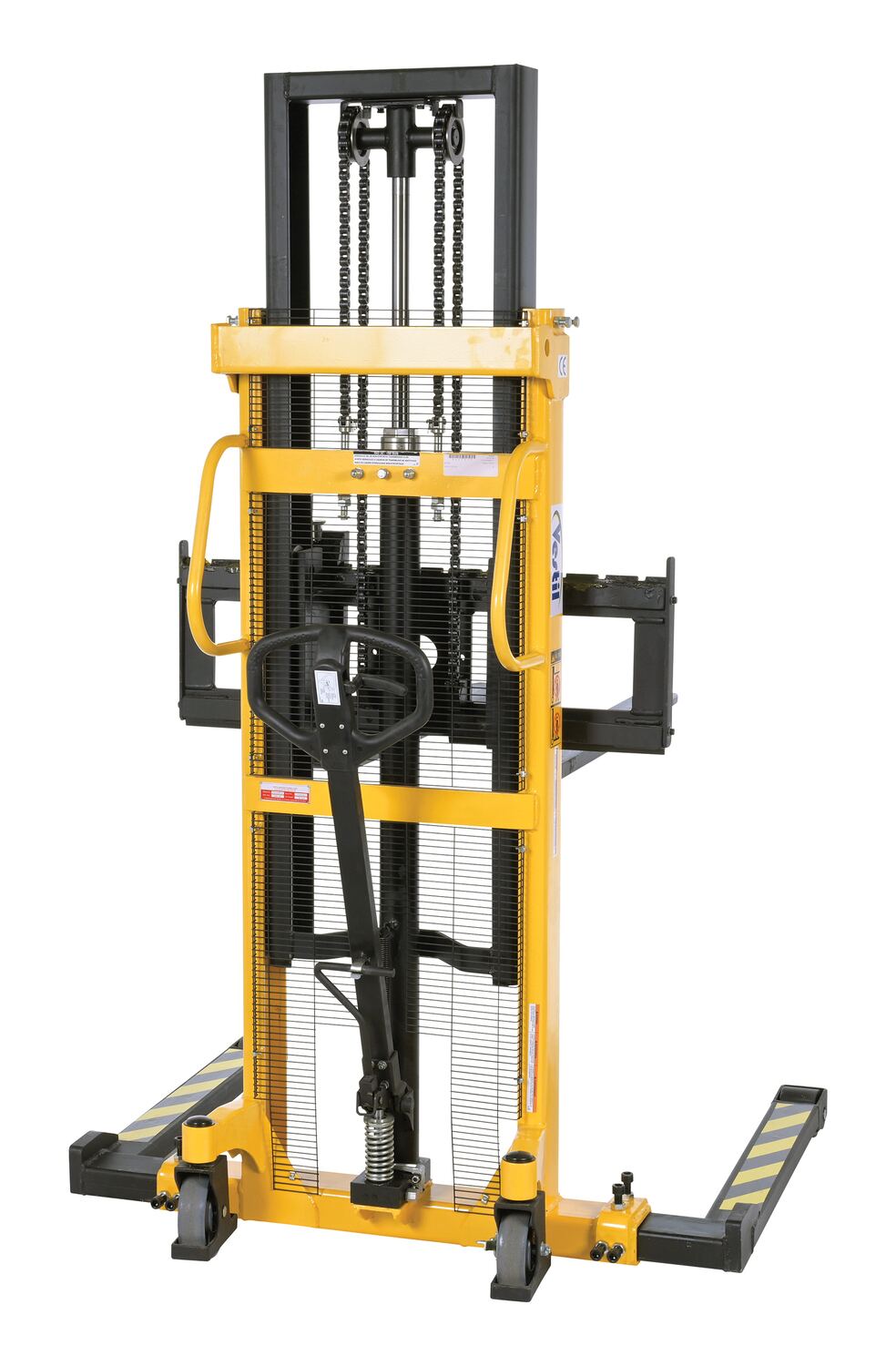

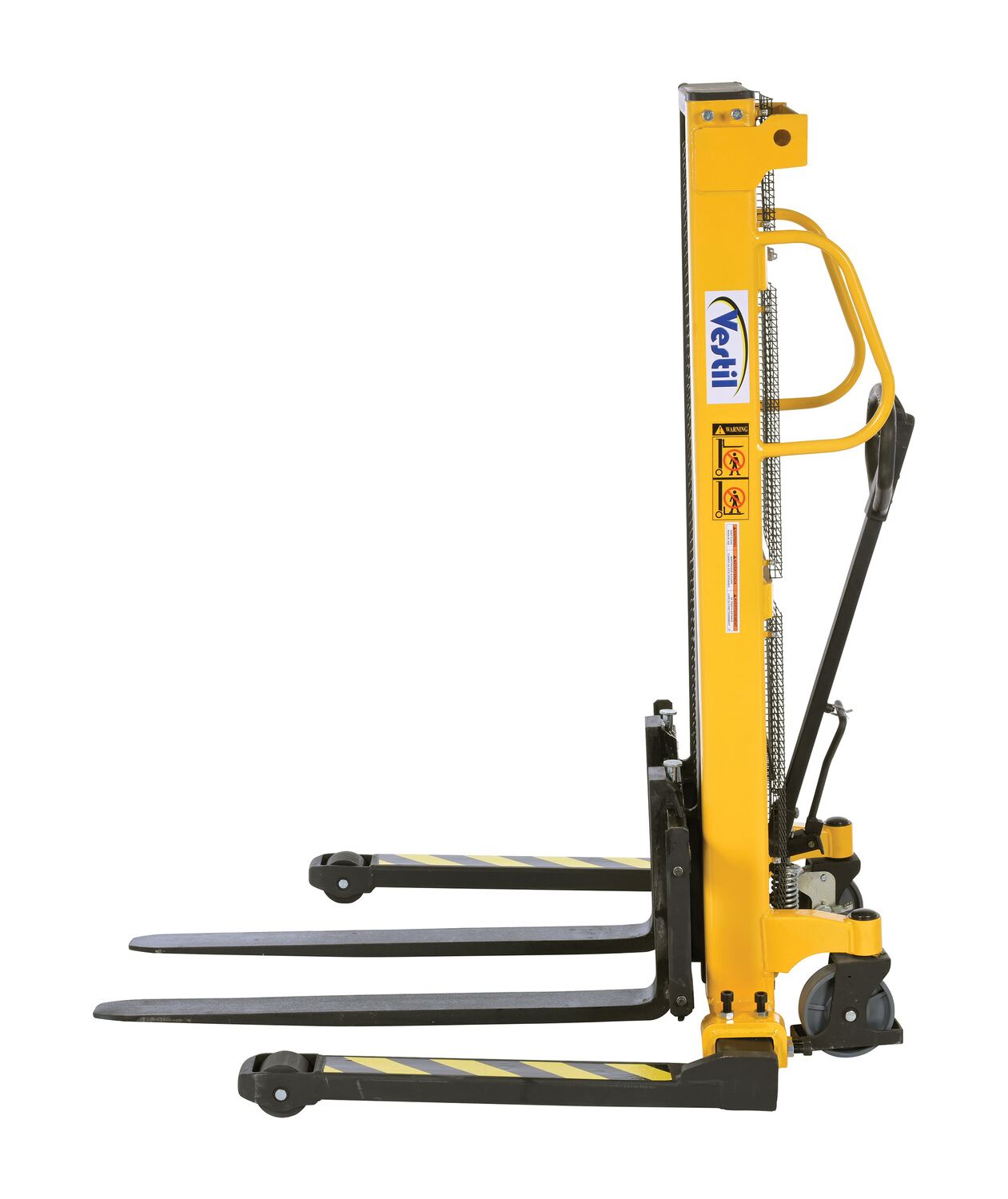

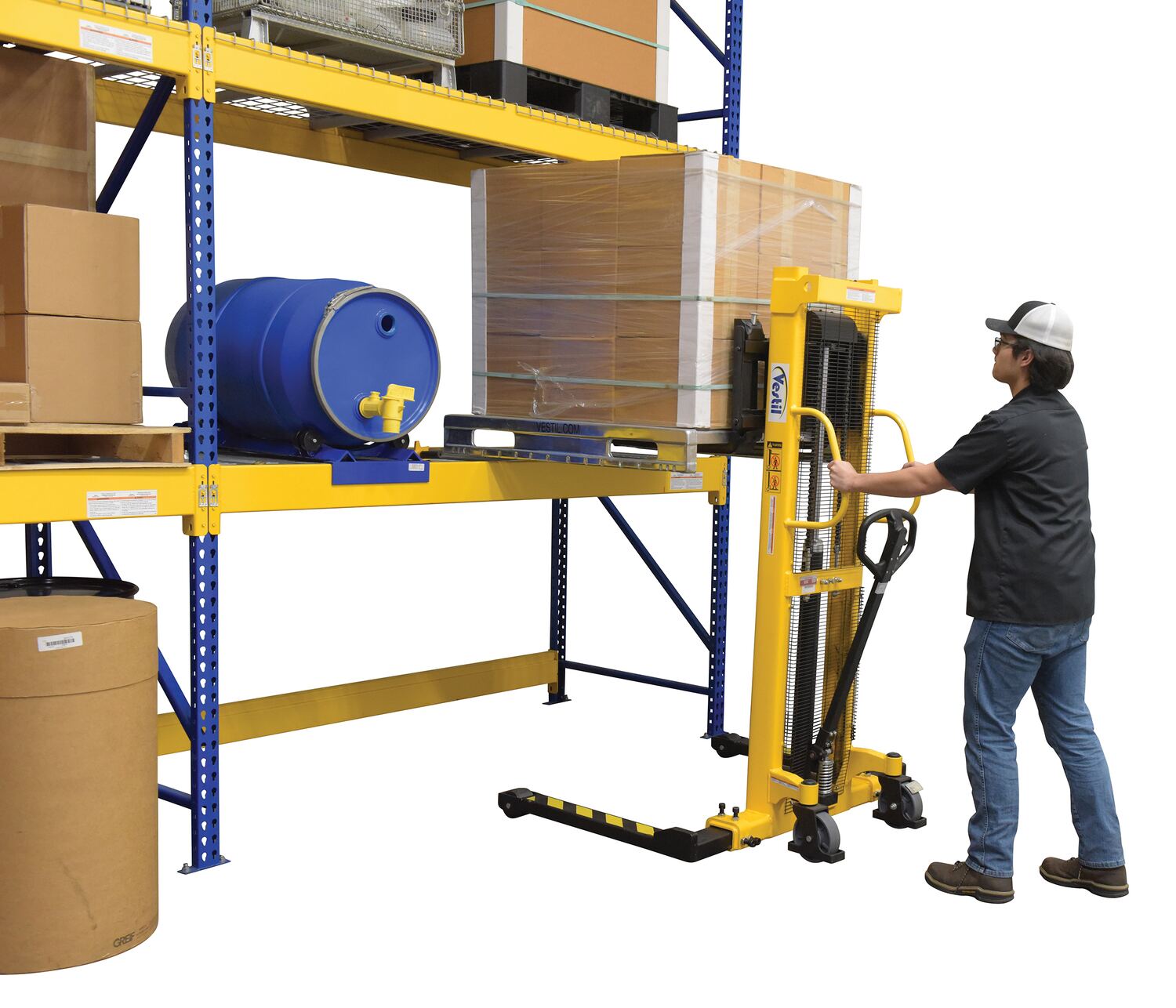

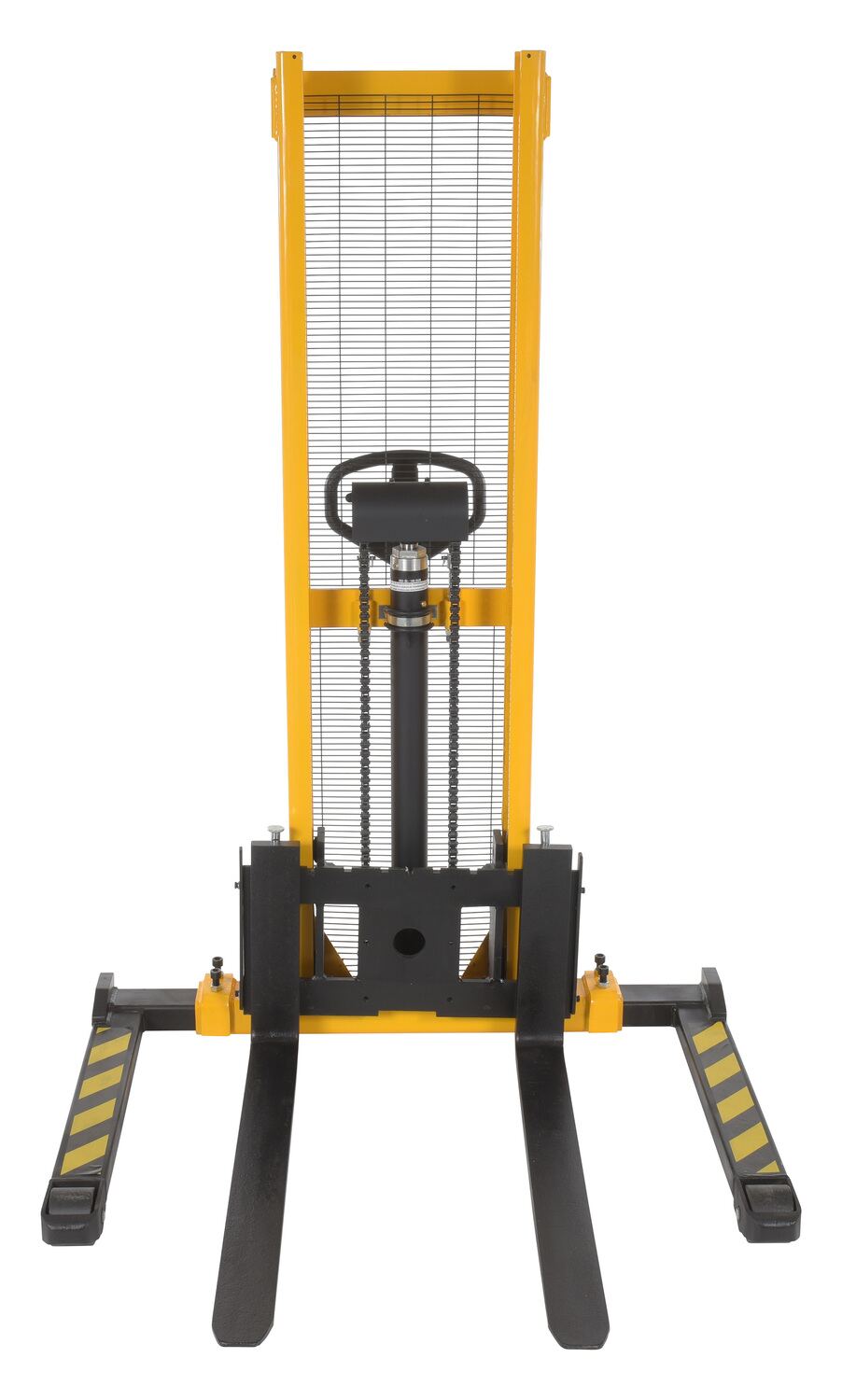

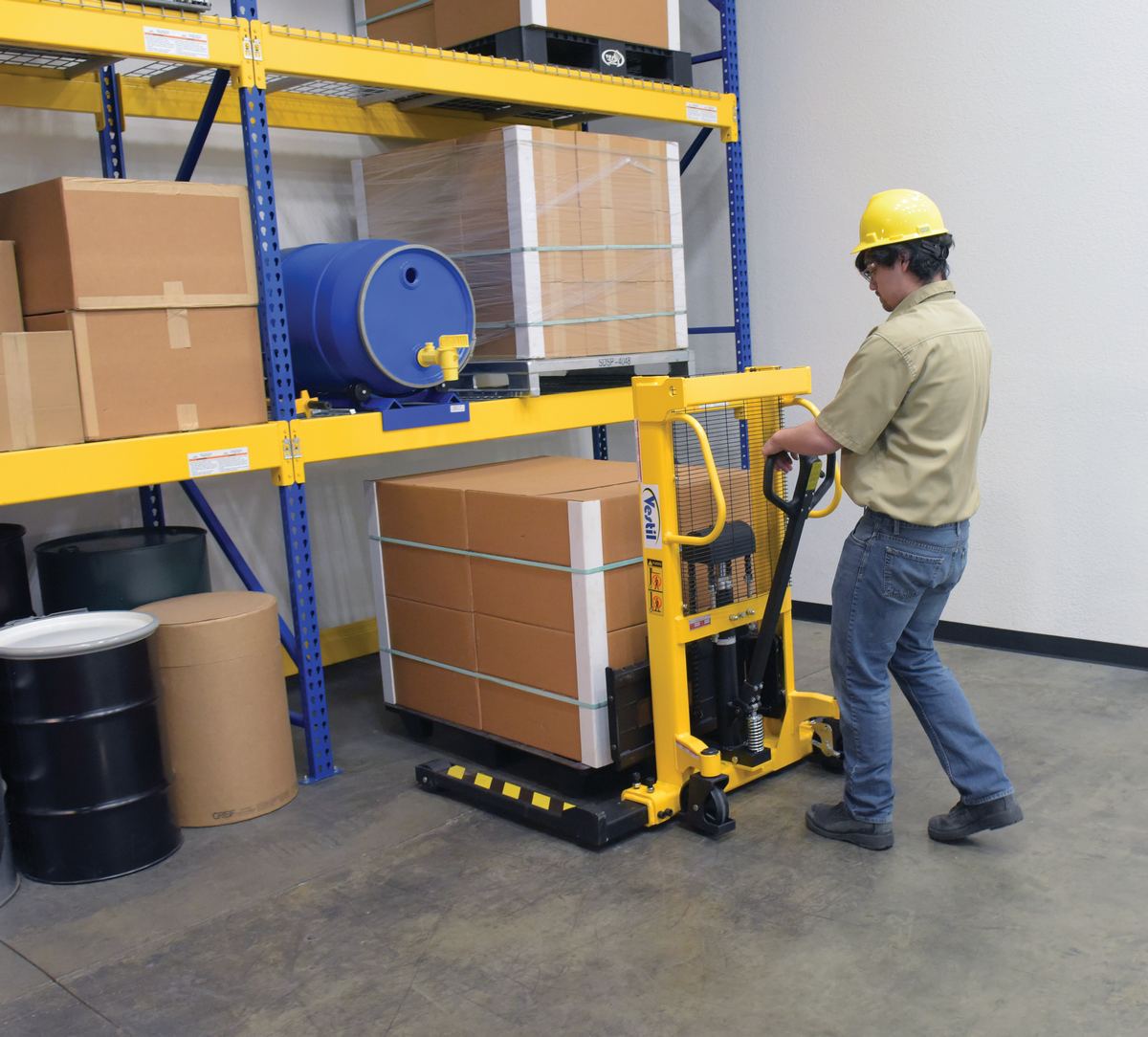

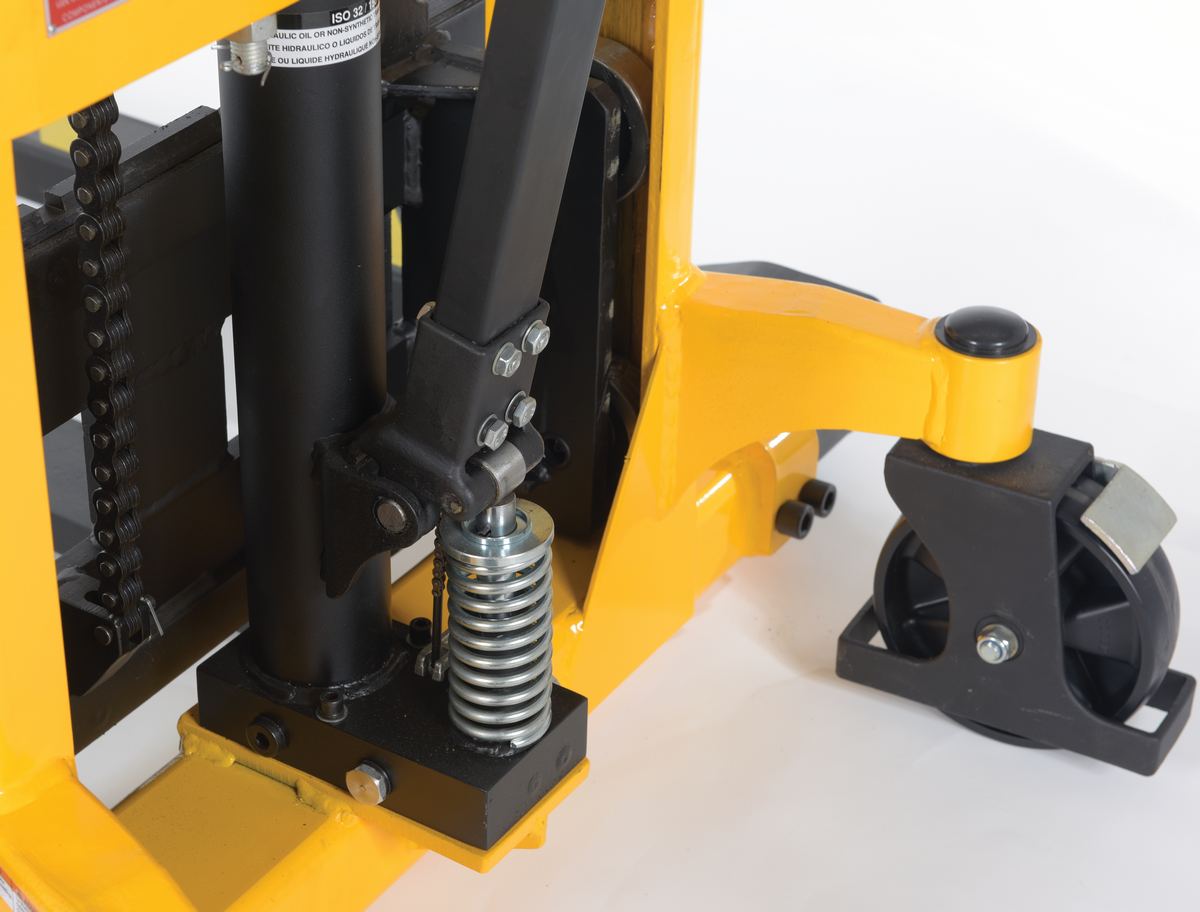

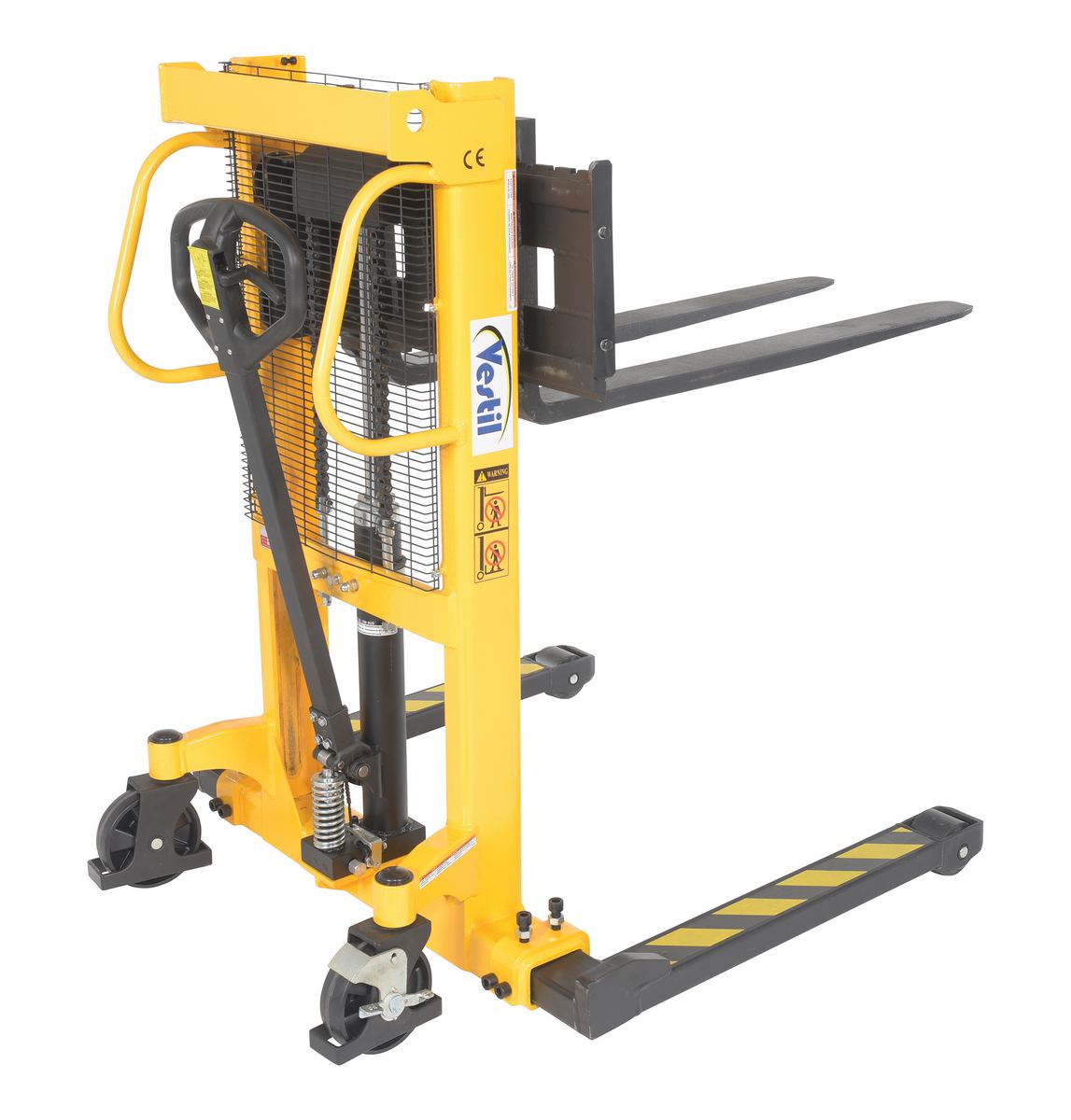

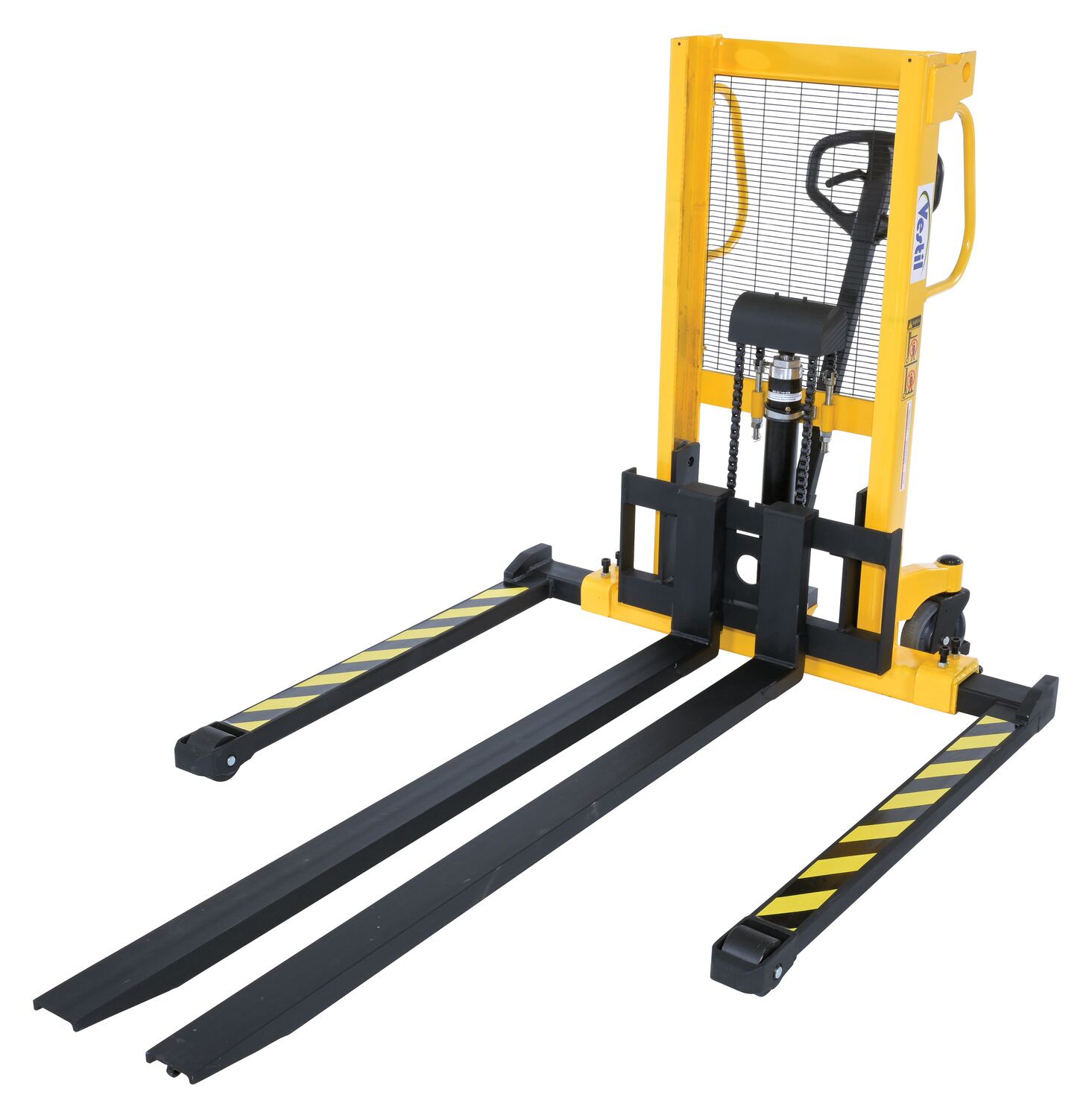

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

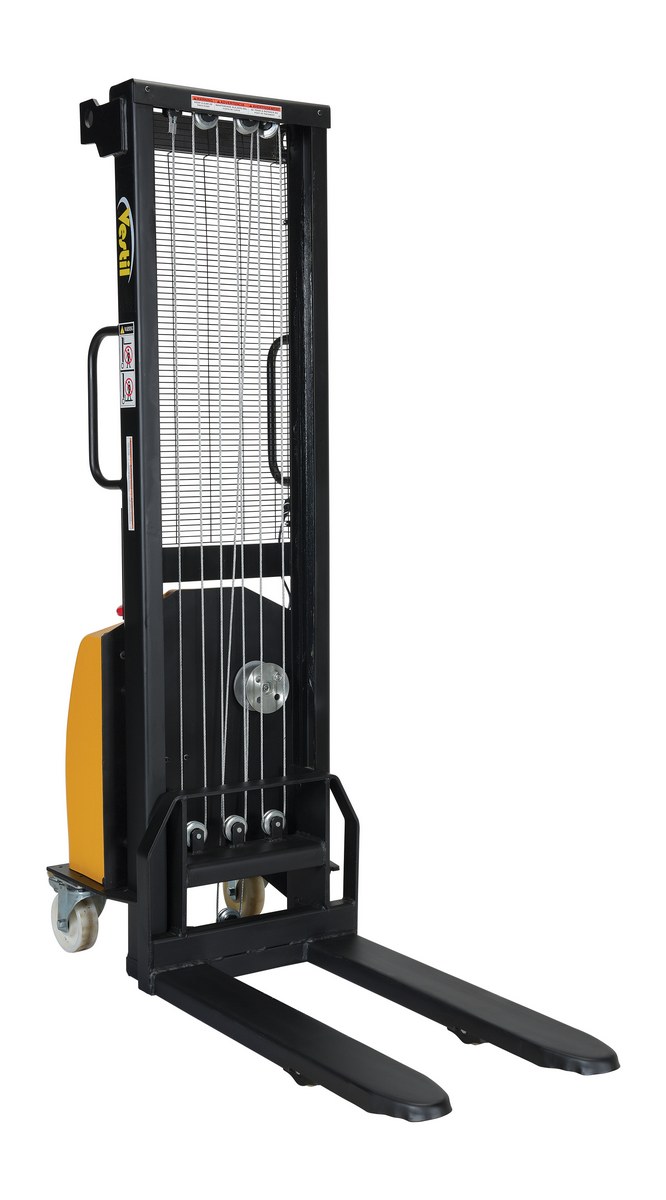

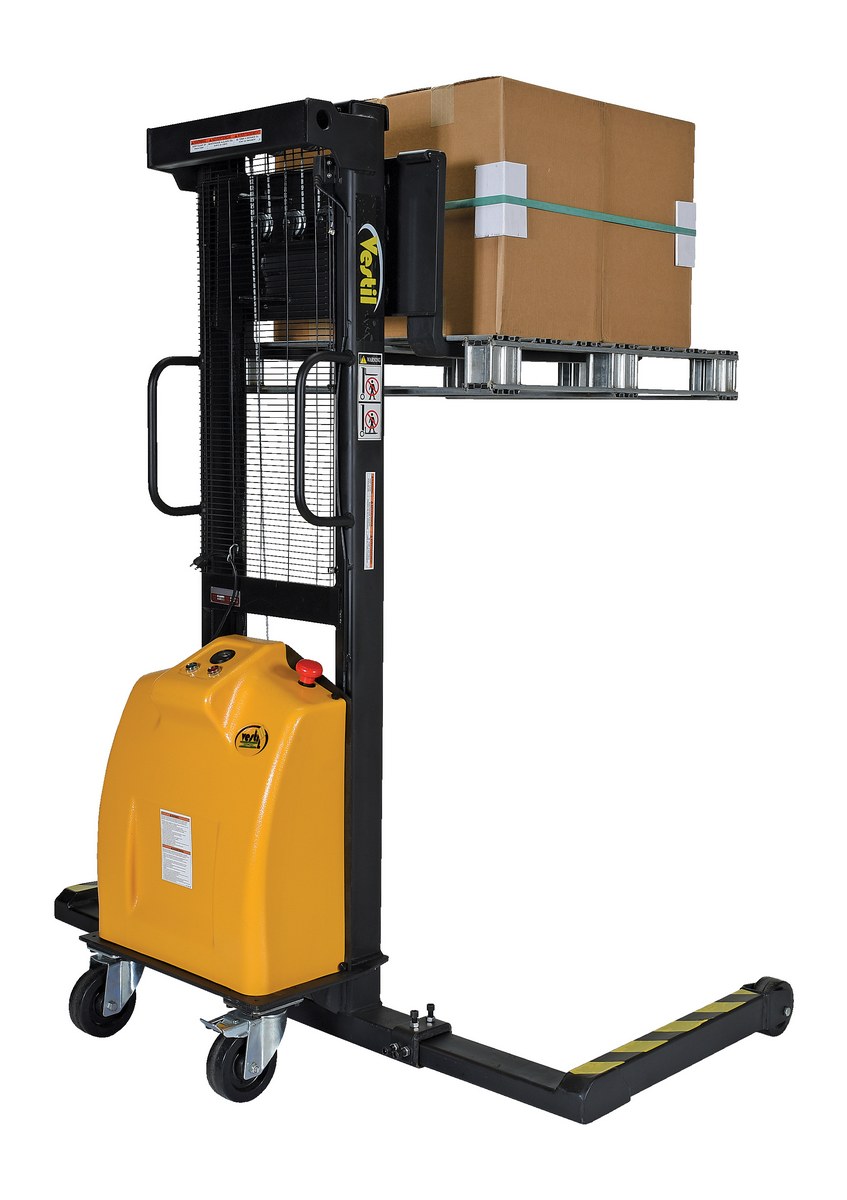

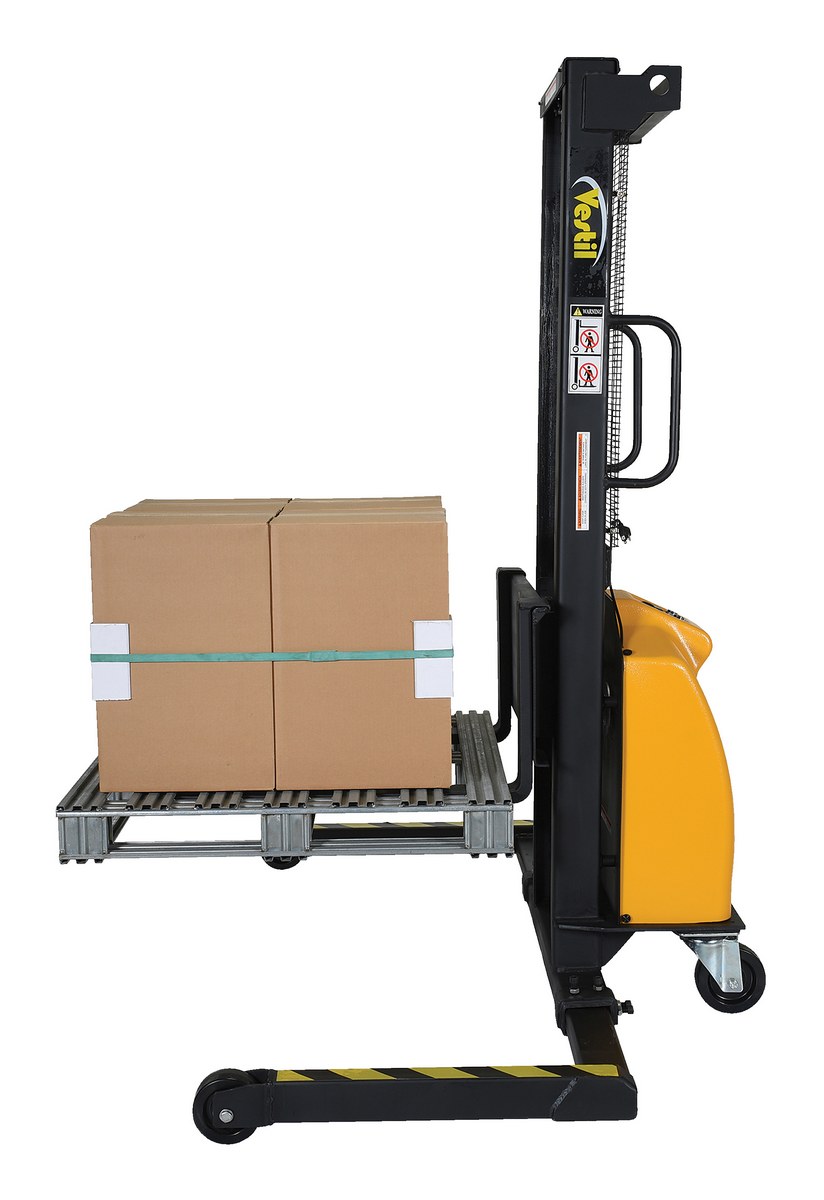

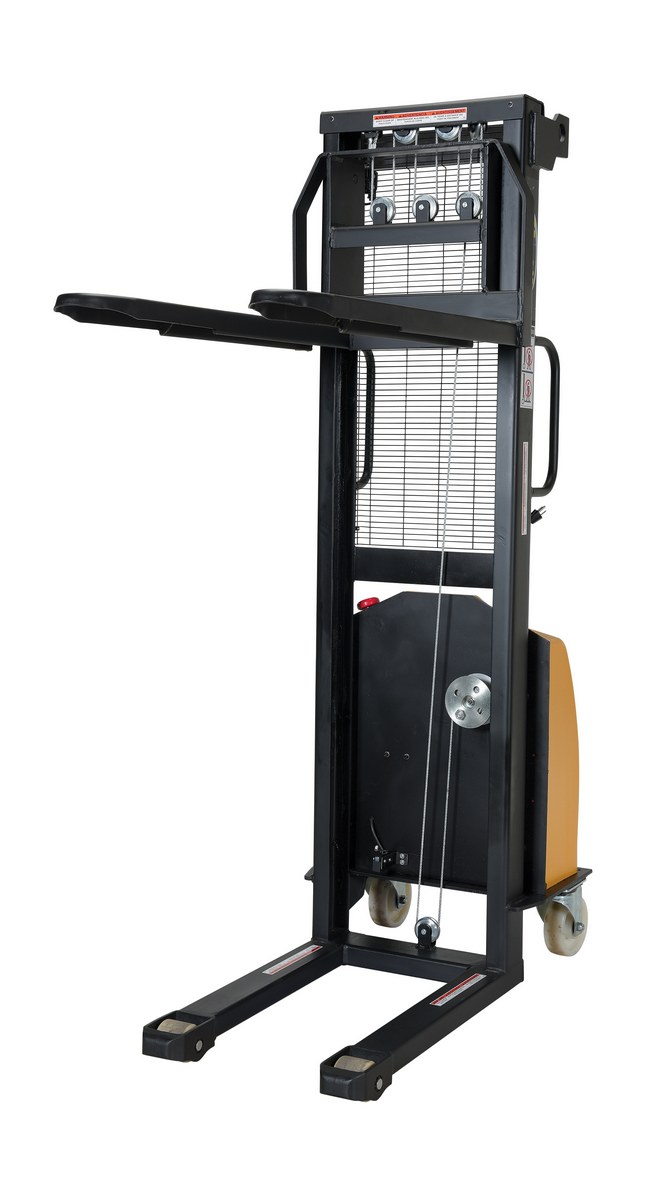

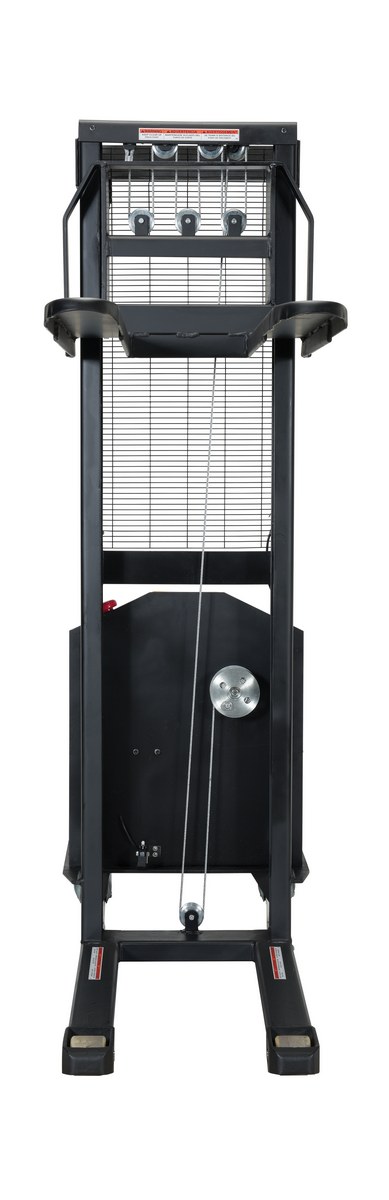

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.


Drum Roll Reel Forks

Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.


Drum Roll Reel Forks

Other Stackers

 Combination Hand Pump and Electric Stackers Counter-Balanced Stackers Basket & Skid Stackers Counter-Balanced Pallet Master/Servers

Additional Models In This Family

VWS-770-AA-DC

model VWS-770-AA-DC

VWS-770-FF

model VWS-770-FF

VWS-770-FF-DC

model VWS-770-FF-DC

VHPS-2000-AA

model VHPS-2000-AA

VHPS-2000-AA-17

model VHPS-2000-AA-17

VHPS-2000-FF

model VHPS-2000-FF

VHPS-3000-AA-17

model VHPS-3000-AA-17

VHPS-NM-1000-FF

model VHPS-NM-1000-FF

VHPS-2000-AA-35

model VHPS-2000-AA-35

VHPS-2000-AA-118

model VHPS-2000-AA-118

How To Order
Share:

Model Specific Details



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

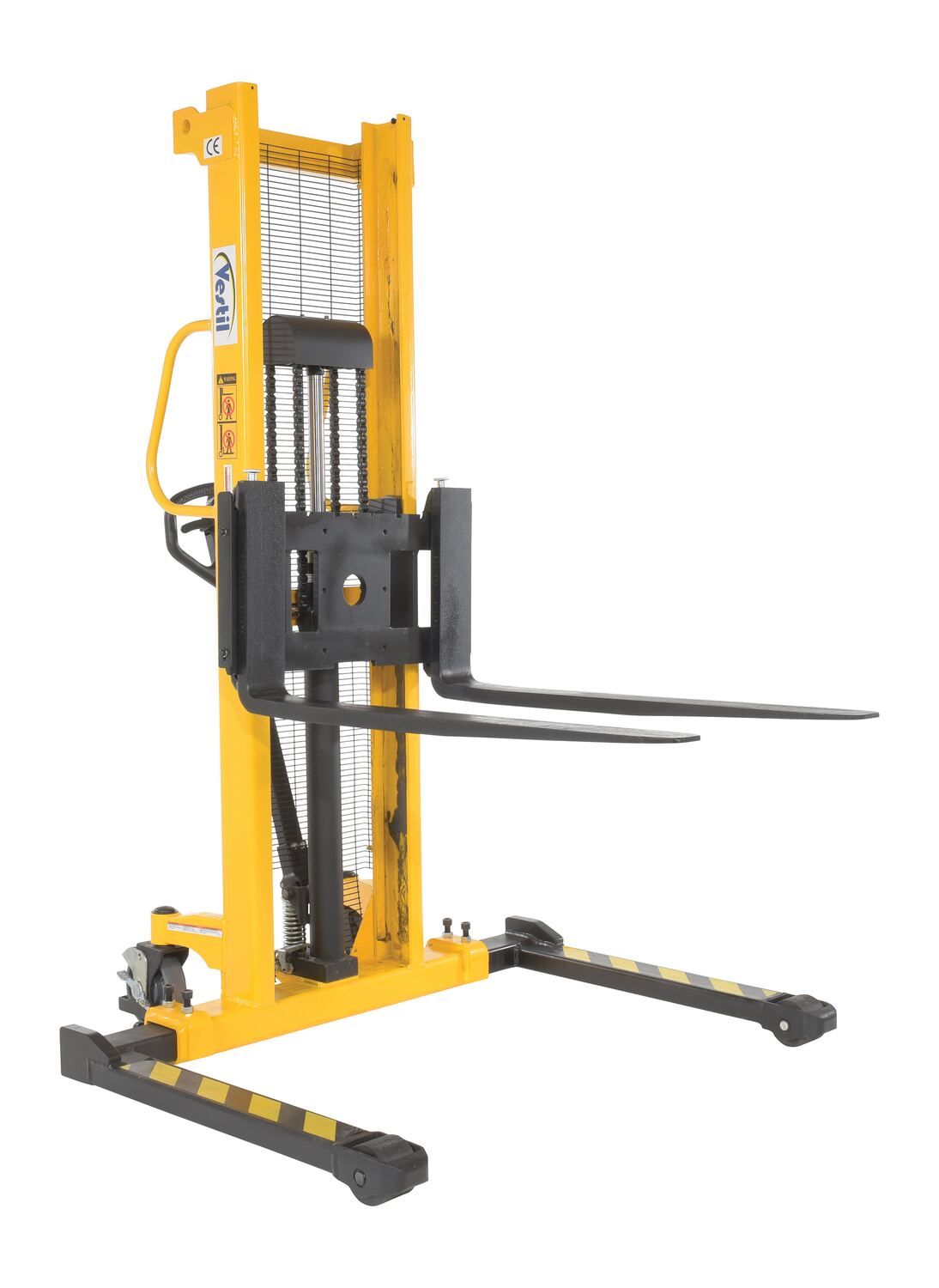

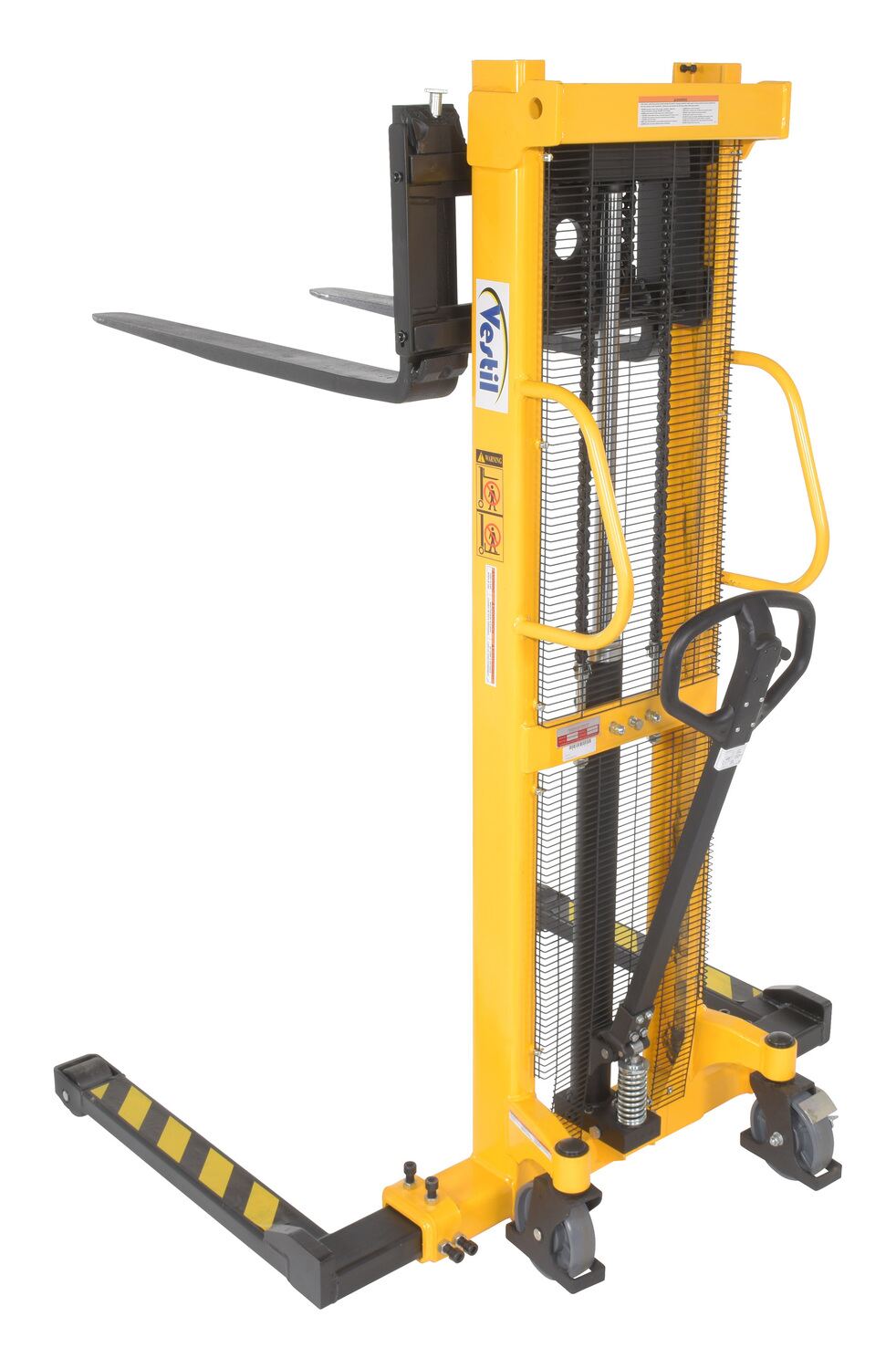

VHPS-2000-AA VHPS-2000-AA1 Year Limited WarrantySteel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity YellowUniform Capacity (lb.): 2000
Service Range (in.): 2 to 63		860

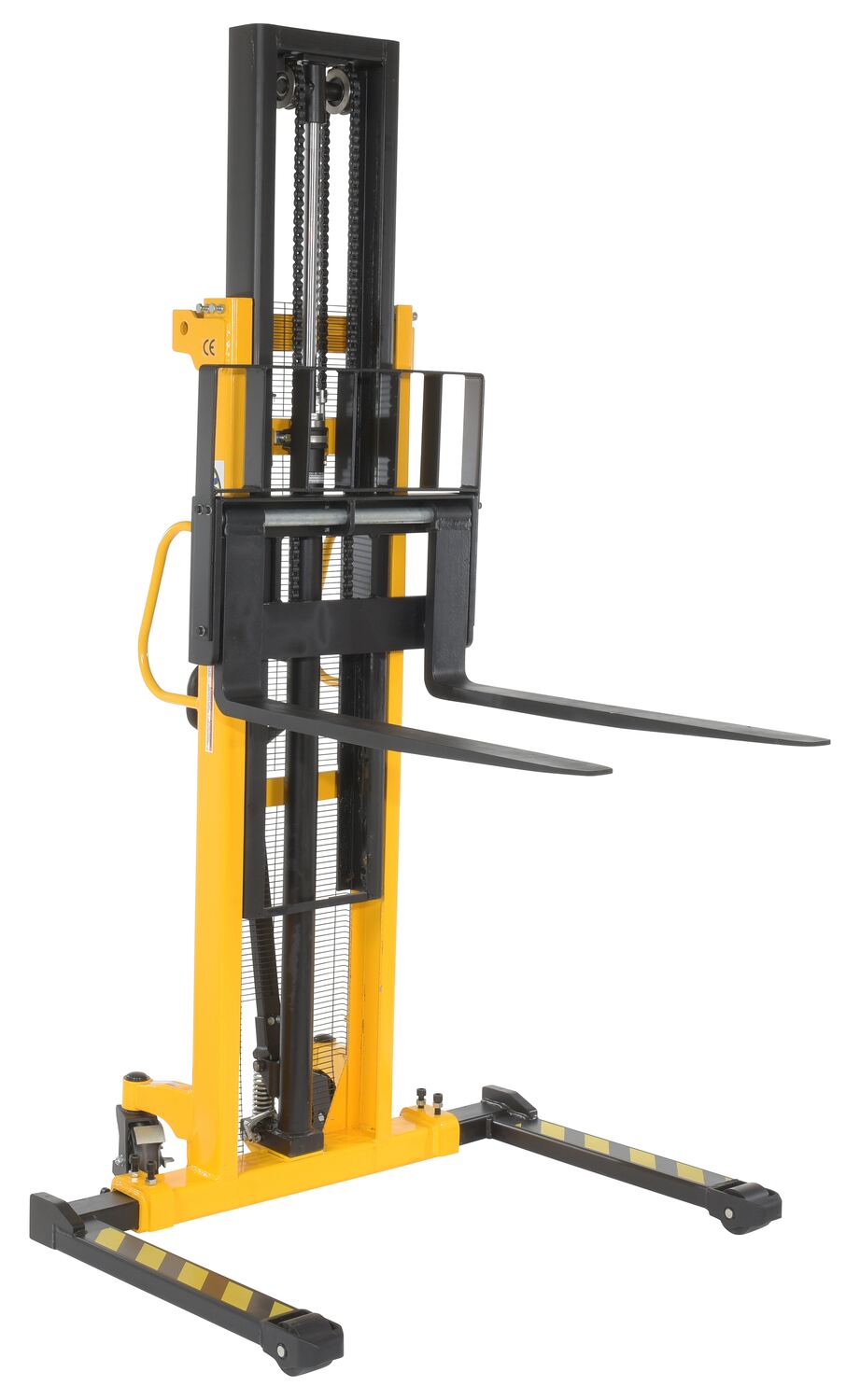

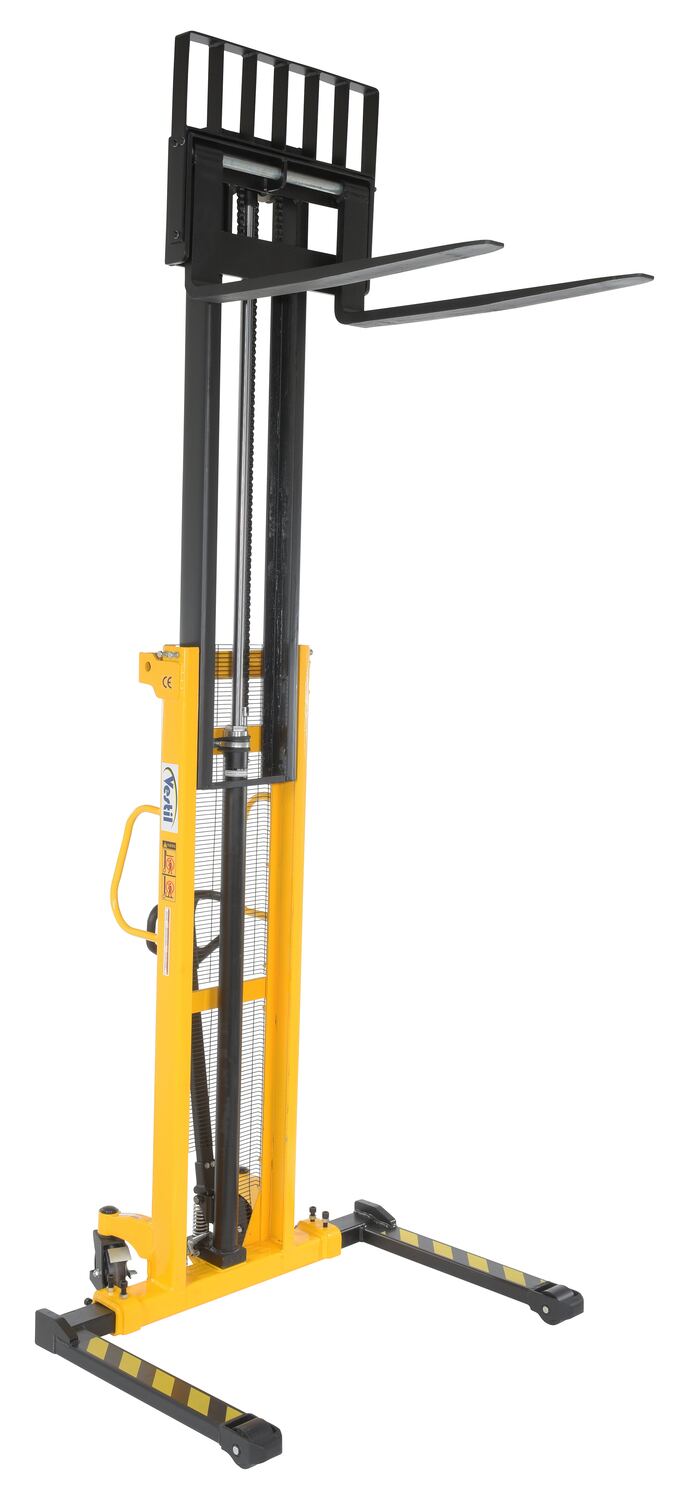

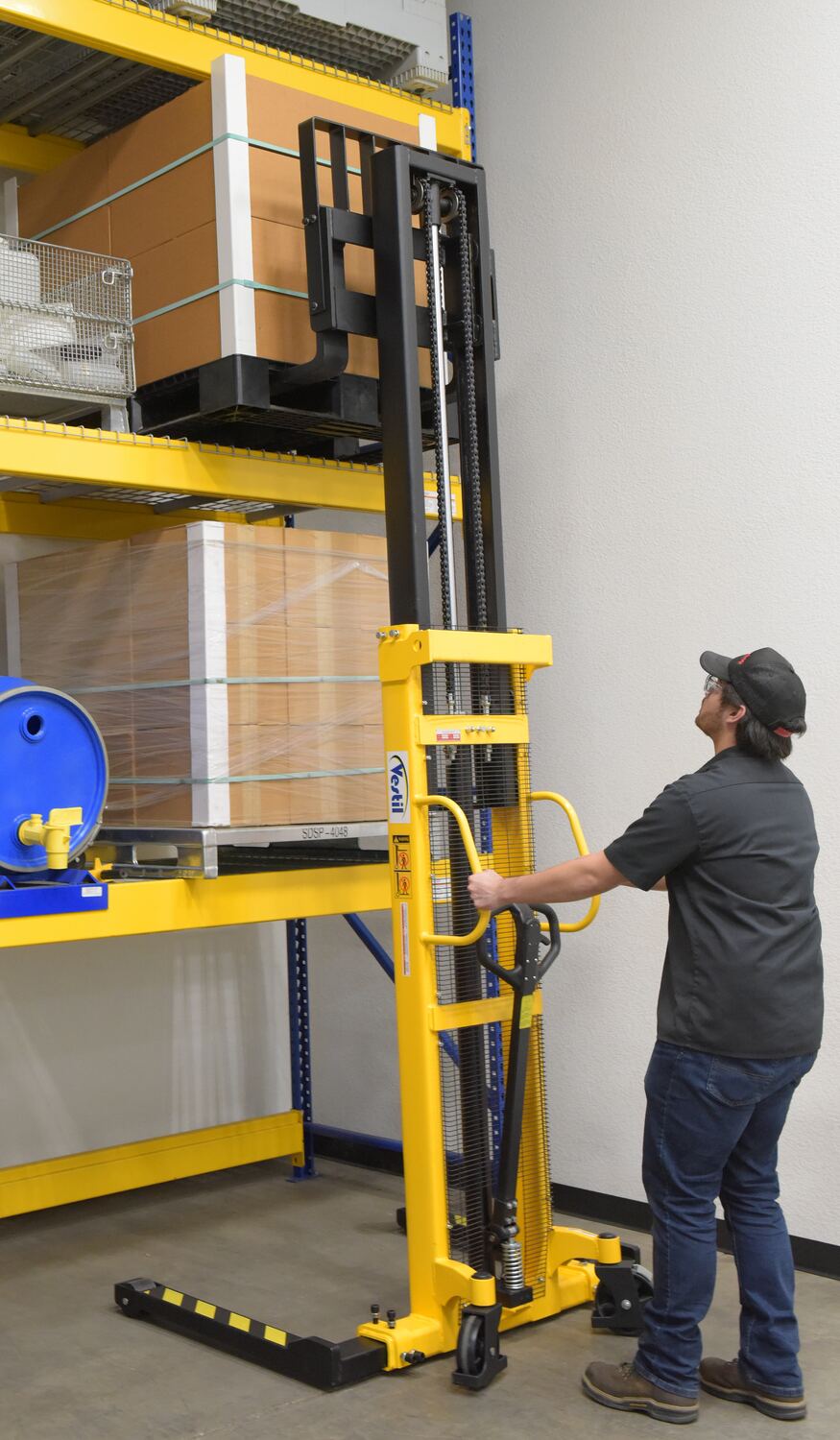

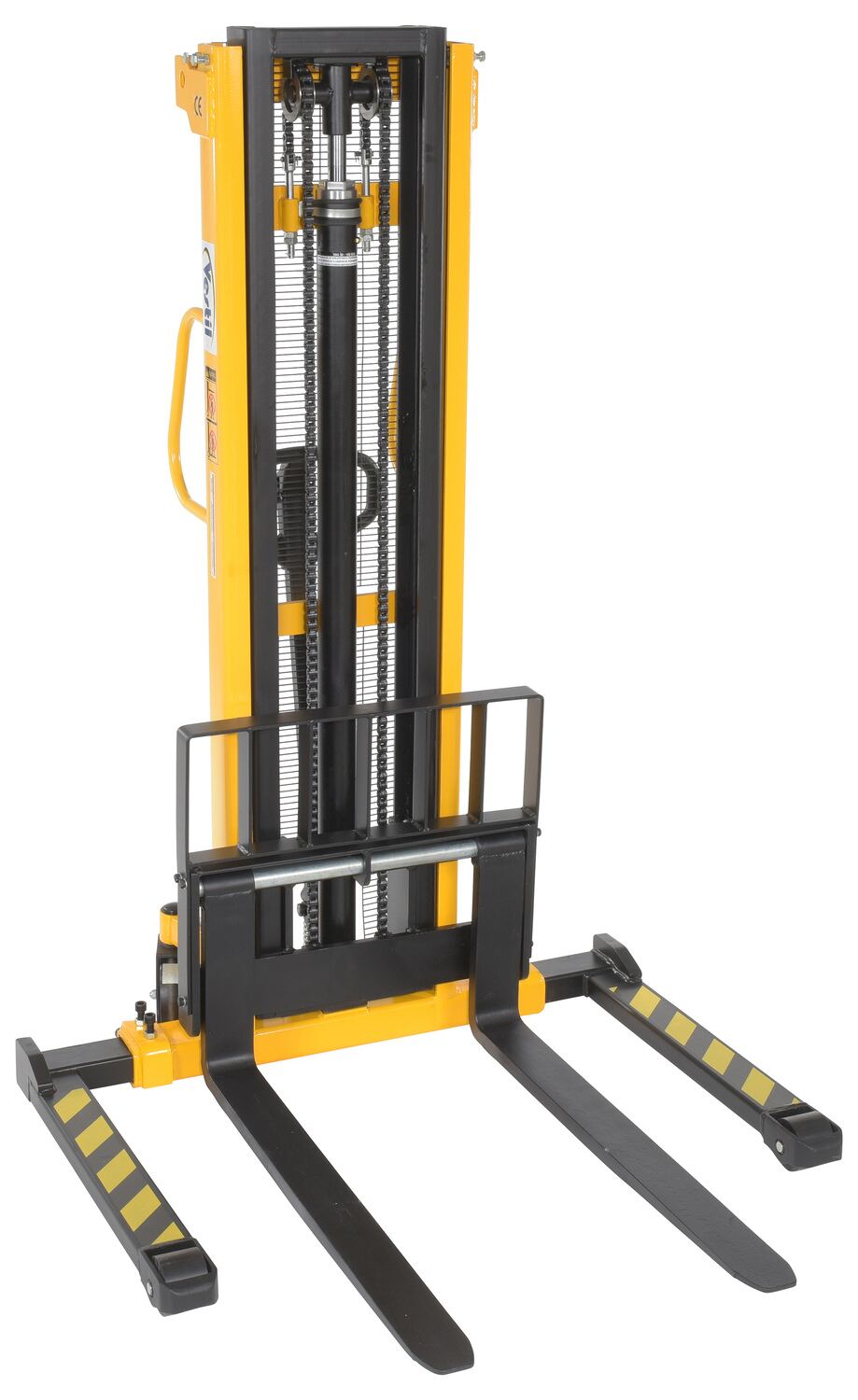

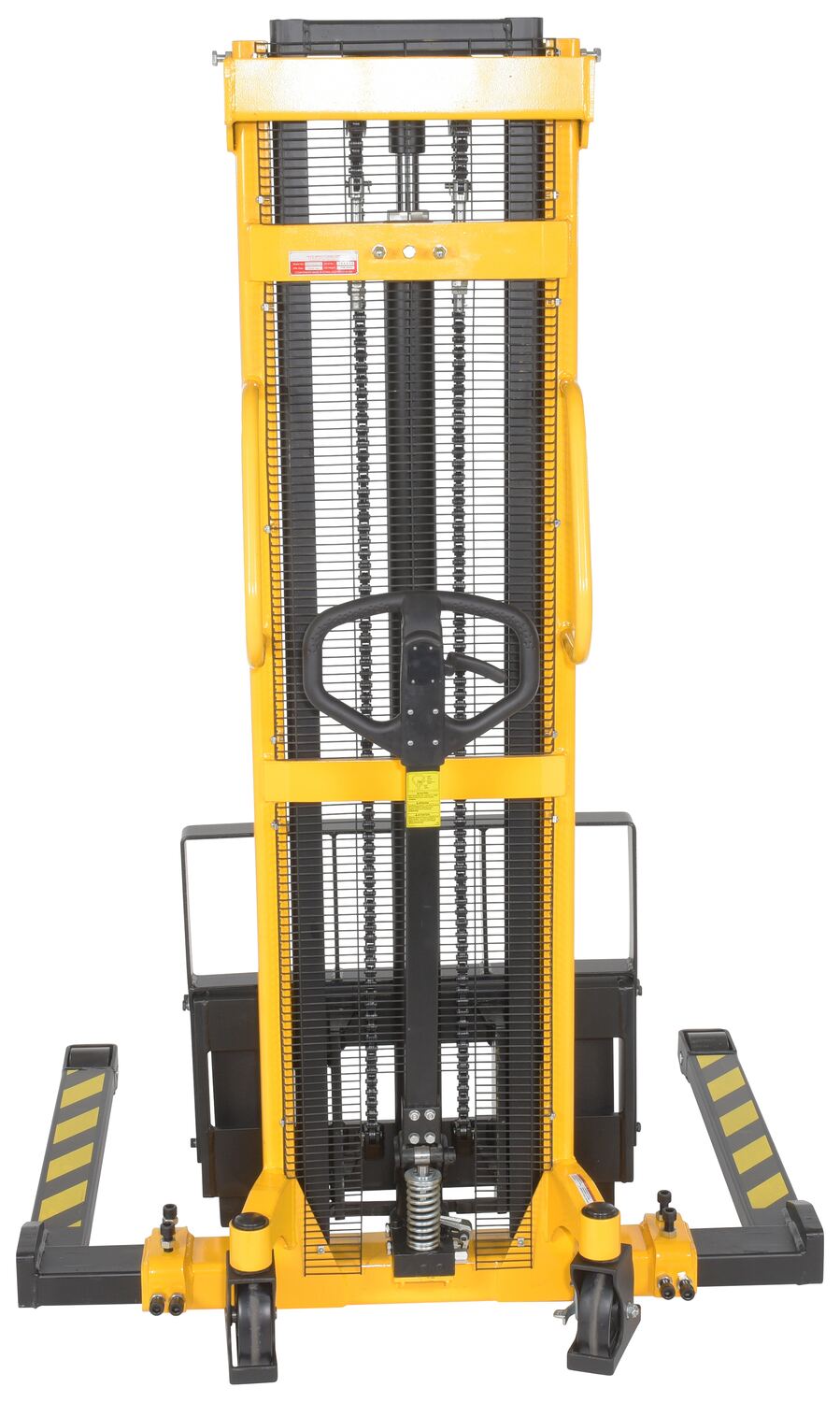

VHPS-2000-AA-118 VHPS-2000-AA-1181 Year Limited WarrantyStacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity-
956

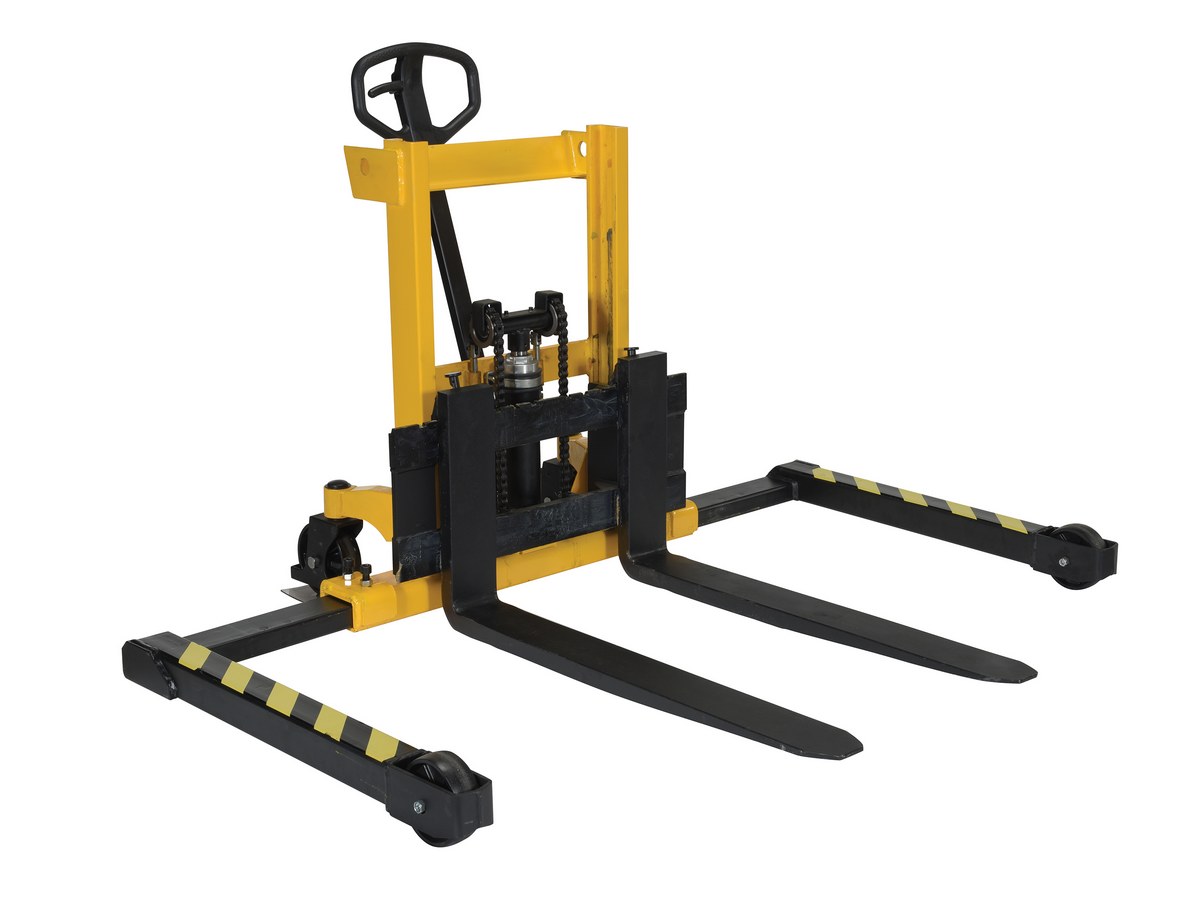

VHPS-2000-AA-17 VHPS-2000-AA-171 Year Limited WarrantySteel Stacker Manual Pump 2 - 17 In. 1,500 - 2,000 Lb. Capacity YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 17		490

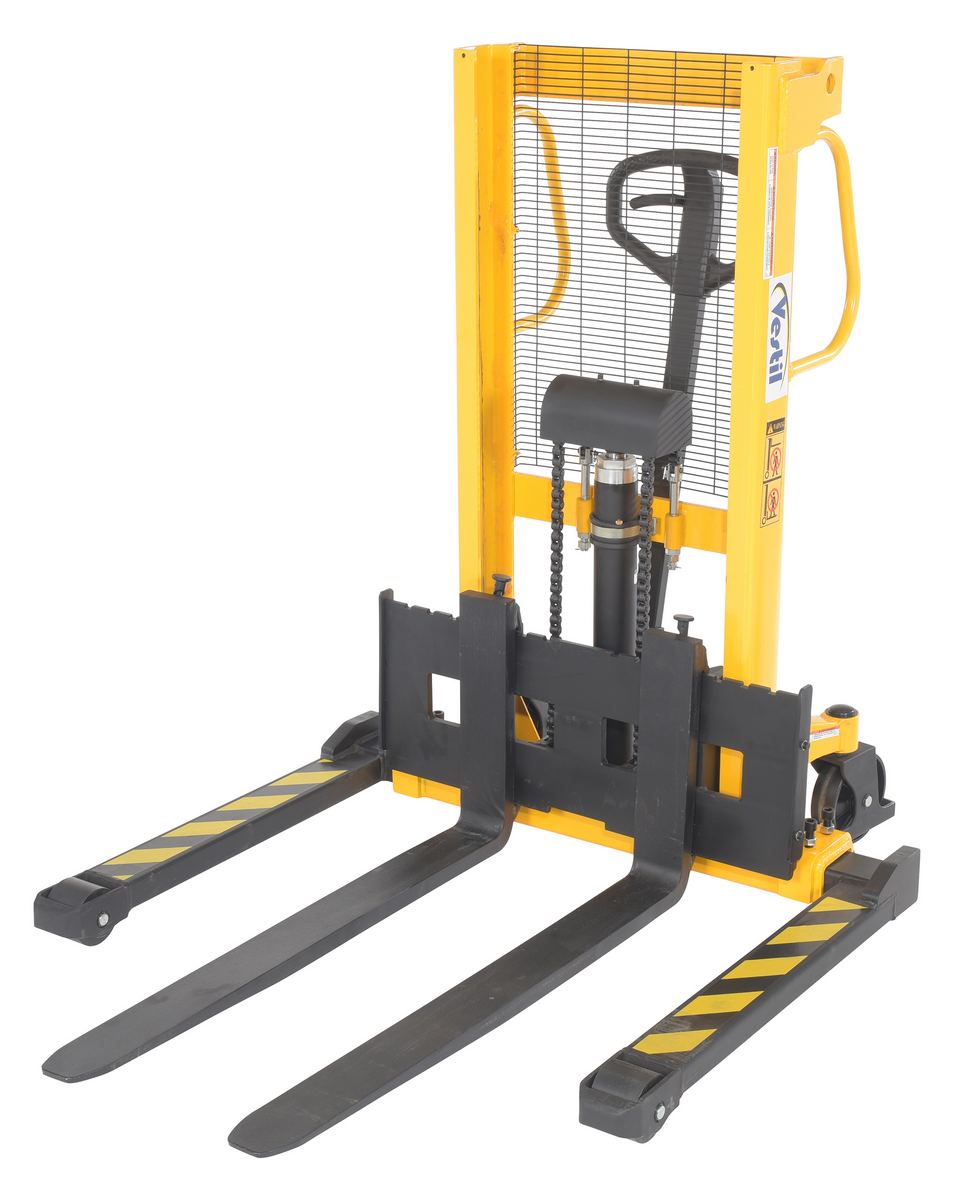

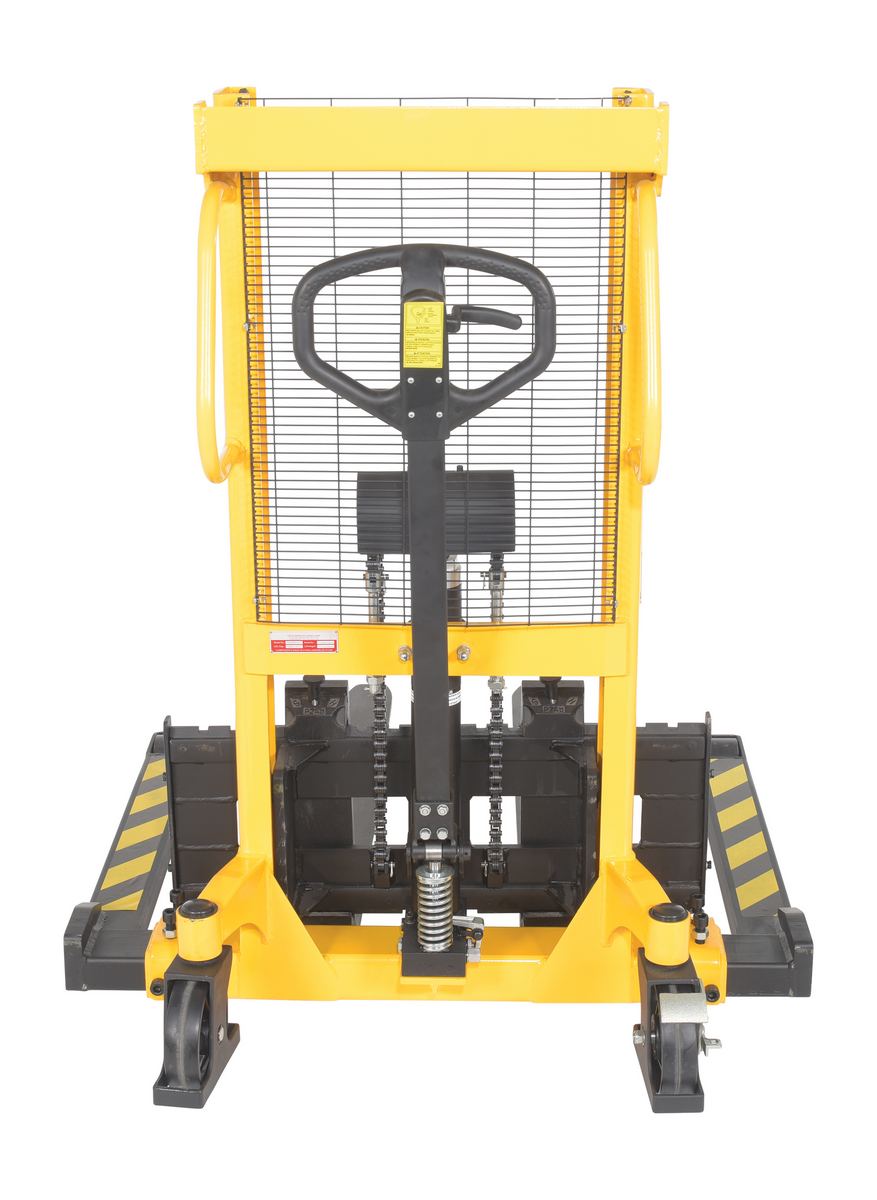

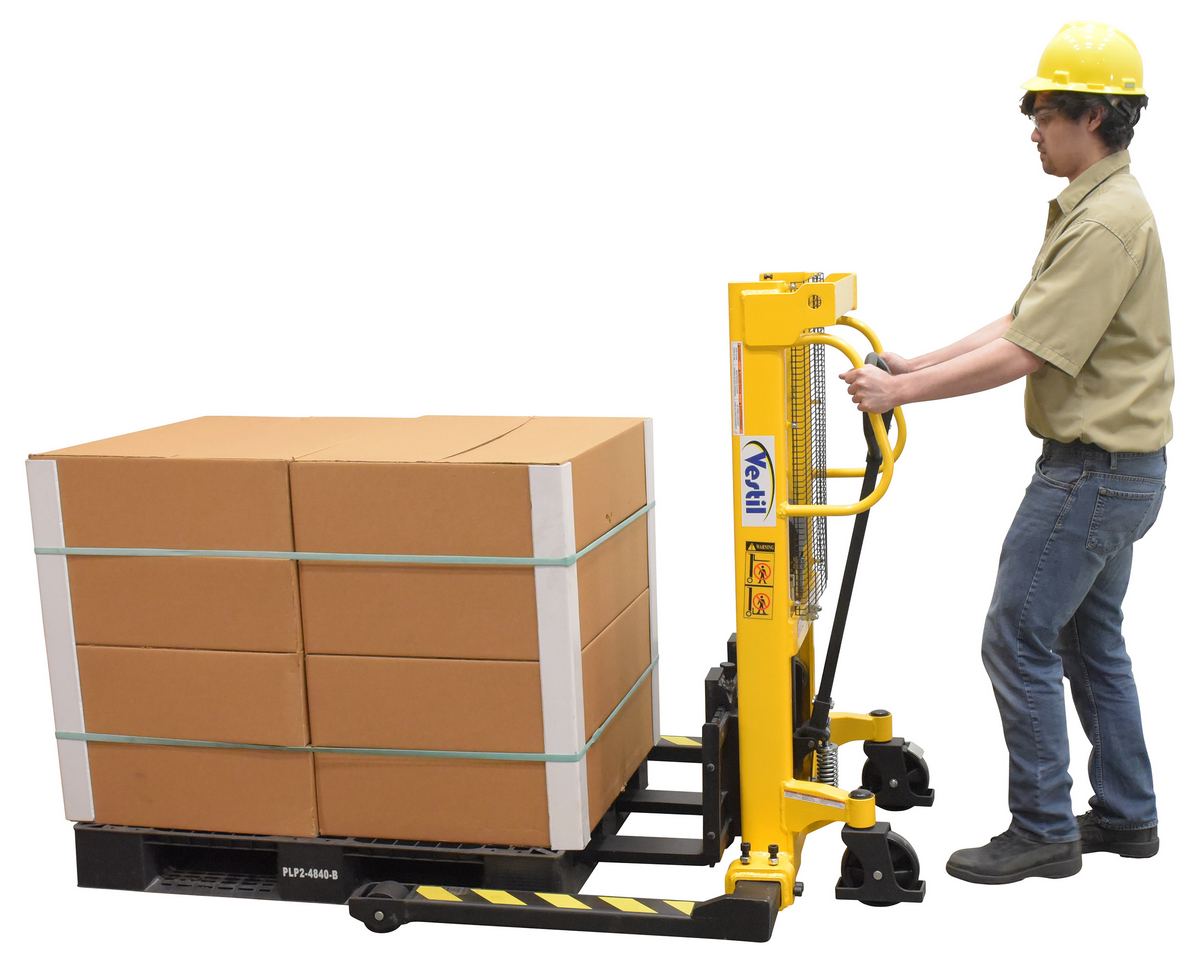

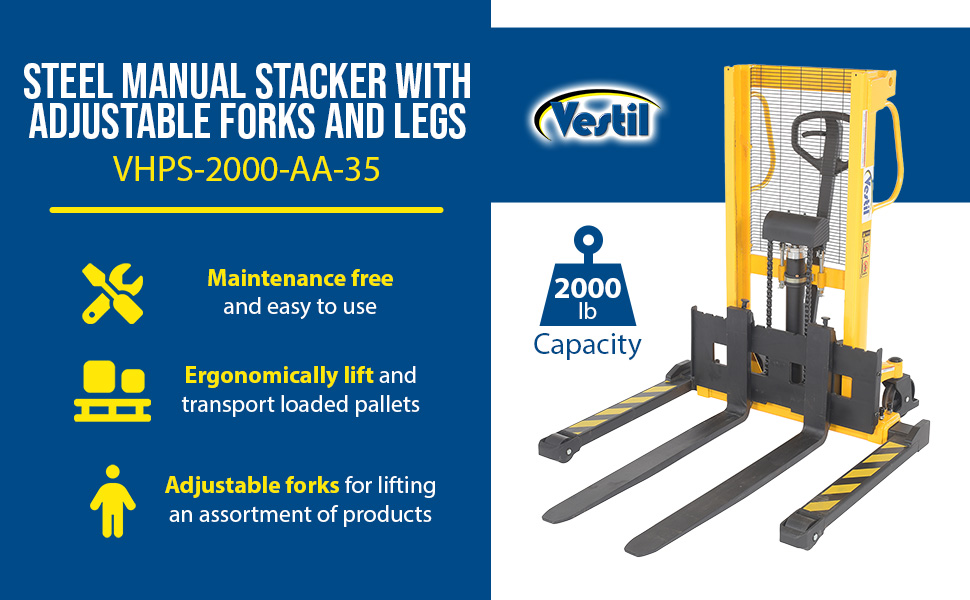

VHPS-2000-AA-35 VHPS-2000-AA-351 Year Limited WarrantyStacker Manual Pump 2 - 35 In. 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 35		764

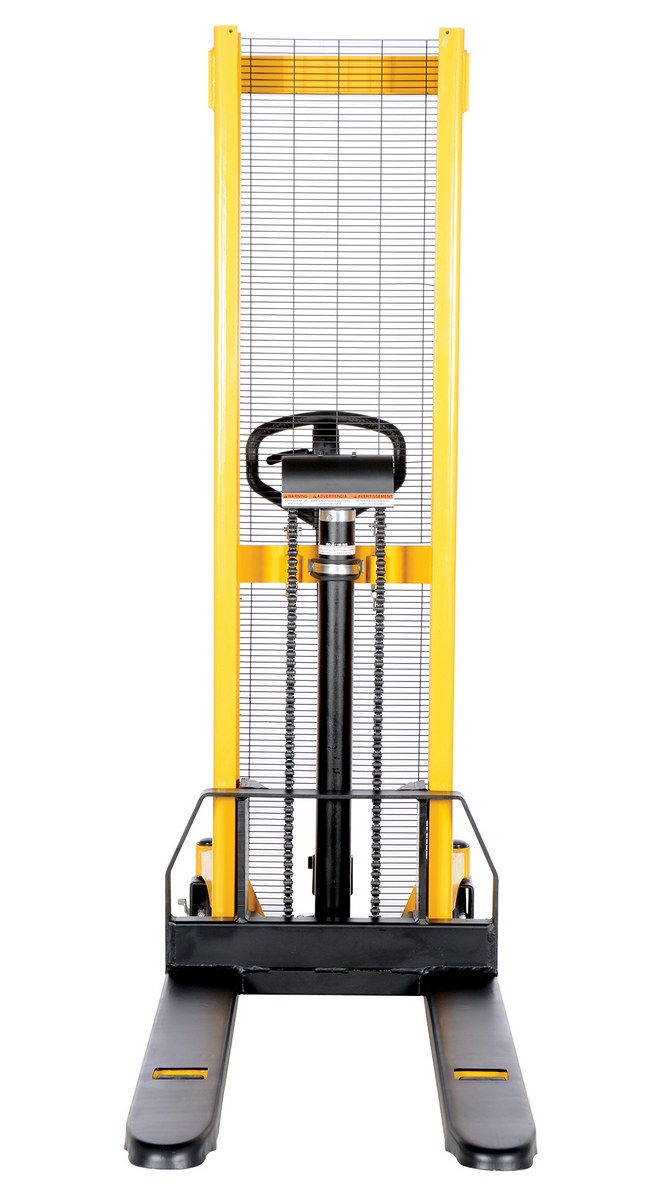

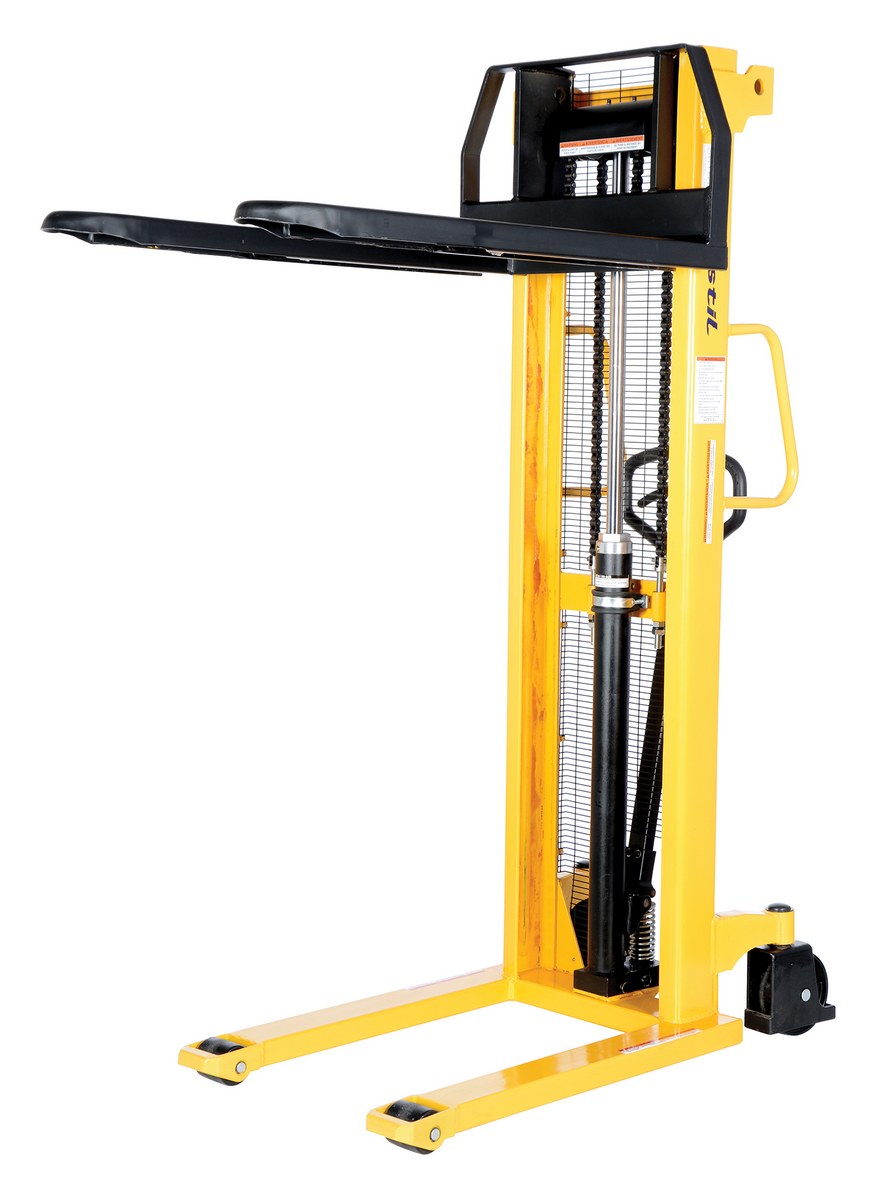

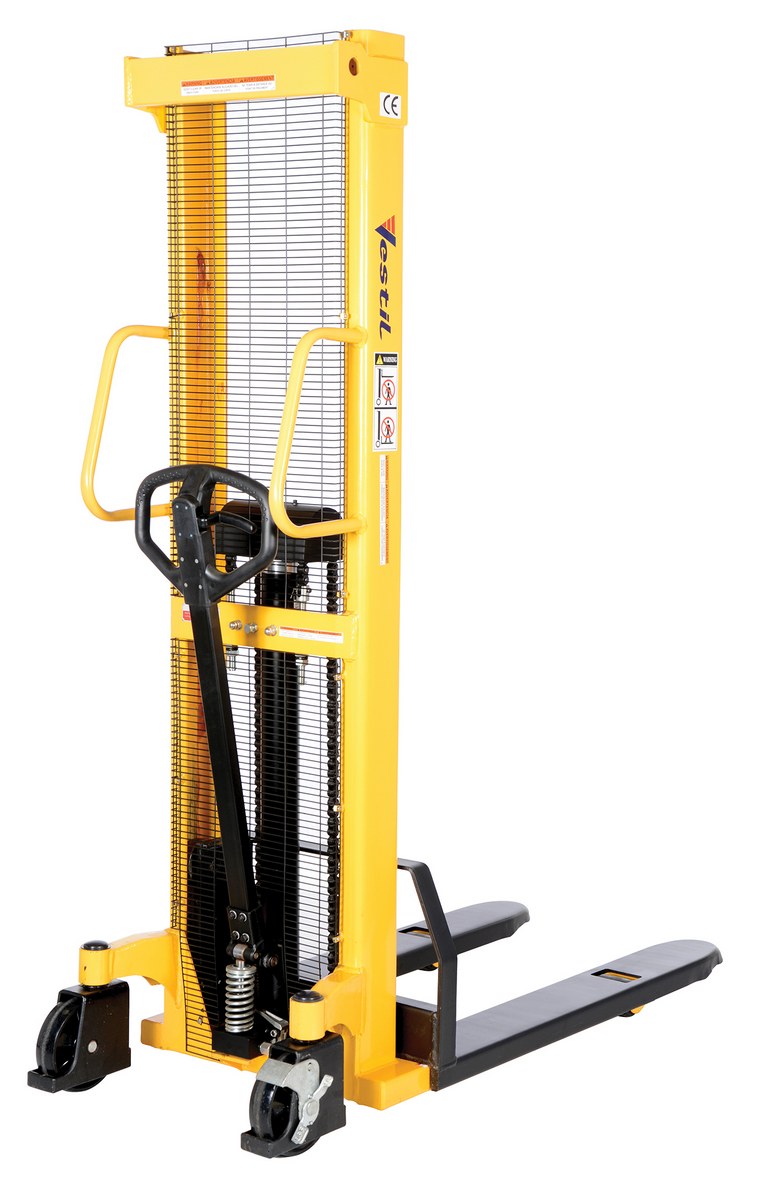

VHPS-2000-FF VHPS-2000-FF1 Year Limited WarrantySteel Manual Stacker Fixed Forks/Legs 2,000 Lb. CapacityUniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63		570

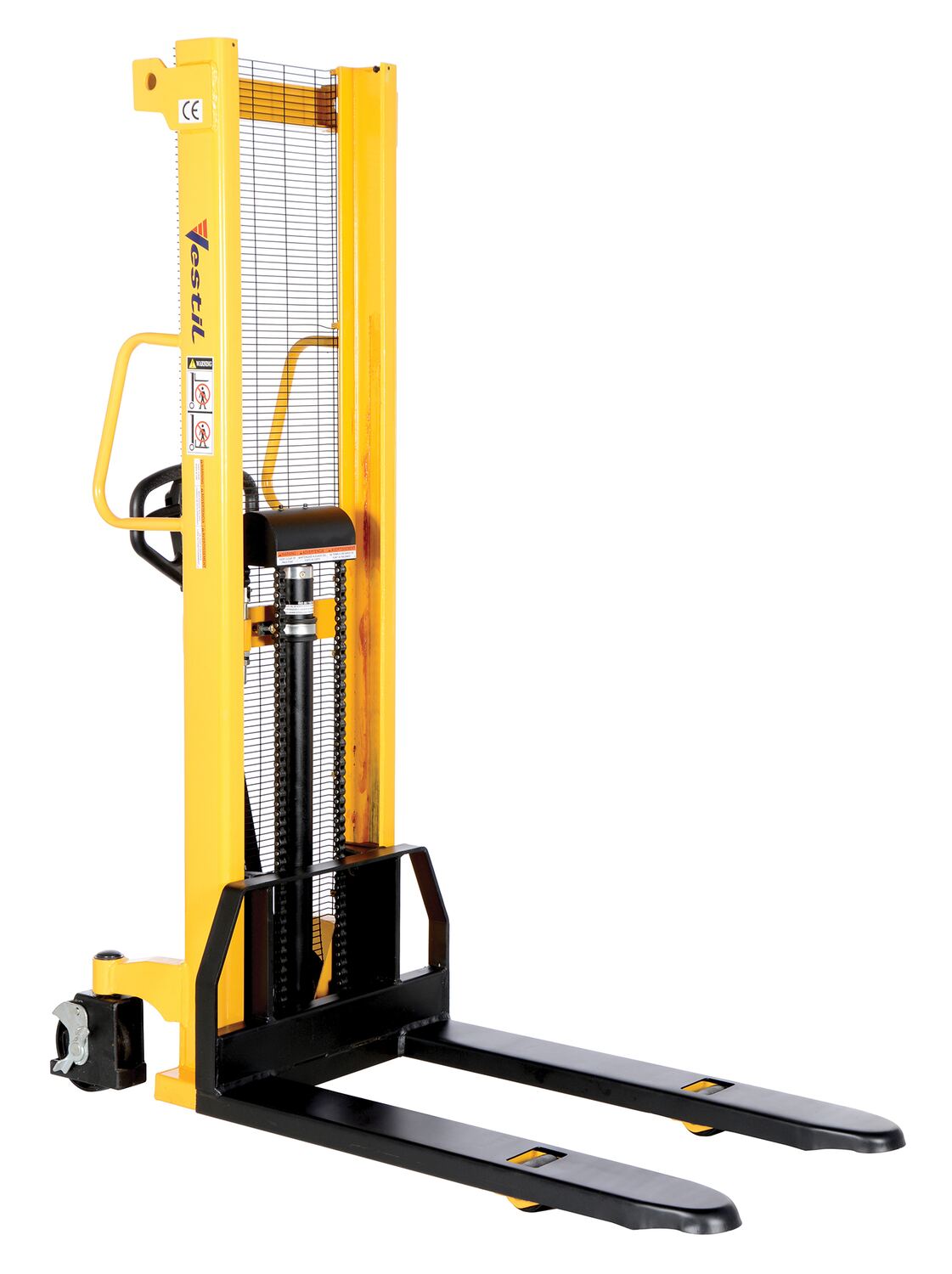

VHPS-2000-FF-118 VHPS-2000-FF-1181 Year Limited WarrantySteel Stacker Manual Pump 3 - 118 In. 1,500 - 2,000 Lb. Capacity Black / Yellow-
722

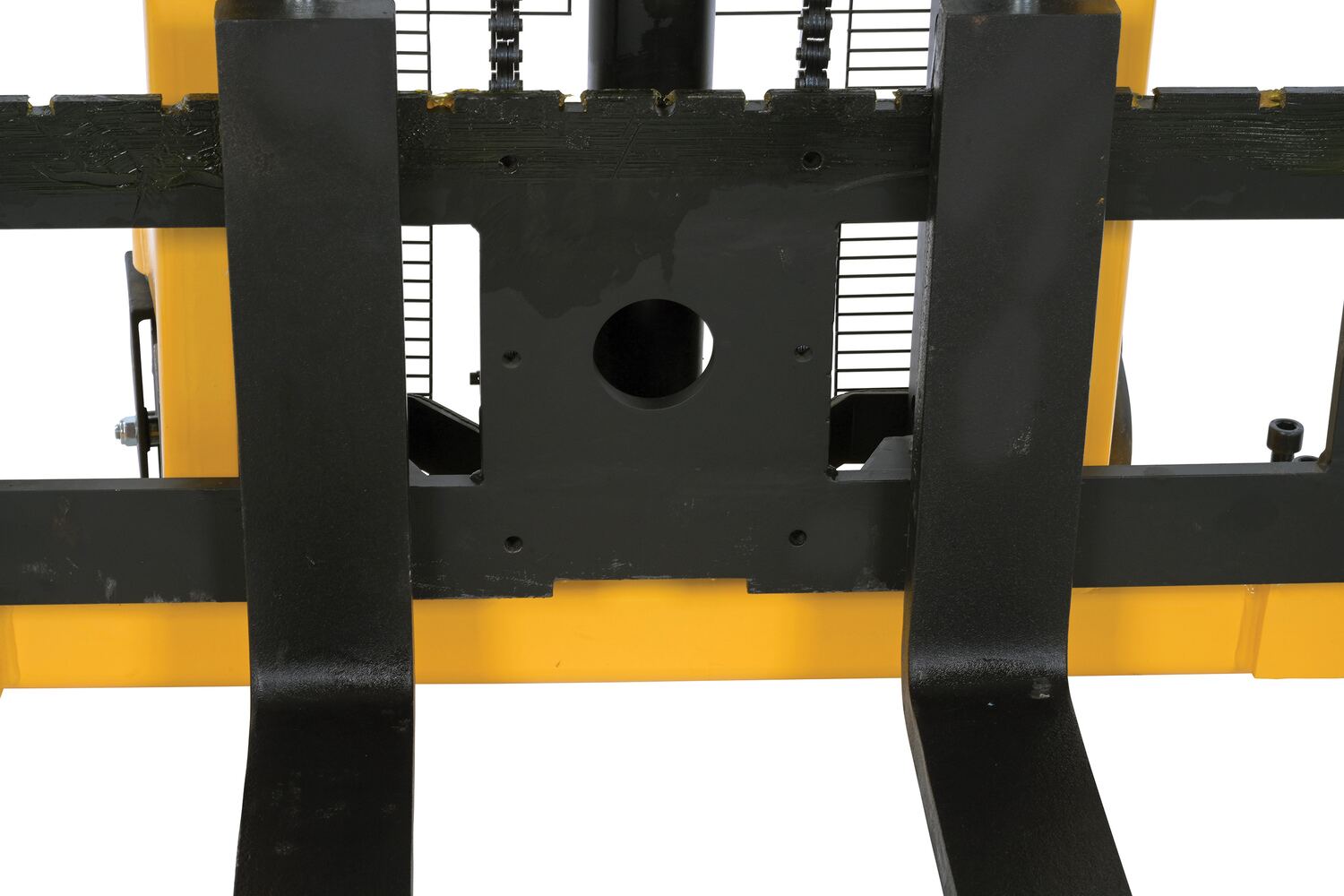

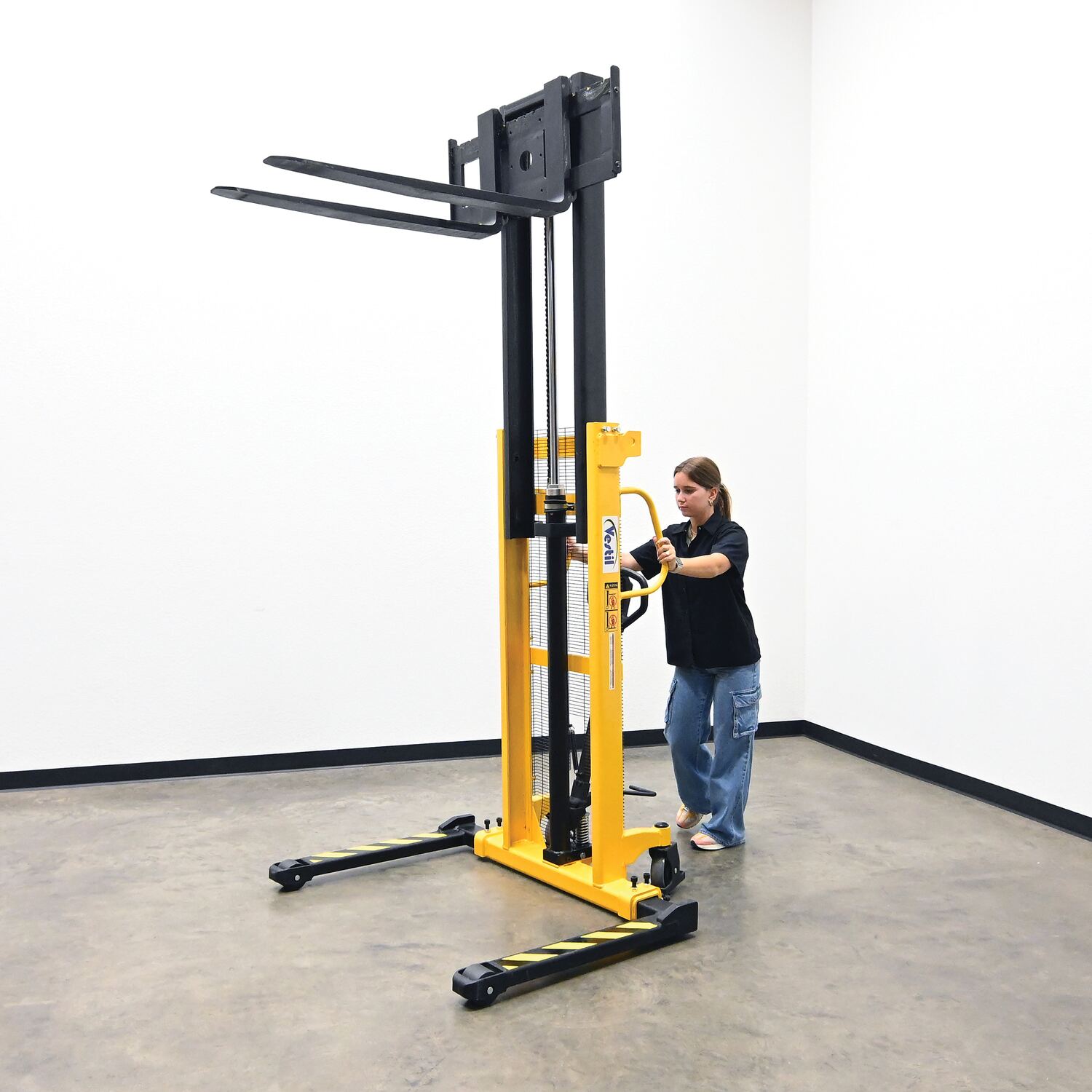

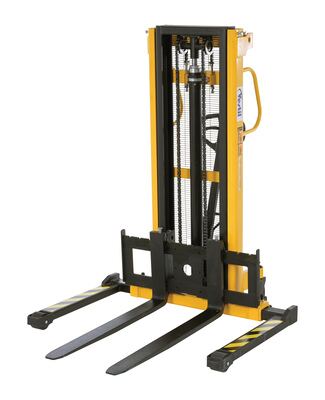

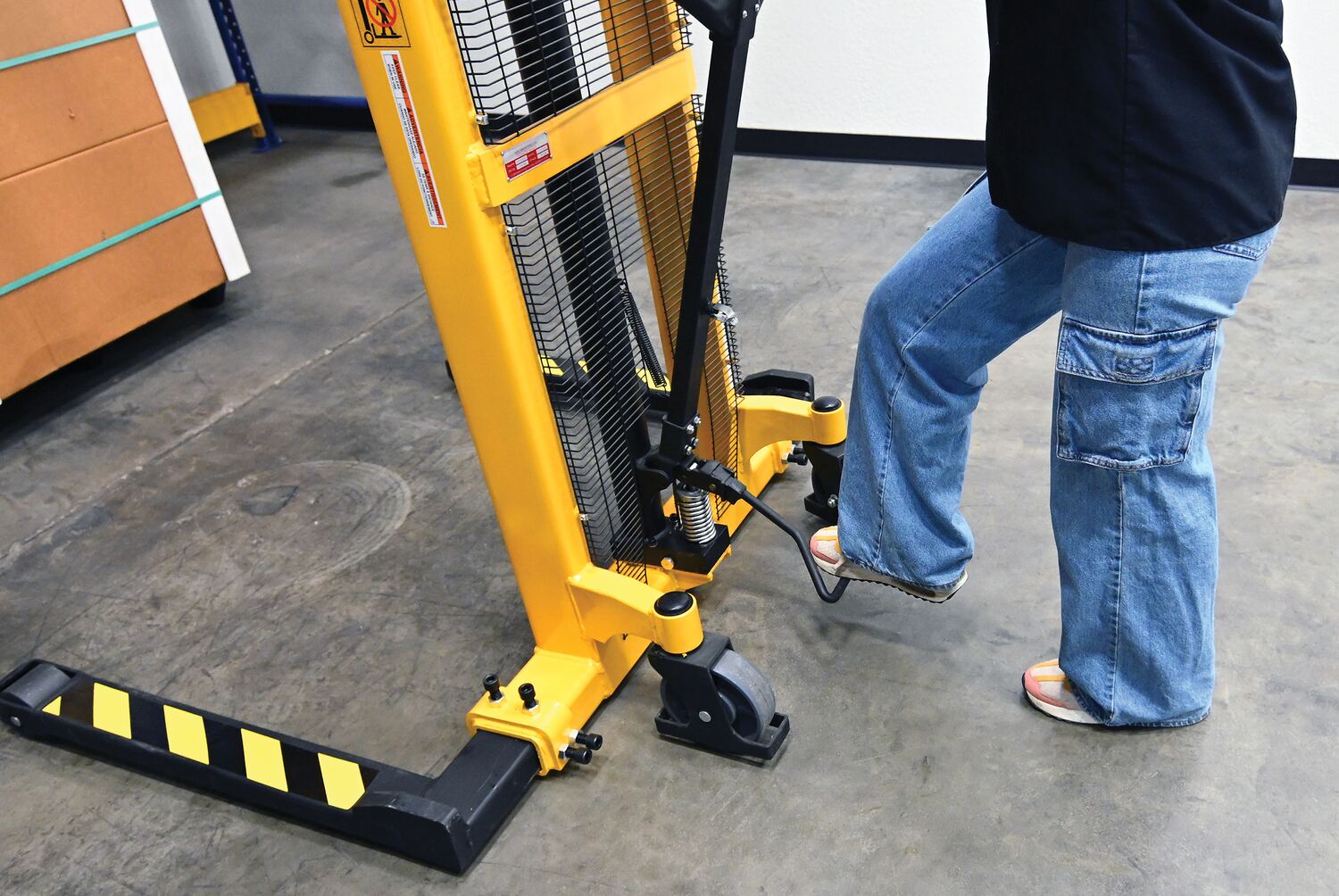

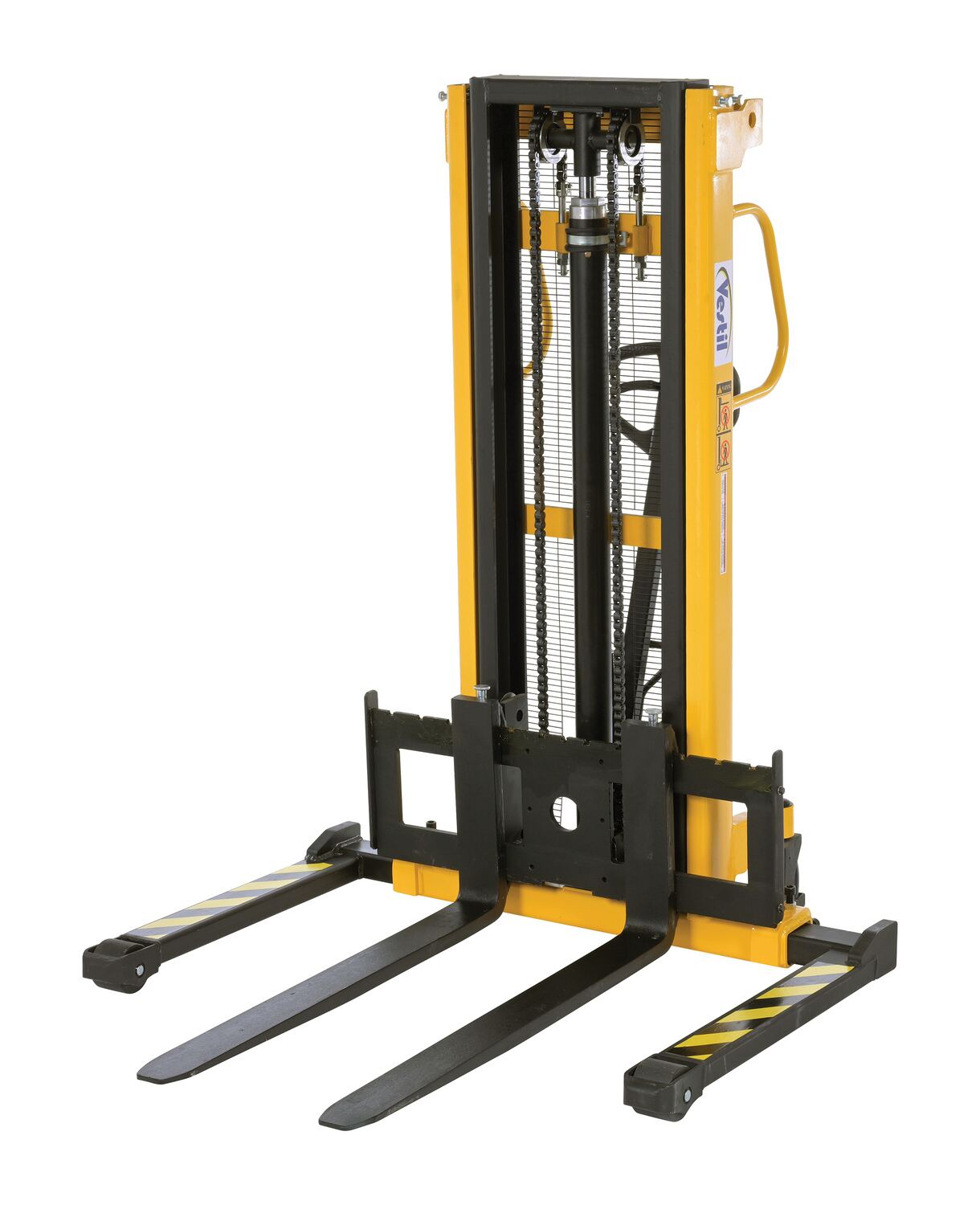

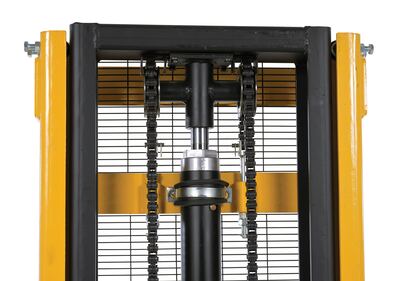

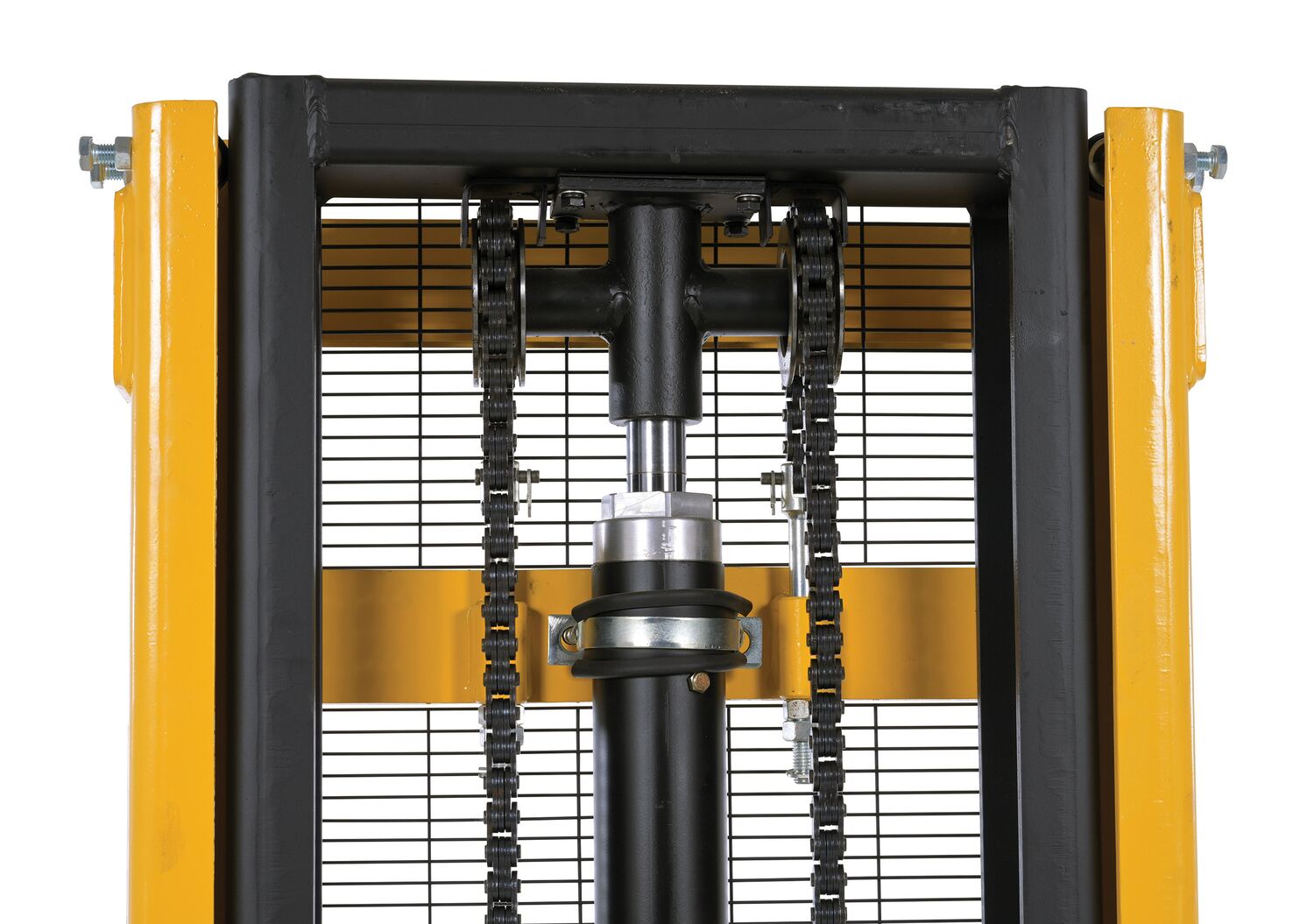

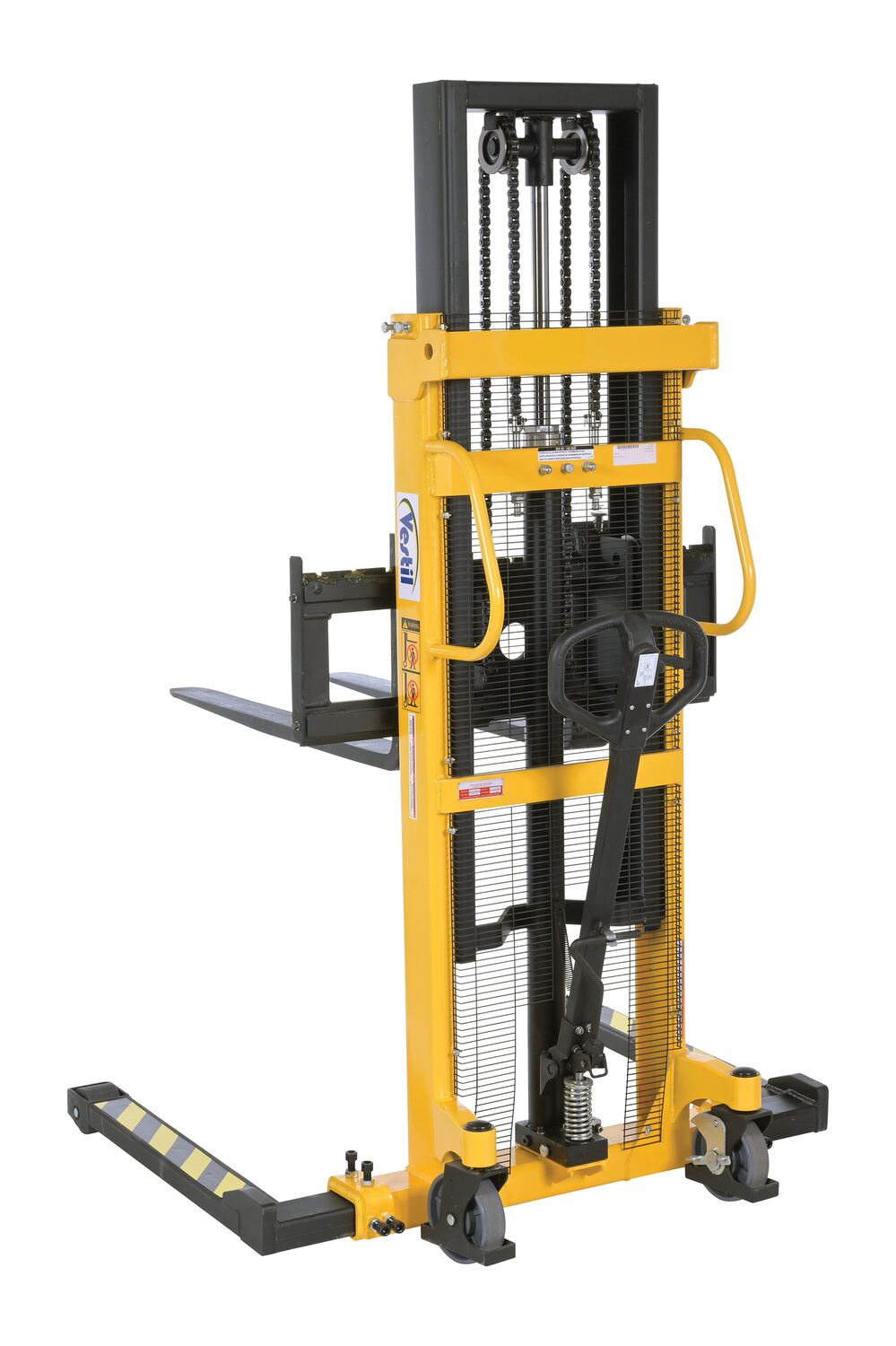

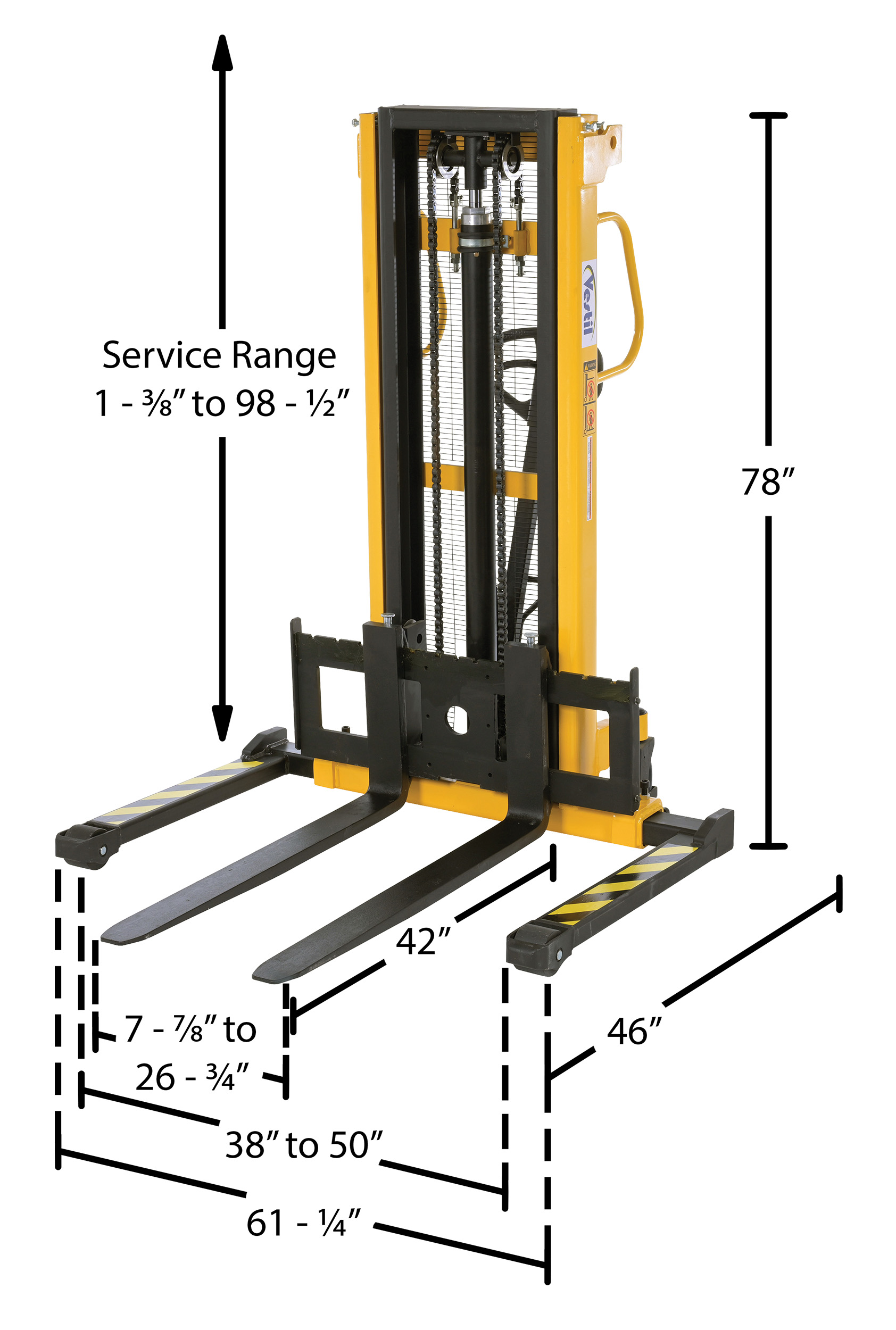

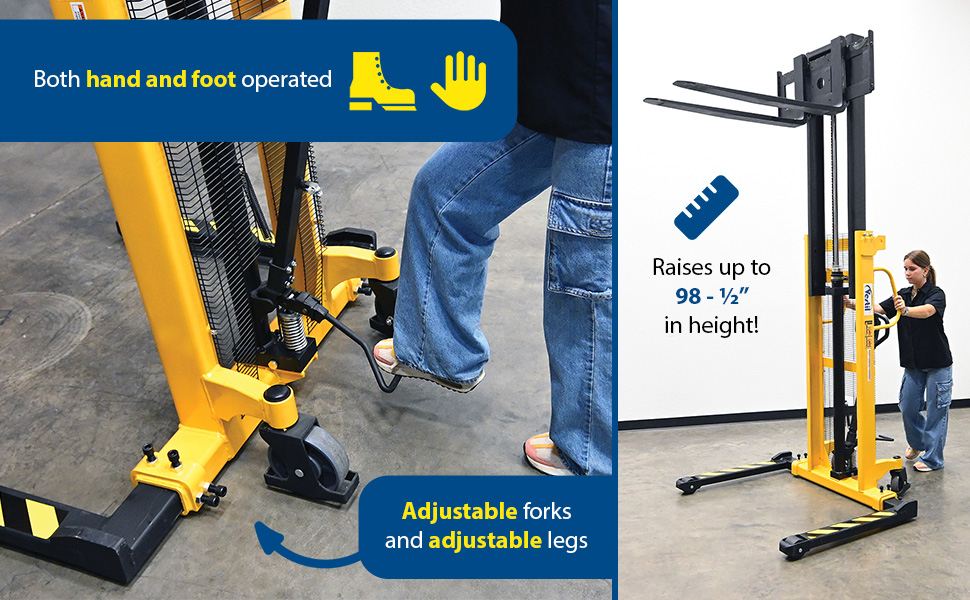

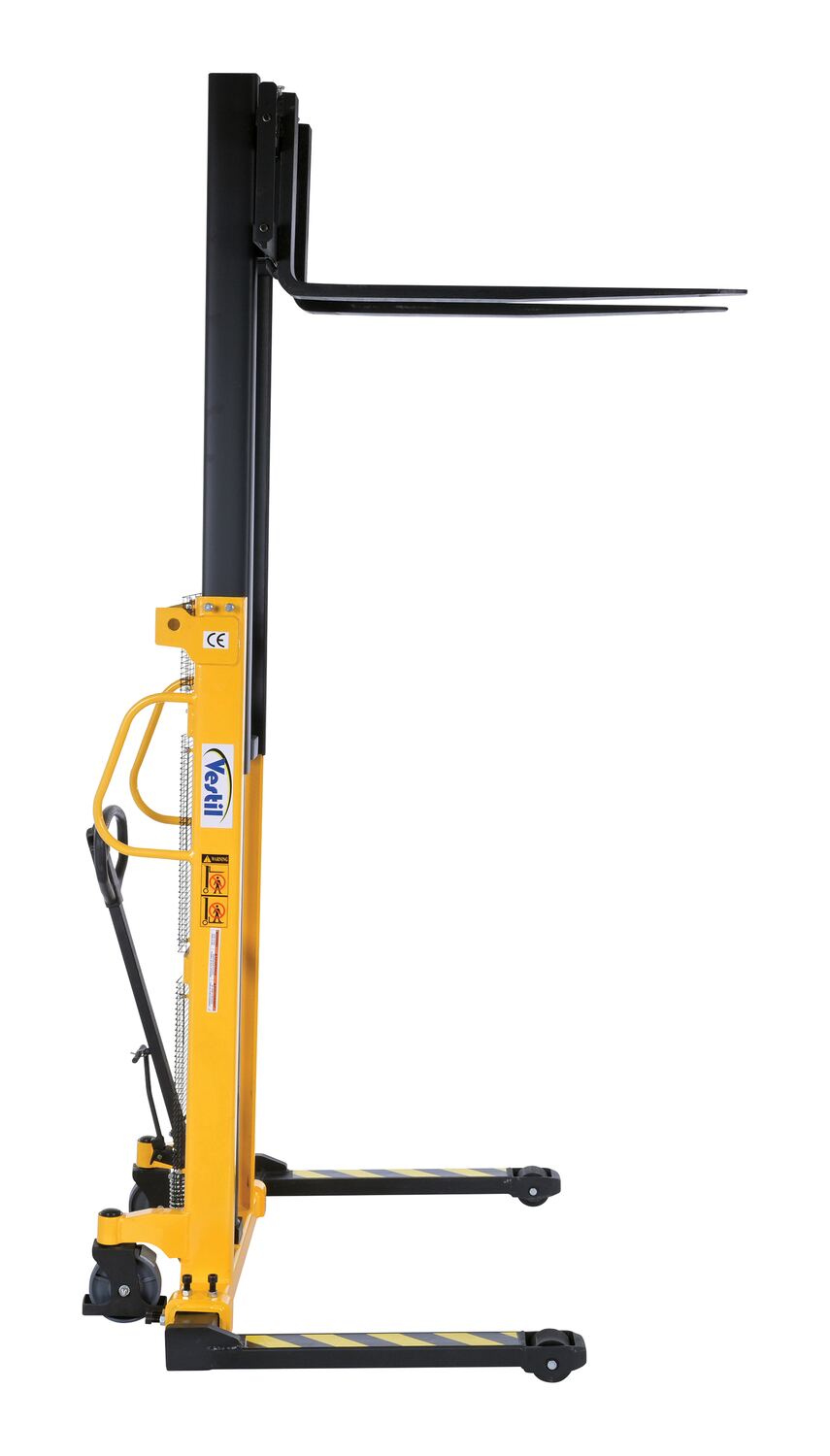

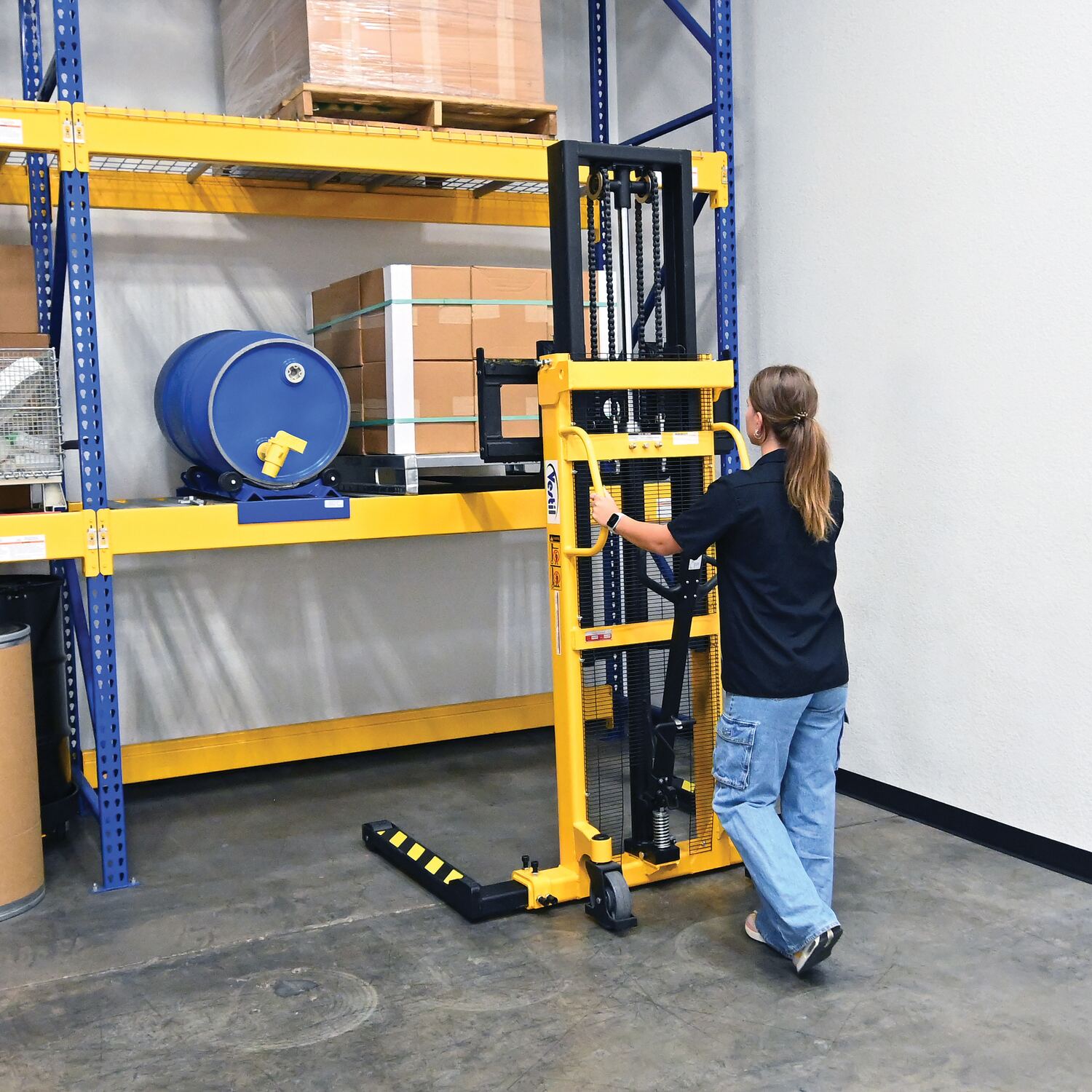

VHPS-2200-AA VHPS-2200-AA1 Year Limited WarrantySteel Manual Stacker Adjustable Forks/Legs 2,200 Lb. Capacity YellowUniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5		860

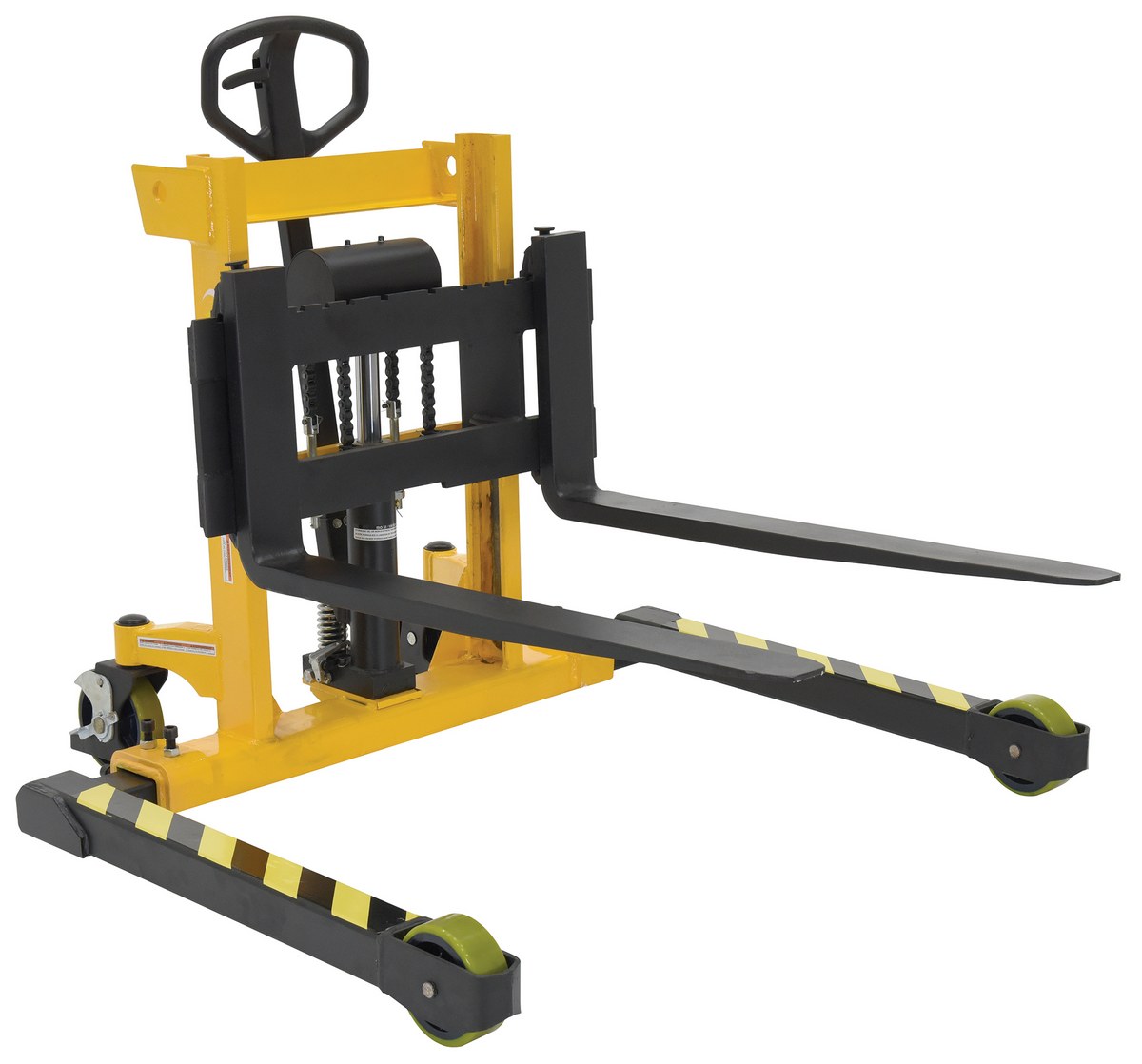

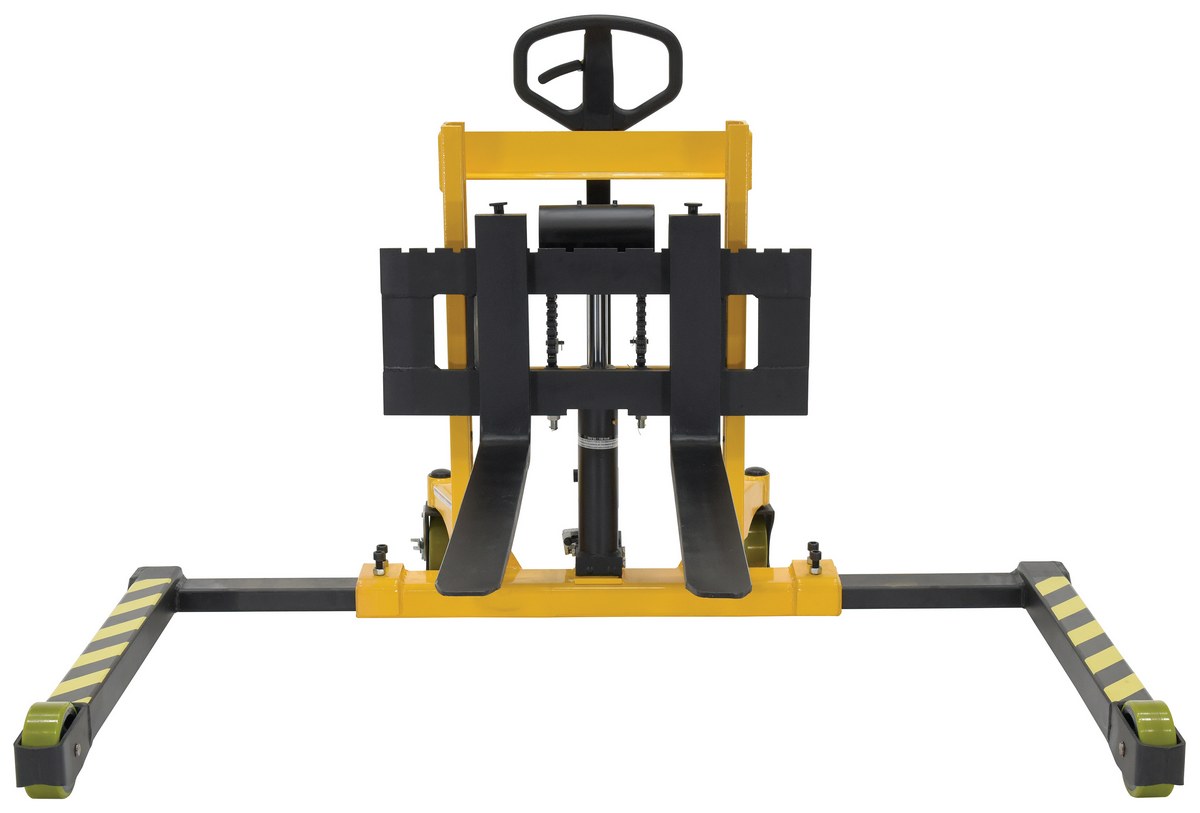

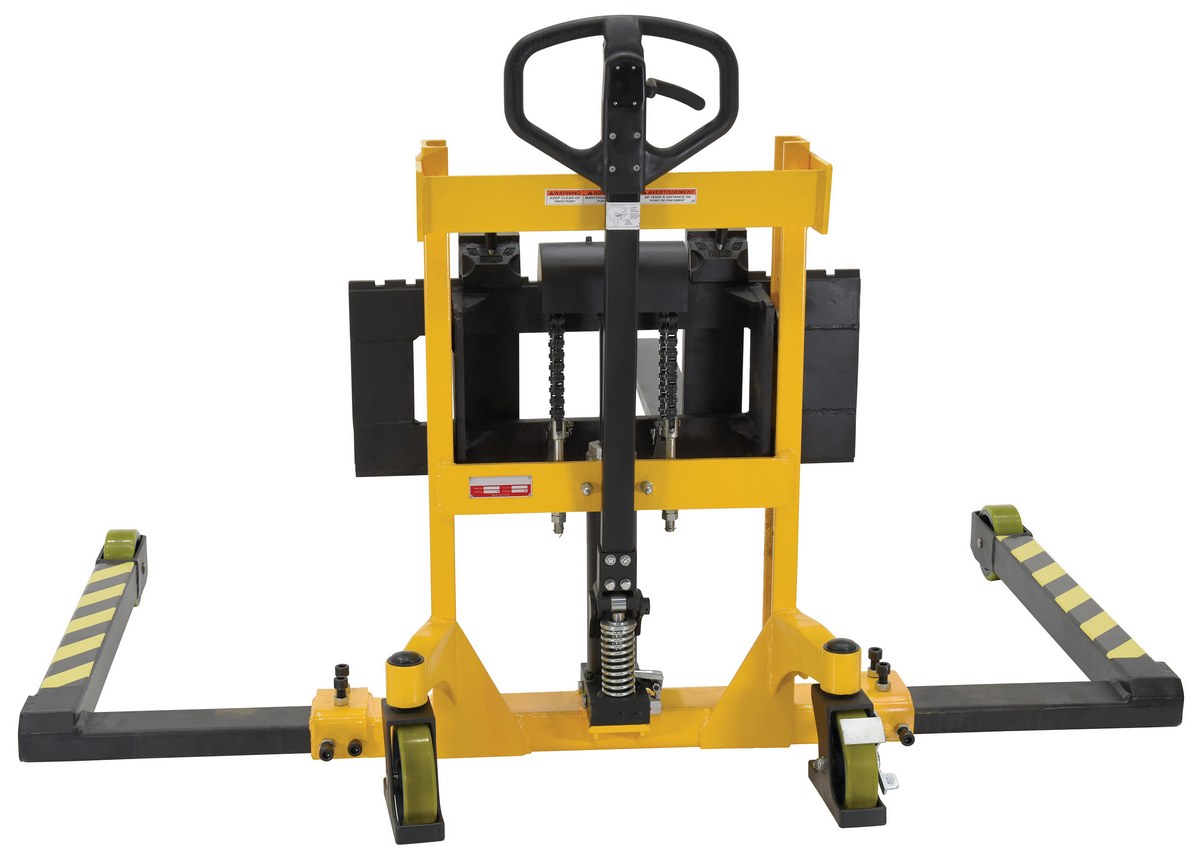

VHPS-3000-AA-17 VHPS-3000-AA-171 Year Limited WarrantyStacker Manual Pump 2 - 35 In. 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17		726

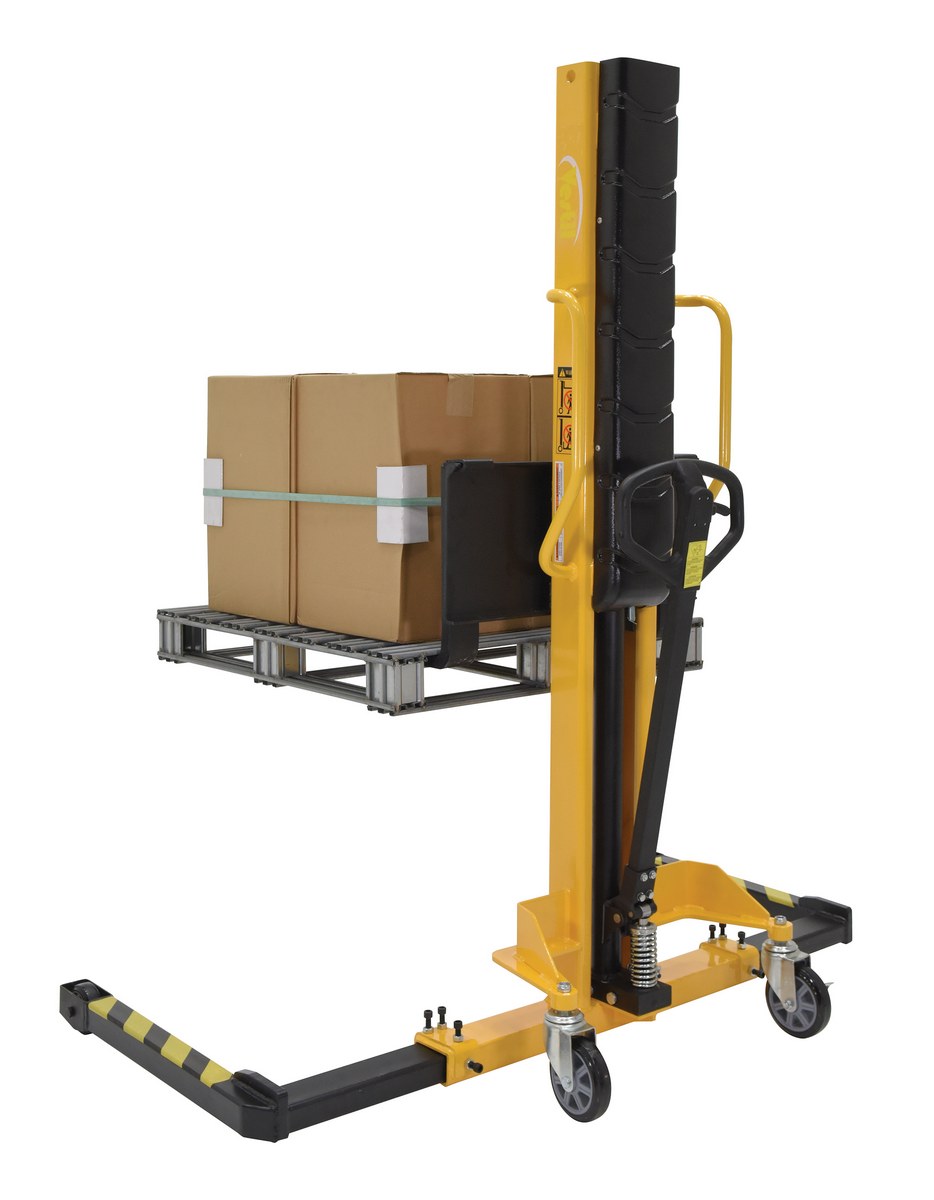

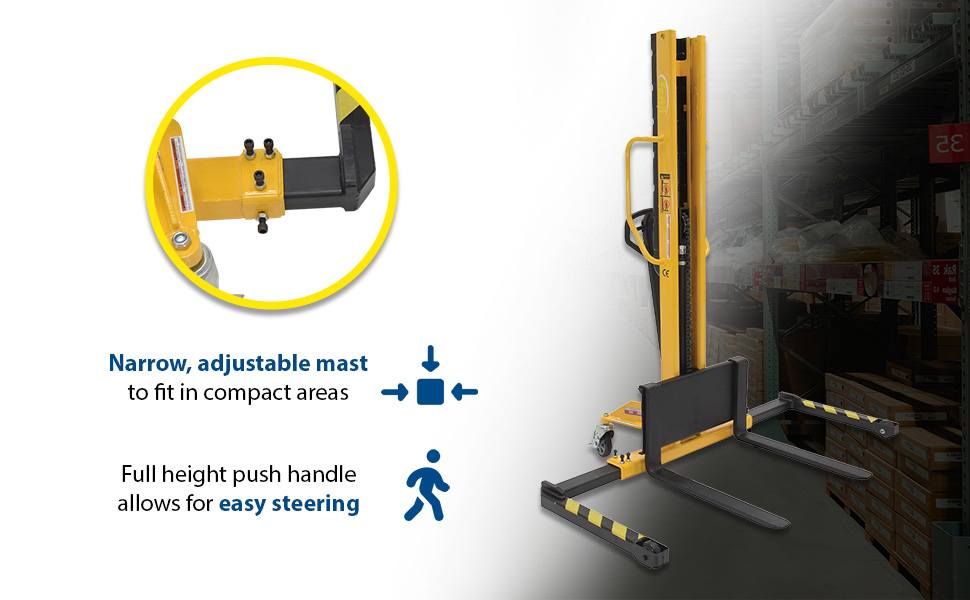

VHPS-NM-1000-AA VHPS-NM-1000-AA1 Year Limited WarrantySteel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62		650

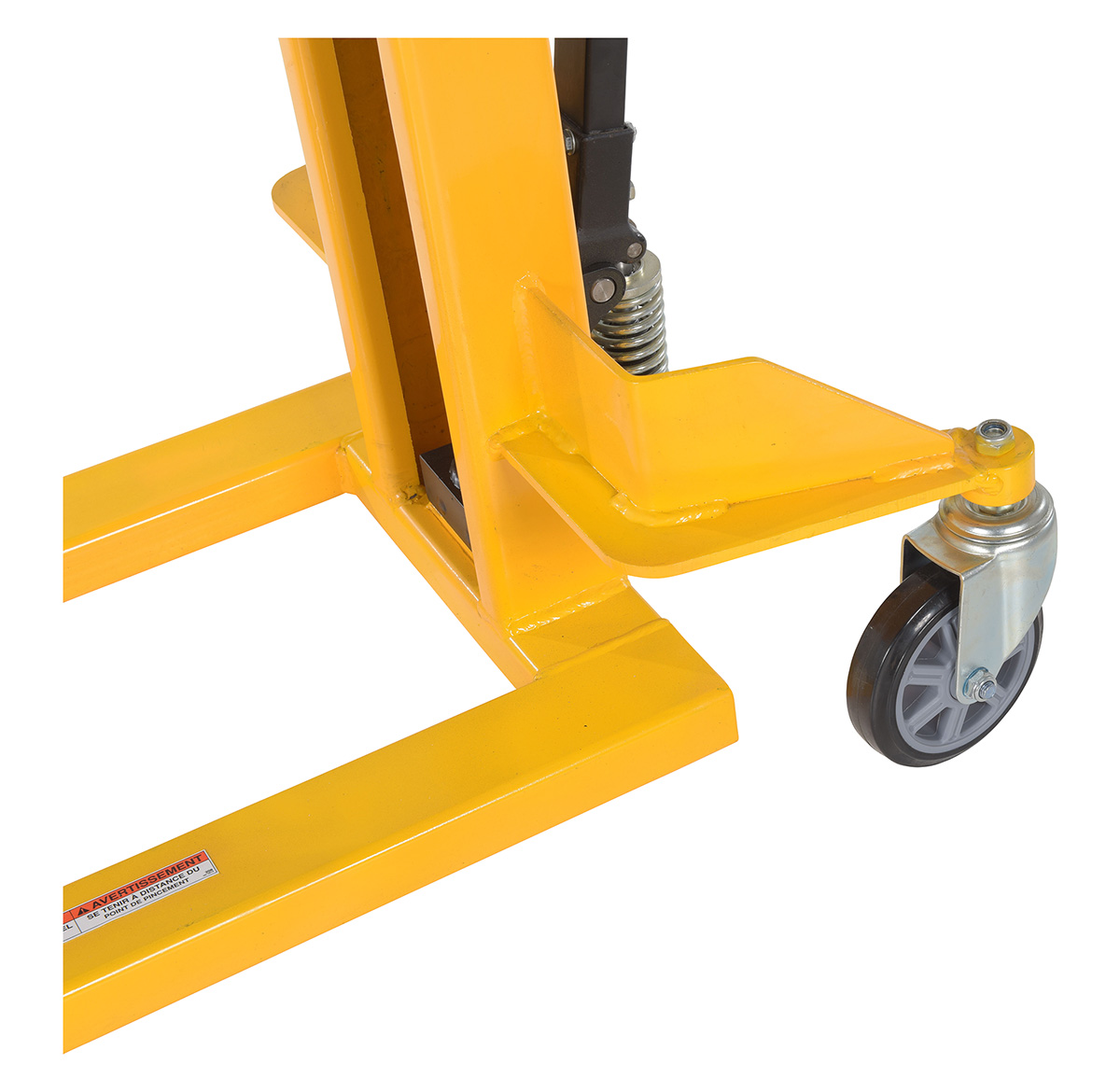

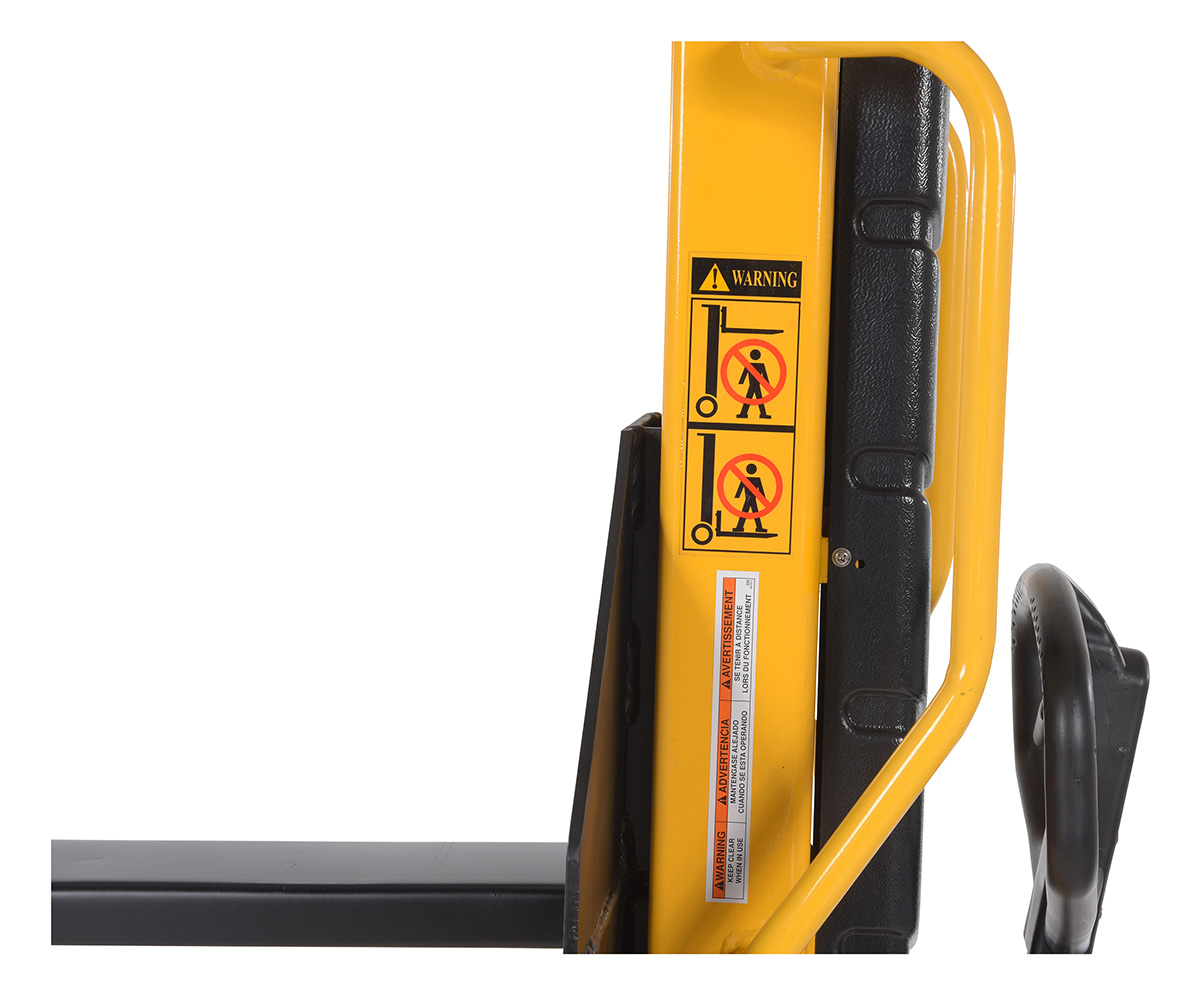

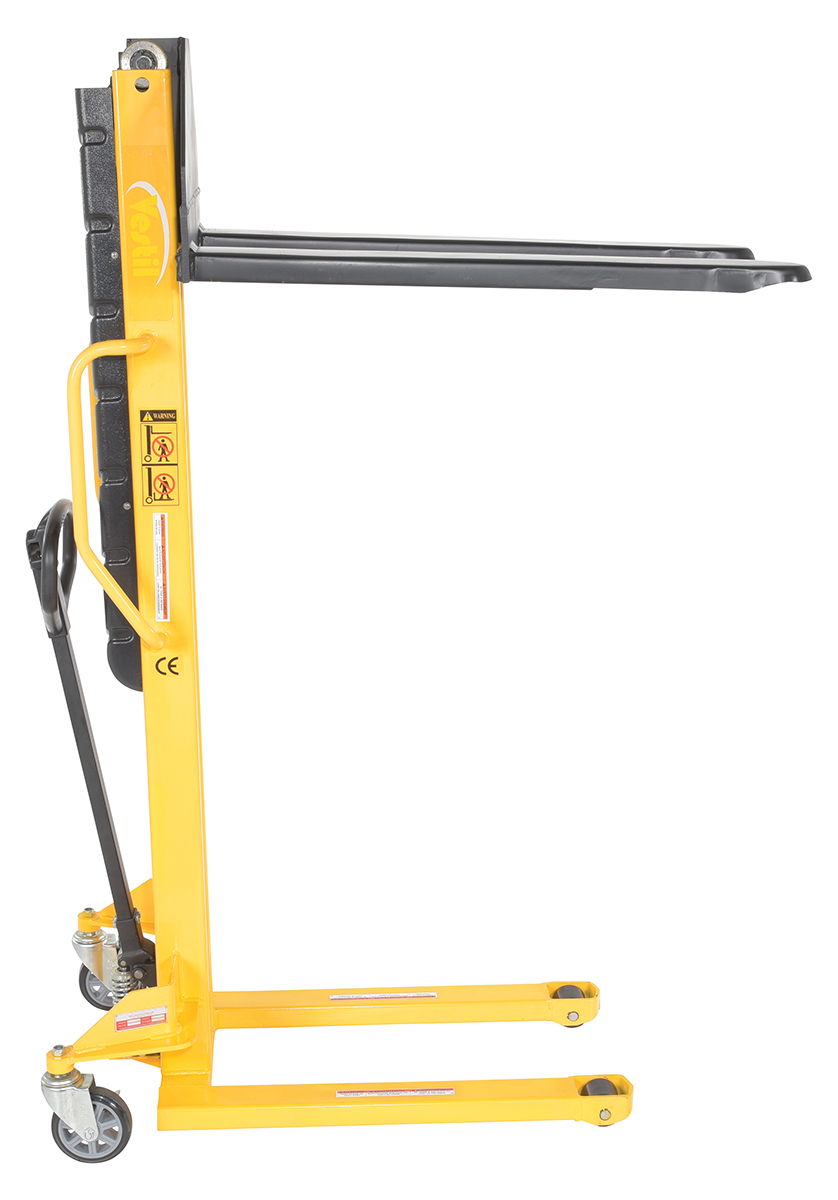

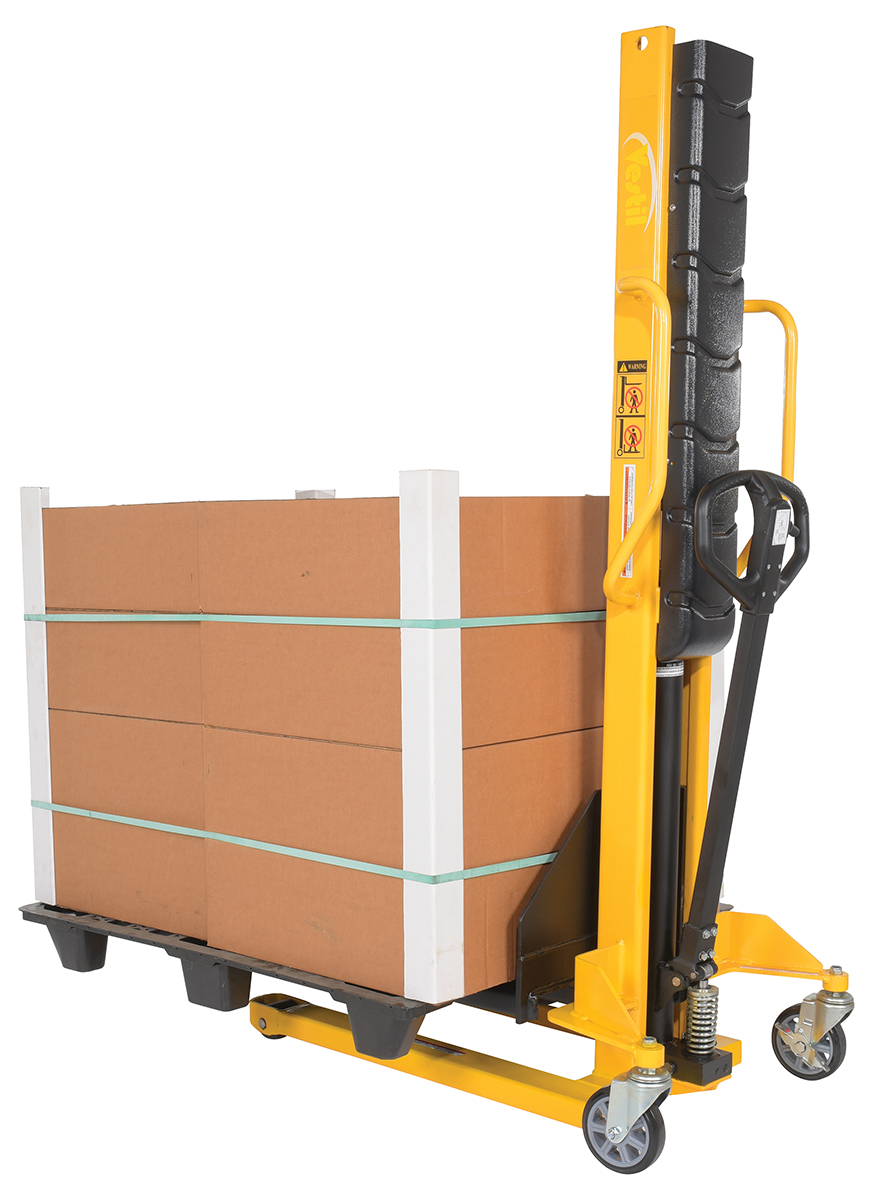

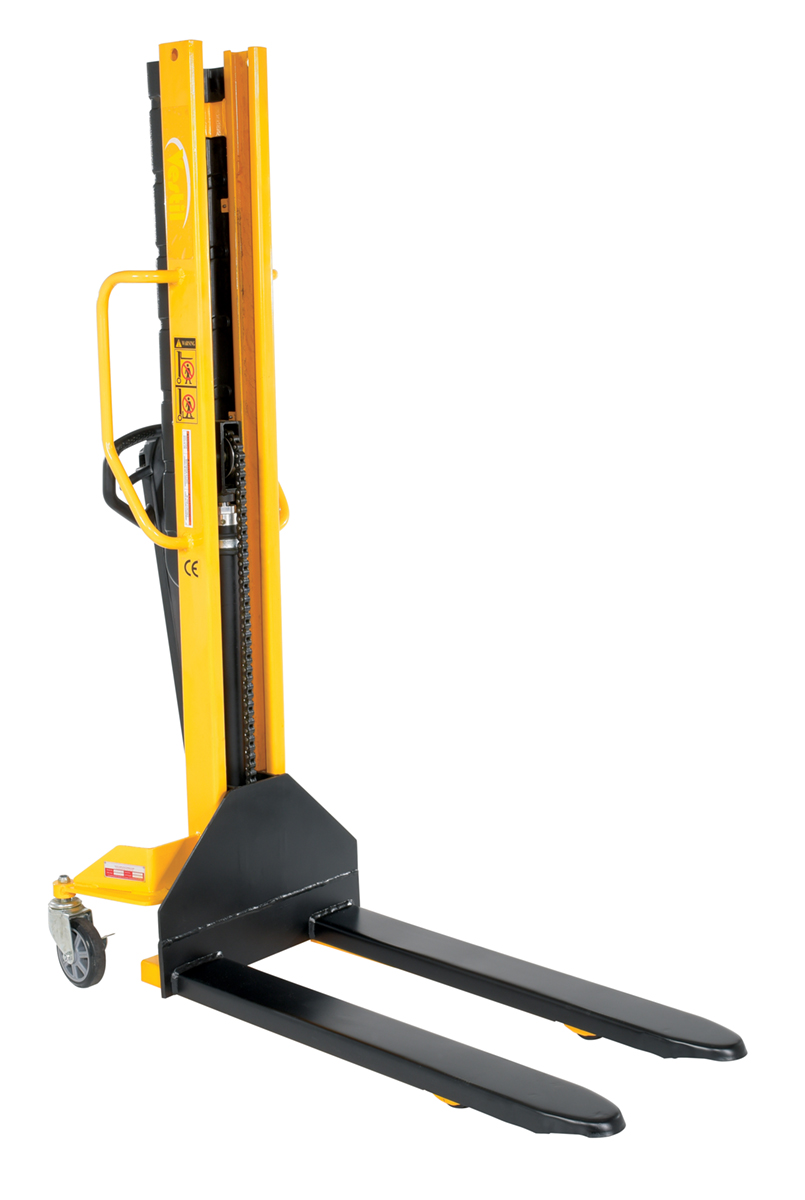

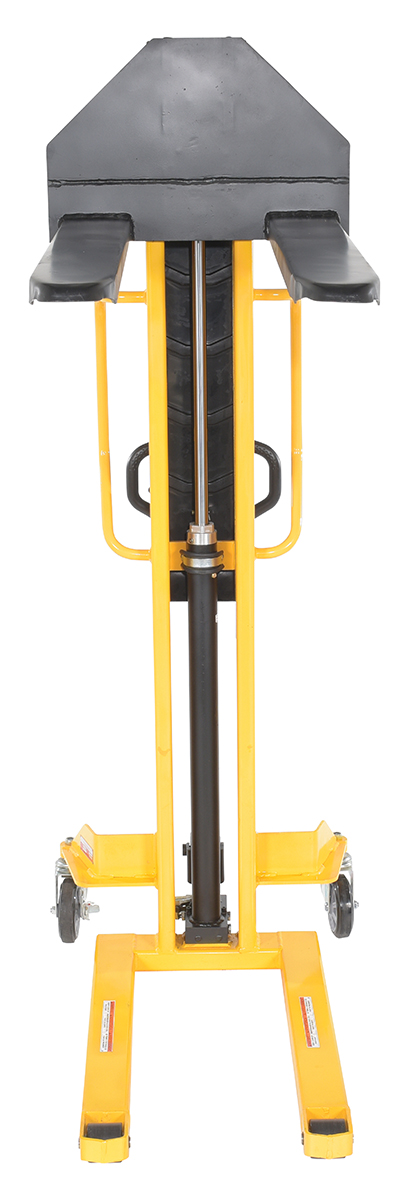

VHPS-NM-1000-FF VHPS-NM-1000-FF1 Year Limited WarrantySteel Manual Stacker Narrow Mast Fixed Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62		470

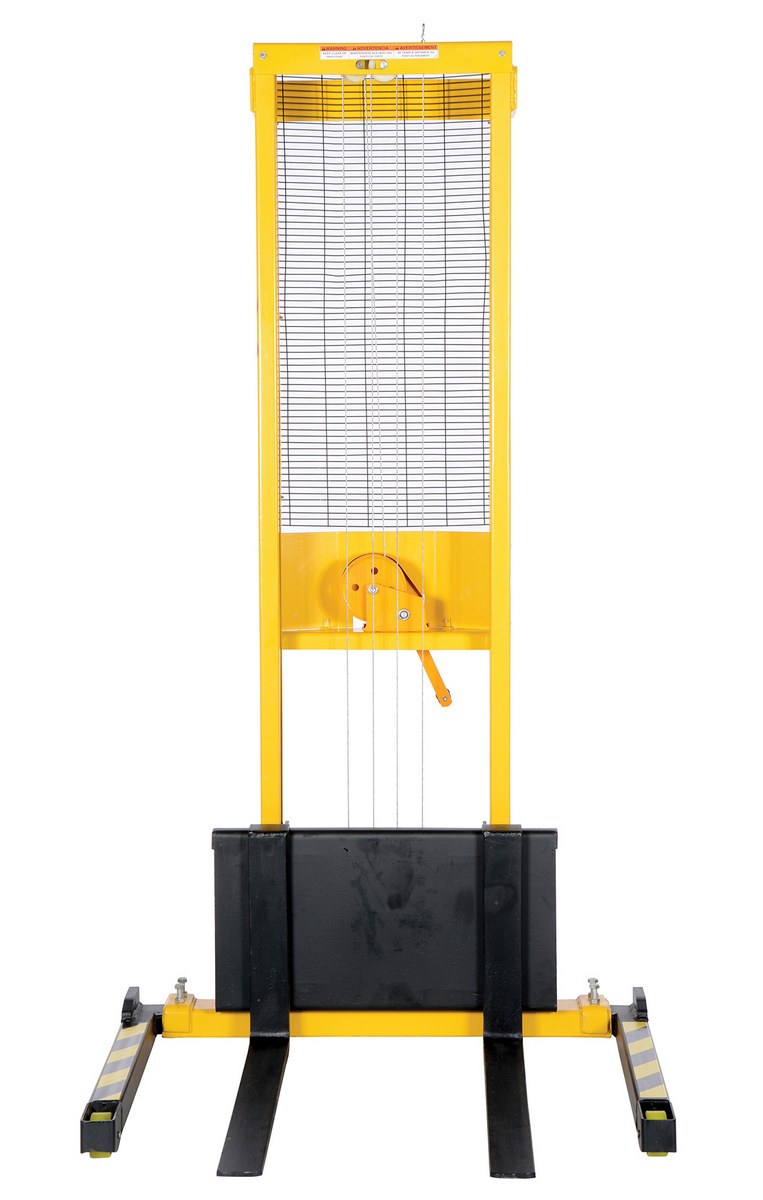

VWS-770-AA VWS-770-AA1 Year Limited WarrantySteel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		361

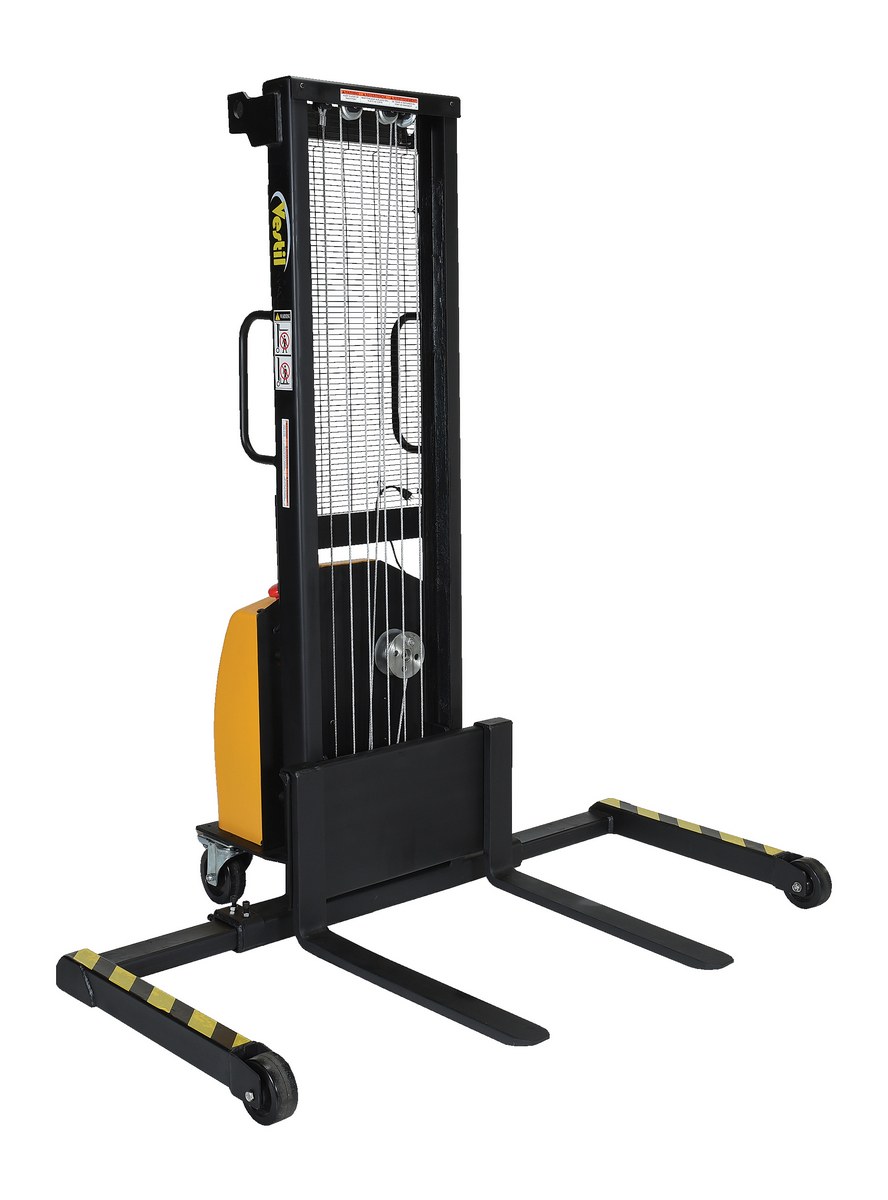

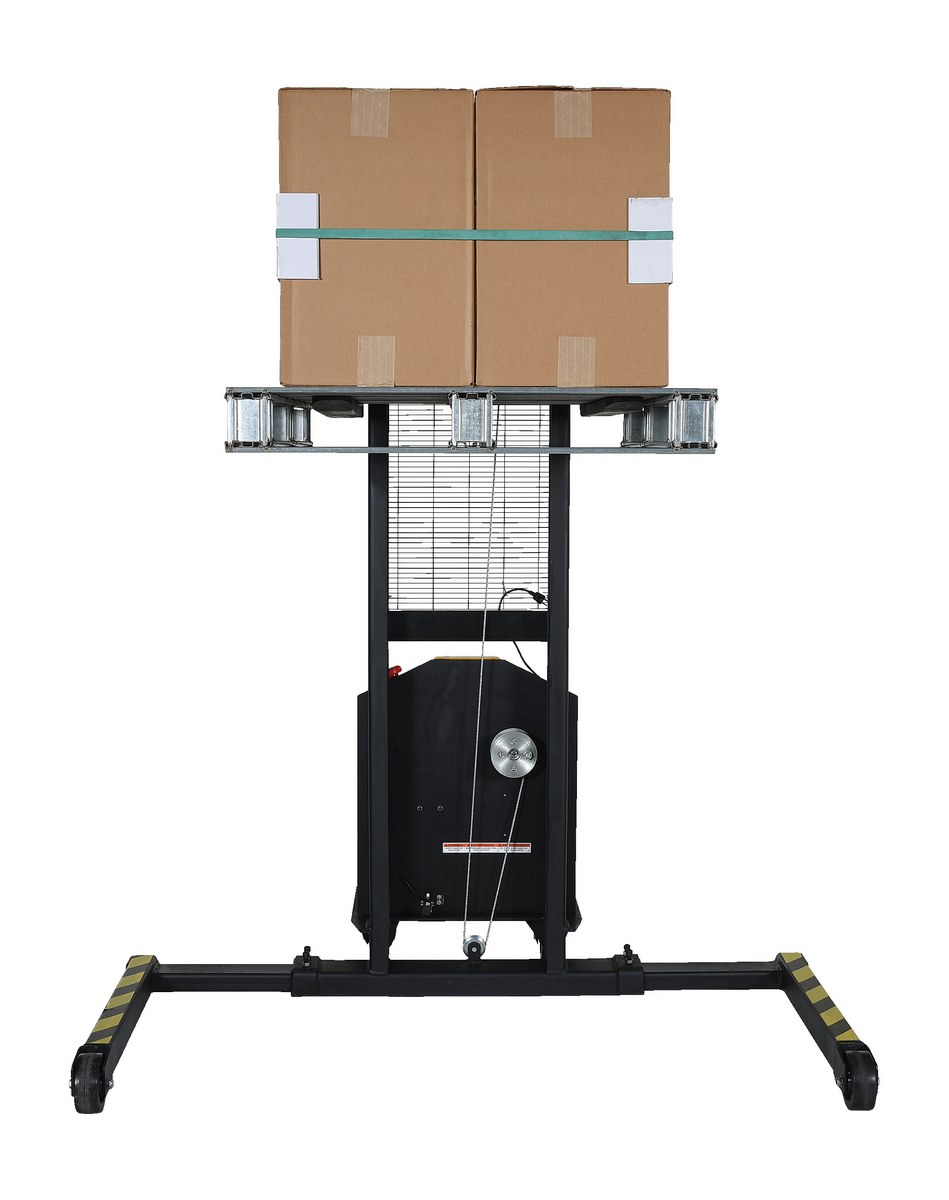

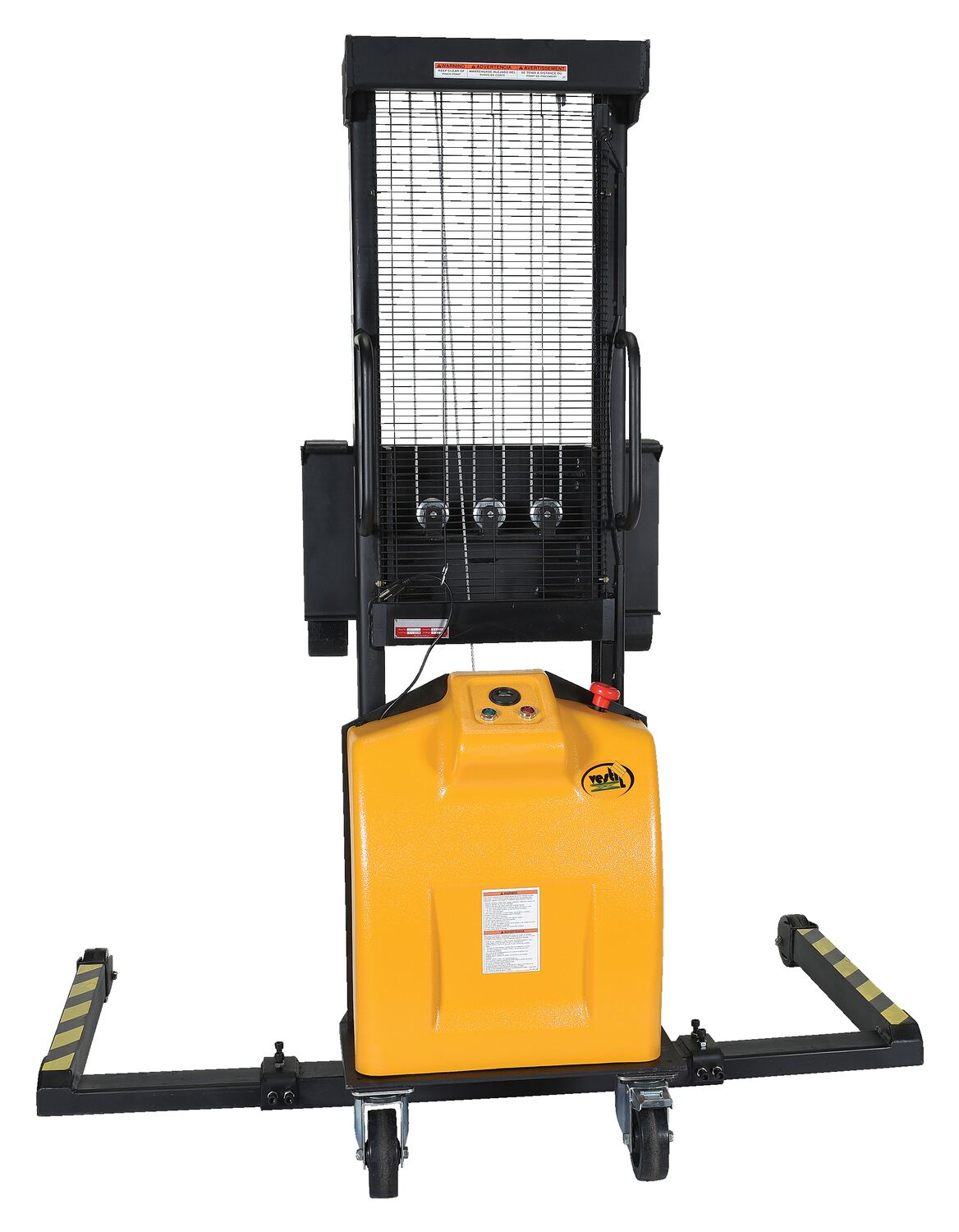

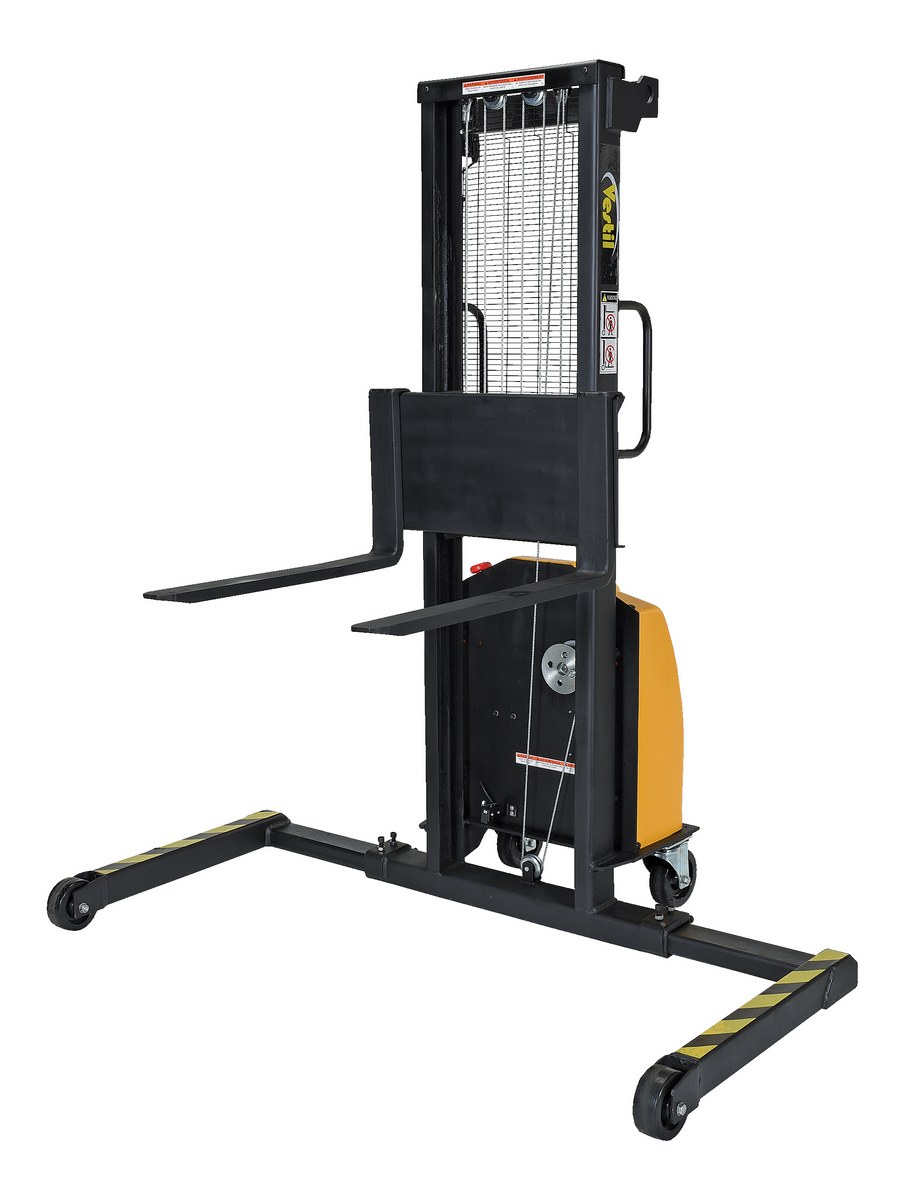

VWS-770-AA-DC VWS-770-AA-DC1 Year Limited WarrantySteel Stacker with Adjustable DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		566

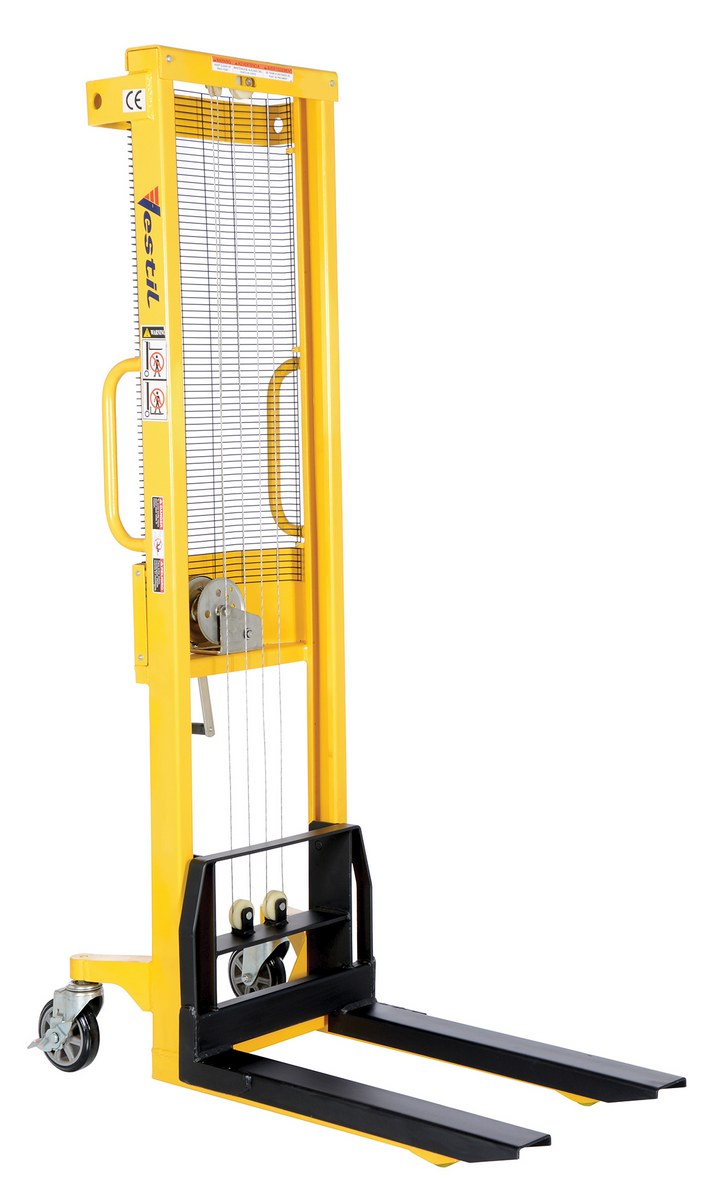

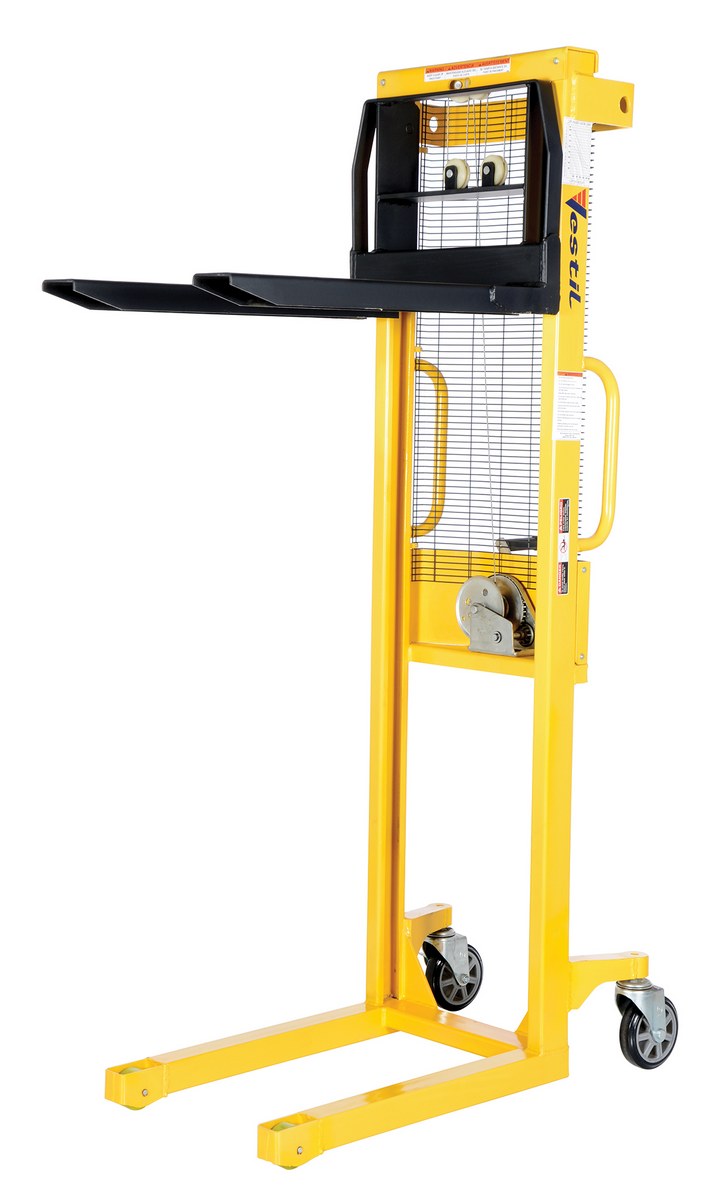

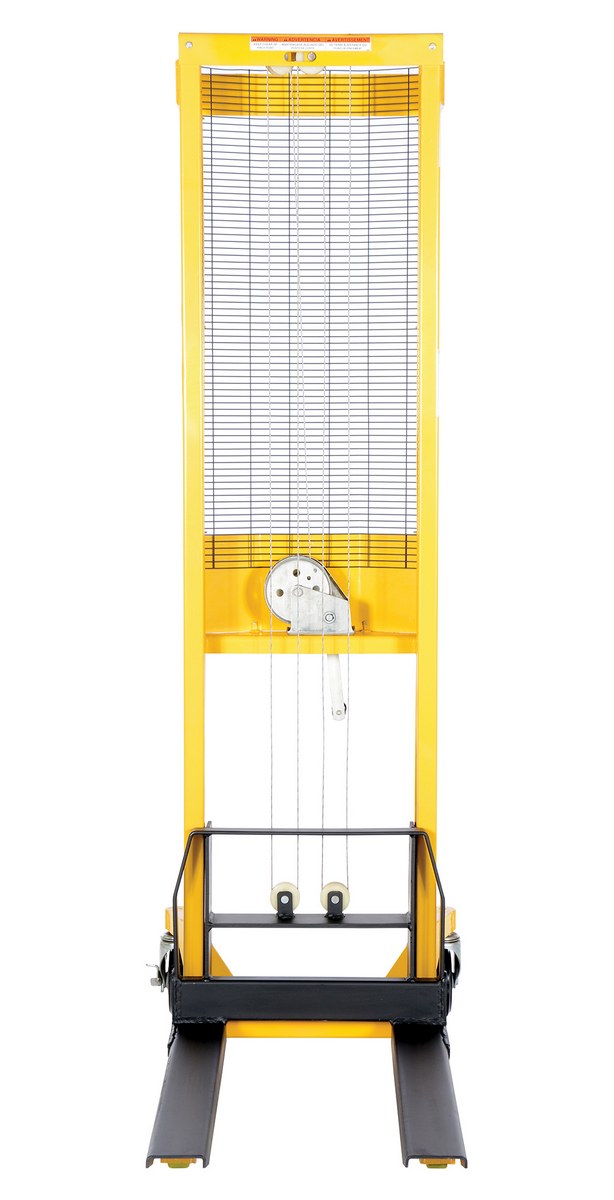

VWS-770-FF VWS-770-FF1 Year Limited WarrantySteel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		235

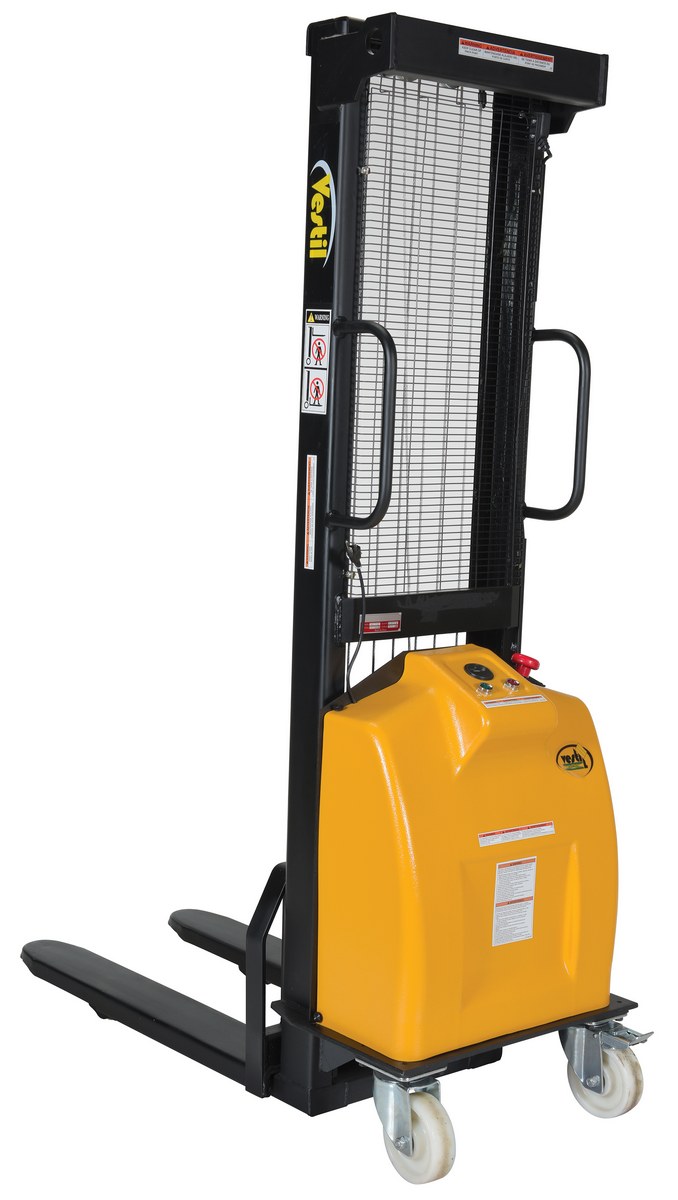

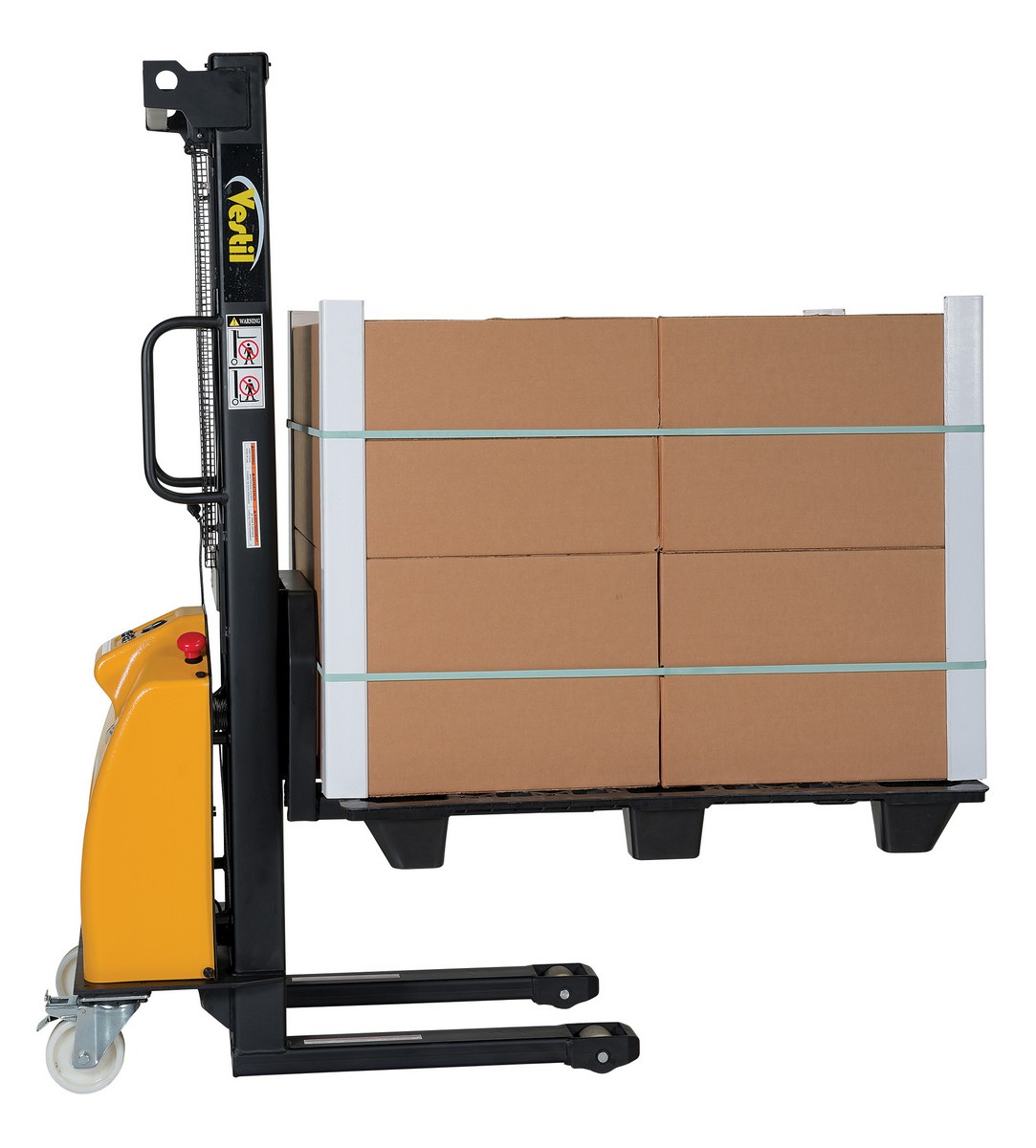

VWS-770-FF-DC VWS-770-FF-DC1 Year Limited WarrantySteel Stacker with Fixed DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		462

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VHPS-2000-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 2 to 63
Uniform Capacity (lb.): 2000
Service Range (in.): 2 to 63

VHPS-2000-AA-118
Unit:
Size: W x L x H
Weight:
Limited Warranty
-

-

VHPS-2000-AA-17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 17
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 17

VHPS-2000-AA-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 35
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 35

VHPS-2000-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63
Uniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63

VHPS-2000-FF-118
Unit:
Size: W x L x H
Weight:
Limited Warranty
-

-

VHPS-2200-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5
Uniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5

VHPS-3000-AA-17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17
Uniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17

VHPS-NM-1000-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62
Uniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62

VHPS-NM-1000-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62
Uniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62

VWS-770-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16

VWS-770-AA-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16

VWS-770-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8

VWS-770-FF-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8

For More Details then the Option chart below provides, Click the blue button below, w/ the Model Number you want details for
S-DK VHPS-DK VHPS-NM-AA-BAH VHPS-NM-AA-PRP VHPS-NM-AA-RFK VHPS-NM-AA-RP VHPS-NM-AA-RR VHPS-NM-AA-SDG VWS-AA-BAH VWS-AA-PRP VWS-AA-RFK VWS-AA-RP VWS-AA-RR VWS-AA-SDG VWS-DK
Stacker Options
Model Image PDFs Description Wt.
(lbs)

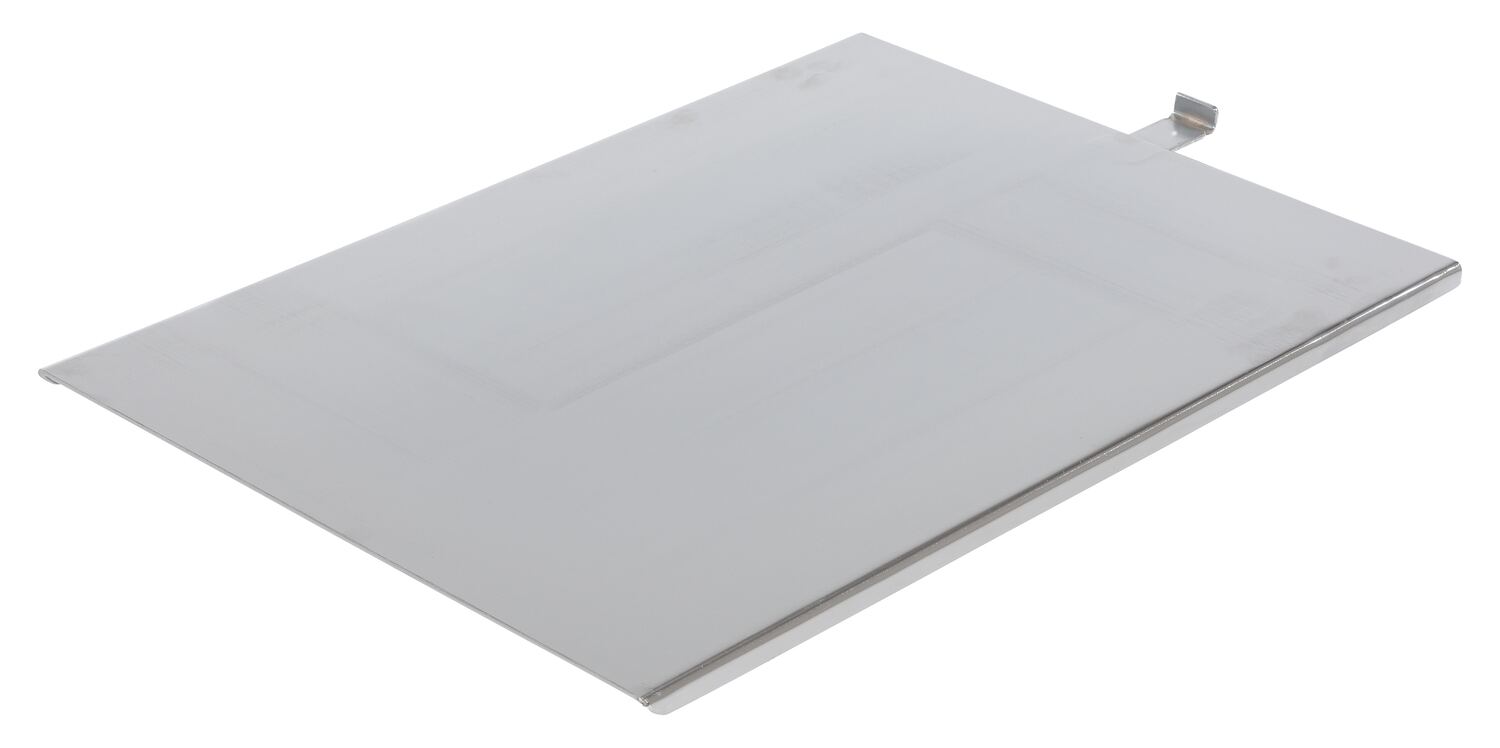

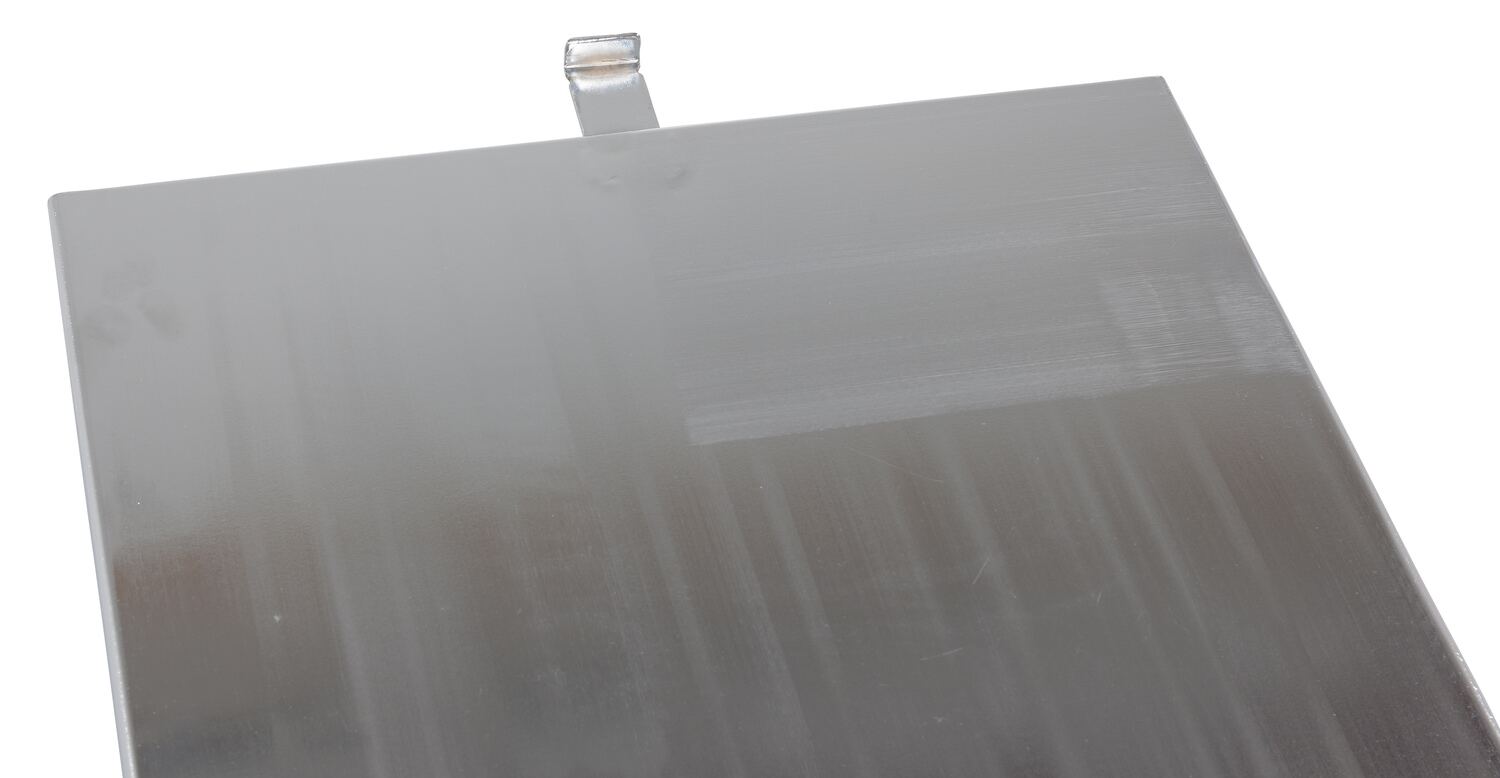

VWS-DK Warranty PDF Optional Removable Platform for VWS series -

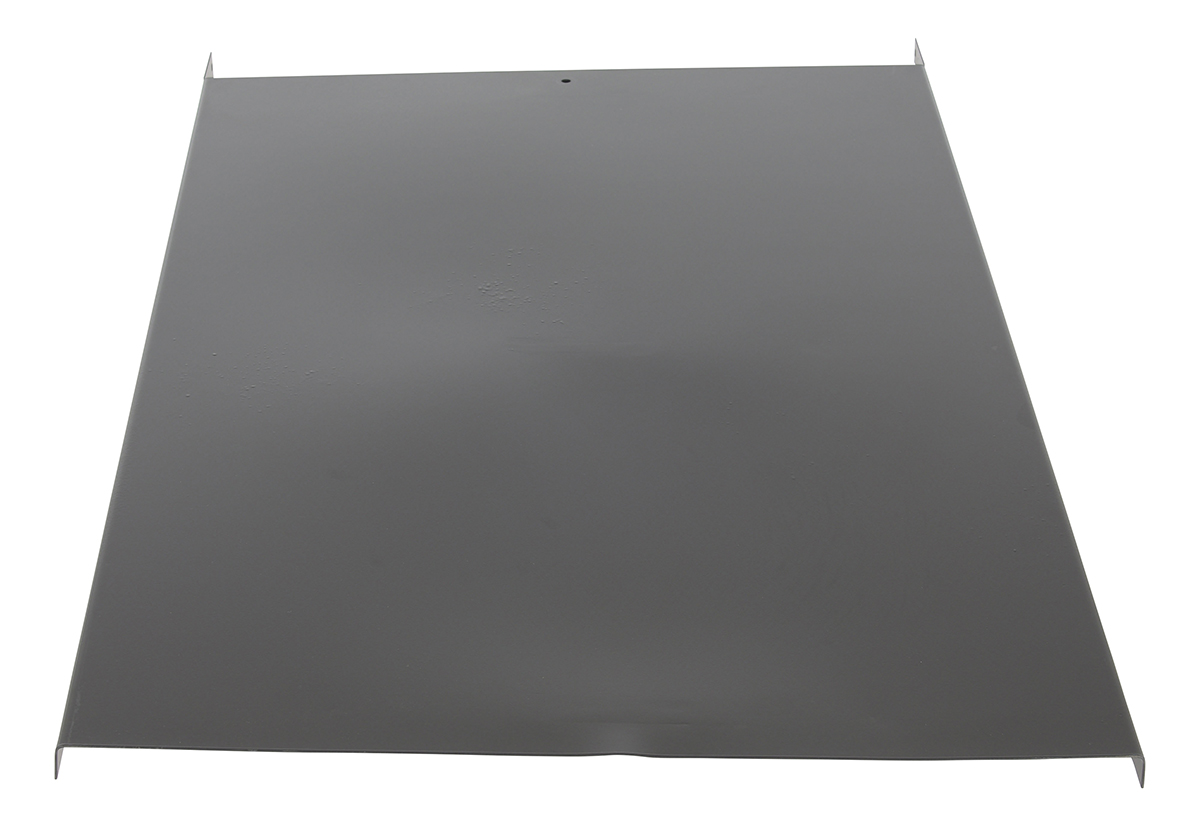

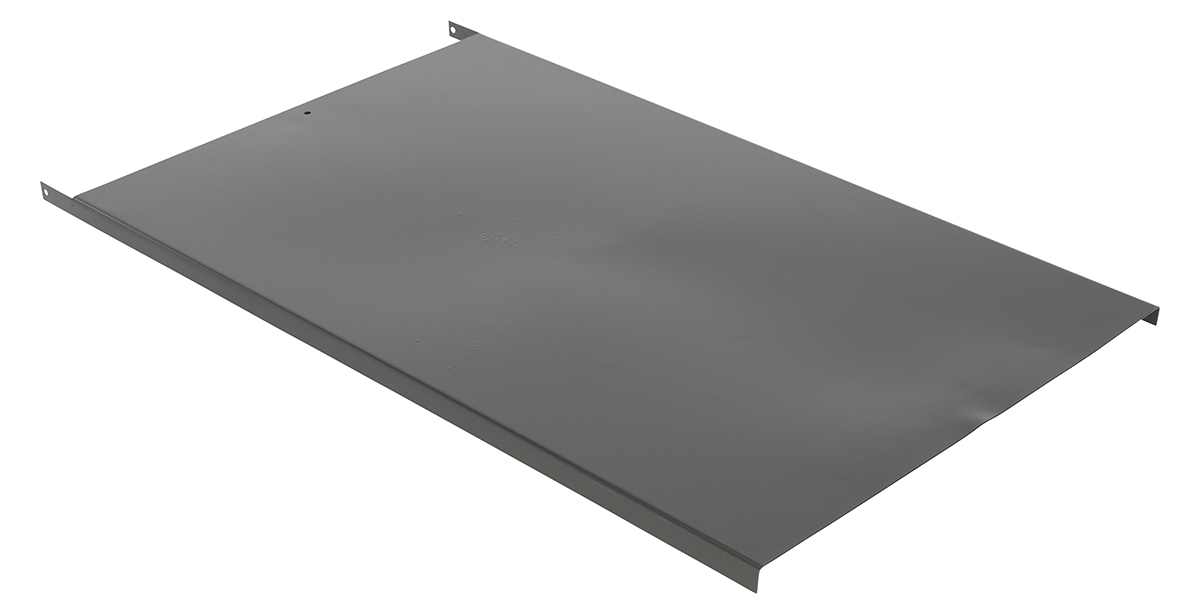

VHPS-DK Warranty PDF Optional Removable Platform for VHPS series 40
VWS-AA-RR Warranty PDF ADJ MANUAL WINCH STACKER REEL ROTATOR ATTACHMENT 55

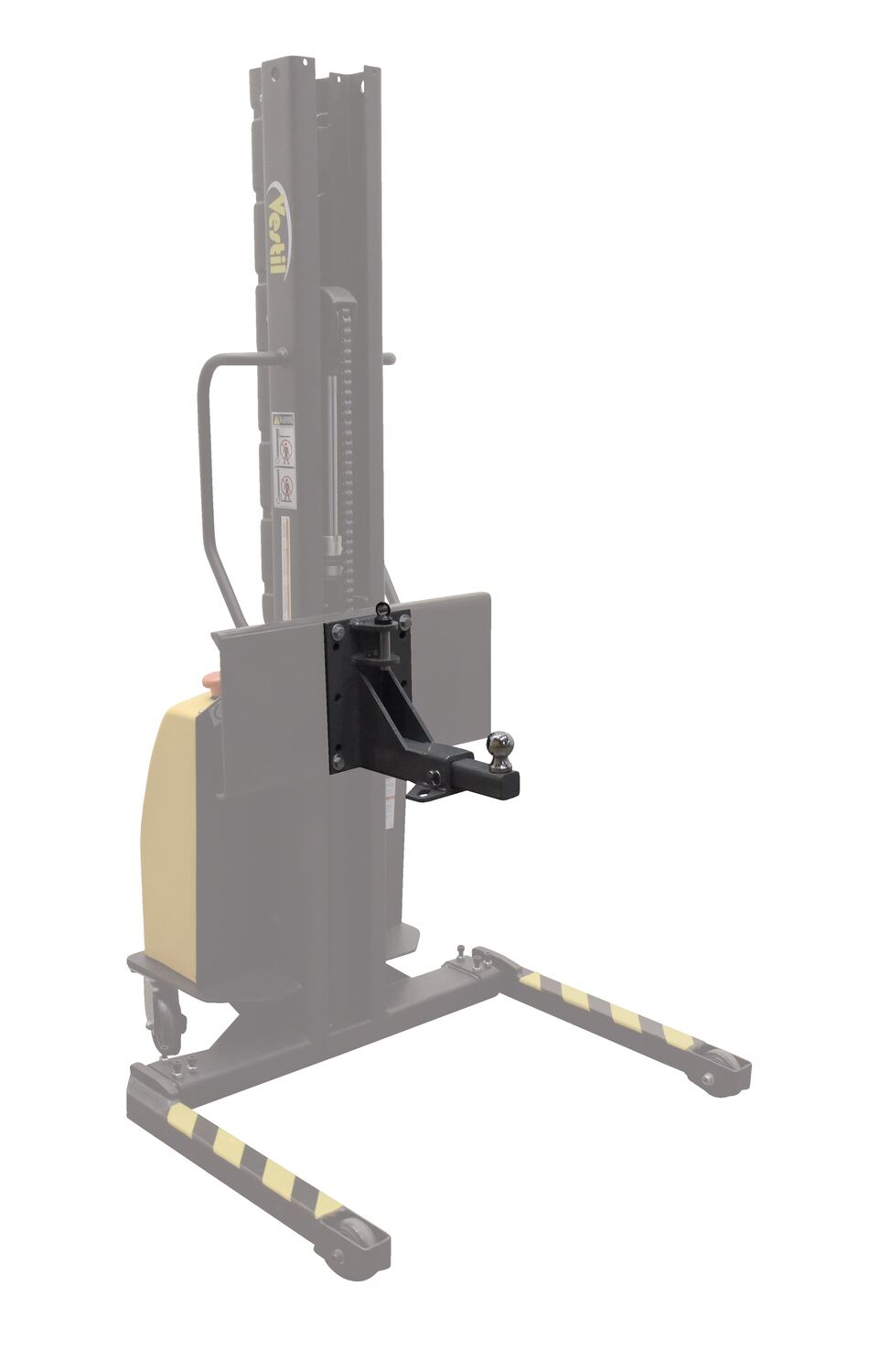

VWS-AA-BAH Warranty PDF ADJ MANUAL WINCH STACK SINGL BALL HITCH ATTACHMENT 37

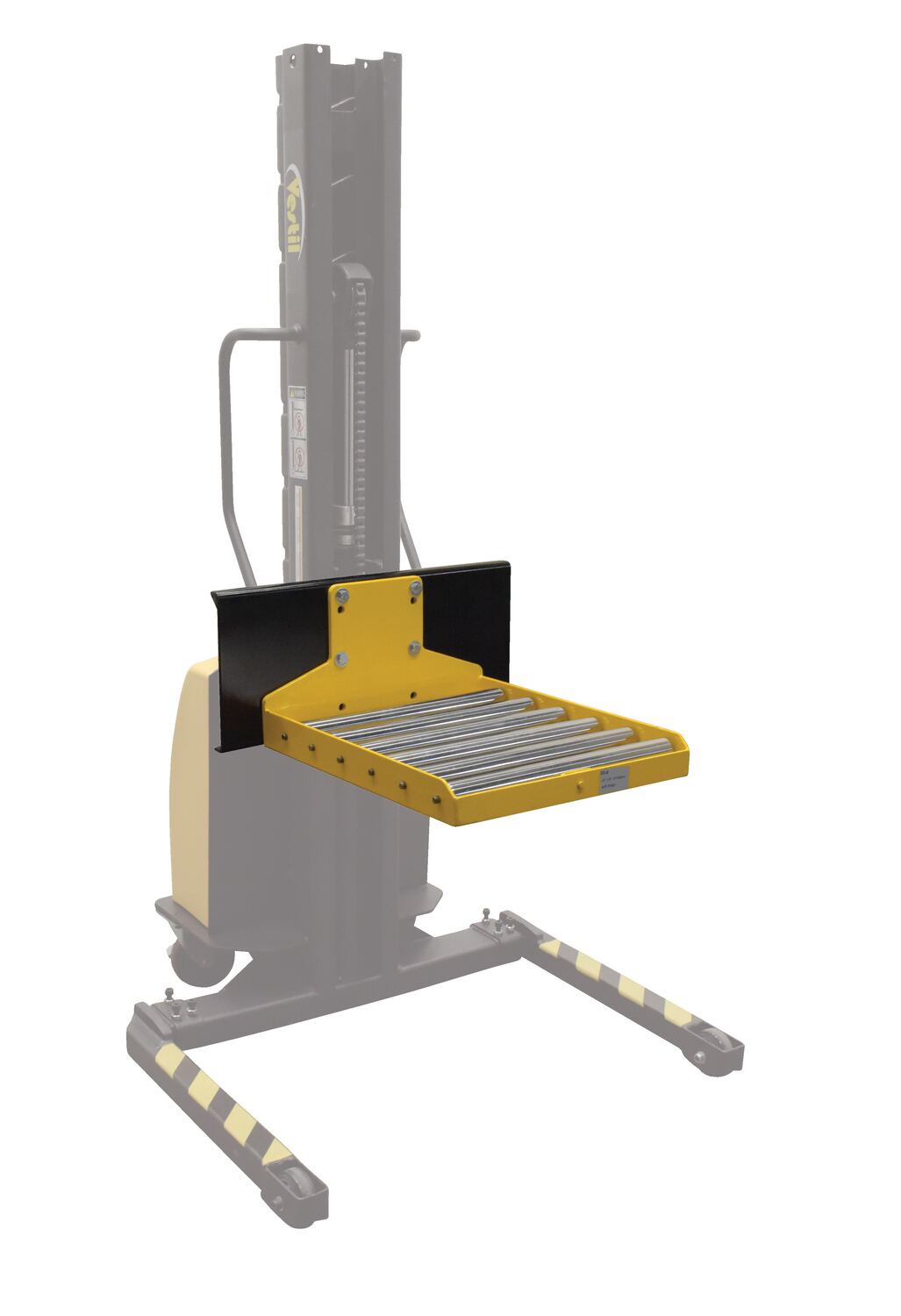

VWS-AA-RP Warranty PDF ADJ MANUAL WINCH STACK ROLLER PLATFORM ATTACHMENT 57
VWS-AA-PRP Warranty PDF ADJ MANUAL WINCH STACKER POLE ATTACHMENT ONLY 35
VWS-AA-SDG Warranty PDF ADJ MANUAL WINCH STACK SINGL DRUM GRIP ATTACHMENT 101
VWS-AA-RFK Warranty PDF ADJ MANUAL WINCH STACKER ROLL FORK ATTACHMENT 111

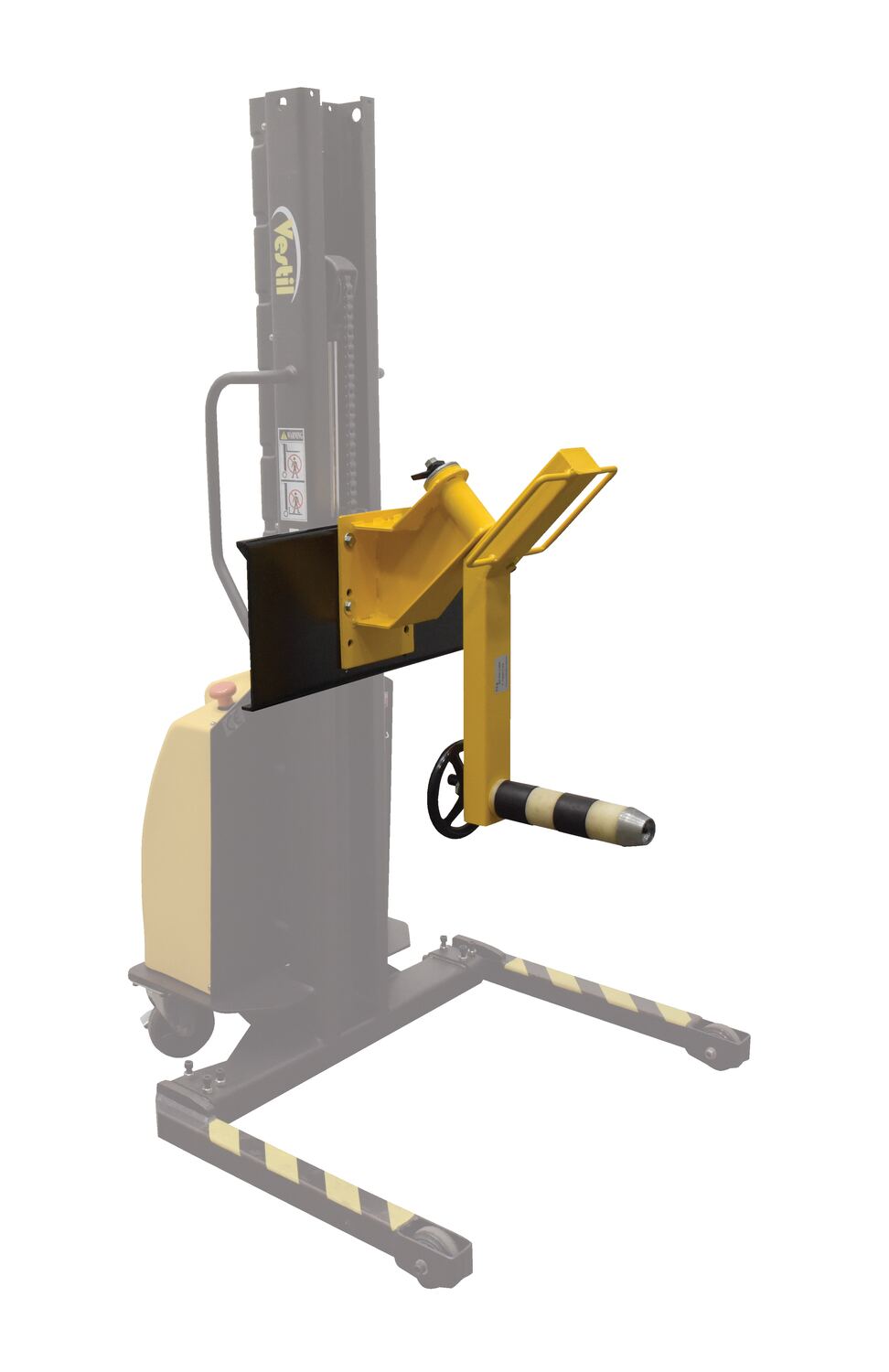

VHPS-NM-AA-RR Warranty PDF ADJ MANUAL STACK NARROW MAST REEL ROTATOR ATTACHMENT 55
VHPS-NM-AA-BAH Warranty PDF ADJ MANUAL STACK NARROW MAST SINGL BALL HITCH ATTACHMENT 37
VHPS-NM-AA-RP Warranty PDF ADJ MANUAL STACK NARROW MAST ROLLER PLATFORM ATTACHMENT 57

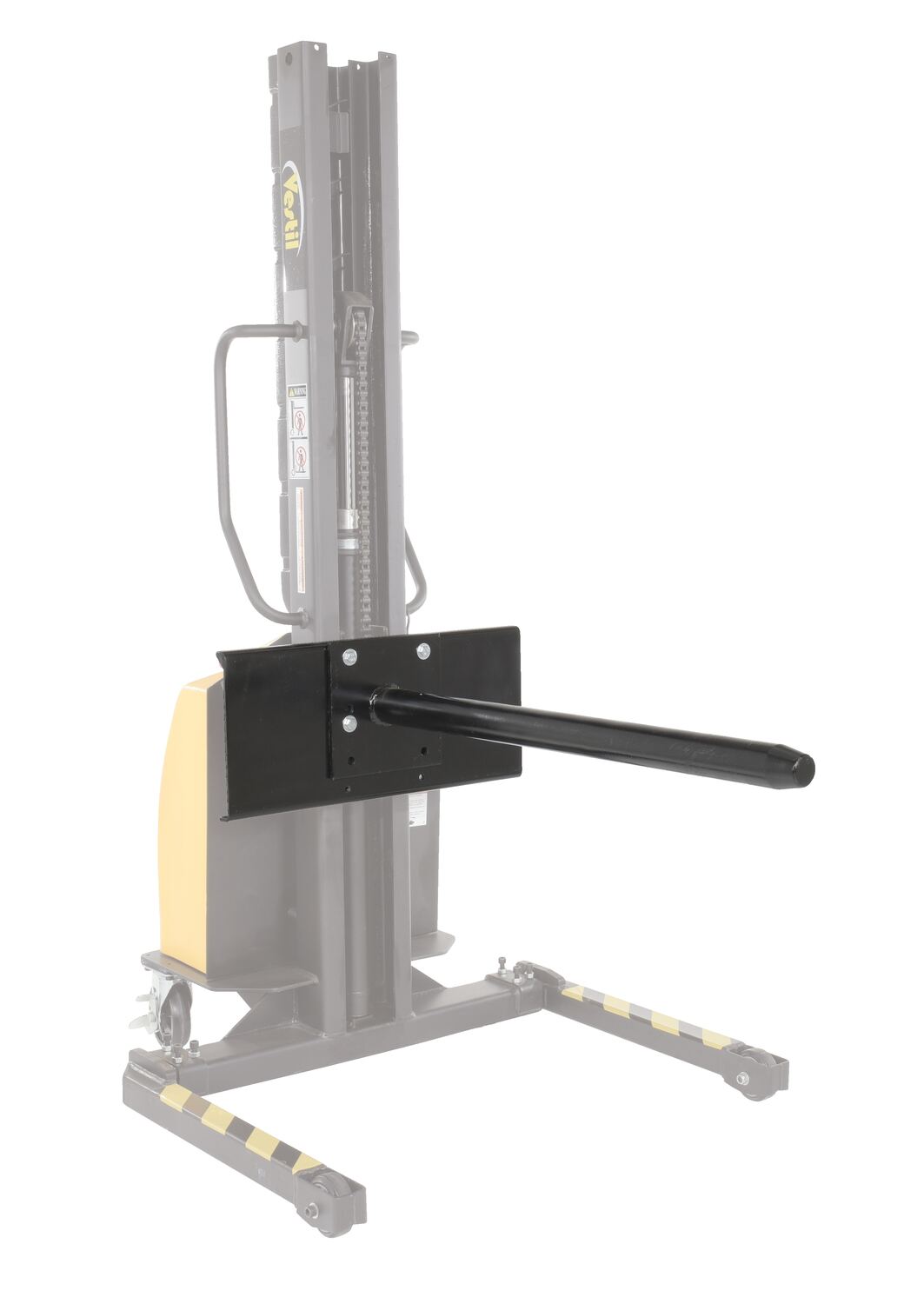

VHPS-NM-AA-PRP Warranty PDF ADJ MANUAL STACK NARROW MAST POLE ATTACHMENT ONLY 35

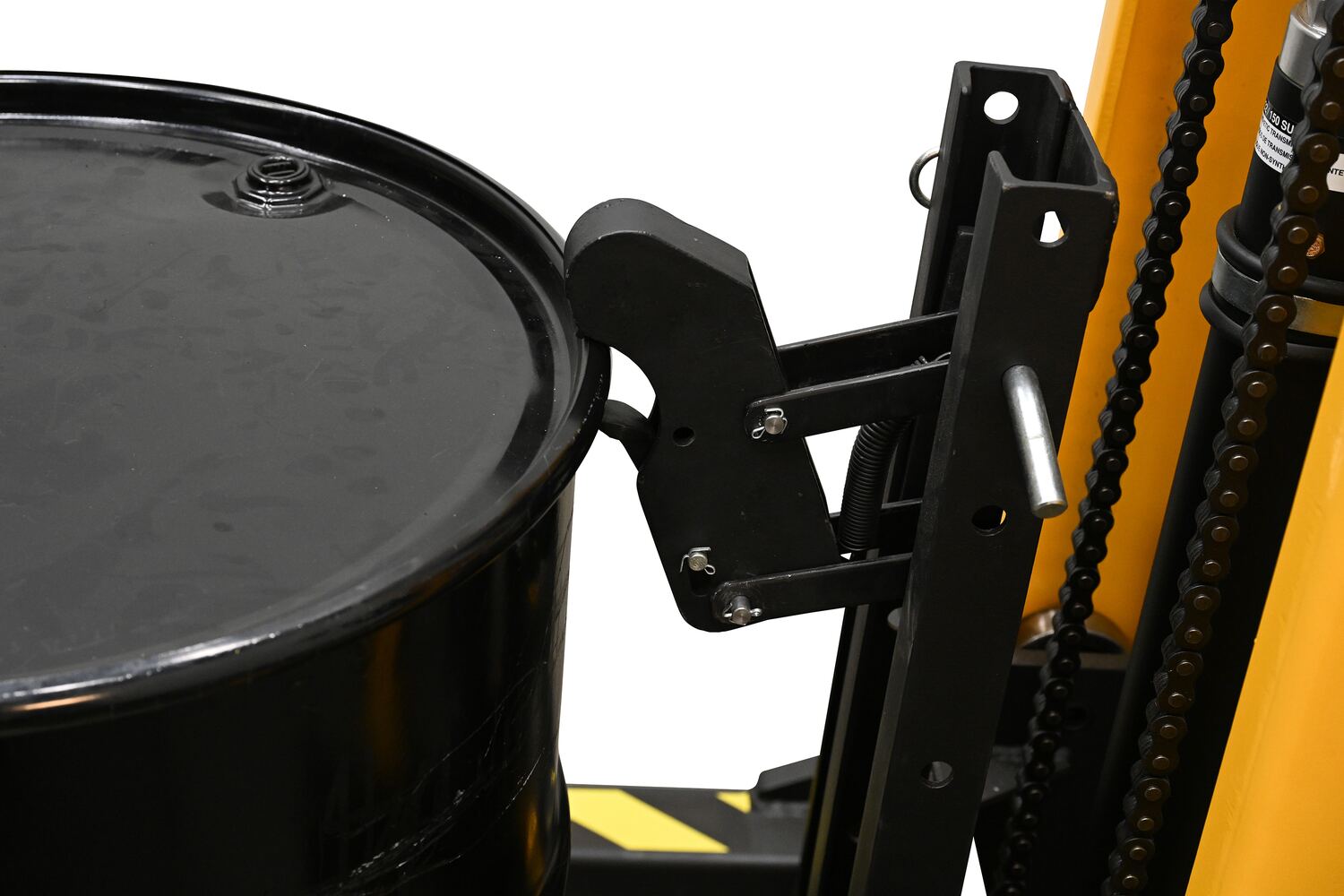

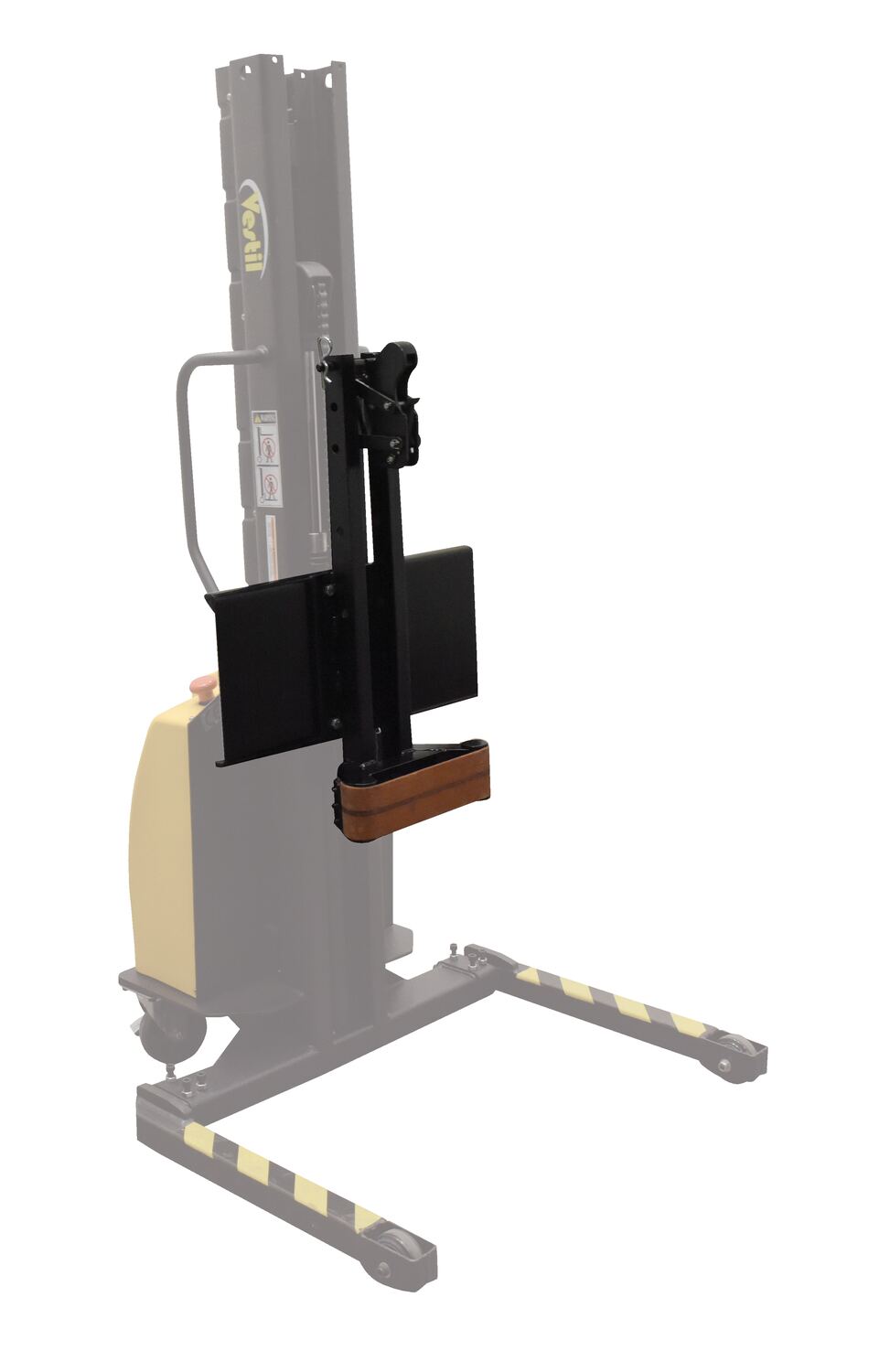

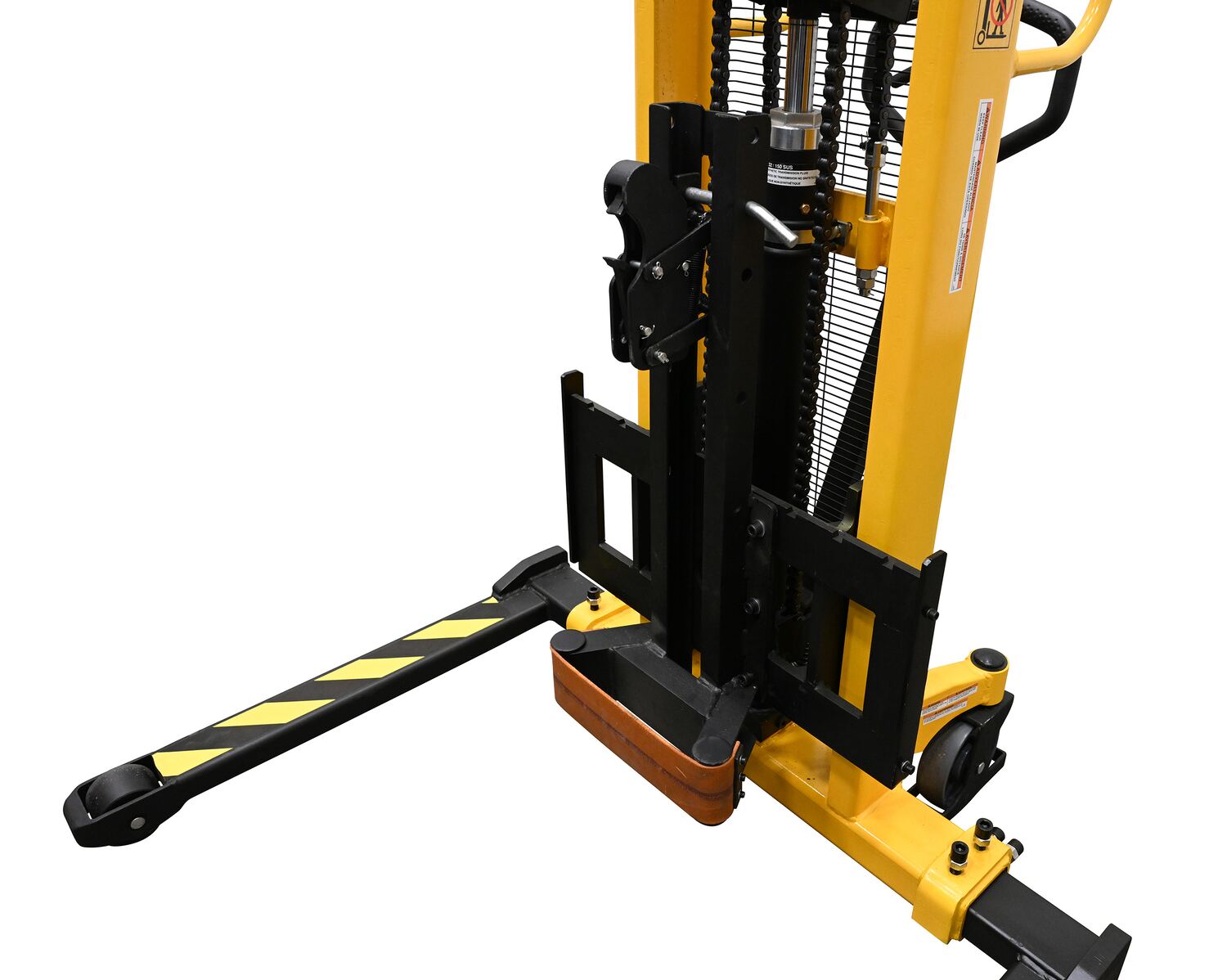

VHPS-NM-AA-SDG Warranty PDF ADJ MANUAL STACK NARROW MAST SINGL DRUM GRIP ATTACHMENT 101

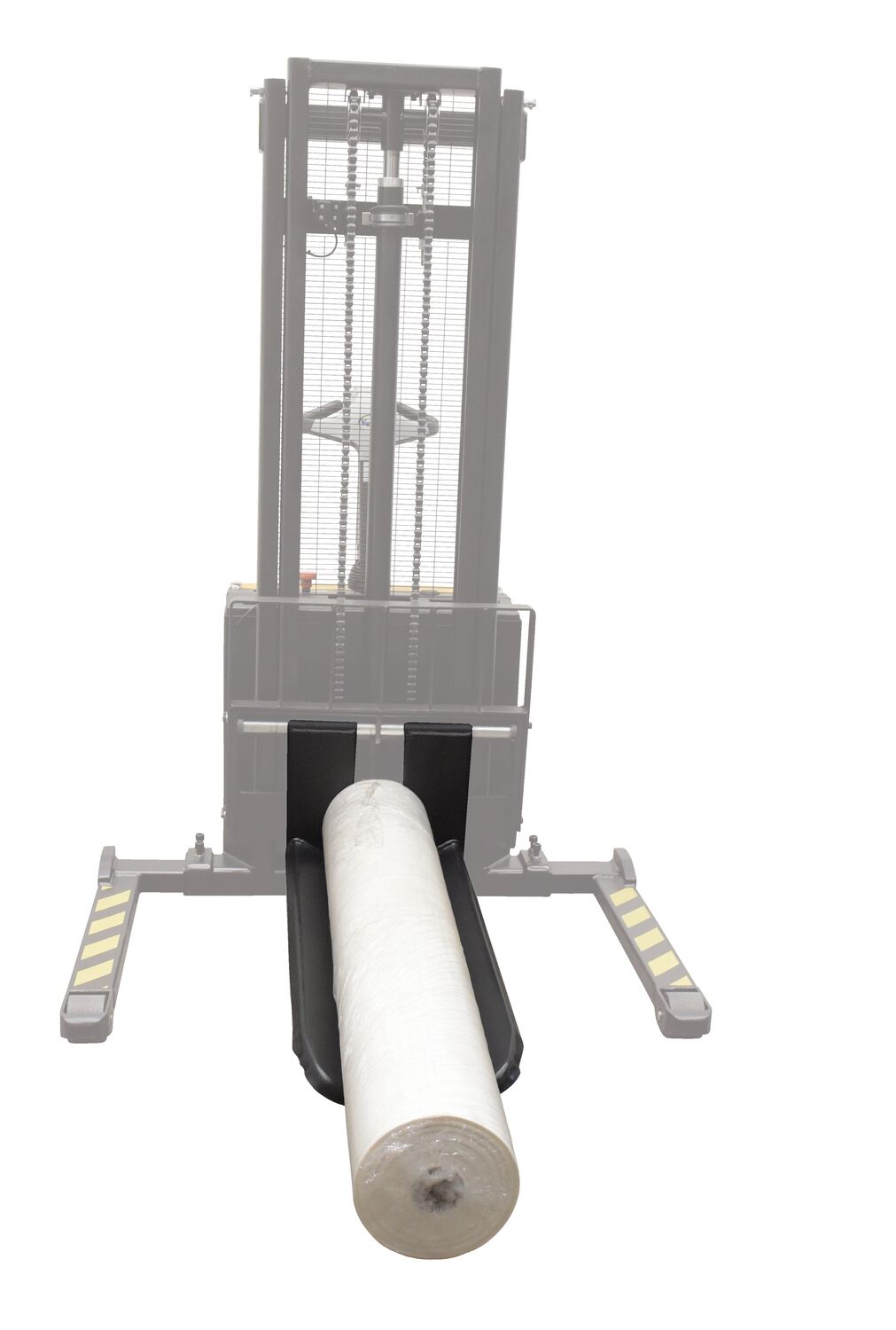

VHPS-NM-AA-RFK Warranty PDF ADJ MANUAL STACK NARROW MAST ROLL FORK ATTACHMENT 111
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Manual & Electric Stackers PDF's will open in a new window when clicked.

Manuals


VHPS-2000
Owners Manual

VWS-770-AA
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


VHPS-2000-AA-17

VHPS-2000-AA-35

VHPS-2000-AA-118

VHPS-2000-FF

VHPS-2000-FF-118

VHPS-3000-AA-17

VHPS-NM-1000-AA

VHPS-NM-1000-FF

VWS-770-AA

VWS-770-AA-DC

VWS-770-FF

VWS-770-FF-DC

Testing Certificates


S-DK

VHPS-2000-AA

VHPS-2000-AA-17

VHPS-2000-AA-35

VHPS-2000-AA-118

VHPS-2000-FF

VHPS-2000-FF-118

VHPS-2200-AA

VHPS-3000-AA-17

VHPS-NM-1000-AA

VHPS-NM-1000-FF

VHPS-NM-AA-BAH

VHPS-NM-AA-PRP

VHPS-NM-AA-RFK

VHPS-NM-AA-RP

VHPS-NM-AA-RR

VHPS-NM-AA-SDG

VWS-770-AA

VWS-770-FF

VWS-770-FF-DC

VWS-AA-BAH

VWS-AA-PRP

VWS-AA-RFK

VWS-AA-RP

VWS-AA-RR

VWS-AA-SDG

SDS Sheets

Hydraulic Oil SDS Sheet for: VHPS-2000-FF

Non-Spillable Lead Acid Battery SDS Sheet for: VWS-770-AA-DC
Hydraulic Oil SDS Sheet for: VWS-770-AA-DC
Hydraulic Oil SDS Sheet for: VWS-770-FF

Non-Spillable Lead Acid Battery SDS Sheet for: VWS-770-FF-DC
Hydraulic Oil SDS Sheet for: VWS-770-FF-DC

Other PDF's


Manual Hand Pump Stacker Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets








Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the platform made of? What is the capacity and thickness ?

A: The platform is made of chromed steel. Thickness is Gauge 9 with 770 lbs. capacity.

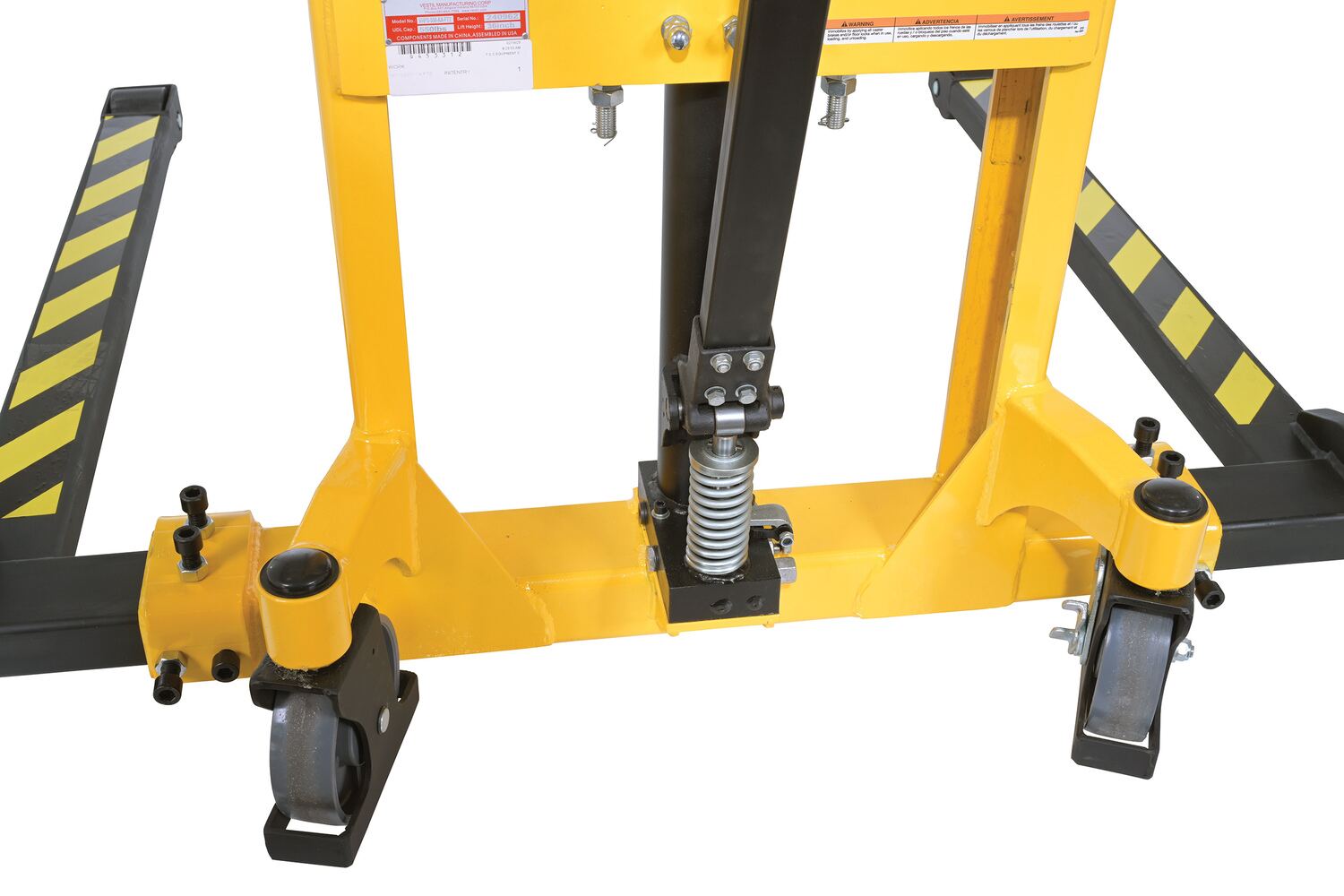

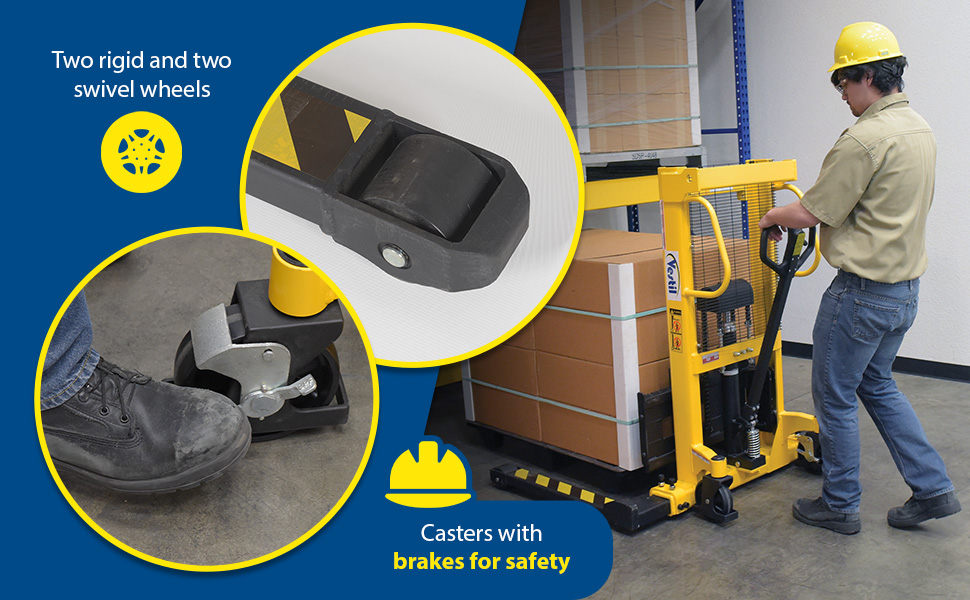

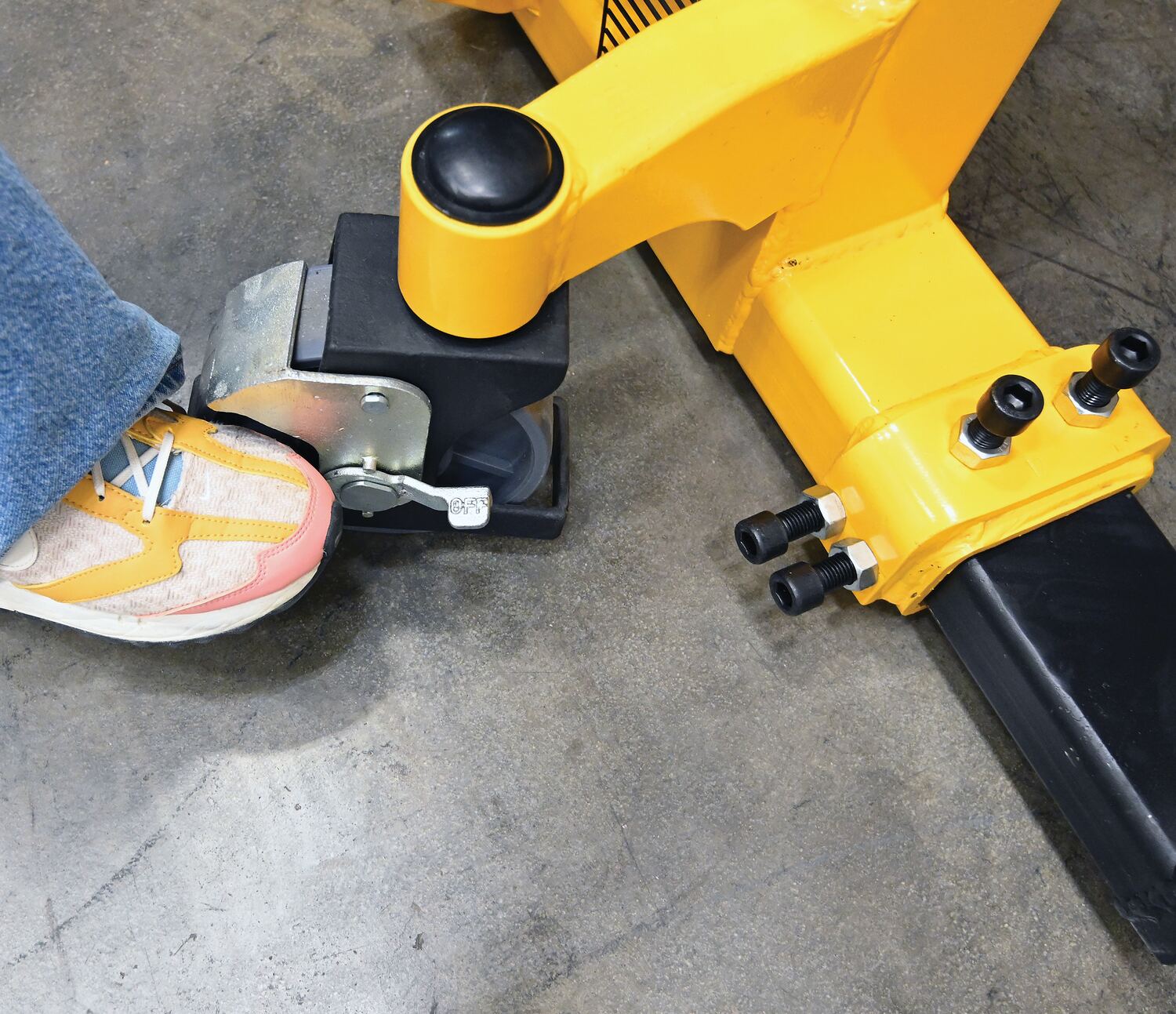

Q: What kind of casters come on the back of the VWS-770-FF?

A: It comes with (1) swivel caster and (1) swivel with brake caster.

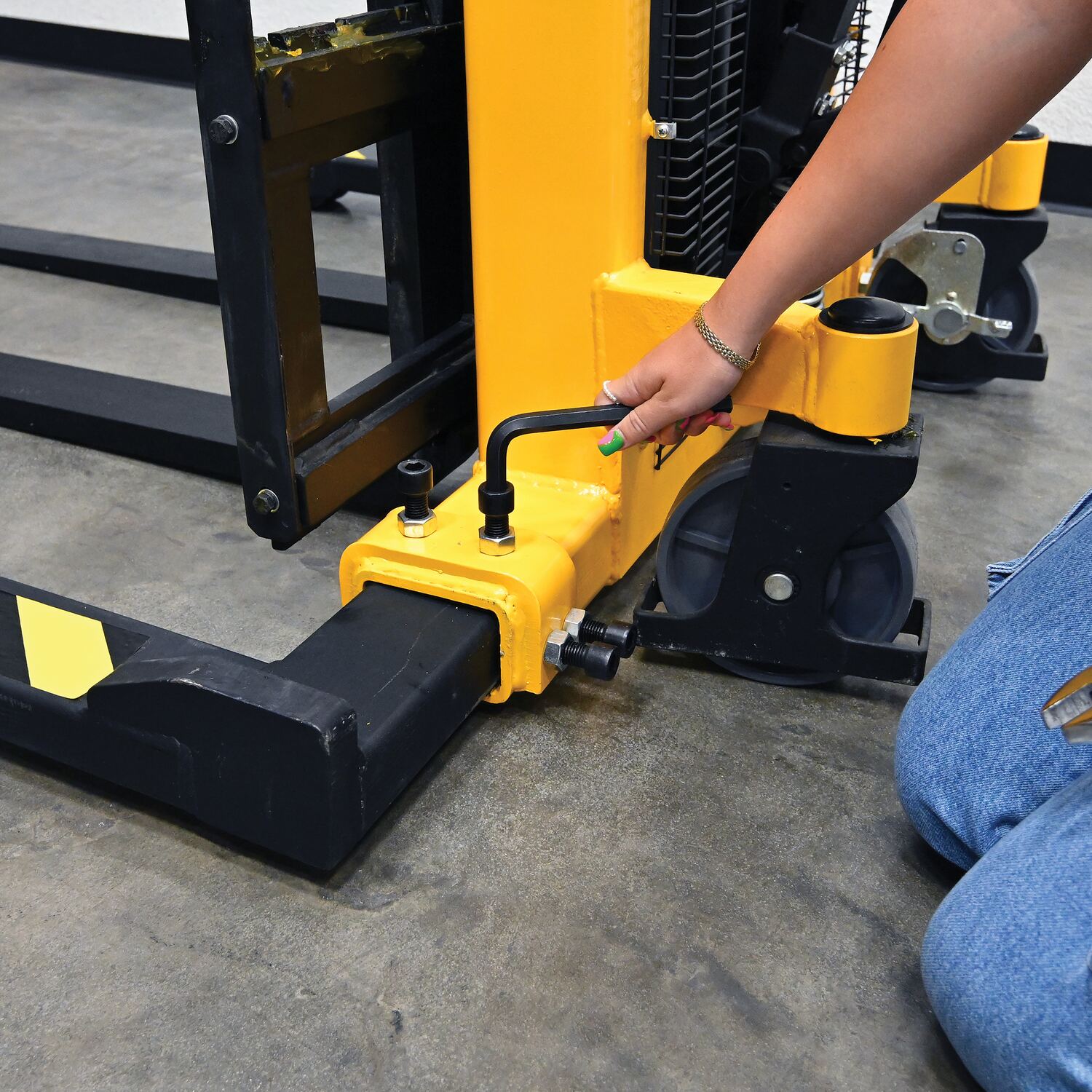

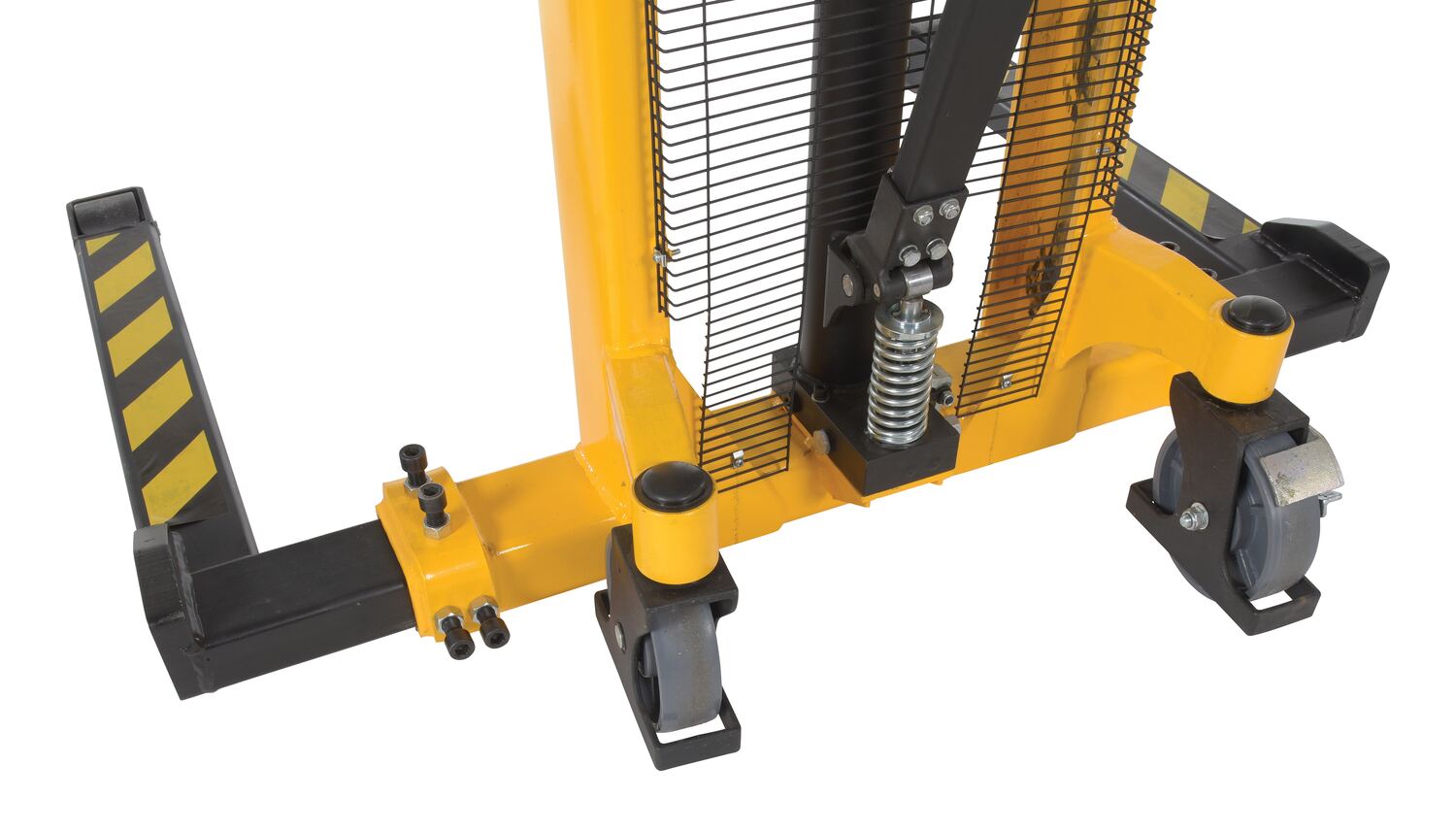

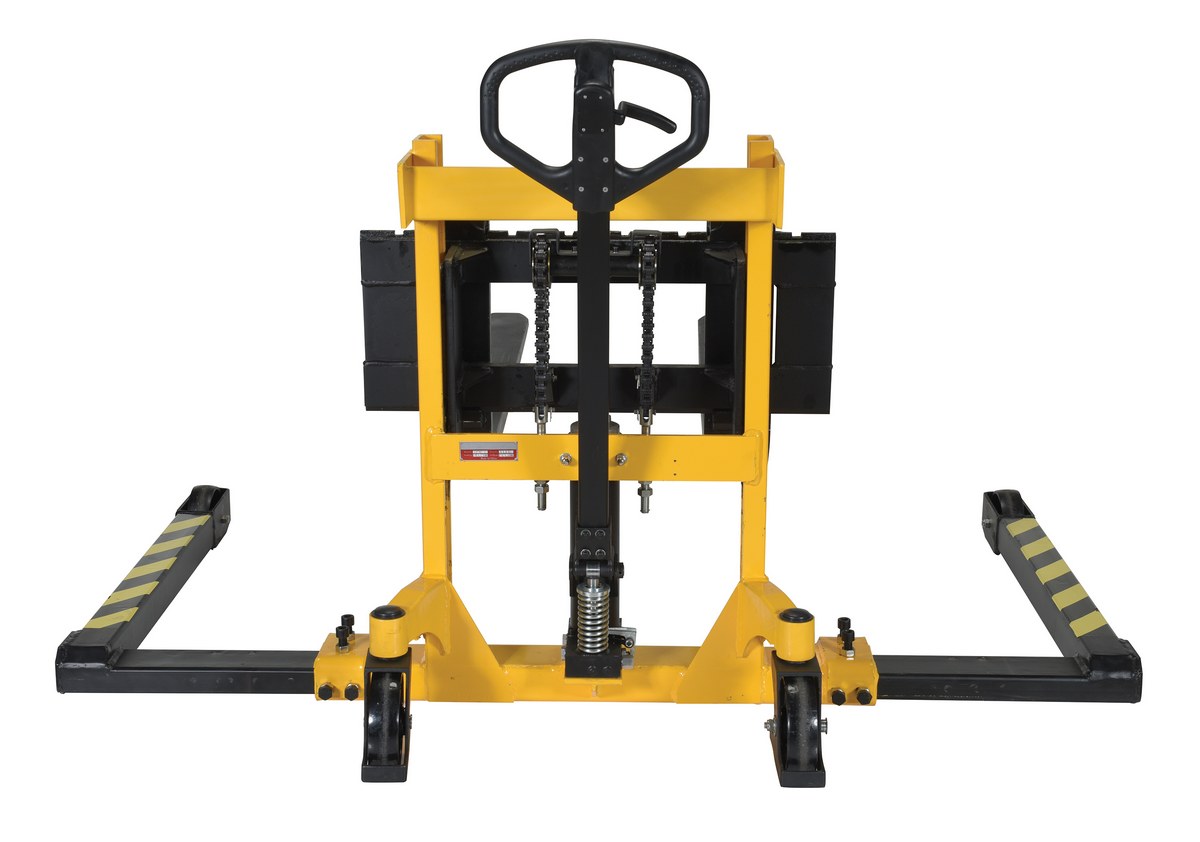

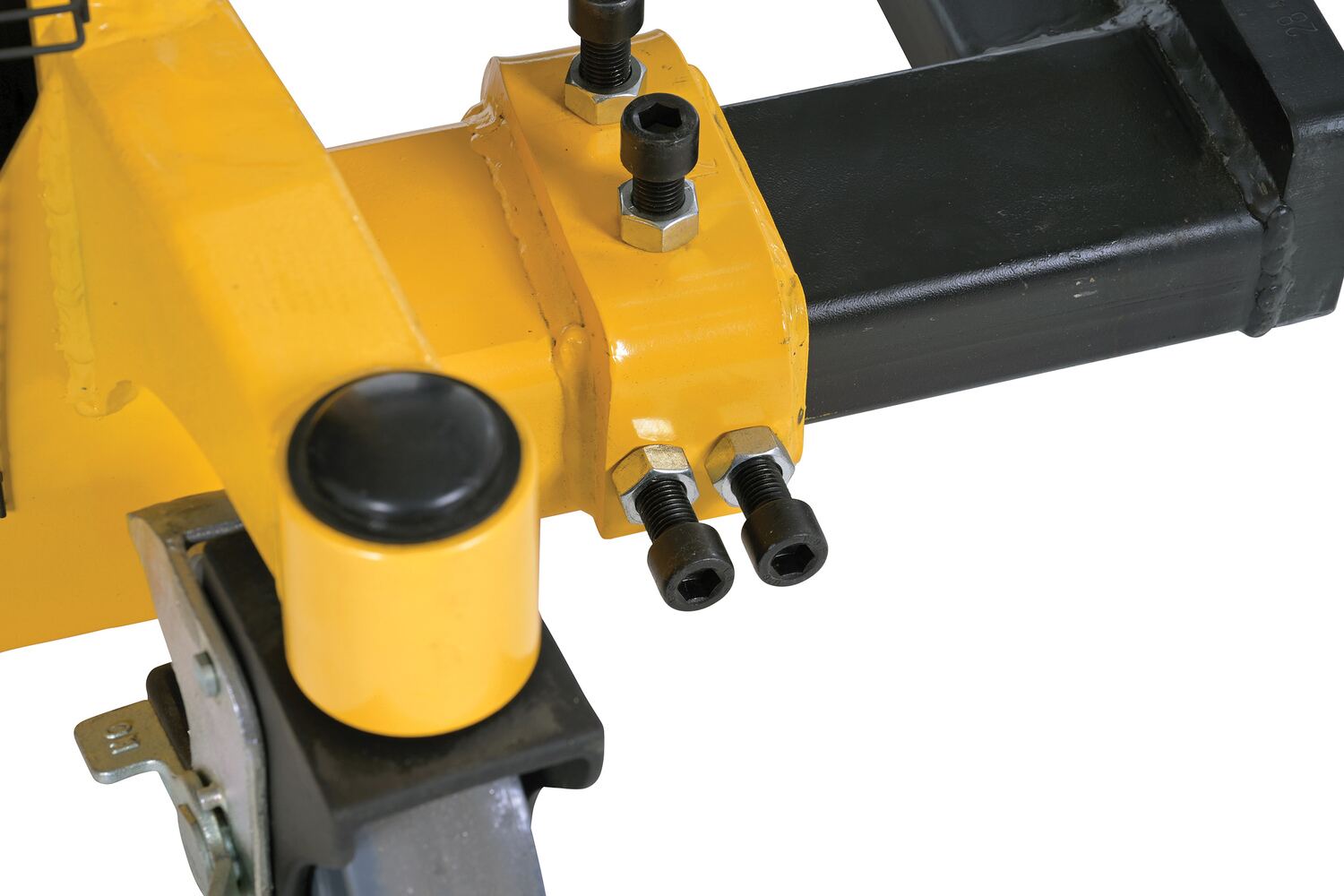

Q: How do I adjust the outriggers to sit level?

A: The outriggers are adjustable. To move the outriggers, tighten the bolts on the legs . Start by loosening them all and the unit will sit level. Tighten the bolts just until they start to touch the outrigger frame. If needed, adjust the legs to level it, by tightening the top bolts on the leg opposite of the wheel needing lowered.

Q: What is the deck size for the platform (VWS-DK)?

A: The platform option is 21-3/4"x29-1/2"

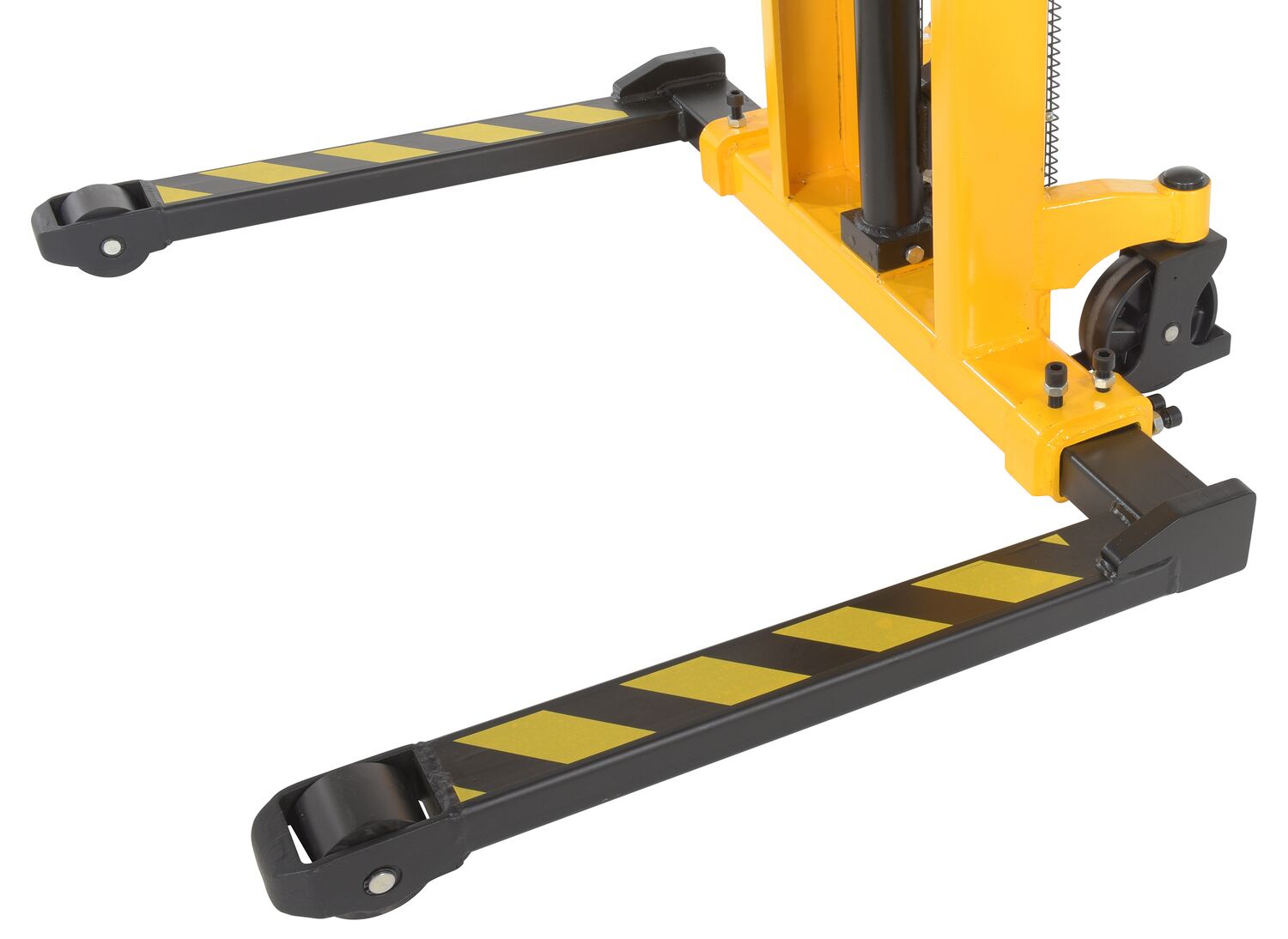

Q: What is the maximum width between the outer leg supports?

A: The maximum width is 50".

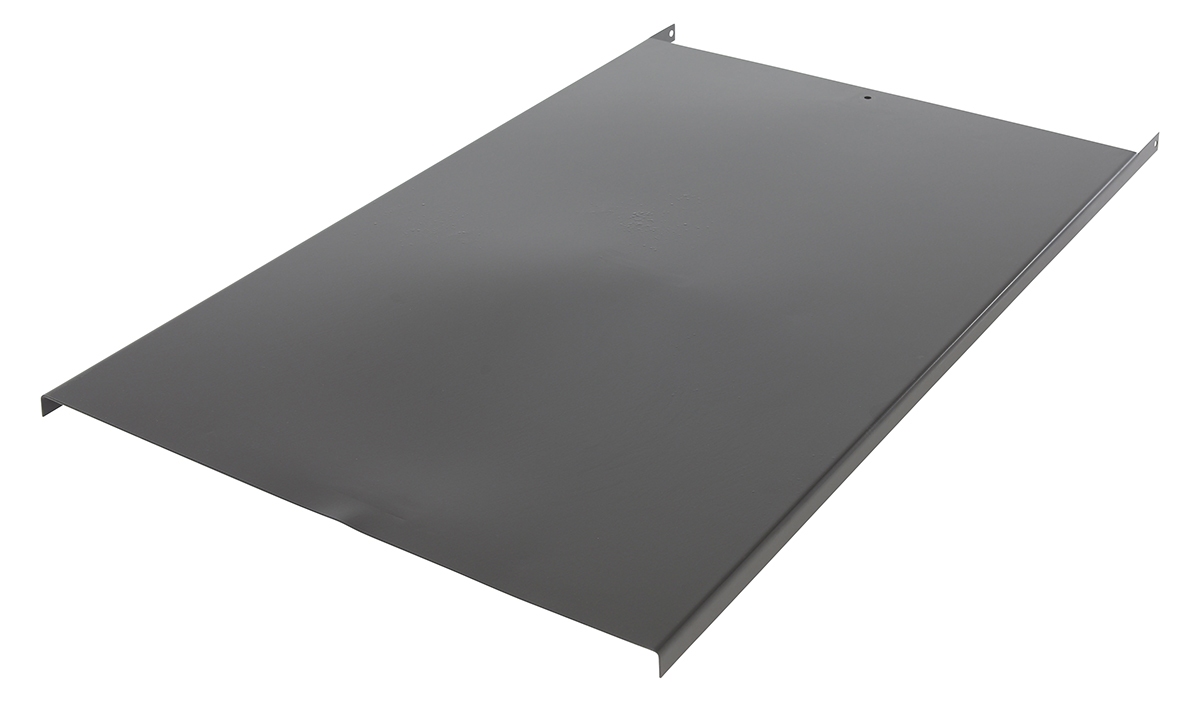

Q: What is the deck size for the platform (VHPS-DK)?

A: The platform option is 27 1/4" x 42"

Q: What is the distance from the wheel base to the end of the fork?

A: It is 12" from the wheel base to the end of the fork.




Related or Similar Products:

Combination Hand Pump and Electric Stackers
Product

Combination Hand Pump and Electric Stackers

Narrow Mast Stackers with Powered Lift
Product

Narrow Mast Stackers with Powered Lift

Manual & Electric Stackers (Pramac)
Product

Manual & Electric Stackers (Pramac)

Stacker with Powered Lift
Product

Stacker with Powered Lift

Drum Roll Reel Forks
Product

Drum Roll Reel Forks

Narrow Mast Stackers with Powered Drive and Powered Lift
Product

Narrow Mast Stackers with Powered Drive and Powered Lift

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Manual & Electric Stackers




Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.


Drum Roll Reel Forks


Manual Hydraulic Stackers
Model Number Image Fork
Length		 Lowered/
Raised
Height		 Capacity
(lbs)		 Overall Size
(WxLxH)		 Wt.
(lbs)
Manual Hand Winch Stackers
VWS-770-AA 30" 1-9/16" to 59" 770 42-1/4"x47"x78-3/16" 361
VWS-770-FF 30" 3-3/8" to 59" 770 21-11/16"x 46-3/16"x 78-3/16" 235
Manual Hydraulic Hand Pump Stackers
VHPS-2000-AA 42-1/8" 2" to 63" 2,000 54"x 62"x 79" 860

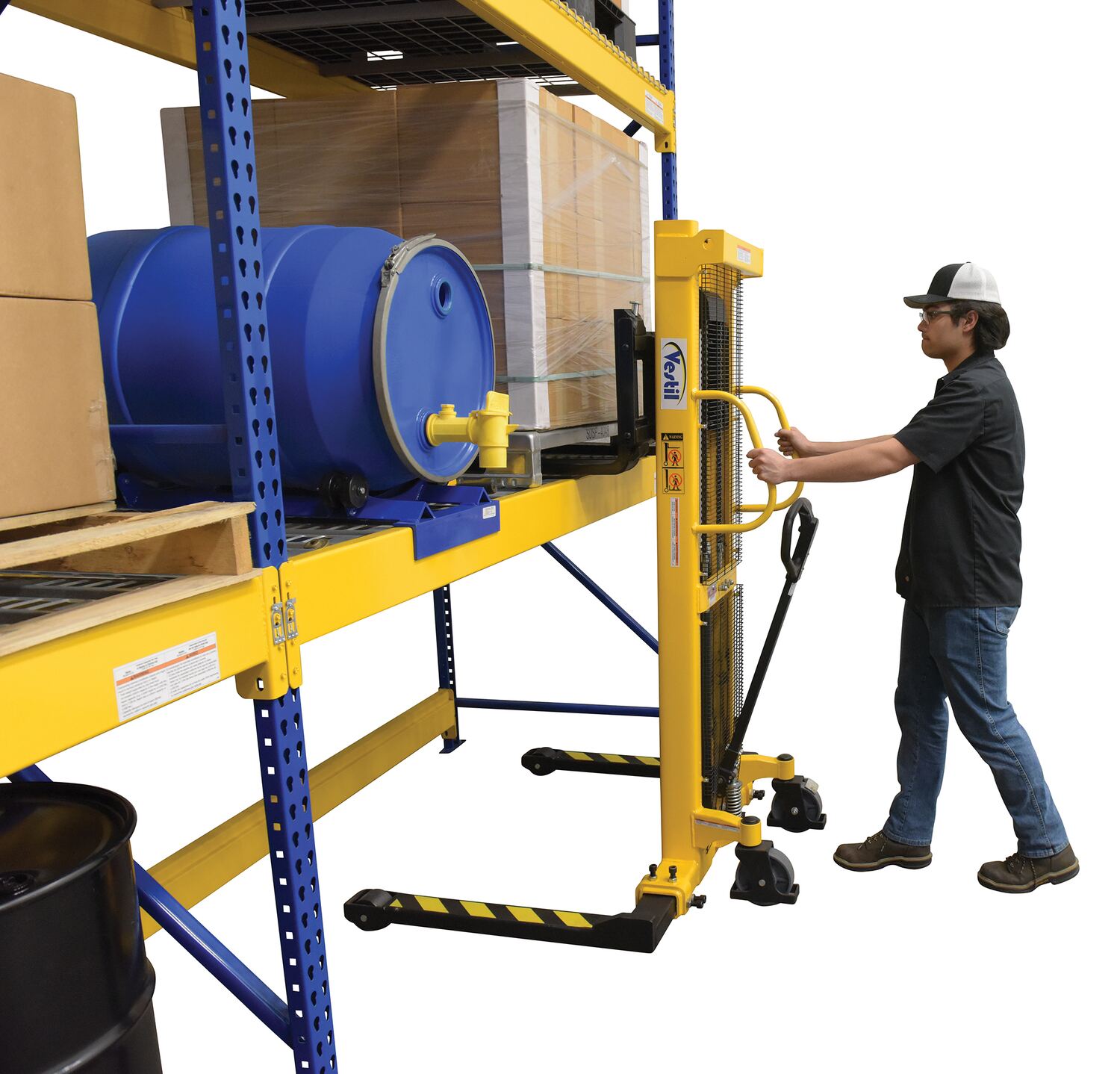

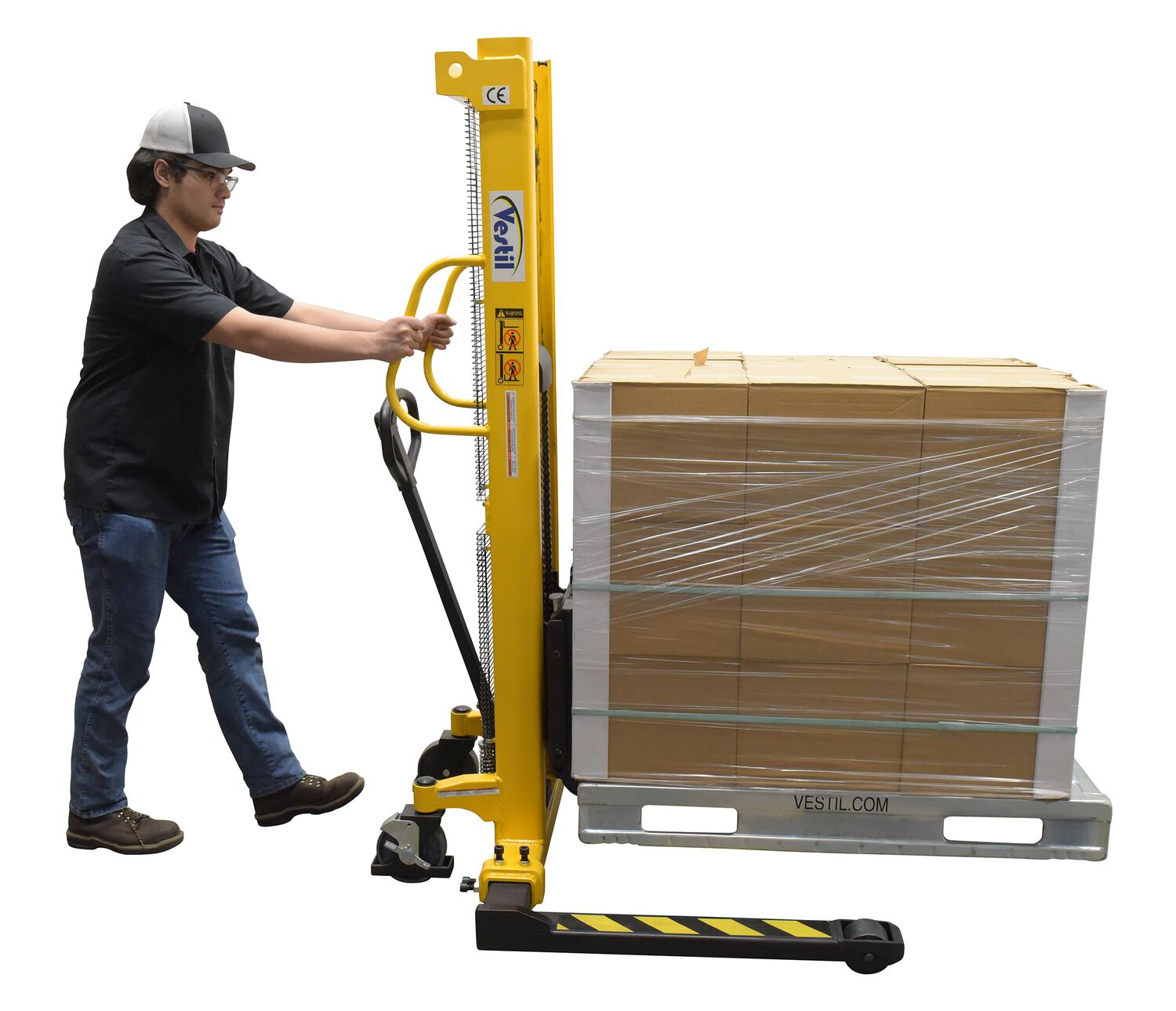

VHPS-2000-AA-17 42-1/8" 3" to 17" 2,000 60-1/2"x 48"x 41" 490

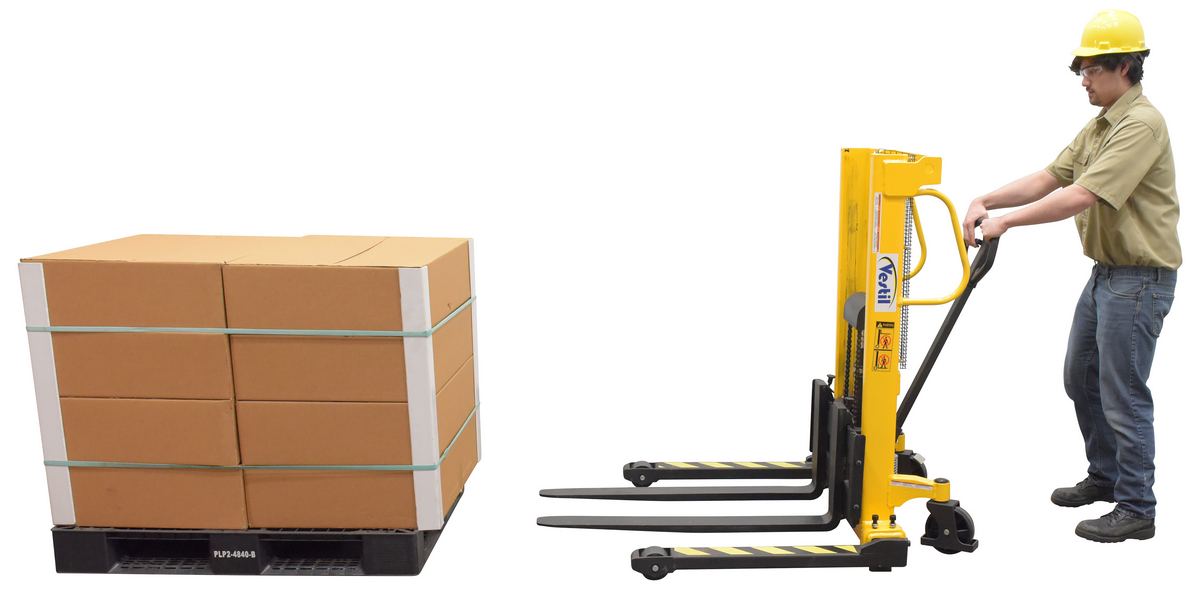

VHPS-2000-AA-35 42-1/8" 3" to 35" 2,000 60-1/2"x 48"x 55" 764
VHPS-3000-AA-17 42-1/8" 2" to 17" 3,000 60-1/4"x 48"x 41" 738
VHPS-2000-FF 42-1/8" 3-3/4" to 63" 2,000 27-3/8"x 60-1/4"x 78" 570
VHPS-2000-AA-118
42-1/8" 2-1/8" to 118" 2000 (0-62")
1500 (62"-118")		 54"x 62"x 79" 900
VHPS-2000-FF-118
42-1/8" 3-1/2" to 118" 2000 (0-62")
1500 (62"-118")		 27-1/2"x 62"x 79" 630

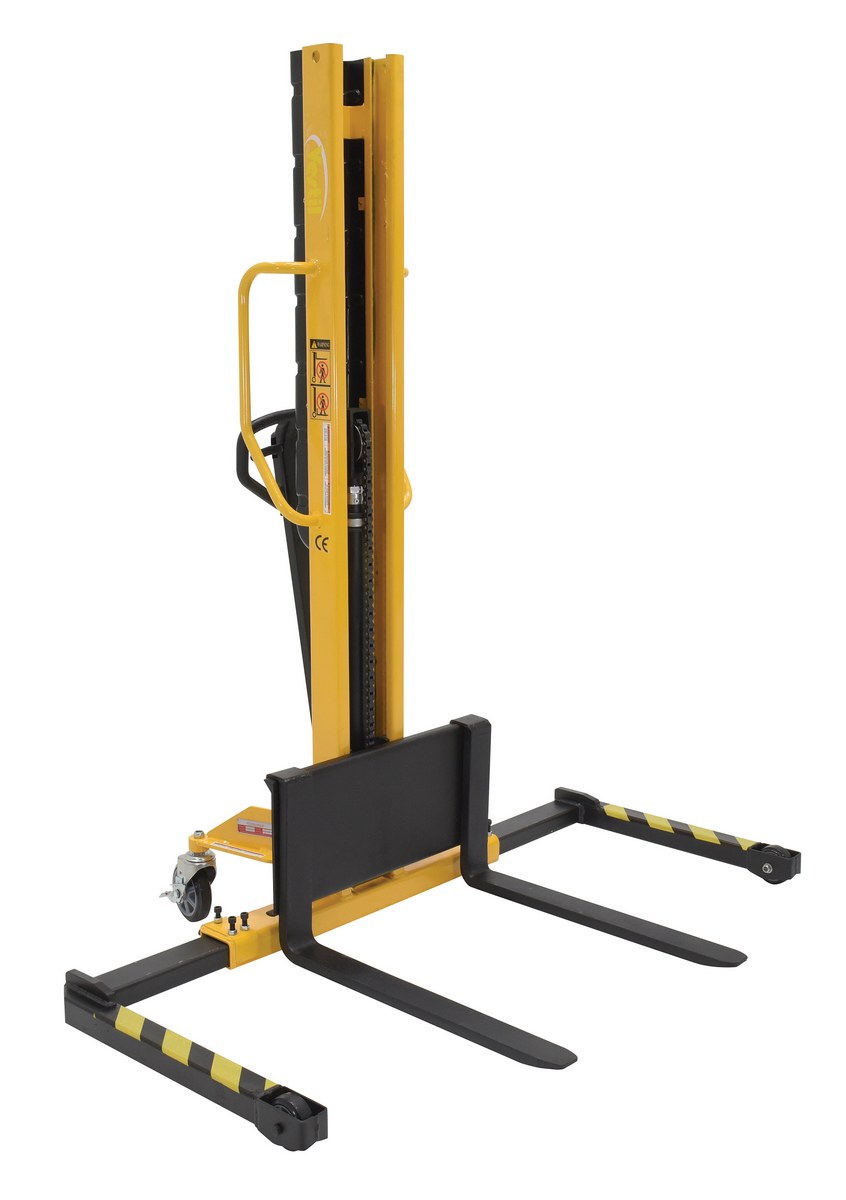

Narrow Mast Manual Hydraulic Hand Pump Stackers
VHPS-NM-1000-AA 30" 2" to 62" 1,000 41-1/4"x48"x78" 590
VHPS-NM-1000-FF
42" 3-1/2" to 62" 1,000 28"x62"x78" 410
Electric Winch Stacker/ Adjustable Legs & Forks

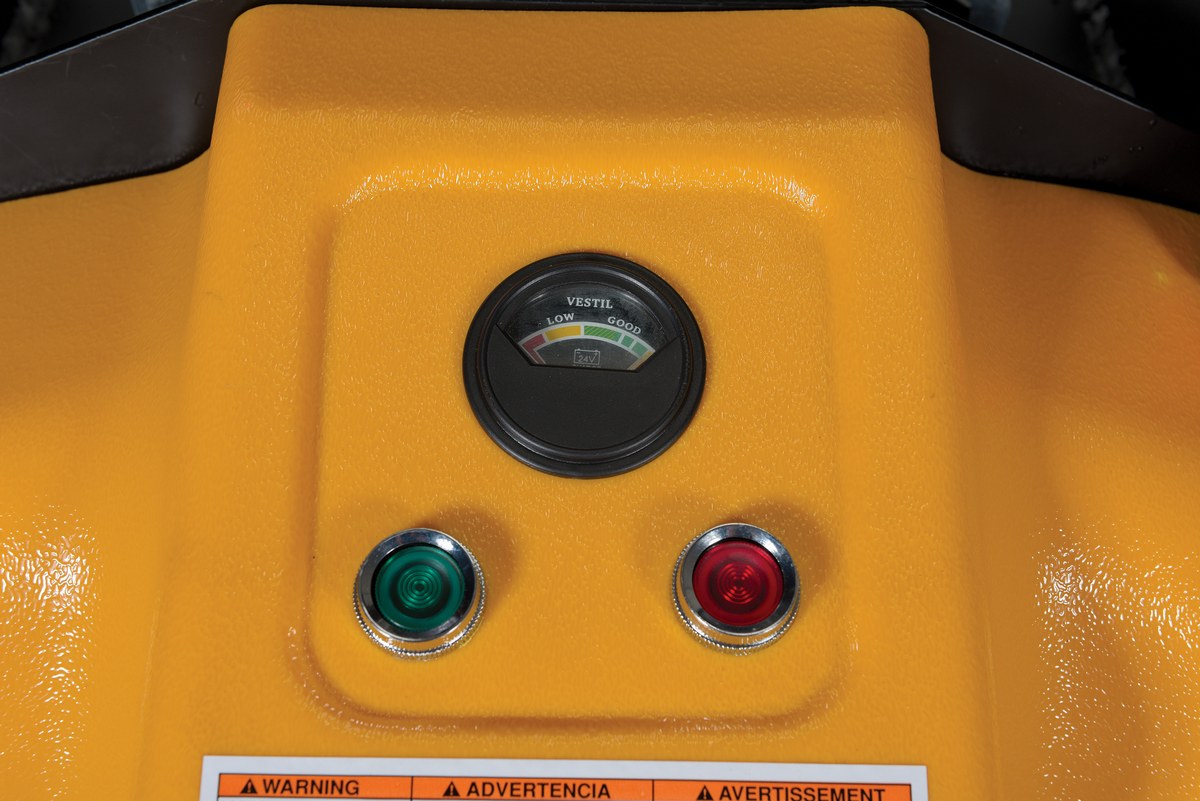

VWS-770-AA-DC 30" 1-9/16" to 59" 770 45"x48"x78" 594
Electric Winch Stacker/ Fixed Forks Over Fixed Legs
VWS-770-FF-DC 30" 3-3/8" to 59" 770 26-3/4"x49"x78" 478

Options


Stacker Options
Model Image PDFs Description Wt.
(lbs)
VWS-DK Warranty PDF Optional Removable Platform for VWS series -
VHPS-DK Warranty PDF Optional Removable Platform for VHPS series 40
VWS-AA-RR Warranty PDF ADJ MANUAL WINCH STACKER REEL ROTATOR ATTACHMENT 55
VWS-AA-BAH Warranty PDF ADJ MANUAL WINCH STACK SINGL BALL HITCH ATTACHMENT 37
VWS-AA-RP Warranty PDF ADJ MANUAL WINCH STACK ROLLER PLATFORM ATTACHMENT 57
VWS-AA-PRP Warranty PDF ADJ MANUAL WINCH STACKER POLE ATTACHMENT ONLY 35
VWS-AA-SDG Warranty PDF ADJ MANUAL WINCH STACK SINGL DRUM GRIP ATTACHMENT 101
VWS-AA-RFK Warranty PDF ADJ MANUAL WINCH STACKER ROLL FORK ATTACHMENT 111
VHPS-NM-AA-RR Warranty PDF ADJ MANUAL STACK NARROW MAST REEL ROTATOR ATTACHMENT 55
VHPS-NM-AA-BAH Warranty PDF ADJ MANUAL STACK NARROW MAST SINGL BALL HITCH ATTACHMENT 37
VHPS-NM-AA-RP Warranty PDF ADJ MANUAL STACK NARROW MAST ROLLER PLATFORM ATTACHMENT 57
VHPS-NM-AA-PRP Warranty PDF ADJ MANUAL STACK NARROW MAST POLE ATTACHMENT ONLY 35
VHPS-NM-AA-SDG Warranty PDF ADJ MANUAL STACK NARROW MAST SINGL DRUM GRIP ATTACHMENT 101
VHPS-NM-AA-RFK Warranty PDF ADJ MANUAL STACK NARROW MAST ROLL FORK ATTACHMENT 111

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
