Model Details

VHPS-2200-AA

Printer Friendly
VHPS-2200-AA

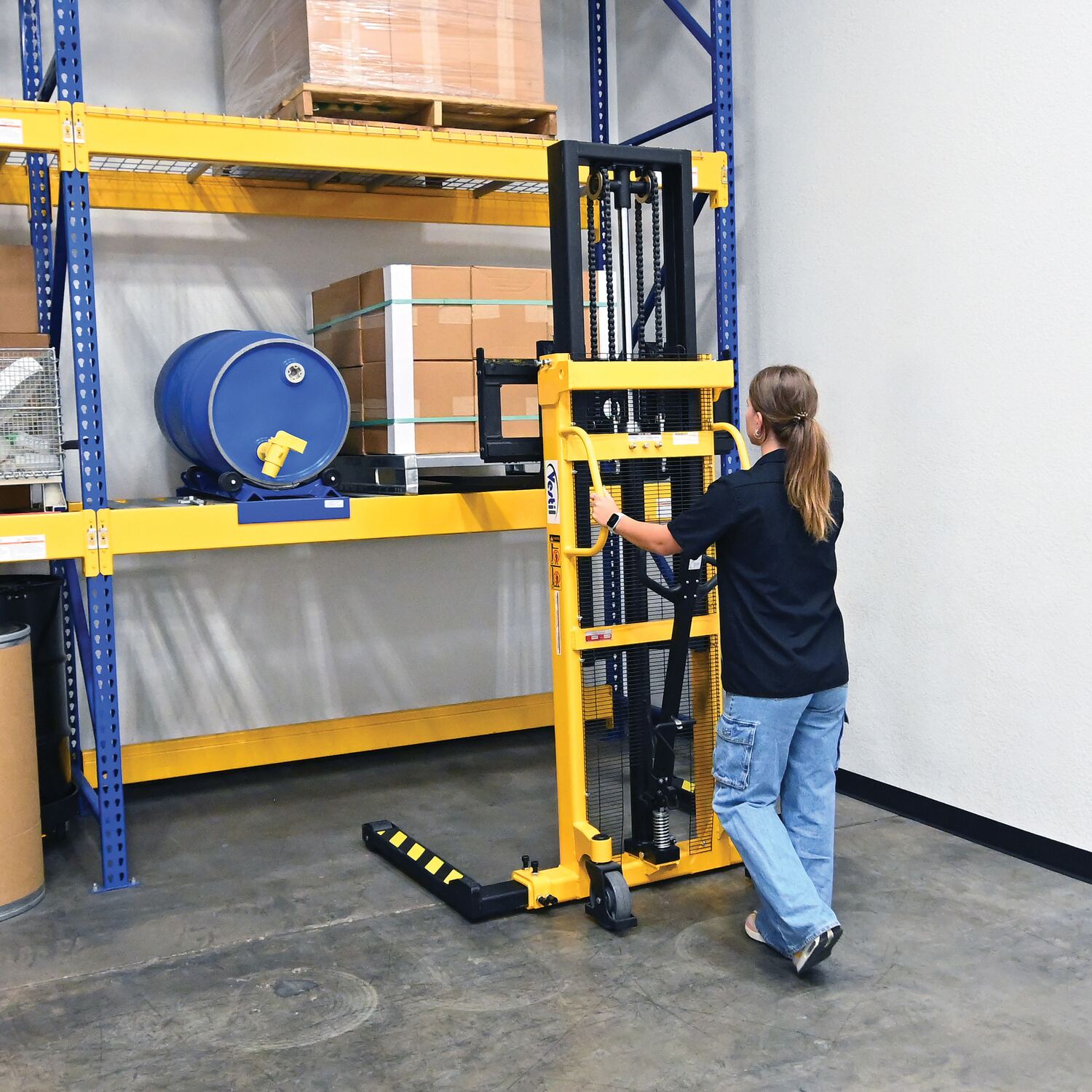

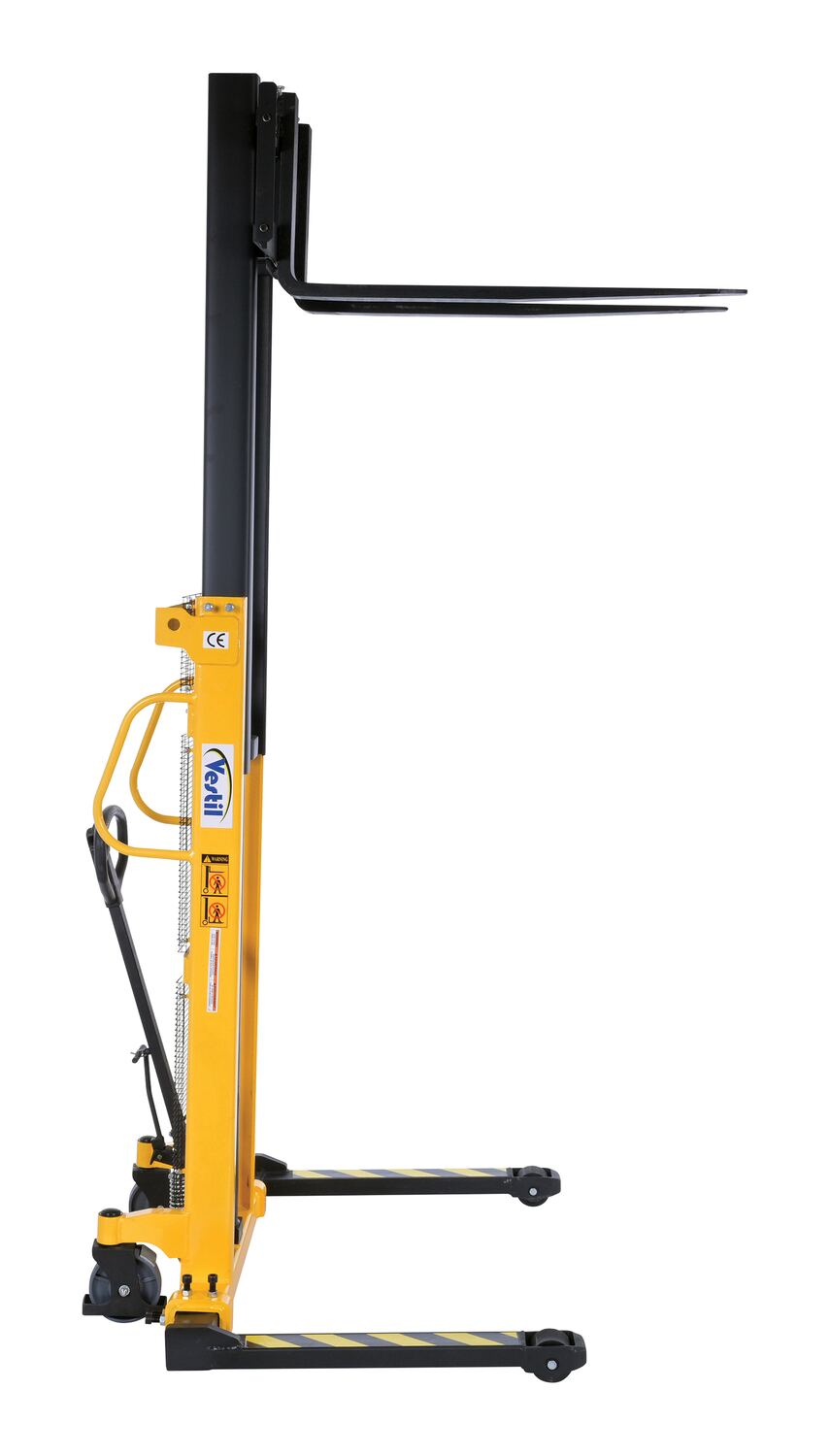

Steel Manual Stacker Adjustable Forks/Legs 2,200 Lb. Capacity Black

The manual stacker is ideal for use in various workplace applications. It is maintenance free and easy to use. An upright welded mesh guard protects, while still provide excellent visibility. It features a heavy-duty mast and a unique winch design for easier and safer lifting. An optional removable platform is available.

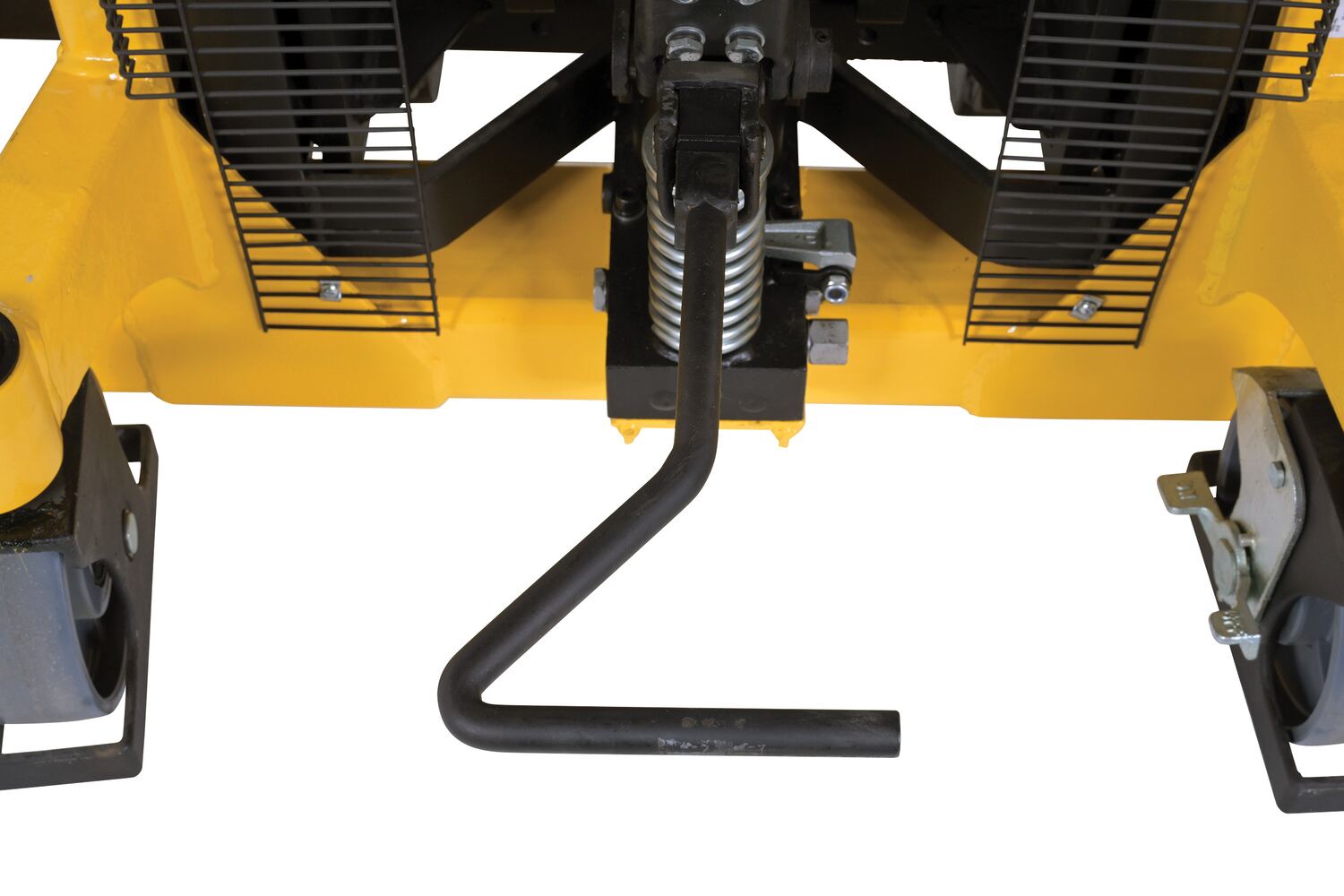

  • Both hand and foot operated lift
  • Adjustable forks and adjustable legs
  • Full height push handle allows for easy steering

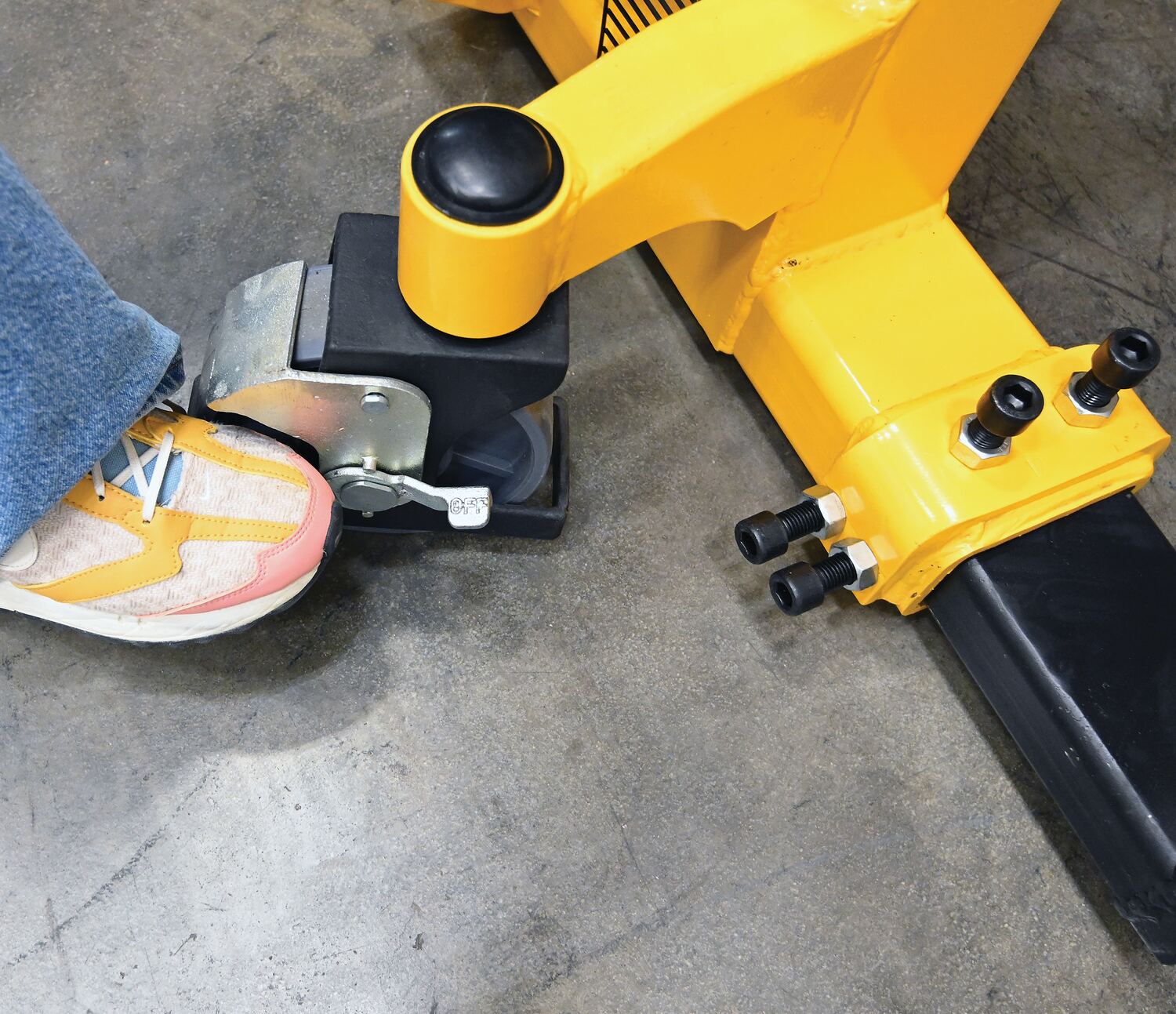

  • Two (2) rigid and two (2) swivel wheels with brakes
Total Ship Wt.(lbs.): 860 (only 1 package) Size: 46"W x 61.25"L x 78"H Color: Black QuickShip

Uniform Capacity (lb.): 2200 Service Range (in.): 1.375 to 98.5 Horizontal Load Center (in.): 24
Straddle Leg Minimum (in.): 38 (I.D) Straddle Leg Maximum (in.): 50 (I.D) Fork Adjustment Minimum (in.): 7-7/8 (O.D)
Fork Adjustment Maximum (in.): 26-3/4 (O.D) Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2 Rear Caster Type: Swivel with Brake
Front Caster Quantity/Diameter/Width (in.): (2) 4 x 3 Front Caster Type: Rigid Lift per Handle Pump (in.): 3/4
Individual Fork Width (in.): 4 Fork Length (in.): 42 Operation: Hand/Foot Pump
Travel Distance: 97.125 Number of Pumps to Raise: 87 Handle Height (In.): 48

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VHPS-2200-AA
VHPS-2200-AA

Steel Manual Stacker Adjustable Forks/Legs 2,200 Lb. Capacity Black

The manual stacker is ideal for use in various workplace applications. It is maintenance free and easy to use. An upright welded mesh guard protects, while still provide excellent visibility. It features a heavy-duty mast and a unique winch design for easier and safer lifting. An optional removable platform is available.

  • Both hand and foot operated lift
  • Adjustable forks and adjustable legs
  • Full height push handle allows for easy steering
  • Two (2) rigid and two (2) swivel wheels with brakes
Dimensions: 46"W x 61.25"L x 78"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215369367 GTIN: 00691215369367
Warranty: -- Shipping Weight: 860 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2200 Service Range (in.): 1.375 to 98.5 Horizontal Load Center (in.): 24
Straddle Leg Minimum (in.): 38 (I.D) Straddle Leg Maximum (in.): 50 (I.D) Fork Adjustment Minimum (in.): 7-7/8 (O.D)
Fork Adjustment Maximum (in.): 26-3/4 (O.D) Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2 Rear Caster Type: Swivel with Brake
Front Caster Quantity/Diameter/Width (in.): (2) 4 x 3 Front Caster Type: Rigid Lift per Handle Pump (in.): 3/4
Individual Fork Width (in.): 4 Fork Length (in.): 42 Operation: Hand/Foot Pump
Travel Distance: 97.125 Number of Pumps to Raise: 87 Handle Height (In.): 48
