Model Details

VWS-770-AA

Printer Friendly
VWS-770-AA

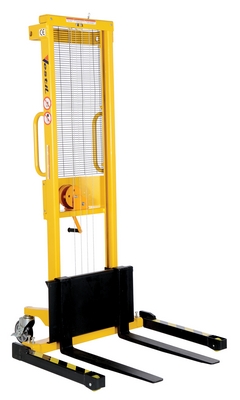

Steel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch stacker features a heavy-duty mast and a unique winch design for easier and safer lifting. The lift and lower is done by hand winch and a steel cable mechanism. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Features adjustable forks and legs more than one application
Total Ship Wt.(lbs.): 361 (only 1 package) Size: 42.25"W x 47"L x 78.1875"H Color: Black / Yellow QuickShip

Uniform Capacity (lb.): 770 Lowered Height (in.): 1-9/16 Raised Height (in.): 59
Horizontal Load Center (in.): 16 Straddle Leg Minimum (in.): 35-1/2 (I.D) Straddle Leg Maximum (in.): 47-1/4 (I.D)
Fork Adjustment Minimum (in.): 6-1/4 (O.D) Fork Adjustment Maximum (in.): 26-3/4 (O.D) Rear Caster Diameter (in.): 6 x 1-7/16
Front Wheel Diameter (in.): 3 x 1-7/16 Lift per Handle Revolution (in.): 3/4 Individual Fork Width (in.): 3-1/8
Fork Length (in.): 30 Operation: Hand Winch Overall Mast Height (in.): 78-3/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VWS-770-AA
VWS-770-AA

Steel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch stacker features a heavy-duty mast and a unique winch design for easier and safer lifting. The lift and lower is done by hand winch and a steel cable mechanism. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Features adjustable forks and legs more than one application
Dimensions: 42.25"W x 47"L x 78.1875"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215096591 GTIN: 00691215096591
Warranty: -- Shipping Weight: 361 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 770 Lowered Height (in.): 1-9/16 Raised Height (in.): 59
Horizontal Load Center (in.): 16 Straddle Leg Minimum (in.): 35-1/2 (I.D) Straddle Leg Maximum (in.): 47-1/4 (I.D)
Fork Adjustment Minimum (in.): 6-1/4 (O.D) Fork Adjustment Maximum (in.): 26-3/4 (O.D) Rear Caster Diameter (in.): 6 x 1-7/16
Front Wheel Diameter (in.): 3 x 1-7/16 Lift per Handle Revolution (in.): 3/4 Individual Fork Width (in.): 3-1/8
Fork Length (in.): 30 Operation: Hand Winch Overall Mast Height (in.): 78-3/16
