PM5-2748-HB

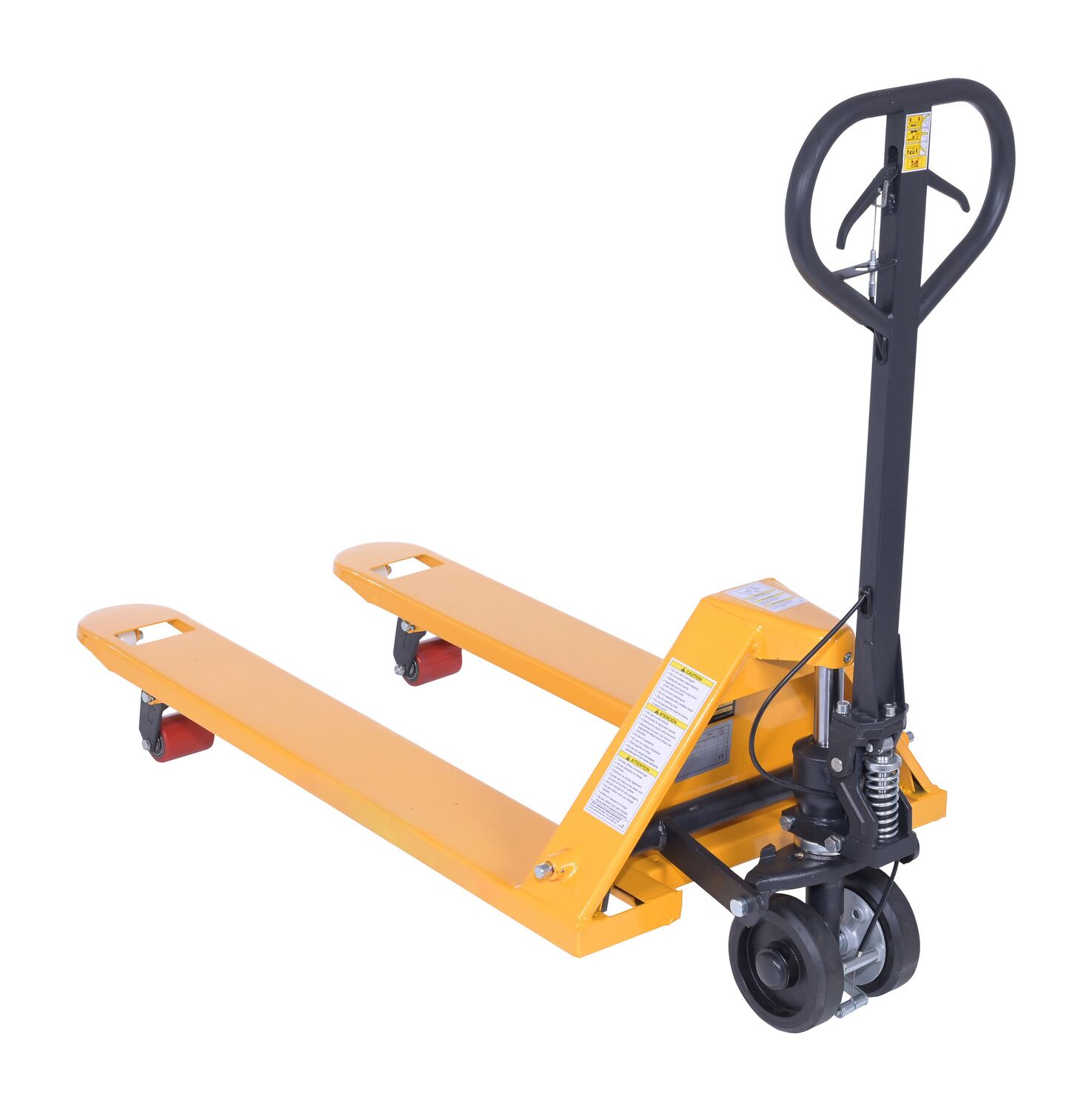

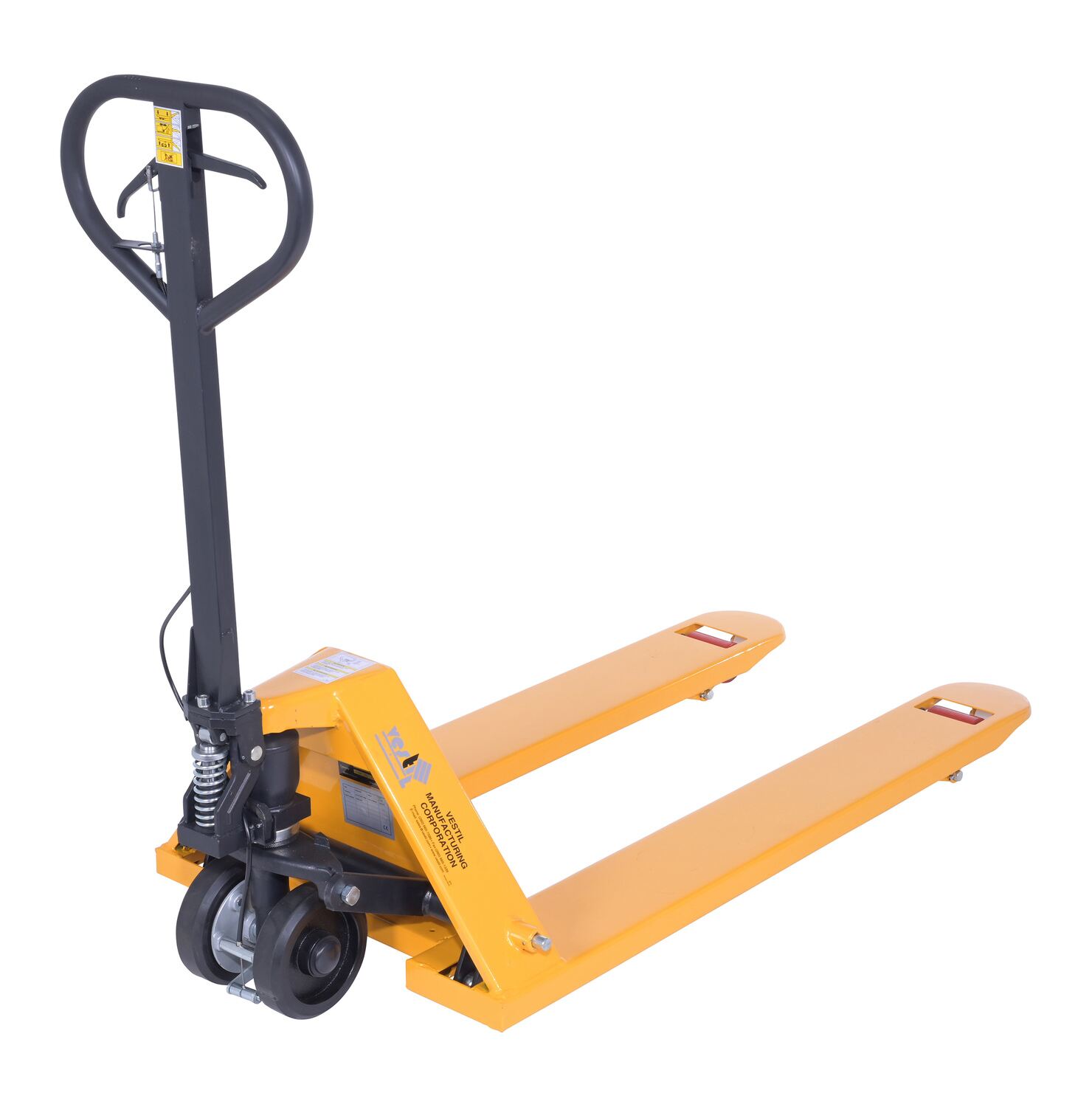

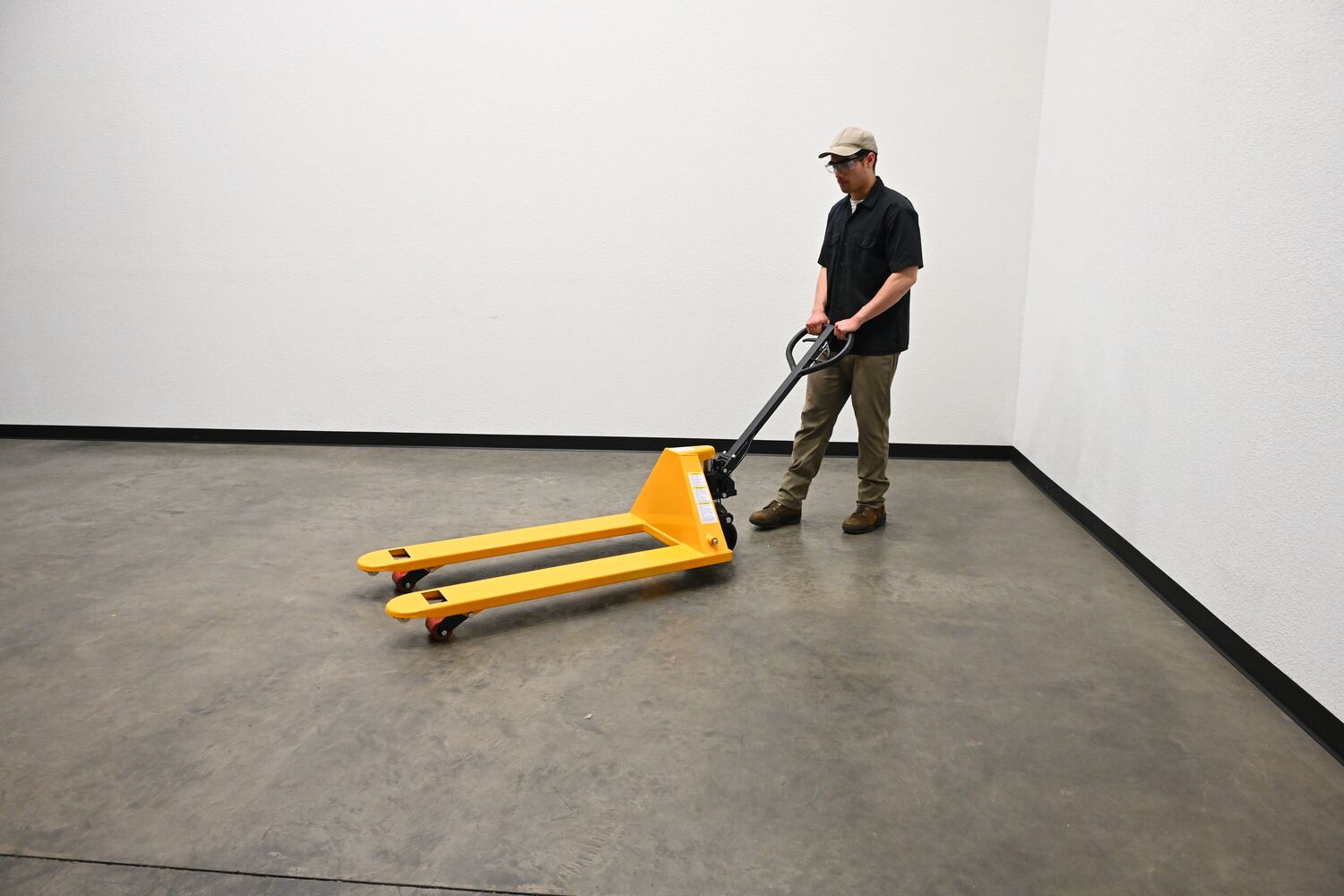

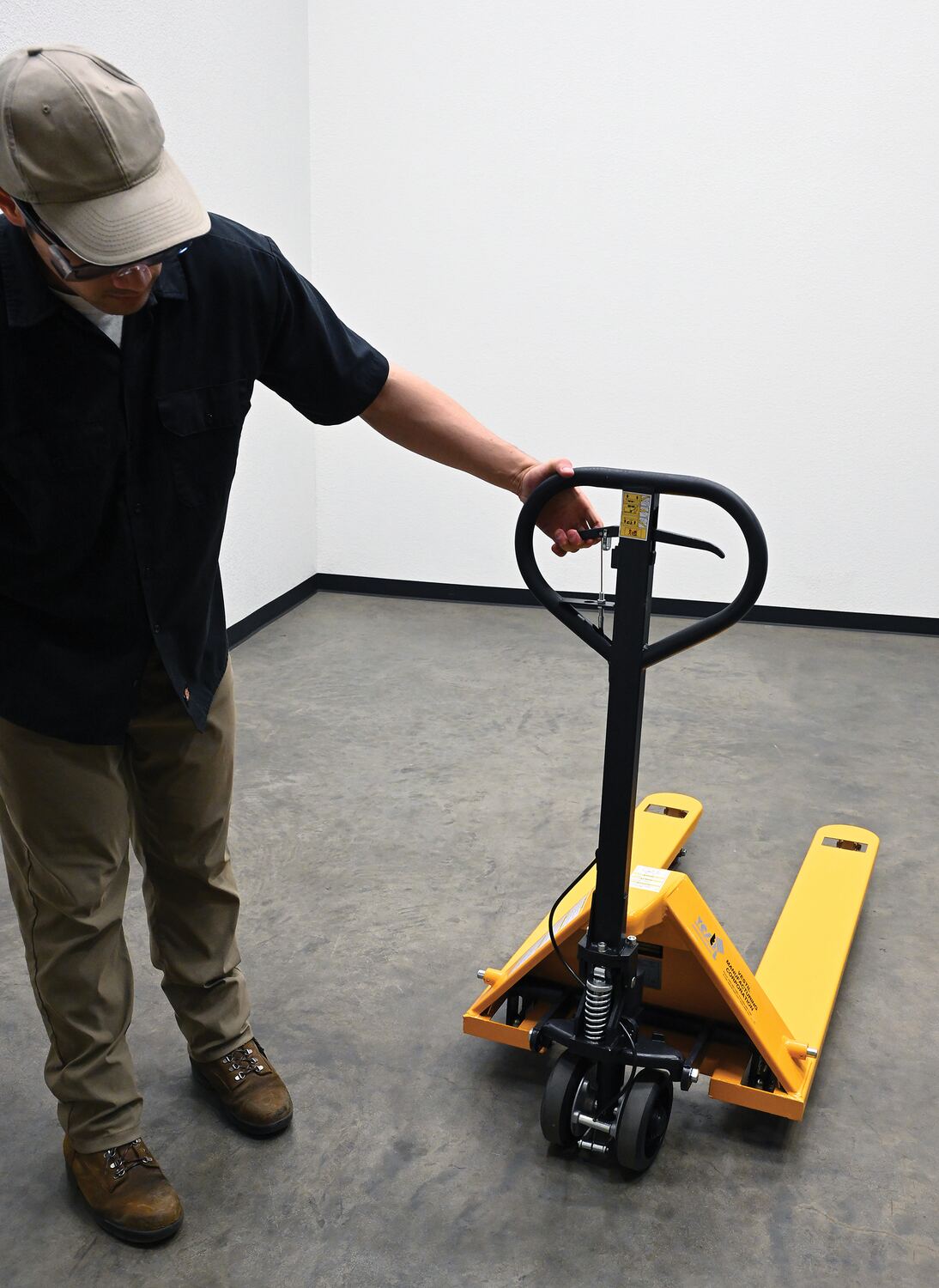

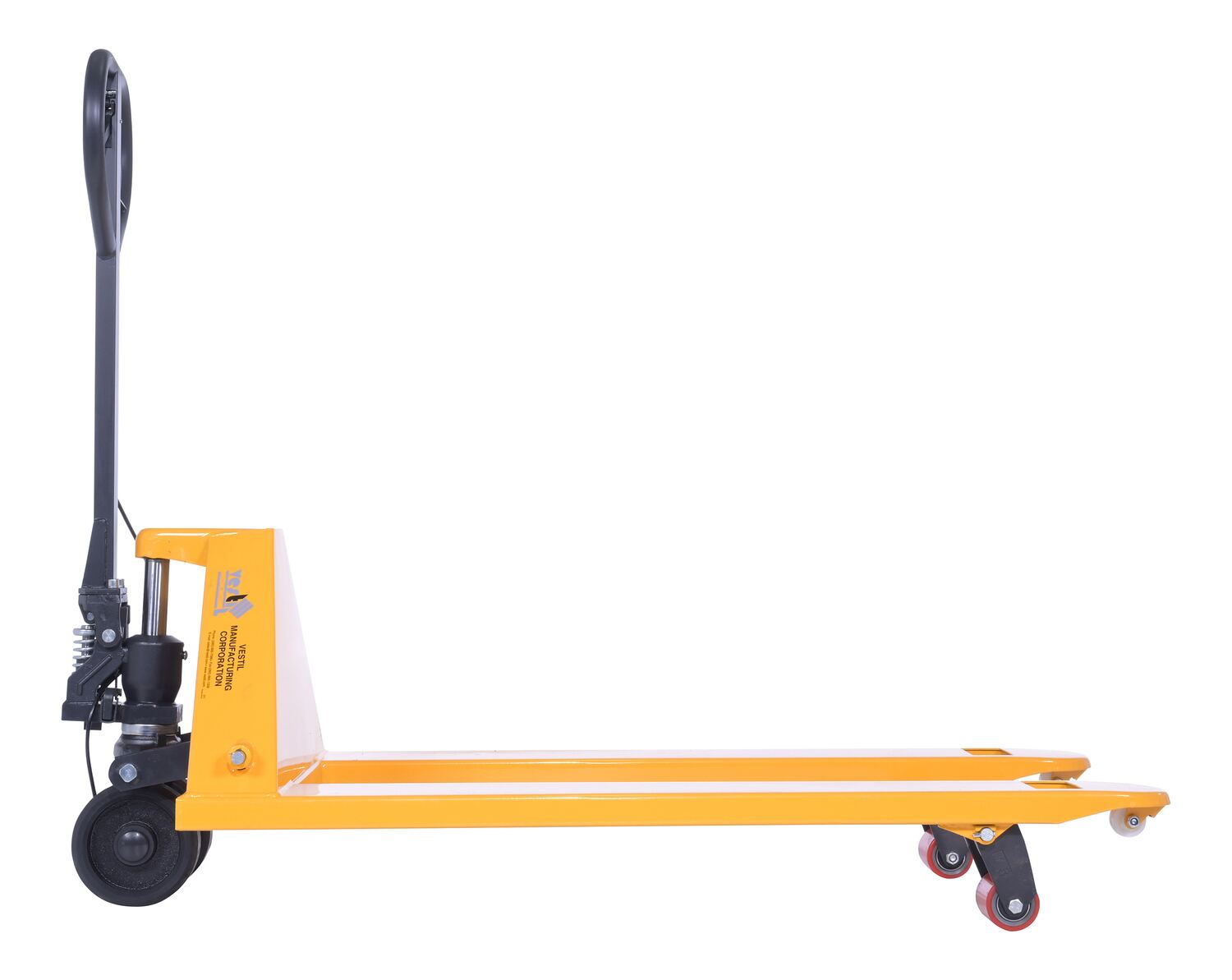

Steel Pallet Truck with Brake 66 In. x 27 In. x 49 In. 5500 Lb. Capacity Yellow

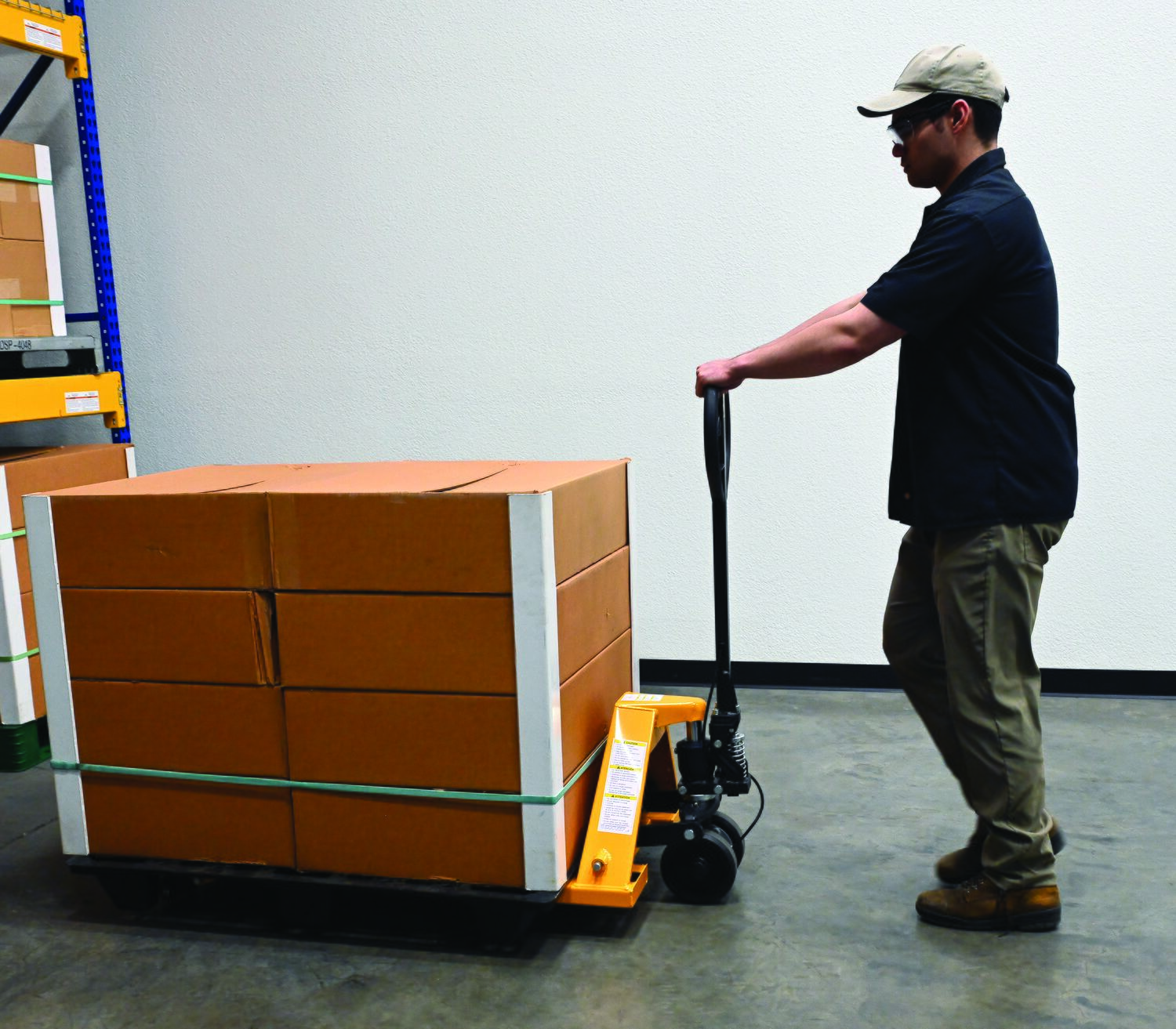

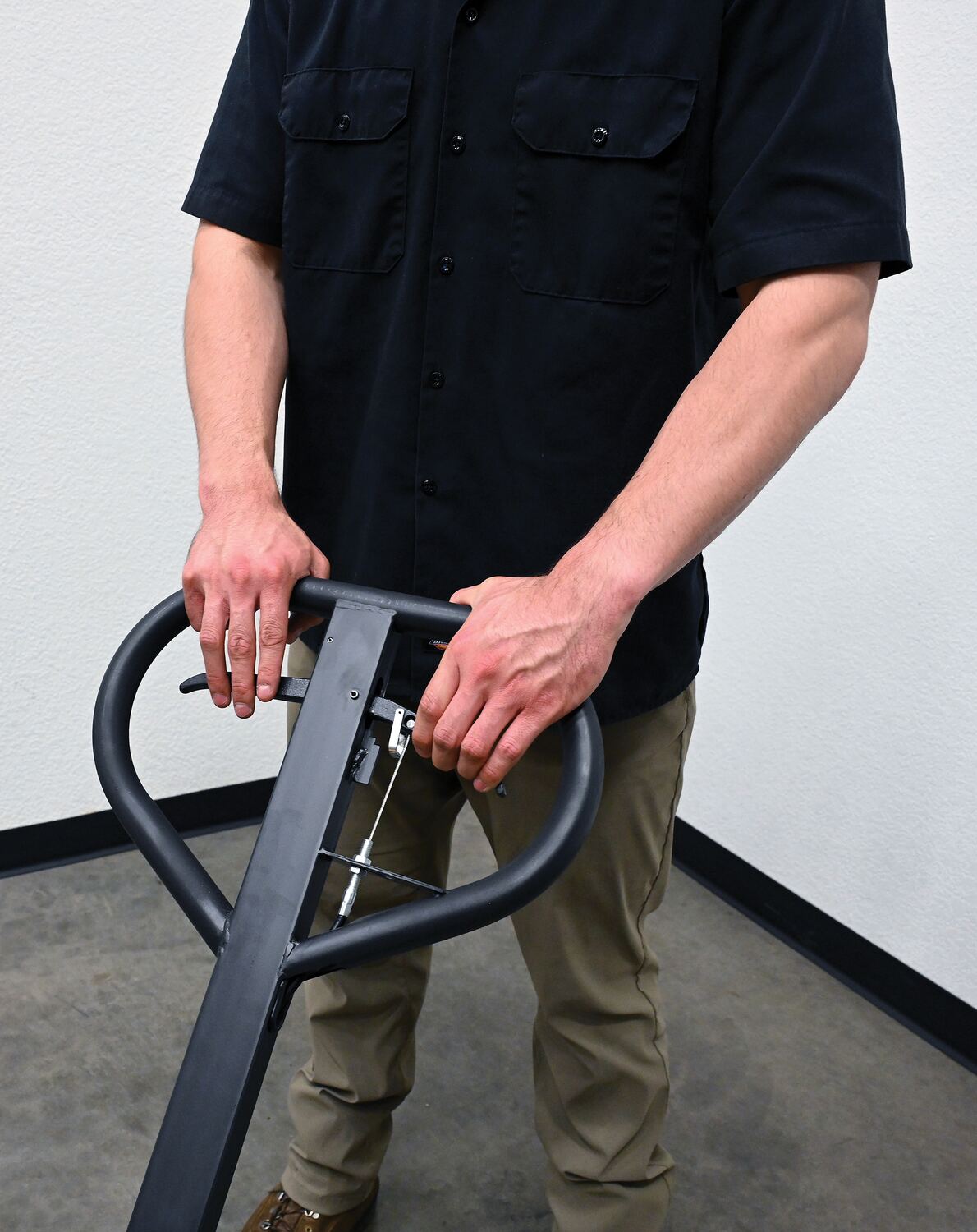

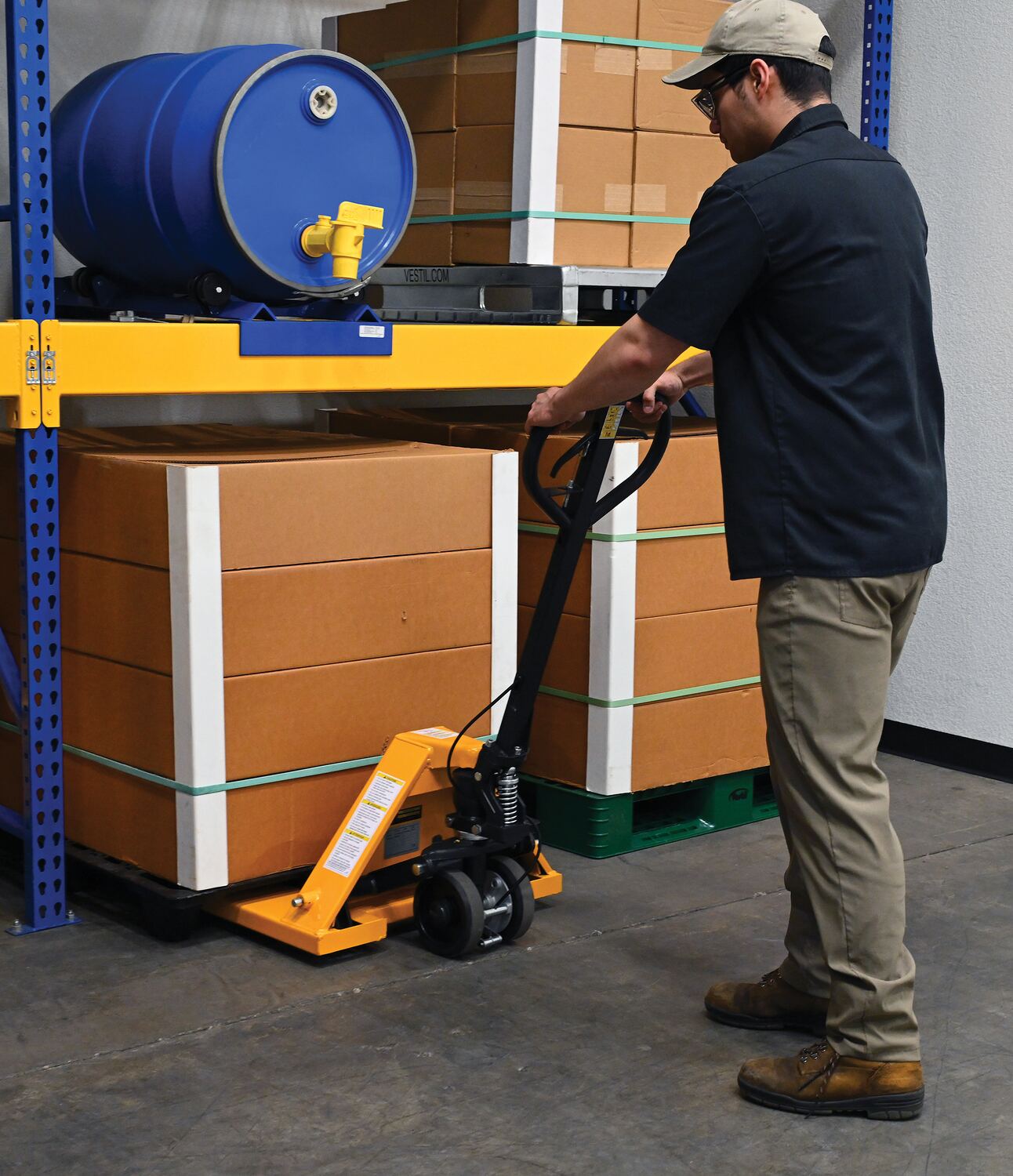

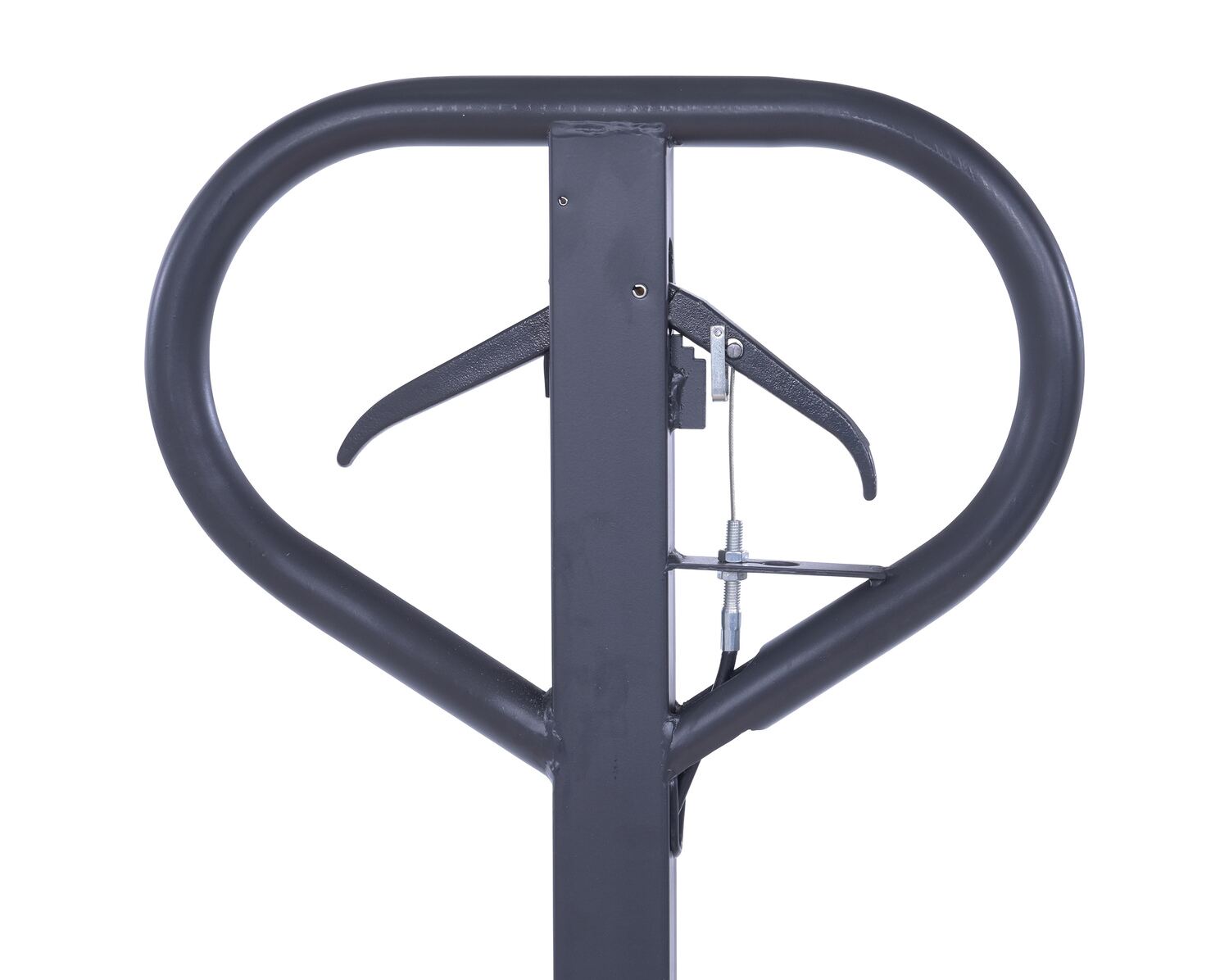

Enhanced load handling safety and precise movement control are the core advantages of this manual pallet jack with an integrated hand brake control. Its braking system helps prevent unplanned movement, making it ideal for tight aisles and high traffic areas. A 5,500 lb capacity, low effort ergonomic pull, and long life hydraulic system ensure dependable performance in demanding industrial environments. Durable components like bearing protected steering wheels, reinforced nose wheels, and a high visibility powder coat finish provide long term reliability and effortless pallet access.
Out of Stock QuickShip
Key Features
  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded

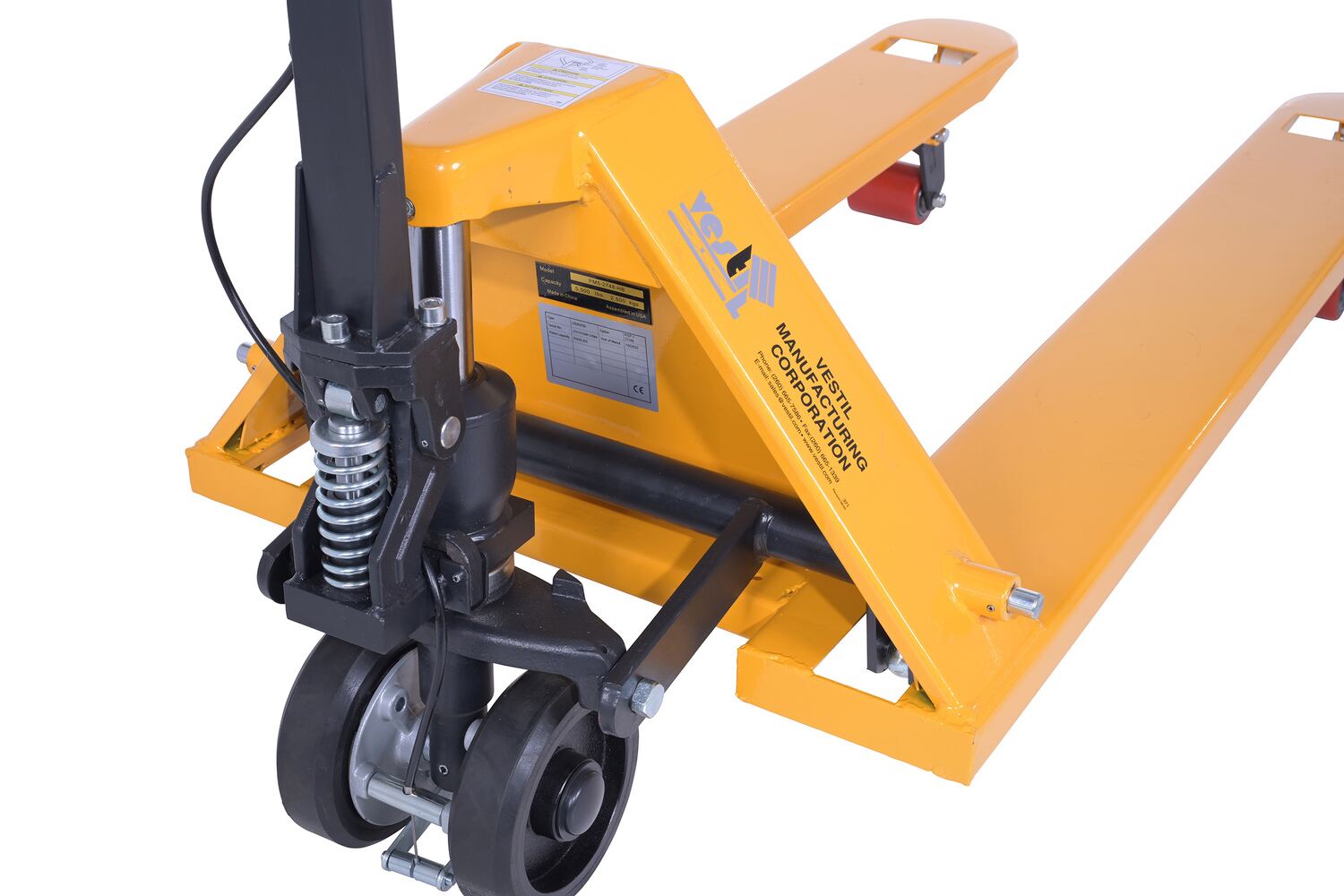

  • Steering wheels include bearing dust covers for added life

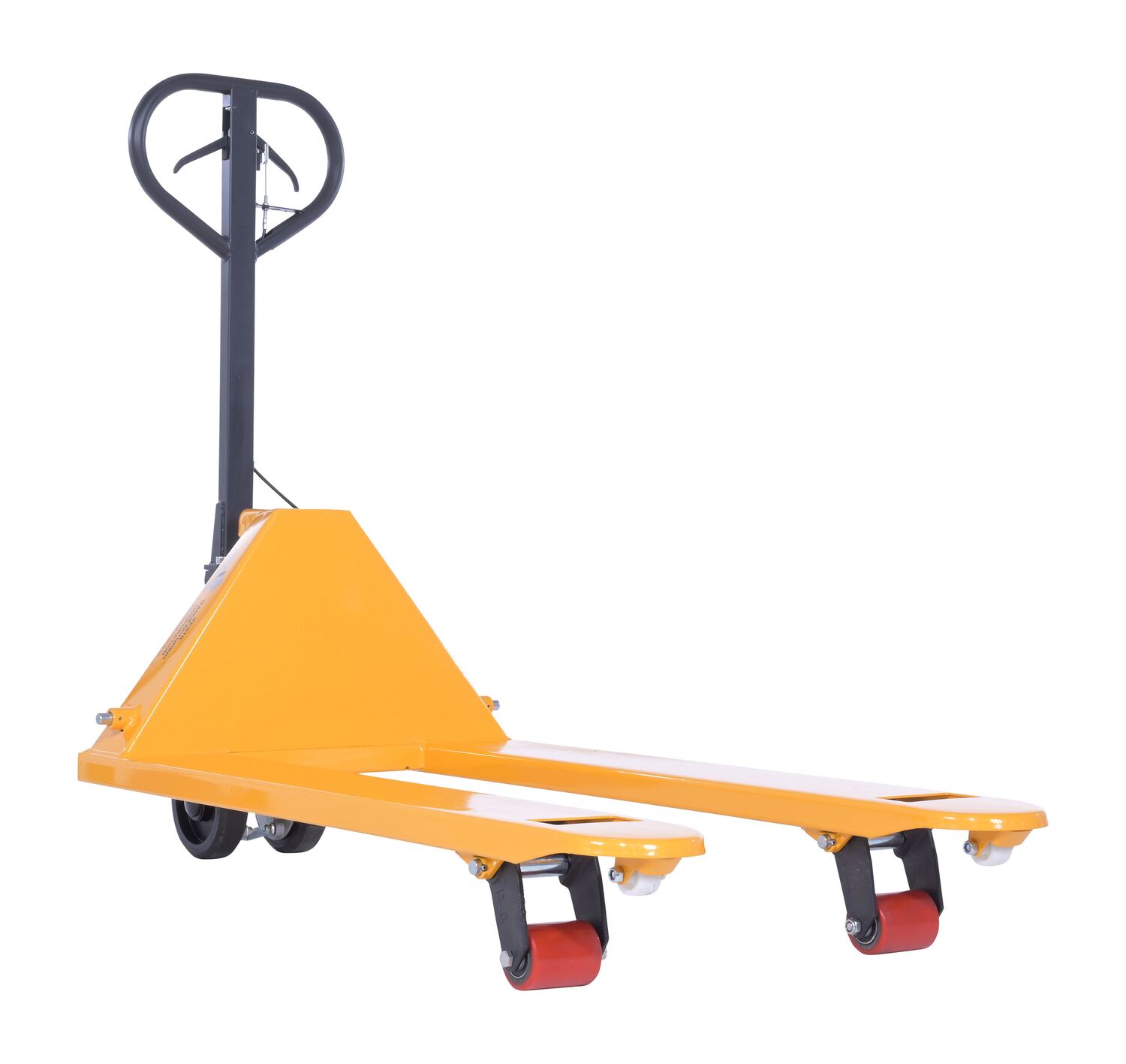

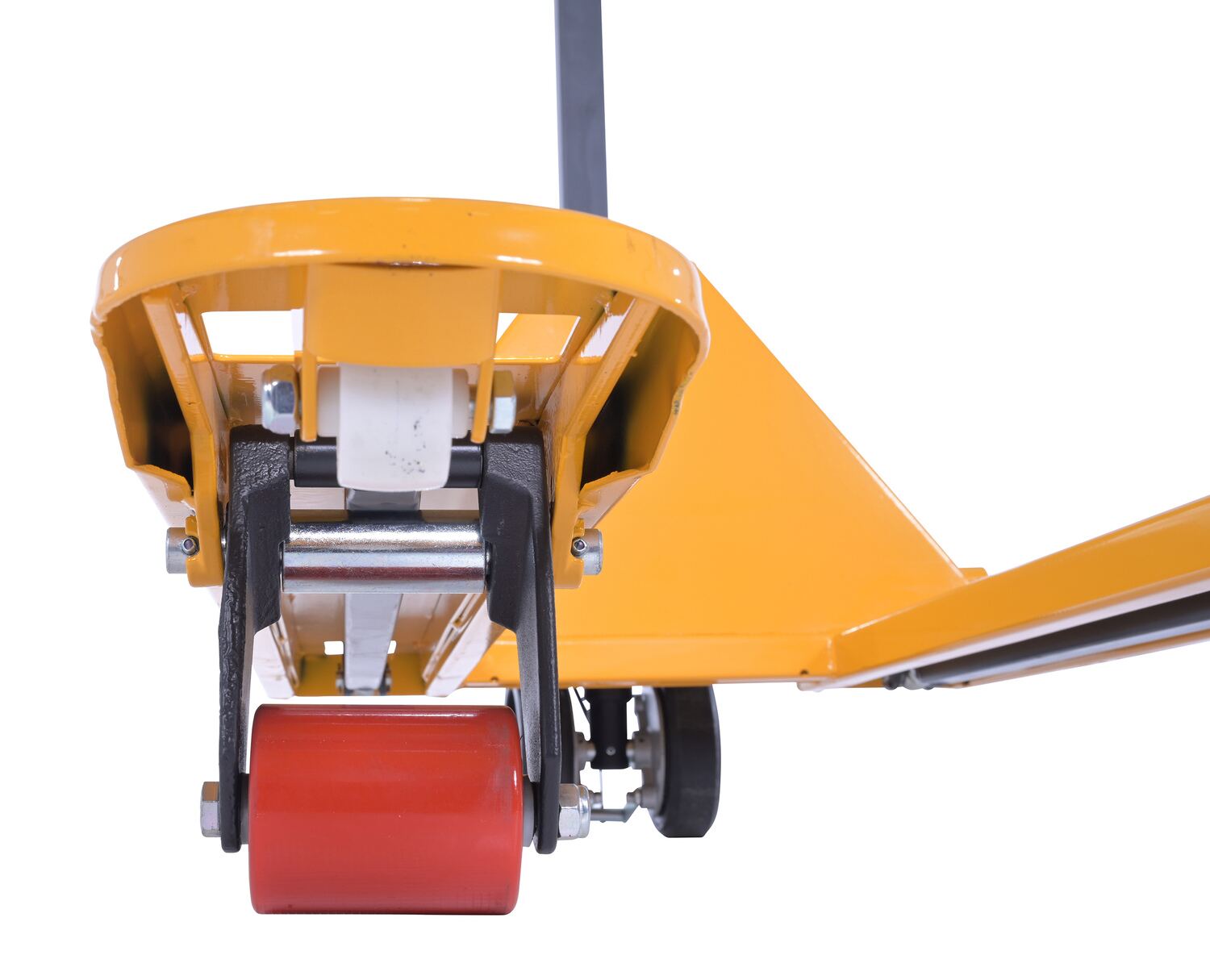

  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit

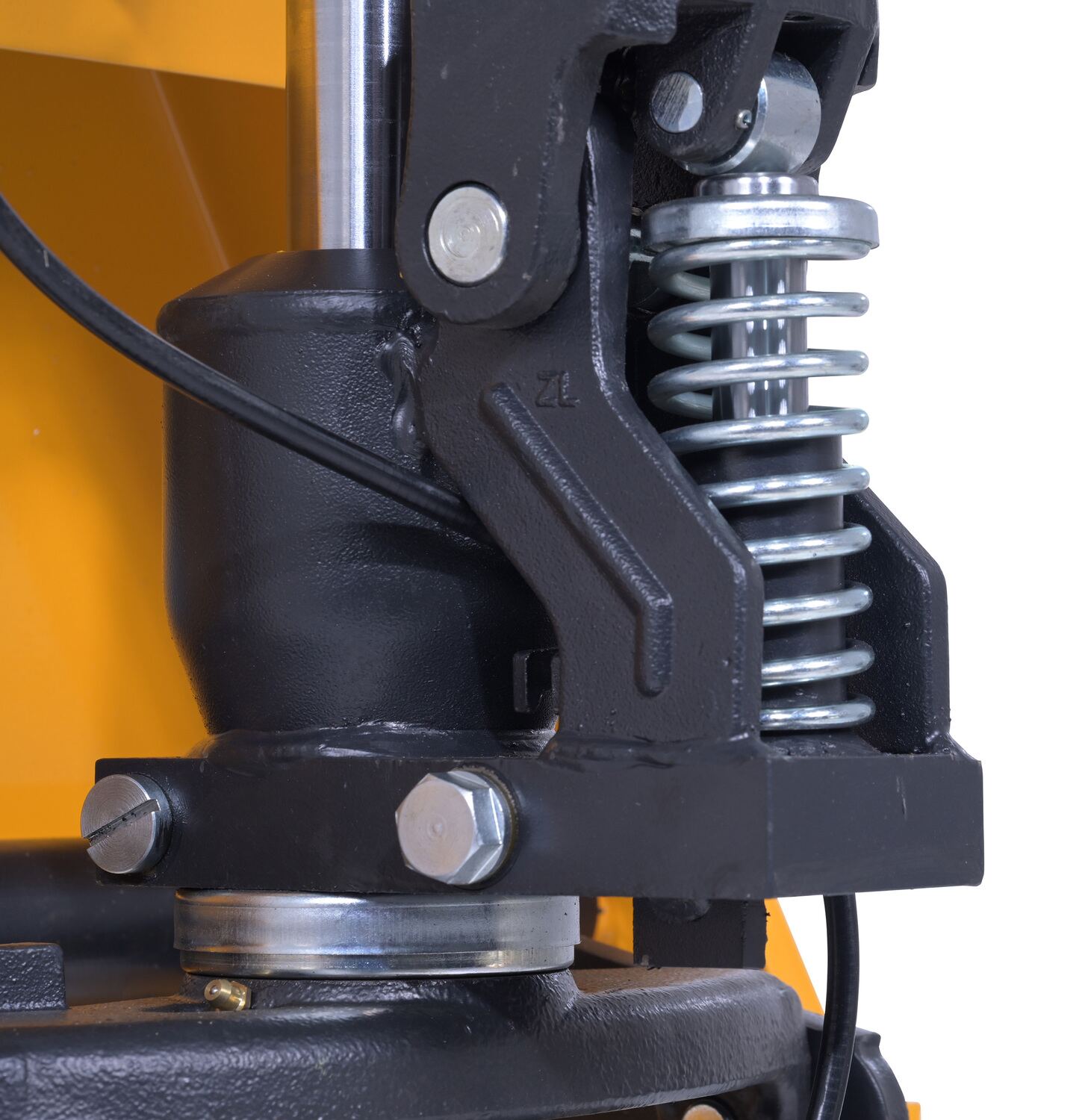

  • Chrome-plated hydraulic pump piston for long seal life
Product Image

Visual Reference

PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
PM5-2748-HB
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 178 lbs
Assembled Size 27"W x 66"L x 49"H
Total Ship Weight 228 lbs
Package 1 Size 41"W x 65"D x 53"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,500
Fork Spacing (in.) 27
Fork Width/Length (in.) 7 x 48
Service Range (in.) 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.) (2) 7 x 2
Steer Caster Material Poly-on-Steel
Load Roller Qty./Diameter/Width (in.) (2) 4 x 3
Load Roller Material Polyurethane
Documents

PDFs & Product Files

  Testing Certificate   1 Year Warranty
