VGP-100-FF

Steel V-Groove Pipe Mover with Foam Filled Wheels 1,000 Lb. Capacity Blue

V-groove pipe mover makes pipe and tubing measuring up to twenty (20) feet long easily moved by one (1) person. The V-groove design keeps loads at the horizontal center of gravity for maximum stability and safety. Large tires will support heavy loads. Includes a handle for added maneuverability.
Contact Vestil
Key Features
  • Oversize wheels allow for use over rough terrain
  • Welded steel handle provides easy maneuvering
  • V-groove design keeps loads at the horizontal center of gravity for maximum stability and safety
  • Powder-coat blue provides a durable finish

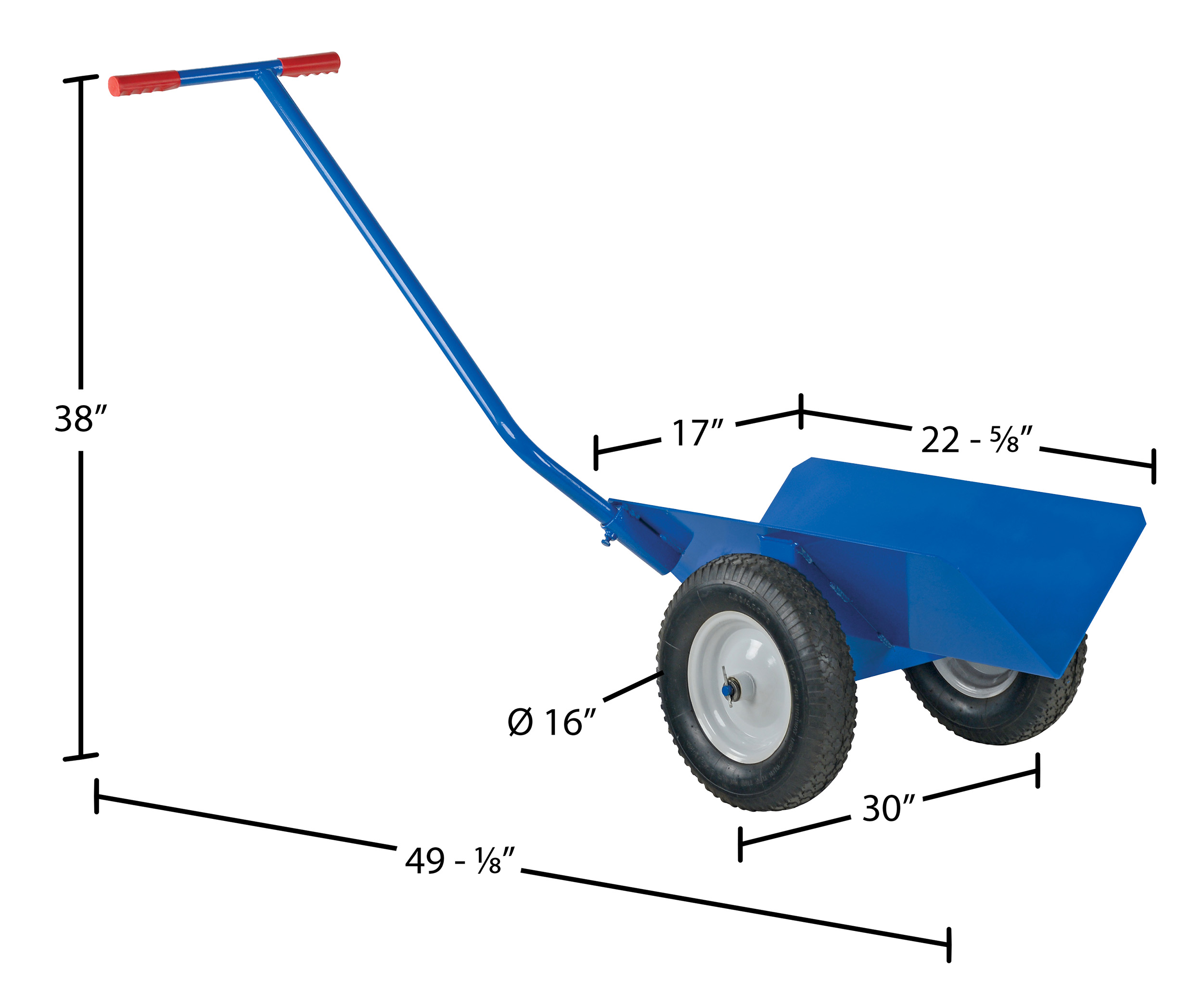

Product Image

Visual Reference

VGP-100-FF
VGP-100-FF
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 94 lbs
Assembled Size 22.625"W x 49.125"L x 38"H
Total Ship Weight 120 lbs
Package 1 Size 40"W x 48"D x 16"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Static Capacity (lb.) 1,000
Cradle Length (in.) 30
Cradle Width (in.) 17
Handle Height (in.) 38
Tire Quantity/Diameter/Width (in.) (2) 16 x 4
Wheel Material Foam Filled
Bottom of "V" (in.) 8-5/8
Top of "V" (in.) 17-1/8
Gauge 3/16
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VGP-100-FF

VGP-100-FF

Steel V-Groove Pipe Mover with Foam Filled Wheels 1,000 Lb. Capacity Blue

V-groove pipe mover makes pipe and tubing measuring up to twenty (20) feet long easily moved by one (1) person. The V-groove design keeps loads at the horizontal center of gravity for maximum stability and safety. Large tires will support heavy loads. Includes a handle for added maneuverability.

  • Oversize wheels allow for use over rough terrain
  • Welded steel handle provides easy maneuvering
  • V-groove design keeps loads at the horizontal center of gravity for maximum stability and safety
  • Powder-coat blue provides a durable finish

Core Data

Assembled Weight: 94 Assembled Size: 22.625"W x 49.125"L x 38"H Color: Blue
Total Ship Weight: 120 Package 1 Size: 40"W x 48"D x 16"H Freight: LTL Palletized

Specifications

Uniform Static Capacity (lb.): 1,000
Cradle Length (in.): 30
Cradle Width (in.): 17
Handle Height (in.): 38
Tire Quantity/Diameter/Width (in.): (2) 16 x 4
Wheel Material: Foam Filled
Bottom of "V" (in.): 8-5/8
Top of "V" (in.): 17-1/8
Gauge: 3/16
