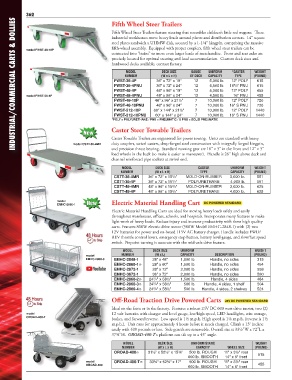

Page 28 - Industrial Carts & Dollies

362
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Fifth Wheel Steer Trailers

Fifth Wheel Steer Trailers feature steering that resembles children’s little red wagons. These
industrial workhorses move heavy loads around plants and distribution centers. 14” square
steel plates sandwich a UHMW disk, secured by a 1-1/4” kingpin, comprising the massive
fifth-wheel assembly. Equipped with proper couplers, fifth wheel steer trailers can be
model FWST-48-10P
connected into “trains” to move even larger loads of merchandise. Front and rear axles are
precisely located for optimal steering and load accommodation. Custom deck sizes and
hardwood decks available, contact factory.
MODEL DECK SIZE GAUGE UNIFORM *CASTER WEIGHT
NUMBER (W x L x H) OF DECK CAPACITY TYPE (POUND)
FWST-36-4P 36" x 72" x 19" 12 5,000 lb. 12" POLY 615
FWST-36-4PNU 36" x 72" x 24" 12 4,500 lb. 16 /8" PNU 615
5
FWST-48-4P 48" x 96" x 19" 12 5,000 lb. 12" POLY 455
model FWST-36-4P FWST-48-4PNU 48" x 96" x 24" 12 4,500 lb. 16" PNU 455
FWST-48-10P 48" x 96" x 21½" 7 10,000 lb. 12" POLY 720
FWST-48-10PNU 48" x 96" x 24" 7 10,000 lb. 16" S PNU 720
FWST-512-10P 60" x 144" x 21½" 7 10,000 lb. 12" POLY 1440
FWST-512-10PNU 60" x 144" x 24" 7 10,000 lb. 16" S PNU 1440
*POLY = POLYURETHANE / PNU = PNEUMATIC / S PNU = SOLID PNEUMATIC

New Caster Steer Towable Trailers
Caster Towable Trailers are engineered for power towing. Units are standard with heavy
model CSTT-36-4MR duty couplers, swivel casters, drop-forged steel construction with integrally forged kingpin,
and precision thrust bearing. Standard running gear are 10" x 3" in the front and 12" x 3"
load wheels in the back (to make it easier to maneuver). Handle is 26" high above deck and
channel reinforced pipe sockets at swivel end.

MODEL DECK SIZE CASTER UNIFORM WEIGHT
NUMBER (W x L x H) TYPE CAPACITY (POUND)
CSTT-36-4MR 36" x 72" x 15 /4" MOLD-ON-RUBBER 3,000 lb. 551
3
CSTT-36-4P 36" x 72" x 15 /4" POLYURETHANE 4,000 lb. 551
3
CSTT-48-4MR 48" x 96" x 15 /4" MOLD-ON-RUBBER 3,000 lb. 625
3
CSTT-48-4P 48" x 96" x 15 /4" POLYURETHANE 4,000 lb. 625
3
model New Electric Material Handling Cart
EMHC-2860-1 DC POWERED STANDARD
Electric Material Handling Carts are ideal for moving heavy loads safely and easily
throughout warehouses, offices, schools, and hospitals. Incorporates many features to make
light work of heavy loads. Reduce injury and increase productivity with these high quality
carts. Features 800W electric drive motor (500W Model EMHC-2848-1) with (2) two
12V batteries for power and on-board 115V AC battery charger. Handle includes FWD/
REV throttle control levers, emergency stop button, battery level gauge, and slow/fast speed
switch. Pinpoint turning is accurate with the mid-axle drive feature.
MODEL DECK SIZE UNIFORM WEIGHT
model NUMBER (W x L) CAPACITY DESCRIPTION (POUND)
EMHC-2860-3 EMHC-2848-1 28" x 48" 1,000 lb. Handle, no sides 315
EMHC-2860-1 28" x 60" 1,500 lb. Handle, no sides 454
EMHC-2872-1 28" x 72" 2,000 lb. Handle, no sides 558
EMHC-3672-1 36" x 72" 2,000 lb. Handle, no sides 590
3
EMHC-2860-2 24 /4" x 58½" 1,500 lb. Handle, 4 sides 484
3
EMHC-2860-3 24 /4" x 58½" 500 lb. Handle, 4 sides, 1 shelf 504
3
EMHC-2860-4 24 /4" x 58½" 500 lb. Handle, 4 sides, 2 shelves 524
Off-Road Traction Drive Powered Carts 24V DC POWERED STANDARD
Ideal on the farm or in the factory. Features a robust 24V DC 600 watt drive motor, two (2)
model 12 volt batteries with charger and level gauge, low/high speed, LED headlights, wire storage,
OROAD-400-T
basket, and forward/reverse. Low speed is 1½ m.p.h. High speed is 1⅞ m.p.h. (reverse is 1½
m.p.h.). Unit runs for approximately 4 hours before it needs charged. Climb a 13° incline
easily with 400 pounds or less. Side guards are removable. Overall size is 33½"W x 72"L x
37¾"H. OROAD-400-T's platform can tilt up to a 45° angle.
MODEL DECK SIZE UNIFORM STATIC WEIGHT
NUMBER (W x L x H) CAPACITY WHEEL SIZE (POUND)
OROAD-400 31½" x 52½" x 15¾" 500 lb. ROUGH 11" x 3½" rear 515
600 lb. SMOOTH 14" x 6" front
model OROAD-400-T 33¾" x 52¾" x 17" 500 lb. ROUGH 11" x 3½" rear
OROAD-400 455
600 lb. SMOOTH 14" x 6" front
