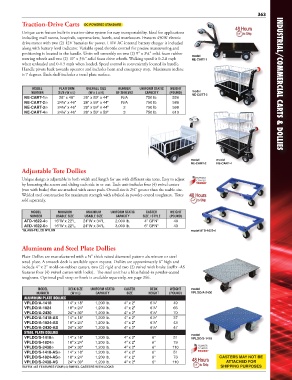

Page 29 - Industrial Carts & Dollies
P. 29
363
Traction-Drive Carts DC POWERED STANDARD
Unique carts feature built-in traction-drive system for easy transportability. Ideal for applications
including mail rooms, hospitals, supermarkets, hotels, and warehouses. Features 450W electric
drive motor with two (2) 12V batteries for power. 110V AC internal battery charger is included
along with battery level indicator. Variable speed throttle control for precise maneuvering and
positioning is located in the handle. Units roll smoothly on two (2) 9" x 3¼" solid foam rubber model
steering wheels and two (2) 10" x 3¼" solid foam drive wheels. Walking speed is 0-2.8 mph NE-CART-1
when unloaded and 0-1.5 mph when loaded. Speed control is conveniently located in handle.
Handle pivots back towards operator and includes horn and emergency stop. Maximum incline
is 7 degrees. Each shelf includes a tread plate surface.
MODEL PLATFORM OVERALL SIZE NUMBER UNIFORM STATIC WEIGHT INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
NUMBER SIZE (W x L) (W x L x H) OF SHELVES CAPACITY (POUND) model
NE-CART-3
NE-CART-1 28" x 48" 28" x 59" x 44" N/A 750 lb. 526
NE-CART-2 24¾" x 46" 28" x 59" x 44" N/A 750 lb. 586
NE-CART-3 24¾" x 46" 28" x 59" x 44" 2 750 lb. 598
NE-CART-4 24¾" x 46" 28" x 59" x 59" 3 750 lb. 610
model model
NE-CART-2 NE-CART-4
Adjustable Tote Dollies
Unique design is adjustable in both width and length for use with different size totes. Easy to adjust
by loosening the screws and sliding each side in or out. Each unit includes four (4) swivel casters
(two with brake) that are attached with caster pads. Overall size is 2½" greater than the usable size.
Welded steel construction for maximum strength with a baked-in powder-coated toughness. Totes
sold separately.
MODEL MINIMUM MAXIMUM UNIFORM STATIC CASTER WEIGHT
NUMBER USABLE SIZE USABLE SIZE CAPACITY SIZE / STYLE (POUND)
ATD-1622-4 16"W x 22"L 24"W x 34"L 2,000 lb. 4" GFN* 40
ATD-1622-6 16"W x 22"L 24"W x 34"L 3,000 lb. 6" GFN* 43
*GLASS-FILLED NYLON model ATD-1622-4
Aluminum and Steel Plate Dollies
Plate Dollies are manufactured with a ⅜" thick raised diamond pattern aluminum or steel
tread plate. A smooth deck is available upon request. Dollies are approximately 6" high and
include 4" x 2" mold-on-rubber casters, two (2) rigid and two (2) swivel with brake (suffix -AS
features four (4) swivel casters with locks). The steel unit has a blue baked-in powder-coated
toughness. Optional pull strap or hook is available separately, see page 366.
MODEL DECK SIZE UNIFORM STATIC CASTER DECK WEIGHT model
NUMBER (W x L) CAPACITY SIZE HEIGHT (POUND) VPLDO/A-2430
ALUMINUM PLATE DOLLIES
VPLDO/A-1418 14" x 18" 1,200 lb. 4" x 2" 6 /8" 49
1
VPLDO/A-1824 18" x 24" 1,200 lb. 4" x 2" 6 /8" 65
1
VPLDO/A-2430 24" x 30" 1,200 lb. 4" x 2" 6 /8" 70
1
VPLDO/A-1418-AS 14" x 18" 1,200 lb. 4" x 2" 6 /8" 37
1
VPLDO/A-1824-AS 18" x 24" 1,200 lb. 4" x 2" 6 /8" 43
1
VPLDO/A-2430-AS 24" x 30" 1,200 lb. 4" x 2" 6 /8" 47
1
STEEL PLATE DOLLIES model
VPLDO/S-1418 14" x 18" 1,200 lb. 4" x 2" 6" 51 VPLDO/S-1418
VPLDO/S-1824 18" x 24" 1,200 lb. 4" x 2" 6" 73
VPLDO/S-2430 24" x 30" 1,200 lb. 4" x 2" 6" 110
VPLDO/S-1418-AS 14" x 18" 1,200 lb. 4" x 2" 6" 51
VPLDO/S-1824-AS 18" x 24" 1,200 lb. 4" x 2" 6" 73 CASTERS MAY NOT BE
VPLDO/S-2430-AS 24" x 30" 1,200 lb. 4" x 2" 6" 110 ATTACHED FOR
SUFFIX -AS FEATURES FOUR (4) SWIVEL CASTERS WITH LOCKS SHIPPING PURPOSES
