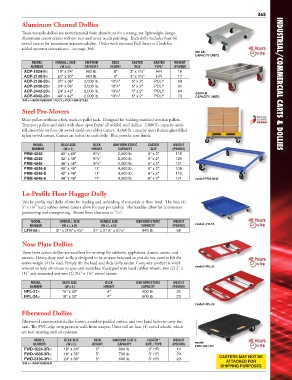

Page 31 - Industrial Carts & Dollies

365
Aluminum Channel Dollies

These versatile dollies are manufactured from aluminum for a strong, yet lightweight design.
Aluminum construction will not rust and never needs painting. Each dolly includes four (4)
swivel casters for maximum maneuverability. Order with optional Pull Strap or Hook for
added operator convenience - see page 366.
900 LB.
CAPACITY UNITS
MODEL OVERALL SIZE UNIFORM DECK CASTER CASTER WEIGHT
NUMBER (W x L) CAPACITY HEIGHT SIZE TYPE* (POUND)
ACP-1824-9 18" x 24" 900 lb. 6" 3" x 1¼" HR 16
ACP-2130-9 21" x 30" 900 lb. 6" 3" x 1¼" HR 17
5
ACP-2136-20 21" x 36" 2,000 lb. 10 /8" 5" x 2" POLY 58
5
ACP-2436-20 24" x 36" 2,000 lb. 10 /8" 5" x 2" POLY 61 INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
5
ACP-2442-20 24" x 42" 2,000 lb. 10 /8" 5" x 2" POLY 64
2,000 LB.
5
ACP-4042-20 40" x 42" 2,000 lb. 10 /8" 5" x 2" POLY 73 CAPACITY UNITS
*HR = HARD RUBBER / POLY = POLY-ON-STEEL
Steel Pro-Movers
Move pallets without a fork truck or pallet jack. Designed for holding standard wooden pallets.
Transport pallets and skids with these open frame all welded steel dollies. 2,000 lb. capacity units
roll smoothly on four (4) swivel mold-on-rubber casters. 4,000 lb. capacity units feature glass-filled-
nylon swivel casters. Casters are bolted to each dolly. Blue powder coat finish.

MODEL DECK SIZE DECK UNIFORM STATIC CASTER WEIGHT
NUMBER (W x L) HEIGHT CAPACITY SIZE (POUND)
PRM-4048 40" x 48" 8 /8" 2,000 lb. 6" x 2" 115
7
PRM-4248 42" x 48" 8 /8" 2,000 lb. 6" x 2" 120
7
PRM-4848 48" x 48" 8 /8" 2,000 lb. 6" x 2" 121
7
PRM-4048-8 40" x 48" 11" 4,000 lb. 8" x 2" 108
PRM-4248-8 42" x 48" 11" 4,000 lb. 8" x 2" 119
PRM-4848-8 48" x 48" 11" 4,000 lb. 8" x 2" 121 model PRM-4048
Lo-Profile Floor Hugger Dolly
This lo-profile steel dolly allows for loading and unloading of materials at floor level. The four (4)
3" x 1¼" hard rubber swivel casters allow for easy portability. The handles allow for convenient
positioning and transporting. Frame floor clearance is /16".
15
MODEL OVERALL SIZE USABLE SIZE UNIFORM STATIC WEIGHT
NUMBER (W x L x H) (W x L x H) CAPACITY (POUND) model LFH-55
5
LFH-55 31" x 21¾" x 4½" 21" x 21½" x 2 /16" 840 lb. 58
Nose Plate Dollies
These lever action dollies are excellent for moving file cabinets, appliances, drums, crates, and
cartons. Heavy-duty steel dolly is designed to be counterbalanced so you do not need to lift the
entire weight of the load. Simply tilt the load and slide dolly under. Complete product is vinyl
covered to help eliminate scrapes and scratches. Equipped with hard rubber wheels, two (2) 3" x model NPL-21
1½" axle mounted and two (2) 2½" x 1¼" swivel casters.
MODEL DECK SIZE DECK UNIFORM STATIC WEIGHT
NUMBER (W x L) HEIGHT CAPACITY (POUND)
NPL-21 15" x 32" 4" 600 lb. 20
NPL-24 18" x 32" 4" 600 lb. 23
model NPL-24
Fiberwood Dollies
Fiberwood construction dollies feature a rubber padded surface and two hand holes to carry the
unit. The PVC edge strip protects walls from scrapes. Units roll on four (4) swivel wheels, which
are non-marring and oil-resistant.
MODEL DECK SIZE DECK UNIFORM STATIC CASTER* WEIGHT
NUMBER (W x L) HEIGHT CAPACITY SIZE / TYPE (POUND) model
FWD-1824-3R
FWD-1824-3R 18" x 24" 5" 800 lb. 3" HR 14
FWD-1836-3R 18" x 36" 5" 700 lb. 3" HR 20 CASTERS MAY NOT BE
FWD-2436-3R 24" x 36" 5" 600 lb. 3" HR 23
*HR = HARD RUBBER ATTACHED FOR
SHIPPING PURPOSES
