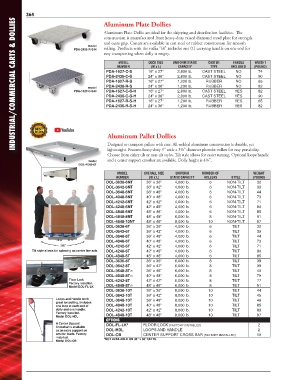

Page 30 - Industrial Carts & Dollies

364
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Aluminum Plate Dollies

Aluminum Plate Dollie are ideal for the shipping and distribution facilities. The
construction is manufactured from heavy-duty raised diamond tread plate for strength
and extra grip. Casters are available in cast steel or rubber construction for smooth
model
PDA-2436-R-S-H rolling. Products with the suffix "H" includes one (1) carrying handle on one end for
easy transporting when dolly is empty.

MODEL DECK SIZE UNIFORM STATIC CASTER HANDLE WEIGHT
NUMBER (W x L) CAPACITY TYPE INCLUDED (POUND)
PDA-1627-C-S 16" x 27" 2,800 lb. CAST STEEL NO 74
PDA-2436-C-S 24" x 36" 2,800 lb. CAST STEEL NO 90
PDA-1627-R-S 16" x 27" 1,200 lb. RUBBER NO 65
PDA-2436-R-S 24" x 36" 1,200 lb. RUBBER NO 82
model
PDA-1627-C-S-H PDA-1627-C-S-H 16" x 27" 2,800 lb. CAST STEEL YES 82
PDA-2436-C-S-H 24" x 36" 2,800 lb. CAST STEEL YES 90
PDA-1627-R-S-H 16" x 27" 1,200 lb. RUBBER YES 65
PDA-2436-R-S-H 24" x 36" 1,200 lb. RUBBER YES 82

Aluminum Pallet Dollies
Designed to transport pallets with ease. All welded aluminum construction is durable, yet
lightweight. Features heavy-duty 3" wide x 3½" diameter phenolic rollers for easy portability.
Choose from either tilt or non-tilt styles. Tilt style allows for easier turning. Optional loops/handle
model and a center support crossbar are available. Dolly height is 4⅛".
DOL-4048-6T
MODEL OVERALL SIZE UNIFORM NUMBER OF WEIGHT
NUMBER (W x L) STATIC CAPACITY ROLLERS STYLE (POUND)
DOL-3636-6NT 36" x 36" 4,000 lb. 6 NON-TILT 32
DOL-3642-6NT 36" x 42" 4,000 lb. 6 NON-TILT 33
DOL-3648-6NT 36" x 48" 4,000 lb. 6 NON-TILT 44
DOL-4048-6NT 40" x 48" 4,000 lb. 6 NON-TILT 73
DOL-4242-6NT 42" x 42" 4,000 lb. 6 NON-TILT 71
DOL-4248-6NT 42" x 48" 4,000 lb. 6 NON-TILT 80
DOL-4848-6NT 48" x 48" 4,000 lb. 6 NON-TILT 85
DOL-4848-8NT 48" x 48" 6,000 lb. 8 NON-TILT 91
DOL-4848-10NT 48" x 48" 8,000 lb. 10 NON-TILT 97
DOL-3636-6T 36" x 36" 4,000 lb. 6 TILT 32
DOL-3642-6T 36" x 42" 4,000 lb. 6 TILT 33
DOL-3648-6T 36" x 48" 4,000 lb. 6 TILT 44
DOL-4048-6T 40" x 48" 4,000 lb. 6 TILT 73
DOL-4242-6T 42" x 42" 4,000 lb. 6 TILT 71
Tilt style allows for spinning on center line axis. DOL-4248-6T 42" x 48" 4,000 lb. 6 TILT 80
DOL-4848-6T 48" x 48" 4,000 lb. 6 TILT 85
DOL-3636-8T 36" x 36" 6,000 lb. 8 TILT 38
DOL-3642-8T 36" x 42" 6,000 lb. 8 TILT 39
DOL-3648-8T 36" x 48" 6,000 lb. 8 TILT 40
DOL-4048-8T 40" x 48" 6,000 lb. 8 TILT 79
Floor Lock DOL-4242-8T 42" x 42" 6,000 lb. 8 TILT 77
Factory installed.
Model DOL-FL-LK DOL-4848-8T 48" x 48" 6,000 lb. 8 TILT 91
DOL-3636-10T 36" x 36" 8,000 lb. 10 TILT 44
DOL-3642-10T 36" x 42" 8,000 lb. 10 TILT 45
Loops and Handle work DOL-3648-10T 36" x 48" 8,000 lb. 10 TILT 46
great for pulling. Includes
one loop at each end of DOL-4048-10T 40" x 48" 8,000 lb. 10 TILT 85
dolly and one handle. DOL-4242-10T 42" x 42" 8,000 lb. 10 TILT 83
Factory installed.
Model DOL-HDL DOL-4848-10T 48" x 48" 8,000 lb. 10 TILT 97
OPTIONS
A Center Support DOL-FL-LK* 2
Crossbar is available FLOOR LOCK (FACTORY INSTALLED)
as an extra support on DOL-HDL LOOPS AND HANDLE 2
smaller loads. Factory DOL-CB CENTER SUPPORT CROSS BAR (FACTORY INSTALLED) 10
installed.
Model DOL-CB *NOT AVAILABLE ON 36" x 36" UNITS.
