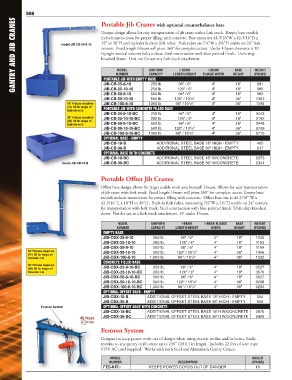

Page 8 - Gantry & Jib Cranes
P. 8

208                            Portable Jib Cranes with optional counterbalance base
       GANTRY AND JIB CRANES  model JIB-CB-50-8-10  include instructions for proper filling with concrete.  Base measures 42-3/16"W x 42-3/16"D x


                                           Unique design allows for easy transportation of jib crane with a fork truck.  Empty base models
                                           18" or 36"H and includes built-in fork tubes.  Fork tubes are 7⅝"W x 2⅝"H usable on 24" fork
                                           centers.  Fixed length I-beam will pivot 360° for complete access.  Under I-beam clearance is 10'.
                                           Upright vertical column bolts to base. Steel construction with blue painted finish.  Units ship
                                           knocked down.  Unit not for use as a fork truck attachment.


                                                 MODEL
                                                               UNIFORM
                                                                                                  BASE
                                                                                                          WEIGHT
                                                                           I-BEAM
                                                                                       I-BEAM
                                                 NUMBER
                                                                                     FLANGE WIDTH
                                                                                                 HEIGHT
                                                                                                          (POUND)
                                                               CAPACITY
                                                                         LENGTH/HEIGHT
                                            PORTABLE JIB WITH EMPTY BASE
                                                                           96" / 6"
                                            JIB-CB-25-8-10
                                                                                        4"
                                            JIB-CB-25-10-10
                                                               250 lb.
                                                                                                  18"
                                                                                                           985
                                                                           96" / 6"
                                                                                                  18"
                                                               500 lb.
                                                                                                           982
                                                                                        4"
                                            JIB-CB-50-8-10     250 lb.    120" / 6"     4"        18"      981
                                            JIB-CB-50-10-10    500 lb.   120" / 10 /8"  4"        36"      1302
                                                                               1
                             18"H base requires   JIB-CB-100-8-10  1000 lb.  96" / 10 /8"  4"     36"      1193
                                                                               1
                             (41) 60 lb. bags of   PORTABLE JIB WITH CONCRETE FILLED BASE
                             Sakrete mix
                                            JIB-CB-25-8-10-BC   250 lb.    96" / 6"     4"        18"      3443
                             36"H base requires   JIB-CB-25-10-10-BC  250 lb.  120" / 6"  4"      18"      3192
                             (82) 60 lb. bags of
                             Sakrete mix    JIB-CB-50-8-10-BC  500 lb.     96" / 6"     4"        18"      3448
                                                                               1
                                            JIB-CB-50-10-10-BC  500 lb.  120" / 10 /8"  4"        36"      5749
                                                                               1
                                            JIB-CB-100-8-10-BC  1000 lb.  96" / 10 /8"  4"        36"      5715
                                            OPTIONAL BASE - EMPTY
                                            JIB-CB-18-B           ADDITIONAL STEEL BASE 18" HIGH - EMPTY   405
                                            JIB-CB-36-B           ADDITIONAL STEEL BASE 36" HIGH - EMPTY   617
                                            OPTIONAL BASE WITH CONCRETE
                                            JIB-CB-18-BC          ADDITIONAL STEEL BASE 18" W/CONCRETE     2073
                           model JIB-CB-18-B  JIB-CB-36-BC        ADDITIONAL STEEL BASE 36" W/CONCRETE     5341
                                           Portable Offset Jib Cranes
                                           Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation
                                           of jib crane with fork truck. Fixed length I-beam will pivot 360° for complete access. Empty base
                                           models include instructions for proper filling with concrete.  Offset base size is 42-3/16" W x
                                           42-3/16" L x 18"H or 36"H.  Built-in fork tubes, measuring 7½"W x 2½"H usable on 24" centers,
                                           for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked
                                           down. Not for use as a fork truck attachment. 10' under I-beam.
                                                  MODEL        UNIFORM      I-BEAM    I-BEAM FLANGE   BASE  WEIGHT
                                                 NUMBER        CAPACITY  LENGTH/HEIGHT  WIDTH     HEIGHT  (POUND)
                                            EMPTY BASE
                                            JIB-CBX-25-8-10     250 lb.     96" / 6"     4"        18"     1240
                                            JIB-CBX-25-10-10    250 lb.    120" / 6"     4"        18"     1193
                                            JIB-CBX-50-8-10     500 lb.     96" / 6"     4"        18"     1169
             18"H base requires             JIB-CBX-50-10-10    500 lb.   120" / 10 /8"  4"        36"     1446
                                                                                1
             (41) 60 lb. bags of
                                                                                1
             Sakrete mix                    JIB-CBX-100-8-10   1,000 lb.  96" / 10 /8"   4"        36"     1332
                                            CONCRETE FILLED BASE
             36"H base requires
             (82) 60 lb. bags of            JIB-CBX-25-8-10-BC  250 lb.     96" / 6"     4"        18"     3527
             Sakrete mix                    JIB-CBX-25-10-10-BC  250 lb.   120" / 6"     4"        18"     3570
                                            JIB-CBX-50-8-10-BC  500 lb.     96" / 6"     4"        18"     3527
                                                                                1
                                            JIB-CBX-50-10-10-BC  500 lb.  120" / 10 /8"  4"        36"     6268
                                            JIB-CBX-100-8-10-BC  1,000 lb.  96" / 10 /8"  4"       36"     6234
                                                                                1
                                            OPTIONAL OFFSET BASE - EMPTY
                                            JIB-CBX-18-B      ADDITIONAL OFFSET STEEL BASE 18" HIGH - EMPTY  350
                                            JIB-CBX-36-B      ADDITIONAL OFFSET STEEL BASE 36" HIGH - EMPTY  520
                  Festoon System            OPTIONAL OFFSET BASE WITH CONCRETE
                                            JIB-CBX-18-BC     ADDITIONAL OFFSET STEEL BASE 18"H W/CONCRETE  2870
                                            JIB-CBX-36-BC     ADDITIONAL OFFSET STEEL BASE 36"H W/CONCRETE  5449
                                           Festoon System
                                           Designed to keep power cords out of danger when using electric trollies and/or hoists. Easily
                                           retrofits to any gantry or jib crane up to 240" (20 ft.) in length.  Includes 22 feet of wire rope.
                                           115V AC cord supplied.  Works with both Steel and Aluminum Gantry Cranes.
                                               MODEL                                                     WEIGHT
                                              NUMBER                       DESCRIPTION                   (POUND)
                                            FES-KIT�           KEEPS POWER CORDS OUT OF DANGER             16
   3   4   5   6   7   8   9   10   11   12   13
