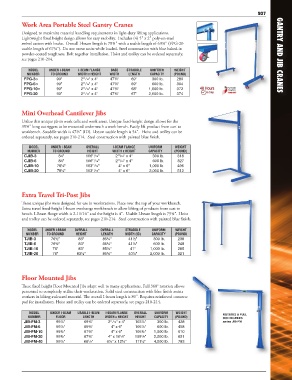

Page 7 - Gantry & Jib Cranes
P. 7

207
          Work Area Portable Steel Gantry Cranes

          Designed to maximize material handling requirements in light-duty lifting applications.
          Lightweight fixed height design allows for easy mobility.  Includes (4) 5" x 2" poly-on-steel
          swivel casters with brake.  Overall I-beam length is 79¾" with a usable length of 69¾" (FPG-20
          usable length of 67¾"). Do not move units while loaded. Steel construction with blue baked-in
          powder-coated toughness. Bolt together installation. Hoist and trolley can be ordered separately,        GANTRY AND JIB CRANES
          see pages 210-214.


             MODEL   UNDER I-BEAM  I-BEAM FLANGE   BASE  STRADDLE  UNIFORM  WEIGHT
            NUMBER    TO GROUND  WIDTH x HEIGHT  WIDTH  LENGTH  CAPACITY  (POUND)
                                   11
           FPG-3�       90"       2 /16" x 4"  47¾"    69"      300 lb.   280
                                   11
           FPG-6�       90"       2 /16" x 4"  47¾"    69"      600 lb.   304
           FPG-10�      90"       2 /16" x 4"  47¾"    68"    1,000 lb.   372
                                   11
           FPG-20       90"       2 /16" x 4"  47¾"    67"    2,000 lb.   374
                                   11
          Mini Overhead Cantilever Jibs
          Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the
          39¾" long outriggers to be mounted underneath a work bench. Easily lift product from cart to
          workbench. Straddle width is 47¾" (ID). I-beam usable length is 54".  Hoist and trolley can be
          ordered separately, see pages 210-214.  Steel construction with painted blue finish.
             MODEL    UNDER I-BEAM   OVERALL    I-BEAM FLANGE   UNIFORM  WEIGHT
            NUMBER     TO GROUND     HEIGHT    WIDTH x HEIGHT  CAPACITY  (POUND)
           CJIB-3        84"        106 /16"     2 /16" x 4"    300 lb.   318
                                                  11
                                       11
           CJIB-6        84"        106 /16"     2 /16" x 4"    600 lb.   327
                                       11
                                                  11
           CJIB-10       78½"       103 /16"      4" x 6"      1,000 lb.  496
                                       11
           CJIB-20       78½"       103 /16"      4" x 6"      2,000 lb.  512
                                       11
          Extra Travel Tri-Post Jibs
          These unique jibs were designed for use in workstations. Place over the top of your workbench.
          Extra travel fixed-height I-beam overhangs workbench to allow lifting of products from cart to
          bench. I-Beam flange width is 2-11/16" and the height is 4".  Usable I-beam length is 79¾". Hoist
          and trolley can be ordered separately, see pages 210-214.  Steel construction with painted blue finish.

            MODEL   UNDER I-BEAM  OVERALL  OVERALL   STRADDLE   UNIFORM  WEIGHT
            NUMBER  TO GROUND   HEIGHT     LENGTH    WIDTH (ID)  CAPACITY  (POUND)
           TJIB-3     76½"       83"       85¼"       41½"      300 lb.   238
           TJIB-6     76½"       83"       85¼"       41½"      600 lb.   248
           TJIB-10     76"       83"       85½"        41"     1,000 lb.  285
           TJIB-20     76"       83½"      85¾"       40¼"     2,000 lb.  321



          Floor Mounted Jibs

          These fixed height Floor Mounted Jibs adapt well to many applications. Full 360° rotation allows
          personnel to completely utilize their workstation. Solid steel construction with blue finish assists
          workers in lifting awkward material. The overall I-beam length is 80". Requires reinforced concrete
          pad for installation. Hoist and trolley can be ordered separately, see pages 210-214.

             MODEL    UNDER I-BEAM   USABLE I-BEAM  I-BEAM FLANGE  OVERALL  UNIFORM  WEIGHT  ROTATES A FULL
             NUMBER     FLOOR      LENGTH   WIDTH x HEIGHT  HEIGHT  CAPACITY  (POUND)        360 DEGREES
           JIB-FM-3     99¼"        69¾"      2 /16" x 4"  103¼"  300 lb.  428               series JIB-FM
                                               11
           JIB-FM-6     99¼"        69¾"       4" x 6"   105¼"    600 lb.  458
           JIB-FM-10    99½"        67¾"       4" x 6"   105½"   1,000 lb.  610
           JIB-FM-20    99½"        67¾"      4" x 10 /8"  109 /8"  2,000 lb.  651
                                                   1
                                                           5
           JIB-FM-40    99¼"        66 /8"   6½" x 12¼"  111½"   4,000 lb.  783
                                     1
