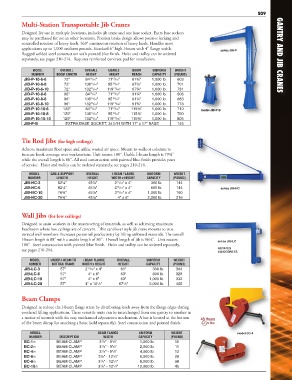

Page 9 - Gantry & Jib Cranes

P. 9

```
209
Multi-Station Transportable Jib Cranes
Designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets
may be purchased for use in other locations. Friction brake design allows positive locking and
controlled rotation of heavy loads. 360° continuous rotation of heavy loads. Handles most
applications up to 1,000 uniform pounds. Standard 6" high I-beam with 4" flange width. series JIB-P
Rugged welded steel construction with painted blue finish. Hoist and trolley can be ordered GANTRY AND JIB CRANES
separately, see pages 210-214. Requires reinforced concrete pad for installation.
MODEL OVERALL OVERALL USABLE BOOM UNIFORM WEIGHT
NUMBER BOOM LENGTH HEIGHT HEIGHT REACH CAPACITY (POUND)
11
JIB-P-10-6-6 72" 84 /16" 71 /16" 67¾" 1,000 lb. 603
13
11
13
JIB-P-10-6-8 72" 108 /16" 95 /16" 67¾" 1,000 lb. 701
JIB-P-10-6-10 72" 132 /16" 119 /16" 67¾" 1,000 lb. 731
13
11
13
11
JIB-P-10-8-6 96" 84 /16" 71 /16" 91¾" 1,000 lb. 606
JIB-P-10-8-8 96" 108 /16" 95 /16" 91¾" 1,000 lb. 683
11
13
JIB-P-10-8-10 96" 132 /16" 119 /16" 91¾" 1,000 lb. 773
11
13
JIB-P-10-10-6 120" 84 /16" 71 /16" 115¾" 1,000 lb. 710 model JIB-P-B
13
11
JIB-P-10-10-8 120" 108 /16" 95 /16" 115¾" 1,000 lb. 790
11
13
13
JIB-P-10-10-10 120" 132 /16" 119 /16" 115¾" 1,000 lb. 805
11
JIB-P-B EXTRA BASE SOCKET, 34½"H WITH 17" x 17" BASE 145
Tie Rod Jibs (for high ceilings)
Achieve maximum floor space and utilize wasted air space. Mount to walls or columns to
increase hook coverage over workstations. Unit rotates 180°. Usable I-beam length is 79¾"
while the overall length is 86". All steel construction with painted blue finish provides years
of service. Hoist and trolley can be ordered separately, see pages 210-214.
MODEL CABLE SUPPORT OVERALL I-BEAM FLANGE UNIFORM WEIGHT
NUMBER LENGTH HEIGHT WIDTH x HEIGHT CAPACITY (POUND)
11
JIB-HC-3 82¼" 45¼" 2 /16" x 4" 300 lb. 144
JIB-HC-6 82¼" 45¼" 2 /16" x 4" 600 lb. 144 series JIB-HC
11
JIB-HC-10 76¾" 45¼" 2 /16" x 4" 1,000 lb. 160
11
JIB-HC-20 76¾" 45¼" 4" x 6" 2,000 lb. 216
Wall Jibs (for low ceilings)
Designed to assist workers in the maneuvering of materials, as well as achieving maximum
headroom where low ceilings are of concern. This cantilever style jib crane mounts to true
vertical wall members. Increases personnel productivity by lifting awkward materials. The overall
I-beam length is 88" with a usable length of 80". Overall length of jib is 96⅛". Unit rotates series JIB-LC
180°. Steel construction with painted blue finish. Hoist and trolley can be ordered separately,
see pages 210-214. ROTATES
180 DEGREES
MODEL UNDER I-BEAM TO I-BEAM FLANGE OVERALL UNIFORM WEIGHT
NUMBER BOTTOM FRAME WIDTH x HEIGHT HEIGHT CAPACITY (POUND)
JIB-LC-3 57" 2 /16" x 4" 61" 300 lb. 304
11
JIB-LC-6 57" 4" x 6" 63" 600 lb. 328
JIB-LC-10 57" 4" x 6" 63" 1,000 lb. 332
1
JIB-LC-20 57" 4" x 10 /8" 67 /8" 2,000 lb. 405
1
Beam Clamps
Designed to reduce the I-beam flange stress by distributing loads away from the flange edges during
overhead lifting applications. These versatile units can be interchanged from one gantry to another in
a matter of seconds with the easy mechanical adjustment mechanism. A bar is located at the bottom
of the beam clamp for attaching a hoist (sold separately). Steel construction and painted finish.
MODEL BEAM FLANGE UNIFORM WEIGHT model BC-4
NUMBER DESCRIPTION WIDTH CAPACITY (POUND)
5
1
BC-1� BEAM CLAMP 3 /8" - 9 /8" 1,000 lb. 10
1
5
BC-2� BEAM CLAMP 3 /8" - 9 /8" 2,000 lb. 11
5
1
BC-4� BEAM CLAMP 3 /8" - 9 /8" 4,000 lb. 12
1
BC-6� BEAM CLAMP 3½" - 12 /4" 6,000 lb. 28
1
1
BC-8� BEAM CLAMP 3 /2" - 12 /4" 8,000 lb. 38
1
1
BC-10� BEAM CLAMP 3 /2" - 12 /4" 10,000 lb. 45
```
