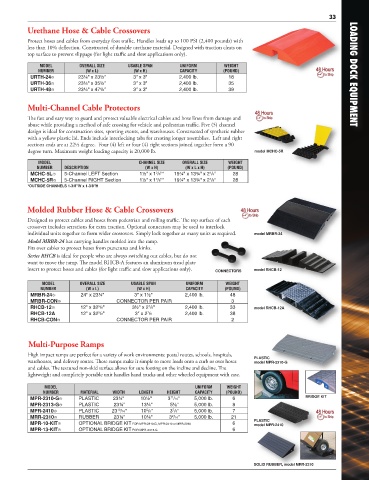

Page 27 - Loading Dock Equipment
P. 27
33
Urethane Hose & Cable Crossovers
Protect hoses and cables from everyday foot traffic. Handles loads up to 100 PSI (2,400 pounds) with
less than 10% deflection. Constructed of durable urethane material. Designed with traction cleats on
top surface to prevent slippage (for light traffic and slow applications only).
MODEL OVERALL SIZE USABLE SPAN UNIFORM WEIGHT
NUMBER (W x L) (W x H) CAPACITY (POUND)
URTH-24 23¼" x 23½" 3" x 3" 2,400 lb. 18 LOADING DOCK EQUIPMENT
URTH-36 23¼" x 35½" 3" x 3" 2,400 lb. 35
URTH-48 23¼" x 47½" 3" x 3" 2,400 lb. 39
Multi-Channel Cable Protectors
The fast and easy way to guard and protect valuable electrical cables and hose lines from damage and
abuse while providing a method of safe crossing for vehicle and pedestrian traffic. Five (5) channel
design is ideal for construction sites, sporting events, and warehouses. Constructed of synthetic rubber
with a yellow plastic lid. Ends include interlocking tabs for creating longer assemblies. Left and right
sections ends are at 22½ degree. Four (4) left or four (4) right sections joined together form a 90
degree turn. Maximum weight loading capacity is 20,000 lb. model MCHC-5R
MODEL CHANNEL SIZE OVERALL SIZE WEIGHT
NUMBER DESCRIPTION (W x H) (W x L x H) (POUND)
1
3
MCHC-5L 5-Channel LEFT Section 1½" x 1 /8"* 19¼" x 13¾" x 2 /8" 28
3
1
MCHC-5R 5-Channel RIGHT Section 1½" x 1 /8"* 19¼" x 13¾" x 2 /8" 28
*OUTSIDE CHANNELS 1-3/8"W x 1-3/8"H
Molded Rubber Hose & Cable Crossovers
Designed to protect cables and hoses from pedestrian and rolling traffic. The top surface of each
crossover includes serrations for extra traction. Optional connectors may be used to interlock
individual units together to form wider crossovers. Simply lock together as many units as required. model MRBR-24
Model MRBR-24 has carrying handles molded into the ramp.
Fits over cables to protect hoses from punctures and kinks.
Series RHCB is ideal for people who are always switching out cables, but do not
want to move the ramp. The model RHCB-A features an aluminum tread plate
insert to protect hoses and cables (for light traffic and slow applications only). CONNECTORS model RHCB-12
MODEL OVERALL SIZE USABLE SPAN UNIFORM WEIGHT
NUMBER (W x L) (W x H) CAPACITY (POUND)
MRBR-24 24" x 23¼" 3" x 1½" 2,400 lb. 48
MRBR-CON CONNECTOR PER PAIR 3
5
RHCB-12 12" x 32 /8" 3½" x 2 /8" 2,400 lb. 33 model RHCB-12A
7
RHCB-12A 12" x 32 /8" 3" x 2 /8 2,400 lb. 38
5
7
RHCB-CON CONNECTOR PER PAIR 2
Multi-Purpose Ramps
High impact ramps are perfect for a variety of work environments: postal routes, schools, hospitals,
warehouses, and delivery routes. These ramps make it simple to move loads onto a curb or over hoses PLASTIC
model MPR-2310-G
and cables. The textured non-skid surface allows for sure footing on the incline and decline. The
lightweight and completely portable unit handles hand trucks and other wheeled equipment with ease.
MODEL UNIFORM WEIGHT
NUMBER MATERIAL WIDTH LENGTH HEIGHT CAPACITY (POUND)
11
MPR-2310-G PLASTIC 23¼" 10½" 3 /16" 5,000 lb. 6 BRIDGE KIT
MPR-2313-G PLASTIC 23¼" 13¼" 5½" 5,000 lb. 8
7
5
13
MPR-2410 PLASTIC 23 /16" 10 /8" 3 /8" 5,000 lb. 7
MRR-2310 RUBBER 23¼" 10¼" 3 /16" 5,000 lb. 21 PLASTIC
9
MPR-10-KIT OPTIONAL BRIDGE KIT FOR MPR-2310-G, MPR-2410 or MRR-2310 6 model MPR-2410
MPR-13-KIT OPTIONAL BRIDGE KIT FOR MPR-2313-G 6
SOLID RUBBER, model MRR-2310
