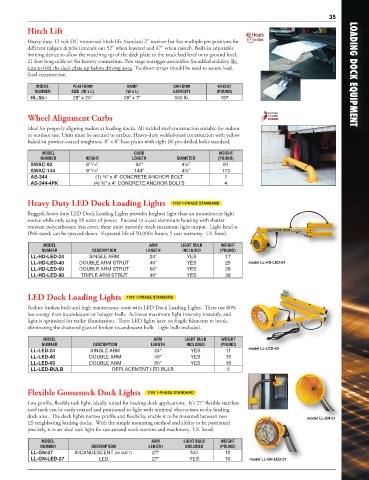

Page 29 - Loading Dock Equipment

35
Hitch Lift

Heavy-duty 12 volt DC motorized hitch lift. Standard 2" receiver bar has multiple pin positions for
different tailgate depths (extends out 52" when lowered and 47" when raised). Built-in adjustable
limiting device to allow the matching up of the deck plate to the truck bed level or to ground level.
21 foot long cable set for battery connection. Two stage outrigger assemblies for added stability. Be
sure to fold the deck plate up before driving away. Tie down straps should be used to secure load.
Steel construction. LOADING DOCK EQUIPMENT

MODEL PLATFORM RAMP UNIFORM WEIGHT
NUMBER SIZE (W x L) (W x L) CAPACITY (POUND)
HL-55 28" x 25" 28" x 7" 550 lb. 187

Wheel Alignment Curbs

Ideal for properly aligning trailers at loading docks. All welded steel construction suitable for indoor
or outdoor use. Units must be secured to surface. Heavy-duty welded-steel construction with yellow
baked-in powder-coated toughness. 8" x 8" base plates with eight (8) pre-drilled holes standard.

MODEL CURB WEIGHT
NUMBER HEIGHT LENGTH DIAMETER (POUND)
SWAC-92 8 /16" 92" 4½" 81
15
SWAC-144 8 /16" 144" 4½" 173
15
AS-344 (1) ¾" x 4" CONCRETE ANCHOR BOLT 1
AS-344-4PK (4) ¾" x 4" CONCRETE ANCHOR BOLTS 4
Heavy Duty LED Dock Loading Lights 115V 1-PHASE STANDARD

Rugged, heavy duty LED Dock Loading Lights provides brighter light than an incandescent light
source while only using 18 watts of power. Encased in a cast aluminum housing with shatter
resistant polycarbonate lens cover, these units instantly reach maximum light output. Light head is
IP66 rated; can be sprayed down. Expected life of 50,000+ hours; 5 year warranty. UL listed.
MODEL ARM LIGHT BULB WEIGHT
NUMBER DESCRIPTION LENGTH INCLUDED (POUND)
LL-HD-LED-24 SINGLE ARM 24" YES 17
LL-HD-LED-40 DOUBLE ARM STRUT 40" YES 25 model LL-HD-LED-24
LL-HD-LED-60 DOUBLE ARM STRUT 60" YES 28
LL-HD-LED-90 TRIPLE ARM STRUT 90" YES 38

LED Dock Loading Lights 115V 1-PHASE STANDARD
Reduce broken bulb and high maintenance costs with LED Dock Loading Lights. These use 80%
less energy than incandescent or halogen bulb. Achieves maximum light intensity instantly, and
light is optimized for trailer illumination. These LED lights have no fragile filaments to break,
eliminating the shattered glass of broken incandescent bulb. Light bulb included.

MODEL ARM LIGHT BULB WEIGHT
NUMBER DESCRIPTION LENGTH INCLUDED (POUND)
LL-LED-24 SINGLE ARM 24" YES 11 model LL-LED-40
LL-LED-40 DOUBLE ARM 40" YES 15
LL-LED-60 DOUBLE ARM 60" YES 18
LL-LED-BULB REPLACEMENT LED BULB 2

Flexible Gooseneck Dock Lights 115V 1-PHASE STANDARD

Low profile, flexible task light, ideally suited for loading dock applications. It's 27˝ flexible stainless
steel neck can be easily rotated and positioned to light with minimal obstruction to the loading
dock area. The dock lights narrow profile and flexibility enable it to be mounted between two model LL-GN-27
(2) neighboring loading docks. With the simple mounting method and ability to be positioned
precisely, it is an ideal task light for use around work stations and machinery. UL listed.
MODEL ARM LIGHT BULB WEIGHT
NUMBER DESCRIPTION LENGTH INCLUDED (POUND)
LL-GN-27 INCANDESCENT (90 WATT) 27" NO 10
LL-GN-LED-27 LED 27" YES 10 model LL-GN-LED-27
