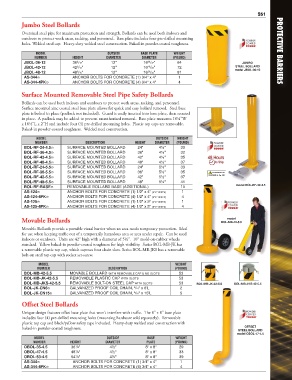

Page 13 - Protective Barriers

261
Jumbo Steel Bollards

Oversized steel pipe for maximum protection and strength. Bollards can be used both indoors and
outdoors to protect work areas, racking, and personnel. Base plate includes four pre-drilled mounting
holes. Welded steel cap. Heavy-duty welded steel construction. Baked-in powder-coated toughness.

MODEL OUTSIDE BASE PLATE WEIGHT PROTECTIVE BARRIERS
NUMBER HEIGHT DIAMETER DIAMETER (POUND)
JBOL-36-12 36 /16" 12" 16 /32" 64 JUMBO
29
3
STEEL BOLLARD
JBOL-42-12 42 /16" 12" 16 /32" 72 model JBOL-36-12
3
29
JBOL-48-12 48 /16" 12" 16 /32" 81
3
29
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4
Surface Mounted Removable Steel Pipe Safety Bollards
Bollards can be used both indoors and outdoors to protect work areas, racking, and personnel.
Surface mounted zinc coated steel base plate allows for quick and easy bollard removal. Steel base
plate is bolted in place (padlock not included). Guard is easily inserted into base plate, then secured
in place. A padlock may be added to prevent unauthorized removal. Base plate measures 10¼"W
x 10½"L x 2"H and include four (4) pre-drilled mounting holes. Plastic top caps are removable.
Baked-in powder-coated toughness. Welded steel construction.
MODEL OUTSIDE WEIGHT
NUMBER DESCRIPTION HEIGHT DIAMETER (POUND)
BOL-RF-24-4.5� SURFACE MOUNTED BOLLARD 24" 4½" 30
BOL-RF-36-4.5� SURFACE MOUNTED BOLLARD 36" 4½" 32
BOL-RF-42-4.5� SURFACE MOUNTED BOLLARD 42" 4½" 35
BOL-RF-48-4.5� SURFACE MOUNTED BOLLARD 48" 4½" 37
BOL-RF-24-5.5� SURFACE MOUNTED BOLLARD 24" 5½" 33
BOL-RF-36-5.5� SURFACE MOUNTED BOLLARD 36" 5½" 35 CA Residents see
WARNING A, Pg. 459
BOL-RF-42-5.5� SURFACE MOUNTED BOLLARD 42" 5½" 37
BOL-RF-48-5.5� SURFACE MOUNTED BOLLARD 48" 5½" 41
model BOL-RF-42-4.5
BOL-RF-BASE� REMOVABLE BOLLARD BASE (ADDITIONAL) 10
AS-124� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 4" (4 1 /2" UNITS) 1
AS-124-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 4" (4 1 /2" UNITS) 4
AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" (5 1 /2" UNITS) 1
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" (5 1 /2" UNITS) 4

Movable Bollards BOL-MB-42-5.5
model
Movable Bollards provide a portable visual barrier when an area needs temporary protection. Ideal
for use when keeping traffic out of a temporarily hazardous area or area under repair. Can be used
indoors or outdoors. Units are 42" high with a diameter of 5½". 10" mold-on-rubber wheels
standard. Yellow baked-in powder-coated toughness for high visibility. Series BOL-MB-JK has
a removable plastic top cap, which exposes four chain slots. Series BOL-MB-JKS has a removable
bolt-on steel top cap with socket set-screw.

MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
BOL-MB-42-5.5 MOVABLE BOLLARD WITH REMOVABLE CAP & NO SLOTS 53
BOL-MB-JK-42-5.5 REMOVABLE PLASTIC CAP WITH SLOTS 53
BOL-MB-JKS-42-5.5 REMOVABLE BOLT-ON STEEL CAP WITH SLOTS 53 BOL-MB-JK-42-5.5 BOL-MB-JKS-42-5.5
3
BOL-JK-CN6� GALVANIZED PROOF COIL CHAIN, /16" x 6'L 2
3
BOL-JK-CN15� GALVANIZED PROOF COIL CHAIN, /16" x 15'L 5
Offset Steel Bollards
Unique design features offset base plate that won't interfere with traffic. The 8" x 8" base plate
includes four (4) pre-drilled mounting holes (mounting hardware sold separately). Removable
plastic top cap and black/yellow safety tape included. Heavy-duty welded steel construction with
baked-in powder-coated toughness. OFFSET
STEEL BOLLARD
model OBOL-47-4.5
MODEL OUTSIDE BASE WEIGHT
NUMBER HEIGHT DIAMETER PLATE (POUND)
OBOL-35-4.5 36 /8" 4½" 8" x 8" 29
1
OBOL-47-4.5 48 /8" 4½" 8" x 8" 33
1
OBOL-53-4.5 54 /8" 4½" 8" x 8" 39
1
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4
