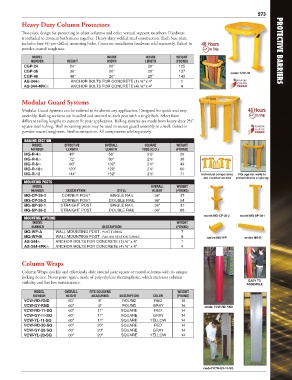

Page 25 - Protective Barriers

273
Heavy Duty Column Protectors

Two-piece design for protecting in-plant columns and other vertical support members. Hardware
is included to connect both pieces together. Heavy-duty welded steel construction. Each base plate
includes four (4) pre-drilled mounting holes. Concrete installation hardware sold separately. Baked-in
powder-coated toughness. PROTECTIVE BARRIERS
MODEL INSIDE INSIDE WEIGHT
NUMBER HEIGHT WIDTH LENGTH (POUND)
CGP-24 24" 20" 20" 125
CGP-36 36" 20" 20" 137 model CGP-36
CGP-48 48" 20" 20" 140
AS-344� ANCHOR BOLTS FOR CONCRETE (1) ¾" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) ¾" x 4" 4

Modular Guard Systems

Modular Guard Systems can be ordered to fit almost any application. Designed for quick and easy
assembly. Railing sections are installed and secured to each post with a single bolt. Select from
different railing lengths to custom fit your application. Railing systems are made from heavy-duty 2½"
square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. Baked-in
powder-coated toughness. Steel construction. All components sold separately.

RAILING SECTION
MODEL EFFECTIVE OVERALL SQUARE WEIGHT
NUMBER LENGTH LENGTH TUBE (O.D.) (POUND)
MG-R-4� 48" 56" 2½" 29
MG-R-6� 72" 80" 2½" 38
MG-R-8� 96" 102" 2½" 49
MG-R-10� 120" 128" 2½" 60
MG-R-12 144" 152" 2½" 71 Individual components Fits against walls to
are installed on-site protect drains or piping
MOUNTING POSTS
MODEL OVERALL WEIGHT
NUMBER DESCRIPTION STYLE HEIGHT (POUND)
MG-CP-36-1 CORNER POST SINGLE RAIL 36" 37
MG-CP-36-2 CORNER POST DOUBLE RAIL 36" 54
MG-SP-36-1 STRAIGHT POST SINGLE RAIL 36" 37
MG-SP-36-2 STRAIGHT POST DOUBLE RAIL 36" 68
model MG-CP-36-2 model MG-SP-36-1
MOUNTING OPTIONS
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
MG-WP-A WALL MOUNTING POST - POST TUBING 7
MG-WP-B WALL MOUNTING POST - RAILING SECTION TUBING 8 series MG-WP series MG-R
AS-344� ANCHOR BOLTS FOR CONCRETE (1) ¾" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) ¾" x 4" 4

Column Wraps
Column Wraps quickly and effortlessly slide around your square or round columns with its unique
locking device. Never paint again, made of polyethylene thermoplastic, which increases column
visibility and has low maintenance. EASY TO
ASSEMBLE
MODEL OVERALL FITS COLUMNS WEIGHT
NUMBER HEIGHT MEASURING DESCRIPTION COLOR (POUND)
VCW-RD-RND 60" 8" ROUND RED 16
VCW-GY-RND 60" 8" ROUND GRAY 16 model VCW-RD-RND
VCW-RD-11-SQ 60" 11" SQUARE RED 14
VCW-GY-11-SQ 60" 11" SQUARE GRAY 14
VCW-YL-11-SQ 60" 11" SQUARE YELLOW 14
VCW-RD-20-SQ 60" 20" SQUARE RED 14
VCW-GY-20-SQ 60" 20" SQUARE GRAY 14
VCW-YL-20-SQ 60" 20" SQUARE YELLOW 14

model VCW-GY-11-SQ
